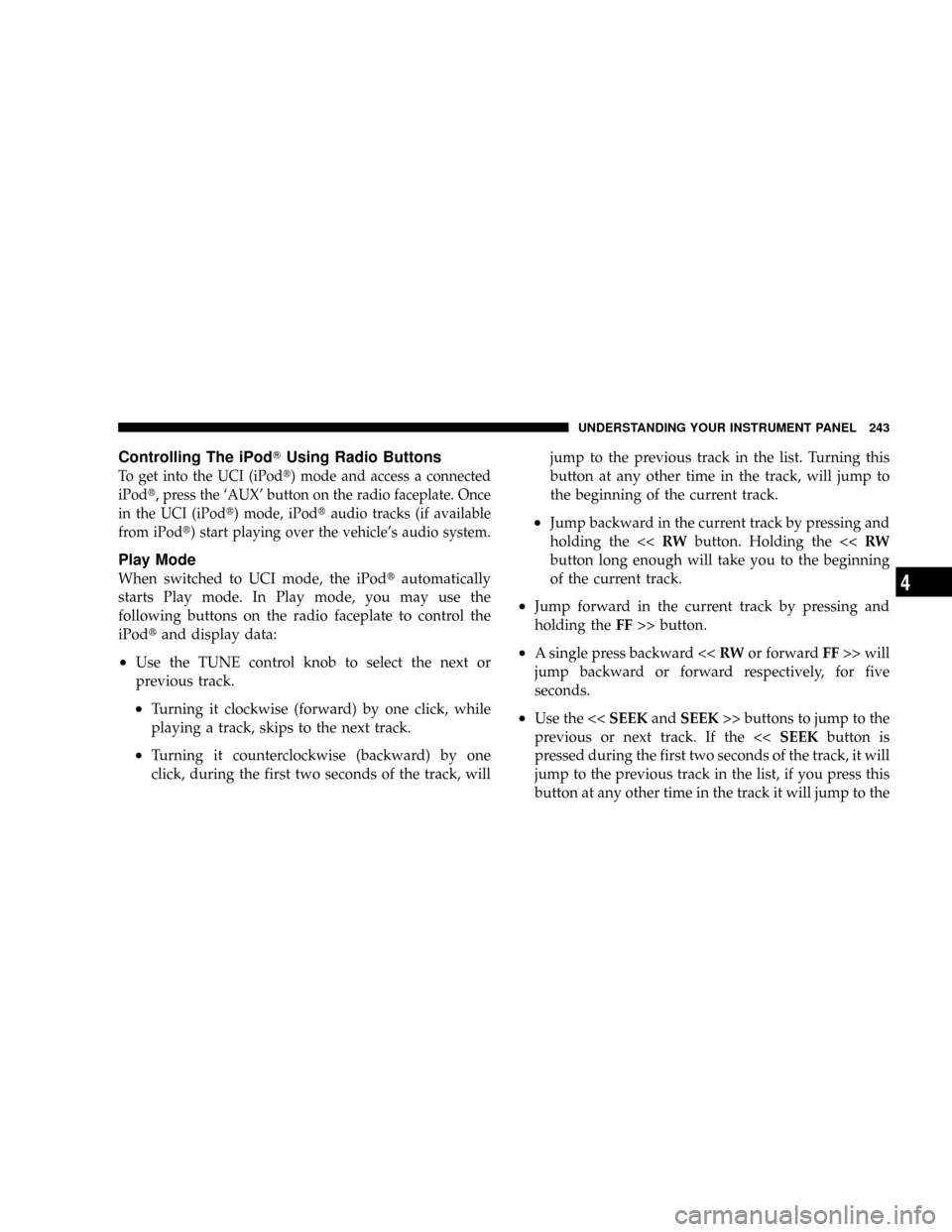

Page 245 of 481
Controlling The iPodTUsing Radio Buttons
To get into the UCI (iPodt) mode and access a connected
iPodt, press the `AUX' button on the radio faceplate. Once
in the UCI (iPodt) mode, iPodtaudio tracks (if available
from iPodt) start playing over the vehicle's audio system.
Play Mode
When switched to UCI mode, the iPodtautomatically
starts Play mode. In Play mode, you may use the
following buttons on the radio faceplate to control the
iPodtand display data:
²Use the TUNE control knob to select the next or
previous track.
²Turning it clockwise (forward) by one click, while
playing a track, skips to the next track.
²Turning it counterclockwise (backward) by one
click, during the first two seconds of the track, willjump to the previous track in the list. Turning this
button at any other time in the track, will jump to
the beginning of the current track.
²Jump backward in the current track by pressing and
holding the <
of the current track.
²Jump forward in the current track by pressing and
holding theFF>> button.
²A single press backward <
jump backward or forward respectively, for five
seconds.
²Use the <
previous or next track. If the <
jump to the previous track in the list, if you press this
button at any other time in the track it will jump to the
UNDERSTANDING YOUR INSTRUMENT PANEL 243
4
Page 246 of 481
beginning of the track. If you press theSEEK>>
button during play mode, it will jump to the next track
in the list.
²While a track is playing, press theINFObutton to see
the associated metadata (Artist, track title, album, etc.)
for that track. Pressing theINFObutton again jumps
to the next screen of data for that track. Once you have
seen all screens, the lastINFObutton press will take
you back to the play mode screen on the radio.
²Pressing theREPEATbutton will change the iPodt
mode to repeat the current playing track.
²Press theSCANbutton to use iPodtscan mode, which
will play the first five seconds of each track in the
current list and then forward to the next song. To stop
SCAN mode and start playing the desired track, when
it is playing the track, press theSCANbutton again.During Scan mode you can also press the <
tracks.
²RNDbutton (available on sales code RES radio only):
Pressing this button toggles between Shuffle ON and
Shuffle OFF modes for the iPodt.IftheRNDicon is
showing on the radio display, then the shuffle mode is
ON.
List Or Browse Mode
During Play mode, pressing any of the buttons described
below, takes you to List mode. List mode enables you to
scroll through the list of menus and tracks on the iPodt.
²TUNEcontrol knob: TheTUNEcontrol knob functions
in a similar manner as the scroll wheel on the iPodt.
²Turning it clockwise (forward) and counterclock-
wise (backward) scrolls through the lists, displaying
the track detail on the radio display. Once you have
244 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 279 of 481
WARNING! (Continued)
²Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle. If the vehicle has a dis-
charged battery, booster cables may be used to
obtain a start from a booster battery or the battery
in another vehicle. This type of start can be dan-
gerous if done improperly. Refer to Section 6 of
this manual for proper jump starting procedures
and follow them carefully.
If the engine fails to start after you have followed the
ªNormal Startingº or ªExtreme Cold Weatherº proce-
dures, it may be flooded. To clear any excess fuel, push
the accelerator pedal all the way to the floor and hold it.
Then, turn the ignition switch to the START position andrelease it as soon as the starter engages. The starter motor
will disengage automatically in 10 seconds. Once this
occurs, release the accelerator pedal, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the normal starting procedure.
CAUTION!
To prevent damage to the starter, wait 10 to 15
seconds before trying again.
After Starting
The idle speed is automatically controlled on fuel injected
engines and will decrease as the engine warms up.
STARTING AND OPERATING 277
5
Page 369 of 481
WHAT TO DO IN EMERGENCIES
CONTENTS
mHazard Warning Flasher................. 368
mJacking Instructions.................... 369
NJack Location....................... 369
NRemoving The Spare Tire............... 370
NTire Changing Procedure............... 371
mJump±Starting Procedures................ 377mFreeing A Stuck Vehicle................. 379
mEmergency Tow Hooks Ð If Equipped....... 380
mTowing A Disabled Vehicle............... 381
NFour-Wheel Drive Vehicles.............. 381
NTwo-Wheel Drive Vehicles.............. 381
6

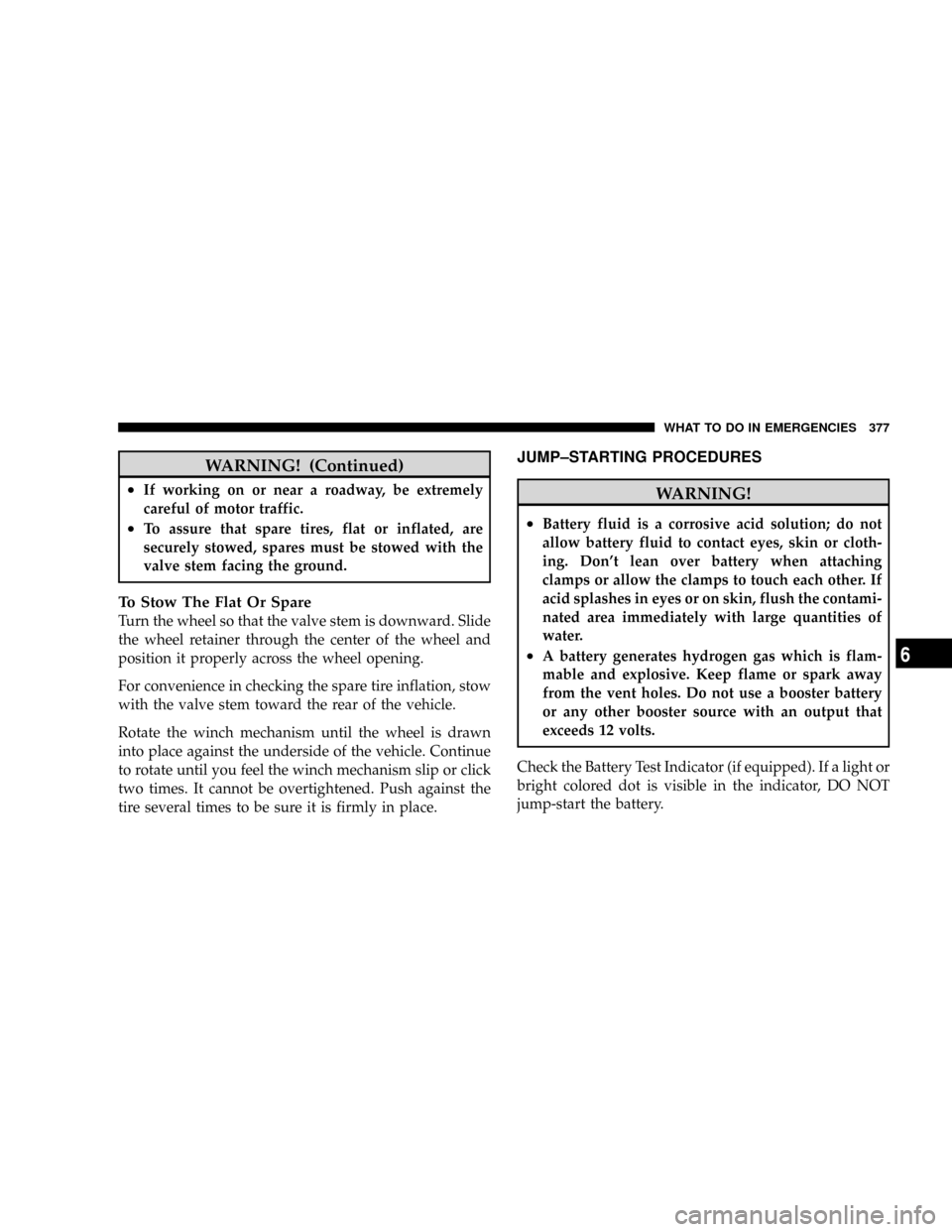

Page 379 of 481
WARNING! (Continued)
²If working on or near a roadway, be extremely
careful of motor traffic.
²To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
To Stow The Flat Or Spare
Turn the wheel so that the valve stem is downward. Slide
the wheel retainer through the center of the wheel and
position it properly across the wheel opening.
For convenience in checking the spare tire inflation, stow
with the valve stem toward the rear of the vehicle.
Rotate the winch mechanism until the wheel is drawn
into place against the underside of the vehicle. Continue
to rotate until you feel the winch mechanism slip or click
two times. It cannot be overtightened. Push against the
tire several times to be sure it is firmly in place.
JUMP±STARTING PROCEDURES
WARNING!
²Battery fluid is a corrosive acid solution; do not
allow battery fluid to contact eyes, skin or cloth-
ing. Don't lean over battery when attaching
clamps or allow the clamps to touch each other. If
acid splashes in eyes or on skin, flush the contami-
nated area immediately with large quantities of
water.
²A battery generates hydrogen gas which is flam-
mable and explosive. Keep flame or spark away
from the vent holes. Do not use a booster battery
or any other booster source with an output that
exceeds 12 volts.
Check the Battery Test Indicator (if equipped). If a light or
bright colored dot is visible in the indicator, DO NOT
jump-start the battery.
WHAT TO DO IN EMERGENCIES 377
6

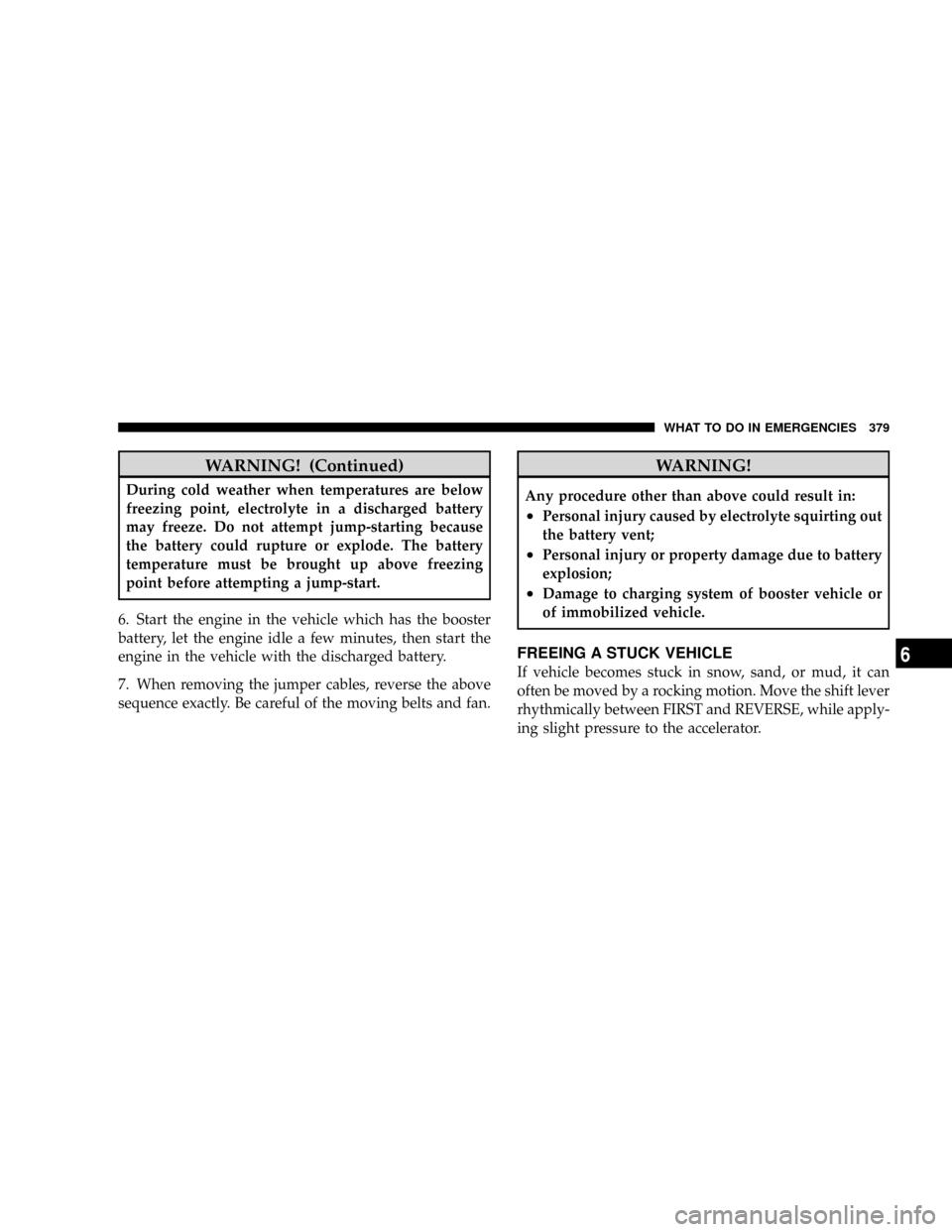

Page 381 of 481
WARNING! (Continued)
During cold weather when temperatures are below
freezing point, electrolyte in a discharged battery
may freeze. Do not attempt jump-starting because
the battery could rupture or explode. The battery
temperature must be brought up above freezing
point before attempting a jump-start.
6. Start the engine in the vehicle which has the booster
battery, let the engine idle a few minutes, then start the
engine in the vehicle with the discharged battery.
7. When removing the jumper cables, reverse the above
sequence exactly. Be careful of the moving belts and fan.
WARNING!
Any procedure other than above could result in:
²Personal injury caused by electrolyte squirting out
the battery vent;
²Personal injury or property damage due to battery
explosion;
²Damage to charging system of booster vehicle or
of immobilized vehicle.
FREEING A STUCK VEHICLE
If vehicle becomes stuck in snow, sand, or mud, it can
often be moved by a rocking motion. Move the shift lever
rhythmically between FIRST and REVERSE, while apply-
ing slight pressure to the accelerator.
WHAT TO DO IN EMERGENCIES 379
6
Page 466 of 481
Traction Control System................. 300
Electronic Roll Mitigation (ERM)............. 302
Electronic Speed Control (Cruise Control)...... 155
Electronic Stability Program (ESP).........212,303
Electronic Vehicle Information Center
(EVIC).............................163,167
Emergency, In Case of
Freeing Vehicle When Stuck............... 379
Jacking............................. 371
Tow Hooks.......................... 380
Towing............................. 381
Emission Control System Maintenance......388,436
Engine
Air Cleaner.......................... 393
Block Heater......................... 278
Break-In Recommendations................ 74
Compartment......................385,386
Coolant (Antifreeze).................... 432
Exhaust Gas Caution................40,75,340Fails to Start.......................... 276
Flooded, Starting...................... 276
Fuel Requirements..................... 431
Jump Starting......................... 377
Multi-Displacement..................... 294
Oil ...........................390,431,432
Oil Filler Cap...................385,386,391
Oil Selection.......................391,431
Oil Synthetic......................... 392
Starting............................. 275
Temperature Gauge..................... 204
Entry System, Illuminated.................. 20
Event Data Recorder...................... 63
Exhaust Gas Caution..............40,75,340,398
Exhaust System.......................75,397
Extender, Seat Belt........................ 53
Fabric Care............................ 412
464 INDEX
Page 476 of 481
Spare Tire..........................319,320
Speed Control (Cruise Control).............. 155
Speedometer........................... 206
Starting............................... 275
Emergency (Jump Starting)............... 377
Engine Block Heater.................... 278
Engine Fails to Start.................... 276
Remote.............................. 28
Starting Procedures...................... 275
Steering
Column Controls...................... 148
Column Lock.......................... 14
Power...........................293,294
Wheel, Tilt........................... 152
Steering Wheel Mounted Sound System Controls. . 252
Storage, Vehicle......................... 423
Stuck, Freeing.......................... 379
Sun Roof.............................. 183
Supplemental Tire Pressure Information........ 325Synthetic Engine Oil...................... 392
System, Remote Starting.................... 28
Tachometer............................ 207
Taillights.............................. 425
Temperature Control, Automatic (ATC)........ 260
Temperature Gauge, Engine Coolant.......... 204
Tether Anchor, Child Restraint............... 68
Theft System Arming...................... 19
Theft System Disarming.................... 19
Tilt Steering Column..................... 152
Tire and Loading Information Placard......312,325
Tire Identification Number (TIN)............. 311
Tire Markings.......................... 307
Tire Safety Information.................... 307
Tires ............................77,316,456
Aging (Life of Tires).................... 322
Air Pressure.......................... 316
Alignment........................... 324
474 INDEX
