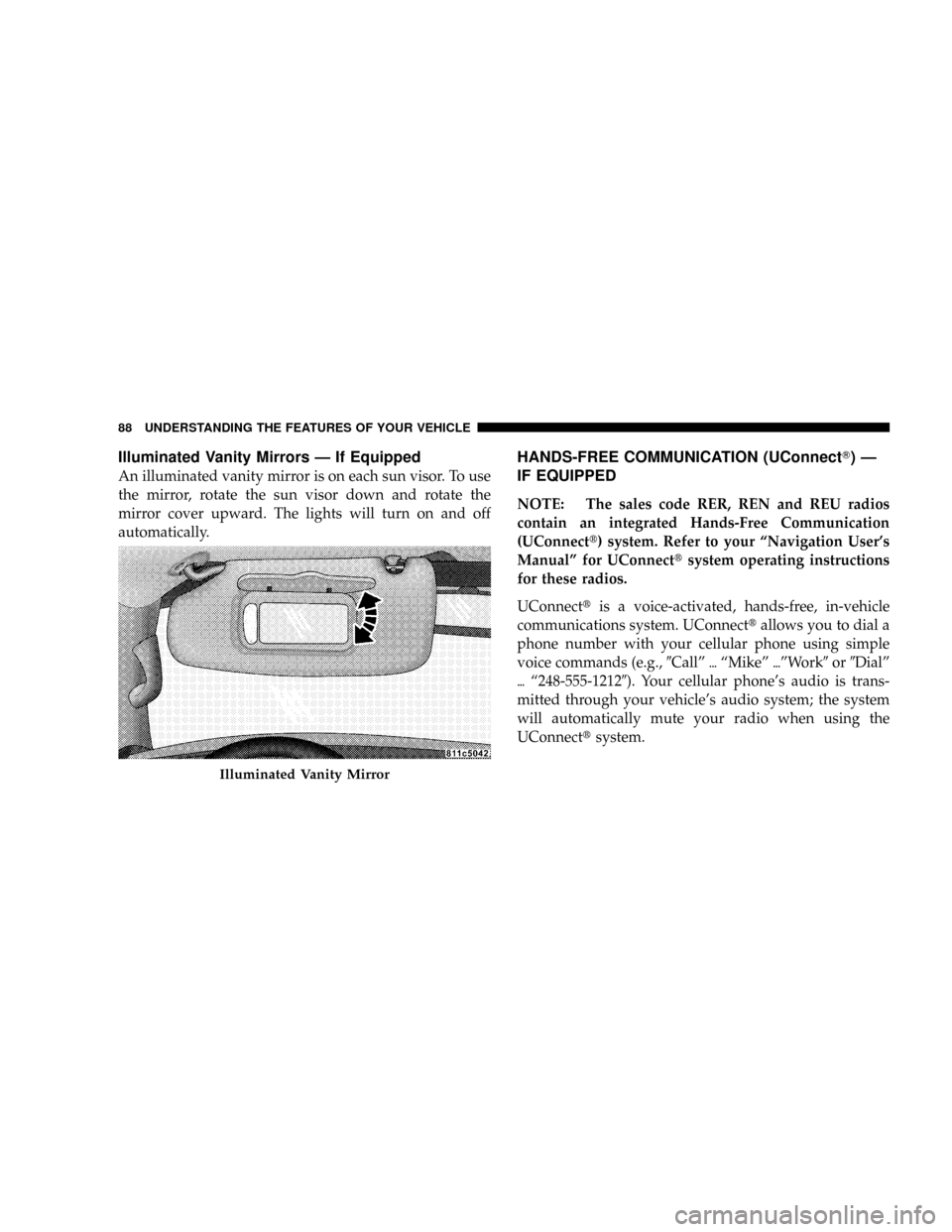

Illuminated Vanity Mirrors Ð If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and rotate the
mirror cover upward. The lights will turn on and off
automatically.
HANDS-FREE COMMUNICATION (UConnectT)Ð
IF EQUIPPED
NOTE: The sales code RER, REN and REU radios
contain an integrated Hands-Free Communication
(UConnectt) system. Refer to your ªNavigation User's
Manualº for UConnecttsystem operating instructions
for these radios.
UConnecttis a voice-activated, hands-free, in-vehicle
communications system. UConnecttallows you to dial a
phone number with your cellular phone using simple
voice commands (e.g.,9Callº{ªMikeº{ºWork9or9Dialº
{ª248-555-12129). Your cellular phone's audio is trans-
mitted through your vehicle's audio system; the system
will automatically mute your radio when using the
UConnecttsystem.
Illuminated Vanity Mirror
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If ªSERVICE PARK ASSIST SYSTEMº appears in the
Electronic Vehicle Information Center (EVIC) after mak-
ing sure the rear bumper is clean, please see your
authorized dealer.
Cleaning The Rear Park Assist System
Clean the Rear Park Assist sensors with water, car wash
soap and a soft cloth. Do not use rough or hard cloths.
Do not scratch or poke the sensors, you could damage the
sensors.
REAR BACKUP CAMERA Ð IF EQUIPPED
Your vehicle may be equipped with a Rear Camera
system that allows you to see an on-screen image (located
in the screen of your Radio) of the rear of your vehicle
whenever it is put into REVERSE. The camera is located
in the light bar over the rear license plate.NOTE:Refer to ªSetting Display Propertiesº under
ªSystem Settingsº in the Navigation User's Manual for
instructions regarding navigation screen brightness ad-
justments.
Use the following steps to access the Rear Camera
feature:
1. Start the engine.
2. Depress the brake pedal and place the shift lever into
REVERSE.
NOTE:The camera view will display only while the
vehicle is in REVERSE.
3. Wait one to two seconds and the camera view will
display on the radio screen.
4. Perform a visual check of the rear area.
NOTE:CHECK ENTIRE SURROUNDINGS before
backing up.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
3

When the ignition switch is in the OFF position, or when
the radio frequency is being displayed, timekeeping is
accurately maintained.
On the AM/FM/CD (6-disc) radio, the time button
alternates the location of the time and frequency on the
display. On the AM/FM/CD (single-disc) radio, only one
of the two, time or frequency, is displayed.
Clock Setting Procedure
1. Press and hold the TIME button until the hours blink.
2. Adjust the hours by turning the TUNE/AUDIO con-
trol knob.
3. After the hours are adjusted, push the TUNE/AUDIO
control knob to set the minutes.
4. Adjust the minutes by turning the TUNE/AUDIO
control knob.5. To exit, press any button/knob, or wait approximately
five seconds.
AM/FM/CD/DVD MULTIMEDIA SYSTEM RADIO
(RER/REN) ± IF EQUIPPED
NOTE:The sales code is located on the lower right side
of the unit's faceplate.
The REN and RER Multimedia systems contain a radio,
CD/DVD player, USB port, a 20-gigabyte hard drive
(HDD), and a ªJukeBoxº (virtual CD changer). Sirius
Satellite Radio is optional. The 6.5 in (16.5 cm) touch
screen allows for easy menu selection.
The RER radio also contains a Global Positioning System
(GPS) based Navigation system.
Refer to your Multimedia system (REN) or Navigation
(RER) user's manual for detailed operating instructions.
UNDERSTANDING YOUR INSTRUMENT PANEL 217
4

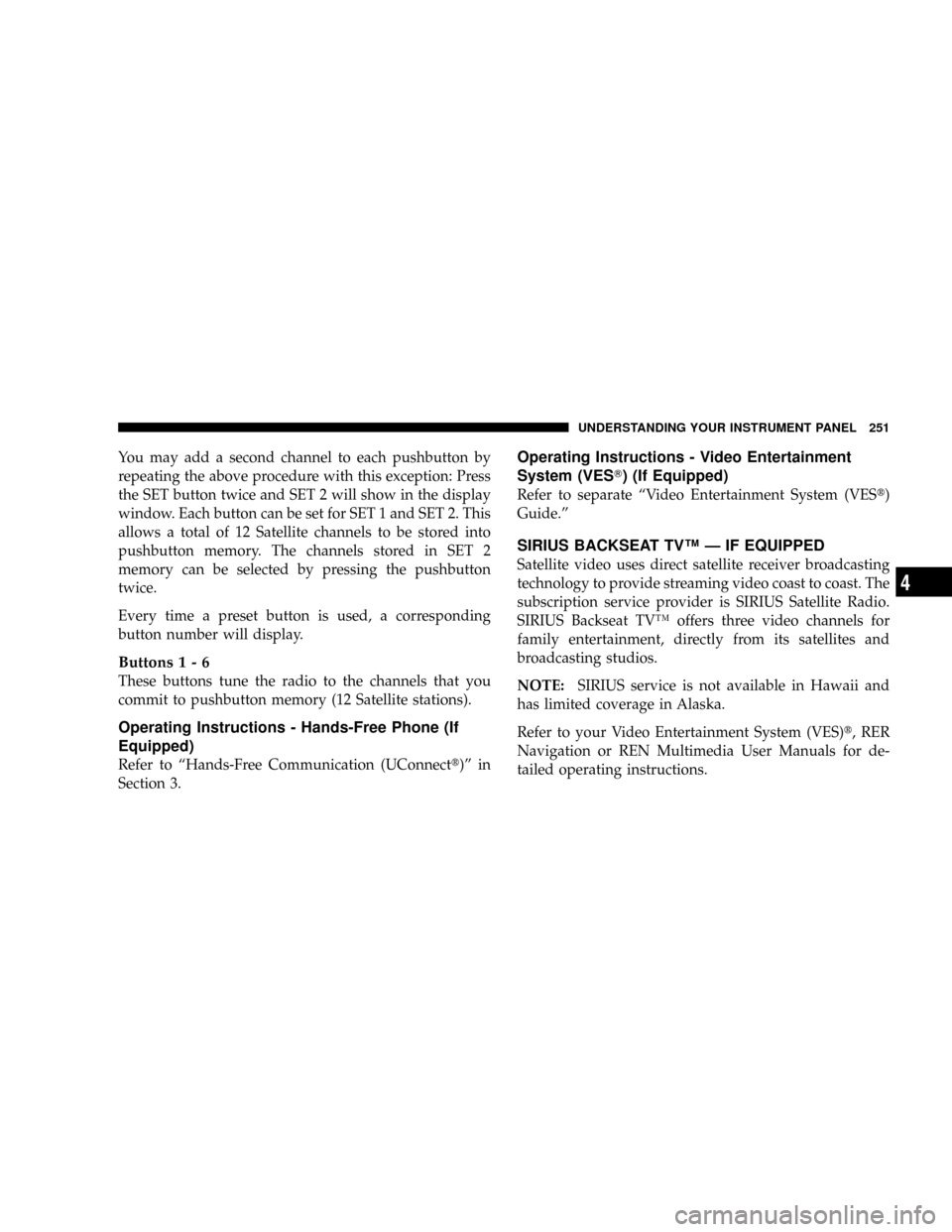

You may add a second channel to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2. This
allows a total of 12 Satellite channels to be stored into
pushbutton memory. The channels stored in SET 2
memory can be selected by pressing the pushbutton
twice.
Every time a preset button is used, a corresponding
button number will display.
Buttons1-6
These buttons tune the radio to the channels that you
commit to pushbutton memory (12 Satellite stations).
Operating Instructions - Hands-Free Phone (If
Equipped)
Refer to ªHands-Free Communication (UConnectt)º in
Section 3.
Operating Instructions - Video Entertainment
System (VEST) (If Equipped)
Refer to separate ªVideo Entertainment System (VESt)
Guide.º
SIRIUS BACKSEAT TVŸ Ð IF EQUIPPED
Satellite video uses direct satellite receiver broadcasting
technology to provide streaming video coast to coast. The
subscription service provider is SIRIUS Satellite Radio.
SIRIUS Backseat TVŸ offers three video channels for
family entertainment, directly from its satellites and
broadcasting studios.
NOTE:SIRIUS service is not available in Hawaii and
has limited coverage in Alaska.
Refer to your Video Entertainment System (VES)t, RER
Navigation or REN Multimedia User Manuals for de-
tailed operating instructions.
UNDERSTANDING YOUR INSTRUMENT PANEL 251
4

Mopar Parts.........................389,454
Multi-Displacement Engine System........... 294
Multi-Function Control Lever............... 148
Navigation System....................... 163
New Vehicle Break-In Period................ 74
Occupant Restraints....................... 40
Octane Rating, Gasoline (Fuel).............. 335
Oil Change Indicator..................169,208
Oil Change Indicator, Reset................. 208
Oil, Engine.........................390,432
Capacity............................ 431
Change Interval....................... 391
Dipstick............................. 390
Disposal............................ 392
Filter............................392,432
Filter Disposal........................ 392
Identification Logo..................... 391Materials Added to..................... 392
Recommendation...................391,431
Synthetic............................ 392
Viscosity..........................391,431
Onboard Diagnostic System..............387,388
Opener, Garage Door (HomeLinkt) ........... 176
Operator Manual (Owner's Manual)............ 5
Outside Rearview Mirrors.................. 85
Overdrive..........................207,281
Overdrive OFF Switch.................... 281
Overhead Console....................165,166
Overheating, Engine...................... 205
Owner's Manual (Operator Manual).........5,455
Panic Alarm............................ 24
Park Sense System, Rear................... 158
Parking Brake.......................... 294
Parking On Hill......................... 294
Passing Light........................... 149
