Page 339 of 481

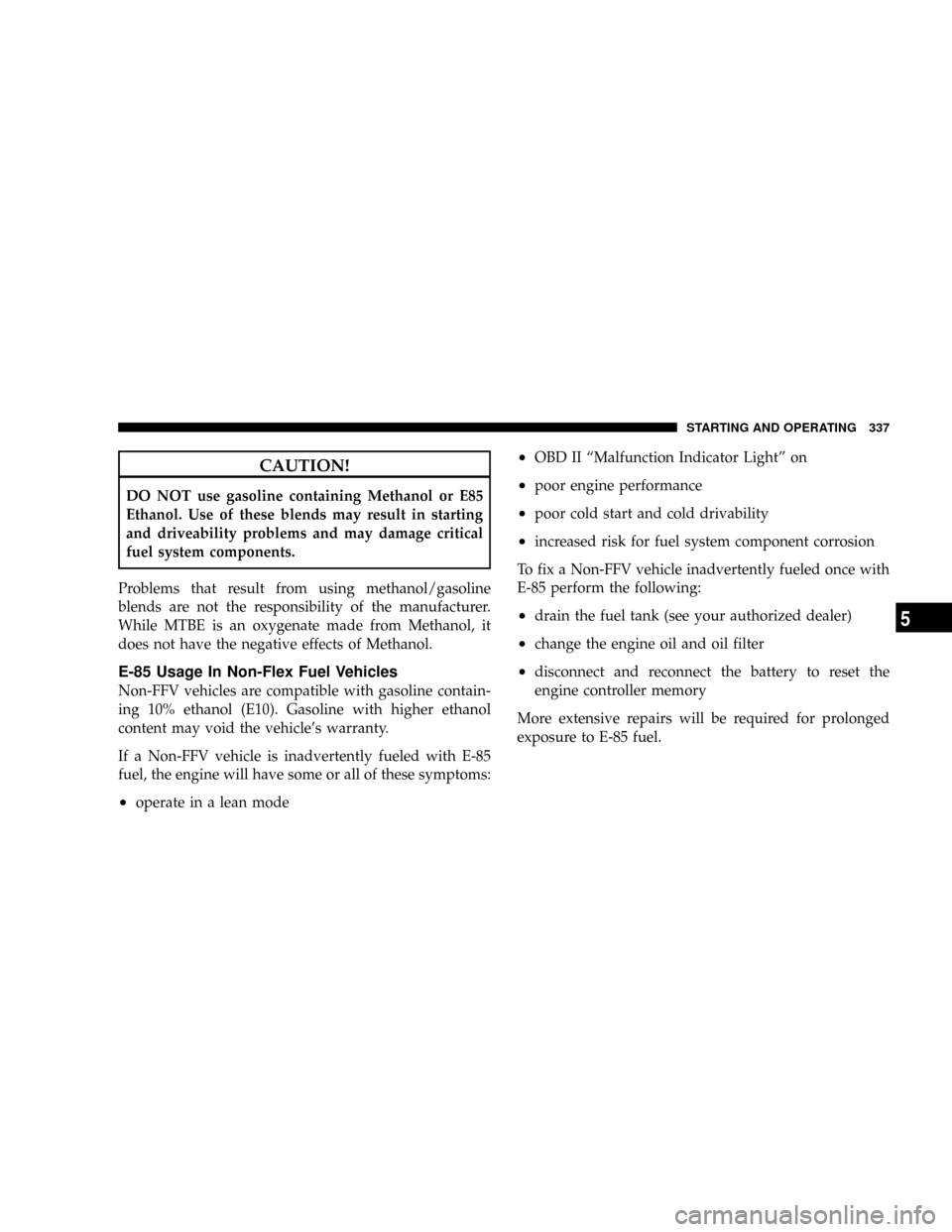

CAUTION!
DO NOT use gasoline containing Methanol or E85
Ethanol. Use of these blends may result in starting
and driveability problems and may damage critical
fuel system components.
Problems that result from using methanol/gasoline
blends are not the responsibility of the manufacturer.
While MTBE is an oxygenate made from Methanol, it
does not have the negative effects of Methanol.
E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline contain-
ing 10% ethanol (E10). Gasoline with higher ethanol
content may void the vehicle's warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
²operate in a lean mode
²OBD II ªMalfunction Indicator Lightº on
²poor engine performance
²poor cold start and cold drivability
²increased risk for fuel system component corrosion
To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
²drain the fuel tank (see your authorized dealer)
²change the engine oil and oil filter
²disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
STARTING AND OPERATING 337
5
Page 385 of 481
MAINTAINING YOUR VEHICLE

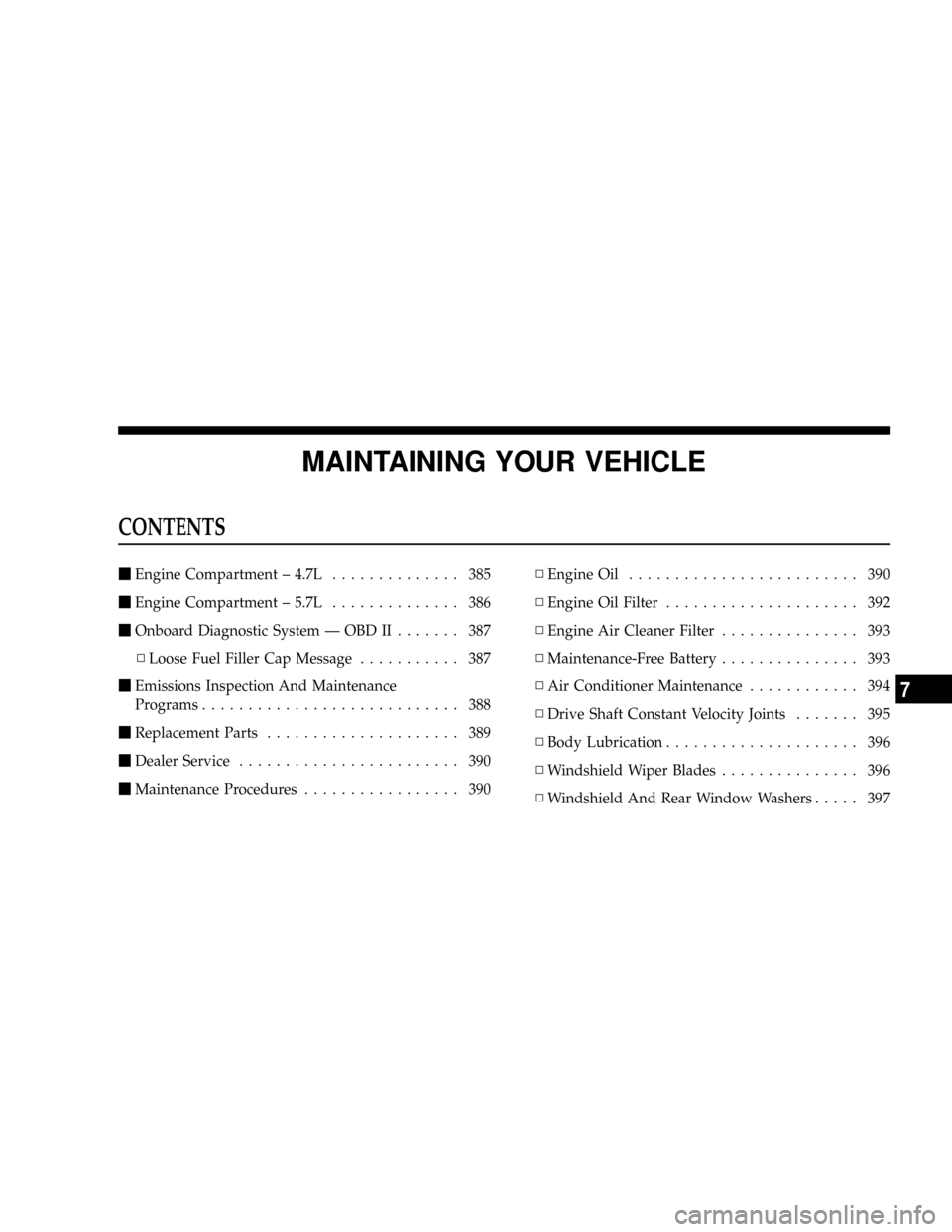

CONTENTS
mEngine Compartment ± 4.7L.............. 385
mEngine Compartment ± 5.7L.............. 386
mOnboard Diagnostic System Ð OBD II....... 387
NLoose Fuel Filler Cap Message........... 387
mEmissions Inspection And Maintenance
Programs............................ 388
mReplacement Parts..................... 389
mDealer Service........................ 390
mMaintenance Procedures................. 390NEngine Oil......................... 390
NEngine Oil Filter..................... 392
NEngine Air Cleaner Filter............... 393
NMaintenance-Free Battery............... 393
NAir Conditioner Maintenance............ 394
NDrive Shaft Constant Velocity Joints....... 395
NBody Lubrication..................... 396
NWindshield Wiper Blades............... 396
NWindshield And Rear Window Washers..... 397
7
Page 387 of 481
ENGINE COMPARTMENT ± 4.7L

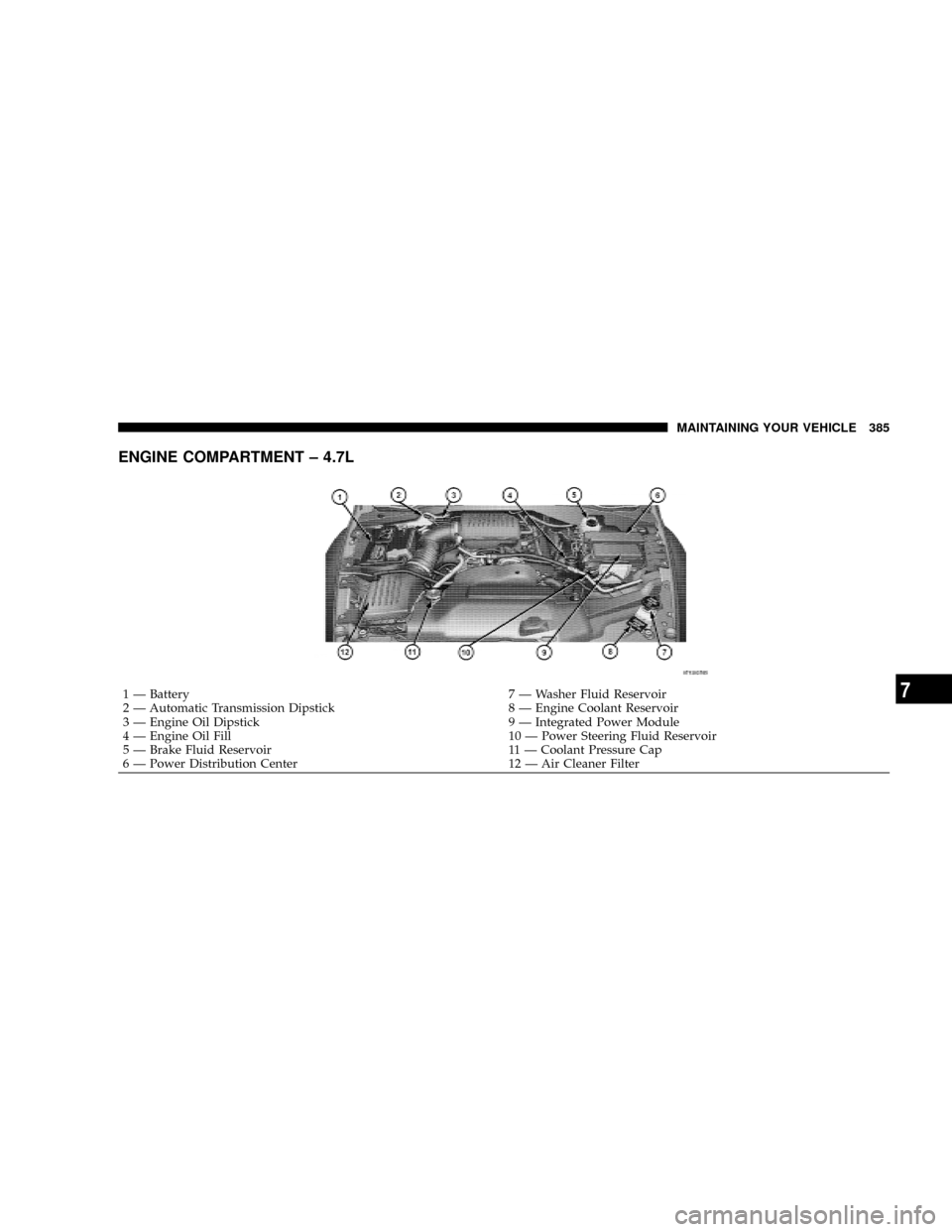

1 Ð Battery 7 Ð Washer Fluid Reservoir
2 Ð Automatic Transmission Dipstick 8 Ð Engine Coolant Reservoir
3 Ð Engine Oil Dipstick 9 Ð Integrated Power Module
4 Ð Engine Oil Fill 10 Ð Power Steering Fluid Reservoir
5 Ð Brake Fluid Reservoir 11 Ð Coolant Pressure Cap
6 Ð Power Distribution Center 12 Ð Air Cleaner FilterMAINTAINING YOUR VEHICLE 3857
Page 388 of 481
ENGINE COMPARTMENT ± 5.7L

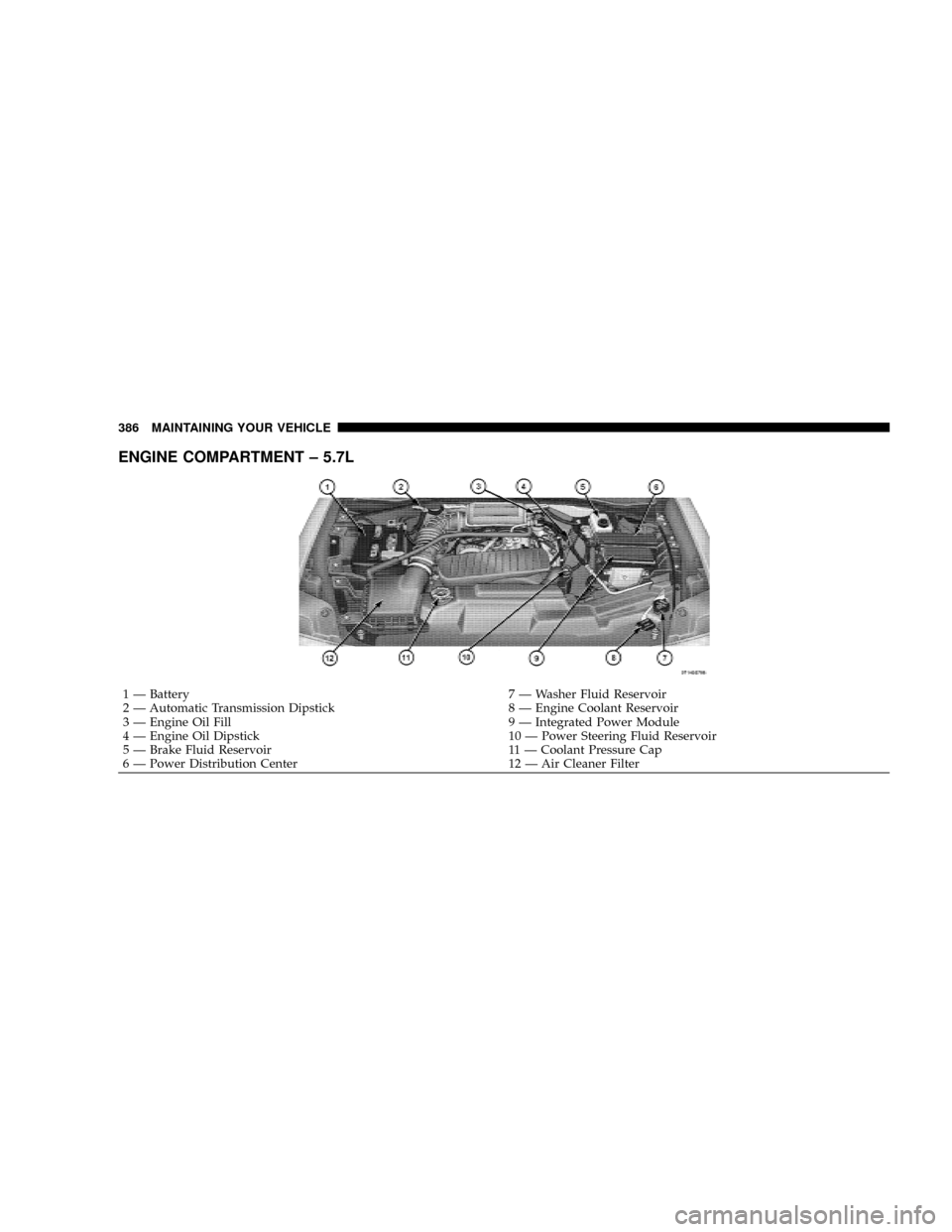

1 Ð Battery 7 Ð Washer Fluid Reservoir
2 Ð Automatic Transmission Dipstick 8 Ð Engine Coolant Reservoir
3 Ð Engine Oil Fill 9 Ð Integrated Power Module
4 Ð Engine Oil Dipstick 10 Ð Power Steering Fluid Reservoir
5 Ð Brake Fluid Reservoir 11 Ð Coolant Pressure Cap
6 Ð Power Distribution Center 12 Ð Air Cleaner Filter 386 MAINTAINING YOUR VEHICLE
Page 394 of 481

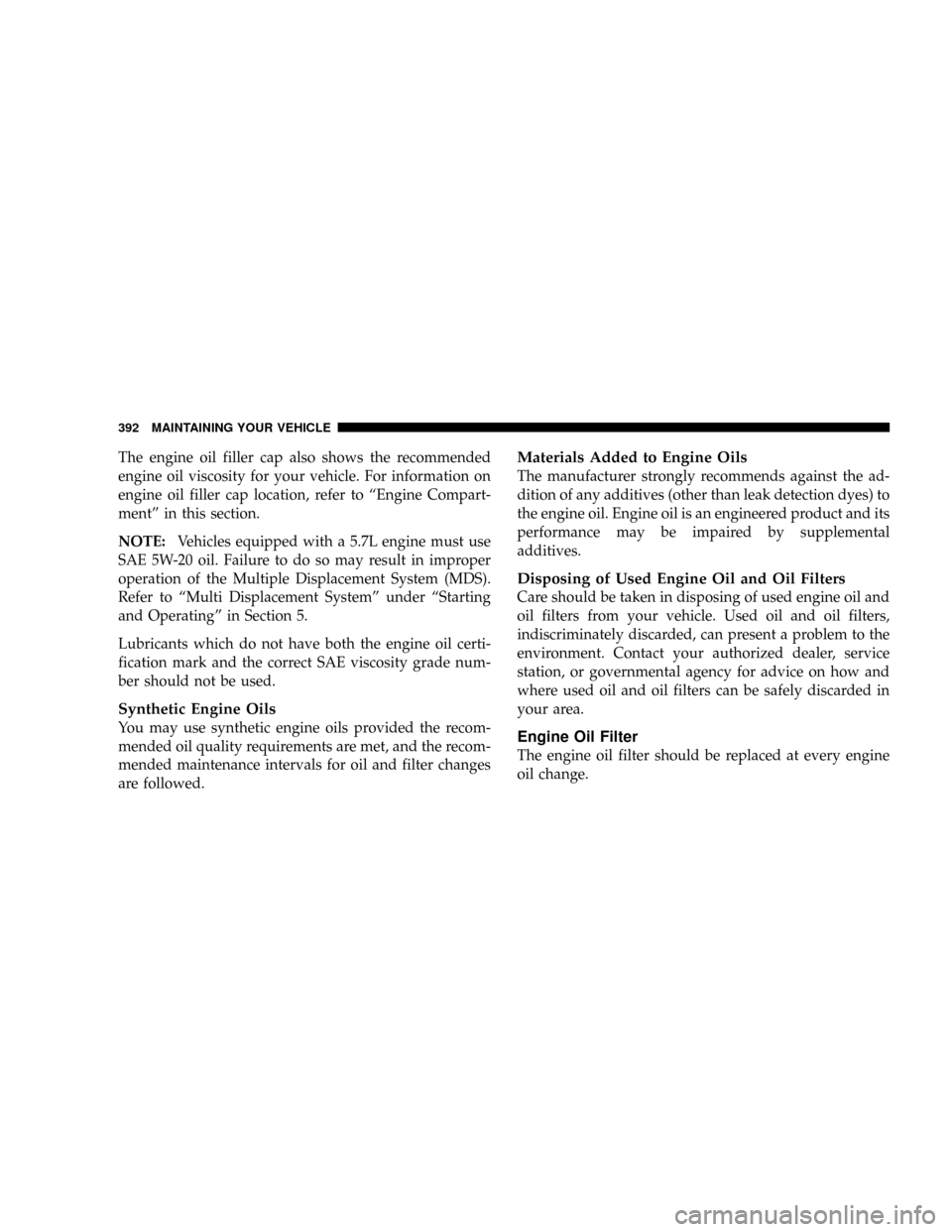

The engine oil filler cap also shows the recommended
engine oil viscosity for your vehicle. For information on
engine oil filler cap location, refer to ªEngine Compart-
mentº in this section.
NOTE:Vehicles equipped with a 5.7L engine must use
SAE 5W-20 oil. Failure to do so may result in improper
operation of the Multiple Displacement System (MDS).
Refer to ªMulti Displacement Systemº under ªStarting
and Operatingº in Section 5.
Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added to Engine Oils
The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental
additives.
Disposing of Used Engine Oil and Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
station, or governmental agency for advice on how and
where used oil and oil filters can be safely discarded in
your area.
Engine Oil Filter
The engine oil filter should be replaced at every engine
oil change.
392 MAINTAINING YOUR VEHICLE
Page 395 of 481

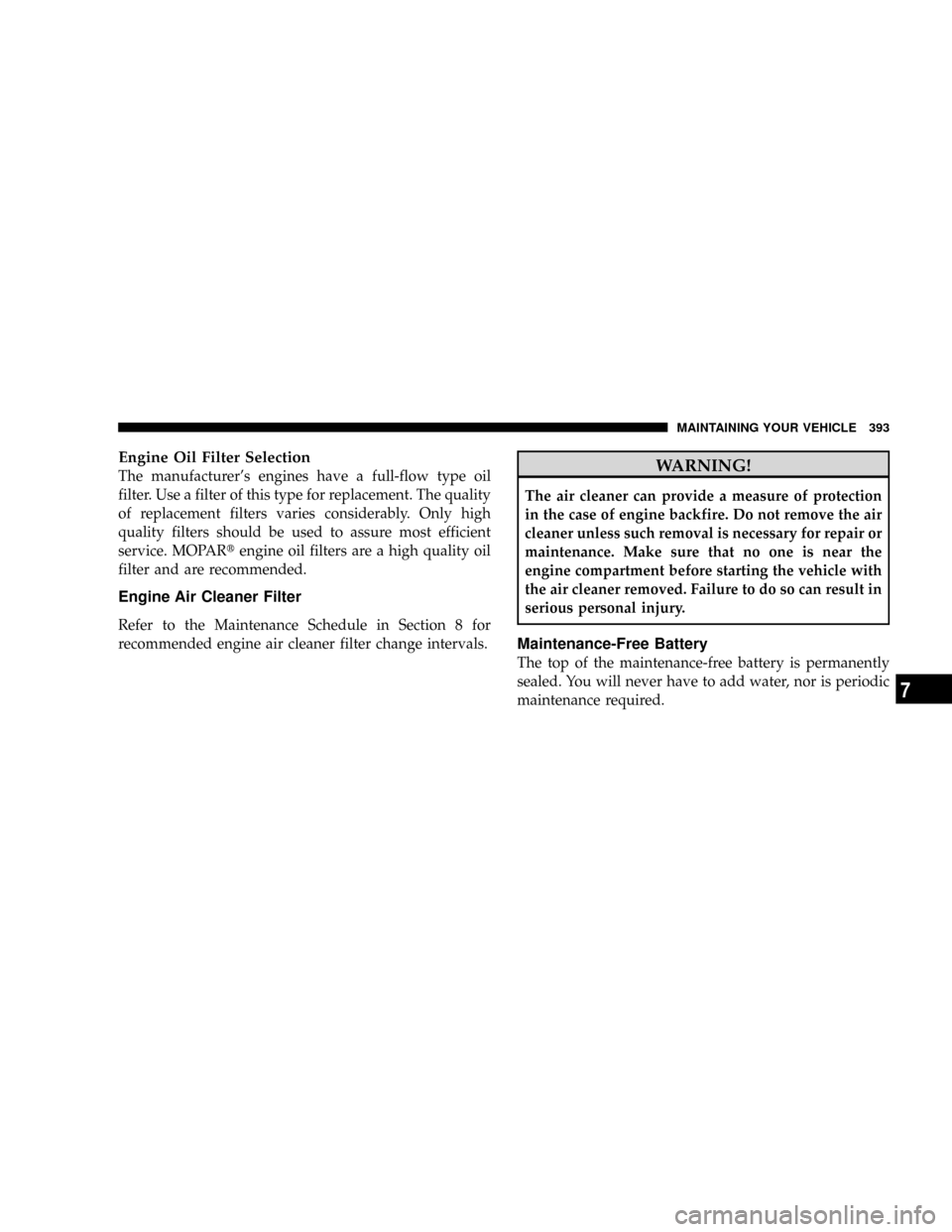

Engine Oil Filter Selection
The manufacturer's engines have a full-flow type oil
filter. Use a filter of this type for replacement. The quality
of replacement filters varies considerably. Only high
quality filters should be used to assure most efficient
service. MOPARtengine oil filters are a high quality oil
filter and are recommended.
Engine Air Cleaner Filter
Refer to the Maintenance Schedule in Section 8 for
recommended engine air cleaner filter change intervals.
WARNING!
The air cleaner can provide a measure of protection
in the case of engine backfire. Do not remove the air
cleaner unless such removal is necessary for repair or
maintenance. Make sure that no one is near the
engine compartment before starting the vehicle with
the air cleaner removed. Failure to do so can result in
serious personal injury.
Maintenance-Free Battery
The top of the maintenance-free battery is permanently
sealed. You will never have to add water, nor is periodic
maintenance required.
MAINTAINING YOUR VEHICLE 393
7
Page 433 of 481

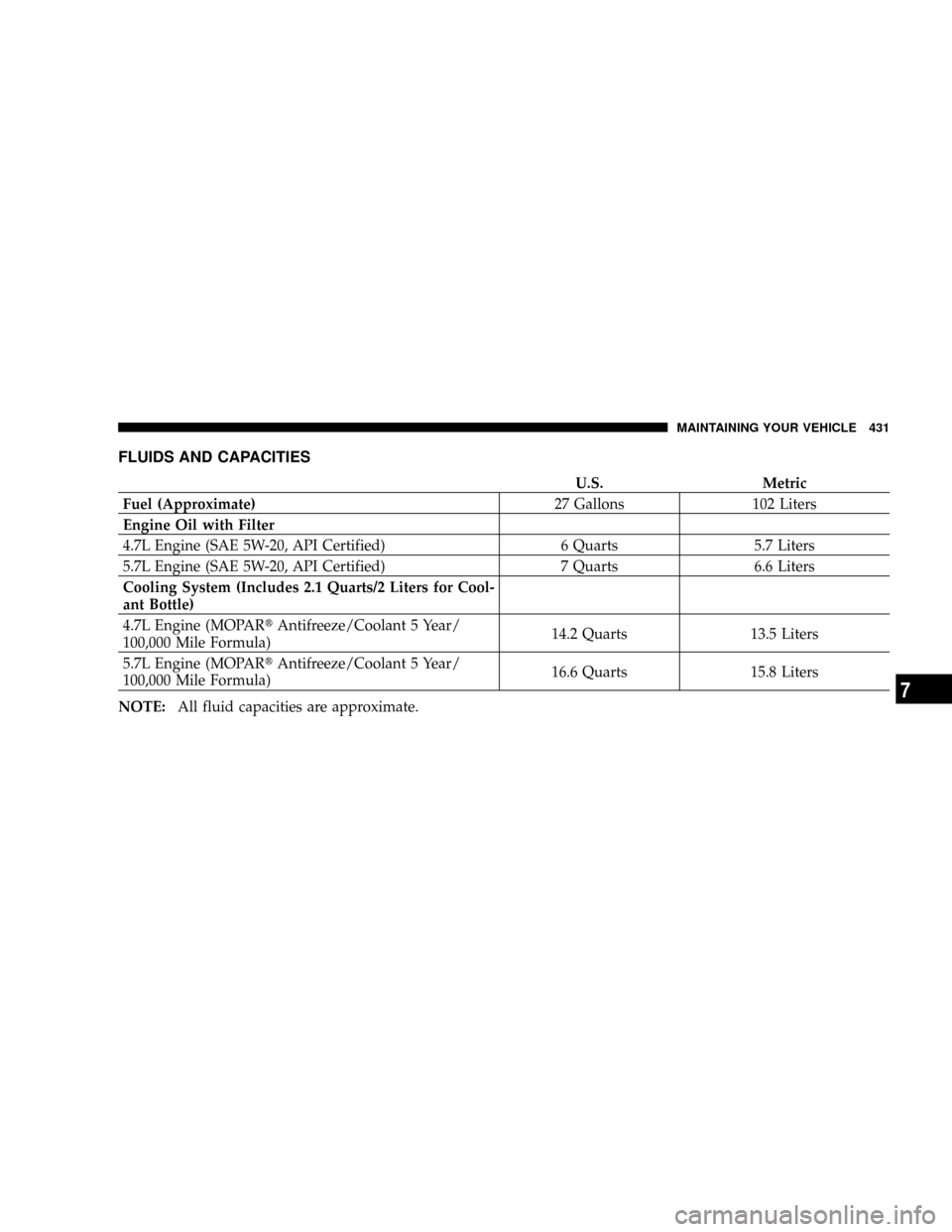

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)27 Gallons 102 Liters
Engine Oil with Filter
4.7L Engine (SAE 5W-20, API Certified) 6 Quarts 5.7 Liters
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts 6.6 Liters
Cooling System (Includes 2.1 Quarts/2 Liters for Cool-
ant Bottle)
4.7L Engine (MOPARtAntifreeze/Coolant 5 Year/
100,000 Mile Formula)14.2 Quarts 13.5 Liters
5.7L Engine (MOPARtAntifreeze/Coolant 5 Year/
100,000 Mile Formula)16.6 Quarts 15.8 Liters
NOTE:All fluid capacities are approximate.
MAINTAINING YOUR VEHICLE 431
7
Page 434 of 481

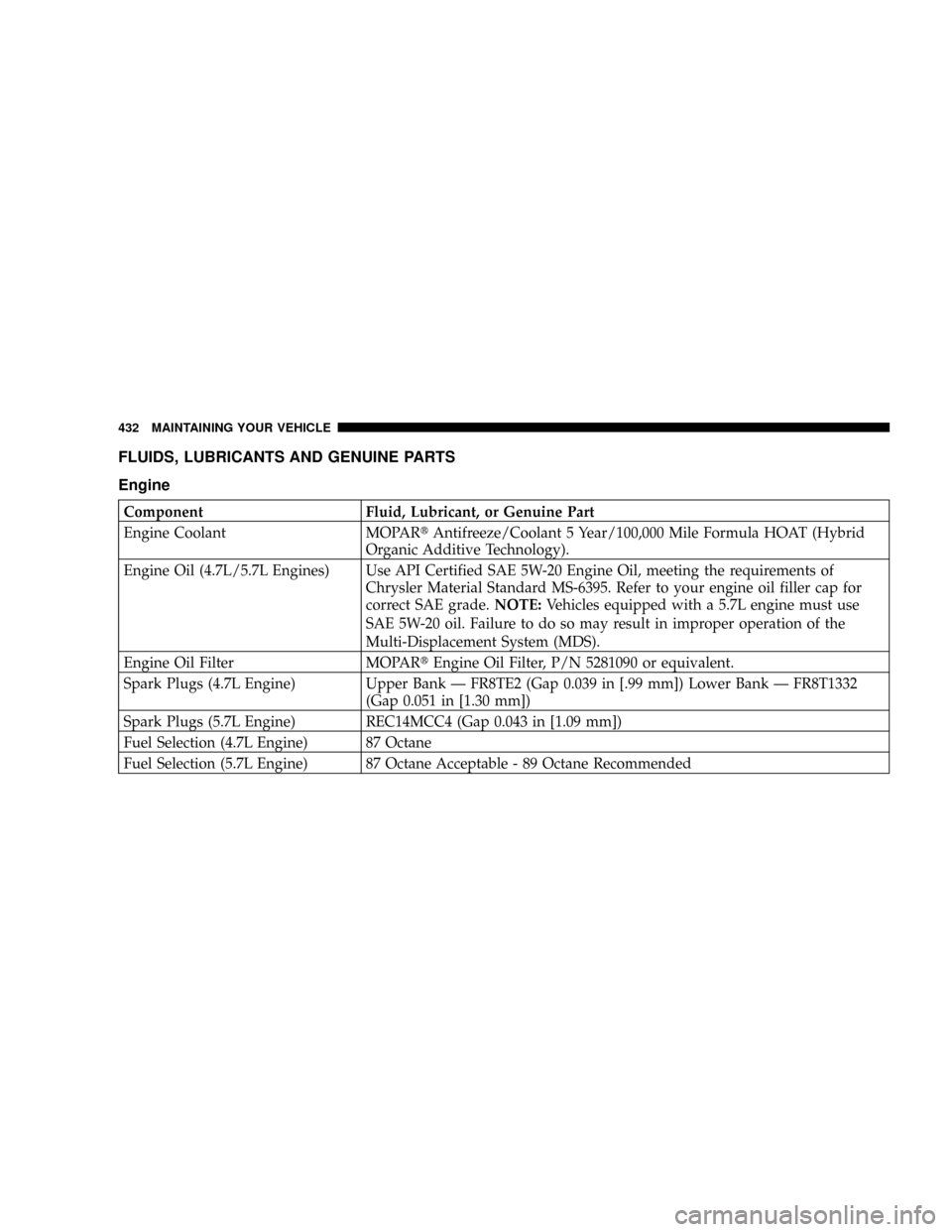

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARtAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology).
Engine Oil (4.7L/5.7L Engines) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.NOTE:Vehicles equipped with a 5.7L engine must use
SAE 5W-20 oil. Failure to do so may result in improper operation of the
Multi-Displacement System (MDS).
Engine Oil Filter MOPARtEngine Oil Filter, P/N 5281090 or equivalent.
Spark Plugs (4.7L Engine) Upper Bank Ð FR8TE2 (Gap 0.039 in [.99 mm]) Lower Bank Ð FR8T1332
(Gap 0.051 in [1.30 mm])
Spark Plugs (5.7L Engine) REC14MCC4 (Gap 0.043 in [1.09 mm])
Fuel Selection (4.7L Engine) 87 Octane
Fuel Selection (5.7L Engine) 87 Octane Acceptable - 89 Octane Recommended
432 MAINTAINING YOUR VEHICLE
Page 440 of 481

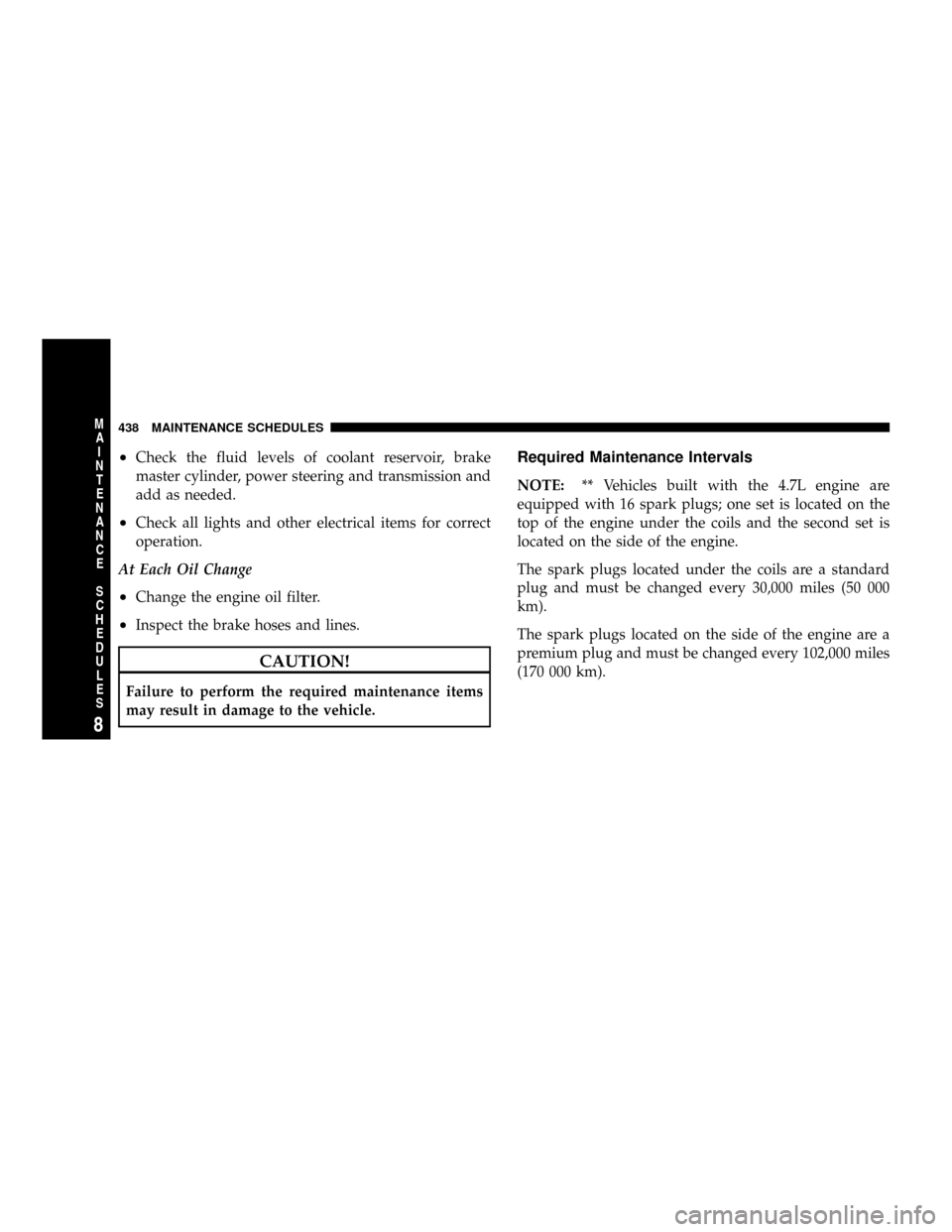

²Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
²Check all lights and other electrical items for correct
operation.
At Each Oil Change
²Change the engine oil filter.
²Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
NOTE:** Vehicles built with the 4.7L engine are
equipped with 16 spark plugs; one set is located on the
top of the engine under the coils and the second set is
located on the side of the engine.
The spark plugs located under the coils are a standard
plug and must be changed every 30,000 miles (50 000
km).
The spark plugs located on the side of the engine are a
premium plug and must be changed every 102,000 miles
(170 000 km).
438 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
Page 441 of 481

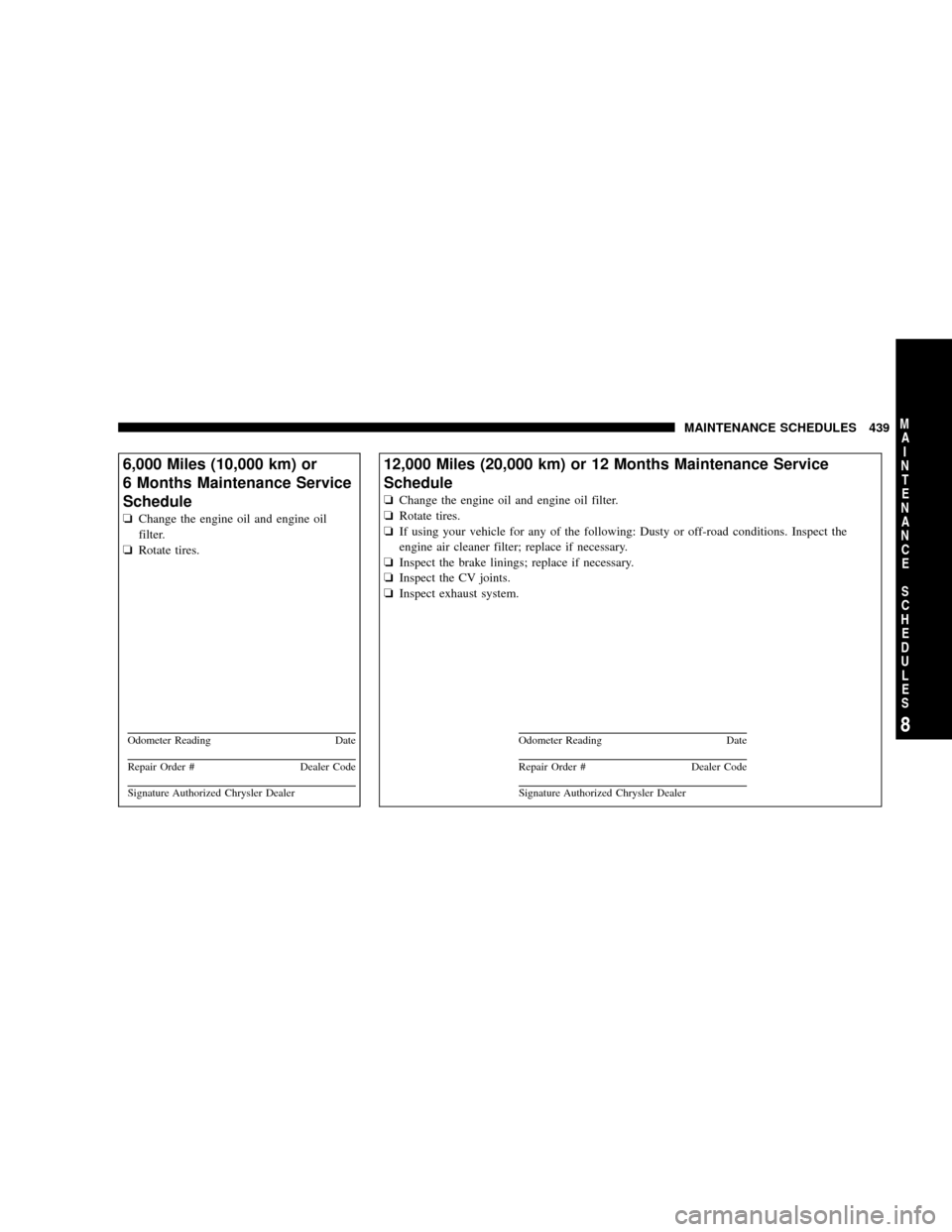

6,000 Miles (10,000 km) or
