CHRYSLER CARAVAN 2000 Owner's Manual

4.7 Switches
G
E
N
E
R
A
L
I
N
F
O
R
M
A
T
I
O
N
15
ProCarManuals.com

4.7 Switches (Continued)G
E
N
E
R
A
L
I
N
F
O
R
M
A
T
I
O
N
16
ProCarManuals.com

4.8 Lamps and Indicators
The ªCruiseº lamp is controlled by the Body Control Module. The Diagnostic/Glow Plug lamp is
controlled by the Engine Control Module. The ªAlarm Setº lamp is controlled by the SKIM.
5.0 DISCLAIMERS, SAFETY, WARNINGS
5.1 Disclaimers
All information, illustrations, and specifications contained in this manual are based on the latest
information available at the time of publication. The right is reserved to make changes at any time
without notice.
5.2 Safety
5.2.1 Technician Safety Information
WARNING!!Engines produce carbon monoxide that is odorless, causes slower reaction time,
and can lead to serious injury. When the engine is operating, keep service areas WELL
VENTILATED or attach the vehicle exhaust system to the shop exhaust removal system.
Set the parking brake and block the wheels before testing or repairing the vehicle. It is especially
important to block the wheels on front-wheel drive vehicles; the parking brake does not hold the
drive wheels.
When servicing a vehicle, always wear eye protection, and remove any metal jewelry such as
watchbands or bracelets that might make an inadvertent electrical contact.
When diagnosing a powertrain system problem, it is important to follow approved procedures
where applicable. These procedures can be found in the service manual. Following these
procedures is very important to the safety of individuals performing diagnostic tests.
5.2.2 Vehicle Preparation for Testing
Make sure the vehicle being tested has a fully charged battery. If it does not, false diagnostic
codes or error messages may occur.
5.2.3 Servicing Sub-Assemblies
Some components of the powertrain system are intended to be serviced in assembly only.
Attempting to remove or repair certain system sub-components may result in personal injury
and/or improper system operation. Only those components with approved repair and installation
procedures in the service manual should be serviced.
5.2.4 DRBIIITSafety Information
WARNING: Exceeding the limits of the DRB multimeter is dangerous. It can expose you to
serious or possibly fatal injury. Carefully read and understand the cautions and the
specification limits.
²Follow the vehicle manufacturer's service specifications at all times.
²Do not use the DRB if it has been damaged.
²Do not use the test leads if the insulation is damaged or if metal is exposed.
²To avoid electrical shock, do not touch the test leads, tips, or the circuit being tested.
G
E
N
E
R
A
L
I
N
F
O
R
M
A
T
I
O
N
17
ProCarManuals.com

²Choose the proper range and function for the measurement. Do not try voltage or current
measurements that may exceed the rated capacity.
²Do not exceed the limits shown in the table below:
FUNCTION INPUT LIMIT
Volts 0 - 500 peak volts AC
0 - 500 volts DC
Ohms (resistance)* 0 - 1.12 megohms
Frequency Measured
Frequency Generated0-10kHz
Temperature -58 - 1100É F
-50 - 600É C
* Ohms cannot be measured if voltage is
present. Ohms can be measured only in a
non-powered circuit.
²Voltage between any terminal and ground must not exceed 500v DC or 500v peak AC.
²Use caution when measuring voltage above 25v DC or 25v AC.
²The circuit being tested must be protected by a 10A fuse or circuit breaker.
²Use the low current shunt to measure circuits up to 10A. Use the high current clamp to
measure circuits exceeding 10A.
²When testing for the presence of voltage or current, make sure the meter is functioning
correctly. Take a reading of a known voltage or current before accepting a zero reading.
²When measuring current, connect the meter in series with the load.
²Disconnect the live test lead before disconnecting the common test lead.
5.3 Warnings
5.3.1 Vehicle Damage Warnings
Before disconnecting any control module, make sure the ignition is ``off''. Failure to do so could
damage the module.
When testing voltage or continuity at any control module, use the terminal side (not the wire end)
of the connector. Do not probe a wire through the insulation; this will damage it and eventually
cause it to fail because of corrosion.
Be careful when performing electrical tests so as to prevent accidental shorting of terminals. Such
mistakes can damage fuses or components. Also, other codes could be set, making diagnosis of
the original problem more difficult.
5.3.2 Road Testing a Complaint Vehicle
Some complaints will require a test drive as part of the repair verification procedure. The purpose
of the test drive is to try to duplicate the diagnostic code or symptom condition.
CAUTION: Before road testing a vehicle, be sure that all components are reassembled.
During the test drive, do not try to read the DRB screen while in motion. Do not hang the
DRB from the rear view mirror or operate it yourself. Have an assistant available to operate
the DRB.
G
E
N
E
R
A
L
I
N
F
O
R
M
A
T
I
O
N
18
ProCarManuals.com

7.0 DIAGNOSTIC INFORMATION AND PROCEDURES
7.1
GENERAL
TROUBLESHOOTING
19
ProCarManuals.com

TEST DTCCHECKING FOR DIAGNOSTIC TROUBLE CODES
NOTE: The battery must be fully charged for any test in this manual.
1. Attempt to start the engine. Crank for up to 10 seconds if necessary.
2. Connect the DRB to the data link connector. Write down the trouble codes that are displayed.
3. If the DRB displays ``No Response'', go toTEST NS-2A.
4. If the DRB screen is blank or has a DRB error message, go toGeneral Information Section
3.5in this manual.
5. Iftrouble code messagesare displayed, refer to the trouble code list below and on the
following page for the appropriate test.
6. If there are no ECM trouble codes displayed, refer to one of the following:
For Immobilizer problems..................................................SK-1A
For Driveability problems.................................................NTC-1A
For No Start problems....................................................NS-1A
For Speed Control problems...............................................SC-1A
NOTE:For all component locations see General Information Section 4.0 in this manual.
DRB DIAGNOSTIC TROUBLE CODE (DTC) DISPLAYEDDIAGNOSTIC
TESTSCAN
TOOL
AC Control Short CircuitTC-1 P1655
A/C Control Open CircuitTC-2 P1655
A/C System Pressure Signal High Exceeded TC-3 P1695
A/C System Pressure Signal Low Exceeded TC-4 P1695
A/C System Pressure Supply High Exceeded TC-5 P1695
A/C System Pressure Supply Low Exceeded TC-6 P1695
Accelerator Pedal Sensor High Exceeded TC-7 P1515
Accelerator Pedal Sensor PlausibilityTC-7 P1515
Accelerator Pedal Sensor Pwg Plaus With Low Idle Switch TC-7 P1515
Accelerator Pedal Sensor Pwg Plaus With Potentiometer TC-7 P1515
Atmospheric Pressure Sensor SRC High Exceeded ** P1105
Atmospheric Pressure Sensor SRC Low Exceeded ** P1105
Battery Voltage SRC High Exceeded TC-14 P1600
Turbocharger Boost Sensor Signal High Exceeded TC-15 P0235
Turbocharger Boost Sensor Signal Low Exceeded TC-16 P0235
Turbocharger Boost Sensor Supply High Exceeded TC-17 P0235
Turbocharger Boost Sensor Supply Low Exceeded TC-18 P0235
Turbocharger Boost Sensor Plausibility TC-19 P0235
Brake Signal Plaus With Redundant Contact TC-20 P1703
Clutch Signal PlausibilityTC-21 P1740
Control Sleeve Sensor Signal High Exceeded TC-22 P1225
Control Sleeve Sensor Start End Pos. Not Attained TC-23 P1225
Control Sleeve Sensor Stop End Pos. Not Attained TC-24 P1225
Cruise Status Indicator Lamp Short Circuit TC-25 P1665
Diagnostic Lamp Open CircuitTC-26 P1650
Diagnostic Lamp Short CircuitTC-27 P1650
Diesel Power Relay Shuts Off Too Early TC-30 P1625
Diesel Power Relay Shuts Off Too Late TC-31 P1625
EEPROM Plausibility Checksum Error For Adj. ** P1680
EEPROM Plausibility Checksum Error in CC212 ** P1680
EEPROM Plausibility Communication with EEPROM ** P1680
EEPROM Plausibility Func. Switch Wrong or Missing ** P1680
EEPROM Plausibility Ver. Number Not Corresponding ** P1680
EGR Open CircuitTC-33 P0400
EGR Short CircuitTC-34 P0400
Engine Speed Sensor Dynamic Plausibility TC-35 P0725
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
20
ProCarManuals.com

TEST DTCCHECKING FOR DIAGNOSTIC TROUBLE CODES
DRBIIITDIAGNOSTIC TROUBLE CODE (DTC) DISPLAYEDDIAGNOSTIC
TESTSCAN
TOOL
Engine Speed Sensor Over Speed Recognition TC-36 P0725
Engine Speed Sensor Static Plausibility TC-38 P0725
Fan Control Open Circuit Fan #1TC-39 P1690
Fan Control Open Circuit Fan #2TC-40 P1690
Fan Control Short Circuit Fan #1TC-41 P1690
Fan Control Short Circuit Fan #2TC-42 P1690
Fuel Quantity Actuator Neg. Gov. Deviation Cold TC-43 P1220
Fuel Quantity Actuator Neg. Gov. Deviation Warm TC-44 P1220
Fuel Quantity Actuator Pos. Gov. Deviation Cold TC-45 P1220
Fuel Quantity Actuator Pos. Gov. Deviation Warm TC-46 P1220
Fuel Temperature Sensor SRC High Exceeded TC-47 P0180
Fuel Temperature Sensor SRC Low Exceeded TC-48 P0180
Glow Relay #1 Controller Open Circuit TC-51 P1635
Glow Relay #2 Controller Open Circuit TC-52 P1635
Glow Relay #1 Controller Short Circuit TC-53 P1635
Glow Relay #2 Controller Short Circuit TC-54 P1635
Inductive Aux. Speed Sensor Dynamic Plausibility TC-56 P1725
Inductive Aux. Speed Sensor Overspeed Recognition TC-57 P1725
Inductive Aux. Speed Sensor Plausibility TC-58 P1725
Inductive Aux. Speed Sensor Static Plausibility TC-59 P1725
Intake Air Temperature Sensor Signal High Exceeded TC-62 P0110
Intake Air Temperature Sensor Signal Low Exceeded TC-63 P0110
Microcontroller Gate-array Monitoring** P1615
Microcontroller Gate-array Watchdog** P1615
Microcontroller Prepare Fuel Quantity Stop ** P1615
Microcontroller Recovery Has Occurred ** P1615
Microcontroller Redundant Overrun Monitoring ** P1615
Needle Movement Sensor High Exceeded TC-72 P1201
Needle Movement Sensor Low Exceeded TC-73 P1201
Redundant Emer. Stop Plausibility in After-run TC-74 P1660
Redundant Emer. Stop Powerstate Defective TC-75 P1660
Regulator Lower Regulator Limit** P1610
Regulator Upper Regulator Limit** P1610
Smart Start Relay Short CircuitTC-76 P1675
Solenoid Valve Controller Open Circuit TC-79 P1630
Solenoid Valve Controller Short Circuit TC-80 P1630
Temperature of Engine Coolant SRC High Exceeded TC-81 P0115
Temperature of Engine Coolant SRC Low Exceeded TC-82 P0115
Terminal #15 Plausibility After Start-up TC-84 P1605
Timing Governing Negative Governor Deviation TC-85 P1230
Timing Governing Positive Governor Deviation TC-86 P1230
UþREF (2.5V)** P1620
Vehicle Speed Sensor Pec Frequency Too High TC-91 P0500
Vehicle Speed Sensor Signal High Exceeded TC-91 P0500
Vehicle Speed Sensor PlausibilityTC-91 P0500
Immobilizer Signal LostTC-94 P1685
Invalid SKIM MessageTC-94 P1685
** These trouble codes indicate an internal ECM fault. Using the DRB, clear ECM trouble code(s).
Perform several engine run cycles turning the ignition off for at least 10 seconds between cycles.
Using the DRB, read ECM trouble codes. If the code is present, replace the Engine Control Module.
NOTE: If trouble code TERMINAL 15 PLAUSIBILITY AFTER START-UP is present with other trouble
codes, perform TC-84 diagnosis first.
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
21
ProCarManuals.com

TEST TC-1AREPAIRING - A/C CONTROL SHORT CIRCUIT
Perform TEST DTC Before Proceeding
FIG.1
FIG.2
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
22
ProCarManuals.com

TEST TC-1AREPAIRING - A/C CONTROL SHORT CIRCUIT
Perform TEST DTC Before Proceeding
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
NO
YES
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
23
ProCarManuals.com

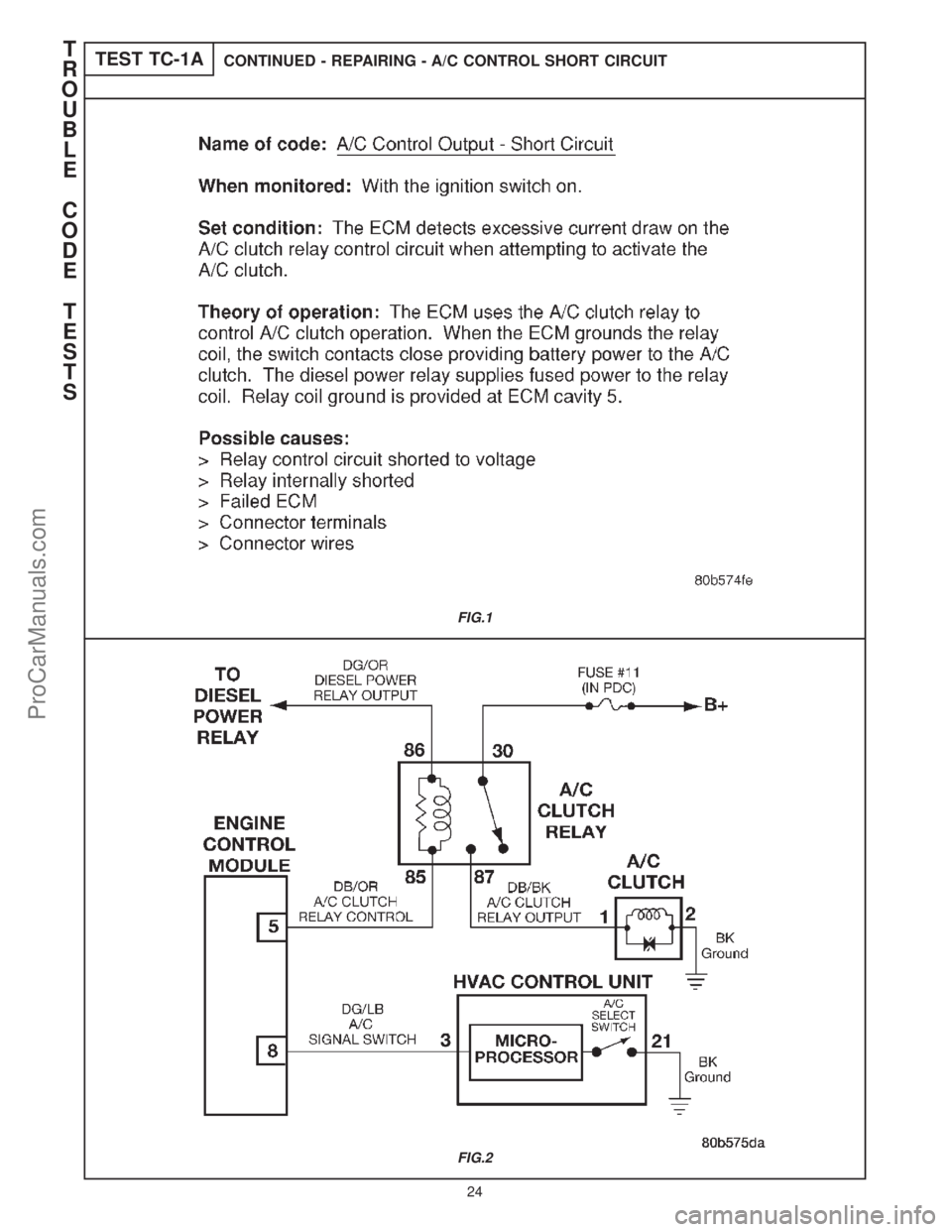

TEST TC-1ACONTINUED - REPAIRING - A/C CONTROL SHORT CIRCUIT
FIG.1
FIG.2
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
24
ProCarManuals.com
