TEST TC-5ACONTINUED - REPAIRING - A/C SYSTEM PRESSURE SUPPLY HIGH EXCEEDED
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TEST TC-5A TURN IGNITION OFF.
CONTINUED FROM DISCONNECT THE A/C
THE PREVIOUS PRESSURE SENSOR
PAGE. HARNESS
CONNECTOR.**
DISCONNECT THE ECM REMOVE THE DIESEL
HARNESS POWER RELAY.**
CONNECTORS.**
WITH A JUMPER WIRE, KEY ON.
CONNECT DIESEL POWER
RELAY CONN. CAVITIES USE A VOLTMETER IN
30 AND 87 (IN PDC). THE FOLLOWING
FIG.1 STEP.
MEASURE THE A/C REPAIR THE A/C
PRESSURE SENSOR IS THE VOLTAGE YES PRESSURE SENSOR
SUPPLY CIRCUIT. ABOVE 1.0 VOLT? SUPPLY CIRCUIT FOR
A SHORT TO
FIG.2 VOLTAGE.*
NO
REPLACE THE ENGINE
CONTROL MODULE.*
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
45
ProCarManuals.com

TEST TC-6AREPAIRING - A/C SYSTEM PRESSURE SUPPLY LOW EXCEEDED
Perform TEST DTC Before Proceeding

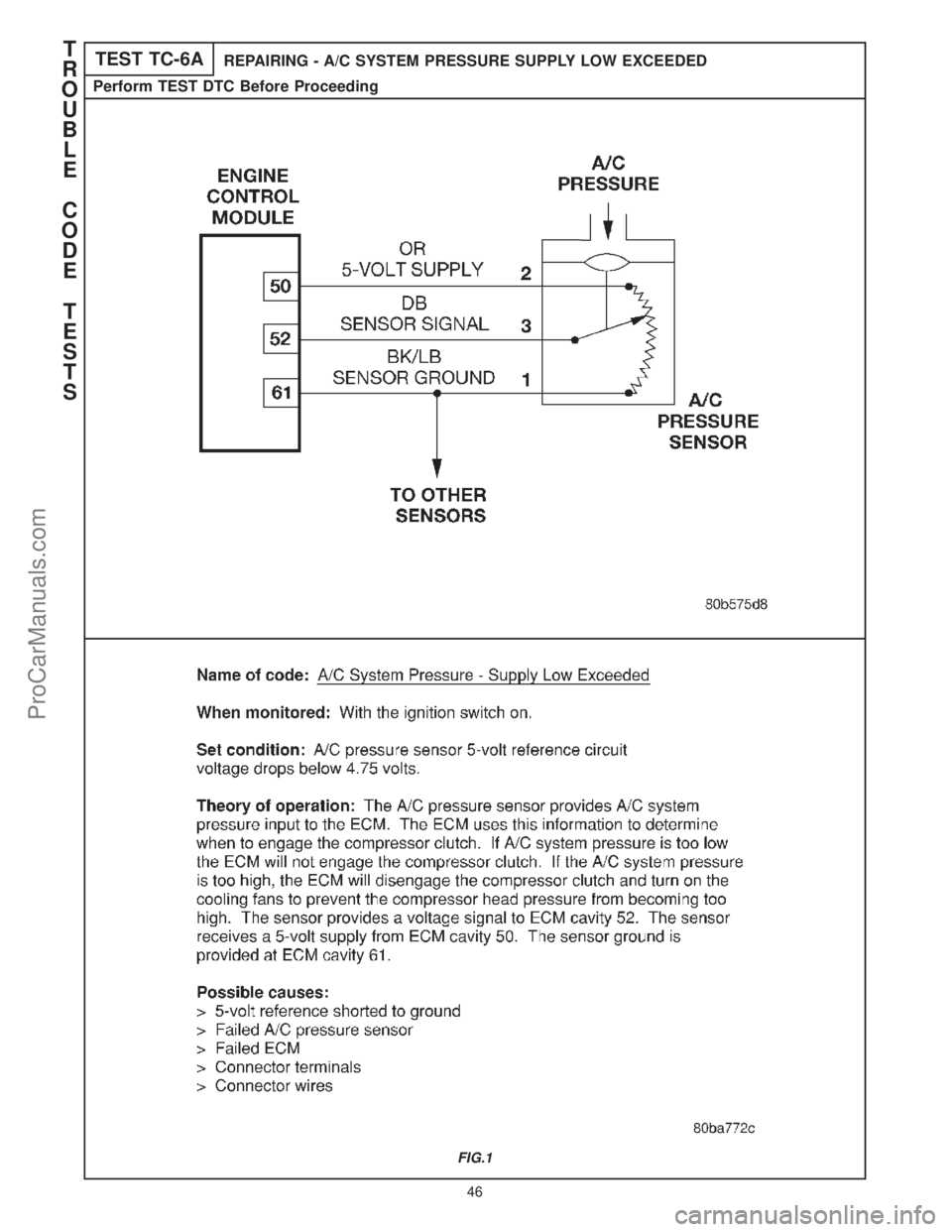

FIG.1
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
46
ProCarManuals.com

TEST TC-6AREPAIRING - A/C SYSTEM PRESSURE SUPPLY LOW EXCEEDED
Perform TEST DTC Before Proceeding
*Perform Verification TEST VER-2A. **Check connectors - Clean / repair as necessary.
TURN IGNITION ON. DOES THE DRB
START TEST WITH THE DRB, DISPLAY "A/C YES CONTINUE TEST
TC-6A. ERASE CODES. SYSTEM PRESSURE TC-6A ON THE
SUPPLY LOW NEXT PAGE.
TURN A/C ON. EXCEEDED"?
NO
WIGGLE THE A/C DOES THE DRB REPAIR THE
PRESSURE SENSOR MONITOR THE DRB DISPLAY "A/C YES CONNECTOR OR
CONNECTOR AND DISPLAY. SYSTEM PRESSURE HARNESS WIRES THAT
HARNESS WIRES. SUPPLY LOW CAUSED THE CODE TO
EXCEEDED"? SET.*
NO
AT THIS TIME THE USING THE
CONDITION REQUIRED SCHEMATIC AS A WERE ANY PROBLEMS YES REPAIR AS
TO SET THIS CODE GUIDE, INSPECT THE FOUND? NECESSARY.*
IS NOT PRESENT. WIRING AND
CONNECTORS.
NO
REFER TO GENERAL
INFORMATION 3.3.2
FOR ADDITIONAL TEST COMPLETE.*
INFORMATION ON
INTERMITTENT CODES. FIG.1
T
R
O
U
B
L
E
C
O
D
E
T
E
S
T
S
47
ProCarManuals.com

TEST TC-6ACONTINUED - REPAIRING - A/C SYSTEM PRESSURE SUPPLY LOW EXCEEDED

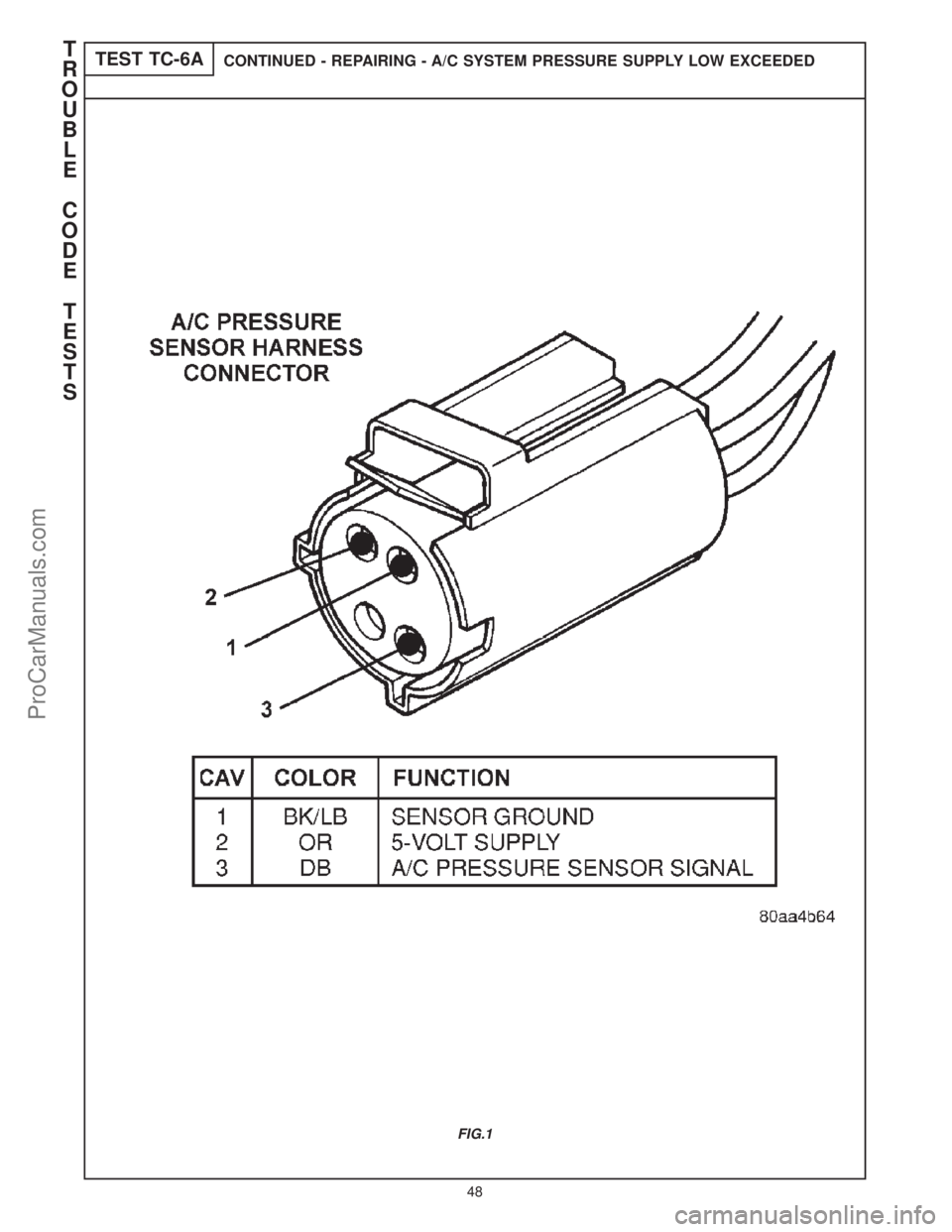

FIG.1
