Page 772 of 2399

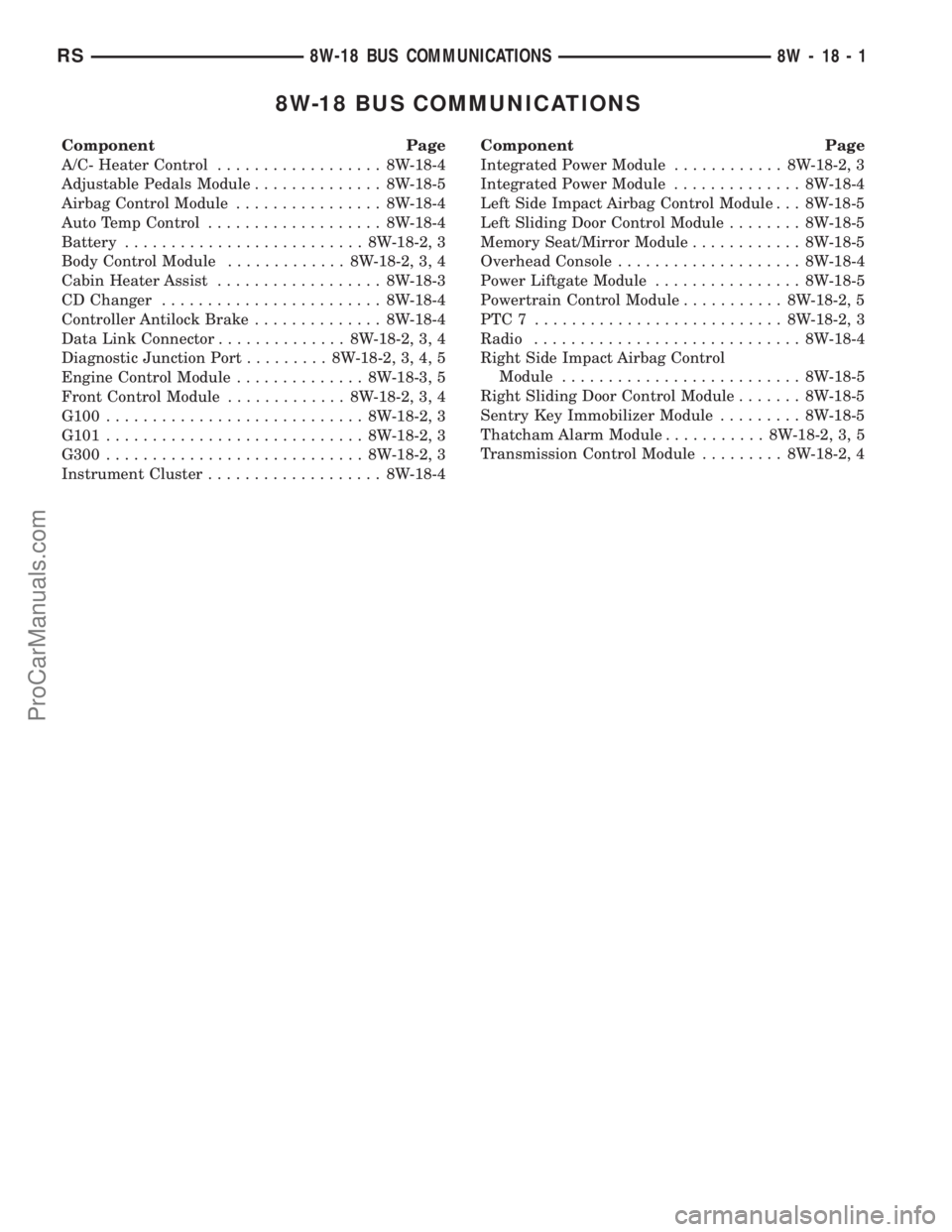

8W-18 BUS COMMUNICATIONS
Component Page
A/C- Heater Control.................. 8W-18-4
Adjustable Pedals Module.............. 8W-18-5
Airbag Control Module................ 8W-18-4
Auto Temp Control................... 8W-18-4
Battery.......................... 8W-18-2, 3
Body Control Module............. 8W-18-2, 3, 4
Cabin Heater Assist.................. 8W-18-3
CD Changer........................ 8W-18-4
Controller Antilock Brake.............. 8W-18-4
Data Link Connector.............. 8W-18-2, 3, 4
Diagnostic Junction Port......... 8W-18-2, 3, 4, 5
Engine Control Module.............. 8W-18-3, 5
Front Control Module............. 8W-18-2, 3, 4
G100............................ 8W-18-2, 3
G101............................ 8W-18-2, 3
G300............................ 8W-18-2, 3
Instrument Cluster................... 8W-18-4Component Page
Integrated Power Module............ 8W-18-2, 3
Integrated Power Module.............. 8W-18-4
Left Side Impact Airbag Control Module . . . 8W-18-5
Left Sliding Door Control Module........ 8W-18-5
Memory Seat/Mirror Module............ 8W-18-5
Overhead Console.................... 8W-18-4
Power Liftgate Module................ 8W-18-5
Powertrain Control Module........... 8W-18-2, 5
PTC7 ........................... 8W-18-2, 3
Radio............................. 8W-18-4
Right Side Impact Airbag Control
Module.......................... 8W-18-5
Right Sliding Door Control Module....... 8W-18-5
Sentry Key Immobilizer Module......... 8W-18-5
Thatcham Alarm Module........... 8W-18-2, 3, 5
Transmission Control Module......... 8W-18-2, 4
RS8W-18 BUS COMMUNICATIONS8W-18-1
ProCarManuals.com
Page 836 of 2399
8W-39 VEHICLE THEFT SECURITY SYSTEM
Component Page
Body Control Module......... 8W-39-2, 4, 7, 8, 9,
10, 11, 12, 13, 14, 15
Clockspring......................... 8W-39-6
Data Link Connector................. 8W-39-4
Diagnostic Junction Port............... 8W-39-4
Driver Door Lock Switch........... 8W-39-12, 13
Engine Control Module................ 8W-39-3
Front Control Module............... 8W-39-4, 6
Front Intrusion Sensor................ 8W-39-5
Fuse 8............................. 8W-39-6
Fuse 14............................ 8W-39-2
Fuse 24............................ 8W-39-2
G102.............................. 8W-39-6
G200.............................. 8W-39-3
G300............ 8W-39-7, 8, 9, 10, 11, 12, 13, 14
G301............... 8W-39-7, 8, 9, 10, 11, 12, 13
G302............................. 8W-39-15
G400.......................... 8W-39-14, 15
High Note Horn..................... 8W-39-6
Hood Ajar Switch................... 8W-39-14
Horn Relay......................... 8W-39-6
Horn Switch........................ 8W-39-6
Ignition Switch.................... 8W-39-3, 4
Integrated Power Module.......... 8W-39-2, 4, 6
Left Cylinder Lock Switch.......... 8W-39-12, 13
Left Front Door Ajar Switch............ 8W-39-7
Left Front Door Lock Motor/Ajar
Switch......................... 8W-39-7, 8
Left Sliding Door Control Module..... 8W-39-9, 10Component Page
Left Sliding Door Latch Sensing Switch . . . 8W-39-9
Left Sliding Door Lock Motor.......... 8W-39-10
Left Sliding Door Lock Motor/Ajar
Switch.......................... 8W-39-11
Liftgate Ajar Switch................. 8W-39-15
Liftgate Cinch/Release Motor.......... 8W-39-15
Liftgate Cylinder Lock Switch.......... 8W-39-14
Low Note Horn...................... 8W-39-6
Message Center..................... 8W-39-2
Passenger Door Lock Switch........ 8W-39-12, 13
Power Liftgate Module............... 8W-39-15
Powertrain Control Module............. 8W-39-3
Rear Intrusion Sensor................. 8W-39-5
Remote Keyless Entry Module.......... 8W-39-2
Right Cylinder Lock Switch......... 8W-39-12, 13
Right Front Door Ajar Switch........... 8W-39-7
Right Front Door Lock Motor/Ajar
Switch......................... 8W-39-7, 8
Right Sliding Door Control Module.... 8W-39-9, 10
Right Sliding Door Latch Sensing
Switch........................... 8W-39-9
Right Sliding Door Lock Motor......... 8W-39-10
Right Sliding Door Lock Motor/Ajar
Switch.......................... 8W-39-11
Sentry Key Immobilizer Module....... 8W-39-2, 3
Siren.............................. 8W-39-4
Thatcham Alarm Indicator............. 8W-39-5
Thatcham Alarm Module............ 8W-39-4, 5
RS8W-39 VEHICLE THEFT SECURITY SYSTEM8W-39-1
ProCarManuals.com
Page 902 of 2399
8W-45 BODY CONTROL MODULE
Component Page
A/C- Heater Control.............. 8W-45-16, 19
Auto Temp Control............... 8W-45-16, 19
Automatic Day/Night Mirror........... 8W-45-11
Body Control Module . . . 8W-45-2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 15, 16, 17, 18, 19, 20
Center Dome Lamp................ 8W-45-9, 13
Clockspring........................ 8W-45-17
Controller Antilock Brake............. 8W-45-13
Diagnostic Junction Port.............. 8W-45-12
Driver Door Courtesy Lamp........... 8W-45-15
Driver Door Lock Switch........... 8W-45-12, 15
Driver Heated Seat Module............ 8W-45-11
Floor Console Lamp................. 8W-45-13
Front Cigar Lighter................. 8W-45-17
Front Control Module................. 8W-45-3
Front Reading Lamps/Switch........ 8W-45-8, 13
Fuel Pump Module.................. 8W-45-15
Fuse 14............................ 8W-45-3
Fuse 19............................ 8W-45-2
Fuse 20............................ 8W-45-2
Fuse 24............................ 8W-45-2
G301.......................... 8W-45-5, 6, 8
Glove Box Lamp.................... 8W-45-19
Halo Lamp........................ 8W-45-19
Headlamp Switch.............. 8W-45-11, 16, 20
Hood Ajar Switch................... 8W-45-12
Ignition Switch...................... 8W-45-3
Instrument Cluster............ 8W-45-16, 18, 19
Instrument Panel Switch
Bank.................. 8W-45-10, 11, 17, 19
Integrated Power Module..... 8W-45-2, 3, 5, 6, 13
Left B-Pillar Switch.................. 8W-45-9
Left Cylinder Lock Switch............. 8W-45-10
Left Front Door Lock Motor/Ajar
Switch......................... 8W-45-4, 7
Left Liftgate Flood Lamp............. 8W-45-12
Left Mid Reading Lamp............ 8W-45-9, 14
Left Power Mirror................... 8W-45-20
Left Rear Lamp Assembly............ 8W-45-5, 6
Left Rear Reading Lamp............ 8W-45-9, 14
Left Remote Radio Switch............. 8W-45-17
Left Repeater Lamp................. 8W-45-20
Left Sliding Door Control Module..... 8W-45-8, 10
Left Sliding Door Lock Motor........... 8W-45-7
Left Sliding Door Lock Motor/Ajar
Switch......................... 8W-45-7, 8Component Page
Left Stop/Turn Signal Relay............ 8W-45-5
Left Visor/Vanity Lamp............... 8W-45-13
License Lamp....................... 8W-45-8
Liftgate Ajar Switch................. 8W-45-12
Liftgate Cinch/Release Motor.......... 8W-45-12
Liftgate Cylinder Lock Switch.......... 8W-45-9
Memory Set Switch................... 8W-45-4
Message Center..................... 8W-45-18
Multi- Function Switch............... 8W-45-16
Name Brand Speaker Relay............ 8W-45-3
Overhead Console................. 8W-45-4, 11
Passenger Door Courtesy Lamp........ 8W-45-15
Passenger Door Lock Switch........ 8W-45-12, 15
Passenger Folding Mirror Relay........ 8W-45-20
Passenger Heated Seat Module......... 8W-45-11
Power Folding Mirror Switch.......... 8W-45-20
Power Liftgate Module................ 8W-45-8
Power Mirror Switch................. 8W-45-16
Radio............................. 8W-45-17
Rear Auto Temp Control Switch..... 8W-45-10, 19
Rear Blower Rear Control Switch....... 8W-45-10
Rear Dome Lamp.................... 8W-45-9
Rear Wiper Motor.................... 8W-45-8
Remote Keyless Entry Module....... 8W-45-4, 16
Right B-Pillar Switch................. 8W-45-9
Right Combination Relay.............. 8W-45-5
Right Cylinder Lock Switch........... 8W-45-10
Right Front Door Lock Motor/Ajar
Switch......................... 8W-45-7, 9
Right Liftgate Flood Lamp............ 8W-45-12
Right Mid Reading Lamp........... 8W-45-9, 14
Right Power Mirror.................. 8W-45-20
Right Rear Lamp Assembly........... 8W-45-5, 6
Right Rear Reading Lamp........... 8W-45-9, 14
Right Remote Radio Switch........... 8W-45-17
Right Repeater Lamp................ 8W-45-20
Right Sliding Door Control Module.... 8W-45-8, 10
Right Sliding Door Lock Motor.......... 8W-45-7
Right Sliding Door Lock Motor/Ajar
Switch......................... 8W-45-7, 8
Right Visor/Vanity Lamp.............. 8W-45-13
Thatcham Alarm Module............. 8W-45-10
Traction Control Switch.............. 8W-45-17
RS8W-45 BODY CONTROL MODULE8W-45-1
ProCarManuals.com
Page 1036 of 2399
Component Page
Right Rear Lamp Assembly........... 8W-80-107
Right Rear Pillar Speaker............ 8W-80-107
Right Rear Reading Lamp (Luxury).... 8W-80-107
Right Rear Speaker................. 8W-80-107
Right Rear Vent Motor.............. 8W-80-107
Right Rear Wheel Speed Sensor....... 8W-80-108
Right Remote Radio Switch........... 8W-80-108
Right Repeater Lamp
(Built-Up-Export)................ 8W-80-108
Right Seat Airbag.................. 8W-80-108
Right Side Impact Airbag
Control Module.................. 8W-80-108
Right Sliding Door Control Module C1
(Power Sliding Door).............. 8W-80-109
Right Sliding Door Control Module C2
(Power Sliding Door).............. 8W-80-109
Right Sliding Door Latch Sensing Switch
(Power Sliding Door).............. 8W-80-109
Right Sliding Door Lock Motor
(Power Sliding Door).............. 8W-80-110
Right Sliding Door Lock Motor/Ajar Switch
(Manual Sliding Door)............. 8W-80-110
Right Sliding Door Motor
(Power Sliding Door).............. 8W-80-110
Right Speed Control Switch.......... 8W-80-110
Right Stop/Turn Signal Relay
(Trailer Tow).................... 8W-80-110Component Page
Right Turn Signal Lamp
(Built-Up-Export)................. 8W-80-111
Right Visor/Vanity Lamp
(Premium/Luxury)................ 8W-80-111
Sentry Key Immobilizer Module....... 8W-80-111
Siren (United Kingdom).............. 8W-80-111
Solenoid/Pressure Switch Assy (EATX) . . 8W-80-111
Speed Control Servo (Gas)............ 8W-80-112
Thatcham Alarm Module C1
(United Kingdom)................ 8W-80-112
Thatcham Alarm Module C2
(United Kingdom)................ 8W-80-112
Throttle Position Sensor (Gas)......... 8W-80-112
Torque Converter Clutch Solenoid
(ATX).......................... 8W-80-113
Traction Control Switch.............. 8W-80-113
Trailer Tow Connector
(Except Built-Up-Export)........... 8W-80-113
Transmission Control Module (EATX) . . . 8W-80-114
Transmission Range Sensor (EATX).... 8W-80-115
TXV Solenoid (ATC)................ 8W-80-115
Vehicle Speed Sensor (MTX/ATX)...... 8W-80-115
Washer Fluid Level Switch........... 8W-80-115
Water In Fuel Sensor (Diesel)......... 8W-80-116
Wiper Module..................... 8W-80-116
RS8W-80 CONNECTOR PIN-OUTS8W-80-5
ProCarManuals.com
Page 1143 of 2399
SPEED CONTROL SERVO (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 V36 18VT/YL SPEED CONTROL VACUUM SOLENOID CONTROL
2 V35 18VT/OR SPEED CONTROL VENT SOLENOID CONTROL
3 V30 18VT/WT SPEED CONTROL BRAKE SWITCH OUTPUT
4 Z155 18BK/LG GROUND
THATCHAM ALARM MODULE C1 (UNITED KINGDOM) - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 G22 20YL VTSS INDICATOR SUPPLY
4 D23 20WT/BR FLASH PROGRAM ENABLE
5 D97 20WT/OR SIREN SIGNAL OUTPUT
6 D96 20WT/LB SIREN SIGNAL CONTROL
7 F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
8 G944 20LB/BR SIREN SIGNAL RETURN
9- -
10 - -
11 G922 20GY VTSS INDICATOR DRIVER
12 - -
13 D25 20WT/VT PCI BUS
14 - -
15 L91 20WT/DB HAZARD SWITCH SENSE
16 A600 20RD/LB SIREN SUPPLY
THATCHAM ALARM MODULE C2 (UNITED KINGDOM) - WHITE 4 WAY
CAV CIRCUIT FUNCTION
1 18BK/LB REAR INTRUSION SENSOR SIGNAL
2 18BK/LB FRONT INTRUSION SENSOR SIGNAL
3 18BK/WT SENSOR GROUND
4 18BK/WT SENSOR GROUND
THROTTLE POSITION SENSOR (GAS) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K900 18DB/DG SENSOR GROUND
2 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
3 F855 18PK/YL 5 VOLT SUPPLY
8W - 80 - 112 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1157 of 2399
CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Right Seat Airbag YL At Passenger Seat N/S
Right Side Impact Airbag Control
ModuleYL/RD Right B Pillar 33
Right Sliding Door Control Module
C1BK Rear of Door 38, 39
Right Sliding Door Control Module
C2BK/RD Rear of Door 38, 39
Right Sliding Door Latch Sensing
SwitchBK At Sliding Door 38
Right Sliding Door Lock Motor BK Rear of Door 38
Right Sliding Door Lock Motor/Ajar
SwitchBK At Latch N/S
Right Sliding Door Motor BK At Sliding Door 38
Right Speed Control Switch BK At Steering Wheel N/S
Right Stop/Turn Signal Relay BK LT Quarter Panel N/S
Right Turn Signal Lamp OR At Lamp N/S
Right Visor/Vanity Lamp BK At Lamp N/S
Sentry Key Immobilizer Module BK At Steering Column 15, 16, 17, 18, 26
Siren (United Kingdom) BK Left Front Body N/S
Solenoid/Pressure Switch
Assembly (EATX)BK Side of Transmission N/S
Speed Control Servo BK Near Controller Antilock Brake 14
Thatcham Alarm Module C1 BK Top Right Side of Instrument Panel
Near SpeakerN/S
Thatcham Alarm Module C1 WT Top Right Side of Instrument Panel
Near SpeakerN/S
Throttle Position Sensor GY On Throttle Body 9, 13
Torque Converter Clutch Solenoid BK Front of Transmission 10
Traction Control Switch BK Rear of Swtich 16, 17, 26
Trailer Tow Connector BK Left Quarter Panel N/S
Transmission Control Module BK Top of Transmission 14
Transmission Range Sensor GY Top of Transmission 14
Vehicle Speed Sensor BK Rear of Transmission 9, 12
Washer Fluid Level Switch BK Bottom of Reservoir 3
Water in Fuel Sensor (Diesel) Left Rear Engine Compartment N/S
Wiper Module BK Left Side Cowl 6
8W - 91 - 10 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
