TORQUE CONVERTER LEAKAGE
Possible sources of torque converter leakage are:
²Torque converter weld leaks at the outside diam-
eter weld (Fig. 8).
²Torque converter hub weld (Fig. 8).
REMOVAL
NOTE: If transaxle assembly is being replaced or
overhauled (clutch and/or seal replacement), it is
necessary to perform the TCM Quick Learn Proce-
dure. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/TRANSMISSION CONTROL
MODULE - STANDARD PROCEDURE)
(1) Disconnect battery cables.
(2) Remove battery shield (Fig. 9).
(3) Remove coolant recovery bottle (Fig. 10).
(4) Remove fluid level indicator/tube assembly.
Plug opening to prevent debris from entering trans-
axle.
(5) Using a blade or suitable hose cutter, cut trans-
axle oil cooler lines off flush with fittings. Plug lines
and fittings to prevent debris from entering transaxle
or cooler circuit. A service splice kit will be installed
upon reassembly.
(6) Disconnect input and output shaft speed sensor
connectors (Fig. 11).
(7) Disconnect transmission range sensor (TRS)
connector (Fig. 11).
(8) Disconnect solenoid/pressure switch assembly
connector (Fig. 11).
Fig. 8 Converter Leak Points - Typical
1 - OUTSIDE DIAMETER WELD
2 - TORQUE CONVERTER HUB WELD
3 - STARTER RING GEAR
4 - LUG
Fig. 9 Battery Thermal Guard
1 - BATTERY THERMOWRAP (IF EQUIPPED)
2 - INTEGRATED POWER MODULE
3 - FRONT CONTROL MODULE
Fig. 10 Coolant Recovery Bottle
1 - UPPER BOLT ATTACHING TO BATTERY TRAY
2 - COOLANT RECOVERY CONTAINER
3 - UPPER BOLT
4 - HOSE
5 - LOWER BOLT (QTY. 2)
6 - LEFT SIDE FRAME RAIL
21 - 124 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)
ProCarManuals.com
Page 1769 of 2177

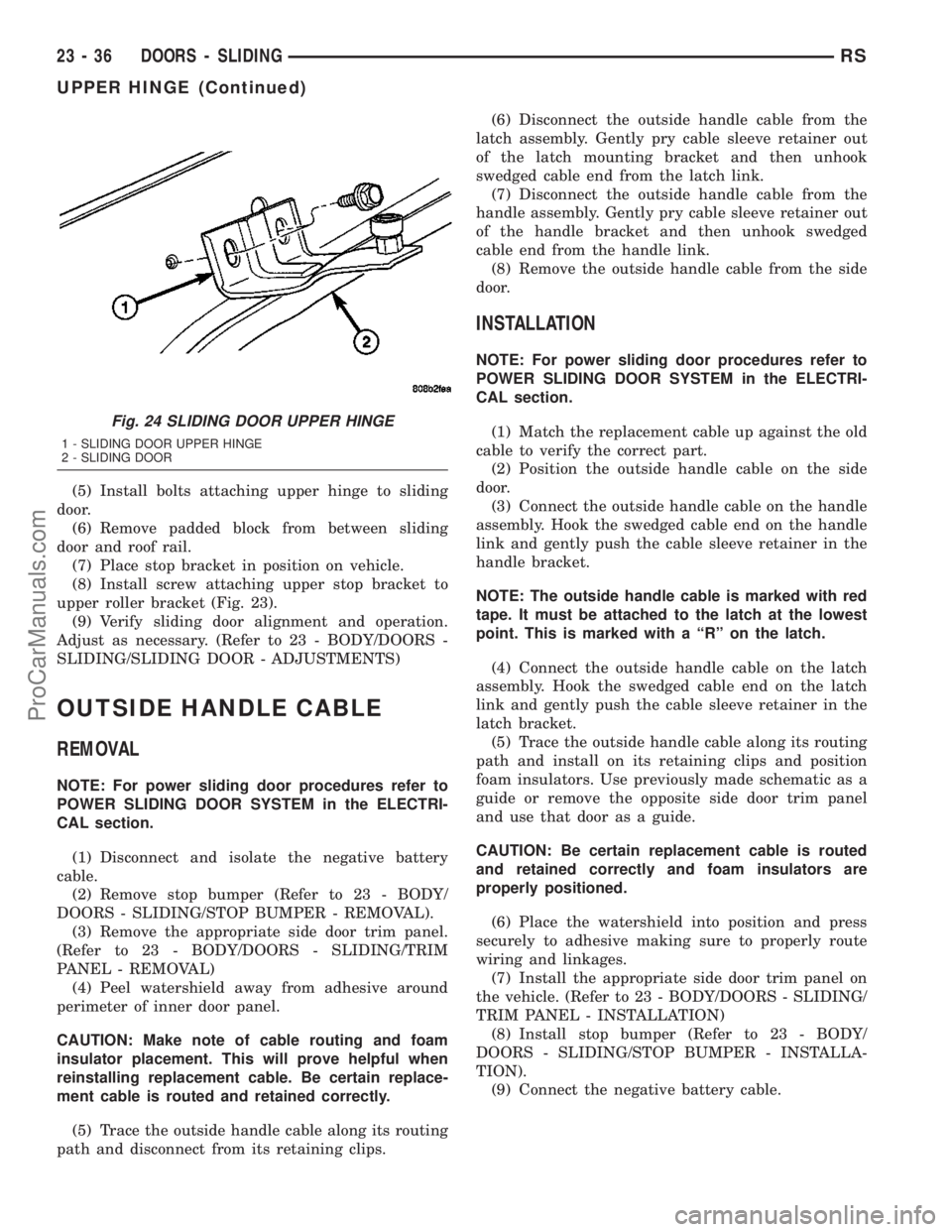

(5) Install bolts attaching upper hinge to sliding
door.
(6) Remove padded block from between sliding
door and roof rail.
(7) Place stop bracket in position on vehicle.
(8) Install screw attaching upper stop bracket to
upper roller bracket (Fig. 23).
(9) Verify sliding door alignment and operation.
Adjust as necessary. (Refer to 23 - BODY/DOORS -
SLIDING/SLIDING DOOR - ADJUSTMENTS)
OUTSIDE HANDLE CABLE
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Disconnect and isolate the negative battery
cable.
(2) Remove stop bumper (Refer to 23 - BODY/
DOORS - SLIDING/STOP BUMPER - REMOVAL).
(3) Remove the appropriate side door trim panel.
(Refer to 23 - BODY/DOORS - SLIDING/TRIM
PANEL - REMOVAL)
(4) Peel watershield away from adhesive around
perimeter of inner door panel.
CAUTION: Make note of cable routing and foam
insulator placement. This will prove helpful when
reinstalling replacement cable. Be certain replace-
ment cable is routed and retained correctly.
(5) Trace the outside handle cable along its routing
path and disconnect from its retaining clips.(6) Disconnect the outside handle cable from the
latch assembly. Gently pry cable sleeve retainer out
of the latch mounting bracket and then unhook
swedged cable end from the latch link.
(7) Disconnect the outside handle cable from the
handle assembly. Gently pry cable sleeve retainer out
of the handle bracket and then unhook swedged
cable end from the handle link.
(8) Remove the outside handle cable from the side
door.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Match the replacement cable up against the old
cable to verify the correct part.
(2) Position the outside handle cable on the side
door.
(3) Connect the outside handle cable on the handle
assembly. Hook the swedged cable end on the handle
link and gently push the cable sleeve retainer in the
handle bracket.
NOTE: The outside handle cable is marked with red
tape. It must be attached to the latch at the lowest
point. This is marked with a ªRº on the latch.
(4) Connect the outside handle cable on the latch
assembly. Hook the swedged cable end on the latch
link and gently push the cable sleeve retainer in the
latch bracket.
(5) Trace the outside handle cable along its routing
path and install on its retaining clips and position
foam insulators. Use previously made schematic as a
guide or remove the opposite side door trim panel
and use that door as a guide.
CAUTION: Be certain replacement cable is routed
and retained correctly and foam insulators are
properly positioned.
(6) Place the watershield into position and press
securely to adhesive making sure to properly route
wiring and linkages.
(7) Install the appropriate side door trim panel on
the vehicle. (Refer to 23 - BODY/DOORS - SLIDING/
TRIM PANEL - INSTALLATION)
(8) Install stop bumper (Refer to 23 - BODY/
DOORS - SLIDING/STOP BUMPER - INSTALLA-
TION).
(9) Connect the negative battery cable.
Fig. 24 SLIDING DOOR UPPER HINGE
1 - SLIDING DOOR UPPER HINGE
2 - SLIDING DOOR
23 - 36 DOORS - SLIDINGRS
UPPER HINGE (Continued)
ProCarManuals.com
Page 1770 of 2177

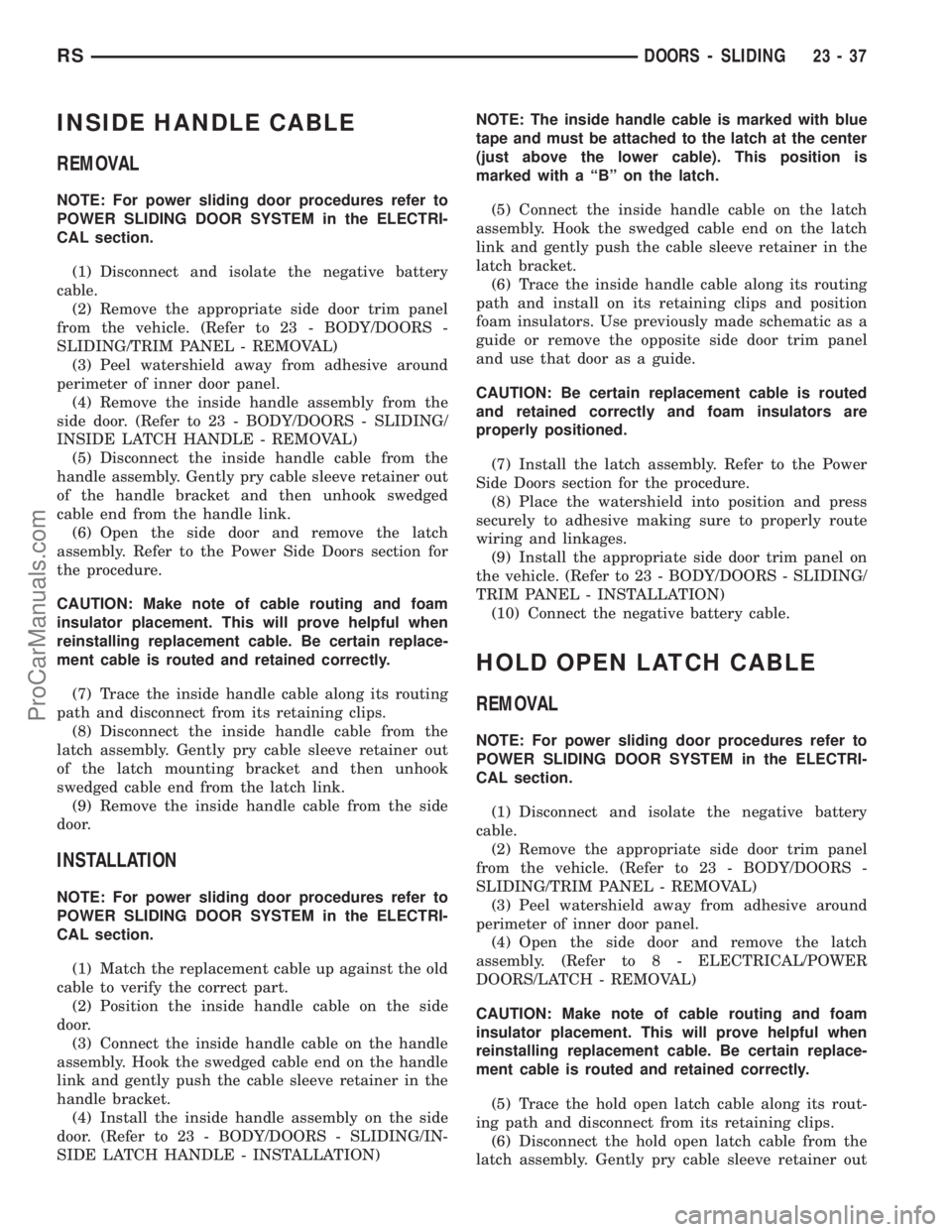

INSIDE HANDLE CABLE
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Disconnect and isolate the negative battery
cable.
(2) Remove the appropriate side door trim panel
from the vehicle. (Refer to 23 - BODY/DOORS -
SLIDING/TRIM PANEL - REMOVAL)
(3) Peel watershield away from adhesive around
perimeter of inner door panel.
(4) Remove the inside handle assembly from the
side door. (Refer to 23 - BODY/DOORS - SLIDING/
INSIDE LATCH HANDLE - REMOVAL)
(5) Disconnect the inside handle cable from the
handle assembly. Gently pry cable sleeve retainer out
of the handle bracket and then unhook swedged
cable end from the handle link.
(6) Open the side door and remove the latch
assembly. Refer to the Power Side Doors section for
the procedure.
CAUTION: Make note of cable routing and foam
insulator placement. This will prove helpful when
reinstalling replacement cable. Be certain replace-
ment cable is routed and retained correctly.
(7) Trace the inside handle cable along its routing
path and disconnect from its retaining clips.
(8) Disconnect the inside handle cable from the
latch assembly. Gently pry cable sleeve retainer out
of the latch mounting bracket and then unhook
swedged cable end from the latch link.
(9) Remove the inside handle cable from the side
door.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Match the replacement cable up against the old
cable to verify the correct part.
(2) Position the inside handle cable on the side
door.
(3) Connect the inside handle cable on the handle
assembly. Hook the swedged cable end on the handle
link and gently push the cable sleeve retainer in the
handle bracket.
(4) Install the inside handle assembly on the side
door. (Refer to 23 - BODY/DOORS - SLIDING/IN-
SIDE LATCH HANDLE - INSTALLATION)NOTE: The inside handle cable is marked with blue
tape and must be attached to the latch at the center
(just above the lower cable). This position is
marked with a ªBº on the latch.
(5) Connect the inside handle cable on the latch
assembly. Hook the swedged cable end on the latch
link and gently push the cable sleeve retainer in the
latch bracket.
(6) Trace the inside handle cable along its routing
path and install on its retaining clips and position
foam insulators. Use previously made schematic as a
guide or remove the opposite side door trim panel
and use that door as a guide.
CAUTION: Be certain replacement cable is routed
and retained correctly and foam insulators are
properly positioned.
(7) Install the latch assembly. Refer to the Power
Side Doors section for the procedure.
(8) Place the watershield into position and press
securely to adhesive making sure to properly route
wiring and linkages.
(9) Install the appropriate side door trim panel on
the vehicle. (Refer to 23 - BODY/DOORS - SLIDING/
TRIM PANEL - INSTALLATION)
(10) Connect the negative battery cable.
HOLD OPEN LATCH CABLE
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Disconnect and isolate the negative battery
cable.
(2) Remove the appropriate side door trim panel
from the vehicle. (Refer to 23 - BODY/DOORS -
SLIDING/TRIM PANEL - REMOVAL)
(3) Peel watershield away from adhesive around
perimeter of inner door panel.
(4) Open the side door and remove the latch
assembly. (Refer to 8 - ELECTRICAL/POWER
DOORS/LATCH - REMOVAL)
CAUTION: Make note of cable routing and foam
insulator placement. This will prove helpful when
reinstalling replacement cable. Be certain replace-
ment cable is routed and retained correctly.
(5) Trace the hold open latch cable along its rout-
ing path and disconnect from its retaining clips.
(6) Disconnect the hold open latch cable from the
latch assembly. Gently pry cable sleeve retainer out
RSDOORS - SLIDING23-37
ProCarManuals.com
Page 1771 of 2177

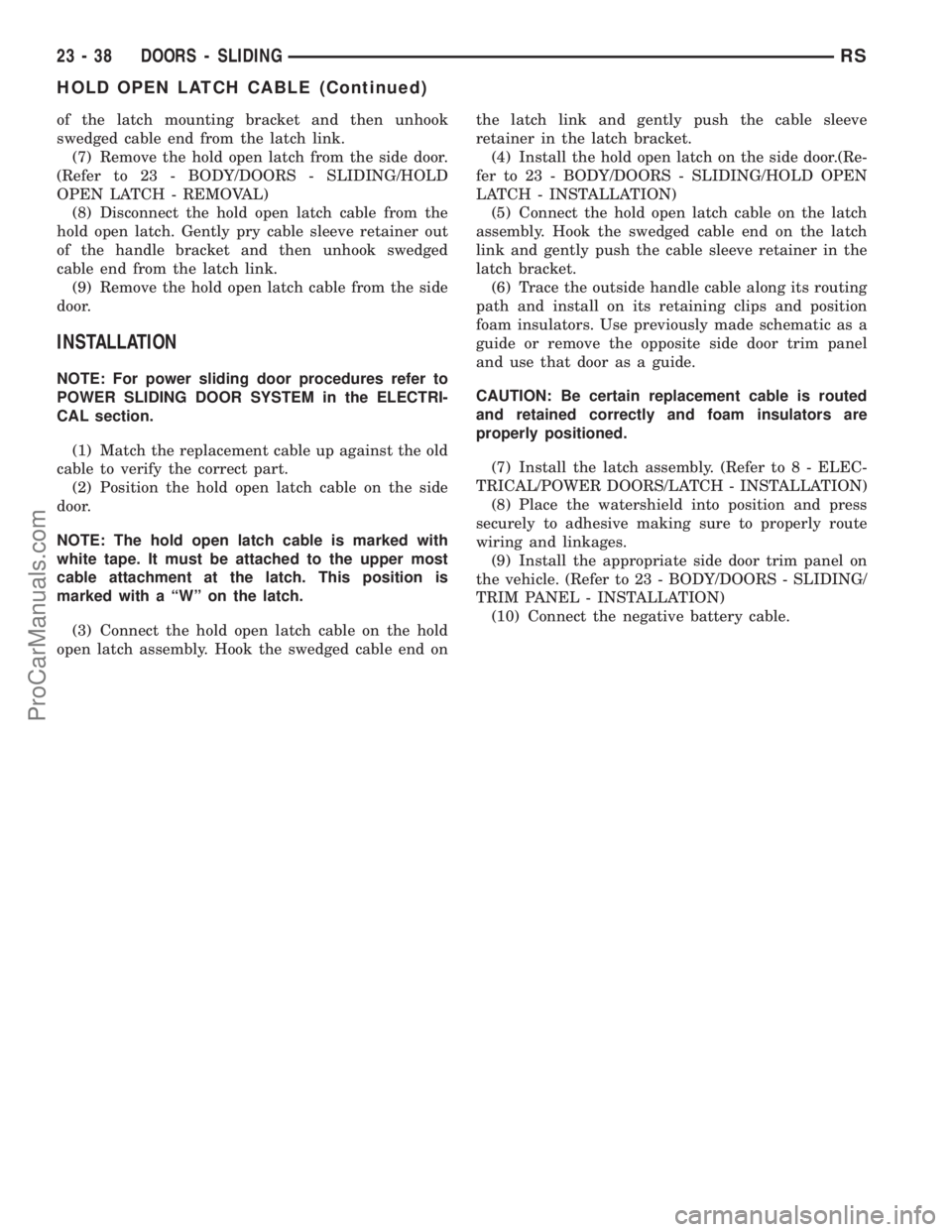

of the latch mounting bracket and then unhook
swedged cable end from the latch link.
(7) Remove the hold open latch from the side door.
(Refer to 23 - BODY/DOORS - SLIDING/HOLD
OPEN LATCH - REMOVAL)
(8) Disconnect the hold open latch cable from the
hold open latch. Gently pry cable sleeve retainer out
of the handle bracket and then unhook swedged
cable end from the latch link.
(9) Remove the hold open latch cable from the side
door.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Match the replacement cable up against the old
cable to verify the correct part.
(2) Position the hold open latch cable on the side
door.
NOTE: The hold open latch cable is marked with
white tape. It must be attached to the upper most
cable attachment at the latch. This position is
marked with a ªWº on the latch.
(3) Connect the hold open latch cable on the hold
open latch assembly. Hook the swedged cable end onthe latch link and gently push the cable sleeve
retainer in the latch bracket.
(4) Install the hold open latch on the side door.(Re-
fer to 23 - BODY/DOORS - SLIDING/HOLD OPEN
LATCH - INSTALLATION)
(5) Connect the hold open latch cable on the latch
assembly. Hook the swedged cable end on the latch
link and gently push the cable sleeve retainer in the
latch bracket.
(6) Trace the outside handle cable along its routing
path and install on its retaining clips and position
foam insulators. Use previously made schematic as a
guide or remove the opposite side door trim panel
and use that door as a guide.
CAUTION: Be certain replacement cable is routed
and retained correctly and foam insulators are
properly positioned.
(7) Install the latch assembly. (Refer to 8 - ELEC-
TRICAL/POWER DOORS/LATCH - INSTALLATION)
(8) Place the watershield into position and press
securely to adhesive making sure to properly route
wiring and linkages.
(9) Install the appropriate side door trim panel on
the vehicle. (Refer to 23 - BODY/DOORS - SLIDING/
TRIM PANEL - INSTALLATION)
(10) Connect the negative battery cable.
23 - 38 DOORS - SLIDINGRS
HOLD OPEN LATCH CABLE (Continued)
ProCarManuals.com
Page 2014 of 2177
damaged, the clutch electromagnetic coil unit must
be replaced.
OPERATION
The compressor clutch components provide the
means to engage and disengage the compressor from
the engine serpentine accessory drive belt. When the
clutch coil is energized, it magnetically draws the
clutch plate into contact with the clutch pulley and
drives the compressor shaft. When the coil is not
energized, the pulley freewheels on the clutch hub
bearing, which is part of the pulley.
A zener diode is connected in parallel with the
clutch electromagnetic coil. This diode controls the
dissipation of voltage induced into the coil windings
by the collapsing of the electromagnetic fields that
occurs when the compressor clutch is disengaged.
The zener diode dissipates this induced voltage by
regulating a current path to ground. This arrange-
ment serves to protect other circuits and components
from potentially damaging voltage spikes in the vehi-
cle electrical system that might occur if the voltage
induced in the clutch coil windings could not be dis-
sipated.
The compressor clutch engagement is controlled by
several components: the heater-A/C controls in the
passenger compartment, the A/C pressure transducer
on the liquid line, the evaporator temperature sensor
on the expansion valve, the Powertrain Control Mod-
ule (PCM) in the engine compartment, and the com-
pressor clutch relay in the Intelligent Power Module
(IPM). The PCM may delay compressor clutch
engagement for up to thirty seconds. (Refer to 8 -
ELECTRICAL/ELECTRONIC CONTROL MOD-ULES/POWERTRAIN CONTROL MODULE -
DESCRIPTION - PCM OPERATION).
STANDARD PROCEDURE
STANDARD PROCEDURE - COMPRESSOR
CLUTCH AIR GAP
If a new clutch plate and/or clutch pulley are being
used, the air gap between the clutch plate and clutch
pulley must be checked using the following proce-
dure:
(1) Using feeler gauges, measure the air gap
between the clutch plate and the clutch pulley fric-
tion surfaces.
(2) If the air gap is not between 0.5 and 0.9 mm
(0.020 and 0.035 in.), add or subtract shims until the
desired air gap is obtained.
NOTE: The shims may compress after tightening
the compressor shaft bolt. Check the air gap in four
or more places on the clutch plate to verify that the
air gap is still correct. Spin the clutch pulley before
making the final air gap check.
STANDARD PROCEDURE - COMPRESSOR
CLUTCH BREAK-IN
After a new compressor clutch has been installed,
check that the compressor clutch coil is performing to
specifications. (Refer to 24 - HEATING & AIR CON-
DITIONING/CONTROLS - FRONT/COMPRESSOR
CLUTCH COIL - DIAGNOSIS AND TESTING). If
the clutch coil is performing to specifications, per-
form the compressor clutch break-in procedure. This
procedure (burnishing) will seat the opposing friction
surfaces and provide a higher compressor clutch
torque capability.
(1) Set the heater-A/C controls to the A/C mode,
with the blower switch in the highest speed position.
(2) Start the engine and hold the engine speed at
1500 to 2000 rpm.
(3) Cycle the compressor clutch On and Off about
twenty times (seven seconds On, then seven seconds
Off).
REMOVAL
The refrigerant system can remain fully charged
during compressor clutch, pulley, or coil replacement.
Although the compressor assembly must be removed
from its mounting, the compressor clutch can be ser-
vice with the compressor in the vehicle.
(1) Disconnect and isolate the battery negative
cable.
(2) Raise and support the vehicle.
Fig. 11 Compressor Clutch - Typical
1 - CLUTCH PLATE
2 - SHAFT KEY (SOME MODELS)
3 - PULLEY AND BEARING
4 - CLUTCH COIL
5 - CLUTCH SHIMS
6 - SNAP RING
7 - SNAP RING
RSCONTROLS - FRONT24-17
COMPRESSOR CLUTCH (Continued)
ProCarManuals.com
Page 2141 of 2177
ANTILOCK BRAKE SYSTEM -
DESCRIPTION........................5-75
ANTILOCK BRAKE SYSTEM - OPERATION . . 5-76
ANTILOCK BRAKE SYSTEM BLEEDING -
STANDARD PROCEDURE................5-78
ANTILOCK BRAKE SYSTEM (EXPORT) -
DESCRIPTION........................5-75
A-PILLAR LOWER EXTENSION TRIM -
INSTALLATION.......................23-73
A-PILLAR LOWER EXTENSION TRIM -
REMOVAL..........................23-73
A-PILLAR TRIM - INSTALLATION........23-73
A-PILLAR TRIM - REMOVAL............23-73
A-PILLAR-HEADER, OR B-PILLAR -
INSTALLATION.......................23-17
A-PILLAR-HEADER, OR B-PILLAR -
REMOVAL..........................23-17
APPLIQUE - INSTALLATION.............23-14
APPLIQUE - REMOVAL................23-14
ARM - DESCRIPTION, LOWER CONTROL . . . 2-12
ARM - INSPECTION, LOWER CONTROL....2-14
ARM - INSTALLATION, LOWER CONTROL . . 2-15
ARM - INSTALLATION, REAR WIPER.....8R-14
ARM - INSTALLATION, TORQUE..........3-44
ARM - OPERATION, LOWER CONTROL.....2-12
ARM - REMOVAL, LOWER CONTROL......2-12
ARM - REMOVAL, REAR WIPER.........8R-14
ARM - REMOVAL, TORQUE..............3-44
ARM ALIGNMENT - STANDARD
PROCEDURE, FRONT WIPER............8R-8
ARM (REAR BUSHING - HYDRO) -
ASSEMBLY, LOWER CONTROL...........2-14
ARM (REAR BUSHING - HYDRO) -
DISASSEMBLY, LOWER CONTROL........2-14
ARM (REAR BUSHING - STANDARD) -
ASSEMBLY, LOWER CONTROL...........2-14
ARM (REAR BUSHING - STANDARD) -
DISASSEMBLY, LOWER CONTROL........2-13
ARMREST - INSTALLATION.............23-90
ARMREST - REMOVAL................23-90
ARMS - DESCRIPTION, ROCKER........9-109
ARMS - INSPECTION, ROCKER...........9-35
ARMS - INSTALLATION, FRONT WIPER....8R-9
ARMS - INSTALLATION, ROCKER.........9-35
ARMS - OPERATION, ROCKER..........9-109
ARMS - REMOVAL, FRONT WIPER........8R-9
ARMS - REMOVAL, ROCKER.............9-34
ARMS AND SHAFT - ASSEMBLY,
ROCKER............................9-109
ARMS AND SHAFT - DISASSEMBLY,
ROCKER............................9-109
ARMS AND SHAFT - INSTALLATION,
ROCKER............................9-110
ARMS AND SHAFT - REMOVAL, ROCKER . . 9-109
ASSIST HANDLE - INSTALLATION........23-73
ASSIST HANDLE - REMOVAL...........23-73
ASSIST STRAP - INSTALLATION, FRONT
SEATBACK..........................23-91
ASSIST STRAP - REMOVAL, FRONT
SEATBACK..........................23-91
ATC - OPERATION, THREE ZONE.........24-3
ATC - OPERATION, TWO ZONE.........24-106
ATTACHED - INSTALLATION, EXTERIOR
NAME PLATES - ADHESIVE.............23-50
ATTACHED - INSTALLATION, EXTERIOR
NAME PLATES - TAPE.................23-50
ATTACHED - REMOVAL, EXTERIOR NAME
PLATES - ADHESIVE..................23-50
ATTACHED - REMOVAL, EXTERIOR NAME
PLATES - TAPE ......................23-50
AUDIO - DIAGNOSIS AND TESTING.......8A-2
AUDIO/VIDEO - DESCRIPTION...........8A-1
AUDIO/VIDEO - OPERATION.............8A-2
AUTO SHUT DOWN RELAY -
DESCRIPTION.........................8I-3
AUTO SHUT DOWN RELAY - OPERATION . . . 8I-3
AUTOMATIC ADJUSTER - DIAGNOSIS
AND TESTING, DRUM BRAKE
............5-13
AUTOMATIC ADJUSTER TENSION
RELEASE - STANDARD PROCEDURE,
PARKING BRAKE
......................5-58
AUTOMATIC ADJUSTER TENSION RESET
- STANDARD PROCEDURE, PARKING
BRAKE
..............................5-59
AUTOMATIC DAY / NIGHT MIRROR -
DESCRIPTION
.......................8N-47
AUTOMATIC DAY / NIGHT MIRROR -
DIAGNOSIS AND TESTING
.............8N-47AUTOMATIC DAY / NIGHT MIRROR -
OPERATION.........................8N-47
AUTOMATIC TEMPERATURE CONTROL -
DESCRIPTION........................24-2
AUTOMATIC TRANSAXLE -
DESCRIPTION, 41TE.................21-117
AUTOMATIC TRANSAXLE - OPERATION,
41TE.............................21-119
AUTOMATIC TRANSAXLE, SPECIAL
TOOLS - 41TE......................21-183
AUTOSTICK SWITCH - DESCRIPTION....21-189
AUTOSTICK SWITCH - OPERATION......21-189
AWD - INSTALLATION..............2-39,2-44
AWD - INSTALLATION, REAR WHEEL
SPEED SENSOR.......................5-80
AWD - REMOVAL.................2-38,2-44
AWD - REMOVAL, REAR WHEEL SPEED
SENSOR............................5-80
AWD AND HEAVY DUTY - INSTALLATION . . . 2-35
AWD AND HEAVY DUTY - REMOVAL......2-35
AXLE SEALS - INSTALLATION...........21-61
AXLE SEALS - REMOVAL..............21-61
B OR C-PILLAR - INSTALLATION, SEAT
BELT HEIGHT ADJUSTER..............8O-12
B OR C-PILLAR - REMOVAL, SEAT BELT
HEIGHT ADJUSTER...................8O-12
BACK - INSTALLATION, BENCH SEAT....23-101
BACK - QUAD BUCKET - INSTALLATION,
BUCKET SEAT.......................23-97
BACK - QUAD BUCKET - REMOVAL,
BUCKET SEAT.........................23-97
BACK - REMOVAL, BENCH SEAT........23-101
BACK COVER - INSTALLATION, BENCH
SEAT .............................23-102
BACK COVER - REMOVAL, BENCH SEAT . . 23-102
BACK HINGE - REMOVAL, BENCH SEAT . . 23-100
BACK HINGE COVERS - QUAD BUCKET,
50/50 SPLIT, BENCH - INSTALLATION,
SEAT .............................23-100
BACK HINGE COVERS - QUAD BUCKET,
50/50 SPLIT, BENCH - REMOVAL, SEAT . . 23-100
BACKING PLATE - INSTALLATION,
STEERING COLUMN COVER............23-69
BACKING PLATE - REMOVAL, STEERING
COLUMN COVER.....................23-69
BACK-UP LAMP SWITCH -
INSTALLATION.......................21-62
BACK-UP LAMP SWITCH - REMOVAL.....21-62
BAG RETAINER - INSTALLATION,
PLASTIC GROCERY..................23-103
BAG RETAINER - REMOVAL, PLASTIC
GROCERY.........................23-103
BALANCE - STANDARD PROCEDURE,
TIRE AND WHEEL.....................22-5
BALANCE SHAFTS AND CARRIER
ASSEMBLY - DESCRIPTION.............9-69
BALANCE SHAFTS AND CARRIER
ASSEMBLY - INSTALLATION.............9-72
BALANCE SHAFTS AND CARRIER
ASSEMBLY - OPERATION...............9-69
BALANCE SHAFTS AND CARRIER
ASSEMBLY - REMOVAL.................9-69
BALL BEARING - INSTALLATION, END
COVER.............................21-10
BALL BEARING - REMOVAL, END COVER . . . 21-9
BALL JOINT - DESCRIPTION, LOWER......2-10
BALL JOINT - DIAGNOSIS AND TESTING,
LOWER.............................2-10
BALL JOINT - OPERATION, LOWER.......2-10
BALL JOINT SEAL BOOT - INSTALLATION . . 2-11
BALL JOINT SEAL BOOT - REMOVAL......2-11
BAR - DESCRIPTION, STABILIZER....2-16,2-43
BAR - DESCRIPTION, TRACK............2-44
BAR - INSPECTION, STABILIZER..........2-17
BAR - INSTALLATION, STABILIZER........2-17
BAR - INSTALLATION, TRACK............2-45
BAR - OPERATION, STABILIZER......2-16,2-44
BAR - OPERATION, TRACK..............2-44
BAR - REMOVAL, STABILIZER...........2-17
BAR - REMOVAL, TRACK...............2-44
BAR CUSHION - INSTALLATION,
STABILIZER
...........................2-4
BAR CUSHION - REMOVAL, STABILIZER
....2-4
BASE BRAKE BLEEDING - STANDARD
PROCEDURE
..........................5-7
BASE BRAKE SYSTEM - DIAGNOSIS AND
TESTING
.............................5-4
BASE BRAKE SYSTEM, SPECIAL TOOLS
....5-10BASE BRAKES - DESCRIPTION............5-3
BASE BRAKES - OPERATION..............5-3
BASE BRAKES (EXPORT) - DESCRIPTION . . . 5-3
BASE COAT/CLEARCOAT FINISH -
DESCRIPTION.......................23-84
BATTERY - DESCRIPTION...............8F-7
BATTERY - DIAGNOSIS AND TESTING.....8F-9
BATTERY - OPERATION.................8F-9
BATTERY - REMOVAL.................8F-15
BATTERY CABLE - DIAGNOSIS AND
TESTING...........................8F-16
BATTERY CABLES - DESCRIPTION.......8F-16
BATTERY CABLES - INSTALLATION.......8F-18
BATTERY CABLES - OPERATION.........8F-16
BATTERY CABLES - REMOVAL..........8F-18
BATTERY CHARGING - STANDARD
PROCEDURE, CONVENTIONAL..........8F-11
BATTERY CHARGING - STANDARD
PROCEDURE, SPIRAL PLATE............8F-10
BATTERY ELECTROLYTE LEVEL -
STANDARD PROCEDURE, CHECKING.....8F-14
BATTERY HOLDDOWN - DESCRIPTION....8F-15
BATTERY HOLDDOWN - INSTALLATION . . . 8F-16
BATTERY HOLDDOWN - OPERATION.....8F-15
BATTERY HOLDDOWN - REMOVAL.......8F-16
BATTERY REPLACEMENT - STANDARD
PROCEDURE........................8N-42
BATTERY, SPECIFICATIONS.............8N-43
BATTERY SYSTEM - CLEANING...........8F-5
BATTERY SYSTEM - DESCRIPTION........8F-1
BATTERY SYSTEM - DIAGNOSIS AND
TESTING............................8F-2
BATTERY SYSTEM - INSPECTION.........8F-5
BATTERY SYSTEM - OPERATION.........8F-2
BATTERY SYSTEM - SPECIFICATIONS......8F-6
BATTERY SYSTEM SPECIAL TOOLS,
SPECIAL TOOLS......................8F-7
BATTERY TEMPERATURE SENSOR -
DESCRIPTION.......................8F-23
BATTERY TEMPERATURE SENSOR -
OPERATION.........................8F-23
BATTERY TEMPERATURE SENSOR -
REMOVAL..........................8F-23
BATTERY TEMPERATURE SENSOR -
SPECIFICATIONS.....................8F-22
BATTERY TRAY - DESCRIPTION.........8F-18
BATTERY TRAY - INSTALLATION.........8F-19
BATTERY TRAY - OPERATION...........8F-19
BATTERY TRAY - REMOVAL............8F-19
BEARING - DESCRIPTION, HUB.......2-30,2-5
BEARING - DIAGNOSIS AND TESTING,
HUB.............................2-30,2-5
BEARING - INSTALLATION, CLUTCH
RELEASE LEVER.......................6-7
BEARING - INSTALLATION, END COVER
BALL..............................21-10
BEARING - INSTALLATION, HUB.......2-32,2-5
BEARING - OPERATION, HUB.........2-30,2-5
BEARING - REMOVAL, CLUTCH RELEASE
LEVER...............................6-6
BEARING - REMOVAL, END COVER BALL . . . 21-9
BEARING - REMOVAL, HUB..........2-31,2-5
BEARING CLEARANCE - STANDARD
PROCEDURE, MEASURING
CONNECTING ROD...................9-120
BEARING CLEARANCE USING
PLASTIGAGE - STANDARD
PROCEDURE, MEASURING..........9-12,9-84
BEARING FITTING - STANDARD
PROCEDURE, MAIN...................9-123
BEARING PRELOAD - ADJUSTMENT,
DIFFERENTIAL......................21-199
BEARINGS - INSTALLATION,
CRANKSHAFT MAIN..................9-124
BEARINGS - REMOVAL, CRANKSHAFT
MAIN..............................9-124
BEARINGS (IN BLOCK) - DESCRIPTION,
CAMSHAFT.........................9-115
BEARINGS (IN BLOCK) - INSPECTION,
CAMSHAFT.........................9-115
BEARINGS (IN BLOCK) - INSTALLATION,
CAMSHAFT
.........................9-115
BEARINGS (IN BLOCK) - OPERATION,
CAMSHAFT
.........................9-115
BEARINGS (IN BLOCK) - REMOVAL,
CAMSHAFT
.........................9-115
BELLCRANK - INSTALLATION
...........23-34
BELLCRANK - REMOVAL
...............23-34
2 INDEXRS
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com
Page 2157 of 2177
LAMP - REMOVAL, VANITY.............8L-28
LAMP REPLACEMENT - STANDARD
PROCEDURE, MODULE................8M-3
LAMP REPLACEMENT - STANDARD
PROCEDURE, READING/COURTESY.......8M-3
LAMP SWITCH - DESCRIPTION, BRAKE....8L-4
LAMP SWITCH - DIAGNOSIS AND
TESTING, BRAKE......................8L-5
LAMP SWITCH - INSTALLATION,
BACK-UP...........................21-62
LAMP SWITCH - INSTALLATION, BRAKE . . . 8L-5
LAMP SWITCH - INSTALLATION, CENTER
CONSOLE...........................8L-26
LAMP SWITCH - INSTALLATION, GLOVE
BOX ...............................8L-26
LAMP SWITCH - OPERATION, BRAKE......8L-4
LAMP SWITCH - REMOVAL, BACK-UP....21-62
LAMP SWITCH - REMOVAL, BRAKE.......8L-5
LAMP SWITCH - REMOVAL, CENTER
CONSOLE...........................8L-26
LAMP SWITCH - REMOVAL, GLOVE BOX . . 8L-26
LAMP UNIT - INSTALLATION, CENTER
HIGH MOUNTED STOP.................8L-7
LAMP UNIT - INSTALLATION, TAIL.......8L-23
LAMP UNIT - REMOVAL, CENTER HIGH
MOUNTED STOP......................8L-6
LAMP UNIT - REMOVAL, TAIL...........8L-23
LAMP UNIT ALIGNMENT - EXPORT -
STANDARD PROCEDURE, FRONT FOG.....8L-9
LAMP UNIT ALIGNMENT - STANDARD
PROCEDURE, FRONT FOG................8L-9
LAMPS - INSTALLATION, CLUSTER
ILLUMINATION......................8L-26
LAMPS - REMOVAL, CLUSTER
ILLUMINATION......................8L-26
LAMPS, SPECIFICATIONS - EXTERIOR.....8L-4
LAMPS, SPECIFICATIONS - INTERIOR....8L-25
LAMPS/LIGHTING - EXTERIOR -
DESCRIPTION........................8L-2
LAMPS/LIGHTING - EXTERIOR -
OPERATION..........................8L-3
LAMPS/LIGHTING - EXTERIOR -
WARNING...........................8L-4
LASH ADJUSTER NOISE DIAGNOSIS -
DIAGNOSIS AND TESTING, HYDRAULIC....9-34
LASH ADJUSTERS - INSTALLATION,
HYDRAULIC..........................9-34
LASH ADJUSTERS - REMOVAL,
HYDRAULIC..........................9-34
LATCH - DESCRIPTION...........8N-13,8N-29
LATCH - INSTALLATION.....23-19,23-40,23-60
LATCH - INSTALLATION..........8N-14,8N-29
LATCH - INSTALLATION, FUEL FILL
DOOR BLOCKER.....................23-52
LATCH - INSTALLATION, GLOVE BOX.....23-63
LATCH - INSTALLATION, HOLD OPEN.....23-25
LATCH / LOCK ASSEMBLY -
INSTALLATION.......................23-27
LATCH / LOCK ASSEMBLY - REMOVAL....23-26
LATCH - OPERATION............8N-13,8N-29
LATCH - REMOVAL.........23-18,23-40,23-60
LATCH - REMOVAL..............8N-13,8N-29
LATCH - REMOVAL, FUEL FILL DOOR
BLOCKER...........................23-52
LATCH - REMOVAL, GLOVE BOX.........23-63
LATCH - REMOVAL, HOLD OPEN........23-25
LATCH ACTUATOR - DESCRIPTION......8N-14
LATCH ACTUATOR - INSTALLATION......8N-14
LATCH ACTUATOR - OPERATION........8N-14
LATCH ACTUATOR - REMOVAL
..........8N-14
LATCH CABLE - INSTALLATION, HOLD
OPEN
..............................23-38
LATCH CABLE - REMOVAL, HOLD OPEN
. . . 23-37
LATCH HANDLE - INSTALLATION, INSIDE
. . 23-33
LATCH HANDLE - REMOVAL, INSIDE
.....23-33
LATCH RELEASE CABLE - INSTALLATION
. . 23-61
LATCH RELEASE CABLE - REMOVAL
.....23-60
LATCH STRIKER - INSTALLATION
. . 23-19,23-40,
23-61
LATCH STRIKER - INSTALLATION, FUEL
FILL DOOR BLOCKER
.................23-52
LATCH STRIKER - INSTALLATION, GLOVE
BOX
...............................23-64
LATCH STRIKER - INSTALLATION, HOLD
OPEN
..............................23-26
LATCH STRIKER - INSTALLATION, REAR
. . 23-28
LATCH STRIKER - REMOVAL
. 23-19,23-40,23-61LATCH STRIKER - REMOVAL, FUEL FILL
DOOR BLOCKER.....................23-52
LATCH STRIKER - REMOVAL, GLOVE
BOX ...............................23-64
LATCH STRIKER - REMOVAL, HOLD
OPEN..............................23-26
LATCH STRIKER - REMOVAL, REAR......23-28
LEAD - DIAGNOSIS AND TESTING,
TIRE/VEHICLE.......................22-14
LEAF SPRING FRONT BUSHING -
INSTALLATION........................2-29
LEAF SPRING FRONT BUSHING -
REMOVAL...........................2-28
LEAK DETECTION ASSY - INSTALLATION,
NATURAL VAC.......................25-13
LEAK DETECTION ASSY - REMOVAL,
NATURAL VAC.......................25-13
LEAK DETECTION PUMP - INSTALLATION . 25-13
LEAK DETECTION PUMP - REMOVAL.....25-13
LEAK DIAGNOSIS, DIAGNOSIS AND
TESTING - FLUID......................21-3
LEAK INSPECTION - DIAGNOSIS AND
TESTING, ENGINE OIL...............9-8,9-82
LEAK REPAIRING - STANDARD
PROCEDURE, TIRE...................22-17
LEAK TEST - DIAGNOSIS AND TESTING,
COOLING SYSTEM.....................7-2
LEAKAGE - DIAGNOSIS AND TESTING,
TORQUE CONVERTER HOUSING FLUID . . 21-123
LEAKAGE TEST - DIAGNOSIS AND
TESTING, CYLINDER COMBUSTION
PRESSURE.......................9-83,9-9
LEAKS - DIAGNOSIS AND TESTING,
INTAKE MANIFOLD...............9-145,9-58
LEAKS - DIAGNOSIS AND TESTING,
REFRIGERANT SYSTEM...............24-86
LEAKS - DIAGNOSIS AND TESTING,
WATER .............................23-2
LEARN CYCLE - STANDARD
PROCEDURE, POWER DOOR...........8N-28
LEARN CYCLE - STANDARD
PROCEDURE, POWER LIFTGATE..........8N-9
LEARN PROCEDURE - STANDARD
PROCEDURE, QUICK.............8E-16,8E-23
LEFT - CLEANING, EXHAUST MANIFOLD . . 9-152
LEFT - INSPECTION, EXHAUST
MANIFOLD..........................9-152
LEFT - INSTALLATION, CYLINDER HEAD
COVER.............................9-103
LEFT - INSTALLATION, EXHAUST
MANIFOLD..........................9-152
LEFT - REMOVAL, CYLINDER HEAD
COVER.............................9-103
LEFT - REMOVAL, EXHAUST MANIFOLD . . . 9-152
LEFT B-PILLAR SWITCH - DESCRIPTION . . 8N-32
LEFT B-PILLAR SWITCH - INSTALLATION . 8N-32
LEFT B-PILLAR SWITCH - OPERATION....8N-32
LEFT B-PILLAR SWITCH - REMOVAL.....8N-32
LEFT D-PILLAR TRIM PANEL -
INSTALLATION.......................23-77
LEFT D-PILLAR TRIM PANEL - REMOVAL . 23-77
LEFT MOUNT - INSTALLATION......9-133,9-50
LEFT MOUNT - REMOVAL..........9-133,9-49
LEFT OUTBOARD - INSTALLATION, SEAT
BELT & RETRACTOR - SECOND ROW....8O-16
LEFT OUTBOARD - REMOVAL, SEAT
BELT & RETRACTOR - SECOND ROW....8O-16
LEFT QUARTER TRIM PANEL -
INSTALLATION.......................23-78
LEFT QUARTER TRIM PANEL - REMOVAL . 23-78
LENS - INSTALLATION, CLUSTER........8J-10
LENS - REMOVAL, CLUSTER............8J-10
LEVEL - DIAGNOSIS AND TESTING,
REFRIGERANT SYSTEM CHARGE........24-85
LEVEL - STANDARD PROCEDURE,
CHECKING BATTERY ELECTROLYTE......8F-14
LEVEL - STANDARD PROCEDURE,
REFRIGERANT OIL...................24-90
LEVEL AND CONDITION CHECK,
STANDARD PROCEDURE - FLUID
.......21-201
LEVEL CHECK - STANDARD
PROCEDURE, COOLANT
.................7-5
LEVEL CHECK - STANDARD
PROCEDURE, ENGINE OIL
..............9-137
LEVEL CHECK - STANDARD
PROCEDURE, FLUID
..................21-71
LEVEL CHECK, STANDARD PROCEDURE
- ENGINE OIL
........................9-53LEVEL CHECKING - STANDARD
PROCEDURE, BRAKE FLUID.............5-32
LEVEL CHECKING - STANDARD
PROCEDURE, POWER STEERING FLUID . . . 19-44
LEVEL INSPECTION - STANDARD
PROCEDURE, FLUID...................21-4
LEVEL SENDING UNIT / SENSOR -
DESCRIPTION, FUEL...................14-4
LEVEL SENDING UNIT / SENSOR -
INSTALLATION, FUEL..................14-5
LEVEL SENDING UNIT / SENSOR -
OPERATION, FUEL.....................14-5
LEVEL SENDING UNIT / SENSOR -
REMOVAL, FUEL......................14-5
LEVEL SWITCH - DESCRIPTION, BRAKE
FLUID..............................5-10
LEVEL SWITCH - INSTALLATION, BRAKE
FLUID..............................5-11
LEVEL SWITCH - INSTALLATION,
WASHER FLUID.....................8R-16
LEVEL SWITCH - OPERATION, BRAKE
FLUID..............................5-10
LEVEL SWITCH - REMOVAL, BRAKE
FLUID..............................5-11
LEVEL SWITCH - REMOVAL, WASHER
FLUID.............................8R-15
LEVELING MOTOR - EXPORT -
DIAGNOSIS AND TESTING, HEADLAMP . . . 8L-14
LEVELING MOTOR - EXPORT -
INSTALLATION, HEADLAMP............8L-15
LEVELING MOTOR - EXPORT -
REMOVAL, HEADLAMP................8L-14
LEVELING SWITCH - EXPORT -
DESCRIPTION, HEADLAMP..............8L-15
LEVELING SWITCH - EXPORT -
DIAGNOSIS AND TESTING, HEADLAMP . . . 8L-15
LEVER - INSTALLATION, GEAR SHIFT.....19-21
LEVER - PARKING BRAKE -
INSTALLATION........................5-65
LEVER - PARKING BRAKE - REMOVAL.....5-64
LEVER - REMOVAL, GEAR SHIFT........19-21
LEVER AND BEARING - INSTALLATION,
CLUTCH RELEASE......................6-7
LEVER AND BEARING - REMOVAL,
CLUTCH RELEASE......................6-6
LEVER AND FRONT CABLE -
INSTALLATION, PARKING BRAKE.........5-66
LEVER AND FRONT CABLE - REMOVAL,
PARKING BRAKE......................5-65
LHD - INSTALLATION..........5-38,5-46,5-94
LHD - INSTALLATION, MASTER
CYLINDER...........................6-10
LHD - REMOVAL..............5-36,5-42,5-90
LHD - REMOVAL, MASTER CYLINDER......6-9
LHD GEAR - INSTALLATION............19-32
LHD GEAR - REMOVAL................19-27
LICENSE LAMP - INSTALLATION.........8L-20
LICENSE LAMP - REMOVAL............8L-20
LIFT GEAR & LINK ROD - DESCRIPTION . . 8N-16
LIFT GEAR & LINK ROD - INSTALLATION . 8N-16
LIFT GEAR & LINK ROD - OPERATION....8N-16
LIFT GEAR & LINK ROD - REMOVAL.....8N-16
LIFTERS - DIAGNOSIS AND TESTING,
HYDRAULIC.........................9-113
LIFTERS (CAM IN BLOCK) -
DESCRIPTION, HYDRAULIC.............9-113
LIFTERS (CAM IN BLOCK) -
INSTALLATION, HYDRAULIC............9-114
LIFTERS (CAM IN BLOCK) - REMOVAL,
HYDRAULIC.........................9-114
LIFTGATE - INSTALLATION.............23-41
LIFTGATE - REMOVAL.................23-41
LIFTGATE ADJUSTMENT - STANDARD
PROCEDURE.........................8N-9
LIFTGATE CONTROL MODULE -
DESCRIPTION, POWER................8E-10
LIFTGATE CONTROL MODULE -
INSTALLATION, POWER...............8E-11
LIFTGATE CONTROL MODULE -
OPERATION, POWER..................8E-11
LIFTGATE CONTROL MODULE -
REMOVAL, POWER...................8E-11
LIFTGATE LAMP - INSTALLATION
........8L-27
LIFTGATE LAMP - REMOVAL
............8L-27
LIFTGATE LEARN CYCLE - STANDARD
PROCEDURE, POWER
..................8N-9
LIFTGATE MOTOR - DESCRIPTION
.......8N-15
LIFTGATE MOTOR - INSTALLATION
......8N-15
18 INDEXRS
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com
Page 2162 of 2177
PARKING BRAKE CABLES -
ADJUSTMENT........................5-64
PARKING BRAKE LEVER AND FRONT
CABLE - INSTALLATION................5-66
PARKING BRAKE LEVER AND FRONT
CABLE - REMOVAL....................5-65
PARKING BRAKE SHOES - ADJUSTMENT . . . 5-73
PARK/TURN SIGNAL LAMP - EXPORT -
INSTALLATION.......................8L-22
PARK/TURN SIGNAL LAMP - EXPORT -
REMOVAL..........................8L-22
PARK/TURN SIGNAL LAMP -
INSTALLATION.......................8L-21
PARK/TURN SIGNAL LAMP - REMOVAL . . . 8L-21
PARTS - DESCRIPTION, FFV
REPLACEMENT.......................14-2
PASSENGER AIRBAG - DESCRIPTION.....8O-7
PASSENGER AIRBAG - INSTALLATION.....8O-9
PASSENGER AIRBAG - OPERATION.......8O-8
PASSENGER AIRBAG - REMOVAL........8O-8
PASSENGER BENCH - INSTALLATION,
SEAT BELT BUCKLE - SECOND ROW -
THREE.............................8O-14
PASSENGER BENCH - REMOVAL, SEAT
BELT BUCKLE - SECOND ROW - THREE . . . 8O-14
PASSENGER HEATED SEAT SWITCH -
DESCRIPTION.......................8G-12
PASSENGER HEATED SEAT SWITCH -
DIAGNOSIS AND TESTING.............8G-13
PASSENGER HEATED SEAT SWITCH -
INSTALLATION......................8G-14
PASSENGER HEATED SEAT SWITCH -
OPERATION.........................8G-12
PASSENGER HEATED SEAT SWITCH -
REMOVAL..........................8G-14
PASSENGER POWER SEAT TRACK -
DESCRIPTION.......................8N-59
PASSENGER POWER SEAT TRACK -
INSTALLATION......................8N-61
PASSENGER POWER SEAT TRACK -
OPERATION.........................8N-60
PASSENGER POWER SEAT TRACK -
REMOVAL..........................8N-61
PASSENGER SEAT SWITCH -
DESCRIPTION.......................8N-56
PASSENGER SEAT SWITCH - DIAGNOSIS
AND TESTING.......................8N-57
PASSENGER SEAT SWITCH -
INSTALLATION......................8N-57
PASSENGER SEAT SWITCH - OPERATION . 8N-56
PASSENGER SEAT SWITCH - REMOVAL . . . 8N-57
PATTERNS - DIAGNOSIS AND TESTING,
TIRE WEAR.........................22-16
PCM GROUND - OPERATION...........8E-15
PCM INPUT - OPERATION, DATA BUS
COMMUNICATION RECEIVE.............8E-15
PCM INPUT - OPERATION, IGNITION
SENSE.............................8E-15
PCM INPUT - OPERATION, SENSOR
RETURN............................8E-15
PCM OUTPUT - OPERATION, 5 VOLT
SUPPLY............................8E-15
PCM OUTPUT - SBEC CONTROLLER -
OPERATION, 8-VOLT SUPPLY...........8E-15
PCM/SKIM PROGRAMMING - STANDARD
PROCEDURE.........................8E-2
PCV SYSTEM - DIAGNOSIS AND
TESTING...........................25-17
PCV VALVE - DESCRIPTION............25-16
PCV VALVE - OPERATION..............25-16
PEDAL - INSTALLATION, ACCELERATOR . . . 14-24
PEDAL - REMOVAL, ACCELERATOR......14-23
PEDAL INTERLOCK SWITCH -
INSTALLATION, CLUTCH................6-14
PEDAL INTERLOCK SWITCH - REMOVAL,
CLUTCH.............................6-13
PEDAL TORQUE SHAFT - RHD -
INSTALLATION........................5-39
PEDAL TORQUE SHAFT - RHD -
REMOVAL
...........................5-39
PEDAL UPSTOP SWITCH -
INSTALLATION, CLUTCH
................6-16
PEDAL UPSTOP SWITCH - REMOVAL,
CLUTCH
.............................6-15
PERFORMANCE - DIAGNOSIS AND
TESTING, ENGINE DIAGNOSIS
........9-4,9-78
PERFORMANCE TEST - DIAGNOSIS AND
TESTING, A/C
........................24-5PERFORMANCE TEST - DIAGNOSIS AND
TESTING, HEATER.....................24-6
PIN BUSHINGS (DISC/DISC BRAKES) -
ASSEMBLY, CALIPER GUIDE.............5-25
PIN BUSHINGS (DISC/DISC BRAKES) -
DISASSEMBLY, CALIPER GUIDE..........5-24
PINCH SENSOR - DESCRIPTION.........8N-17
PINCH SENSOR - INSTALLATION........8N-17
PINCH SENSOR - OPERATION..........8N-17
PINCH SENSOR - REMOVAL............8N-17
PINION FACTOR SETTING - STANDARD
PROCEDURE...................8E-15,8E-23
PINS (DISC/DRUM BRAKES) -
INSTALLATION, DISC BRAKE CALIPER
GUIDE..............................5-31
PINS (DISC/DRUM BRAKES) - REMOVAL,
DISC BRAKE CALIPER GUIDE............5-31
PIPE - 3.3/3.8L - INSTALLATION,
CROSS-OVER........................11-6
PIPE - 3.3/3.8L - REMOVAL, CROSS-
OVER...............................11-6
PIPE - INSTALLATION, AIR INTAKE......24-113
PIPE - REMOVAL, AIR INTAKE.........24-112
PISTON & CONNECTING ROD -
DESCRIPTION...................9-116,9-42
PISTON & CONNECTING ROD -
INSTALLATION........................9-44
PISTON & CONNECTING ROD -
REMOVAL...........................9-43
PISTON AND SEAL - ASSEMBLY,
CALIPER........................5-26,5-29
PISTON AND SEAL - DISASSEMBLY,
CALIPER........................5-24,5-28
PISTON RING, FITTING.................9-45
PISTON RING FITTING - STANDARD
PROCEDURE........................9-121
PISTON RINGS - INSTALLATION.........9-121
PISTON RINGS - REMOVAL............9-121
PISTON TO CYLINDER BORE FITTING -
STANDARD PROCEDURE................9-42
PISTONS - STANDARD PROCEDURE,
FITTING............................9-117
PLANETARY GEARTRAIN - DESCRIPTION . 21-232
PLANETARY GEARTRAIN - OPERATION . . 21-232
PLASTIC BODY PANEL REPAIR -
STANDARD PROCEDURE................23-3
PLASTIC GROCERY BAG RETAINER -
INSTALLATION......................23-103
PLASTIC GROCERY BAG RETAINER -
REMOVAL.........................23-103
PLASTIGAGE - STANDARD PROCEDURE,
MEASURING BEARING CLEARANCE
USING..........................9-12,9-84
PLATE - 2.5L TD - INSTALLATION,
CLUTCH DISC AND PRESSURE...........6-12
PLATE - 2.5L TD - REMOVAL, CLUTCH
DISC AND PRESSURE..................6-11
PLATE - DESCRIPTION, BODY CODE....Intro.-1
PLATE - DESCRIPTION, MANUFACTURER . Intro.-11
PLATE - DRUM BRAKE - INSTALLATION,
SUPPORT...........................5-56
PLATE - DRUM BRAKE - REMOVAL,
SUPPORT...........................5-56
PLATE - INSTALLATION, DOOR SILL
TRIM..............................23-76
PLATE - INSTALLATION, FLEX...........9-131
PLATE - INSTALLATION, LIFTGATE SILL
. . . 23-77
PLATE - INSTALLATION, SLIDING DOOR
SILL
...............................23-80
PLATE - INSTALLATION, STEERING
COLUMN COVER BACKING
.............23-69
PLATE - REMOVAL, DOOR SILL TRIM
....23-76
PLATE - REMOVAL, FLEX
..............9-131
PLATE - REMOVAL, LIFTGATE SILL
.......23-77
PLATE - REMOVAL, SLIDING DOOR SILL
. . 23-80
PLATE - REMOVAL, STEERING COLUMN
COVER BACKING
.....................23-69
PLATE BATTERY CHARGING -
STANDARD PROCEDURE, SPIRAL
........8F-10
PLATE MISALIGNMENT - DIAGNOSIS
AND TESTING, DRIVE
...................6-6
PLATES - ADHESIVE ATTACHED -
INSTALLATION, EXTERIOR NAME
........23-50
PLATES - ADHESIVE ATTACHED -
REMOVAL, EXTERIOR NAME
............23-50
PLATES - TAPE ATTACHED -
INSTALLATION, EXTERIOR NAME
........23-50PLATES - TAPE ATTACHED - REMOVAL,
EXTERIOR NAME.....................23-50
PLATINUM PLUGS - DESCRIPTION........8I-9
PLAY - ADJUSTMENT, DIFFERENTIAL
SIDE GEAR END.....................21-70
PLAY - STANDARD PROCEDURE,
CRANKSHAFT END....................9-36
PLAY - STANDARD PROCEDURE,
MEASURING CAMSHAFT END............9-29
PLAY - STANDARD PROCEDURE,
MEASURING CRANKSHAFT END.........9-125
PLAYER - DESCRIPTION, DVD...........8A-8
PLAYER - INSTALLATION, DVD...........8A-8
PLAYER - OPERATION, DVD.............8A-8
PLAYER - REMOVAL, DVD..............8A-8
PLUG CABLE - DESCRIPTION, SPARK.....8I-10
PLUG CABLE RESISTANCE,
SPECIFICATIONS - SPARK...............8I-2
PLUG, SPECIFICATIONS - SPARK.........8I-2
PLUGS - DESCRIPTION, PLATINUM........8I-9
PLUGS - STANDARD PROCEDURE,
ENGINE CORE AND OIL GALLERY....9-10,9-86
PLUMBING - CAUTION, A/C............24-61
PLUMBING - WARNING, A/C............24-61
POINTS - DESCRIPTION, LUBRICATION.....0-7
POLISHING - DESCRIPTION, FINESSE
SANDING/BUFFING...................23-84
PORT REPAIR - STANDARD
PROCEDURE, INTAKE MANIFOLD
VACUUM...........................9-145
PORTS - INSTALLATION, SERVICE.......24-93
PORTS - REMOVAL, SERVICE...........24-92
POSITION LAMP - EXPORT -
INSTALLATION, FRONT................8L-10
POSITION LAMP - EXPORT - REMOVAL,
FRONT.............................8L-10
POSITION SENSOR - DESCRIPTION,
CAMSHAFT...........................8I-3
POSITION SENSOR - DESCRIPTION,
CRANKSHAFT.......................14-24
POSITION SENSOR - DESCRIPTION,
THROTTLE..........................14-36
POSITION SENSOR - OPERATION,
CAMSHAFT...........................8I-3
POSITION SENSOR - OPERATION,
CRANKSHAFT.......................14-24
POSITION SENSOR - OPERATION,
THROTTLE..........................14-36
POSITION SENSOR - REMOVAL,
CRANKSHAFT.......................14-25
POTENTIAL - STANDARD PROCEDURE,
TESTING OF VOLTAGE..............8W-01-9
POWER - INSTALLATION, WINDOW
REGULATOR........................23-22
POWER - REMOVAL, WINDOW
REGULATOR........................23-22
POWER ADJUSTER - INSTALLATION,
FRONT SEAT TRACK..................23-94
POWER ADJUSTER - REMOVAL, FRONT
SEAT TRACK........................23-94
POWER BRAKE BOOSTER -
DESCRIPTION........................5-40
POWER BRAKE BOOSTER - DIAGNOSIS
AND TESTING
........................5-41
POWER BRAKE BOOSTER - OPERATION
. . . 5-41
POWER DISTRIBUTION SYSTEM -
DESCRIPTION
.....................8W-97-1
POWER DISTRIBUTION SYSTEM -
OPERATION
.......................8W-97-1
POWER DISTRIBUTION SYSTEMS,
SPECIAL TOOLS
...................8W-97-2
POWER DOOR LEARN CYCLE -
STANDARD PROCEDURE
..............8N-28
POWER FOLDAWAY MIRROR SWITCH -
EXPORT - DESCRIPTION
...............8N-48
POWER FOLDAWAY MIRROR SWITCH -
EXPORT - INSTALLATION
..............8N-49
POWER FOLDAWAY MIRROR SWITCH -
EXPORT - OPERATION
................8N-48
POWER FOLDAWAY MIRROR SWITCH -
EXPORT - REMOVAL
..................8N-48
POWER LIFTGATE CONTROL MODULE -
DESCRIPTION
.......................8E-10
POWER LIFTGATE CONTROL MODULE -
INSTALLATION
.......................8E-11
POWER LIFTGATE CONTROL MODULE -
OPERATION
.........................8E-11
RSINDEX23
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com
Page 2172 of 2177
TEMPERATURE SENSOR - 3.3/3.8L -
INSTALLATION, ENGINE COOLANT........7-22
TEMPERATURE SENSOR - 3.3/3.8L -
REMOVAL, ENGINE COOLANT............7-21
TEMPERATURE SENSOR - DESCRIPTION,
BATTERY...........................8F-23
TEMPERATURE SENSOR - DESCRIPTION,
EVAPORATOR.......................24-22
TEMPERATURE SENSOR - DESCRIPTION,
INFRARED.....................24-23,24-35
TEMPERATURE SENSOR - DESCRIPTION,
INLET AIR..........................14-29
TEMPERATURE SENSOR - DIAGNOSIS
AND TESTING, AMBIENT..............8M-12
TEMPERATURE SENSOR -
INSTALLATION, EVAPORATOR...........24-23
TEMPERATURE SENSOR - OPERATION,
BATTERY...........................8F-23
TEMPERATURE SENSOR - OPERATION,
EVAPORATOR.......................24-23
TEMPERATURE SENSOR - OPERATION,
INFRARED.....................24-24,24-35
TEMPERATURE SENSOR - OPERATION,
INLET AIR..........................14-29
TEMPERATURE SENSOR - REMOVAL,
BATTERY...........................8F-23
TEMPERATURE SENSOR - REMOVAL,
EVAPORATOR.......................24-23
TEMPERATURE SENSOR -
SPECIFICATIONS, BATTERY.............8F-22
TEMPERATURE SENSOR CIRCUIT -
DIAGNOSIS AND TESTING, AMBIENT....8M-12
TENSION - STANDARD PROCEDURE,
CHECKING POWER STEERING BELT.........7-8
TENSION RELEASE - STANDARD
PROCEDURE, PARKING BRAKE
AUTOMATIC ADJUSTER................5-58
TENSION RESET - STANDARD
PROCEDURE, PARKING BRAKE
AUTOMATIC ADJUSTER................5-59
TENSION, SPECIFICATIONS -
ACCESSORY DRIVE BELT................7-5
TENSIONER - 2.4L - INSTALLATION,
BELT ...............................7-10
TENSIONER - 2.4L - REMOVAL, BELT......7-10
TENSIONER - 3.3/3.8L - INSTALLATION,
BELT ...............................7-12
TENSIONER - 3.3/3.8L - REMOVAL, BELT . . . 7-12
TENSIONER - DESCRIPTION, SEAT BELT . . 8O-16
TENSIONER - OPERATION, SEAT BELT....8O-16
TENSIONER & PULLEY - INSTALLATION,
TIMING BELT.........................9-69
TENSIONER & PULLEY - REMOVAL,
TIMING BELT.........................9-68
TERMINAL - INSTALLATION.........8W-01-14
TERMINAL - REMOVAL.............8W-01-14
TERMINAL REPAIR - STANDARD
PROCEDURE, GRID LINE...............8G-3
TEST - DIAGNOSIS AND TESTING, A/C
COOL DOWN.........................24-4
TEST - DIAGNOSIS AND TESTING, A/C
PERFORMANCE.......................24-5
TEST - DIAGNOSIS AND TESTING,
CONTROL CIRCUIT...................8F-30
TEST - DIAGNOSIS AND TESTING,
COOLING SYSTEM LEAK.................7-2
TEST - DIAGNOSIS AND TESTING,
CYLINDER COMBUSTION PRESSURE
LEAKAGE.........................9-83,9-9
TEST - DIAGNOSIS AND TESTING,
CYLINDER COMPRESSION PRESSURE . . 9-83,9-9
TEST - DIAGNOSIS AND TESTING, FEED
CIRCUIT............................8F-33
TEST - DIAGNOSIS AND TESTING, FEED
CIRCUIT RESISTANCE.................8F-32
TEST - DIAGNOSIS AND TESTING,
HEATED MIRROR.....................8G-5
TEST - DIAGNOSIS AND TESTING,
HEATER PERFORMANCE................24-6
TEST - DIAGNOSIS AND TESTING,
POWER STEERING SYSTEM FLOW
AND PRESSURE
......................19-1
TEST - DIAGNOSIS AND TESTING, ROAD
. . . 8P-3
TEST - DIAGNOSIS AND TESTING, ROAD
. 21-119
TEST - DIAGNOSIS AND TESTING,
STARTING SYSTEM
...................8F-28
TEST - DIAGNOSIS AND TESTING,
SYSTEM
............................8G-3TEST - STANDARD PROCEDURE,
IGNITION-OFF DRAW..................8F-13
TEST - STANDARD PROCEDURE,
OPEN-CIRCUIT VOLTAGE...............8F-13
TEST MODE, OPERATION - DRB IIIT
STATE DISPLAY.......................25-9
TESTS - DIAGNOSIS AND TESTING,
CLUTCH AIR PRESSURE..............21-122
TESTS - DIAGNOSIS AND TESTING,
HYDRAULIC PRESSURE..............21-120
THEFT SECURITY - DESCRIPTION,
VEHICLE............................8Q-1
THEFT SECURITY - OPERATION, VEHICLE . . 8Q-1
THEFT SECURITY SYSTEM - DIAGNOSIS
AND TESTING, VEHICLE................8Q-3
THERMOSTAT - 2.4L - INSTALLATION,
ENGINE COOLANT.....................7-23
THERMOSTAT - 2.4L - REMOVAL,
ENGINE COOLANT.....................7-23
THERMOSTAT - 3.3/3.8L -
INSTALLATION, ENGINE COOLANT........7-24
THERMOSTAT - 3.3/3.8L - REMOVAL,
ENGINE COOLANT.....................7-23
THERMOSTAT - DESCRIPTION, ENGINE
COOLANT............................7-22
THERMOSTAT - DIAGNOSIS AND
TESTING, ENGINE COOLANT.............7-23
THERMOSTAT - OPERATION, ENGINE
COOLANT............................7-22
THERMOWRAP - DESCRIPTION.........8F-19
THERMOWRAP - INSTALLATION.........8F-19
THERMOWRAP - OPERATION...........8F-19
THERMOWRAP - REMOVAL............8F-19
THIRD ROW - INSTALLATION, BENCH
SEAT RISER........................23-100
THIRD ROW - REMOVAL, BENCH SEAT
RISER............................23-100
THREAD REPAIR - DESCRIPTION, FRONT
CRADLE CROSSMEMBER...............13-9
THREAD REPAIR - STANDARD
PROCEDURE, MANIFOLD STRIPPED......9-145
THREADED HOLE REPAIR -
DESCRIPTION......................Intro.-5
THREADS - STANDARD PROCEDURE,
REPAIR OF DAMAGED OR WORN.....9-10,9-86
THREE PASSENGER BENCH -
INSTALLATION, SEAT BELT BUCKLE -
SECOND ROW.......................8O-14
THREE PASSENGER BENCH - REMOVAL,
SEAT BELT BUCKLE - SECOND ROW.....8O-14
THREE ZONE - DESCRIPTION, MANUAL....24-1
THREE ZONE - OPERATION, MANUAL.....24-3
THREE ZONE ATC - OPERATION..........24-3
THROTTLE BODY - DESCRIPTION........14-34
THROTTLE BODY - INSTALLATION.......14-35
THROTTLE BODY - OPERATION.........14-34
THROTTLE BODY - REMOVAL...........14-35
THROTTLE CONTROL CABLE -
INSTALLATION.......................14-35
THROTTLE CONTROL CABLE - REMOVAL . . 14-35
THROTTLE POSITION SENSOR -
DESCRIPTION.......................14-36
THROTTLE POSITION SENSOR -
OPERATION.........................14-36
TIE ROD - INSTALLATION, OUTER.......19-34
TIE ROD - REMOVAL, OUTER...........19-34
TIMING BELT - INSTALLATION...........9-65
TIMING BELT - REMOVAL
...............9-63
TIMING BELT COVER(S) - INSTALLATION
. . . 9-62
TIMING BELT COVER(S) - REMOVAL
......9-61
TIMING BELT TENSIONER & PULLEY -
INSTALLATION
........................9-69
TIMING BELT TENSIONER & PULLEY -
REMOVAL
...........................9-68
TIMING CHAIN AND CAMSHAFT
SPROCKET - INSTALLATION
............9-157
TIMING CHAIN AND CAMSHAFT
SPROCKET - REMOVAL
................9-156
TIMING CHAIN COVER - INSTALLATION
. . . 9-155
TIMING CHAIN COVER - REMOVAL
......9-153
TIMING CHAIN WEAR - STANDARD
PROCEDURE, MEASURING
.............9-153
TIMING VERIFICATION - STANDARD
PROCEDURE, VALVE
..................9-153
TIRE - DESCRIPTION
..................22-13
TIRE AND WHEEL ASSEMBLY
(ALUMINUM WHEEL) - INSTALLATION
.....22-8TIRE AND WHEEL ASSEMBLY
(ALUMINUM WHEEL) - REMOVAL........22-7
TIRE AND WHEEL ASSEMBLY (STEEL
WHEEL) - INSTALLATION...............22-8
TIRE AND WHEEL ASSEMBLY (STEEL
WHEEL) - REMOVAL...................22-8
TIRE AND WHEEL BALANCE -
STANDARD PROCEDURE................22-5
TIRE AND WHEEL MATCH MOUNTING -
STANDARD PROCEDURE................22-7
TIRE AND WHEEL ROTATION -
STANDARD PROCEDURE................22-7
TIRE AND WHEEL VIBRATION -
DIAGNOSIS AND TESTING..............22-1
TIRE INFLATION PRESSURES -
STANDARD PROCEDURE...............22-16
TIRE LEAK REPAIRING - STANDARD
PROCEDURE........................22-17
TIRE NOISE - DIAGNOSIS AND TESTING . . 22-14
TIRE PRESSURE FOR HIGH SPEED
OPERATION - STANDARD PROCEDURE . . . 22-17
TIRE PRESSURE MONITORING -
DESCRIPTION........................22-9
TIRE PRESSURE MONITORING -
OPERATION..........................22-9
TIRE PRESSURE SENSOR - DIAGNOSIS
AND TESTING.......................22-10
TIRE PRESSURE SENSOR RETRAIN -
STANDARD PROCEDURE...............22-10
TIRE (TEMPORARY) - DESCRIPTION,
SPARE .............................22-14
TIRE WEAR PATTERNS - DIAGNOSIS
AND TESTING.......................22-16
TIRES - CLEANING...................22-17
TIRES - DESCRIPTION, RADIAL-PLY......22-14
TIRES - DESCRIPTION, REPLACEMENT . . . 22-14
TIRE/VEHICLE LEAD - DIAGNOSIS AND
TESTING...........................22-14
TO CYLINDER BORE FITTING -
STANDARD PROCEDURE, PISTON........9-42
TO FILLER NECK SEAL - DIAGNOSIS
AND TESTING, RADIATOR CAP...........7-27
TO GROUND - STANDARD PROCEDURE,
TESTING FOR A SHORT.............8W-01-9
TO GROUND ON FUSES POWERING
SEVERAL LOADS - STANDARD
PROCEDURE, TESTING FOR A SHORT . 8W-01-10
TO USE WIRING DIAGRAMS -
DESCRIPTION, HOW................8W-01-1
TONE WHEEL - INSPECTION.............5-82
TONE WHEEL RUNOUT, SPECIFICATIONS . . . 5-79
TOOLS - 2.4L ENGINE, SPECIAL..........9-21
TOOLS - 3.3/3.8L ENGINE, SPECIAL.......9-95
TOOLS - 41TE AUTOMATIC TRANSAXLE,
SPECIAL..........................21-183
TOOLS - BASE BRAKE SYSTEM, SPECIAL . . 5-10
TOOLS - BATTERY SYSTEM SPECIAL
TOOLS, SPECIAL......................8F-7
TOOLS - BODY, SPECIAL...............23-13
TOOLS - COOLING SYSTEM, SPECIAL......7-6
TOOLS - EXHAUST SYSTEM, SPECIAL.....11-4
TOOLS - FRONT SUSPENSION, SPECIAL....2-3
TOOLS - FUEL, SPECIAL...........14-23,14-3
TOOLS - OVERHEAD CONSOLE, SPECIAL . . 8M-6
TOOLS - POWER DISTRIBUTION
SYSTEMS, SPECIAL................8W-97-2
TOOLS - POWER STEERING GEAR,
SPECIAL...........................19-34
TOOLS - POWER STEERING PUMP,
SPECIAL...........................19-43
TOOLS - POWER STEERING, SPECIAL.....19-9
TOOLS - REAR SUSPENSION, SPECIAL....2-28
TOOLS - SDP POWER TRANSFER UNIT,
SPECIAL............................21-8
TOOLS - WIRING/TERMINAL, SPECIAL . 8W-01-10
TOOLS, DIAGNOSIS AND TESTING -
SPECIAL............................3-34
TOOLS, SPECIAL TOOLS - BATTERY
SYSTEM SPECIAL.....................8F-7
TOOLS, SPECIFICATIONS - SPECIAL......8F-23
TOOLS, T850 TRANSAXLE - SPECIAL
.......6-6
TOOLS, T850 TRANSAXLE - SPECIAL
.....21-58
TOP COVER - INSTALLATION,
INSTRUMENT PANEL
..................23-67
TOP COVER - REMOVAL, INSTRUMENT
PANEL
.............................23-67
TOP PAD ASSEMBLY - INSTALLATION,
INSTRUMENT PANEL
..................23-70
RSINDEX33
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com
