Fig. 118 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
23 - 268 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 119 FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 269
WELD LOCATIONS (Continued)

Fig. 120 INNER SIDE SILLS - SHORT WHEEL BASE ONLY
23 - 270 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 121 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 271
WELD LOCATIONS (Continued)

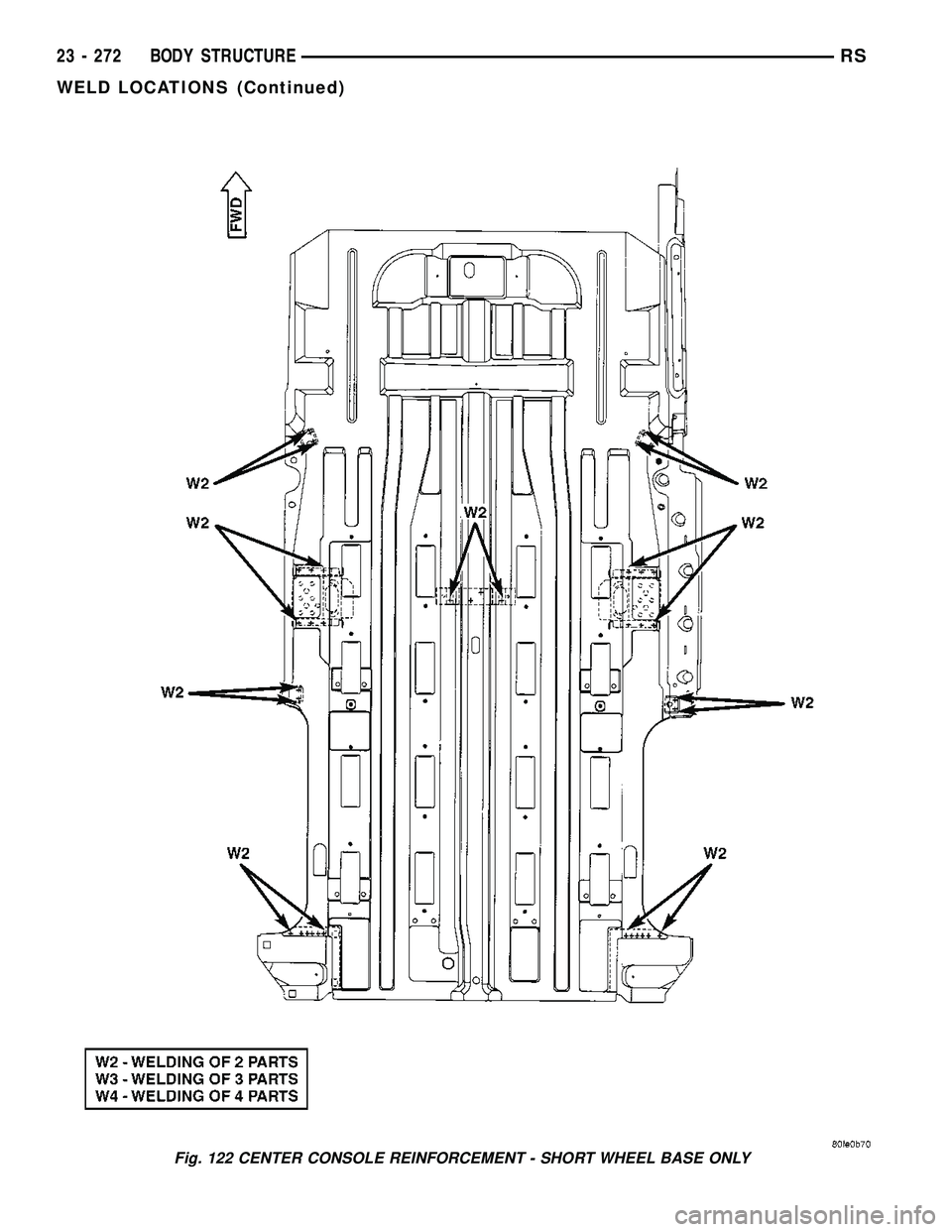

Fig. 122 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY
23 - 272 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 123 WHEELHOUSES - SHORT WHEEL BASE ONLY
Fig. 124 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY
RSBODY STRUCTURE23 - 273
WELD LOCATIONS (Continued)

Fig. 125 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY
23 - 274 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 126 INNER BODY SIDE SILL REINFORCEMENTS
Fig. 127 TOE BOARD CROSSMEMBER
RSBODY STRUCTURE23 - 275
WELD LOCATIONS (Continued)

Fig. 128 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY
23 - 276 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 129 DASH PANEL REINFORCEMENT
RSBODY STRUCTURE23 - 277
WELD LOCATIONS (Continued)
