Fig. 142 WINDSHIELD FRAME
23 - 288 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 143 FENDER BRACKET
RSBODY STRUCTURE23 - 289
WELD LOCATIONS (Continued)

Fig. 144 INNER B-PILLAR
23 - 290 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 145 STRIKER LATCH AND TAPPING PLATES
Fig. 146 RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 291
WELD LOCATIONS (Continued)

Fig. 147 RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY
Fig. 148 RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY
23 - 292 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 149 STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 293
WELD LOCATIONS (Continued)

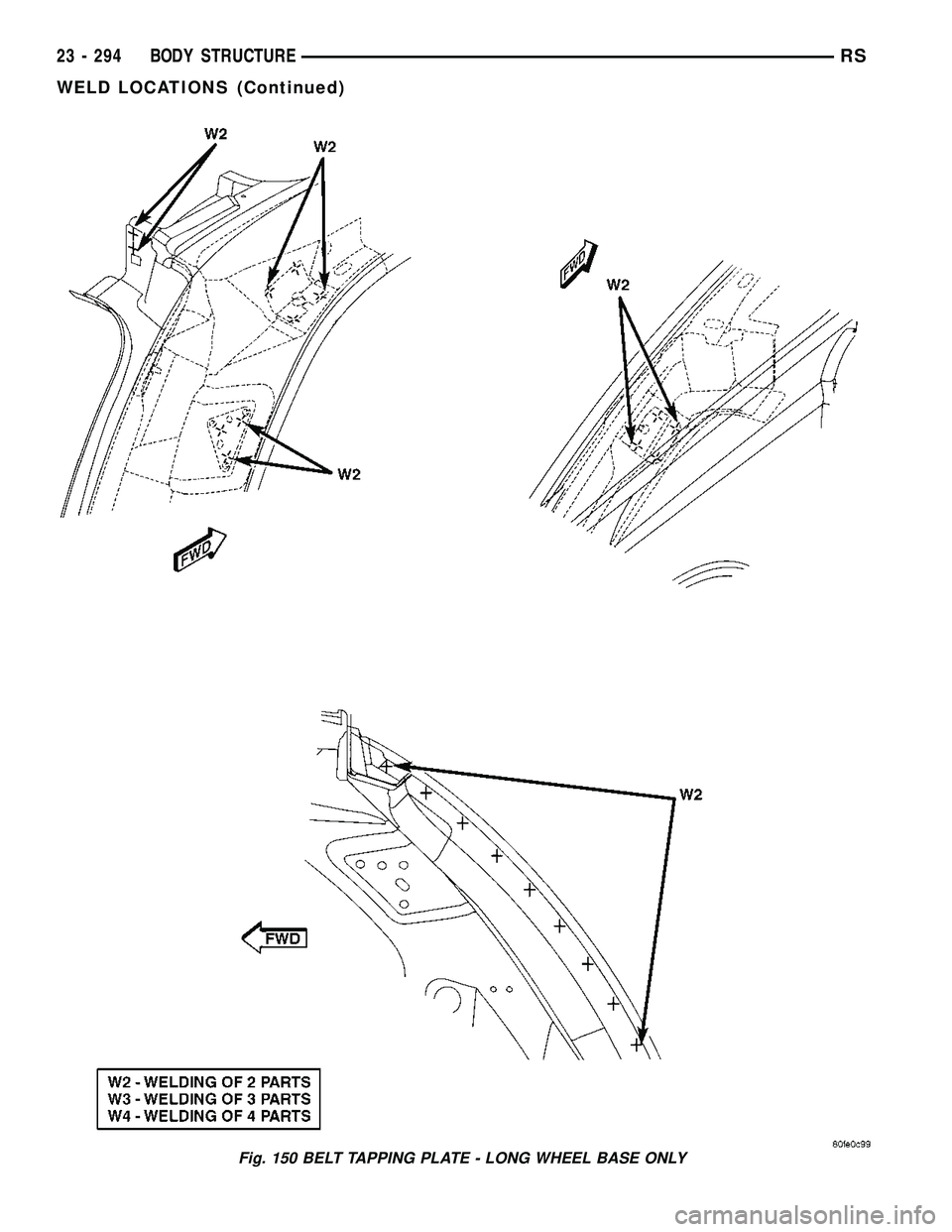

Fig. 150 BELT TAPPING PLATE - LONG WHEEL BASE ONLY
23 - 294 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 151 C-PILLAR REINFORCEMENT - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 295
WELD LOCATIONS (Continued)

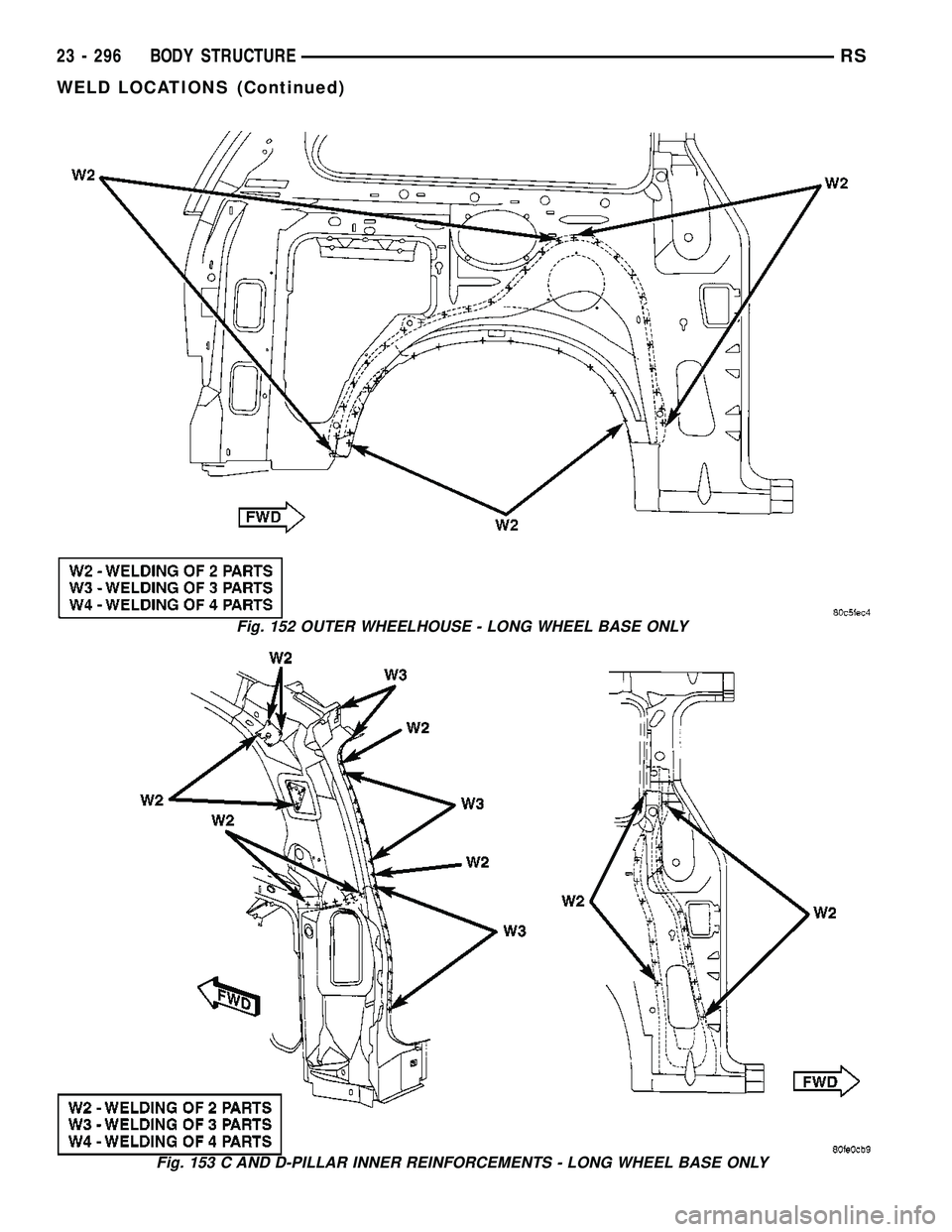

Fig. 152 OUTER WHEELHOUSE - LONG WHEEL BASE ONLY
Fig. 153 C AND D-PILLAR INNER REINFORCEMENTS - LONG WHEEL BASE ONLY
23 - 296 BODY STRUCTURERS
WELD LOCATIONS (Continued)

Fig. 154 LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 297
WELD LOCATIONS (Continued)
