CHRYSLER CROSSFIRE 2008 1.G User Guide

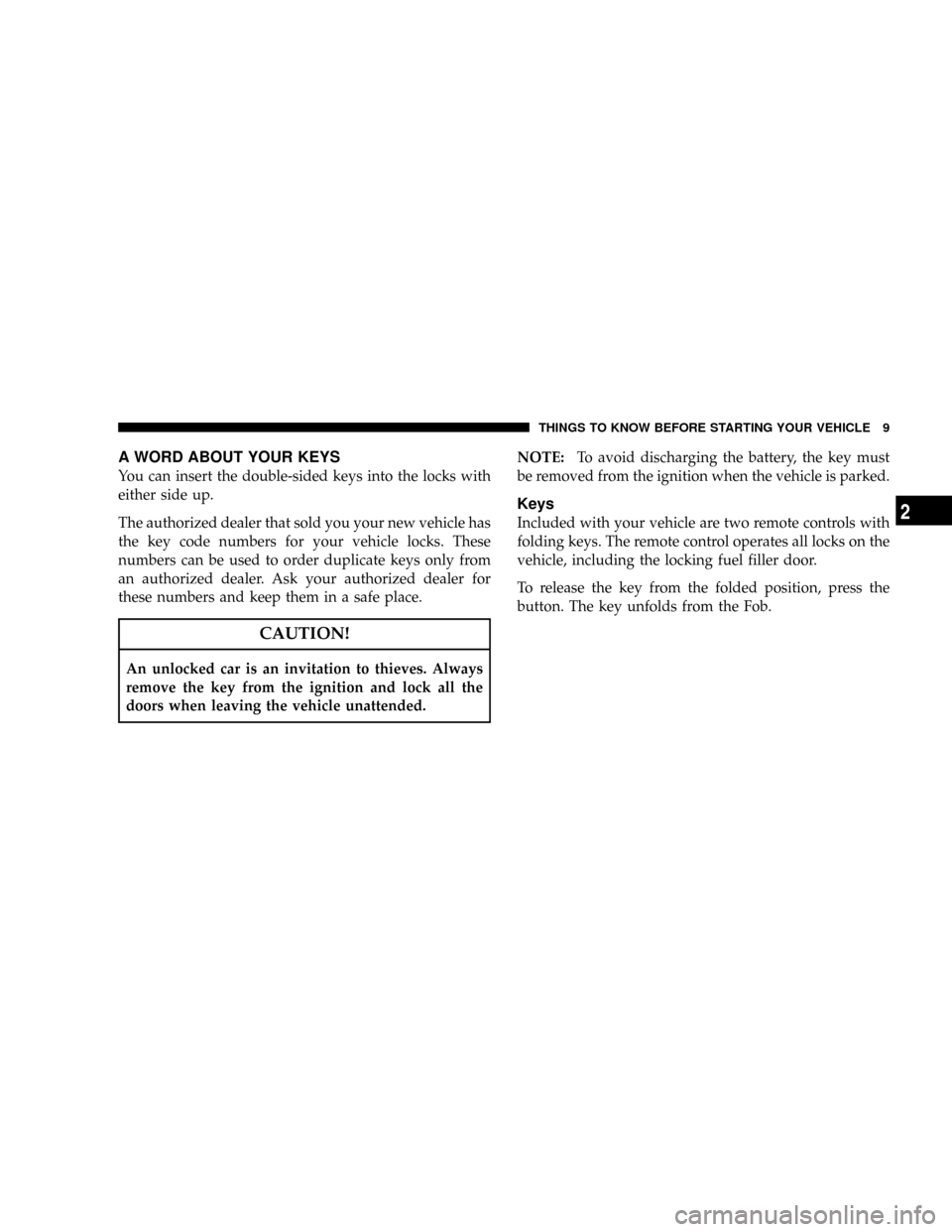

A WORD ABOUT YOUR KEYS
You can insert the double-sided keys into the locks with
either side up.
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys only from
an authorized dealer. Ask your authorized dealer for
these numbers and keep them in a safe place.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.NOTE:To avoid discharging the battery, the key must
be removed from the ignition when the vehicle is parked.
Keys
Included with your vehicle are two remote controls with
folding keys. The remote control operates all locks on the
vehicle, including the locking fuel filler door.
To release the key from the folded position, press the
button. The key unfolds from the Fob.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9
2

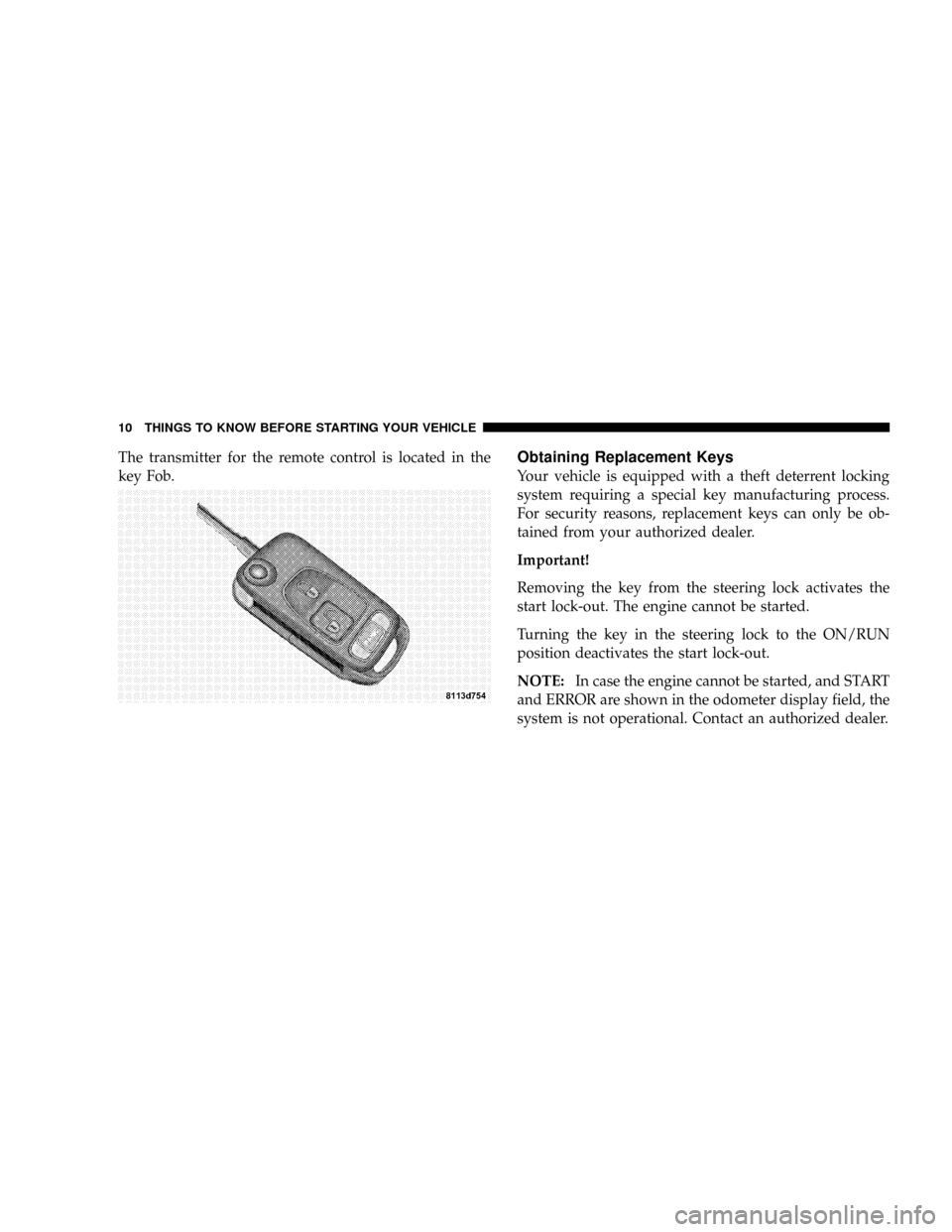

The transmitter for the remote control is located in the
key Fob.Obtaining Replacement Keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys can only be ob-
tained from your authorized dealer.
Important!
Removing the key from the steering lock activates the
start lock-out. The engine cannot be started.
Turning the key in the steering lock to the ON/RUN
position deactivates the start lock-out.
NOTE:In case the engine cannot be started, and START
and ERROR are shown in the odometer display field, the
system is not operational. Contact an authorized dealer.
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

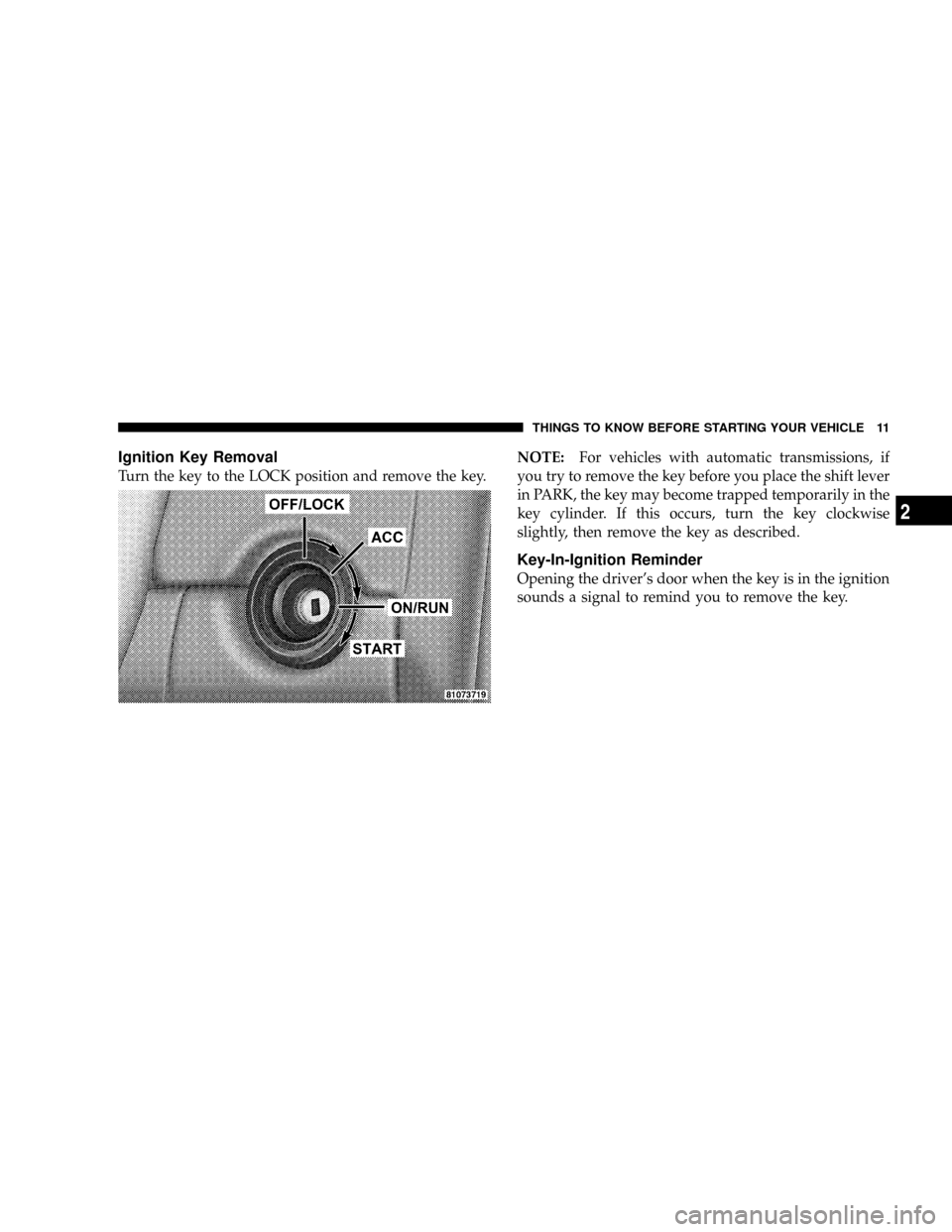

Ignition Key Removal
Turn the key to the LOCK position and remove the key.NOTE:For vehicles with automatic transmissions, if
you try to remove the key before you place the shift lever
in PARK, the key may become trapped temporarily in the
key cylinder. If this occurs, turn the key clockwise
slightly, then remove the key as described.
Key-In-Ignition Reminder
Opening the driver's door when the key is in the ignition
sounds a signal to remind you to remove the key.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

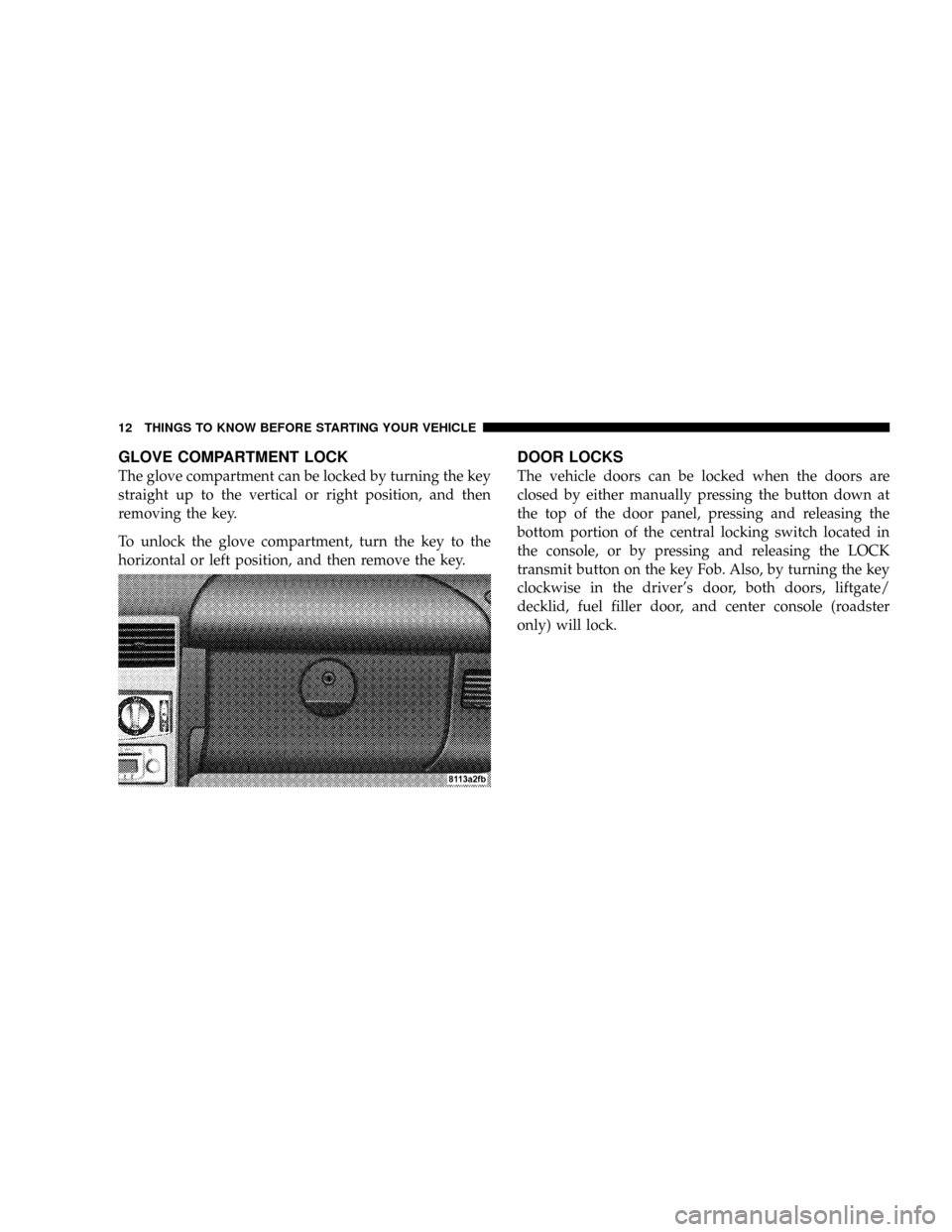

GLOVE COMPARTMENT LOCK
The glove compartment can be locked by turning the key
straight up to the vertical or right position, and then
removing the key.
To unlock the glove compartment, turn the key to the
horizontal or left position, and then remove the key.
DOOR LOCKS
The vehicle doors can be locked when the doors are
closed by either manually pressing the button down at
the top of the door panel, pressing and releasing the
bottom portion of the central locking switch located in
the console, or by pressing and releasing the LOCK
transmit button on the key Fob. Also, by turning the key
clockwise in the driver's door, both doors, liftgate/
decklid, fuel filler door, and center console (roadster
only) will lock.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

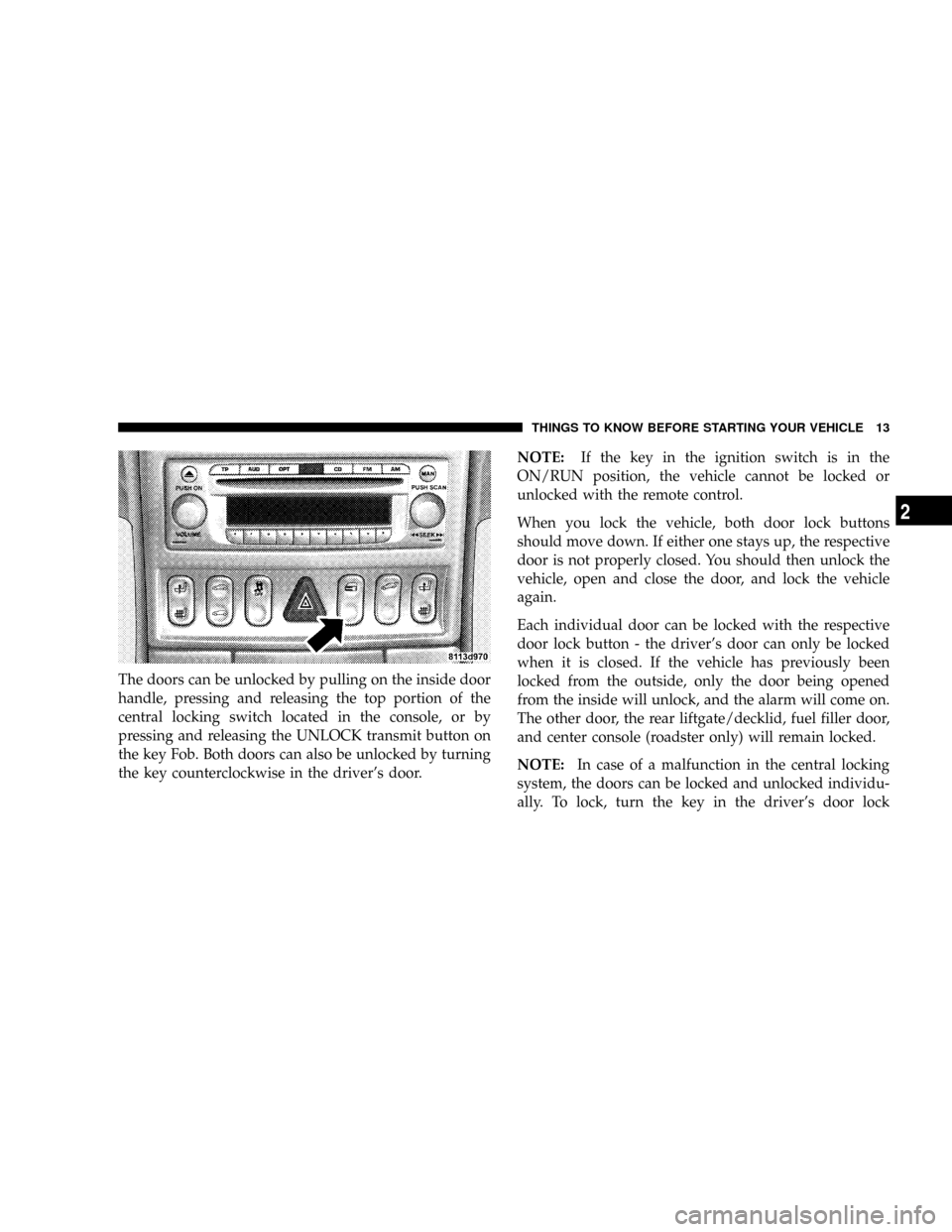

The doors can be unlocked by pulling on the inside door
handle, pressing and releasing the top portion of the
central locking switch located in the console, or by
pressing and releasing the UNLOCK transmit button on
the key Fob. Both doors can also be unlocked by turning
the key counterclockwise in the driver's door.NOTE:If the key in the ignition switch is in the
ON/RUN position, the vehicle cannot be locked or
unlocked with the remote control.
When you lock the vehicle, both door lock buttons
should move down. If either one stays up, the respective
door is not properly closed. You should then unlock the
vehicle, open and close the door, and lock the vehicle
again.
Each individual door can be locked with the respective
door lock button - the driver's door can only be locked
when it is closed. If the vehicle has previously been
locked from the outside, only the door being opened
from the inside will unlock, and the alarm will come on.
The other door, the rear liftgate/decklid, fuel filler door,
and center console (roadster only) will remain locked.
NOTE:In case of a malfunction in the central locking
system, the doors can be locked and unlocked individu-
ally. To lock, turn the key in the driver's door lock
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

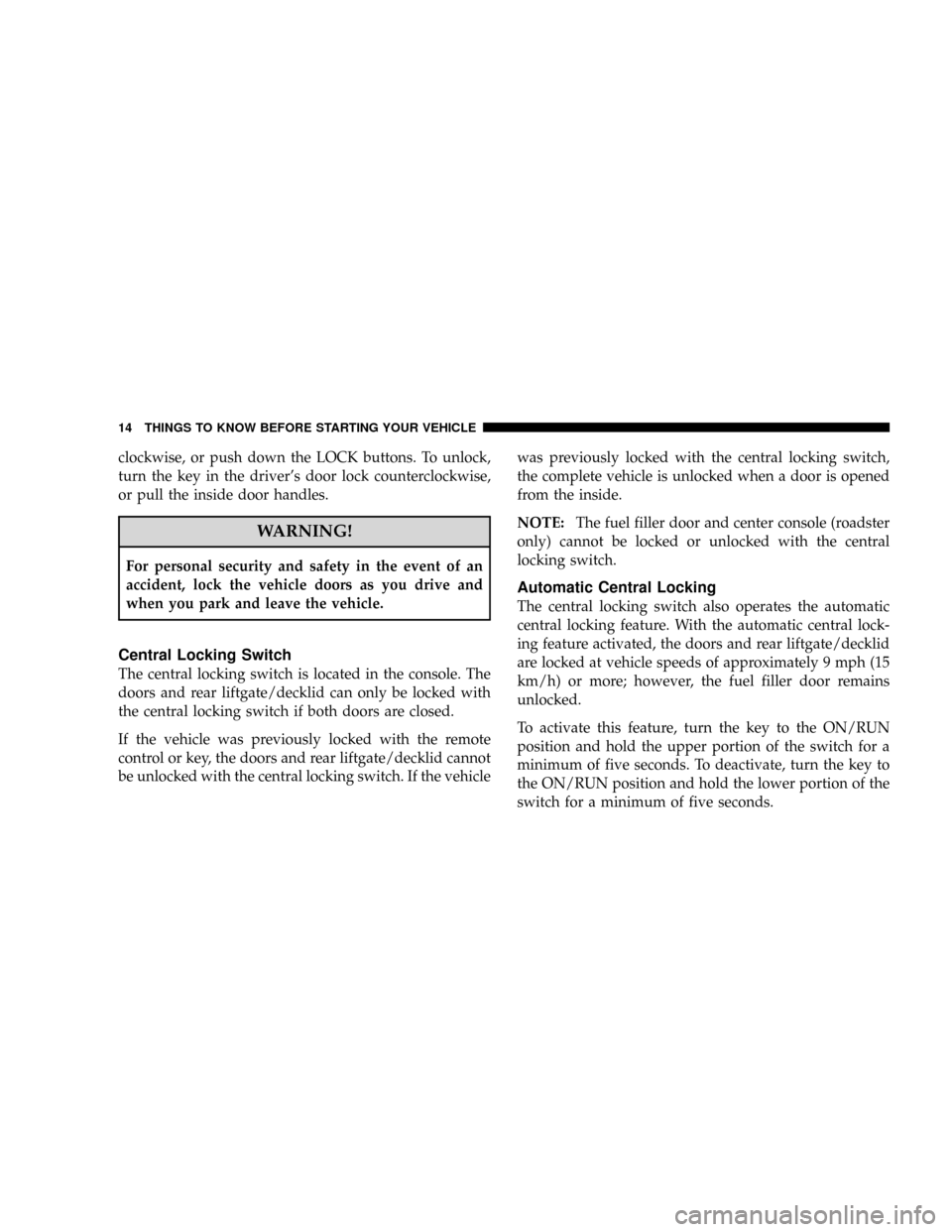

clockwise, or push down the LOCK buttons. To unlock,
turn the key in the driver's door lock counterclockwise,
or pull the inside door handles.
WARNING!
For personal security and safety in the event of an
accident, lock the vehicle doors as you drive and
when you park and leave the vehicle.
Central Locking Switch
The central locking switch is located in the console. The
doors and rear liftgate/decklid can only be locked with
the central locking switch if both doors are closed.
If the vehicle was previously locked with the remote
control or key, the doors and rear liftgate/decklid cannot
be unlocked with the central locking switch. If the vehiclewas previously locked with the central locking switch,
the complete vehicle is unlocked when a door is opened
from the inside.
NOTE:The fuel filler door and center console (roadster
only) cannot be locked or unlocked with the central
locking switch.
Automatic Central Locking
The central locking switch also operates the automatic
central locking feature. With the automatic central lock-
ing feature activated, the doors and rear liftgate/decklid
are locked at vehicle speeds of approximately 9 mph (15
km/h) or more; however, the fuel filler door remains
unlocked.
To activate this feature, turn the key to the ON/RUN
position and hold the upper portion of the switch for a
minimum of five seconds. To deactivate, turn the key to
the ON/RUN position and hold the lower portion of the
switch for a minimum of five seconds.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

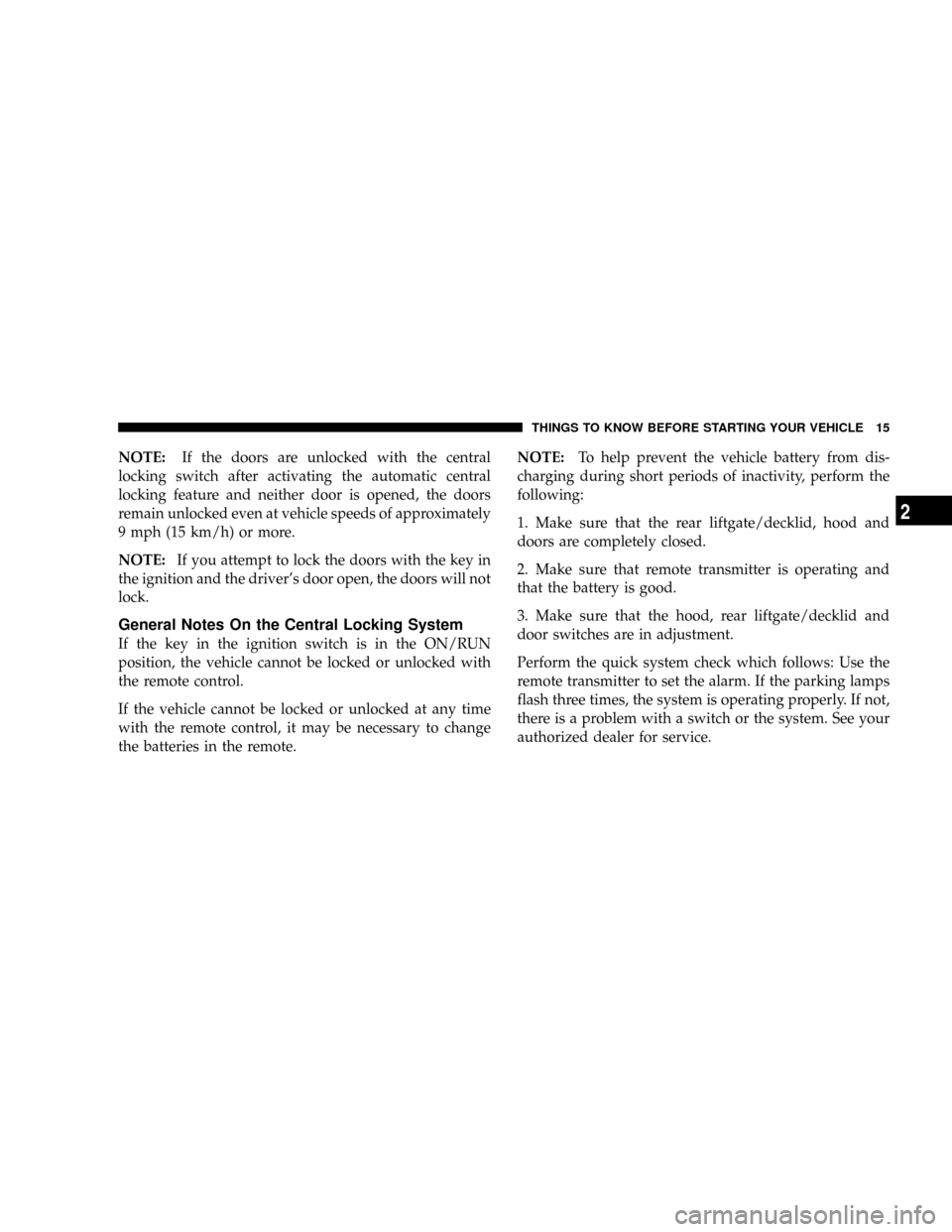

NOTE:If the doors are unlocked with the central
locking switch after activating the automatic central
locking feature and neither door is opened, the doors
remain unlocked even at vehicle speeds of approximately
9 mph (15 km/h) or more.
NOTE:If you attempt to lock the doors with the key in
the ignition and the driver's door open, the doors will not
lock.
General Notes On the Central Locking System
If the key in the ignition switch is in the ON/RUN
position, the vehicle cannot be locked or unlocked with
the remote control.
If the vehicle cannot be locked or unlocked at any time
with the remote control, it may be necessary to change
the batteries in the remote.NOTE:To help prevent the vehicle battery from dis-
charging during short periods of inactivity, perform the
following:
1. Make sure that the rear liftgate/decklid, hood and
doors are completely closed.
2. Make sure that remote transmitter is operating and
that the battery is good.
3. Make sure that the hood, rear liftgate/decklid and
door switches are in adjustment.
Perform the quick system check which follows: Use the
remote transmitter to set the alarm. If the parking lamps
flash three times, the system is operating properly. If not,
there is a problem with a switch or the system. See your
authorized dealer for service.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

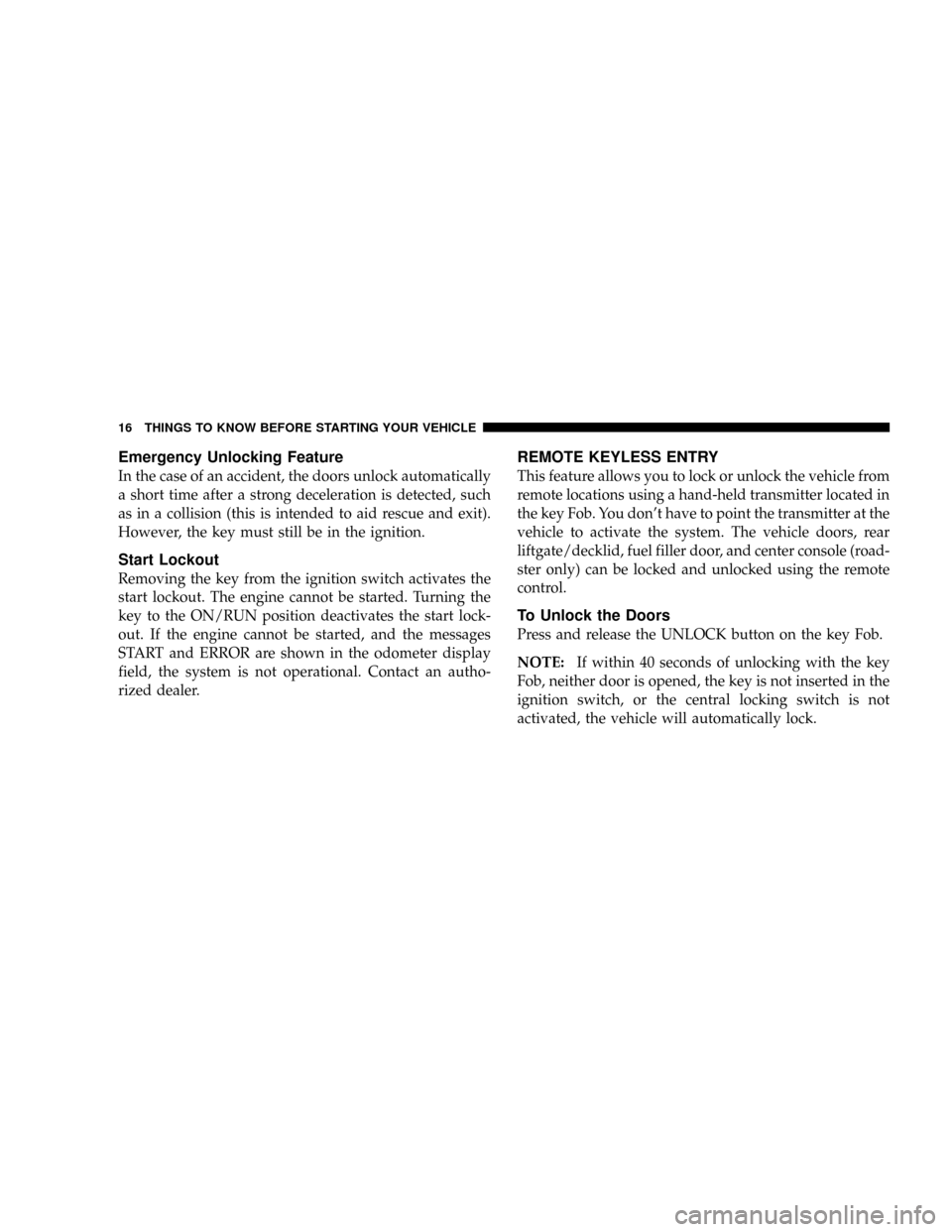

Emergency Unlocking Feature
In the case of an accident, the doors unlock automatically
a short time after a strong deceleration is detected, such
as in a collision (this is intended to aid rescue and exit).
However, the key must still be in the ignition.
Start Lockout
Removing the key from the ignition switch activates the
start lockout. The engine cannot be started. Turning the
key to the ON/RUN position deactivates the start lock-
out. If the engine cannot be started, and the messages
START and ERROR are shown in the odometer display
field, the system is not operational. Contact an autho-
rized dealer.
REMOTE KEYLESS ENTRY
This feature allows you to lock or unlock the vehicle from
remote locations using a hand-held transmitter located in
the key Fob. You don't have to point the transmitter at the
vehicle to activate the system. The vehicle doors, rear
liftgate/decklid, fuel filler door, and center console (road-
ster only) can be locked and unlocked using the remote
control.
To Unlock the Doors
Press and release the UNLOCK button on the key Fob.
NOTE:If within 40 seconds of unlocking with the key
Fob, neither door is opened, the key is not inserted in the
ignition switch, or the central locking switch is not
activated, the vehicle will automatically lock.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

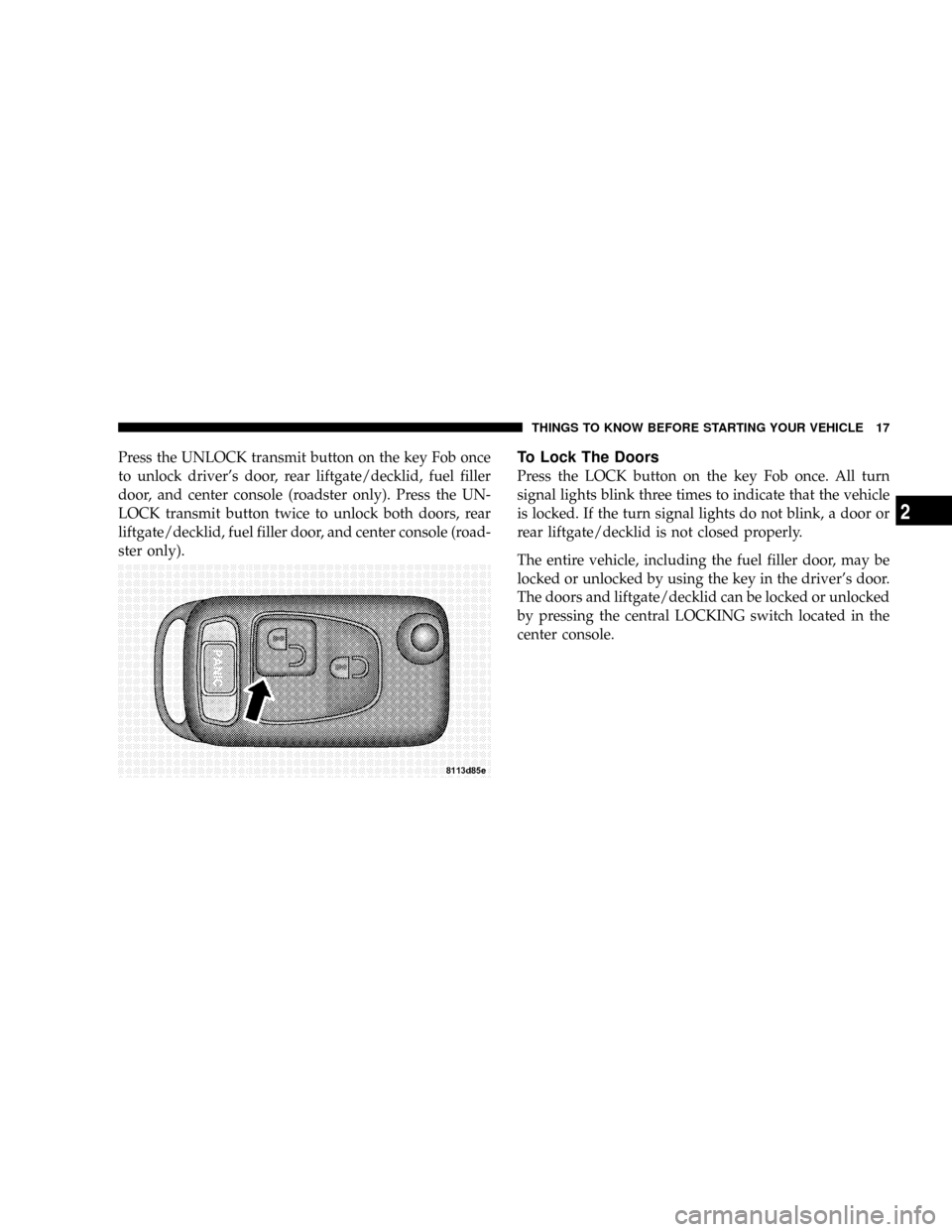

Press the UNLOCK transmit button on the key Fob once
to unlock driver's door, rear liftgate/decklid, fuel filler
door, and center console (roadster only). Press the UN-
LOCK transmit button twice to unlock both doors, rear
liftgate/decklid, fuel filler door, and center console (road-
ster only).To Lock The Doors
Press the LOCK button on the key Fob once. All turn
signal lights blink three times to indicate that the vehicle
is locked. If the turn signal lights do not blink, a door or
rear liftgate/decklid is not closed properly.
The entire vehicle, including the fuel filler door, may be
locked or unlocked by using the key in the driver's door.
The doors and liftgate/decklid can be locked or unlocked
by pressing the central LOCKING switch located in the
center console.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

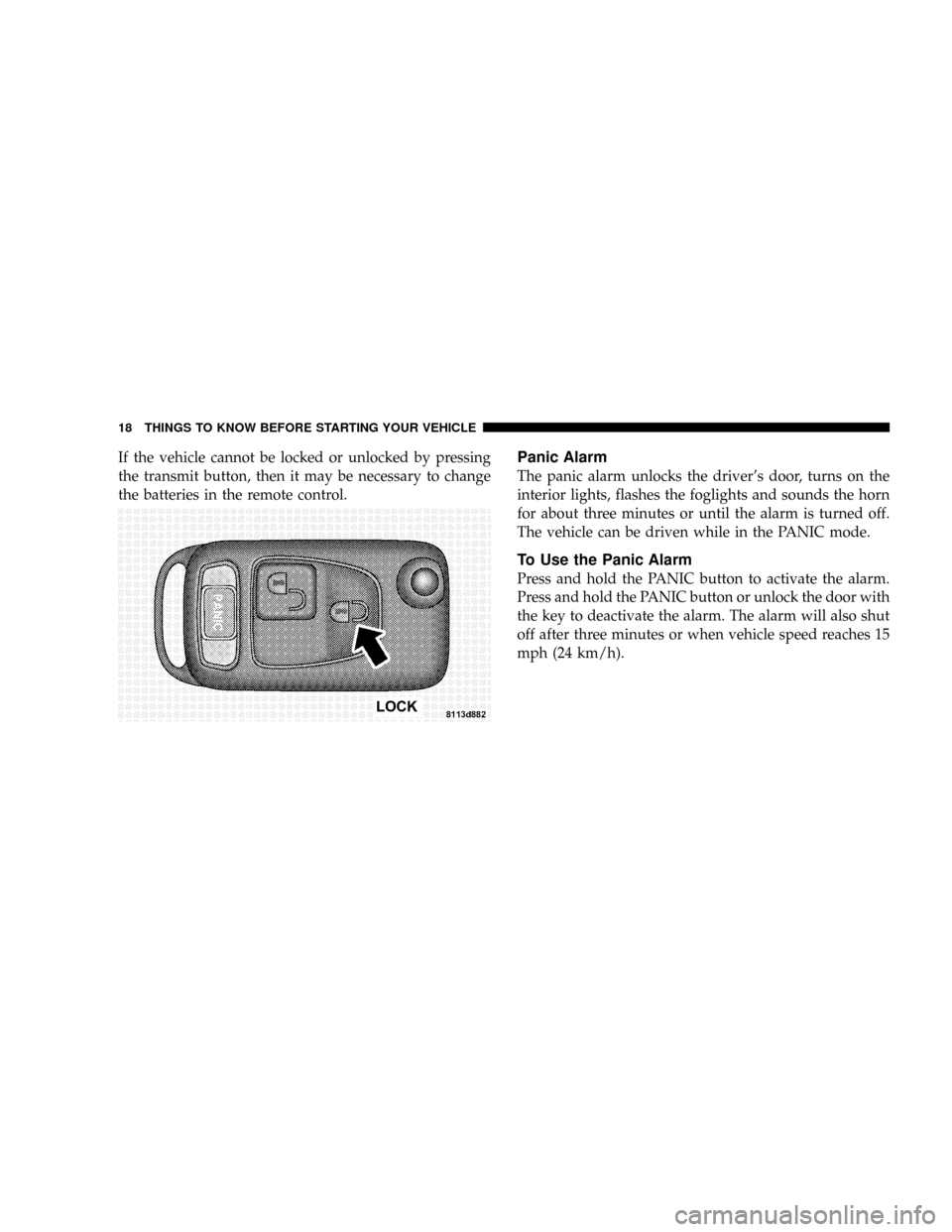

If the vehicle cannot be locked or unlocked by pressing
the transmit button, then it may be necessary to change
the batteries in the remote control.Panic Alarm
The panic alarm unlocks the driver's door, turns on the
interior lights, flashes the foglights and sounds the horn
for about three minutes or until the alarm is turned off.
The vehicle can be driven while in the PANIC mode.
To Use the Panic Alarm
Press and hold the PANIC button to activate the alarm.
Press and hold the PANIC button or unlock the door with
the key to deactivate the alarm. The alarm will also shut
off after three minutes or when vehicle speed reaches 15
mph (24 km/h).
