Page 311 of 358

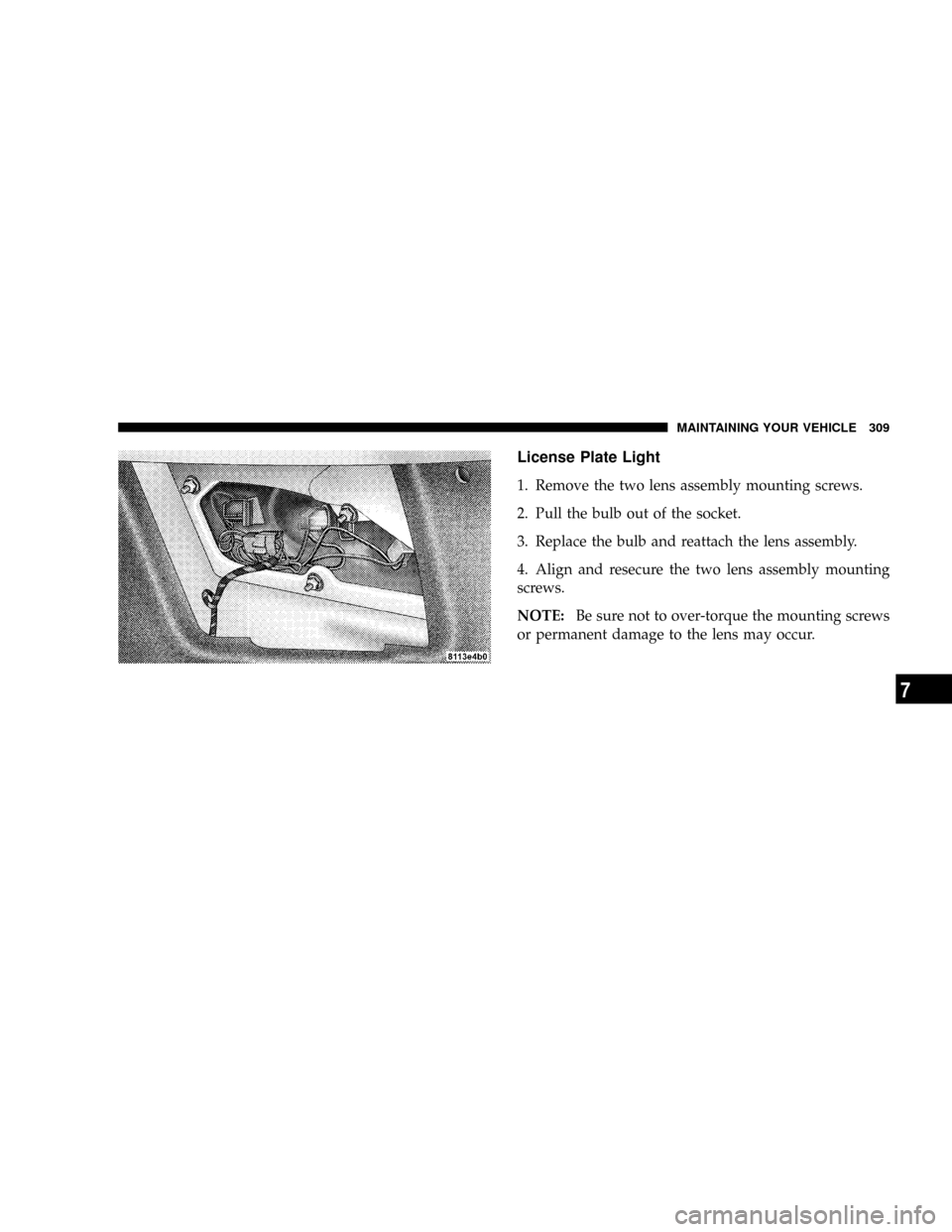

CHRYSLER CROSSFIRE 2008 1.G Owners Manual License Plate Light
1. Remove the two lens assembly mounting screws.
2. Pull the bulb out of the socket.
3. Replace the bulb and reattach the lens assembly.
4. Align and resecure the two lens assembly

Page 312 of 358

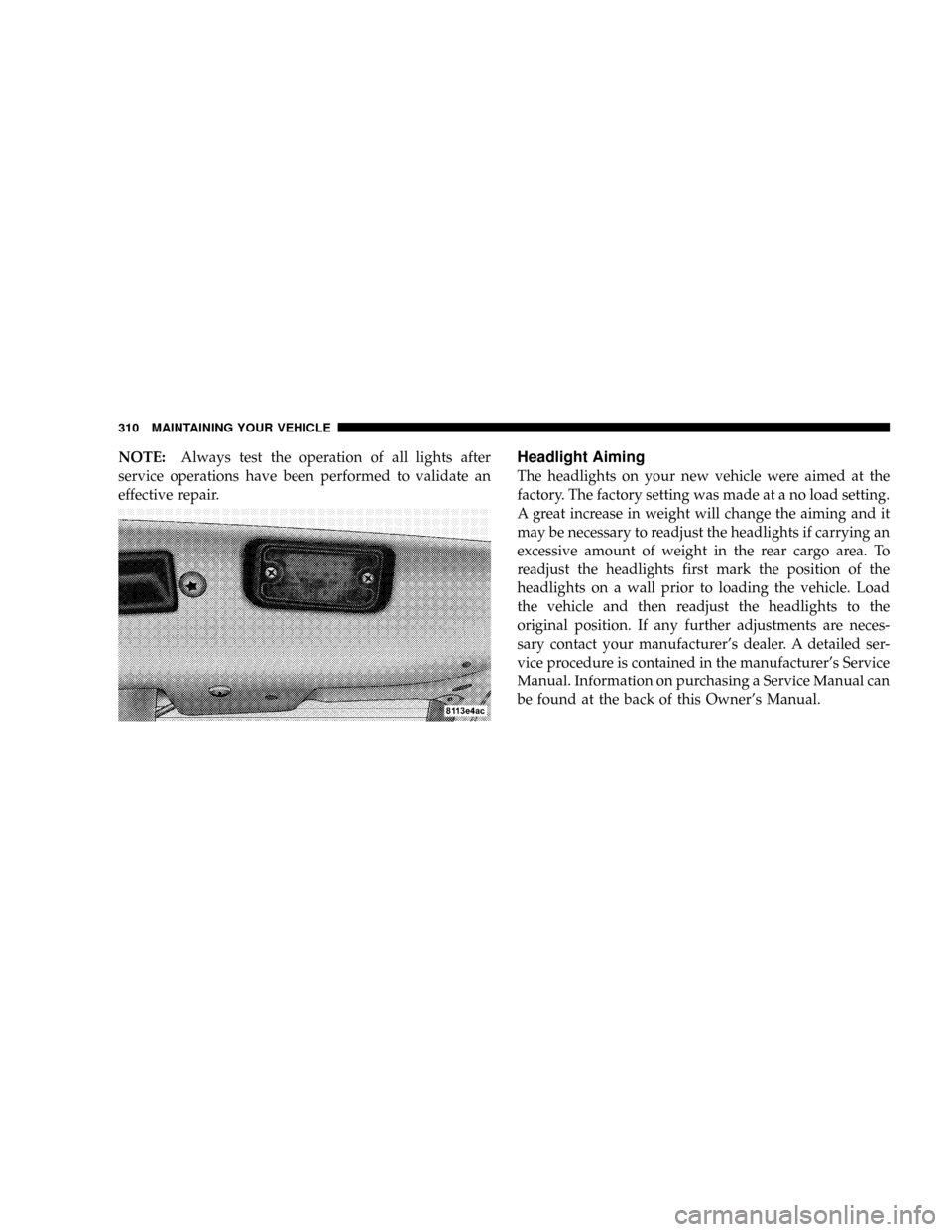

CHRYSLER CROSSFIRE 2008 1.G Owners Manual NOTE:Always test the operation of all lights after
service operations have been performed to validate an
effective repair.Headlight Aiming
The headlights on your new vehicle were aimed at the
factory.

Page 313 of 358

CHRYSLER CROSSFIRE 2008 1.G Owners Manual VEHICLE STORAGE
We recommend that you follow these guidelines before
storing your vehicle for extended periods.
²Fill the gas tank. This will prevent water condensation
inside the tank. If you plan o

Page 314 of 358

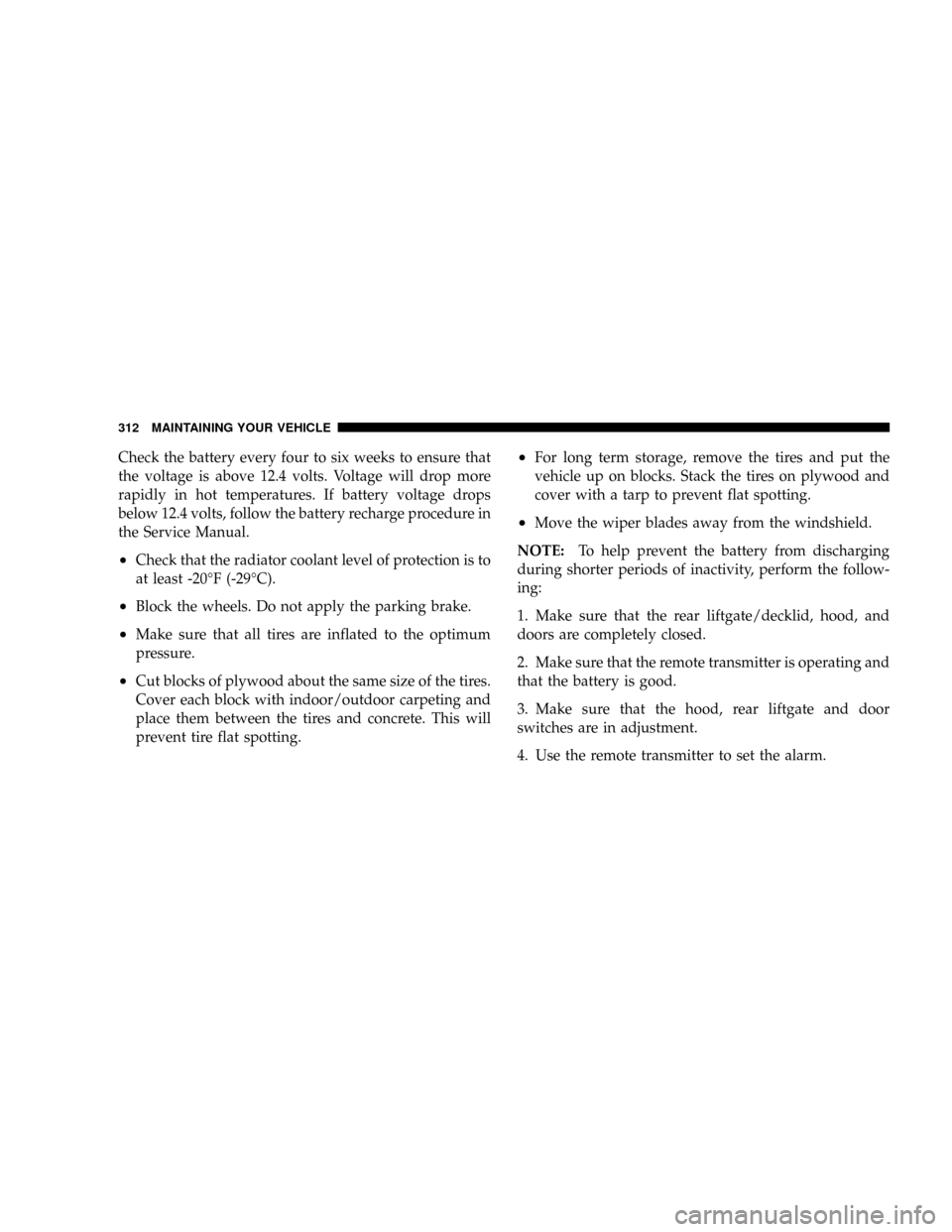

CHRYSLER CROSSFIRE 2008 1.G Owners Manual Check the battery every four to six weeks to ensure that
the voltage is above 12.4 volts. Voltage will drop more
rapidly in hot temperatures. If battery voltage drops
below 12.4 volts, follow the batt

Page 315 of 358

CHRYSLER CROSSFIRE 2008 1.G Owners Manual SPECIFICATIONS
Engine Specifications
Engine Size 195.2 CID (3.2 L)
Mode of Operation 4±stroke engine, gasoline
injection
No. of Cylinders 6
Horsepower (SAE J 1349) 215 hp (160 kW) @ 5700
rpm
Bore 3.5

Page 316 of 358

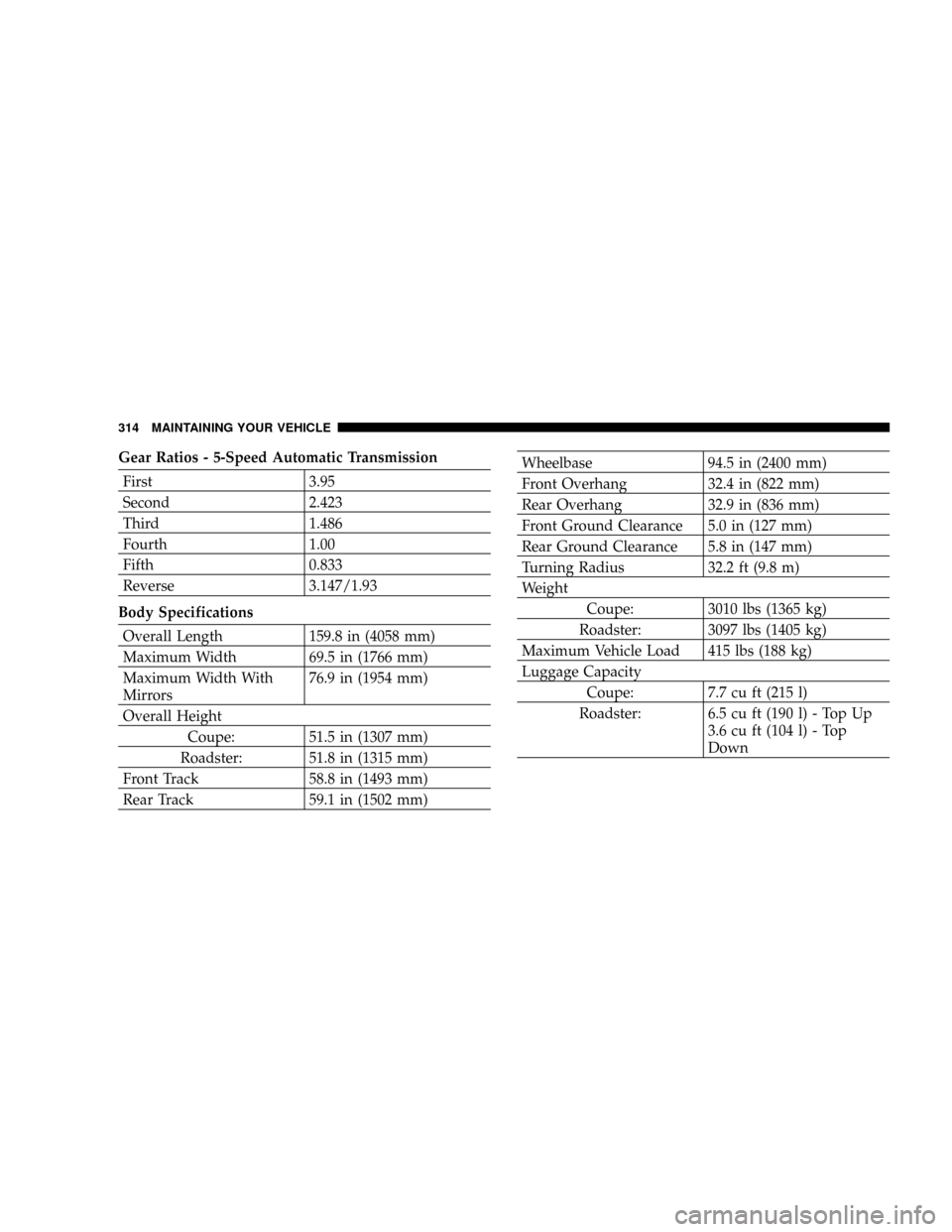

CHRYSLER CROSSFIRE 2008 1.G Owners Manual Gear Ratios - 5-Speed Automatic Transmission
First 3.95
Second 2.423
Third 1.486
Fourth 1.00
Fifth 0.833
Reverse 3.147/1.93
Body Specifications
Overall Length 159.8 in (4058 mm)
Maximum Width 69.5 in

Page 317 of 358

CHRYSLER CROSSFIRE 2008 1.G Owners Manual FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)15.8 Gal 60.0 L
Fuel Tank Reserve2 Gal 7.5 L
Engine Oil (with filter)
3.2 L Engine 8.5 Qt 8.0 L
Cooling System *
3.2 L Engine 11.8 Qt 11.2 L
Manual Trans

Page 318 of 358

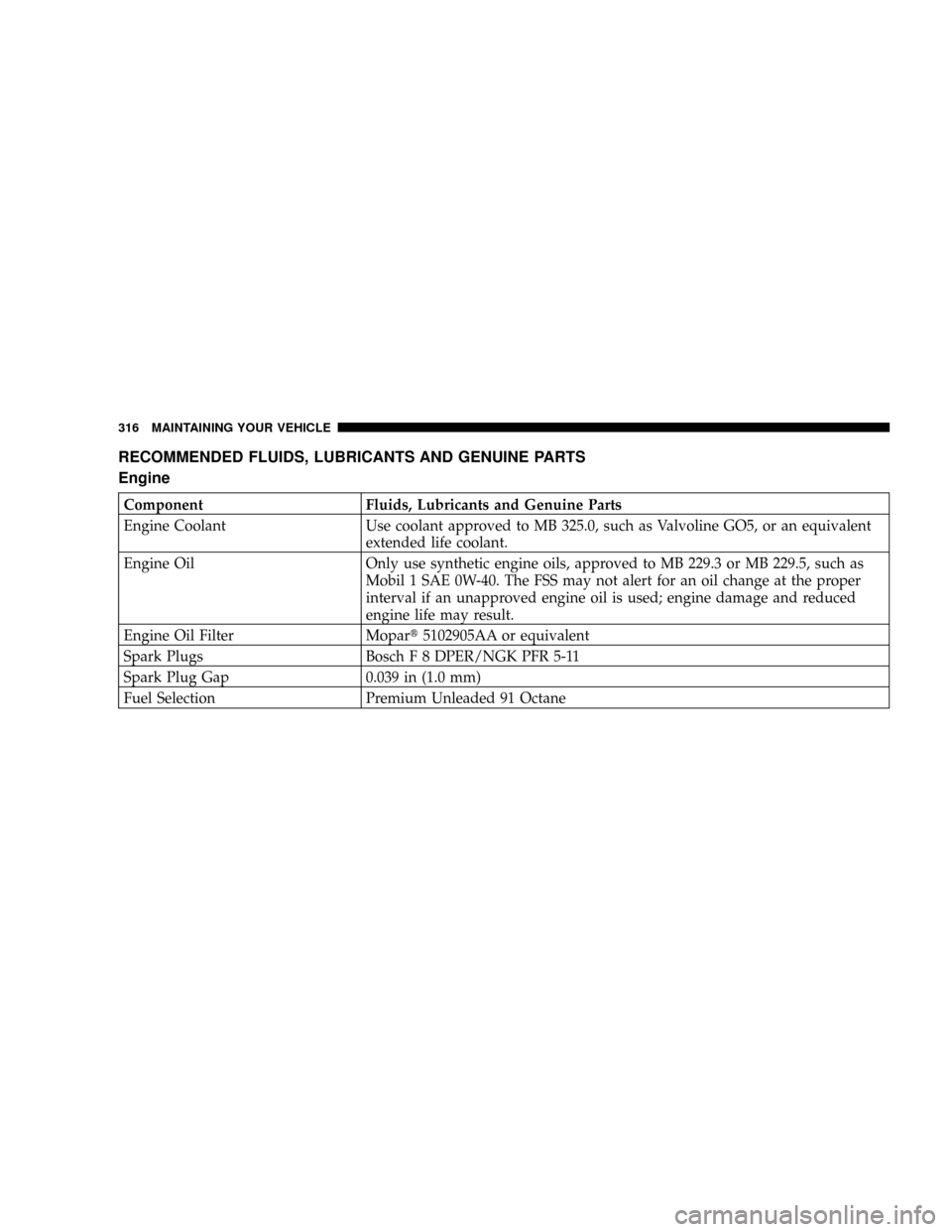

CHRYSLER CROSSFIRE 2008 1.G Owners Manual RECOMMENDED FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluids, Lubricants and Genuine Parts
Engine Coolant Use coolant approved to MB 325.0, such as Valvoline GO5, or an equivalent
extended

Page 319 of 358

CHRYSLER CROSSFIRE 2008 1.G Owners Manual Chassis
Component Fluids, Lubricants and Genuine Parts
Automatic Transmission Only use ATF approved to MB 236.10, MB 236.12. Synthetic Dexron IIItTransmis-
sion Fluid may be substituted.
Brake Master

Page 320 of 358

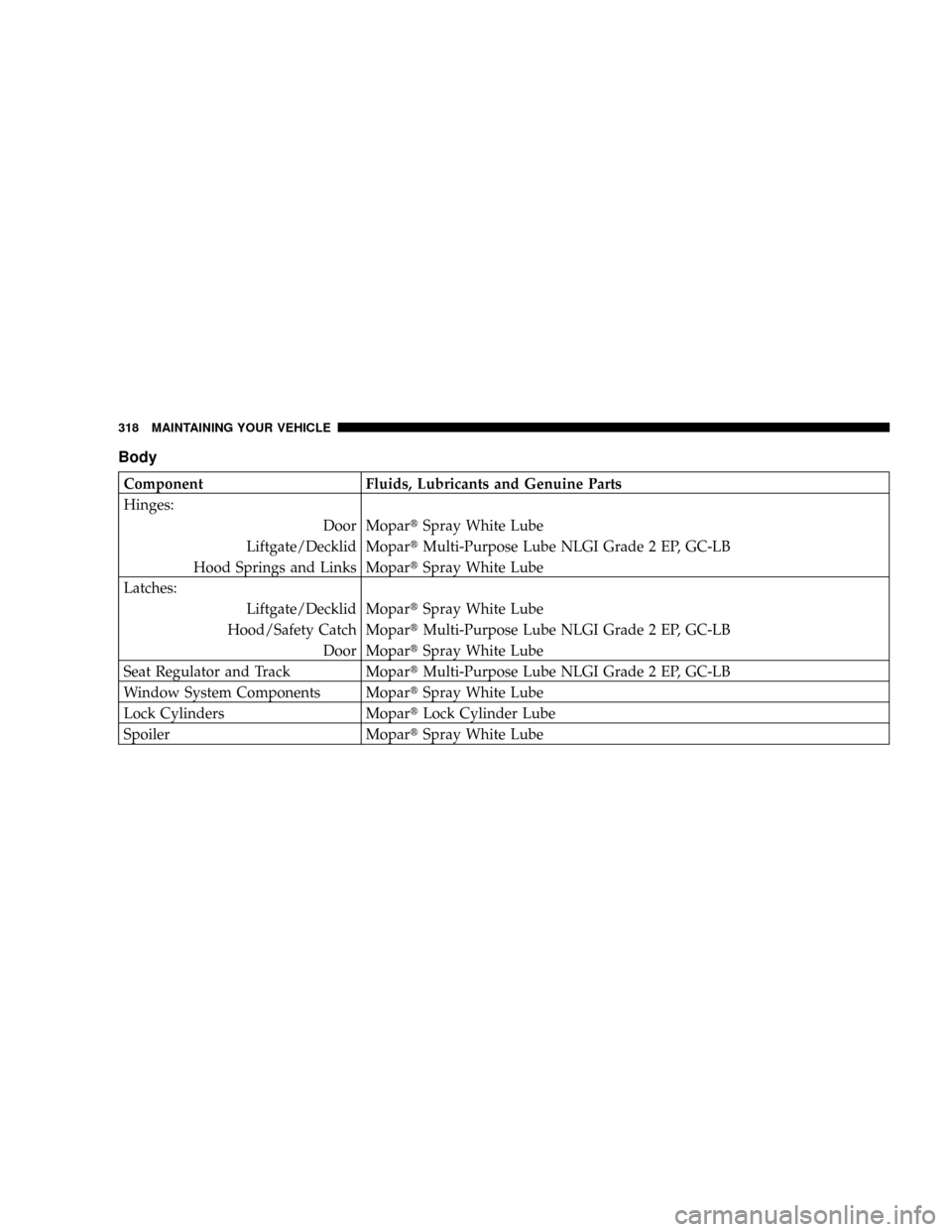

CHRYSLER CROSSFIRE 2008 1.G Owners Manual Body
Component Fluids, Lubricants and Genuine Parts
Hinges:
Door MopartSpray White Lube
Liftgate/Decklid MopartMulti-Purpose Lube NLGI Grade 2 EP, GC-LB
Hood Springs and Links MopartSpray White Lube
L
