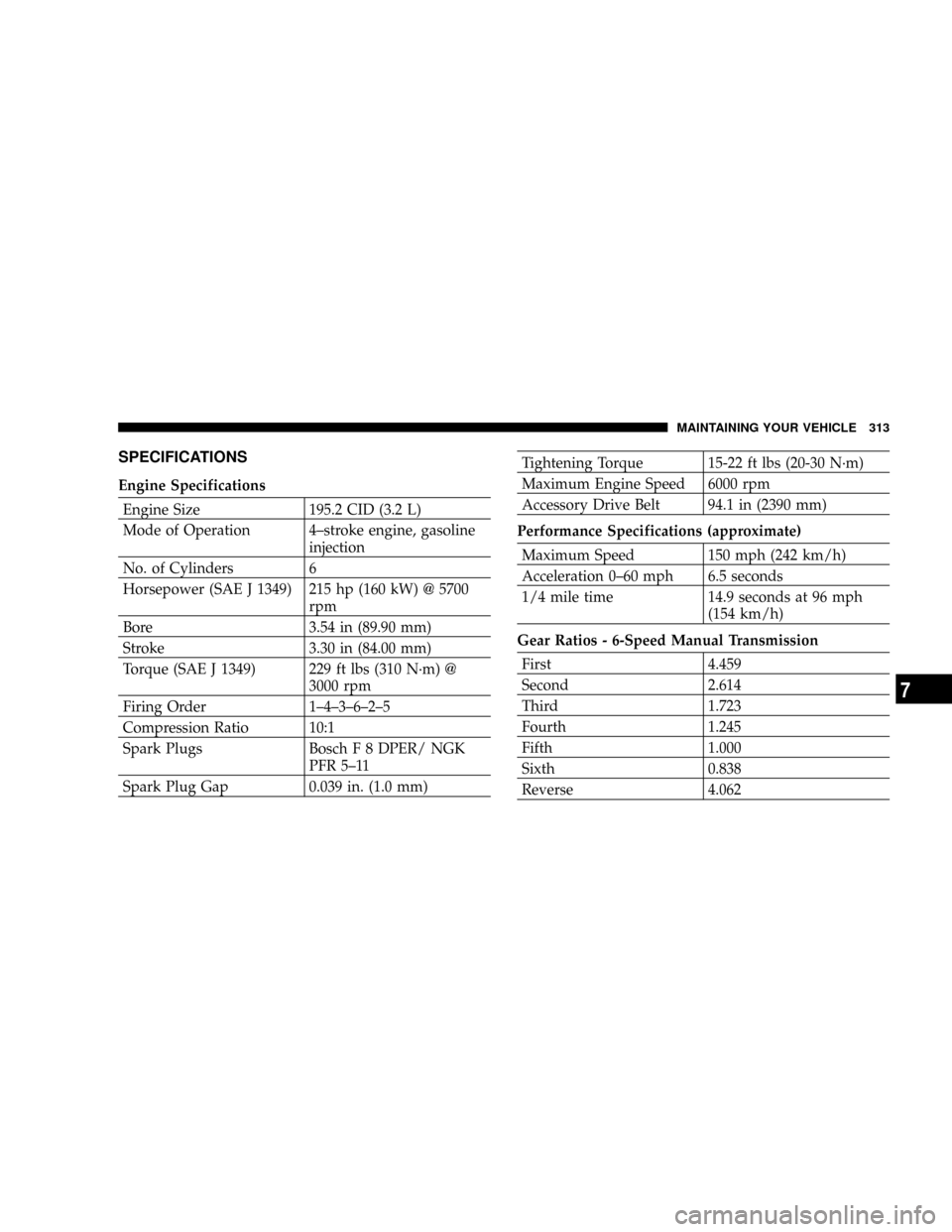

SPECIFICATIONS
Engine Specifications
Engine Size 195.2 CID (3.2 L)
Mode of Operation 4±stroke engine, gasoline
injection
No. of Cylinders 6
Horsepower (SAE J 1349) 215 hp (160 kW) @ 5700
rpm
Bore 3.54 in (89.90 mm)
Stroke 3.30 in (84.00 mm)
Torque (SAE J 1349) 229 ft lbs (310 N´m) @
3000 rpm
Firing Order 1±4±3±6±2±5
Compression Ratio 10:1
Spark Plugs Bosch F 8 DPER/ NGK
PFR 5±11
Spark Plug Gap 0.039 in. (1.0 mm)
Tightening Torque 15-22 ft lbs (20-30 N´m)
Maximum Engine Speed 6000 rpm
Accessory Drive Belt 94.1 in (2390 mm)
Performance Specifications (approximate)
Maximum Speed 150 mph (242 km/h)
Acceleration 0±60 mph 6.5 seconds
1/4 mile time 14.9 seconds at 96 mph
(154 km/h)
Gear Ratios - 6-Speed Manual Transmission
First 4.459
Second 2.614
Third 1.723
Fourth 1.245
Fifth 1.000
Sixth 0.838
Reverse 4.062
