Page 96 of 358

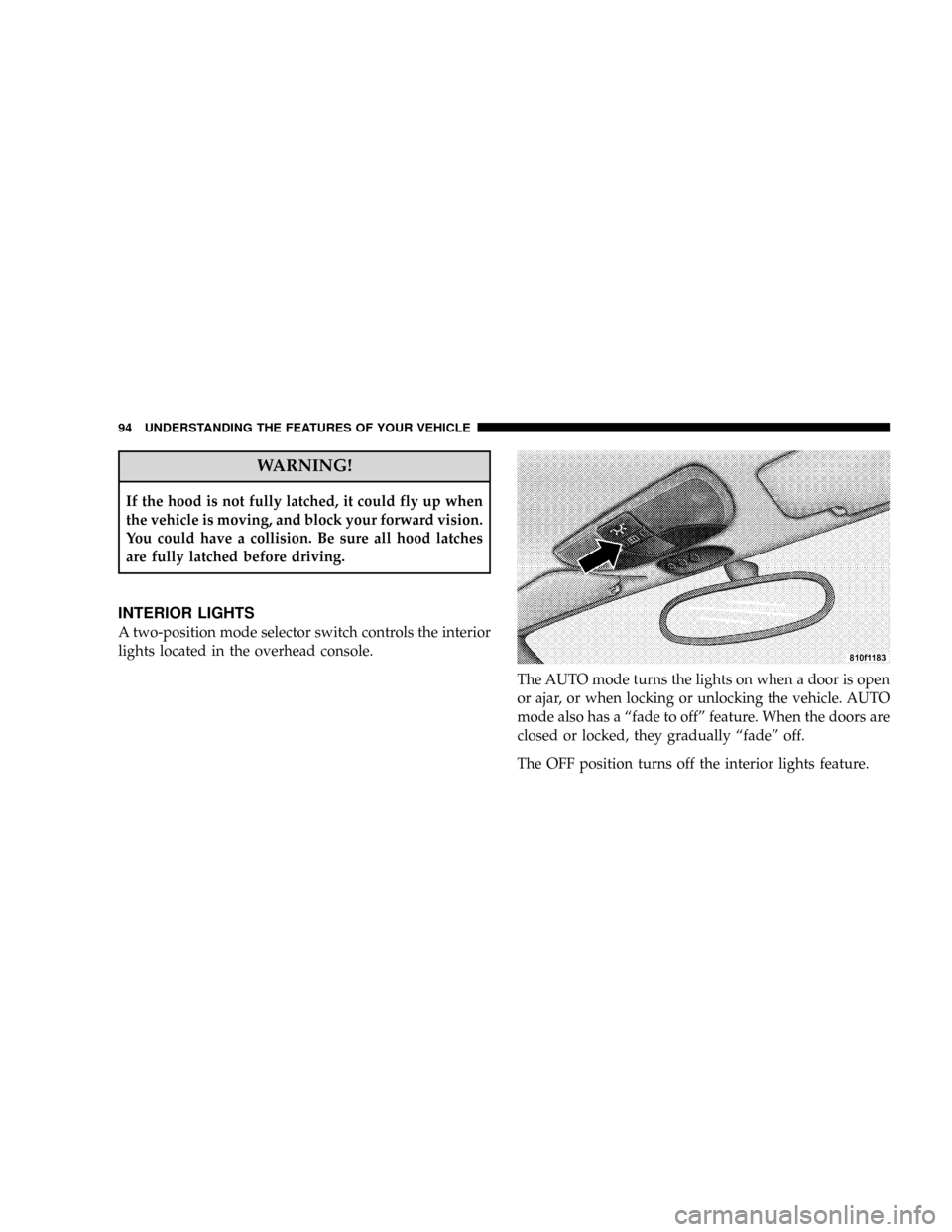

WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving, and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
INTERIOR LIGHTS
A two-position mode selector switch controls the interior
lights located in the overhead console.
The AUTO mode turns the lights on when a door is open
or ajar, or when locking or unlocking the vehicle. AUTO
mode also has a ªfade to offº feature. When the doors are
closed or locked, they gradually ªfadeº off.
The OFF position turns off the interior lights feature.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 99 of 358

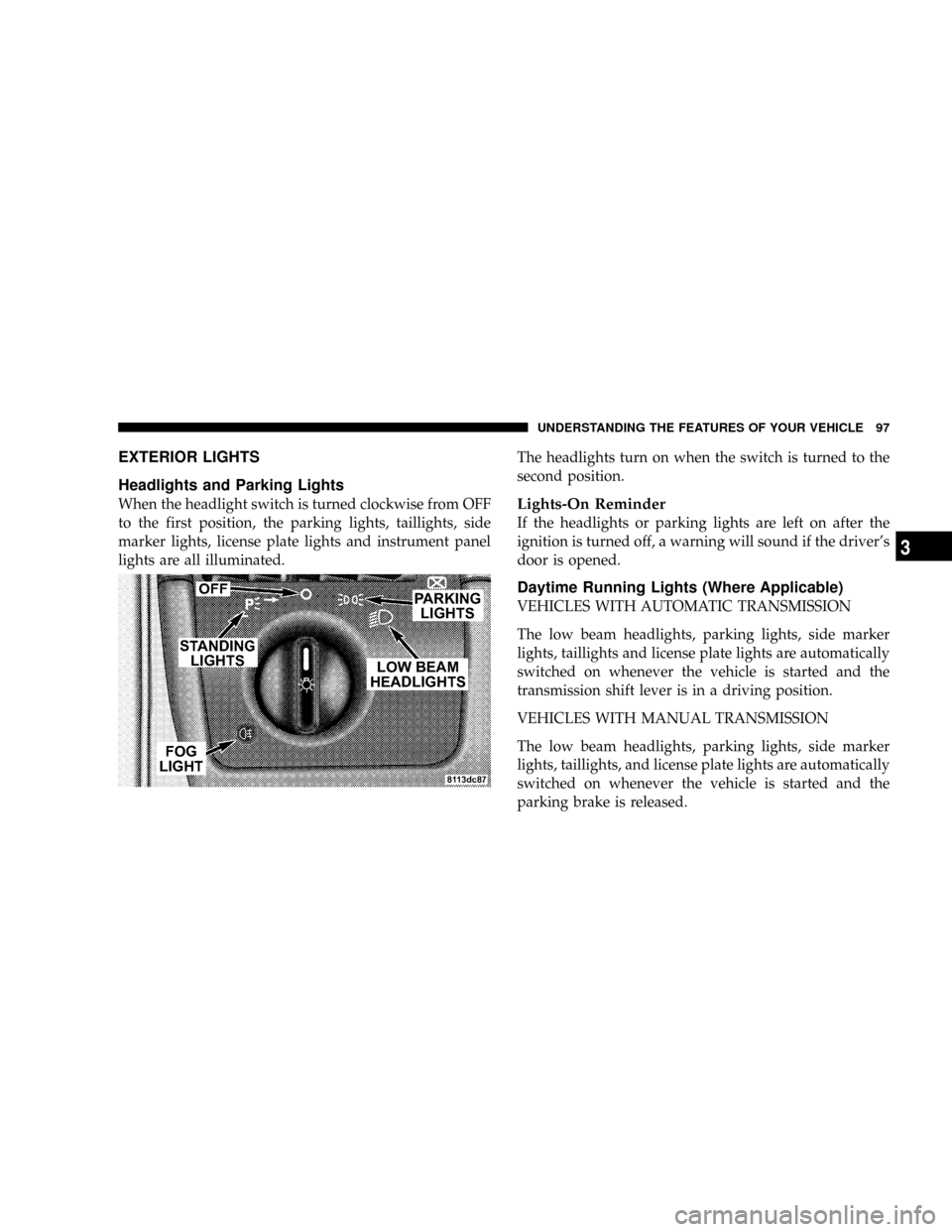

EXTERIOR LIGHTS
Headlights and Parking Lights
When the headlight switch is turned clockwise from OFF
to the first position, the parking lights, taillights, side
marker lights, license plate lights and instrument panel
lights are all illuminated.The headlights turn on when the switch is turned to the
second position.Lights-On Reminder
If the headlights or parking lights are left on after the
ignition is turned off, a warning will sound if the driver's
door is opened.
Daytime Running Lights (Where Applicable)
VEHICLES WITH AUTOMATIC TRANSMISSION
The low beam headlights, parking lights, side marker
lights, taillights and license plate lights are automatically
switched on whenever the vehicle is started and the
transmission shift lever is in a driving position.
VEHICLES WITH MANUAL TRANSMISSION
The low beam headlights, parking lights, side marker
lights, taillights, and license plate lights are automatically
switched on whenever the vehicle is started and the
parking brake is released.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3
Page 136 of 358
11. Light Outage Indicator
With the key in the ignition switch turned to
the ON/RUN position, an indicator light
comes on. It should go out when the engine is
running. If the indicator light does not go out
after starting the engine, or if it comes on while driving,
it indicates a failure in the parking light, taillight, stop-
light, low beam headlight, or other exterior lamps.
The indicator light will come on when the exterior light
fails. If a brake light fails, the light outage indicator will
come on when applying the brake and stays on until the
engine is turned off.
NOTE:If additional lighting equipment is installed
(e.g., auxiliary headlights, etc.) be certain to connect into
the fuse before the failure indicator monitoring unit in
order to avoid damaging the system.12. Antilock Warning Indicator Light
The ABS warning indicator light comes on with
the key in the ignition switch turned to the
ON/RUN position, and should go out with the
engine running.
If the ABS warning indicator light comes on while the
engine is running, it indicates that the ABS has detected
a malfunction and has switched off. In this case, the brake
system functions in the usual manner, but without an-
tilock assistance.
If the ABS light is on, have the system checked at your
authorized dealer as soon as possible.
13. Brake Assist Indicator Light
The indicator light for the Brake Assist System
(BAS) is combined with the Electronic Stability
Program (ESP). This yellow indicator light in
the instrument cluster comes on with the key in the
ignition switch turned to the ON/RUN position. The
134 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 197 of 358

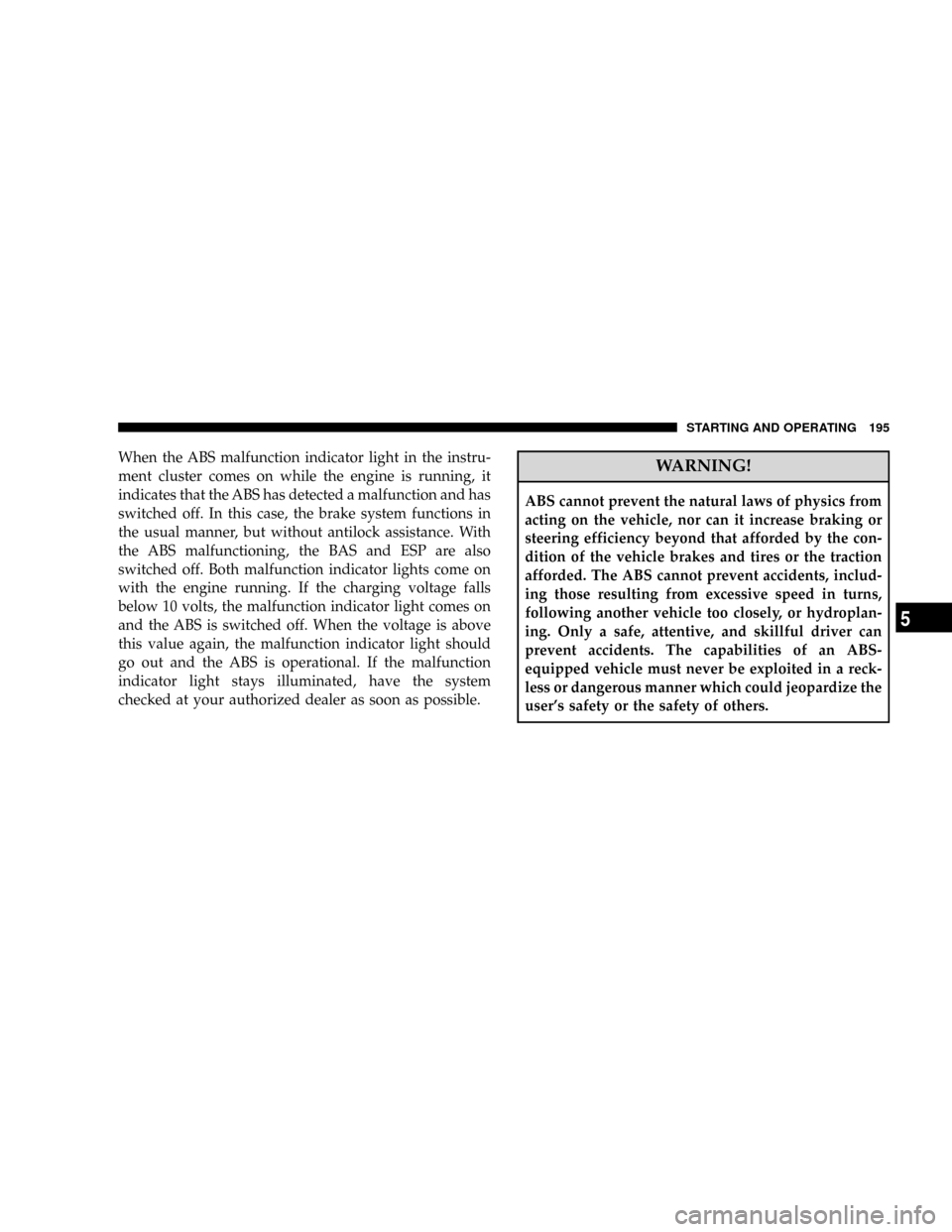

When the ABS malfunction indicator light in the instru-
ment cluster comes on while the engine is running, it
indicates that the ABS has detected a malfunction and has
switched off. In this case, the brake system functions in
the usual manner, but without antilock assistance. With
the ABS malfunctioning, the BAS and ESP are also
switched off. Both malfunction indicator lights come on
with the engine running. If the charging voltage falls
below 10 volts, the malfunction indicator light comes on
and the ABS is switched off. When the voltage is above
this value again, the malfunction indicator light should
go out and the ABS is operational. If the malfunction
indicator light stays illuminated, have the system
checked at your authorized dealer as soon as possible.WARNING!
ABS cannot prevent the natural laws of physics from
acting on the vehicle, nor can it increase braking or
steering efficiency beyond that afforded by the con-
dition of the vehicle brakes and tires or the traction
afforded. The ABS cannot prevent accidents, includ-
ing those resulting from excessive speed in turns,
following another vehicle too closely, or hydroplan-
ing. Only a safe, attentive, and skillful driver can
prevent accidents. The capabilities of an ABS-
equipped vehicle must never be exploited in a reck-
less or dangerous manner which could jeopardize the
user's safety or the safety of others.
STARTING AND OPERATING 195
5
Page 296 of 358
CAUTION!
The use of vinyl, leather or plastic protectants may
cause excessive gloss and/or discoloration of interior
trim parts.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with any commercial household-type glass cleaner.
Never use an abrasive-type cleaner. Use caution when
cleaning inside rear windows equipped with electric
defrosters. Do not use scrapers or other sharp instru-
ments which may scratch the elements.
Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections in the windshield. Do not use
294 MAINTAINING YOUR VEHICLE
Page 308 of 358
EXTERIOR LIGHT BULB SERVICE
Headlights
WARNING!
Halogen lamps contain pressurized gas. A bulb can
explode if you:
²Touch or move it when hot
²Drop the bulb
²Scratch the bulb
Wear eye and hand protection.
NOTE:To prevent a possible electrical short circuit,
switch off light prior to replacing a bulb.
1. Push the tab down at the top end of the cover and
remove.2. Disconnect the electrical connector.
3. Release the spring clamps holding the bulb in place,
and pull out the bulb. Replace the bulb and reverse the
removal procedure exactly.
306 MAINTAINING YOUR VEHICLE
Page 344 of 358
ABS (Anti-Lock Brake System).............. 134
Adding Engine Coolant (Antifreeze).......... 282
Adding Fuel........................... 225
Aiming Headlights....................... 310
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 269
Air Conditioning.....................155,273
Air Conditioning Filter.................... 329
Air Conditioning Refrigerant............... 273
Air Conditioning System.................. 273
Air Pressure, Tires....................... 208
Airbag................................ 33
Airbag Deployment....................... 40
Airbag Light.........................38,140
Airbag Maintenance....................... 50
Airbag On/Off Switch...................47,53
Alignment and Balance................... 214
Antenna.............................. 154
Antifreeze (Engine Coolant)................ 315
Anti-Lock Warning Light.................. 134Appearance Care........................ 290
Ashtrays and Lighter...................... 82
Automatic Door Locks..................... 15
Automatic Transmission................174,288
Fluid and Filter Changes................. 289
Fluid Level Check...................... 288
Fluid Type........................... 288
Special Additives...................... 290
Autostick............................. 178
Ball Joints............................. 275
Battery............................135,271
Saving Feature (Protection)................ 95
Belts, Drive............................ 268
Belts, Seat.............................. 26
Body Mechanism Lubrication............... 276
B-Pillar Location........................ 203
Brake Assist System...................... 108
Brake, Parking.......................... 185
342 INDEX
Page 345 of 358
Brake System........................186,285
Anti-Lock (ABS)....................... 186
Hoses.............................. 285
Master Cylinder....................... 286
Break-In Recommendations, New Vehicle.....61,196
Bulbs, Light............................ 305
Capacities, Fluid........................ 313
Capacity, Cargo Weight................... 227
Carbon Monoxide Warning................. 61
Cargo Compartment
Capacity............................ 227
Catalytic Converter...................... 269
CD (Compact Disc) Player...............144,149
Chains, Tire............................ 219
Changing A Flat Tire..................... 234
Charging System Light.................... 135
Chart, Tire Sizing........................ 199
Checks, Safety........................... 61Child Restraint.......................... 52
Child Restraint Tether Anchors............... 59
Cigar Lighter........................... 83
Circuit Breakers......................... 297
Clean Air Gasoline....................... 223
Cleaning
Glass............................... 294
Headlights........................... 294
Climate Control......................... 155
Coin Holder............................ 83
Compact Disc (CD) Maintenance............. 154
Console............................... 80
Contract, Service........................ 335
Converter, Catalytic...................... 237
Convertible............................. 68
Convertible Top.......................... 68
Convertible Top Maintenance............... 295
Convertible Top Manual Override............ 249
Coolant (Antifreeze)...................281,329
INDEX 343
10
Page 348 of 358
Glass Cleaning.......................... 294
Glove Compartment...................... 84
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water........................ 183
Hazard Warning Flasher................... 232
Headlights
Aiming............................. 310
Cleaning............................ 294
Dimmer Switch....................... 100
Heater............................... 155
Hood Latch Maintenance.................. 276
Hood Release........................... 93
Hoses................................ 284
Ignition
Key ................................. 9
Wiring System (Spark Plug Wires).......... 271Illuminated Entry........................ 96
Infant Restraint.......................... 52
Inflation Pressure Tires.................... 208
Inside Rearview Mirror.................... 85
Instrument Cluster....................... 128
Instrument Panel and Controls.............. 127
Instrument Panel Cover................... 294
Instrument Panel Lens Cleaning............. 295
Interior Appearance Care.................. 293
Introduction............................. 4
Jack Location........................... 239
Jack Operation.......................... 234
Jump Starting.......................... 241
Key-In Reminder......................... 11
Keyless Entry System...................... 16
Keys.................................. 9
Knee Bolster............................ 33
346 INDEX
Page 349 of 358
Lap/Shoulder Belts....................... 27
Life of Tires............................ 212
Light Bulbs............................ 305
Lights
Airbag............................38,140
Anti-Lock Warning..................... 134
Back-Up............................. 308
Daytime Running....................... 97
Exterior.............................. 97
Exterior Check......................... 63
Fog ................................. 98
Hazard Warning Flasher................. 232
Headlights............................ 97
Instrument Cluster...................... 96
Interior...........................94,305
License............................. 309
Lights On Reminder..................... 97
Malfunction Indicator (Check Engine)........ 141
Map Reading.......................... 95Park.............................97,307
Rear Tail............................ 308
Seat Belt Reminder..................... 135
Turn Signal........................307,308
Loading Vehicle
Capacities........................... 227
Tires ............................... 203
Lubrication, Body....................... 276
Maintenance Free Battery.................. 271
Maintenance Procedures................... 264
Maintenance Schedules.................... 322
Malfunction Indicator Light (Check Engine) . . 141,262
Manual Override, Convertible Top............ 249
Manual, Service......................... 338
Manual Transmission..................171,289
Fluid Level Check...................... 289
Frequency of Fluid Change............... 290
Lubricant Selection..................... 289
INDEX 347
10
