CHRYSLER PACIFICA 2017 2.G Owners Manual

Stow n’ VAC Integrated Vacuum — If Equipped
Your vehicle may be equipped with an integrated
vacuum system. The system can clean up dry spills and
debris within the vehicle.
1. Make sure the vehicle is in Park (P) and the ignition isset to Run/Accessory mode.
NOTE: •The vacuum system will run for 10 minutes off
battery power. At 10 minutes, the vacuum will shut
down and a low battery indication light will come on
one minute before shutdown.
• When the vehicle engine is running, the vacuum will
be capable of continuous operation.
WARNING!
Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
• Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as
a garage, and never sit in a parked vehicle with the
engine running for an extended period. If the
vehicle is stopped in an open area with the engine
running for more than a short period, adjust the
ventilation system to force fresh, outside air into
the vehicle.
• Guard against carbon monoxide with proper main-
tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal
conditions repaired promptly. Until repaired, drive
with all side windows fully open.
3
GETTING TO KNOW YOUR VEHICLE 169

2. Open front vacuum storage compartments to accessthe attachments if needed.
3. Pull out the vacuum hose and push the power buttonlocated under the vacuum head. Begin to vacuum
(Dry use only).
Front Storage Compartments
1 — Retractable Vacuum Head/Hose Location
2 — Attachment Compartment Location
Power Buttons
1 — Low Power Indicator Light
2 — On/Off Button
170 GETTING TO KNOW YOUR VEHICLE

Vacuum Attachments
•Crevice Tool — Able to reach into tight spots including
the latches located in the floor for the seats.
• Upholstery Tool — Use to agitate dirt and debris from
carpets and seats. This tool can also be used to pick up
pet hair as well.
• Hose Extension — Use to add another 48 inches to the
end of the hose.
Vacuum System Access Panels
1 — Upper Access Panel
2 — Lower Access Panel
3
GETTING TO KNOW YOUR VEHICLE 171

To Remove And Empty The Debris Bin
To access and remove the debris bin, open the lower
access panel by pulling outward on the finger grip area of
the door. For debris bin removal, twist the (color) release
knob counterclockwise and pull the bin towards you.
Remove the filter and dump the debris in the proper
collection bin. Lightly tap the filter on the collection bin
to remove any collected debris from the filter pleats.
Reverse the procedure to reinstall.
NOTE:The filter must be properly installed in the debris
bin before installing the debris bin in the vehicle.
Vacuum Troubleshooting
•If an object(s) become lodged in the hose, first try fully
extending the hose in a straight line while the vacuum
motor is on. If this does not work, then remove the
hose and try to shake it out.
Debris Bin Release Knob
172 GETTING TO KNOW YOUR VEHICLE

•If the filter is clogged, follow the emptying debris bin
procedure and lightly tap the filter on the collection
bin to remove any collected debris from the filter
pleats.
• If filter is in need of replacement, please see your
authorized dealer for a replacement filter.
Precautions While Using Vacuum System
Dry Vac Only The Vacuum System is meant for dry
vacuuming only. Do Not use to pick
up spilled fluids, which can damage
the Vacuum System. Flammable / Explosive Liquids And Vapors
Do not vacuum any flammable liquid
spills or around explosive vapors.
3
GETTING TO KNOW YOUR VEHICLE 173

WARNING!
Flammable liquids and vapors can be ignited by
heat, sparks, or flames. Vapors from flammable liq-
uids may form an explosive mixture with the air.
Vapors may travel to source of ignition and cause an
explosion. Any disregard of this warning could result
in injury or death.
WARNING!
Do not leave the vacuum running while unattended.
Do not use with a missing or damage filter, as it will
allow debris to pass through the motor and possibly
damage it. Frequently check the filter to insure it is in
place and in good condition.Carbon Monoxide Gas
Do not leave the vehicle’s liftgate open
if the vehicle is running while the
vacuum is in use.
WARNING!
Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
•Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as
a garage, and never sit in a parked vehicle with the
engine running for an extended period. If the
(Continued)
174 GETTING TO KNOW YOUR VEHICLE

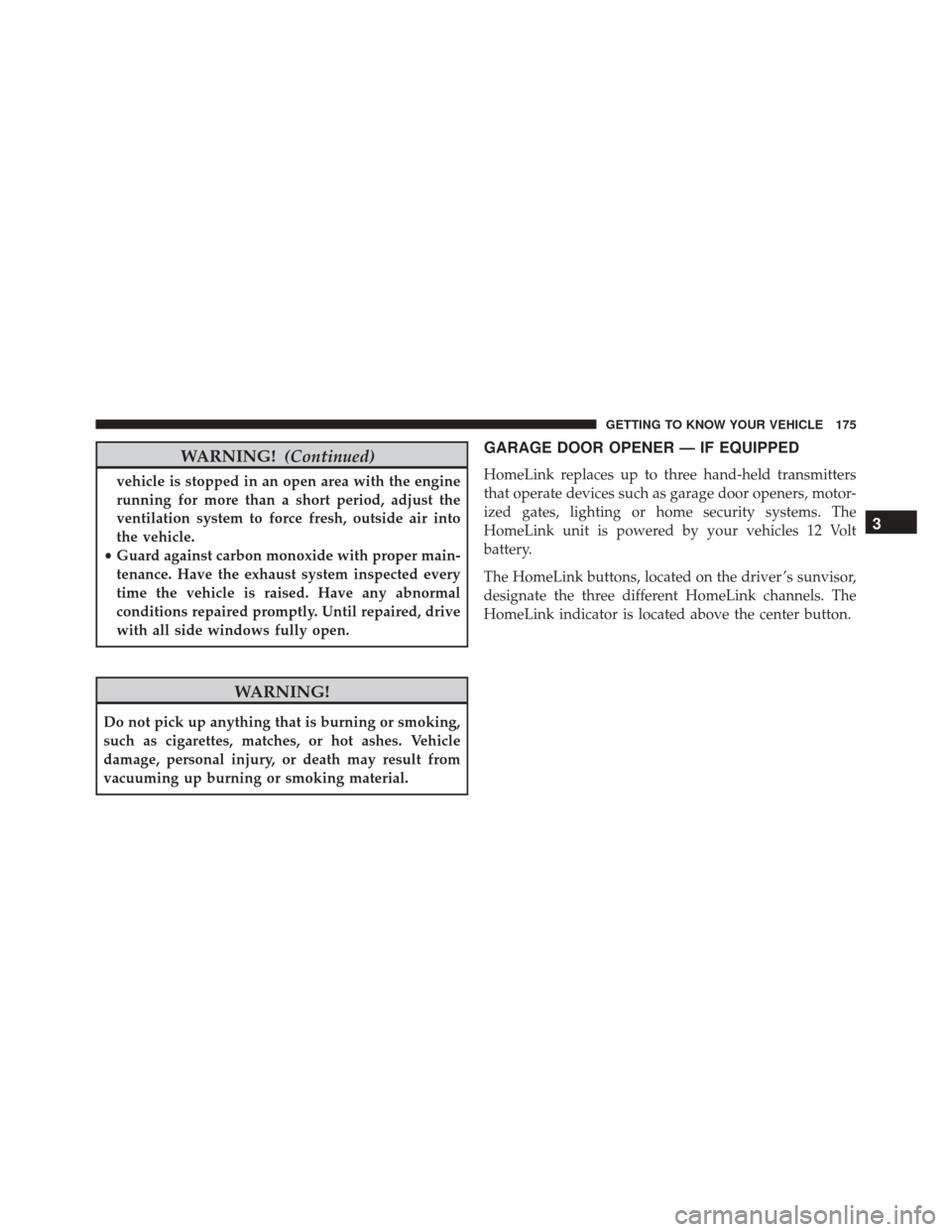

WARNING!(Continued)
vehicle is stopped in an open area with the engine
running for more than a short period, adjust the
ventilation system to force fresh, outside air into
the vehicle.
• Guard against carbon monoxide with proper main-
tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal
conditions repaired promptly. Until repaired, drive
with all side windows fully open.
WARNING!
Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes. Vehicle
damage, personal injury, or death may result from
vacuuming up burning or smoking material.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLink replaces up to three hand-held transmitters
that operate devices such as garage door openers, motor-
ized gates, lighting or home security systems. The
HomeLink unit is powered by your vehicles 12 Volt
battery.
The HomeLink buttons, located on the driver ’s sunvisor,
designate the three different HomeLink channels. The
HomeLink indicator is located above the center button.
3
GETTING TO KNOW YOUR VEHICLE 175

NOTE:HomeLink is disabled when the Vehicle Security
Alarm is active.
Before You Begin Programming HomeLink
Be sure that your vehicle is parked outside of the garage
before you begin programming. For more efficient programming and accurate transmis-
sion of the radio-frequency signal it is recommended that
a new battery be placed in the hand-held transmitter of
the device that is being programmed to the HomeLink
system.
To erase the channels place the ignition in the ON/RUN
position and push and hold the two outside HomeLink
buttons (I and III) for up to 20 seconds or until the orange
indicator flashes.
NOTE:
•
Erasing all channels should only be performed when
programming HomeLink for the first time. Do not
erase channels when programming additional buttons.
• If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.
HomeLink Buttons
176 GETTING TO KNOW YOUR VEHICLE

Programming A Rolling Code
For programming garage door openers that were manu-
factured after 1995. These garage door openers can be
identified by the “LEARN” or “TRAIN” button located
where the hanging antenna is attached to the garage door
opener. It is NOT the button that is normally used to
open and close the door. The name and color of the
button may vary by manufacturer.1. Place the ignition in the ON/RUN position.
Training The Garage Door Opener
1 — Door Opener
2 — Training Button
3
GETTING TO KNOW YOUR VEHICLE 177

2.Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)
away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.
3. Push and hold the HomeLink button you want toprogram while you push and hold the hand-held
transmitter button.
4. Continue to hold both buttons and observe the indi- cator light. The HomeLink indicator will flash slowly
and then rapidly after HomeLink has received the
frequency signal from the hand-held transmitter. Re-
lease both buttons after the indicator light changes
from slow to rapid.
5. At the garage door opener motor (in the garage), locate the “LEARN” or “TRAINING” button. This can
usually be found where the hanging antenna wire is
attached to the garage door opener/device motor.
Firmly push and release the “LEARN” or “TRAIN-
ING” button. On some garage door openers/devices there may be a light that blinks when the garage door
opener/device is in the LEARN/TRAIN mode.
NOTE: You have 30 seconds in which to initiate the next
step after the LEARN button has been pushed.
6. Return to the vehicle and push the programmed HomeLink button twice (holding the button for two
seconds each time). If the garage door opener/device
activates, programming is complete.
NOTE: If the garage door opener/device does not acti-
vate, push the button a third time (for two seconds) to
complete the training.
To program the remaining two HomeLink buttons, repeat
each step for each remaining button. DO NOT erase the
channels.
178 GETTING TO KNOW YOUR VEHICLE
