CHRYSLER PACIFICA 2017 2.G Owners Manual

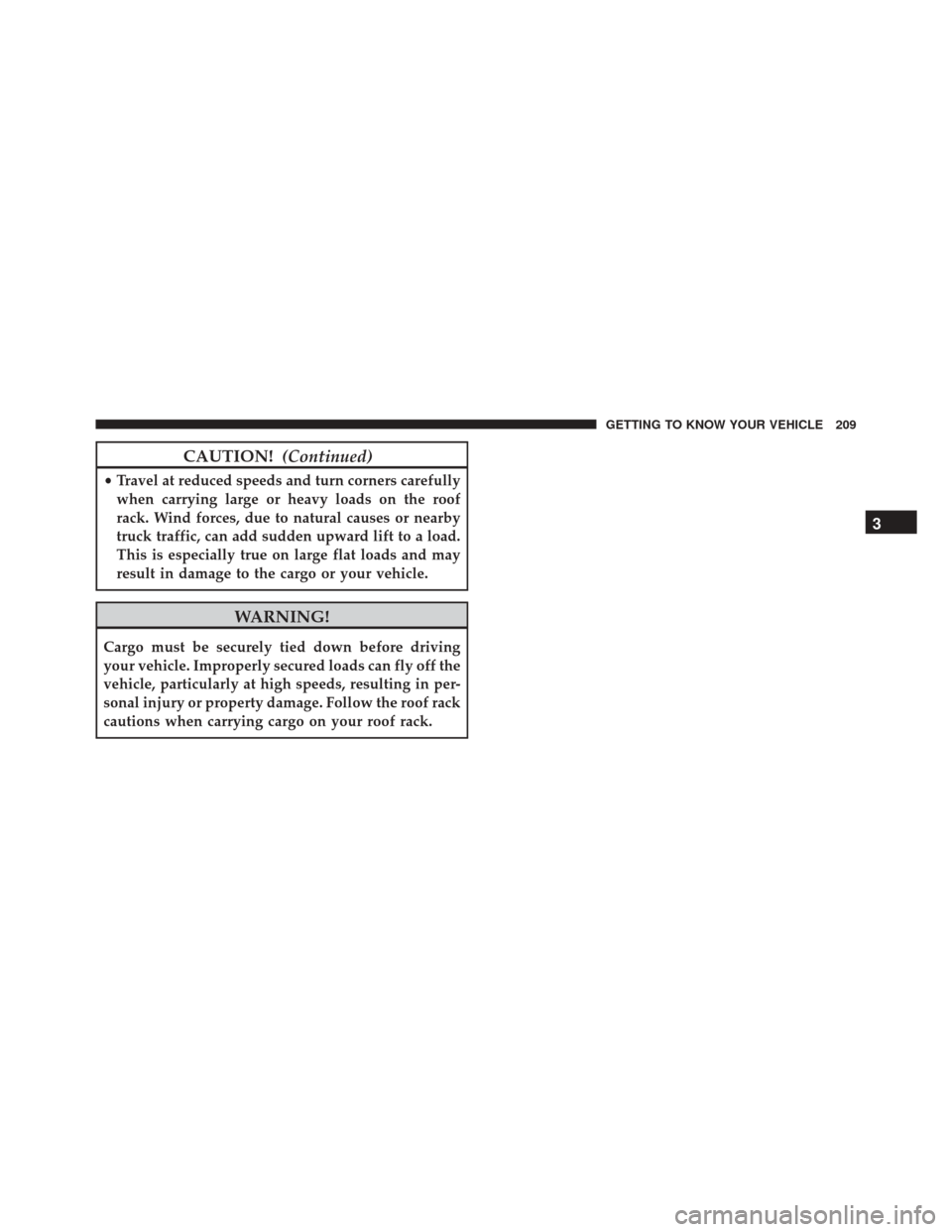

CAUTION!(Continued)
•Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied down before driving
your vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
3
GETTING TO KNOW YOUR VEHICLE 209

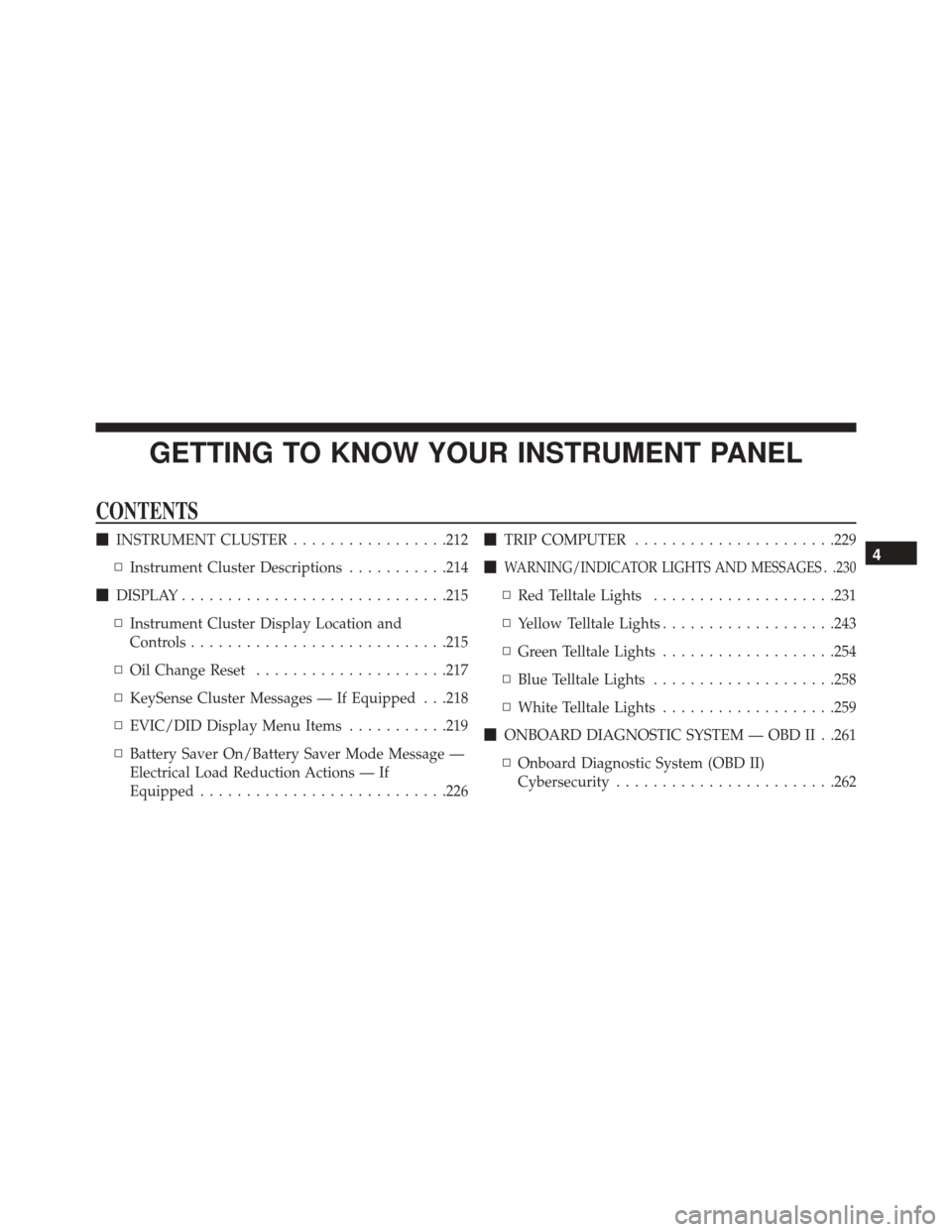

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER .................212
▫ Instrument Cluster Descriptions ...........214
 DISPLAY ............................ .215
▫ Instrument Cluster Display Location and
Controls ........................... .215
▫ Oil Change Reset .....................217
▫ KeySense Cluster Messages — If Equipped . . .218
▫ EVIC/DID Display Menu Items ...........219
▫ Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions — If
Equipped .......................... .226
TRIP COMPUTER ..................... .229

WARNING/INDICATOR LIGHTS AND MESSAGES . .230
▫ Red Telltale Lights ....................231
▫ Yellow Telltale Lights ...................243
▫ Green Telltale Lights ...................254
▫ Blue Telltale Lights ....................258
▫ White Telltale Lights ...................259
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .261
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ....................... .262
4

INSTRUMENT CLUSTER
3.5” EVIC Instrument Cluster
212 GETTING TO KNOW YOUR INSTRUMENT PANEL

7” DID Instrument Cluster
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 213

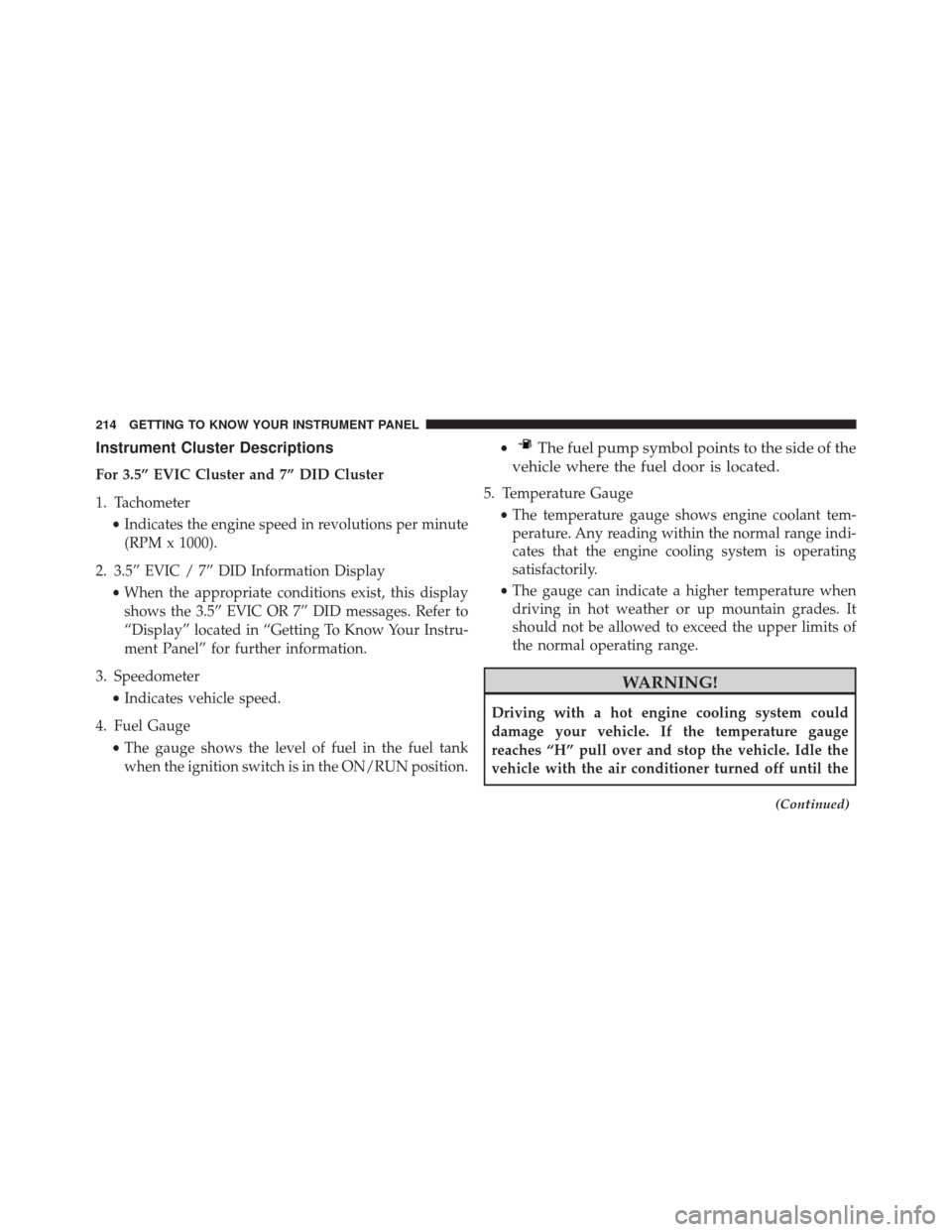

Instrument Cluster Descriptions
For 3.5” EVIC Cluster and 7” DID Cluster
1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. 3.5” EVIC / 7” DID Information Display •When the appropriate conditions exist, this display
shows the 3.5” EVIC OR 7” DID messages. Refer to
“Display” located in “Getting To Know Your Instru-
ment Panel” for further information.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The gauge shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN position. •
The fuel pump symbol points to the side of the
vehicle where the fuel door is located.
5. Temperature Gauge
•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The gauge can indicate a higher temperature when
driving in hot weather or up mountain grades. It
should not be allowed to exceed the upper limits of
the normal operating range.
WARNING!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge
reaches “H” pull over and stop the vehicle. Idle the
vehicle with the air conditioner turned off until the
(Continued)
214 GETTING TO KNOW YOUR INSTRUMENT PANEL

WARNING!(Continued)
gauge drops back into the normal range and is no
longer red. If the gauge remains on the “H”, turn the
engine off immediately and call an authorized dealer
for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining And
Caring For Your Vehicle”.
DISPLAY
The vehicle can be equipped with a Electronic Vehicle
Information Center (EVIC), or a Driver Information Dis-
play (DID), which offers useful information to the driver.
With the ignition in the STOP/OFF position, opening/
closing of a door will activate the display for viewing,
and display the total miles or kilometers in the odometer.
Instrument Cluster Display Location and Controls
The 3.5” EVIC and 7” DID feature a driver-interactive
display that is located in the center of the instrument
cluster.
The EVIC/DID Main Menu items consists of the follow-
ing:
•Speedometer
• Vehicle Info
• Driver Assist — 7” DID
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 215

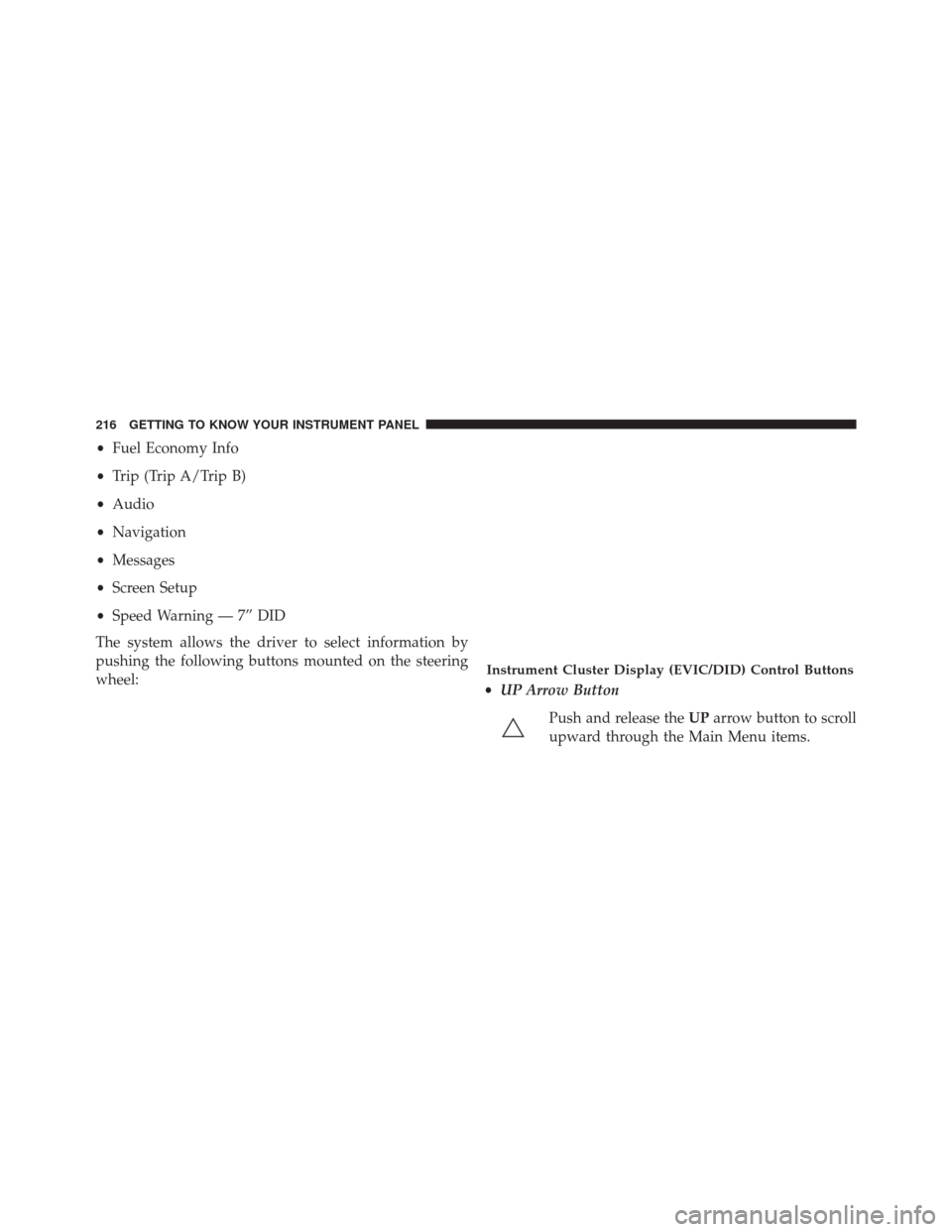

•Fuel Economy Info
• Trip (Trip A/Trip B)
• Audio
• Navigation
• Messages
• Screen Setup
• Speed Warning — 7” DID
The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel: •UP Arrow Button
Push and release the UParrow button to scroll
upward through the Main Menu items.
Instrument Cluster Display (EVIC/DID) Control Buttons
216 GETTING TO KNOW YOUR INSTRUMENT PANEL

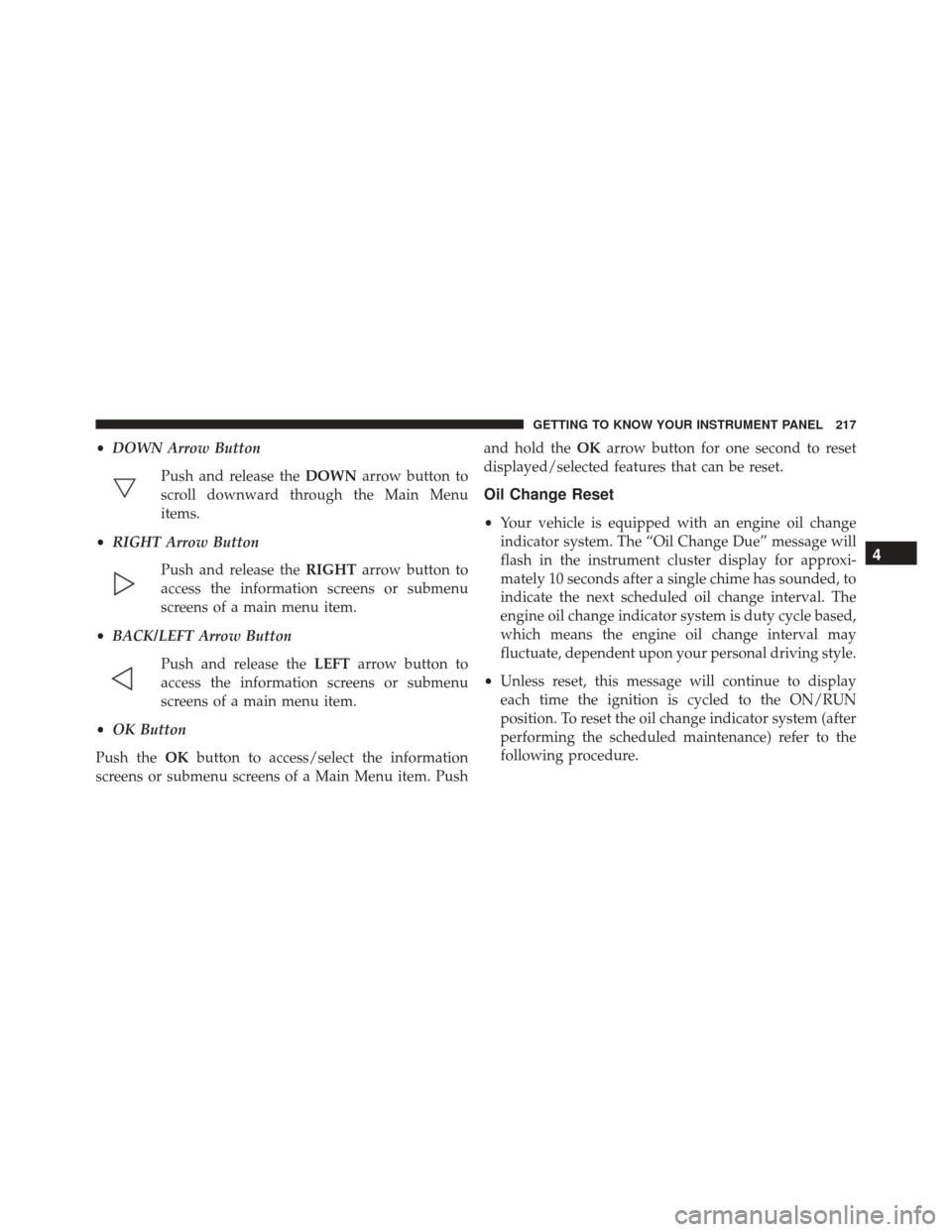

•DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the Main Menu
items.
• RIGHT Arrow Button
Push and release the RIGHTarrow button to
access the information screens or submenu
screens of a main menu item.
• BACK/LEFT Arrow Button
Push and release the LEFTarrow button to
access the information screens or submenu
screens of a main menu item.
• OK Button
Push the OKbutton to access/select the information
screens or submenu screens of a Main Menu item. Push and hold the
OKarrow button for one second to reset
displayed/selected features that can be reset.
Oil Change Reset
• Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Due” message will
flash in the instrument cluster display for approxi-
mately 10 seconds after a single chime has sounded, to
indicate the next scheduled oil change interval. The
engine oil change indicator system is duty cycle based,
which means the engine oil change interval may
fluctuate, dependent upon your personal driving style.
• Unless reset, this message will continue to display
each time the ignition is cycled to the ON/RUN
position. To reset the oil change indicator system (after
performing the scheduled maintenance) refer to the
following procedure.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 217

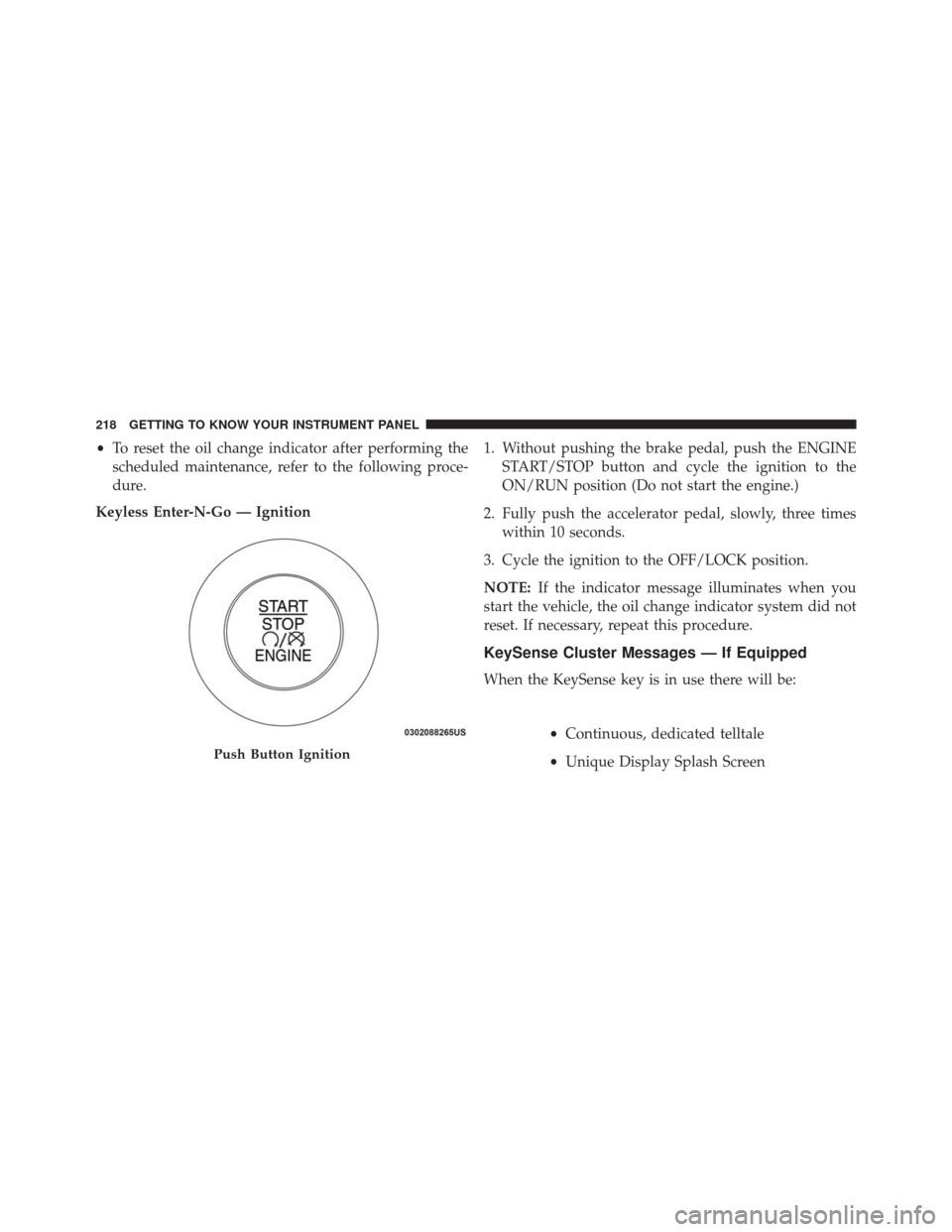

•To reset the oil change indicator after performing the
scheduled maintenance, refer to the following proce-
dure.
Keyless Enter-N-Go — Ignition 1. Without pushing the brake pedal, push the ENGINE
START/STOP button and cycle the ignition to the
ON/RUN position (Do not start the engine.)
2. Fully push the accelerator pedal, slowly, three times within 10 seconds.
3. Cycle the ignition to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
KeySense Cluster Messages — If Equipped
When the KeySense key is in use there will be:
•Continuous, dedicated telltale
• Unique Display Splash Screen
Push Button Ignition
218 GETTING TO KNOW YOUR INSTRUMENT PANEL
