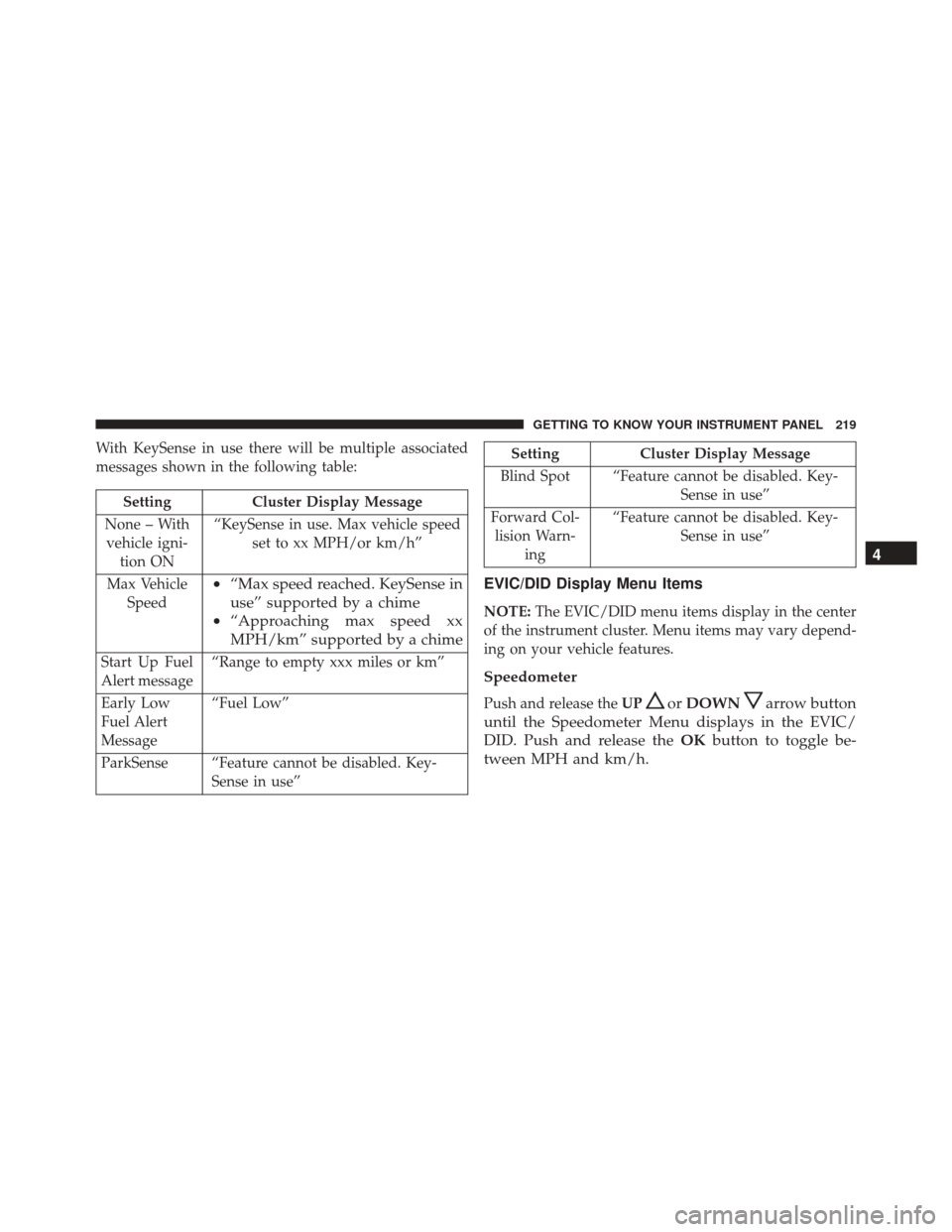

With KeySense in use there will be multiple associated
messages shown in the following table:
SettingCluster Display Message
None – With vehicle igni- tion ON “KeySense in use. Max vehicle speed
set to xx MPH/or km/h”
Max Vehicle Speed
•“Max speed reached. KeySense in
use” supported by a chime
• “Approaching max speed xx
MPH/km” supported by a chime
Start Up Fuel
Alert message “Range to empty xxx miles or km”
Early Low
Fuel Alert
Message “Fuel Low”
ParkSense “Feature cannot be disabled. Key- Sense in use”
Setting Cluster Display Message
Blind Spot “Feature cannot be disabled. Key- Sense in use”
Forward Col- lision Warn- ing “Feature cannot be disabled. Key-
Sense in use”
EVIC/DID Display Menu Items
NOTE:The EVIC/DID menu items display in the center
of the instrument cluster. Menu items may vary depend-
ing on your vehicle features.
Speedometer
Push and release the UPorDOWNarrow button
until the Speedometer Menu displays in the EVIC/
DID. Push and release the OKbutton to toggle be-
tween MPH and km/h. 4
GETTING TO KNOW YOUR INSTRUMENT PANEL 219

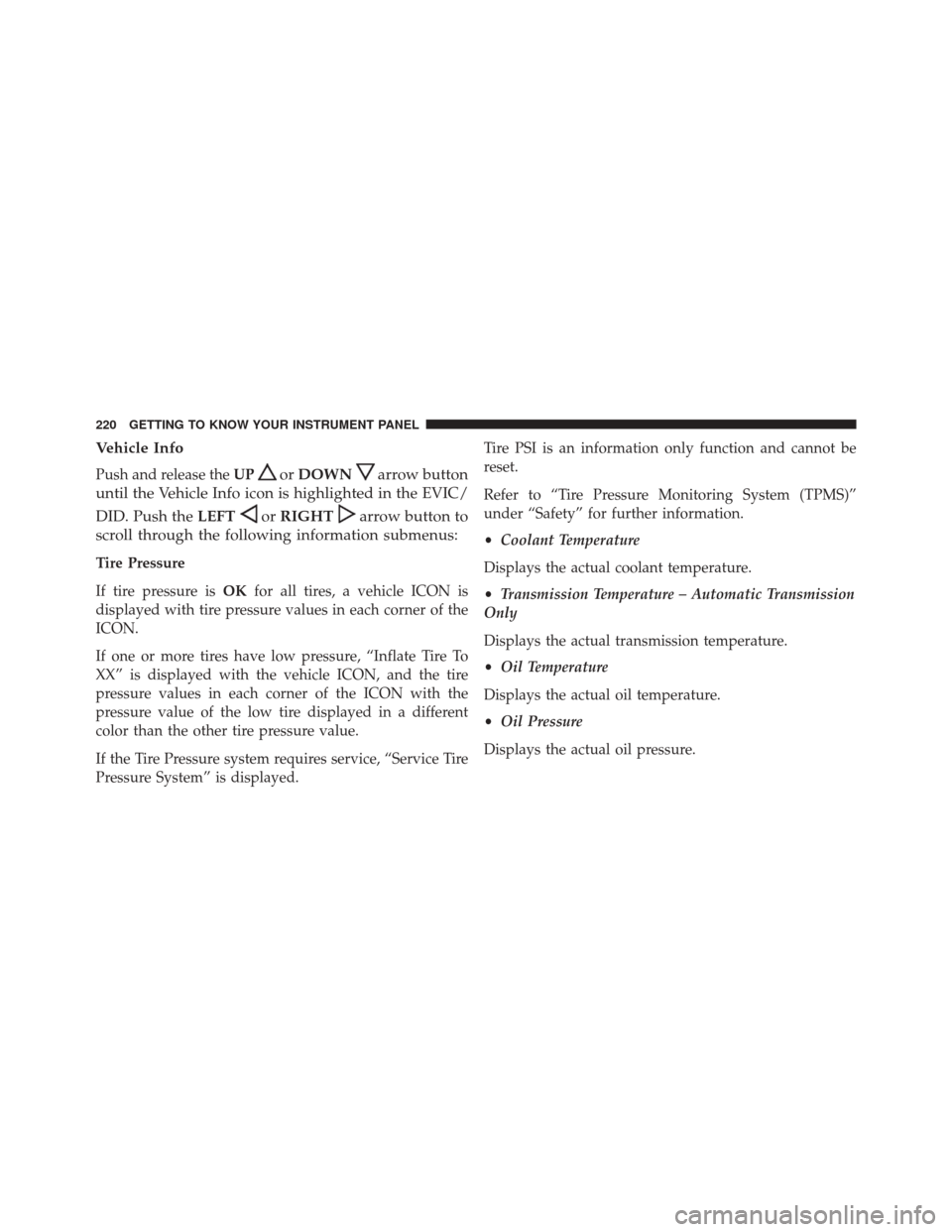

Vehicle Info
Push and release theUPorDOWNarrow button
until the Vehicle Info icon is highlighted in the EVIC/
DID. Push the LEFT
orRIGHTarrow button to
scroll through the following information submenus:
Tire Pressure
If tire pressure is OKfor all tires, a vehicle ICON is
displayed with tire pressure values in each corner of the
ICON.
If one or more tires have low pressure, “Inflate Tire To
XX” is displayed with the vehicle ICON, and the tire
pressure values in each corner of the ICON with the
pressure value of the low tire displayed in a different
color than the other tire pressure value.
If the Tire Pressure system requires service, “Service Tire
Pressure System” is displayed. Tire PSI is an information only function and cannot be
reset.
Refer to “Tire Pressure Monitoring System (TPMS)”
under “Safety” for further information.
•
Coolant Temperature
Displays the actual coolant temperature.
• Transmission Temperature – Automatic Transmission
Only
Displays the actual transmission temperature.
• Oil Temperature
Displays the actual oil temperature.
• Oil Pressure
Displays the actual oil pressure.
220 GETTING TO KNOW YOUR INSTRUMENT PANEL

Oil Life (Hold OK Button To Reset)
The “Hold OK to Reset” instruction will be displayed at
all times, but the following conditions will need to be met
in order to reset Oil Life:
The vehicle’s engine must be off
The ignition must be in the ON/RUN position
•If the conditions are met, holding the OK button will
reset the gauge and the numeric display will return to
100%.
• If the conditions are not met, a popup message will
display for 5 seconds, describing the required condi-
tions, and then the Oil Life screen will reappear.
• Battery Voltage
Displays the actual battery voltage.Driver Assist (7” DID)
Push and release the UPorDOWNarrow button
until the Driver Assist display icon is highlighted in
the DID cluster display. Refer to “Adaptive Cruise
Control (ACC) — If Equipped” in “Starting And
Operating” for further information.
Fuel Economy
Push and release the UPorDOWNarrow button
until the Fuel Economy Menu item is highlighted in
the EVIC/DID. The Fuel Economy Menu will display
the following:
• Two sub menu pages that can be toggled between
using the LEFT
andRIGHTarrow buttons;
one with Current value displayed and one without
the Current Value displayed (for DID only):
– Average Fuel Economy (MPG, L/100 km, or km/l)
– Range To Empty (miles or km)
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 221

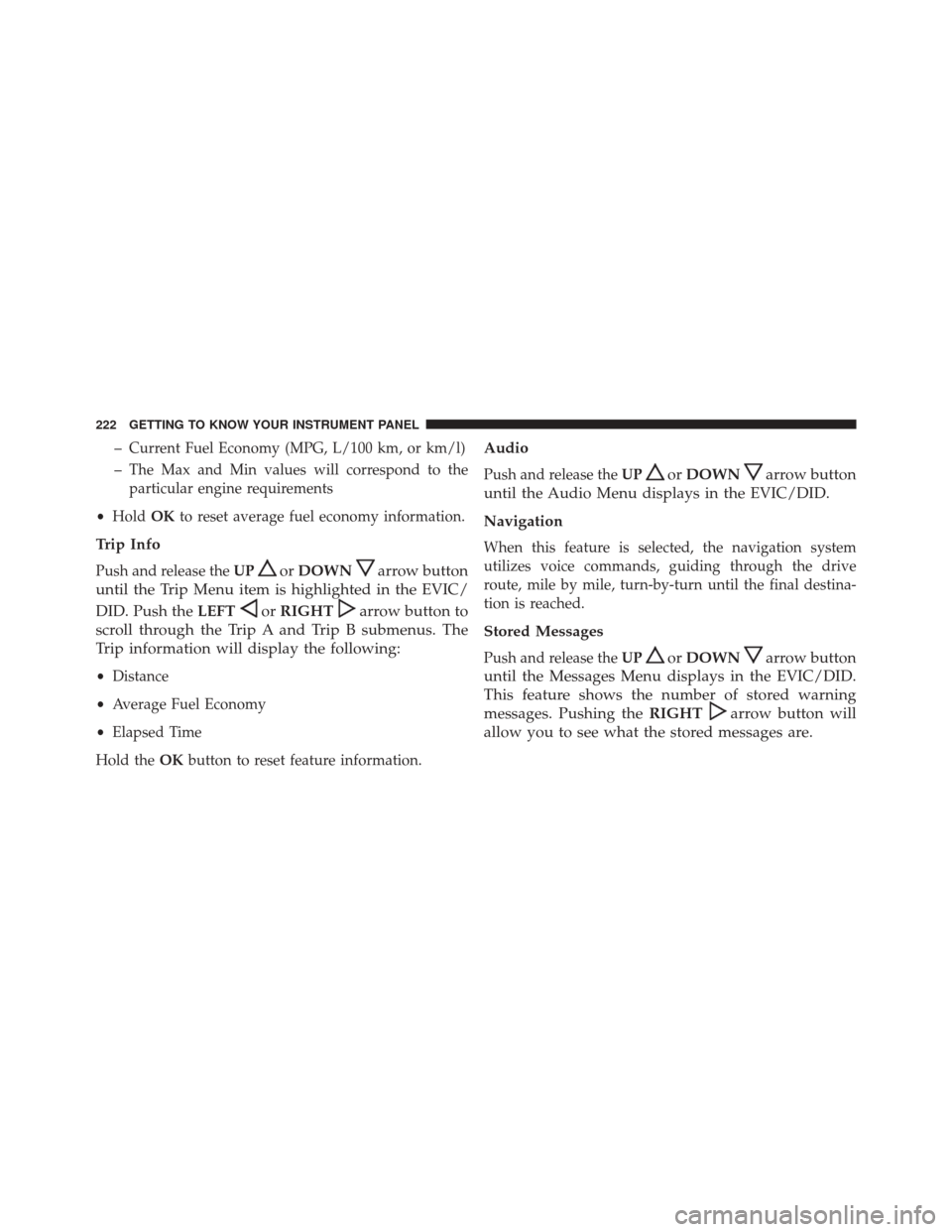

– Current Fuel Economy (MPG, L/100 km, or km/l)
– The Max and Min values will correspond to theparticular engine requirements
• Hold OKto reset average fuel economy information.
Trip Info
Push and release the UPorDOWNarrow button
until the Trip Menu item is highlighted in the EVIC/
DID. Push the LEFT
orRIGHTarrow button to
scroll through the Trip A and Trip B submenus. The
Trip information will display the following:
• Distance
• Average Fuel Economy
• Elapsed Time
Hold the OKbutton to reset feature information.
Audio
Push and release the UPorDOWNarrow button
until the Audio Menu displays in the EVIC/DID.
Navigation
When this feature is selected, the navigation system
utilizes voice commands, guiding through the drive
route, mile by mile, turn-by-turn until the final destina-
tion is reached.
Stored Messages
Push and release the UPorDOWNarrow button
until the Messages Menu displays in the EVIC/DID.
This feature shows the number of stored warning
messages. Pushing the RIGHT
arrow button will
allow you to see what the stored messages are.
222 GETTING TO KNOW YOUR INSTRUMENT PANEL

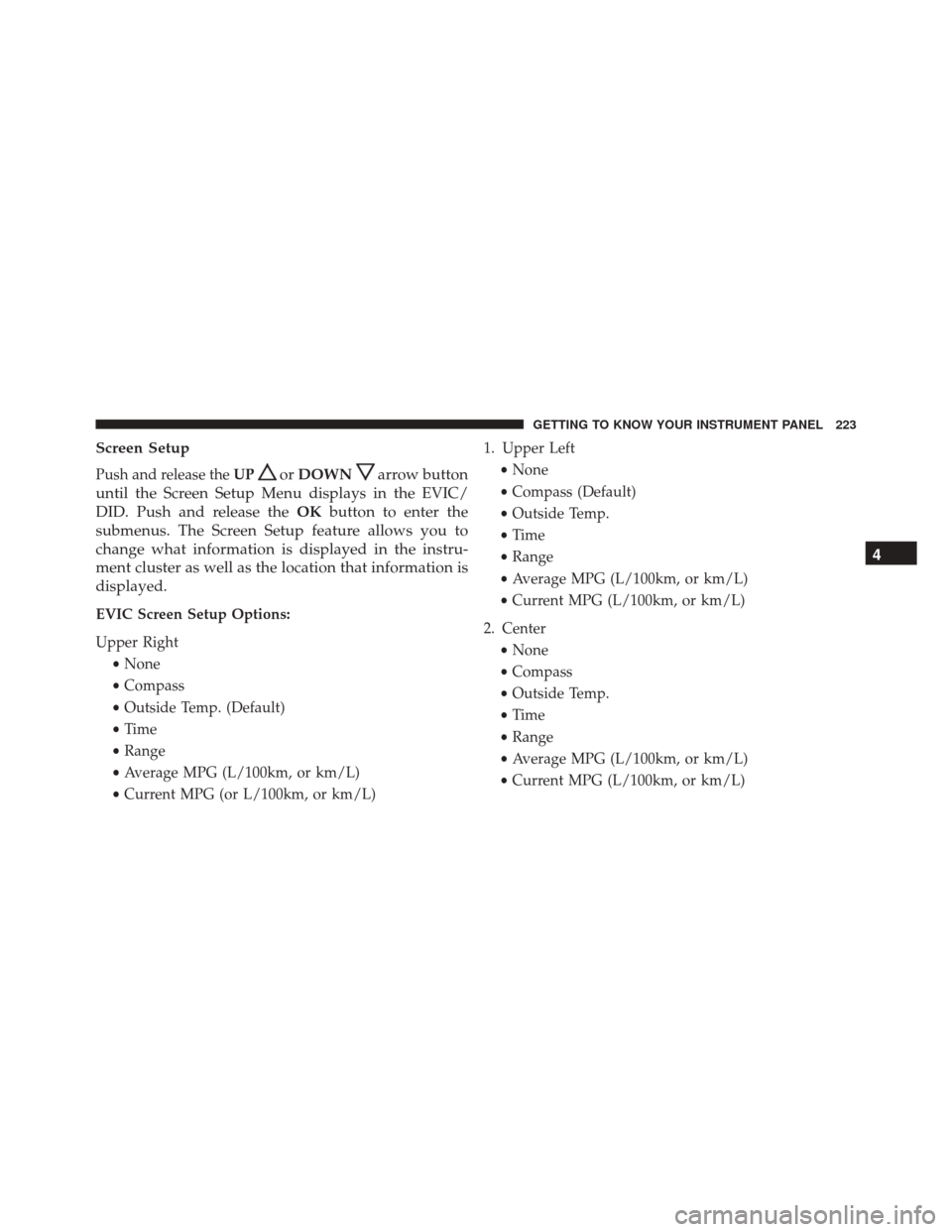

Screen Setup
Push and release theUPorDOWNarrow button
until the Screen Setup Menu displays in the EVIC/
DID. Push and release the OKbutton to enter the
submenus. The Screen Setup feature allows you to
change what information is displayed in the instru-
ment cluster as well as the location that information is
displayed.
EVIC Screen Setup Options:
Upper Right
•None
• Compass
• Outside Temp. (Default)
• Time
• Range
• Average MPG (L/100km, or km/L)
• Current MPG (or L/100km, or km/L) 1. Upper Left
•None
• Compass (Default)
• Outside Temp.
• Time
• Range
• Average MPG (L/100km, or km/L)
• Current MPG (L/100km, or km/L)
2. Center •None
• Compass
• Outside Temp.
• Time
• Range
• Average MPG (L/100km, or km/L)
• Current MPG (L/100km, or km/L)
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 223

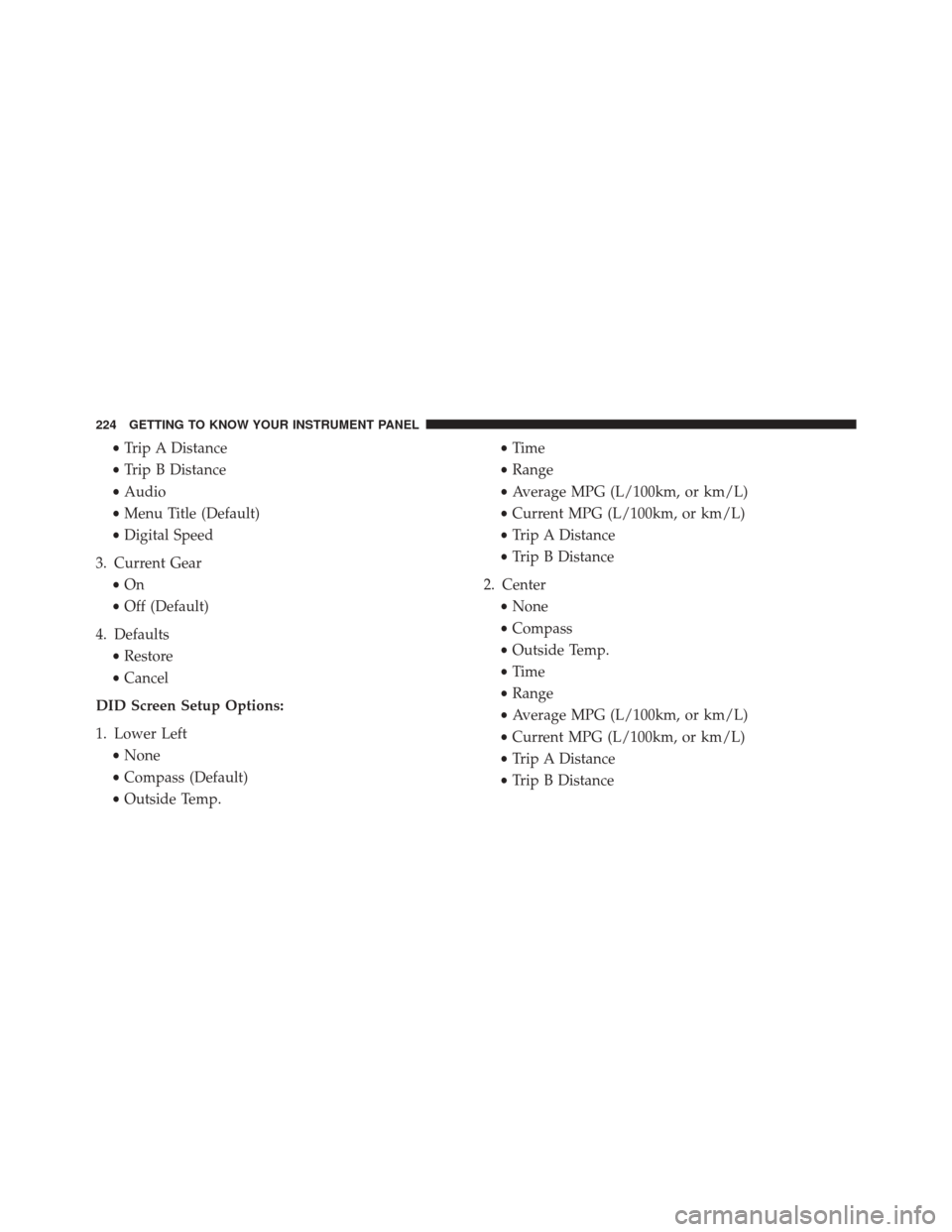

•Trip A Distance
• Trip B Distance
• Audio
• Menu Title (Default)
• Digital Speed
3. Current Gear •On
• Off (Default)
4. Defaults •Restore
• Cancel
DID Screen Setup Options:
1. Lower Left •None
• Compass (Default)
• Outside Temp. •
Time
• Range
• Average MPG (L/100km, or km/L)
• Current MPG (L/100km, or km/L)
• Trip A Distance
• Trip B Distance
2. Center •None
• Compass
• Outside Temp.
• Time
• Range
• Average MPG (L/100km, or km/L)
• Current MPG (L/100km, or km/L)
• Trip A Distance
• Trip B Distance
224 GETTING TO KNOW YOUR INSTRUMENT PANEL

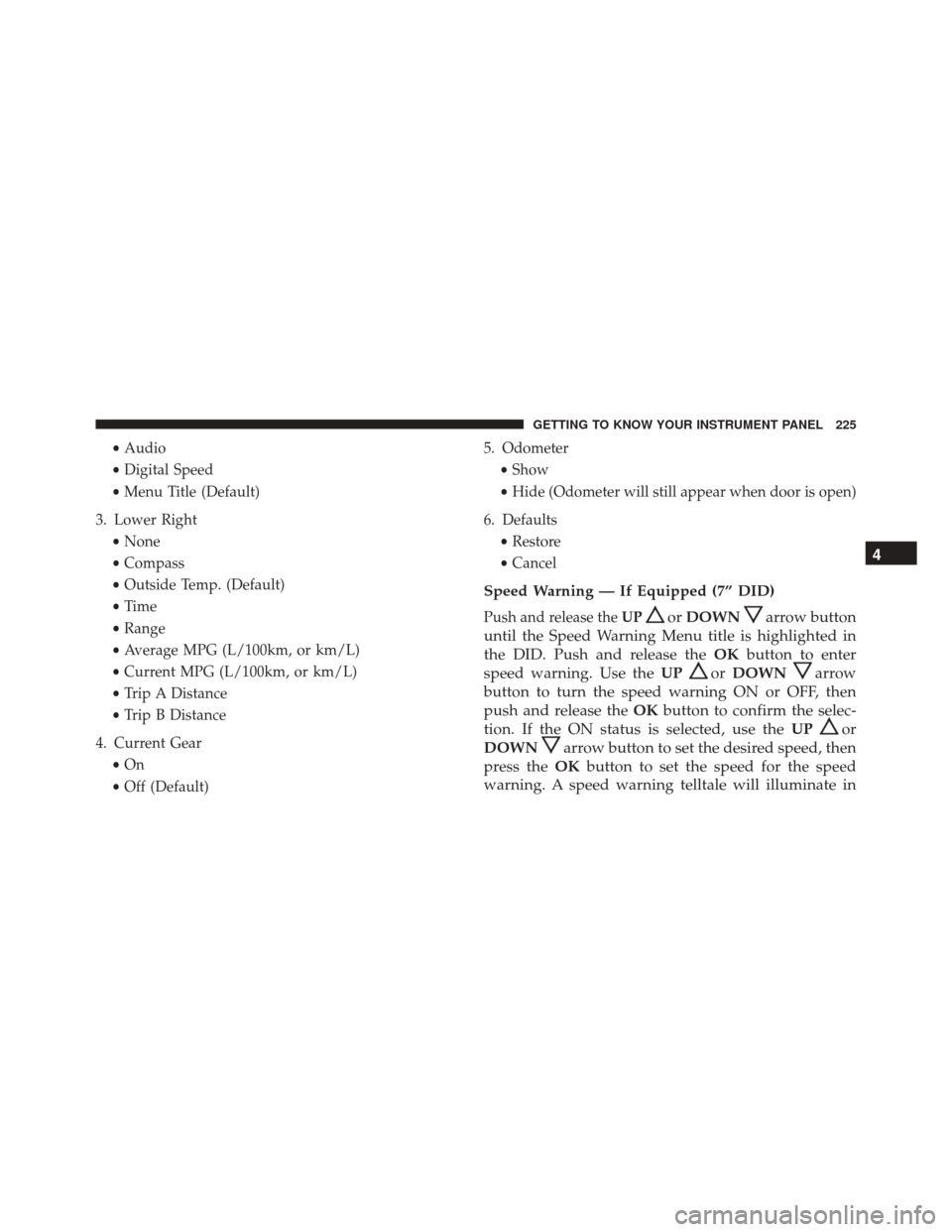

•Audio
• Digital Speed
• Menu Title (Default)
3. Lower Right •None
• Compass
• Outside Temp. (Default)
• Time
• Range
• Average MPG (L/100km, or km/L)
• Current MPG (L/100km, or km/L)
• Trip A Distance
• Trip B Distance
4. Current Gear •On
• Off (Default) 5. Odometer
•Show
• Hide (Odometer will still appear when door is open)
6. Defaults •Restore
• Cancel
Speed Warning — If Equipped (7” DID)
Push and release the UPorDOWNarrow button
until the Speed Warning Menu title is highlighted in
the DID. Push and release the OKbutton to enter
speed warning. Use the UP
orDOWNarrow
button to turn the speed warning ON or OFF, then
push and release the OKbutton to confirm the selec-
tion. If the ON status is selected, use the UP
or
DOWN
arrow button to set the desired speed, then
press the OKbutton to set the speed for the speed
warning. A speed warning telltale will illuminate in 4
GETTING TO KNOW YOUR INSTRUMENT PANEL 225

the instrument cluster, with a number matching the set
speed, with a pop up message to inform the driver
that the speed warning has been set to the desired
speed. Each time the set speed is exceeded, an audible
chime will sound for up to 10 seconds, or until the
speed is no longer exceeded. The telltale in the instru-
ment cluster will also change from white to yellow,
and a pop up warning message will pop up on the 7”
DID screen.
NOTE:Speed Warning is unavailable while KeySense is
in use.
Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions — If Equipped
This vehicle is equipped with an Intelligent Battery
Sensor (IBS) to perform additional monitoring of the
electrical system and status of the vehicle battery.
In cases when the IBS detects charging system failure, or
the vehicle battery conditions are deteriorating, electrical load reduction actions will take place to extend the
driving time and distance of the vehicle. This is done by
reducing power to or turning off non-essential electrical
loads.
Load reduction is only active when the engine is running.
It will display a message if there is a risk of battery
depletion to the point where the vehicle may stall due to
lack of electrical supply, or will not restart after the
current drive cycle.
When load reduction is activated, the message “Battery
Saver On” or “Battery Saver Mode” will appear in the
Electronic Vehicle Information Center (EVIC) or Driver
Information Display (DID).
These messages indicate the vehicle battery has a low
state of charge and continues to lose electrical charge at a
rate that the charging system cannot sustain.
226 GETTING TO KNOW YOUR INSTRUMENT PANEL

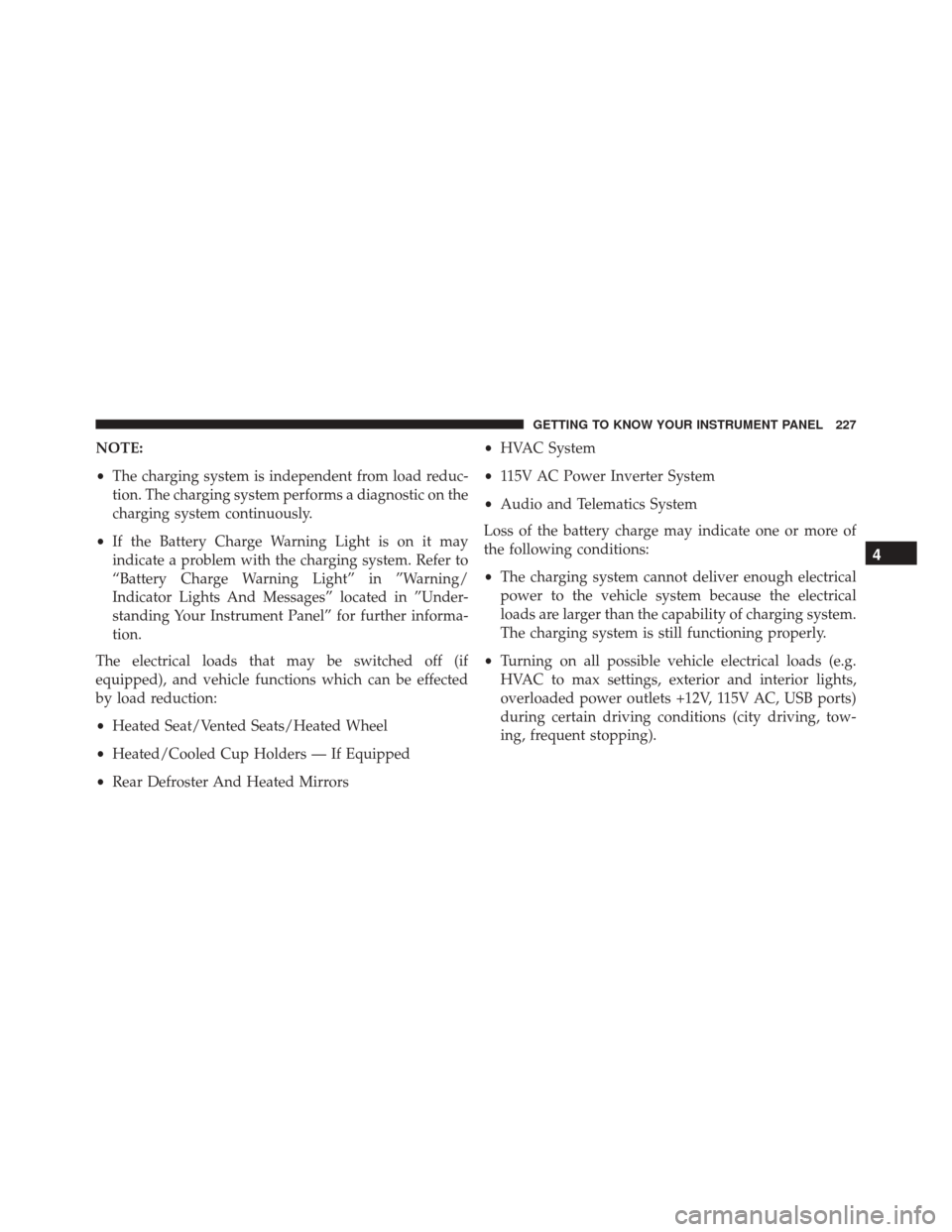

NOTE:
•The charging system is independent from load reduc-
tion. The charging system performs a diagnostic on the
charging system continuously.
• If the Battery Charge Warning Light is on it may
indicate a problem with the charging system. Refer to
“Battery Charge Warning Light” in ”Warning/
Indicator Lights And Messages” located in ”Under-
standing Your Instrument Panel” for further informa-
tion.
The electrical loads that may be switched off (if
equipped), and vehicle functions which can be effected
by load reduction:
• Heated Seat/Vented Seats/Heated Wheel
• Heated/Cooled Cup Holders — If Equipped
• Rear Defroster And Heated Mirrors •
HVAC System
• 115V AC Power Inverter System
• Audio and Telematics System
Loss of the battery charge may indicate one or more of
the following conditions:
• The charging system cannot deliver enough electrical
power to the vehicle system because the electrical
loads are larger than the capability of charging system.
The charging system is still functioning properly.
• Turning on all possible vehicle electrical loads (e.g.
HVAC to max settings, exterior and interior lights,
overloaded power outlets +12V, 115V AC, USB ports)
during certain driving conditions (city driving, tow-
ing, frequent stopping).
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 227

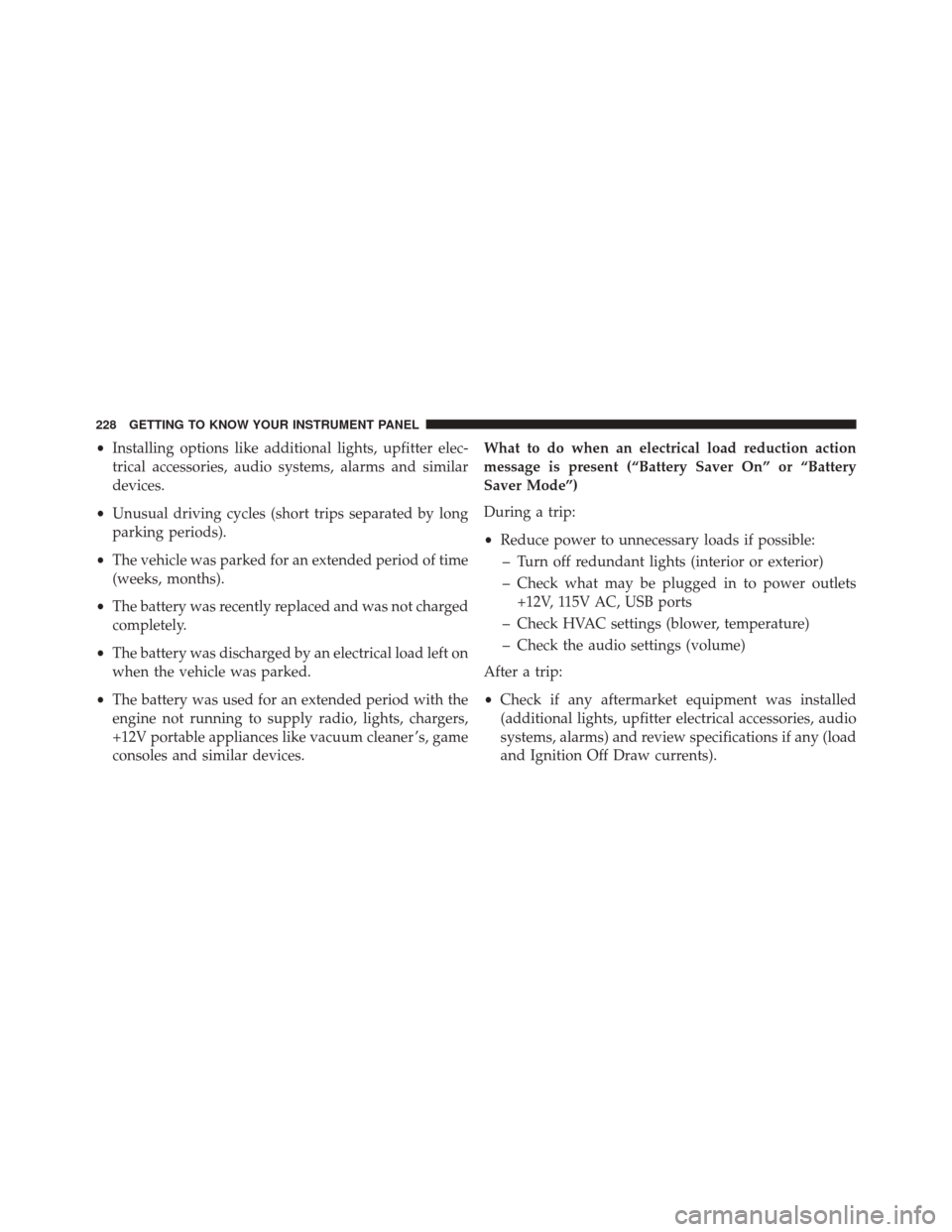

•Installing options like additional lights, upfitter elec-
trical accessories, audio systems, alarms and similar
devices.
• Unusual driving cycles (short trips separated by long
parking periods).
• The vehicle was parked for an extended period of time
(weeks, months).
• The battery was recently replaced and was not charged
completely.
• The battery was discharged by an electrical load left on
when the vehicle was parked.
• The battery was used for an extended period with the
engine not running to supply radio, lights, chargers,
+12V portable appliances like vacuum cleaner ’s, game
consoles and similar devices. What to do when an electrical load reduction action
message is present (“Battery Saver On” or “Battery
Saver Mode”)
During a trip:
•
Reduce power to unnecessary loads if possible:
– Turn off redundant lights (interior or exterior)
– Check what may be plugged in to power outlets +12V, 115V AC, USB ports
– Check HVAC settings (blower, temperature)
– Check the audio settings (volume)
After a trip:
• Check if any aftermarket equipment was installed
(additional lights, upfitter electrical accessories, audio
systems, alarms) and review specifications if any (load
and Ignition Off Draw currents).
228 GETTING TO KNOW YOUR INSTRUMENT PANEL
