Press this button and use the “Listen In” feature to listen
to audio through cabin speakers.
Accessing The System From The Uconnect
Theater Rear Screens
You can also access your Uconnect Theater system from
the rear screens from the steps below:
1. Lift screen upward, the system will automaticallypower on.
NOTE: A message asking if you would like to pair a
remote will pop up if one has not already been paired to
the system.
2. If “YES” is selected to Pair a Remote, Pairing will immediately start.
3. If “NO” is selected, the Uconnect Theater home screen will pop up.
Listen In
10
MULTIMEDIA 749

NOTE:
•There will be a touchscreen notification message when
pairing is successful. Repeat the above steps to pair the
second remote.
• If remote is ever non-operational, try pairing remote.
When watching a video source, pushing “Settings”
icon on the touchscreen activates the Settings
menu. These settings control the appearance of the
video on the screen. The factory default settings are
already set for optimum viewing, so there is no need
to change these settings under normal circumstances.
To change the settings, use one of the touchscreens. To
reset all values back to the original settings, select the
“Reset to Defaults” then select “YES.”
Pairing The Remote
If the remote needs to be paired to your Uconnect Theater
system, follow the procedure below:
1. Press the “Settings”
icon on the touchscreen.
Remote Pairing
750 MULTIMEDIA

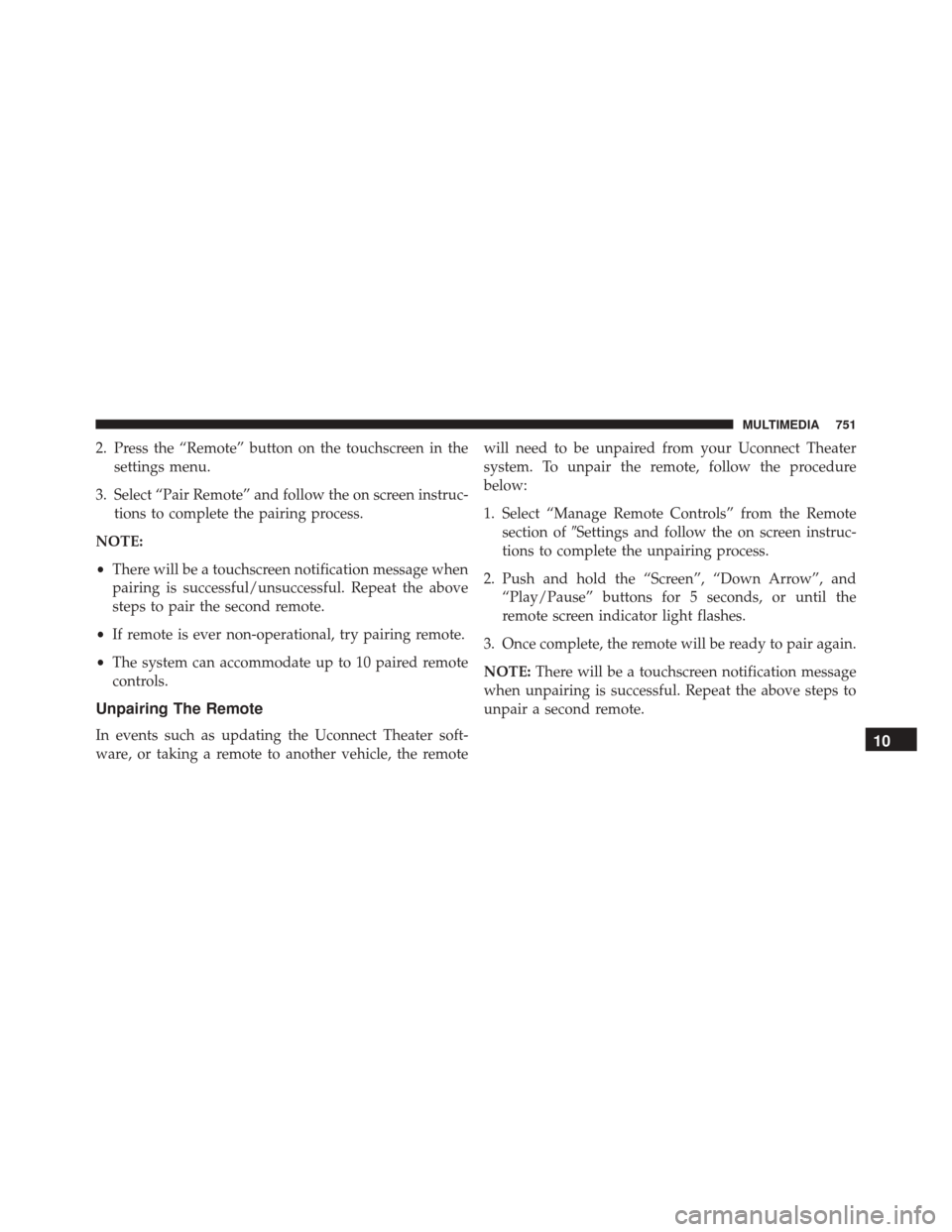

2. Press the “Remote” button on the touchscreen in thesettings menu.
3. Select “Pair Remote” and follow the on screen instruc- tions to complete the pairing process.
NOTE:
• There will be a touchscreen notification message when
pairing is successful/unsuccessful. Repeat the above
steps to pair the second remote.
• If remote is ever non-operational, try pairing remote.
• The system can accommodate up to 10 paired remote
controls.
Unpairing The Remote
In events such as updating the Uconnect Theater soft-
ware, or taking a remote to another vehicle, the remote will need to be unpaired from your Uconnect Theater
system. To unpair the remote, follow the procedure
below:
1. Select “Manage Remote Controls” from the Remote
section of Settings and follow the on screen instruc-
tions to complete the unpairing process.
2. Push and hold the “Screen”, “Down Arrow”, and “Play/Pause” buttons for 5 seconds, or until the
remote screen indicator light flashes.
3. Once complete, the remote will be ready to pair again.
NOTE: There will be a touchscreen notification message
when unpairing is successful. Repeat the above steps to
unpair a second remote.10
MULTIMEDIA 751

Media SourcesUsers can select content for each screen from the radio by
choosing desired content from drop down menu.
NOTE:Use the “View Screen” function to pull content
from one screen to the other in a single press of a button.
Doing this however will disable and gray out certain
player controls on the screen viewing the other screen’s
content.
Media Sources
1 – Available Sources Screen 1
2 – USB Source Playing Screen 2 752 MULTIMEDIA

Uconnect Theater Remote Control
1.Gesture Pad — Control mouse pointer position in this
area to move and select items on the touchscreen,
functions similar to a mouse. 2.
Mute Button — Mutes headphone audio.
3. Home Button — Push to access “Sources”.
4. Arrow Buttons — Push the arrow
but-
tons to highlight an item or scroll through menus.
5. Fast Forward Button— Push and hold to fast
forward through the current audio track or video
chapter. Push once to skip to the next track.
6. Play/Pause Button— Begin/resume or pause
disc play.
7. Fast Rewind Button— Push and hold to fast
rewind through the current audio track or video
chapter. Push once to revert back to the previous
track.
8. OK Button — Push to select the highlighted option in
a menu.
Remote Control
10
MULTIMEDIA 753

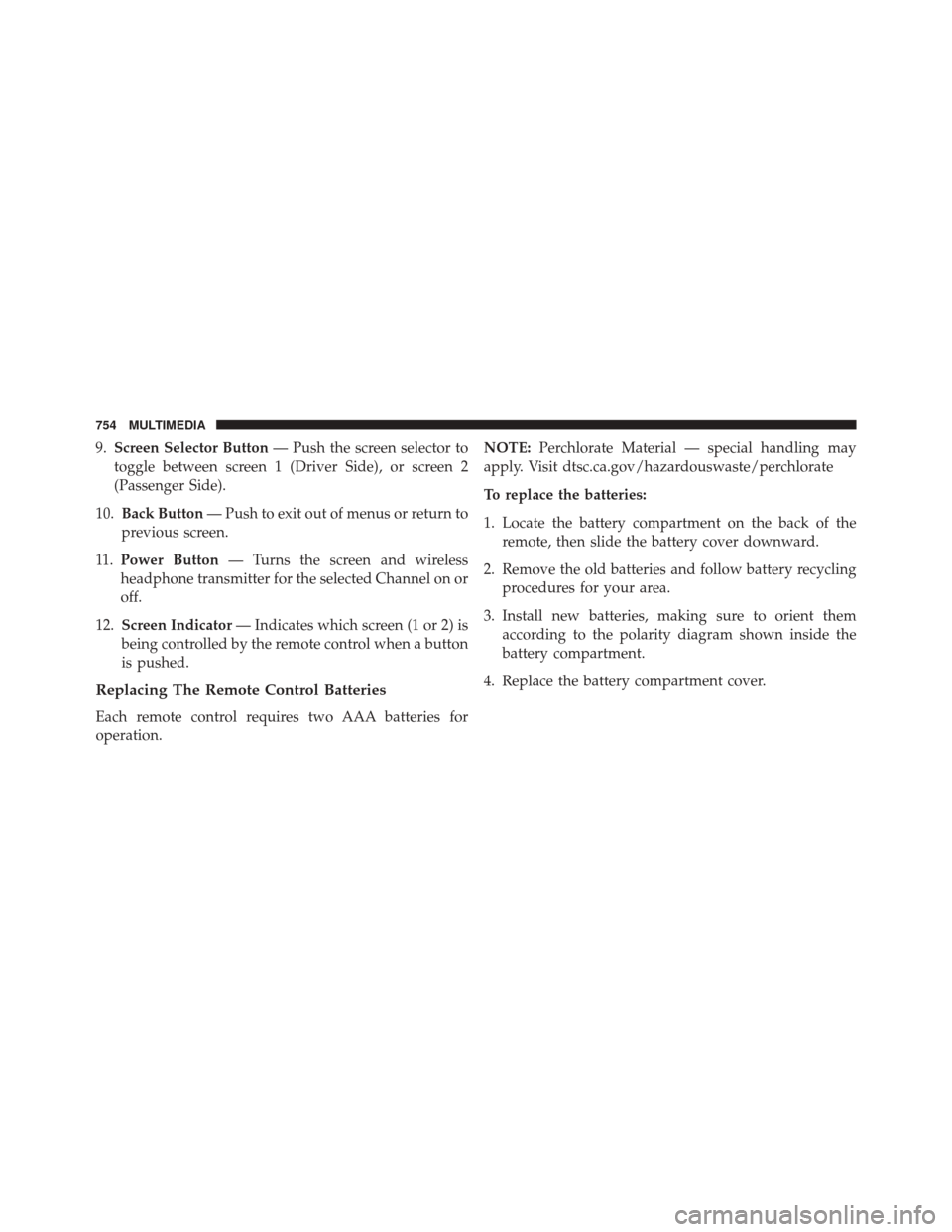

9.Screen Selector Button — Push the screen selector to
toggle between screen 1 (Driver Side), or screen 2
(Passenger Side).
10. Back Button — Push to exit out of menus or return to
previous screen.
11 . Power Button — Turns the screen and wireless
headphone transmitter for the selected Channel on or
off.
12. Screen Indicator — Indicates which screen (1 or 2) is
being controlled by the remote control when a button
is pushed.
Replacing The Remote Control Batteries
Each remote control requires two AAA batteries for
operation. NOTE:
Perchlorate Material — special handling may
apply. Visit dtsc.ca.gov/hazardouswaste/perchlorate
To replace the batteries:
1. Locate the battery compartment on the back of the remote, then slide the battery cover downward.
2. Remove the old batteries and follow battery recycling procedures for your area.
3. Install new batteries, making sure to orient them according to the polarity diagram shown inside the
battery compartment.
4. Replace the battery compartment cover.
754 MULTIMEDIA

Uconnect Theater Home Screen And Controls
You can choose sources such as HDMI, USB, Apps, or
Blu-ray. You may also view content of the opposite screen
in one step by choosing the “View Screen” source card.
Uconnect Theater Home Screen
1 — Search Button (Media
Search)
2 — Power Button
3 — Settings Button
4 — Toggle Button List and
Icon View5 — Source Card Page Indica-
tor1or2
6 — Wired Headphone Volume
7 — Climate Control Button
8 — Home Button
9 — Source Cards
Source Card Selection
10
MULTIMEDIA 755

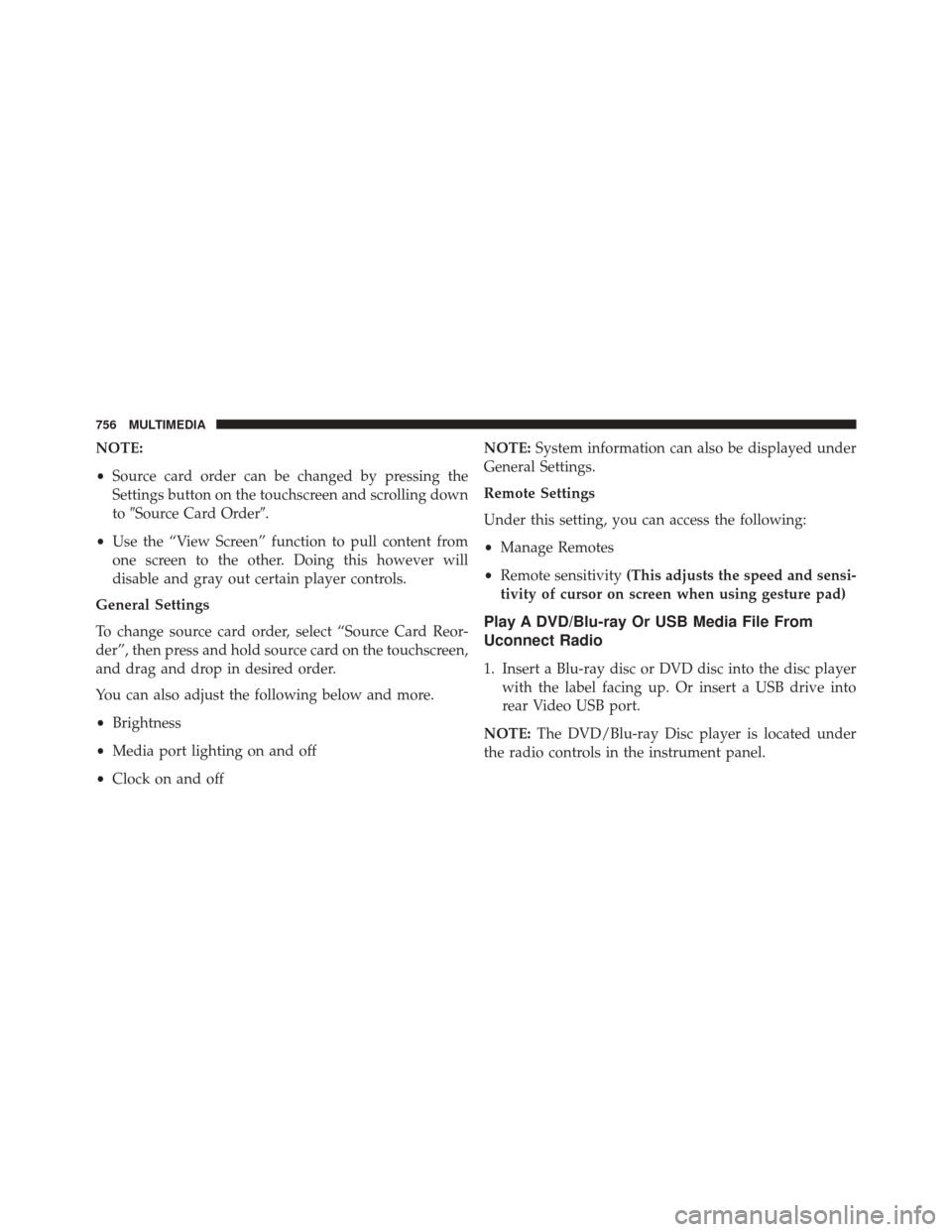

NOTE:
•Source card order can be changed by pressing the
Settings button on the touchscreen and scrolling down
to Source Card Order.
• Use the “View Screen” function to pull content from
one screen to the other. Doing this however will
disable and gray out certain player controls.
General Settings
To change source card order, select “Source Card Reor-
der”, then press and hold source card on the touchscreen,
and drag and drop in desired order.
You can also adjust the following below and more.
• Brightness
• Media port lighting on and off
• Clock on and off NOTE:
System information can also be displayed under
General Settings.
Remote Settings
Under this setting, you can access the following:
• Manage Remotes
• Remote sensitivity (This adjusts the speed and sensi-
tivity of cursor on screen when using gesture pad)
Play A DVD/Blu-ray Or USB Media File From
Uconnect Radio
1. Insert a Blu-ray disc or DVD disc into the disc player with the label facing up. Or insert a USB drive into
rear Video USB port.
NOTE: The DVD/Blu-ray Disc player is located under
the radio controls in the instrument panel.
756 MULTIMEDIA

2. Press the “Uconnect Theater” button on the touch-screen. Refer to “Accessing The System From The
Uconnect Radio” in this section for further informa-
tion.
3. Select Disc or USB from the source controls on the desired screen (1 or 2).
NOTE: To play a DVD/Blu-ray disc on both screens
simultaneously, select disc from both screen drop downs.
4. Press “Play” button on the touchscreen.
DVD Blu-ray Disc Player
1 — Disc Player (Rear)
2 — Rear Video USB Port
10
MULTIMEDIA 757

Using The Touchscreen Radio
NOTE:Control functions apply to individual screen
selected displayed on touchscreen.
Source Controls — Uconnect Radio
Media Control Screen
