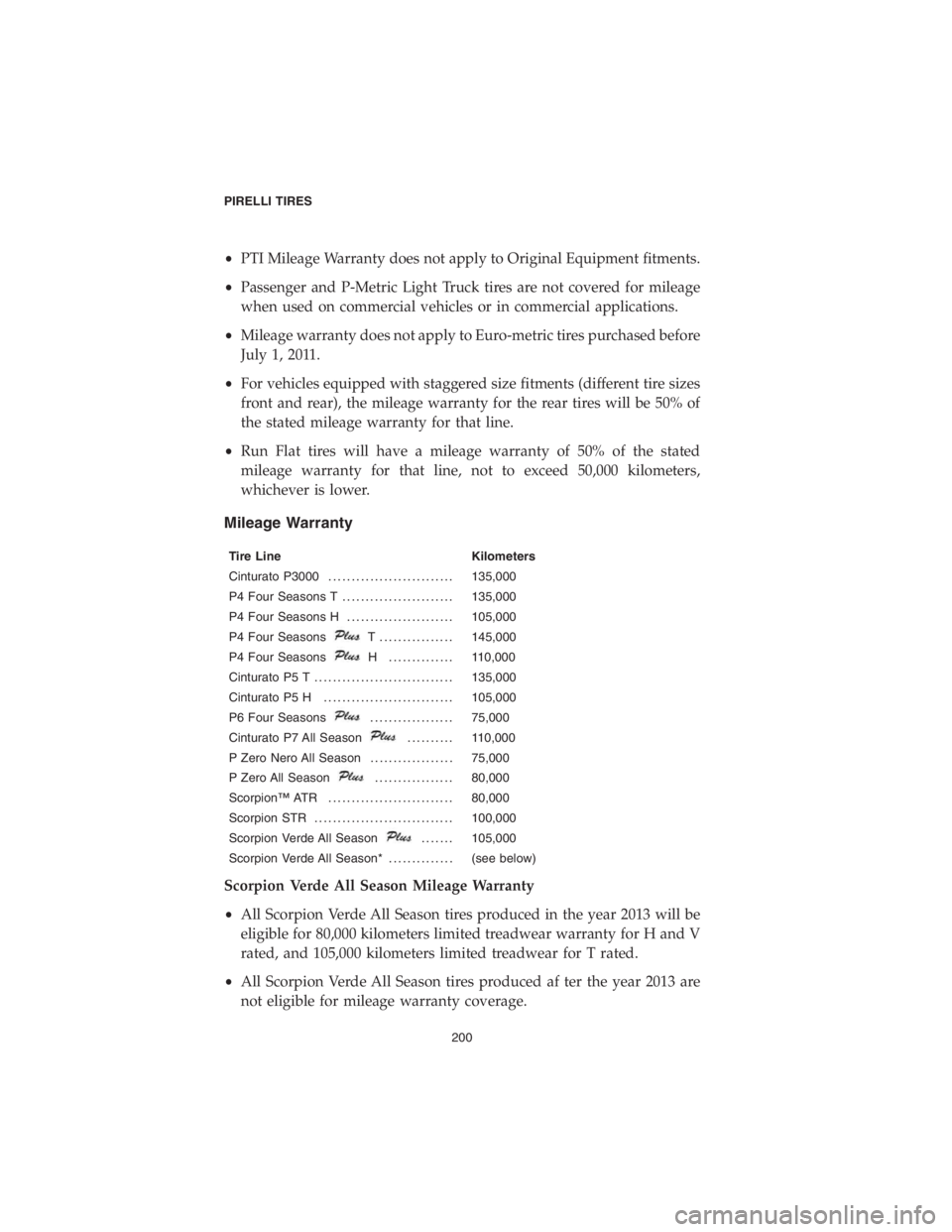

CHRYSLER PACIFICA 2018 Vehicle Warranty

•PTI Mileage Warranty does not apply to Original Equipment fitments.
•Passenger and P-Metric Light Truck tires are not covered for mileage
when used on commercial vehicles or in commercial applications.
•Mileage warranty does not apply to Euro-metric tires purchased before
July 1, 2011.
•For vehicles equipped with staggered size fitments (different tire sizes
front and rear), the mileage warranty for the rear tires will be 50% of
the stated mileage warranty for that line.
•Run Flat tires will have a mileage warranty of 50% of the stated
mileage warranty for that line, not to exceed 50,000 kilometers,
whichever is lower.
Mileage Warranty
Tire Line Kilometers
Cinturato P3000........................... 135,000
P4 Four Seasons T........................ 135,000
P4 Four Seasons H....................... 105,000
P4 Four Seasons
T ................ 145,000
P4 Four Seasons
H .............. 110,000
Cinturato P5 T .............................. 135,000
Cinturato P5 H ............................ 105,000
P6 Four Seasons
.................. 75,000
Cinturato P7 All Season
.......... 110,000
P Zero Nero All Season.................. 75,000
P Zero All Season
................. 80,000
Scorpion™ ATR ........................... 80,000
Scorpion STR .............................. 100,000
Scorpion Verde All Season
....... 105,000
Scorpion Verde All Season*.............. (see below)
Scorpion Verde All Season Mileage Warranty
•All Scorpion Verde All Season tires produced in the year 2013 will be
eligible for 80,000 kilometers limited treadwear warranty for H and V
rated, and 105,000 kilometers limited treadwear for T rated.
•All Scorpion Verde All Season tires produced af ter the year 2013 are
not eligible for mileage warranty coverage.
PIRELLI TIRES
200

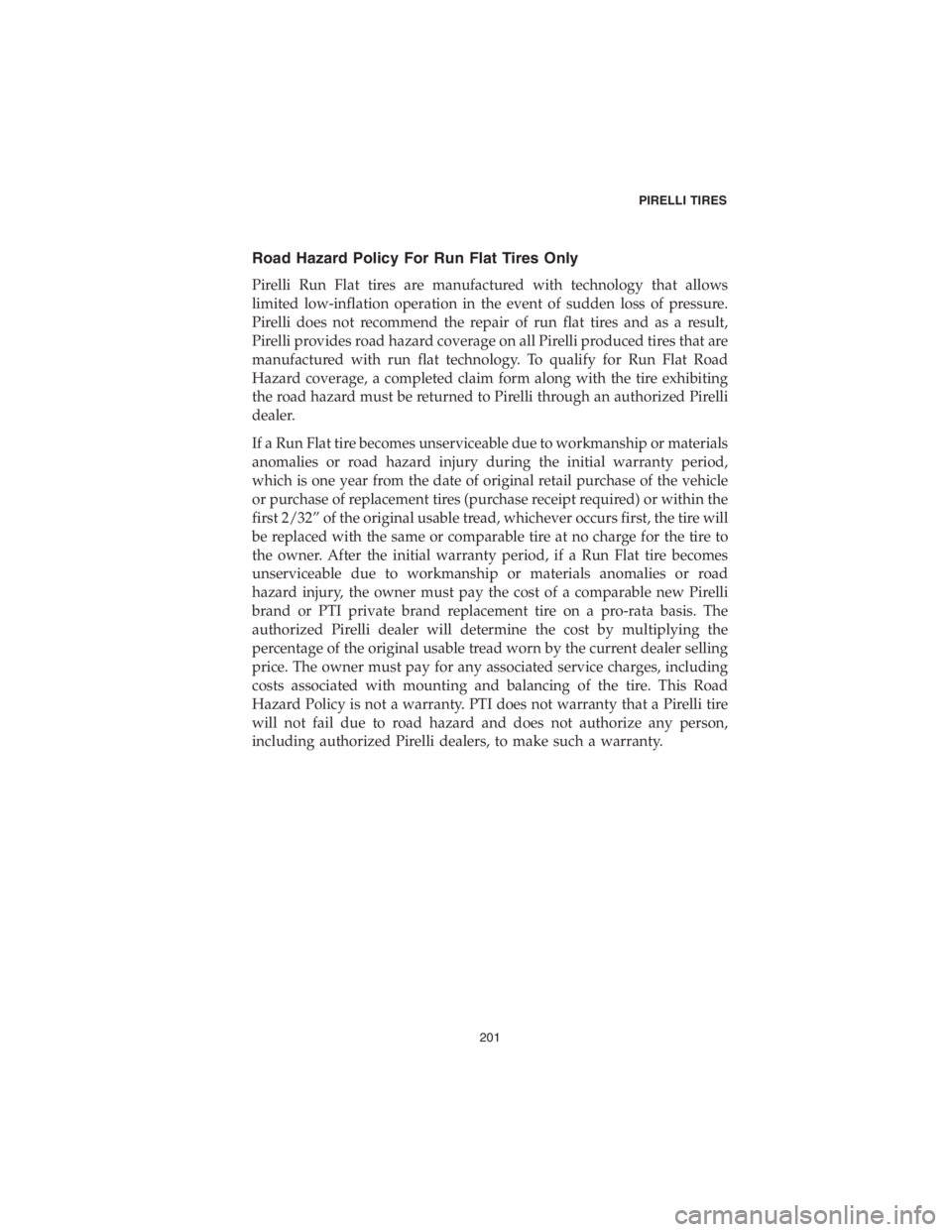

Road Hazard Policy For Run Flat Tires Only
Pirelli Run Flat tires are manufactured with technology that allows
limited low-inflation operation in the event of sudden loss of pressure.
Pirelli does not recommend the repair of run flat tires and as a result,
Pirelli provides road hazard coverage on all Pirelli produced tires that are
manufactured with run flat technology. To qualify for Run Flat Road
Hazard coverage, a completed claim form along with the tire exhibiting
the road hazard must be returned to Pirelli through an authorized Pirelli
dealer.
If a Run Flat tire becomes unserviceable due to workmanship or materials
anomalies or road hazard injury during the initial warranty period,
which is one year from the date of original retail purchase of the vehicle
or purchase of replacement tires (purchase receipt required) or within the
first 2/32” of the original usable tread, whichever occurs first, the tire will
be replaced with the same or comparable tire at no charge for the tire to
the owner. After the initial warranty period, if a Run Flat tire becomes
unserviceable due to workmanship or materials anomalies or road
hazard injury, the owner must pay the cost of a comparable new Pirelli
brand or PTI private brand replacement tire on a pro-rata basis. The
authorized Pirelli dealer will determine the cost by multiplying the
percentage of the original usable tread worn by the current dealer selling
price. The owner must pay for any associated service charges, including
costs associated with mounting and balancing of the tire. This Road
Hazard Policy is not a warranty. PTI does not warranty that a Pirelli tire
will not fail due to road hazard and does not authorize any person,
including authorized Pirelli dealers, to make such a warranty.
PIRELLI TIRES
201

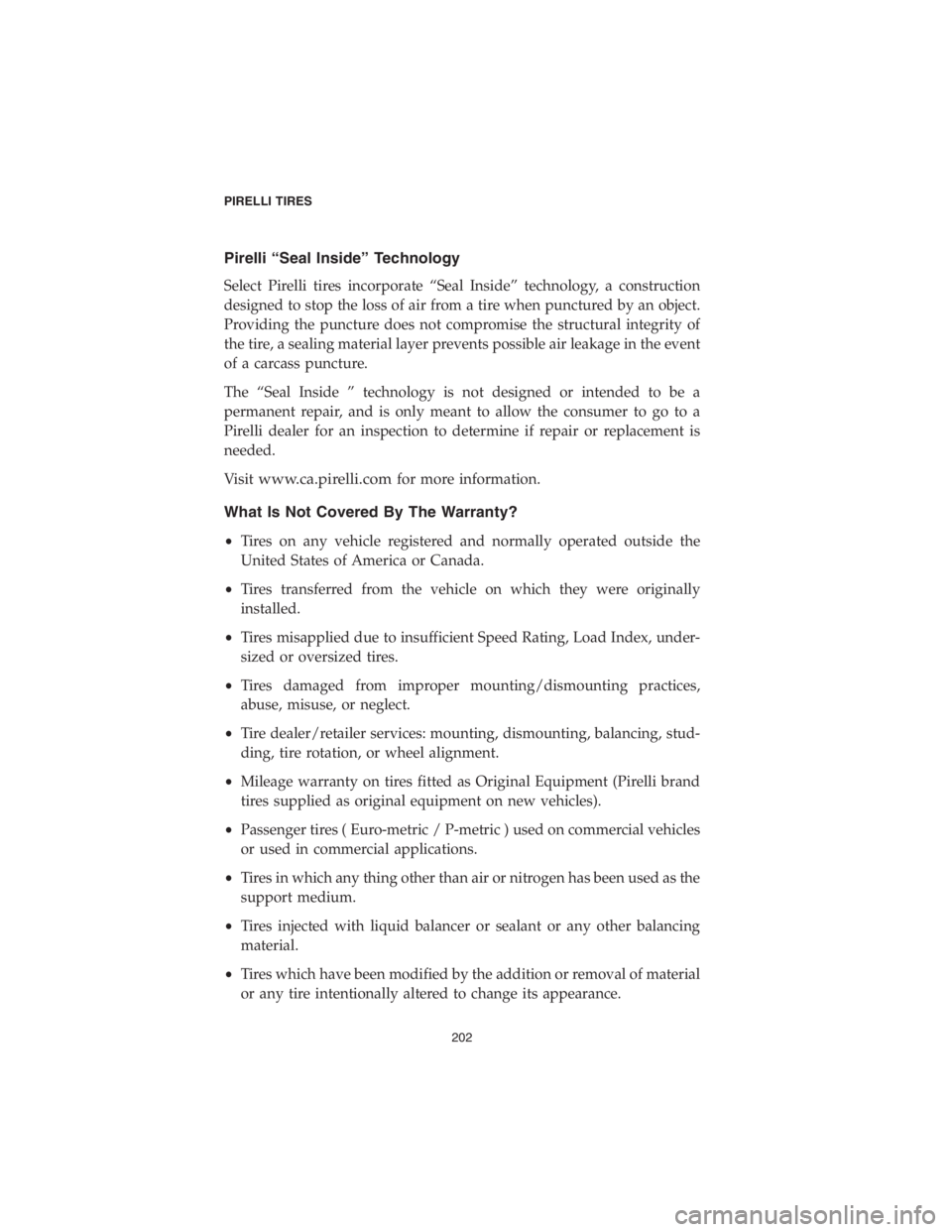

Pirelli “Seal Inside” Technology
Select Pirelli tires incorporate “Seal Inside” technology, a construction
designed to stop the loss of air from a tire when punctured by an object.
Providing the puncture does not compromise the structural integrity of
the tire, a sealing material layer prevents possible air leakage in the event
of a carcass puncture.
The “Seal Inside ” technology is not designed or intended to be a
permanent repair, and is only meant to allow the consumer to go to a
Pirelli dealer for an inspection to determine if repair or replacement is
needed.
Visit
www.ca.pirelli.comfor more information.
What Is Not Covered By The Warranty?
•Tires on any vehicle registered and normally operated outside the
United States of America or Canada.
•Tires transferred from the vehicle on which they were originally
installed.
•Tires misapplied due to insufficient Speed Rating, Load Index, under-
sized or oversized tires.
•Tires damaged from improper mounting/dismounting practices,
abuse, misuse, or neglect.
•Tire dealer/retailer services: mounting, dismounting, balancing, stud-
ding, tire rotation, or wheel alignment.
•Mileage warranty on tires fitted as Original Equipment (Pirelli brand
tires supplied as original equipment on new vehicles).
•Passenger tires ( Euro-metric / P-metric ) used on commercial vehicles
or used in commercial applications.
•Tires in which any thing other than air or nitrogen has been used as the
support medium.
•Tires injected with liquid balancer or sealant or any other balancing
material.
•Tires which have been modified by the addition or removal of material
or any tire intentionally altered to change its appearance.
PIRELLI TIRES
202

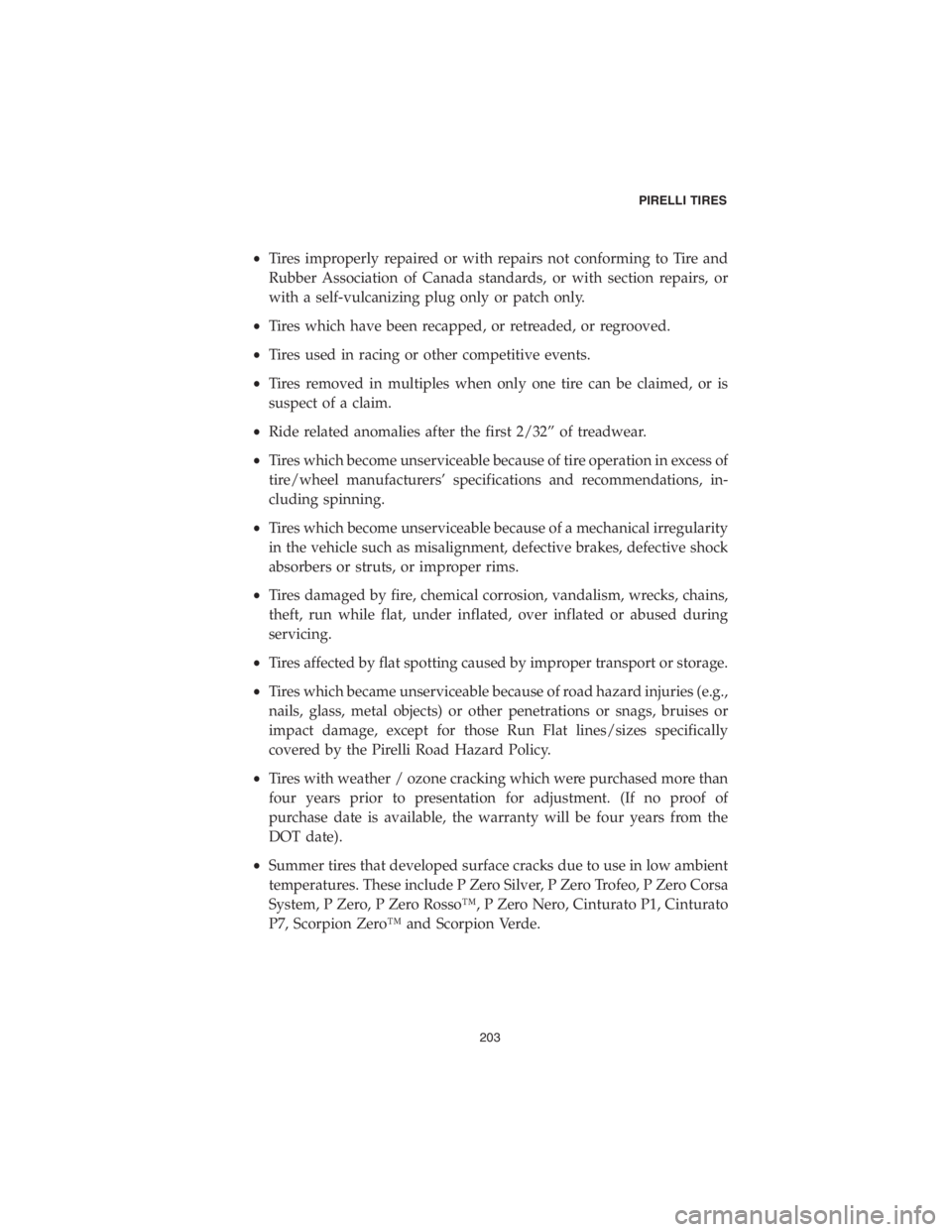

•Tires improperly repaired or with repairs not conforming to Tire and
Rubber Association of Canada standards, or with section repairs, or
with a self-vulcanizing plug only or patch only.
•Tires which have been recapped, or retreaded, or regrooved.
•Tires used in racing or other competitive events.
•Tires removed in multiples when only one tire can be claimed, or is
suspect of a claim.
•Ride related anomalies after the first 2/32” of treadwear.
•Tires which become unserviceable because of tire operation in excess of
tire/wheel manufacturers’ specifications and recommendations, in-
cluding spinning.
•Tires which become unserviceable because of a mechanical irregularity
in the vehicle such as misalignment, defective brakes, defective shock
absorbers or struts, or improper rims.
•Tires damaged by fire, chemical corrosion, vandalism, wrecks, chains,
theft, run while flat, under inflated, over inflated or abused during
servicing.
•Tires affected by flat spotting caused by improper transport or storage.
•Tires which became unserviceable because of road hazard injuries (e.g.,
nails, glass, metal objects) or other penetrations or snags, bruises or
impact damage, except for those Run Flat lines/sizes specifically
covered by the Pirelli Road Hazard Policy.
•Tires with weather / ozone cracking which were purchased more than
four years prior to presentation for adjustment. (If no proof of
purchase date is available, the warranty will be four years from the
DOT date).
•Summer tires that developed surface cracks due to use in low ambient
temperatures. These include P Zero Silver, P Zero Trofeo, P Zero Corsa
System, P Zero, P Zero Rosso™, P Zero Nero, Cinturato P1, Cinturato
P7, Scorpion Zero™ and Scorpion Verde.
PIRELLI TIRES
203

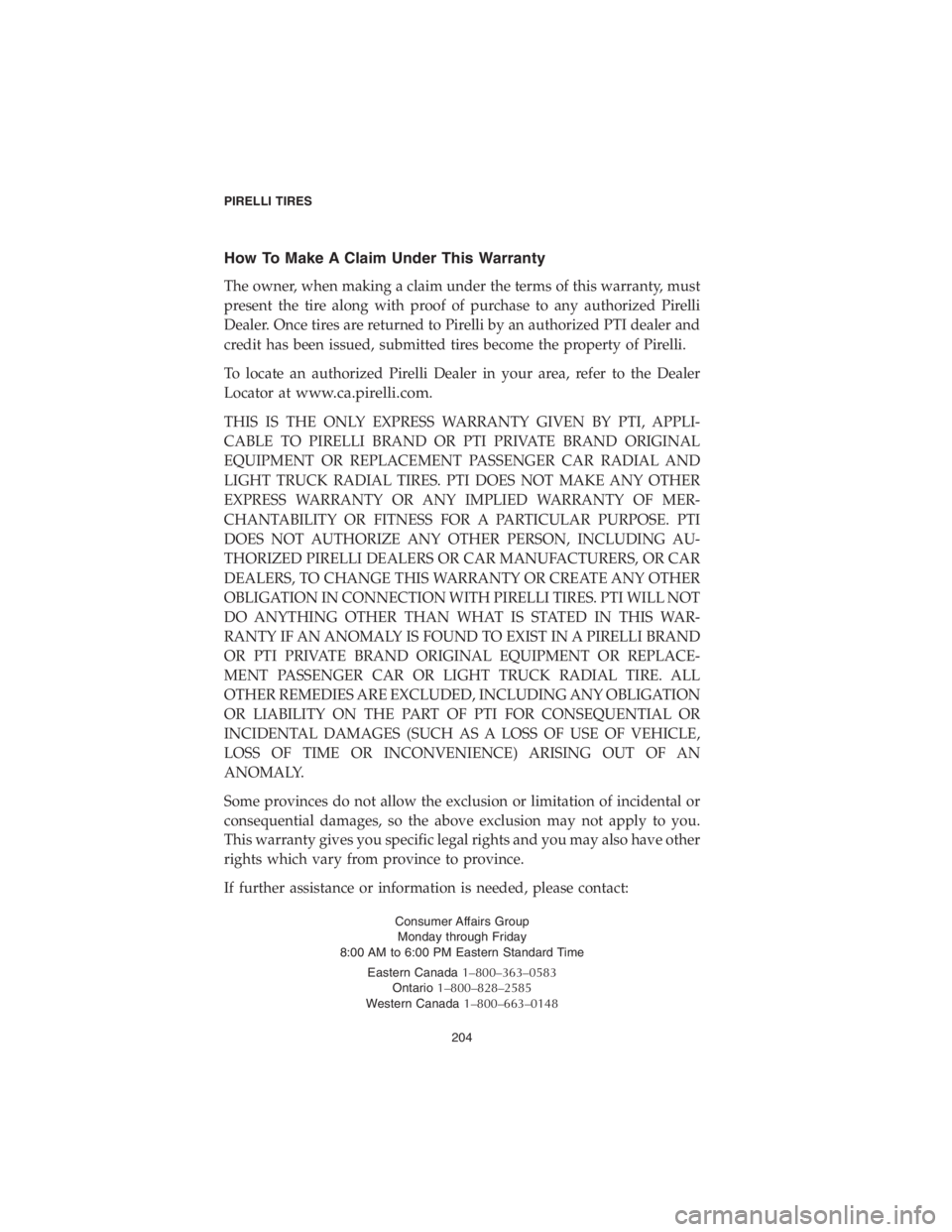

How To Make A Claim Under This Warranty
The owner, when making a claim under the terms of this warranty, must
present the tire along with proof of purchase to any authorized Pirelli
Dealer. Once tires are returned to Pirelli by an authorized PTI dealer and
credit has been issued, submitted tires become the property of Pirelli.
To locate an authorized Pirelli Dealer in your area, refer to the Dealer
Locator at
www.ca.pirelli.com.
THIS IS THE ONLY EXPRESS WARRANTY GIVEN BY PTI, APPLI-
CABLE TO PIRELLI BRAND OR PTI PRIVATE BRAND ORIGINAL
EQUIPMENT OR REPLACEMENT PASSENGER CAR RADIAL AND
LIGHT TRUCK RADIAL TIRES. PTI DOES NOT MAKE ANY OTHER
EXPRESS WARRANTY OR ANY IMPLIED WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. PTI
DOES NOT AUTHORIZE ANY OTHER PERSON, INCLUDING AU-
THORIZED PIRELLI DEALERS OR CAR MANUFACTURERS, OR CAR
DEALERS, TO CHANGE THIS WARRANTY OR CREATE ANY OTHER
OBLIGATION IN CONNECTION WITH PIRELLI TIRES. PTI WILL NOT
DO ANYTHING OTHER THAN WHAT IS STATED IN THIS WAR-
RANTY IF AN ANOMALY IS FOUND TO EXIST IN A PIRELLI BRAND
OR PTI PRIVATE BRAND ORIGINAL EQUIPMENT OR REPLACE-
MENT PASSENGER CAR OR LIGHT TRUCK RADIAL TIRE. ALL
OTHER REMEDIES ARE EXCLUDED, INCLUDING ANY OBLIGATION
OR LIABILITY ON THE PART OF PTI FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES (SUCH AS A LOSS OF USE OF VEHICLE,
LOSS OF TIME OR INCONVENIENCE) ARISING OUT OF AN
ANOMALY.
Some provinces do not allow the exclusion or limitation of incidental or
consequential damages, so the above exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from province to province.
If further assistance or information is needed, please contact:
Consumer Affairs Group
Monday through Friday
8:00 AM to 6:00 PM Eastern Standard Time
Eastern Canada1–800–363–0583
Ontario1–800–828–2585
Western Canada1–800–663–0148 PIRELLI TIRES
204

TIRE CARE AND SERVICE

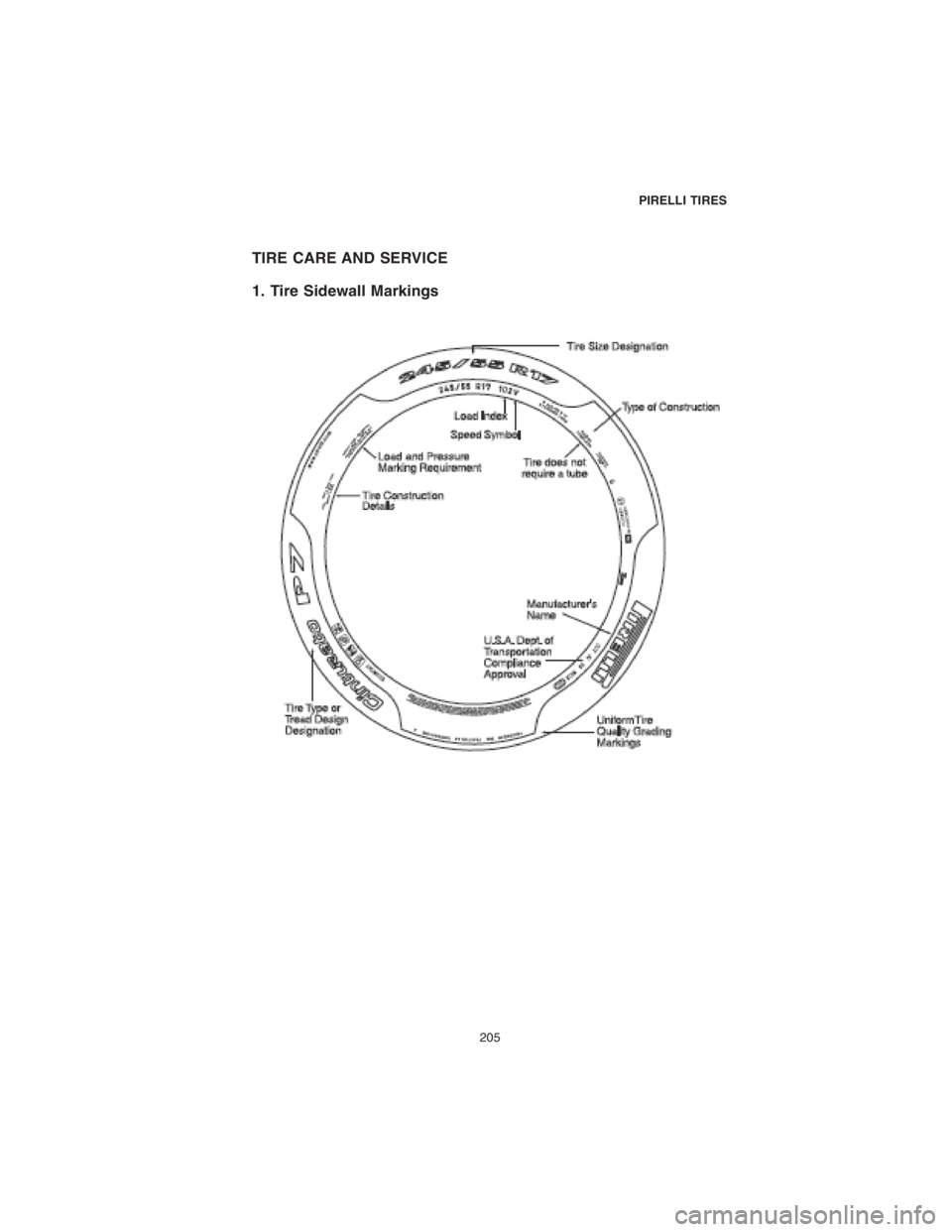

1. Tire Sidewall Markings
PIRELLI TIRES
205

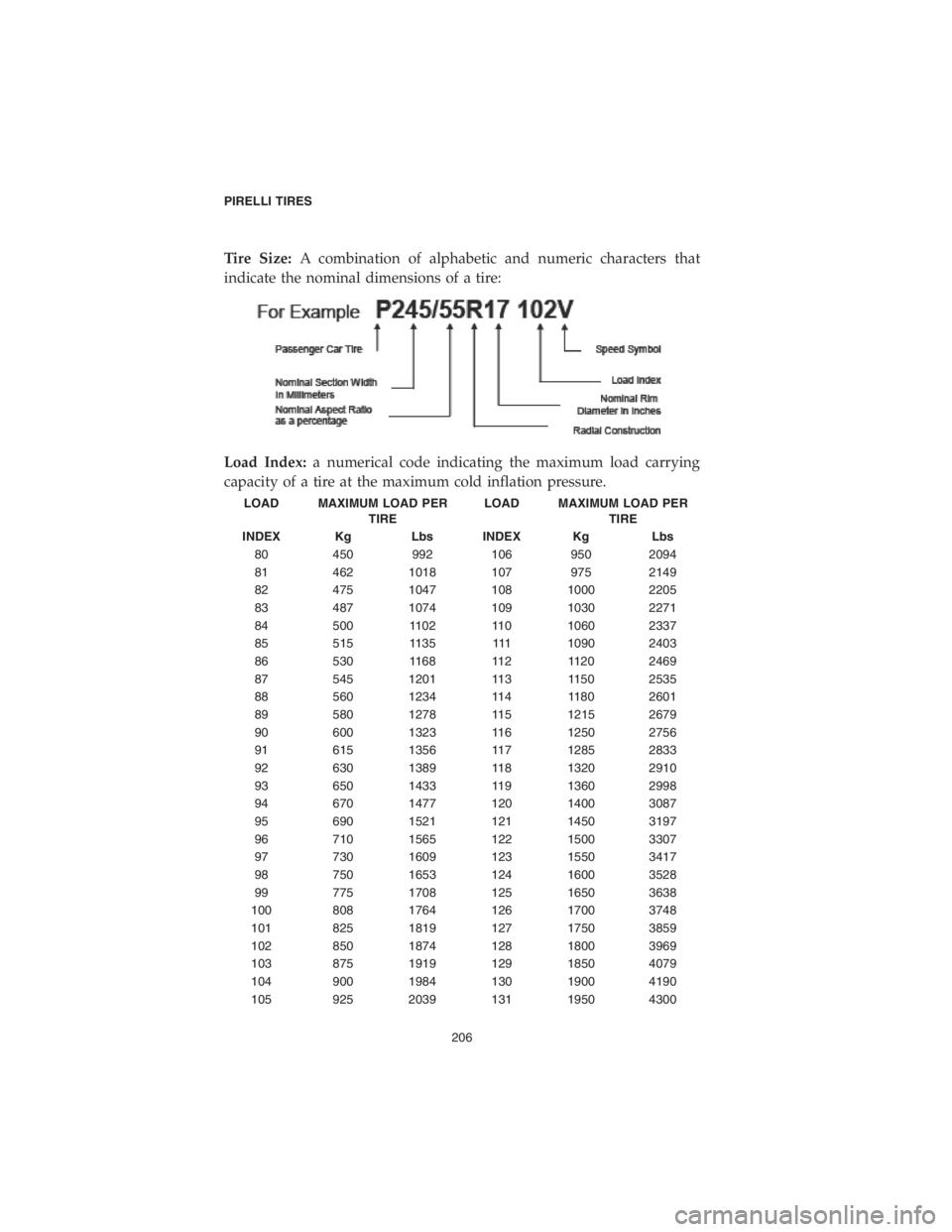

Tire Size:A combination of alphabetic and numeric characters that
indicate the nominal dimensions of a tire:
Load Index:a numerical code indicating the maximum load carrying
capacity of a tire at the maximum cold inflation pressure.
LOAD MAXIMUM LOAD PER
TIRELOAD MAXIMUM LOAD PER
TIRE
INDEX Kg Lbs INDEX Kg Lbs
80 450 992 106 950 2094
81 462 1018 107 975 2149
82 475 1047 108 1000 2205
83 487 1074 109 1030 2271
84 500 1102 110 1060 2337
85 515 1135 111 1090 2403
86 530 1168 112 1120 2469
87 545 1201 113 1150 2535
88 560 1234 114 1180 2601
89 580 1278 115 1215 2679
90 600 1323 116 1250 2756
91 615 1356 117 1285 2833
92 630 1389 118 1320 2910
93 650 1433 119 1360 2998
94 670 1477 120 1400 3087
95 690 1521 121 1450 3197
96 710 1565 122 1500 3307
97 730 1609 123 1550 3417
98 750 1653 124 1600 3528
99 775 1708 125 1650 3638
100 808 1764 126 1700 3748
101 825 1819 127 1750 3859
102 850 1874 128 1800 3969
103 875 1919 129 1850 4079
104 900 1984 130 1900 4190
105 925 2039 131 1950 4300
PIRELLI TIRES
206

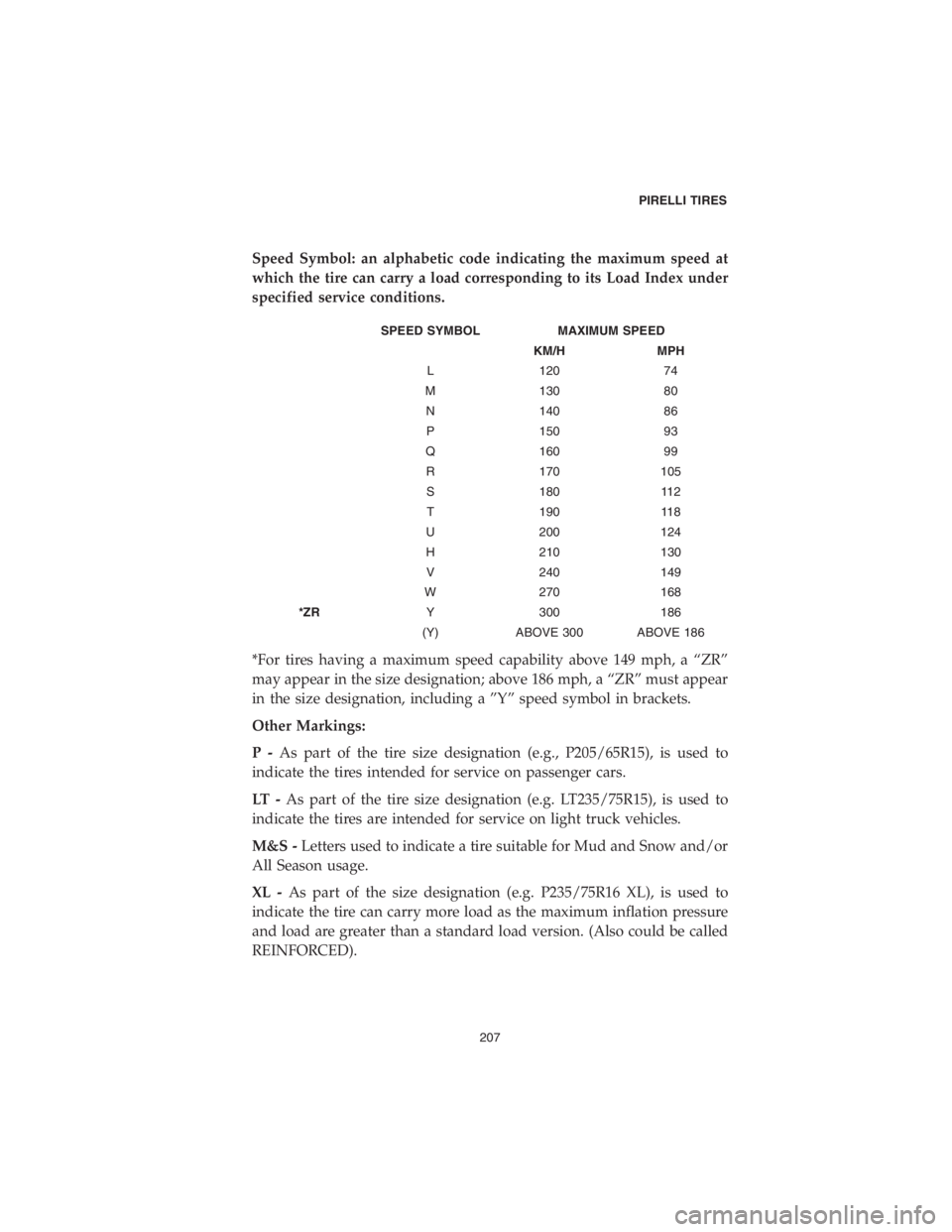

Speed Symbol: an alphabetic code indicating the maximum speed at
which the tire can carry a load corresponding to its Load Index under
specified service conditions.
SPEED SYMBOL MAXIMUM SPEED
KM/H MPH
L 120 74
M 130 80
N 140 86
P 150 93
Q 160 99
R 170 105
S 180 112
T 190 118
U 200 124
H 210 130
V 240 149
W 270 168
*ZRY 300 186
(Y) ABOVE 300 ABOVE 186
*For tires having a maximum speed capability above 149 mph, a “ZR”
may appear in the size designation; above 186 mph, a “ZR” must appear
in the size designation, including a ”Y” speed symbol in brackets.
Other Markings:
P-As part of the tire size designation (e.g., P205/65R15), is used to
indicate the tires intended for service on passenger cars.
LT -As part of the tire size designation (e.g. LT235/75R15), is used to
indicate the tires are intended for service on light truck vehicles.
M&S -Letters used to indicate a tire suitable for Mud and Snow and/or
All Season usage.
XL -As part of the size designation (e.g. P235/75R16 XL), is used to
indicate the tire can carry more load as the maximum inflation pressure
and load are greater than a standard load version. (Also could be called
REINFORCED).
PIRELLI TIRES
207

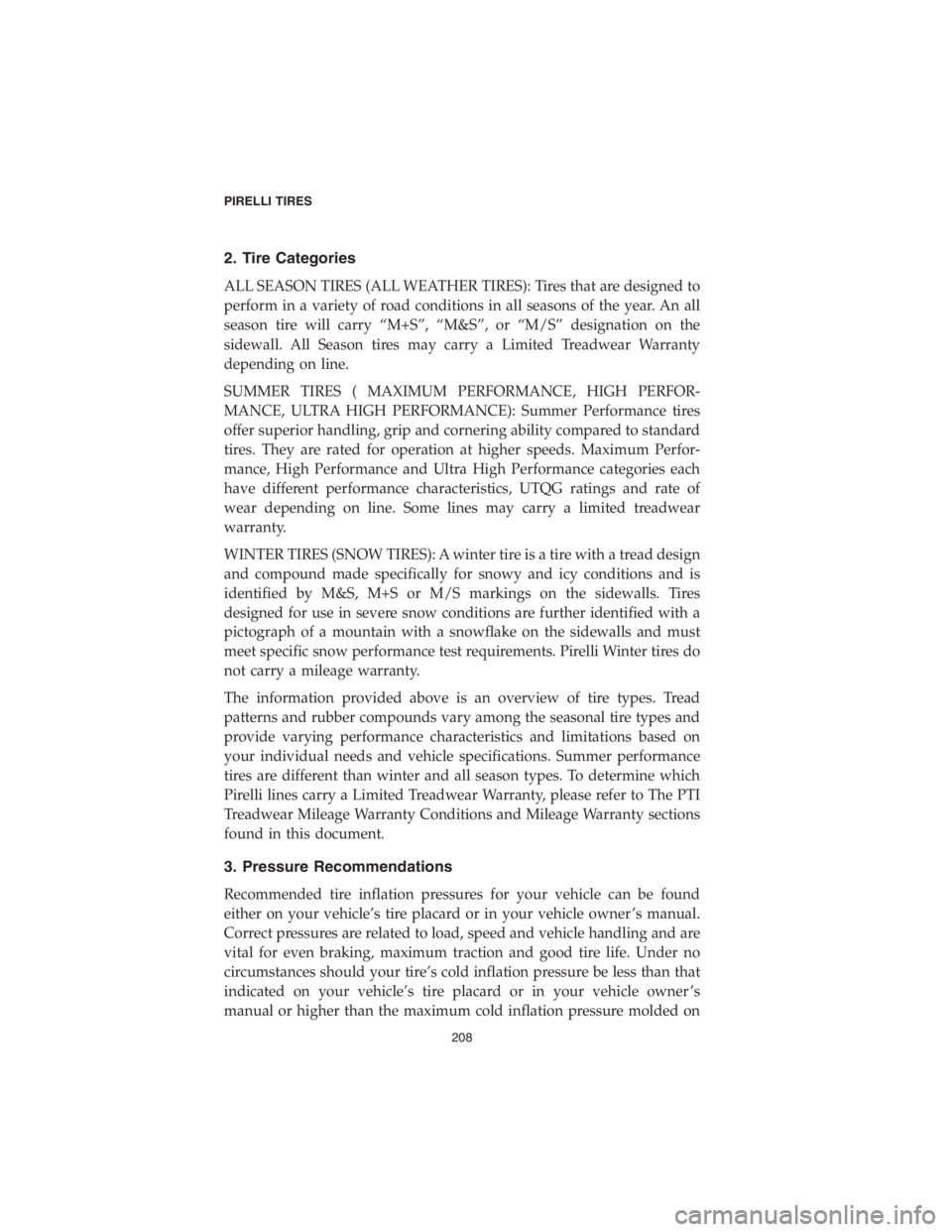

2. Tire Categories
ALL SEASON TIRES (ALL WEATHER TIRES): Tires that are designed to
perform in a variety of road conditions in all seasons of the year. An all
season tire will carry “M+S”, “M&S”, or “M/S” designation on the
sidewall. All Season tires may carry a Limited Treadwear Warranty
depending on line.
SUMMER TIRES ( MAXIMUM PERFORMANCE, HIGH PERFOR-
MANCE, ULTRA HIGH PERFORMANCE): Summer Performance tires
offer superior handling, grip and cornering ability compared to standard
tires. They are rated for operation at higher speeds. Maximum Perfor-
mance, High Performance and Ultra High Performance categories each
have different performance characteristics, UTQG ratings and rate of
wear depending on line. Some lines may carry a limited treadwear
warranty.
WINTER TIRES (SNOW TIRES): A winter tire is a tire with a tread design
and compound made specifically for snowy and icy conditions and is
identified by M&S, M+S or M/S markings on the sidewalls. Tires
designed for use in severe snow conditions are further identified with a
pictograph of a mountain with a snowflake on the sidewalls and must
meet specific snow performance test requirements. Pirelli Winter tires do
not carry a mileage warranty.
The information provided above is an overview of tire types. Tread
patterns and rubber compounds vary among the seasonal tire types and
provide varying performance characteristics and limitations based on
your individual needs and vehicle specifications. Summer performance
tires are different than winter and all season types. To determine which
Pirelli lines carry a Limited Treadwear Warranty, please refer to The PTI
Treadwear Mileage Warranty Conditions and Mileage Warranty sections
found in this document.
3. Pressure Recommendations
Recommended tire inflation pressures for your vehicle can be found
either on your vehicle’s tire placard or in your vehicle owner ’s manual.
Correct pressures are related to load, speed and vehicle handling and are
vital for even braking, maximum traction and good tire life. Under no
circumstances should your tire’s cold inflation pressure be less than that
indicated on your vehicle’s tire placard or in your vehicle owner ’s
manual or higher than the maximum cold inflation pressure molded on
PIRELLI TIRES
208

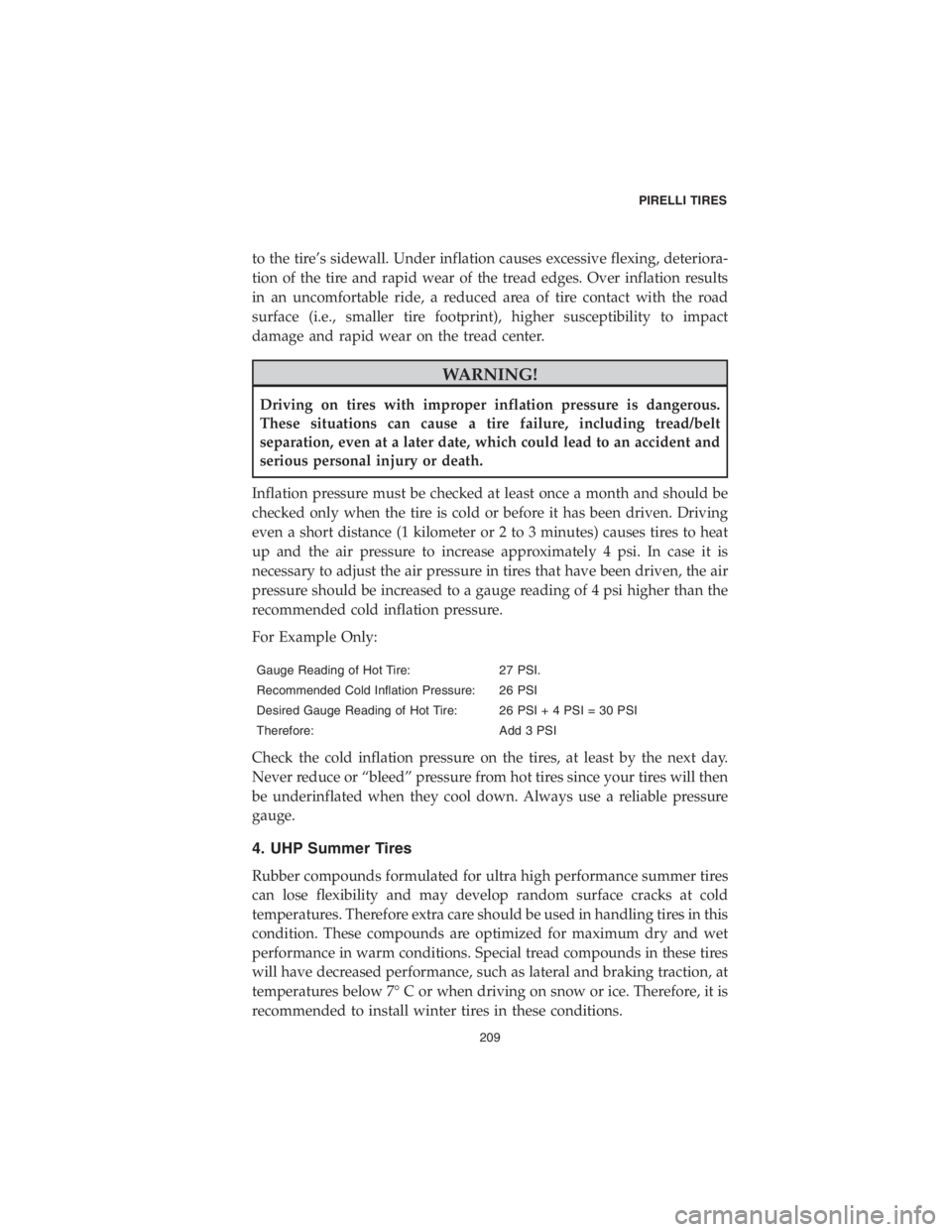

to the tire’s sidewall. Under inflation causes excessive flexing, deteriora-
tion of the tire and rapid wear of the tread edges. Over inflation results
in an uncomfortable ride, a reduced area of tire contact with the road
surface (i.e., smaller tire footprint), higher susceptibility to impact
damage and rapid wear on the tread center.
WARNING!
Driving on tires with improper inflation pressure is dangerous.
These situations can cause a tire failure, including tread/belt
separation, even at a later date, which could lead to an accident and
serious personal injury or death.
Inflation pressure must be checked at least once a month and should be
checked only when the tire is cold or before it has been driven. Driving
even a short distance (1 kilometer or 2 to 3 minutes) causes tires to heat
up and the air pressure to increase approximately 4 psi. In case it is
necessary to adjust the air pressure in tires that have been driven, the air
pressure should be increased to a gauge reading of 4 psi higher than the
recommended cold inflation pressure.
For Example Only:
Gauge Reading of Hot Tire: 27 PSI.
Recommended Cold Inflation Pressure: 26 PSI
Desired Gauge Reading of Hot Tire: 26 PSI+4PSI=30PSI
Therefore: Add 3 PSI
Check the cold inflation pressure on the tires, at least by the next day.
Never reduce or “bleed” pressure from hot tires since your tires will then
be underinflated when they cool down. Always use a reliable pressure
gauge.
4. UHP Summer Tires
Rubber compounds formulated for ultra high performance summer tires
can lose flexibility and may develop random surface cracks at cold
temperatures. Therefore extra care should be used in handling tires in this
condition. These compounds are optimized for maximum dry and wet
performance in warm conditions. Special tread compounds in these tires
will have decreased performance, such as lateral and braking traction, at
temperatures below 7° C or when driving on snow or ice. Therefore, it is
recommended to install winter tires in these conditions.
PIRELLI TIRES
209
