4. The crossbar will nest fully within the side rail.5. Once the driver ’s side crossbar is in place, tighten the
thumb screws completely.
Crossbar To Side Rail
Tightening Crossbar
3
GETTING TO KNOW YOUR VEHICLE 149

6. Repeat the procedure to stow the second crossbar on theopposite side.
NOTE:
• To help control wind noise, stow the crossbars in the side
rails when they are not in use.
• If any metallic object is placed over the satellite radio
antenna (if equipped), you may experience interruption
of satellite radio reception.WARNING!
Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.
CAUTION!
• To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars deployed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or other protective layer between the
load and the roof surface.
• To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150 lb
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.
• Load should always be secured to cross bars first,
with tie down loops used as additional securing
(Continued)
Stowed Crossbars
150 GETTING TO KNOW YOUR VEHICLE

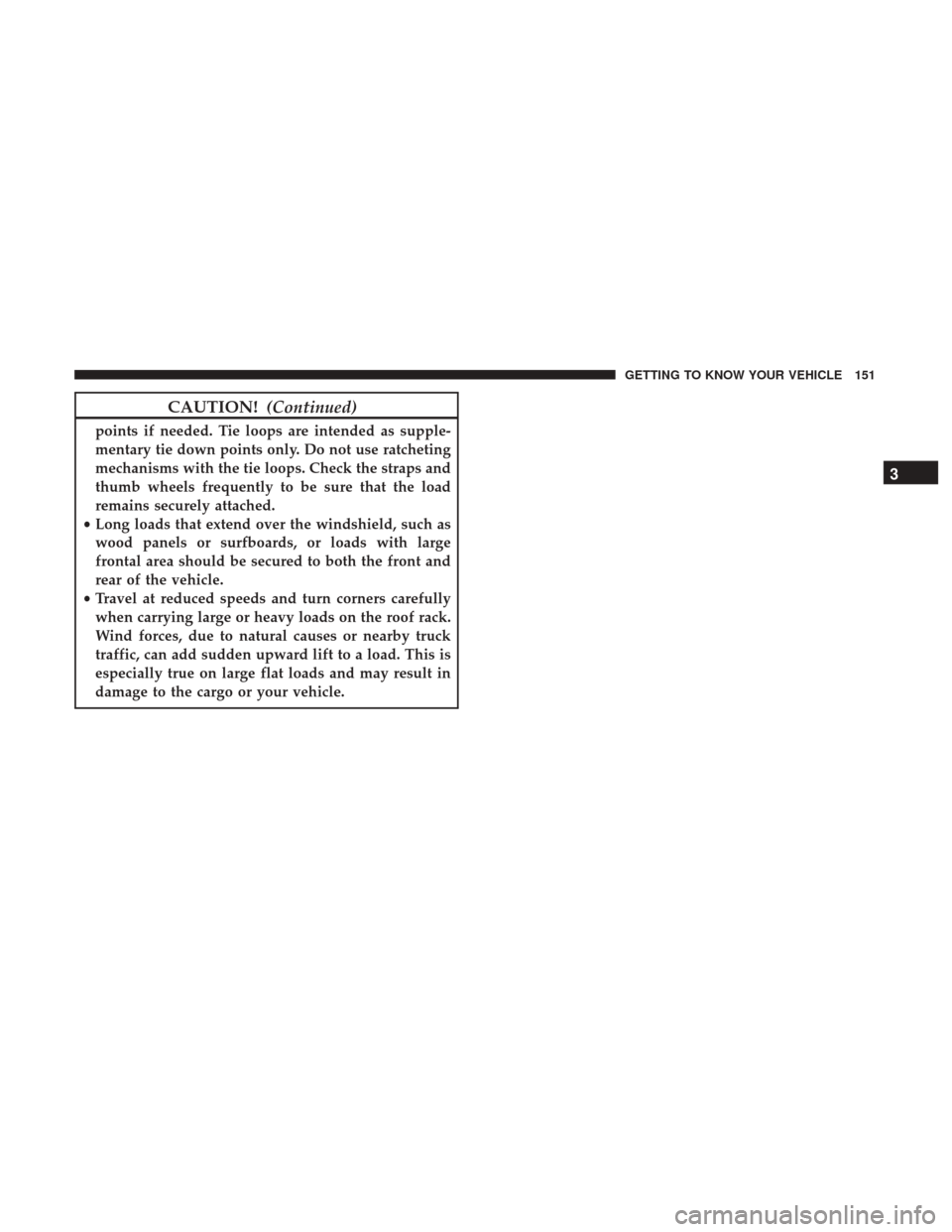

CAUTION!(Continued)
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratcheting
mechanisms with the tie loops. Check the straps and
thumb wheels frequently to be sure that the load
remains securely attached.
• Long loads that extend over the windshield, such as
wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to a load. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
3
GETTING TO KNOW YOUR VEHICLE 151

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ..................154
▫ Instrument Cluster Descriptions ............155
 INSTRUMENT CLUSTER DISPLAY ...........156
▫ Instrument Cluster Display Location and
Controls ............................ .156
▫ Oil Life Reset ........................ .158
▫ KeySense Cluster Messages — If Equipped .....159
▫ Instrument Cluster Display Menu Items .......160
▫ Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions — If
Equipped ........................... .165
WARNING/INDICATOR LIGHTS AND
MESSAGES ........................... .167
▫ Red Telltale Lights .....................168
▫ Yellow Telltale Lights ....................177
▫ Green Telltale Lights .....................185
▫ Blue Telltale Lights ..................... .189
▫ White Telltale Lights .....................189
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .190
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .1914

INSTRUMENT CLUSTER
Instrument Cluster
154 GETTING TO KNOW YOUR INSTRUMENT PANEL

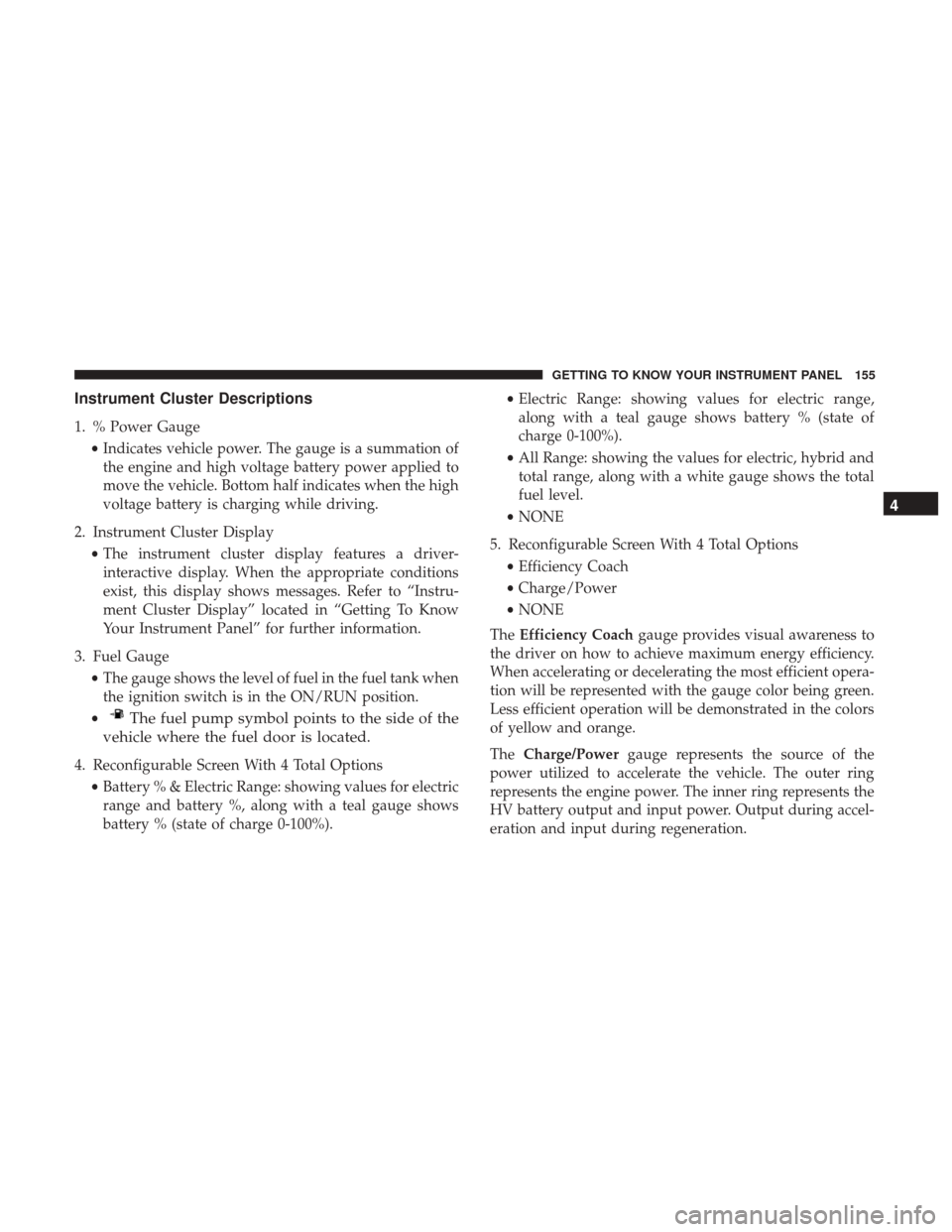

Instrument Cluster Descriptions
1. % Power Gauge•Indicates vehicle power. The gauge is a summation of
the engine and high voltage battery power applied to
move the vehicle. Bottom half indicates when the high
voltage battery is charging while driving.
2. Instrument Cluster Display •The instrument cluster display features a driver-
interactive display. When the appropriate conditions
exist, this display shows messages. Refer to “Instru-
ment Cluster Display” located in “Getting To Know
Your Instrument Panel” for further information.
3. Fuel Gauge •The gauge shows the level of fuel in the fuel tank when
the ignition switch is in the ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel door is located.
4. Reconfigurable Screen With 4 Total Options
•Battery % & Electric Range: showing values for electric
range and battery %, along with a teal gauge shows
battery % (state of charge 0-100%). •
Electric Range: showing values for electric range,
along with a teal gauge shows battery % (state of
charge 0-100%).
• All Range: showing the values for electric, hybrid and
total range, along with a white gauge shows the total
fuel level.
• NONE
5. Reconfigurable Screen With 4 Total Options •Efficiency Coach
• Charge/Power
• NONE
The Efficiency Coach gauge provides visual awareness to
the driver on how to achieve maximum energy efficiency.
When accelerating or decelerating the most efficient opera-
tion will be represented with the gauge color being green.
Less efficient operation will be demonstrated in the colors
of yellow and orange.
The Charge/Power gauge represents the source of the
power utilized to accelerate the vehicle. The outer ring
represents the engine power. The inner ring represents the
HV battery output and input power. Output during accel-
eration and input during regeneration.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 155

INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an Instrument Cluster
Display, which offers useful information to the driver. With
the ignition in the STOP/OFF position (and the key
removed, for vehicles with mechanical key), opening/
closing of a door will activate the display for viewing, and
display the total miles or kilometers in the odometer. Your
Instrument Cluster Display is designed to display impor-
tant information about your vehicle’s systems and features.
Using a driver interactive display located on the instru-
ment panel, your Instrument Cluster Display can show you
how systems are working and give you warnings when
they aren’t. The steering wheel mounted controls allow
you to scroll through and enter the main menus and
sub-menus. You can access the specific information you
want and make selections and adjustments.
Instrument Cluster Display Location and Controls
The Instrument Cluster Display is located in the center of
the instrument cluster.
The Main Menu items consists of the following:
•Speedometer
• Vehicle Info
• Driver Assist
• Hybrid Info
• Trip (Trip A/Trip B)
• Audio
• Navigation
• Messages
• Screen Setup
• Speed Warning — If Equipped
156 GETTING TO KNOW YOUR INSTRUMENT PANEL

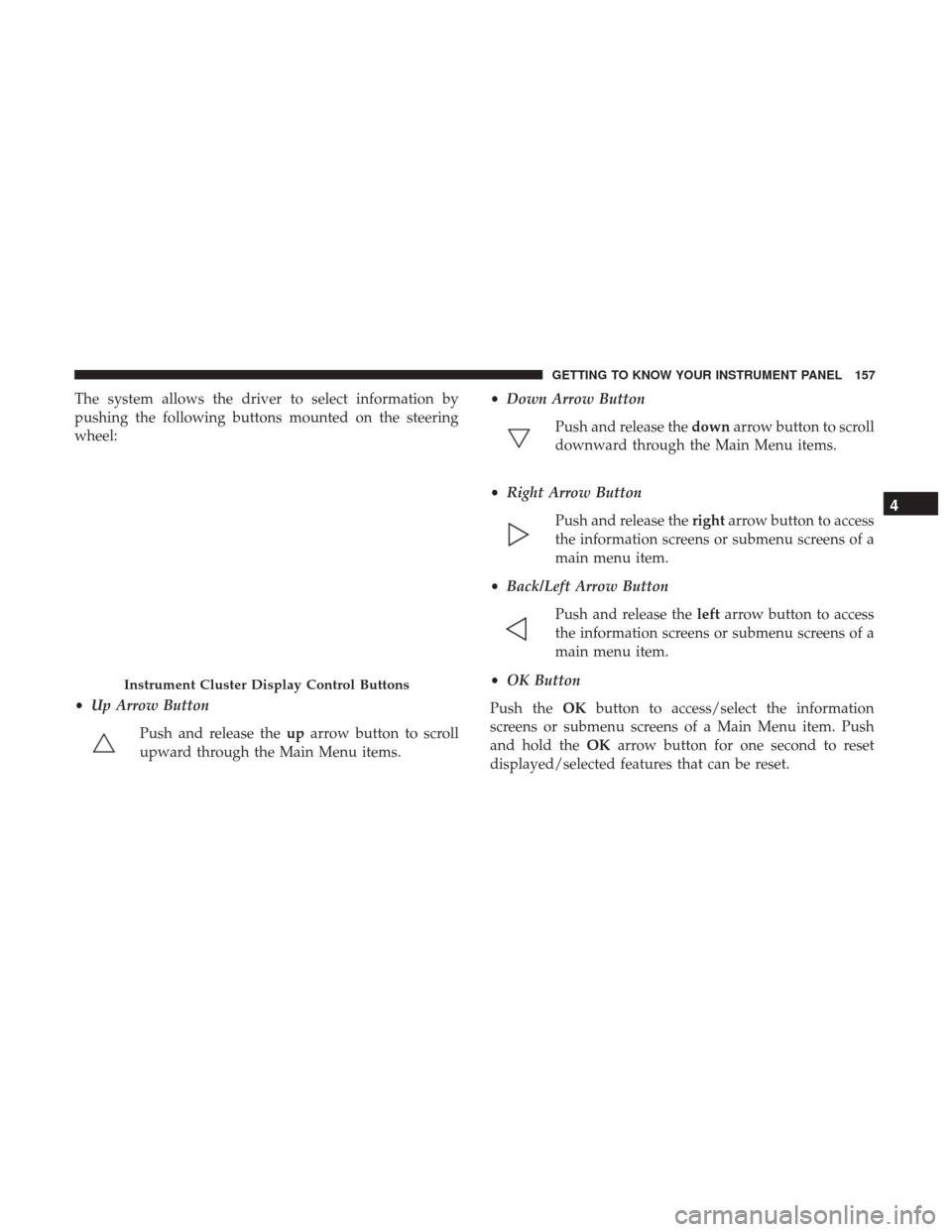

The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:
•Up Arrow Button
Push and release the uparrow button to scroll
upward through the Main Menu items. •
Down Arrow Button
Push and release the downarrow button to scroll
downward through the Main Menu items.
• Right Arrow Button
Push and release the rightarrow button to access
the information screens or submenu screens of a
main menu item.
• Back/Left Arrow Button
Push and release the leftarrow button to access
the information screens or submenu screens of a
main menu item.
• OK Button
Push the OKbutton to access/select the information
screens or submenu screens of a Main Menu item. Push
and hold the OKarrow button for one second to reset
displayed/selected features that can be reset.
Instrument Cluster Display Control Buttons
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 157

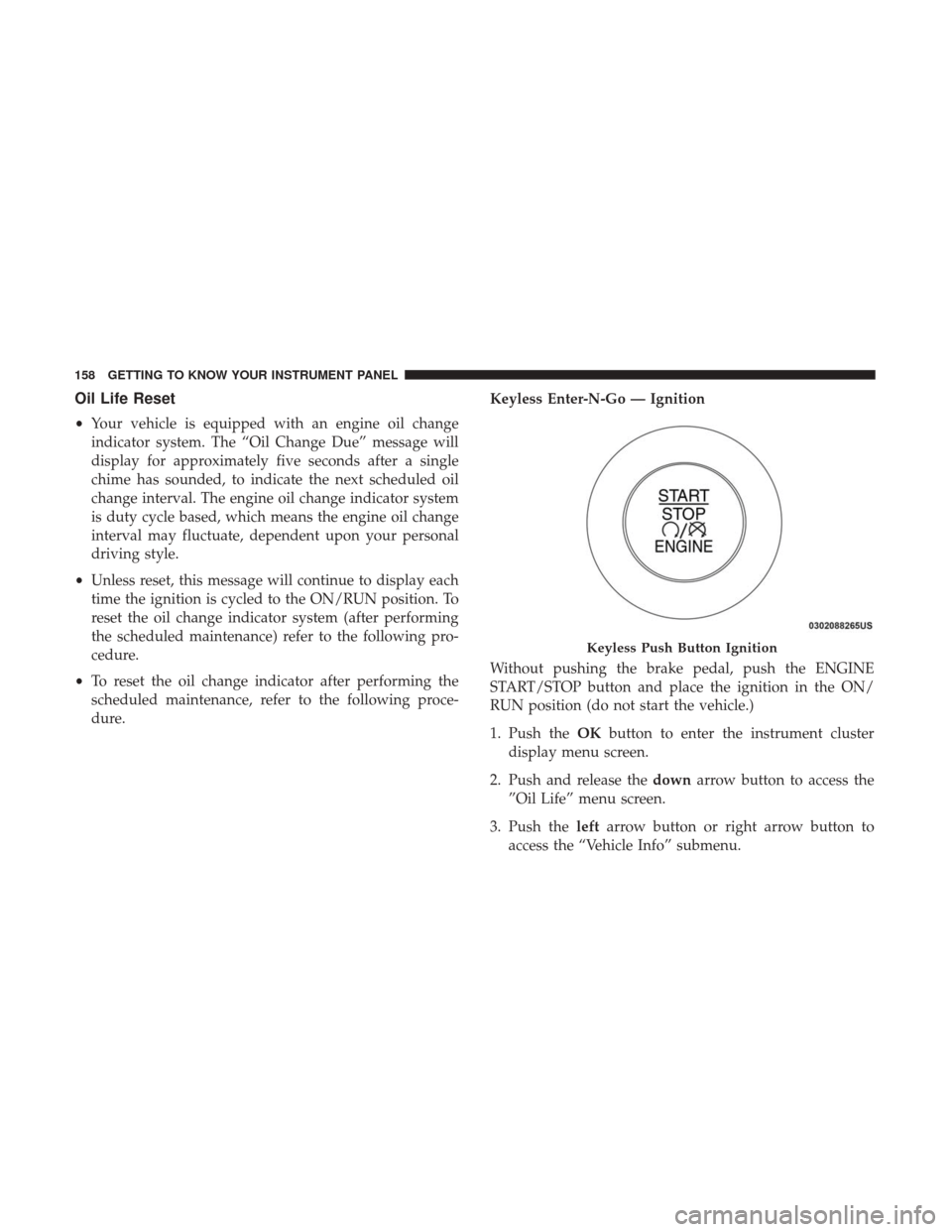

Oil Life Reset
•Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Due” message will
display for approximately five seconds after a single
chime has sounded, to indicate the next scheduled oil
change interval. The engine oil change indicator system
is duty cycle based, which means the engine oil change
interval may fluctuate, dependent upon your personal
driving style.
• Unless reset, this message will continue to display each
time the ignition is cycled to the ON/RUN position. To
reset the oil change indicator system (after performing
the scheduled maintenance) refer to the following pro-
cedure.
• To reset the oil change indicator after performing the
scheduled maintenance, refer to the following proce-
dure. Keyless Enter-N-Go — Ignition
Without pushing the brake pedal, push the ENGINE
START/STOP button and place the ignition in the ON/
RUN position (do not start the vehicle.)
1. Push the
OKbutton to enter the instrument cluster
display menu screen.
2. Push and release the downarrow button to access the
”Oil Life” menu screen.
3. Push the leftarrow button or right arrow button to
access the “Vehicle Info” submenu.
Keyless Push Button Ignition
158 GETTING TO KNOW YOUR INSTRUMENT PANEL
