To Unlock From The Driver’s Side:
With a valid key fob within 5 ft (1.5 m) of the driver ’s door
handle, grab the driver ’s front door handle to unlock the
drivers side doors (driver/sliding door) automatically. The
interior door panel rocker knob will rotate when the door
is unlocked.
NOTE:If “Unlock All Doors 1st Press” is programmed, all
doors and liftgate will unlock when you grab hold of the
driver ’s front door handle. To select between “Unlock
Driver Door 1st Press” and “Unlock All Doors 1st Press,”
refer to “Uconnect Settings” in “Multimedia” for further
information. To Unlock From The Passenger Side:
With a valid key fob within 5 ft (1.5 m) of the passenger
door handle, grab the front passenger door handle to
unlock all four doors and the liftgate automatically. The
interior door panel lock knob will rotate when the door is
unlocked.
NOTE:
All doors will unlock when the front passenger
door handle is grabbed regardless of the driver ’s door
unlock preference setting (“Unlock Driver Door 1st Press”
or “Unlock All Doors 1st Press”).
Preventing Inadvertent Locking Of Key Fob In Vehicle
(FOBIK-Safe)
To minimize the possibility of unintentionally locking a
key fob inside your vehicle, the Passive Entry system is
equipped with an automatic door unlock feature which
will function if the ignition switch is in the OFF position.
FOBIK-Safe only executes in vehicles with Passive Entry.
There are three situations that trigger a FOBIK-Safe search
in any Passive Entry vehicle:
• A lock request is made by a valid key fob while a door
is open.
• A lock request is made by the Passive Entry door handle
while a door is open.
Grab The Door Handle To Unlock
3
GETTING TO KNOW YOUR VEHICLE 59

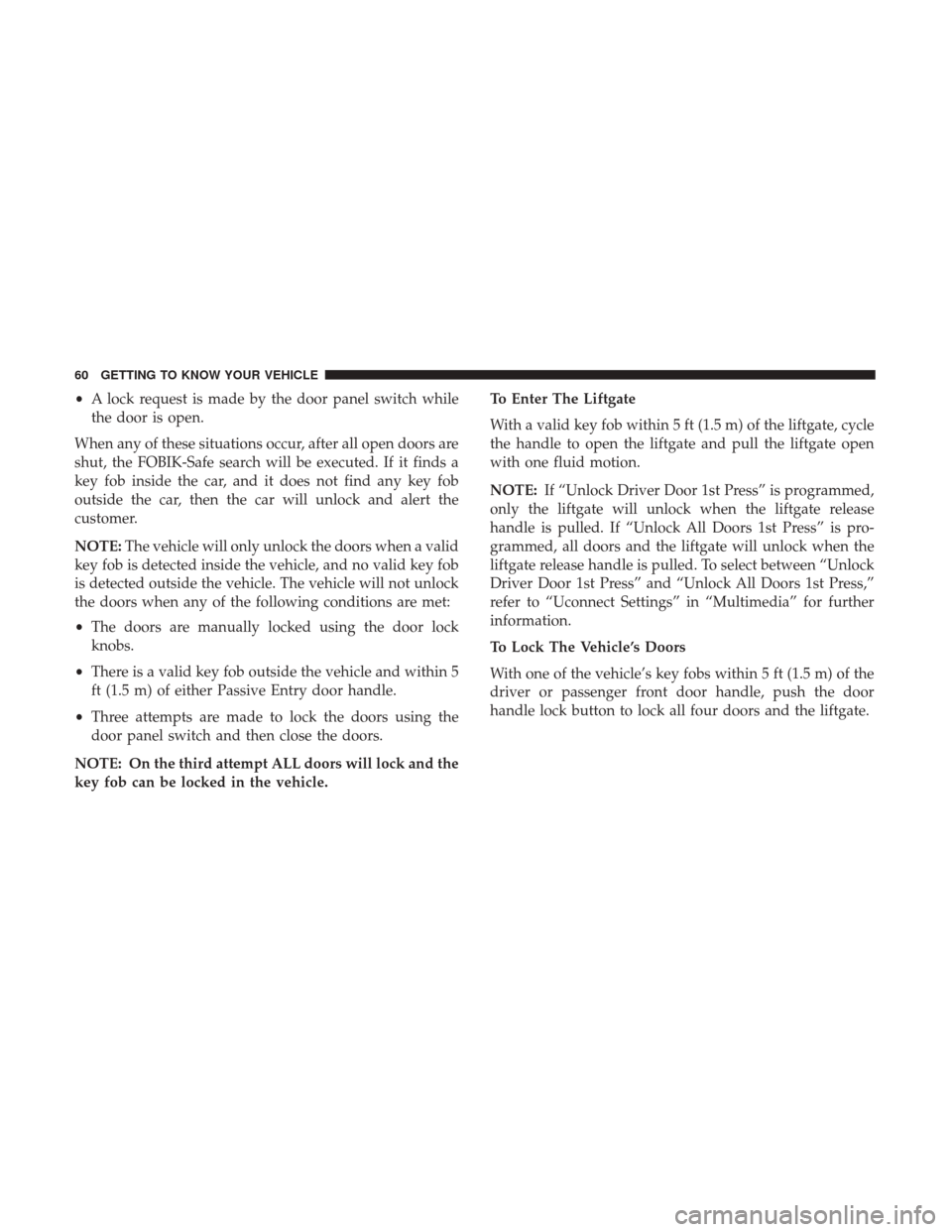

•A lock request is made by the door panel switch while
the door is open.
When any of these situations occur, after all open doors are
shut, the FOBIK-Safe search will be executed. If it finds a
key fob inside the car, and it does not find any key fob
outside the car, then the car will unlock and alert the
customer.
NOTE: The vehicle will only unlock the doors when a valid
key fob is detected inside the vehicle, and no valid key fob
is detected outside the vehicle. The vehicle will not unlock
the doors when any of the following conditions are met:
• The doors are manually locked using the door lock
knobs.
• There is a valid key fob outside the vehicle and within 5
ft (1.5 m) of either Passive Entry door handle.
• Three attempts are made to lock the doors using the
door panel switch and then close the doors.
NOTE: On the third attempt ALL doors will lock and the
key fob can be locked in the vehicle. To Enter The Liftgate
With a valid key fob within 5 ft (1.5 m) of the liftgate, cycle
the handle to open the liftgate and pull the liftgate open
with one fluid motion.
NOTE:
If “Unlock Driver Door 1st Press” is programmed,
only the liftgate will unlock when the liftgate release
handle is pulled. If “Unlock All Doors 1st Press” is pro-
grammed, all doors and the liftgate will unlock when the
liftgate release handle is pulled. To select between “Unlock
Driver Door 1st Press” and “Unlock All Doors 1st Press,”
refer to “Uconnect Settings” in “Multimedia” for further
information.
To Lock The Vehicle’s Doors
With one of the vehicle’s key fobs within 5 ft (1.5 m) of the
driver or passenger front door handle, push the door
handle lock button to lock all four doors and the liftgate.
60 GETTING TO KNOW YOUR VEHICLE

Do NOT grab the door handle, when pushing the door
handle button. This could unlock the door(s).NOTE:
•
After pushing the door handle button, you must wait
two seconds before you can lock or unlock the doors,
using either Passive Entry door handle. This is done to
allow you to check if the vehicle is locked by pulling the
door handle, without the vehicle reacting and unlocking.
• The Passive Entry system will not operate if the key fob
battery is dead.
The vehicle doors can also be locked by using the key fob
lock button, or the lock button located on the vehicle’s
interior door panel.
Push The Door Handle Button To LockDo NOT Grab The Door Handle When Locking
3
GETTING TO KNOW YOUR VEHICLE 61

Manual Sliding Side Door
The sliding door may be opened from the inside or the
outside. Pull outward on the exterior handle to open the
sliding door. The sliding door inside handle functions by
rocking forward and back. Rocking the handle backwards
opens the door and rocking forward releases the hold open
latch in order to close the door.
NOTE:If equipped with the power sliding side doors, refer
to “Safe Lock — If Equipped” in this section to turn the
power off for manual operation of the sliding side doors.
To keep your door operating properly, observe the follow-
ing guidelines:
•Always open the door smoothly.
• Avoid high impacts against the door stop when opening
the door. This is very important when your vehicle is
parked on an incline as the door will slide faster in the
downhill direction.
Side Door Handle And Lock Functions
1 — Door Handle
2 — Door Lock
62 GETTING TO KNOW YOUR VEHICLE

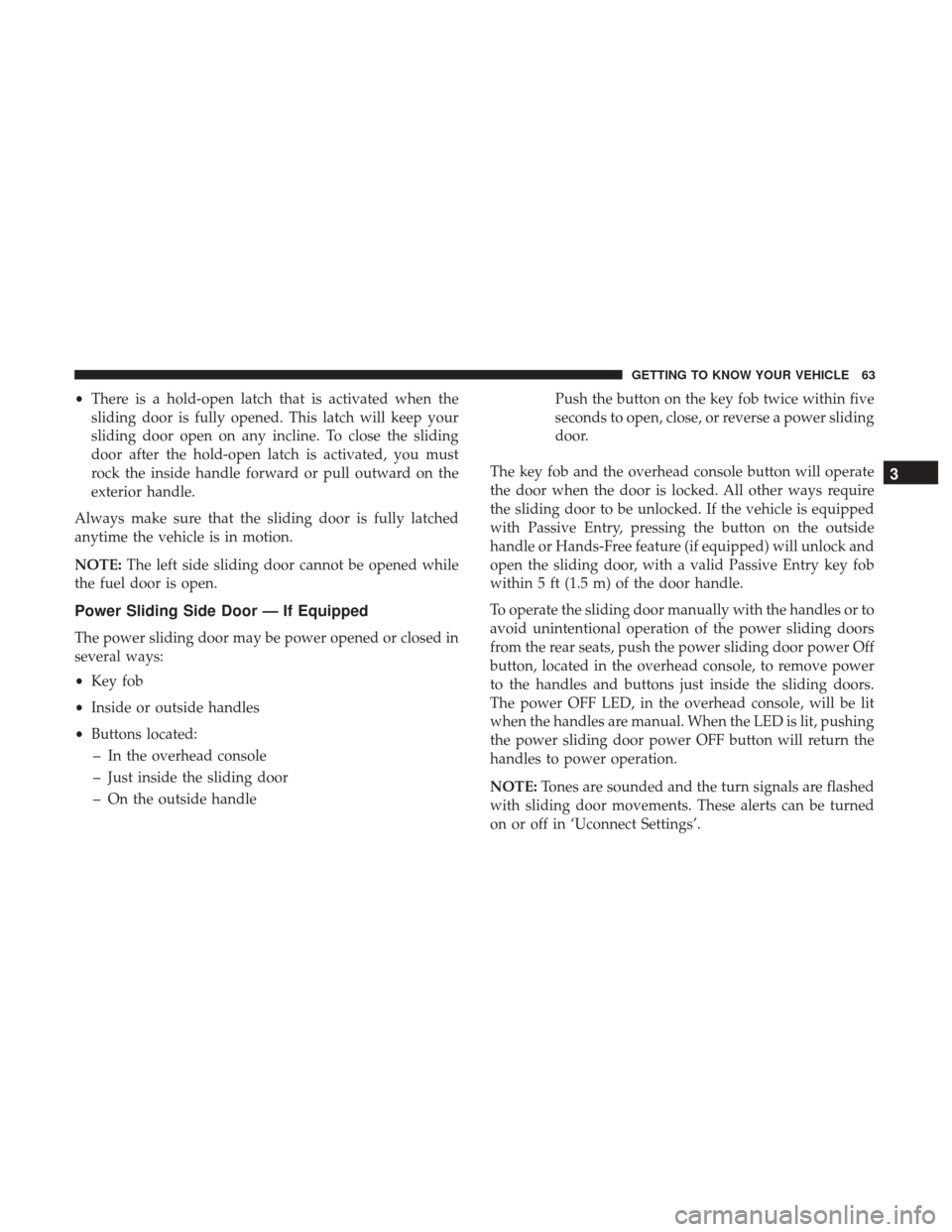

•There is a hold-open latch that is activated when the
sliding door is fully opened. This latch will keep your
sliding door open on any incline. To close the sliding
door after the hold-open latch is activated, you must
rock the inside handle forward or pull outward on the
exterior handle.
Always make sure that the sliding door is fully latched
anytime the vehicle is in motion.
NOTE: The left side sliding door cannot be opened while
the fuel door is open.
Power Sliding Side Door — If Equipped
The power sliding door may be power opened or closed in
several ways:
• Key fob
• Inside or outside handles
• Buttons located:
– In the overhead console
– Just inside the sliding door
– On the outside handle Push the button on the key fob twice within five
seconds to open, close, or reverse a power sliding
door.
The key fob and the overhead console button will operate
the door when the door is locked. All other ways require
the sliding door to be unlocked. If the vehicle is equipped
with Passive Entry, pressing the button on the outside
handle or Hands-Free feature (if equipped) will unlock and
open the sliding door, with a valid Passive Entry key fob
within 5 ft (1.5 m) of the door handle.
To operate the sliding door manually with the handles or to
avoid unintentional operation of the power sliding doors
from the rear seats, push the power sliding door power Off
button, located in the overhead console, to remove power
to the handles and buttons just inside the sliding doors.
The power OFF LED, in the overhead console, will be lit
when the handles are manual. When the LED is lit, pushing
the power sliding door power OFF button will return the
handles to power operation.
NOTE: Tones are sounded and the turn signals are flashed
with sliding door movements. These alerts can be turned
on or off in ‘Uconnect Settings’.
3
GETTING TO KNOW YOUR VEHICLE 63

There are power sliding side door switches located on the
B-Pillar trim panel, just in front of the power sliding door
for the rear seat passengers.NOTE:
•If anything obstructs the power sliding side door while
it is closing or opening, the door will automatically
reverse to the closed or open position, provided it meets
sufficient resistance.
• If the power sliding door stops in the middle due to
obstacles, it powers open on the next command.
Driver Side Power Sliding Side Door Switch
Passenger Side Power Sliding Side Door Switch
64 GETTING TO KNOW YOUR VEHICLE

WARNING!
Personal injury or cargo damage may occur if caught in
the path of the sliding door. Make sure the door path is
clear before closing the door.
WARNING!
Before driving off, check the instrument cluster for a
sliding door or door open message or warning indica-
tor. Failure to do this could result in unintentionally
leaving the sliding door open while driving.
Hands-Free Sliding Doors – If Equipped
To open the Hands-Free Sliding Doors, use a straight in
and out kicking motion under the vehicle in the general
location below the door handle(s). Do not move your foot
sideways or in a sweeping motion or the sensors may not
detect the motion.
When a valid kicking motion is completed, the sliding door
will chime, the hazard lights will flash and the sliding door
will open almost instantaneously. This assumes all options
are enabled in the radio.
Hands-Free Sliding Doors
3
GETTING TO KNOW YOUR VEHICLE 65

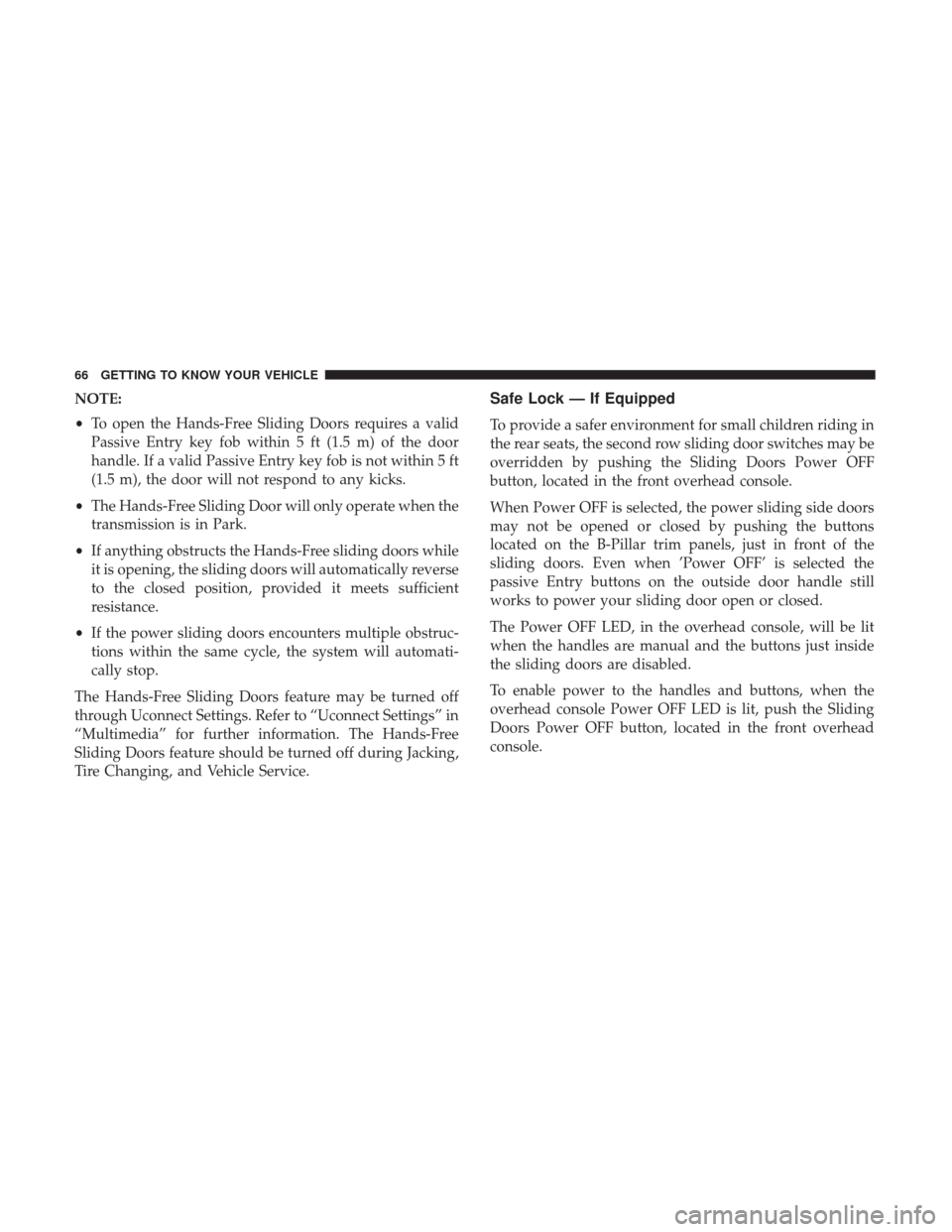

NOTE:
•To open the Hands-Free Sliding Doors requires a valid
Passive Entry key fob within 5 ft (1.5 m) of the door
handle. If a valid Passive Entry key fob is not within 5 ft
(1.5 m), the door will not respond to any kicks.
• The Hands-Free Sliding Door will only operate when the
transmission is in Park.
• If anything obstructs the Hands-Free sliding doors while
it is opening, the sliding doors will automatically reverse
to the closed position, provided it meets sufficient
resistance.
• If the power sliding doors encounters multiple obstruc-
tions within the same cycle, the system will automati-
cally stop.
The Hands-Free Sliding Doors feature may be turned off
through Uconnect Settings. Refer to “Uconnect Settings” in
“Multimedia” for further information. The Hands-Free
Sliding Doors feature should be turned off during Jacking,
Tire Changing, and Vehicle Service.Safe Lock — If Equipped
To provide a safer environment for small children riding in
the rear seats, the second row sliding door switches may be
overridden by pushing the Sliding Doors Power OFF
button, located in the front overhead console.
When Power OFF is selected, the power sliding side doors
may not be opened or closed by pushing the buttons
located on the B-Pillar trim panels, just in front of the
sliding doors. Even when ’Power OFF’ is selected the
passive Entry buttons on the outside door handle still
works to power your sliding door open or closed.
The Power OFF LED, in the overhead console, will be lit
when the handles are manual and the buttons just inside
the sliding doors are disabled.
To enable power to the handles and buttons, when the
overhead console Power OFF LED is lit, push the Sliding
Doors Power OFF button, located in the front overhead
console.
66 GETTING TO KNOW YOUR VEHICLE

Child Locks
To provide a safer environment for small children riding in
the rear seats, the sliding doors are equipped with a Child
Protection Door Lock system.To Engage The Child Protection Door Lock
1. Open the sliding side door.
2. On the rear of the sliding door, slide the Child Protection
Door Lock control inward (toward the vehicle) to en-
gage the Child Protection Door Lock.
Overhead Console Buttons
1 — Liftgate
2 — Right Sliding Door
3 — Sliding Doors Power Off
4 — Left Sliding Door
Child Protection Door Locks
3
GETTING TO KNOW YOUR VEHICLE 67

3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:
•After engaging (or disengaging) the Child Protection
Door Lock, always test the inside door handle with the
sliding door closed to make certain the Child Protection
Door Lock is in the desired position. The inside door
handle will not open the sliding door when the Child
Protection Door Lock is engaged.
• The power sliding door will operate from the switch
located just inside the sliding door, regardless of the
Child Protection Door Lock lever position. To avoid
unintentional operation of the power sliding door
from the rear seats, push the sliding door power Off
button, located in the overhead console, to engage Safe
Lock. When the overhead console power OFF LED is lit,
the sliding door may not be power opened or closed by
pushing the buttons just inside the sliding doors or
pulling on the handles.WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the sliding doors cannot be opened
from the inside door handle when the Child Protection
Door Locks are engaged.
To Disengage The Child Protection Door Lock
1. Open the sliding side door.
2. Slide the Child Protection Door Lock control outward (away from the vehicle) to disengage the Child Protec-
tion Door Lock.
3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:
• After disengaging (or engaging) the Child Protection
Door Lock, always test the inside door handle with the
sliding door closed to make certain the Child Protection
Door Lock is in the desired position. The inside door
handle will open the sliding door when the Child
Protection Door Lock is disengaged.
68 GETTING TO KNOW YOUR VEHICLE
