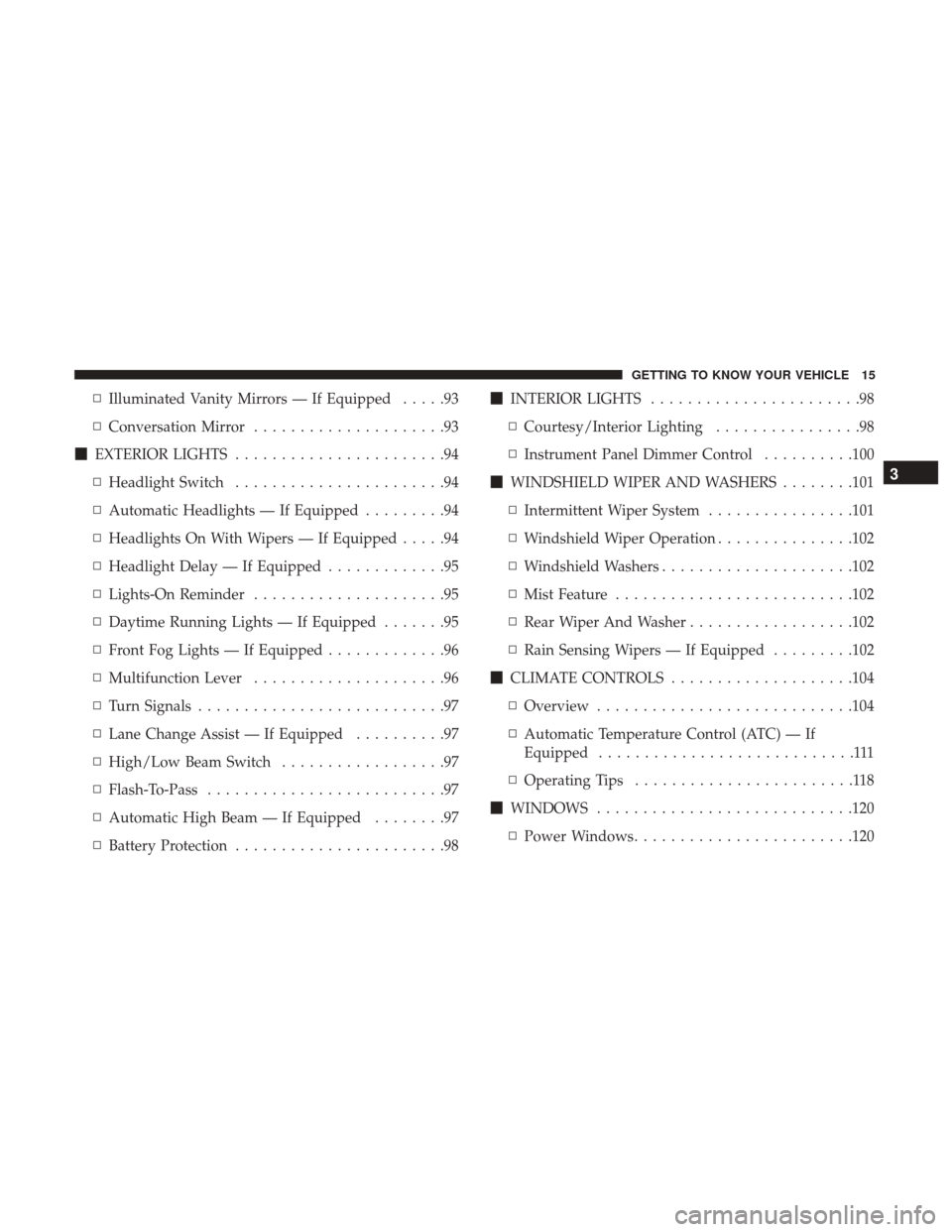

▫Illuminated Vanity Mirrors — If Equipped .....93
▫ Conversation Mirror .....................93
 EXTERIOR LIGHTS .......................94
▫ Headlight Switch .......................94
▫ Automatic Headlights — If Equipped .........94
▫ Headlights On With Wipers — If Equipped .....94
▫ Headlight Delay — If Equipped .............95
▫ Lights-On Reminder .....................95
▫ Daytime Running Lights — If Equipped .......95
▫ Front Fog Lights — If Equipped .............96
▫ Multifunction Lever .....................96
▫ Turn Signals ...........................97
▫ Lane Change Assist — If Equipped ..........97
▫ High/Low Beam Switch ..................97
▫ Flash-To-Pass ..........................97
▫ Automatic High Beam — If Equipped ........97
▫ Battery Protection .......................98
INTERIOR LIGHTS .......................98
▫ Courtesy/Interior Lighting ................98
▫ Instrument Panel Dimmer Control ..........100
 WINDSHIELD WIPER AND WASHERS ........101
▫ Intermittent Wiper System ................101
▫ Windshield Wiper Operation ...............102
▫ Windshield Washers .....................102
▫ Mist Feature ......................... .102
▫ Rear Wiper And Washer ..................102
▫ Rain Sensing Wipers — If Equipped .........102
 CLIMATE CONTROLS ....................104
▫ Overview ........................... .104
▫ Automatic Temperature Control (ATC) — If
Equipped ............................111
▫ Operating
Tips........................118
 WINDOWS ........................... .120
▫ Power Windows ....................... .120
3
GETTING TO KNOW YOUR VEHICLE 15

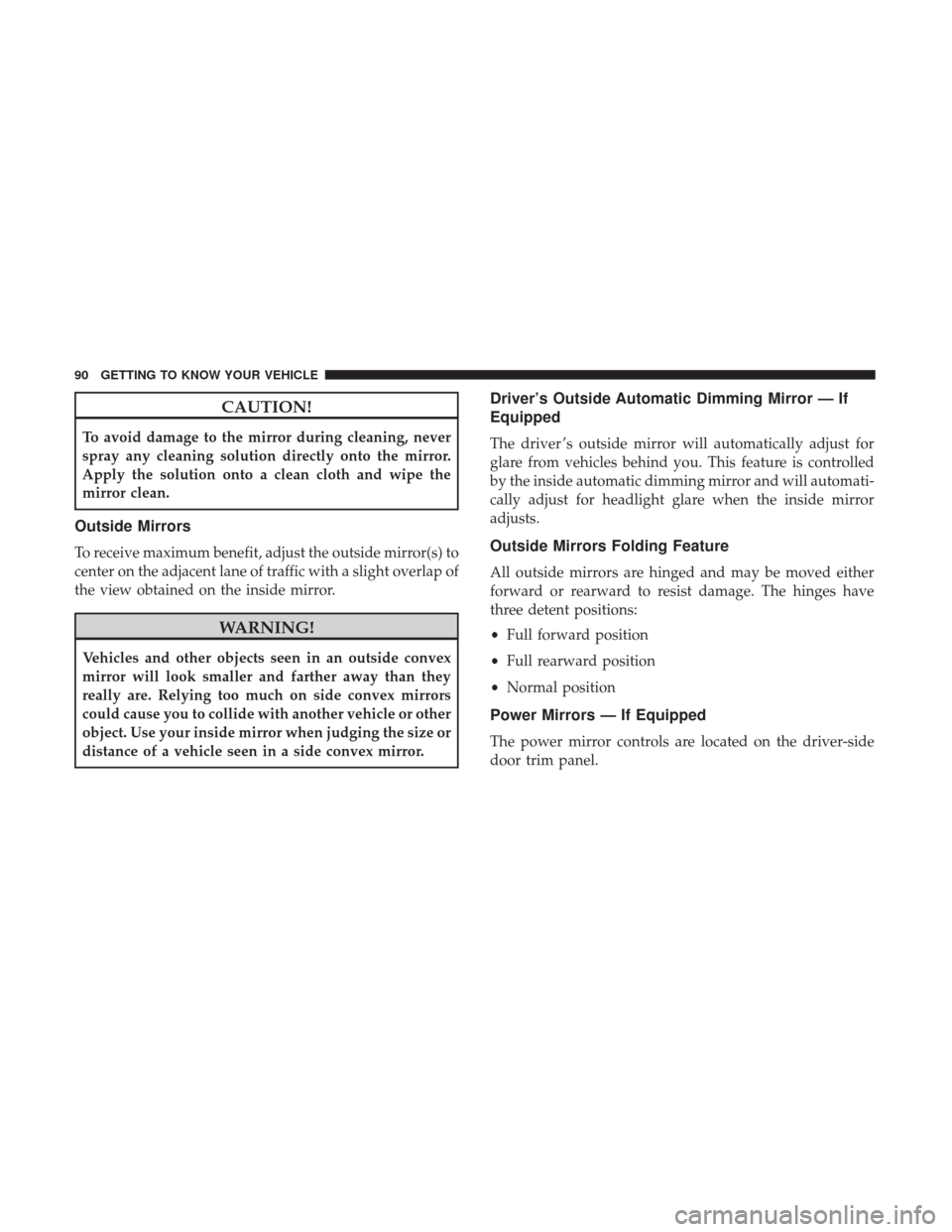

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s) to
center on the adjacent lane of traffic with a slight overlap of
the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or other
object. Use your inside mirror when judging the size or
distance of a vehicle seen in a side convex mirror.
Driver’s Outside Automatic Dimming Mirror — If
Equipped
The driver ’s outside mirror will automatically adjust for
glare from vehicles behind you. This feature is controlled
by the inside automatic dimming mirror and will automati-
cally adjust for headlight glare when the inside mirror
adjusts.
Outside Mirrors Folding Feature
All outside mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions:
•Full forward position
• Full rearward position
• Normal position
Power Mirrors — If Equipped
The power mirror controls are located on the driver-side
door trim panel.
90 GETTING TO KNOW YOUR VEHICLE

The power mirror controls consist of mirror select buttons
and a four-way mirror control switch. To adjust a mirror,
push either the L (left) or R (right) to select the mirror that
you want to adjust.NOTE:
A light in the selected button will illuminate
indicating the mirror is activated and can be adjusted.
Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to move.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Climate
Controls” for further information.
Power Mirror Controls
3
GETTING TO KNOW YOUR VEHICLE 91

IconDescription
AUTO Button
Automatically controls the interior cabin temperature by adjusting airflow distribution and
amount. Toggling this function will cause the system to switch between manual mode and auto-
matic modes. Refer to “Automatic Operation” for more information.
Front Defrost Button
Press and release to change the current airflow setting to Defrost mode. The indicator illumi-
nates when this feature is on. Air comes from the windshield and side window demist outlets.
When the defrost button is selected, the blower level may increase. Use Defrost mode with
maximum temperature settings for best windshield and side window defrosting and defogging.
Performing this function will cause the ATC to switch into manual mode. If the front defrost
mode is turned off the climate system will return the previous setting.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after 10 minutes.
Rear Climate Rear Climate Control Button Press and release this button to access the rear climate controls. The indicator will illuminate
when the rear climate controls are on.
106 GETTING TO KNOW YOUR VEHICLE

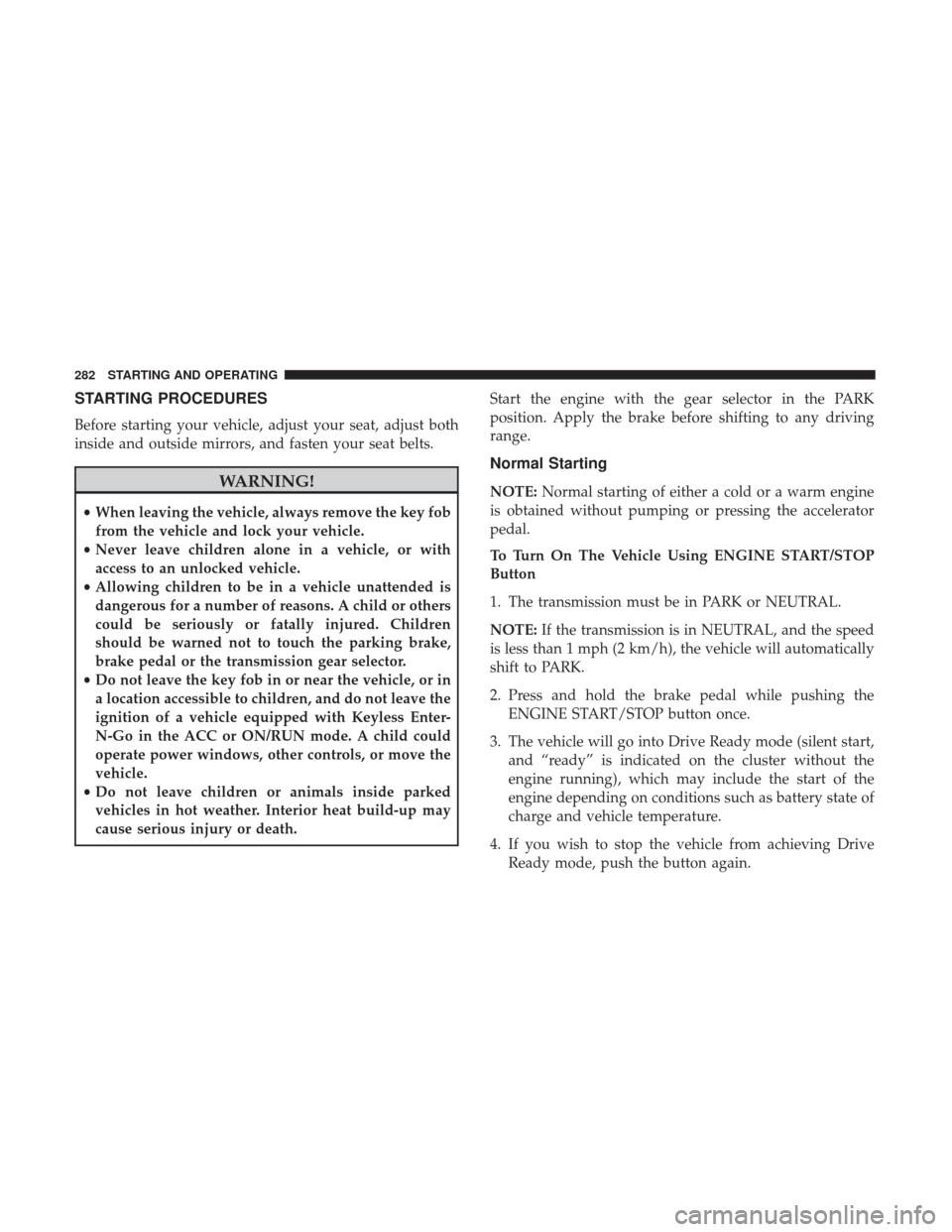

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•When leaving the vehicle, always remove the key fob
from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death. Start the engine with the gear selector in the PARK
position. Apply the brake before shifting to any driving
range.
Normal Starting
NOTE:
Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn On The Vehicle Using ENGINE START/STOP
Button
1. The transmission must be in PARK or NEUTRAL.
NOTE: If the transmission is in NEUTRAL, and the speed
is less than 1 mph (2 km/h), the vehicle will automatically
shift to PARK.
2. Press and hold the brake pedal while pushing the ENGINE START/STOP button once.
3. The vehicle will go into Drive Ready mode (silent start, and “ready” is indicated on the cluster without the
engine running), which may include the start of the
engine depending on conditions such as battery state of
charge and vehicle temperature.
4. If you wish to stop the vehicle from achieving Drive Ready mode, push the button again.
282 STARTING AND OPERATING

Modes Of Operation
Additional camera modes can be selected when the vehicle
is in any gear and the surround view camera system is
activated by pressing the soft key located in the “Controls”
screen or the “Apps” screen in the Uconnect system.
Top View
The Top view will show in the Uconnect System with Rear
View and Front View in a split view display. There is
integrated ParkSense arcs in the image at the front and rear
of the vehicle. The arcs will change color from yellow to red
corresponding the distance zones to the oncoming object.NOTE:
•
Front tires will be in image when the tires are turned.
• Due to wide angle cameras in mirror, the image will
appear distorted.
• Top view will show which sliding doors are open.
• Open Front doors will remove outside image.
Rear View
This is the Default view of the system in
REVERSE and is always paired with the
Top view of the vehicle with optional
active guide lines for the projected path
when enabled.
Rear Cross Path View Pressing the Rear Cross Path soft key
will give the driver a wider angle view
of the rear camera system. The Top view
will be disabled when this is selected.
ParkSense Arcs
372 STARTING AND OPERATING

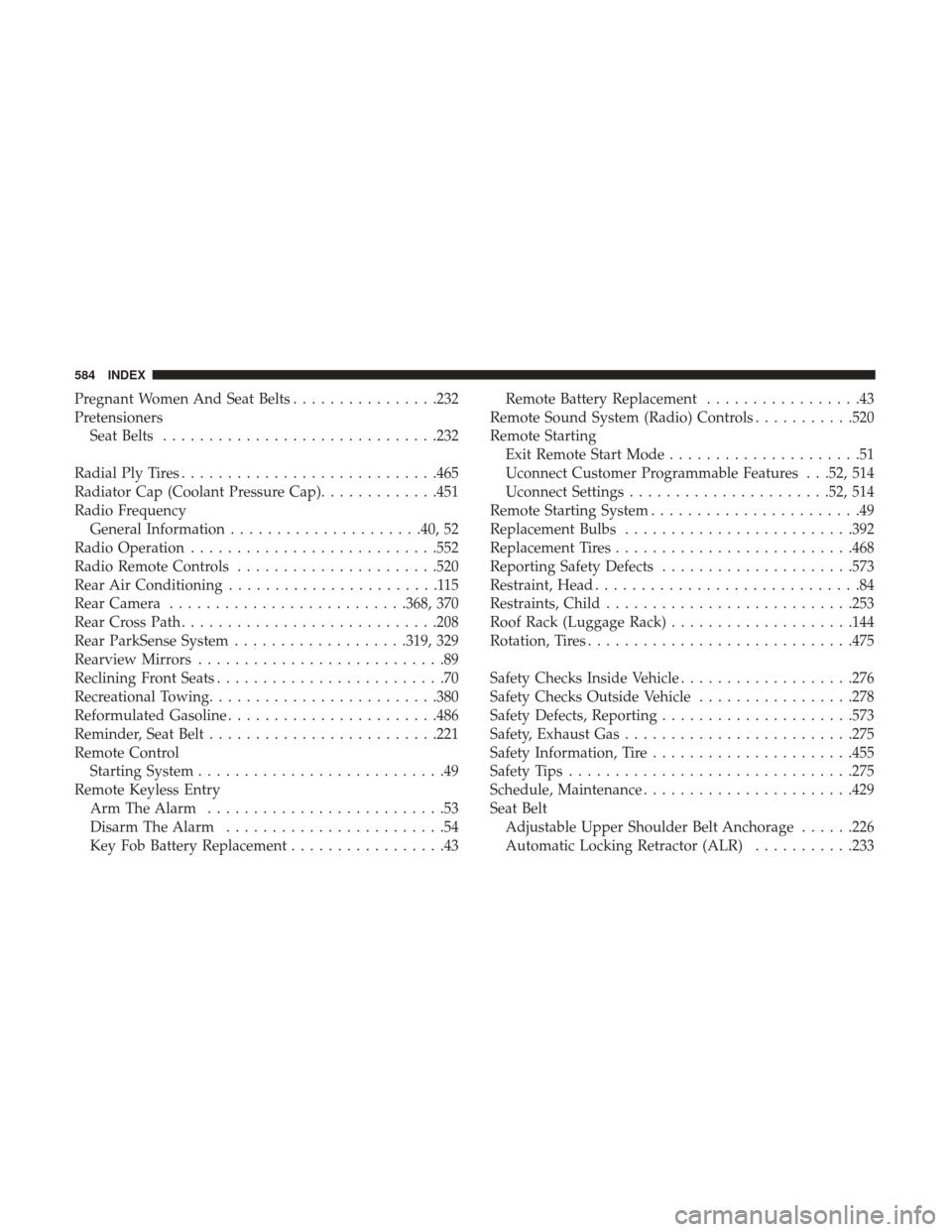

Pregnant Women And Seat Belts................232
Pretensioners Seat Belts ............................. .232
Radial Ply Tires ........................... .465
Radiator Cap (Coolant Pressure Cap) .............451
Radio Frequency General Information .....................40, 52
Radio Operation .......................... .552
Radio Remote Controls ..................... .520
Rear Air Conditioning .......................115
Rear Camera ......................... .368, 370
Rear Cross Path ........................... .208
Rear ParkSense System ...................319, 329
Rearview Mirrors ...........................89
Reclining Front Seats .........................70
Recreational Towing ........................ .380
Reformulated Gasoline ...................... .486
Reminder, Seat Belt ........................ .221
Remote Control Starting System ...........................49
Remote Keyless Entry Arm The Alarm ..........................53
Disarm The Alarm ........................54
Key Fob Battery Replacement .................43 Remote Battery Replacement
.................43
Remote Sound System (Radio) Controls ...........520
Remote Starting Exit Remote Start Mode .....................51
Uconnect Customer Programmable Features . . .52, 514
Uconnect Settings ..................... .52, 514
Remote Starting System .......................49
Replacement Bulbs ........................ .392
Replacement Tires ......................... .468
Reporting Safety Defects .....................573
Restraint, Head .............................84
Restraints, Child .......................... .253
Roof Rack (Luggage Rack) ....................144
Rotation, Tires ............................ .475
Safety Checks Inside Vehicle ...................276
Safety Checks Outside Vehicle .................278
Safety Defects, Reporting .....................573
Safety, Exhaust Gas ........................ .275
Safety

Information, Tire ..................... .455
Safety Tips .............................. .275
Schedule, Maintenance ...................... .429
Seat Belt Adjustable Upper Shoulder Belt Anchorage ......226
Automatic Locking Retractor (ALR) ...........233
584 INDEX
