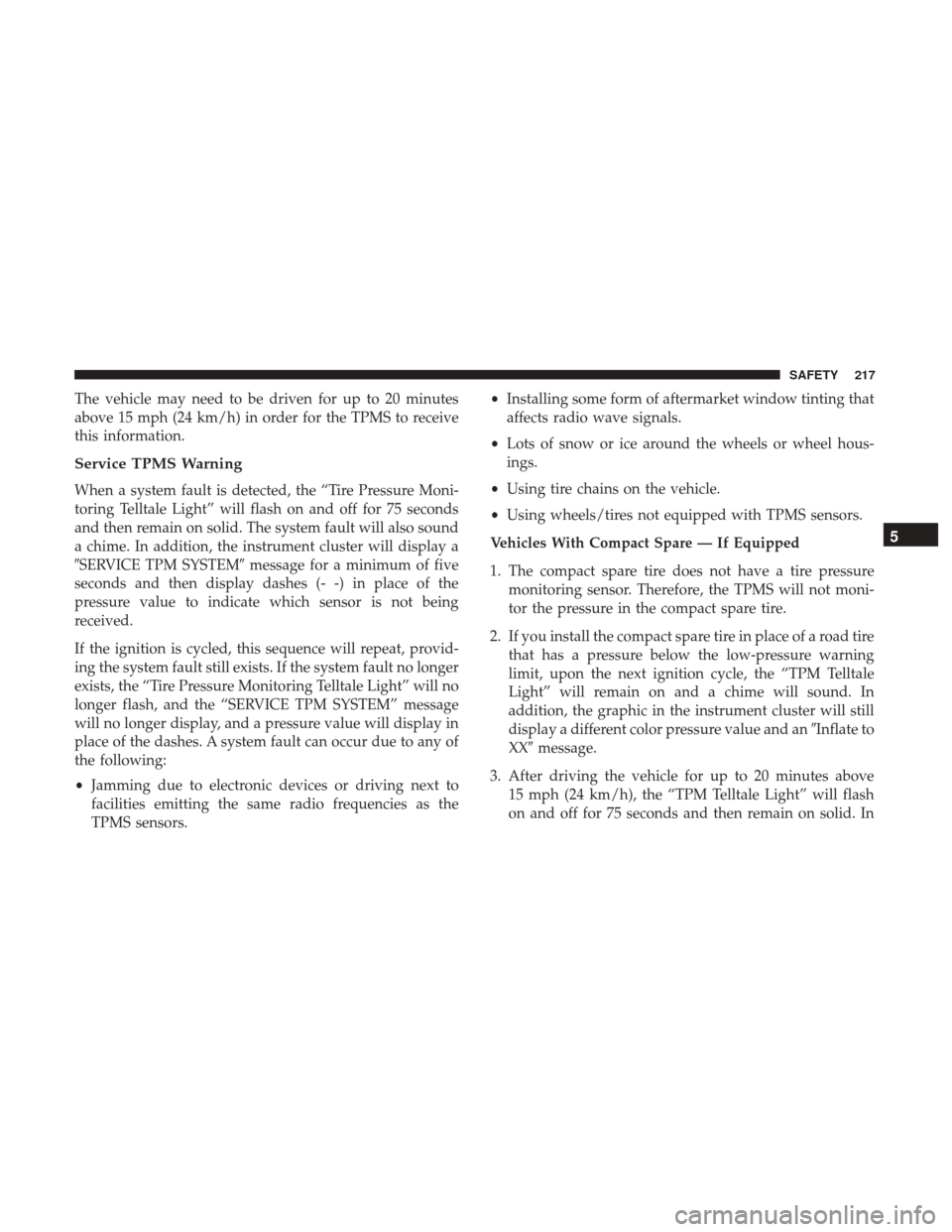

The vehicle may need to be driven for up to 20 minutes
above 15 mph (24 km/h) in order for the TPMS to receive
this information.
Service TPMS Warning
When a system fault is detected, the “Tire Pressure Moni-
toring Telltale Light” will flash on and off for 75 seconds
and then remain on solid. The system fault will also sound
a chime. In addition, the instrument cluster will display a
SERVICE TPM SYSTEMmessage for a minimum of five
seconds and then display dashes (- -) in place of the
pressure value to indicate which sensor is not being
received.
If the ignition is cycled, this sequence will repeat, provid-
ing the system fault still exists. If the system fault no longer
exists, the “Tire Pressure Monitoring Telltale Light” will no
longer flash, and the “SERVICE TPM SYSTEM” message
will no longer display, and a pressure value will display in
place of the dashes. A system fault can occur due to any of
the following:
• Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the
TPMS sensors. •
Installing some form of aftermarket window tinting that
affects radio wave signals.
• Lots of snow or ice around the wheels or wheel hous-
ings.
• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPMS sensors.
Vehicles With Compact Spare — If Equipped
1. The compact spare tire does not have a tire pressure monitoring sensor. Therefore, the TPMS will not moni-
tor the pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road tire that has a pressure below the low-pressure warning
limit, upon the next ignition cycle, the “TPM Telltale
Light” will remain on and a chime will sound. In
addition, the graphic in the instrument cluster will still
display a different color pressure value and an Inflate to
XX message.
3. After driving the vehicle for up to 20 minutes above 15 mph (24 km/h), the “TPM Telltale Light” will flash
on and off for 75 seconds and then remain on solid. In
5
SAFETY 217

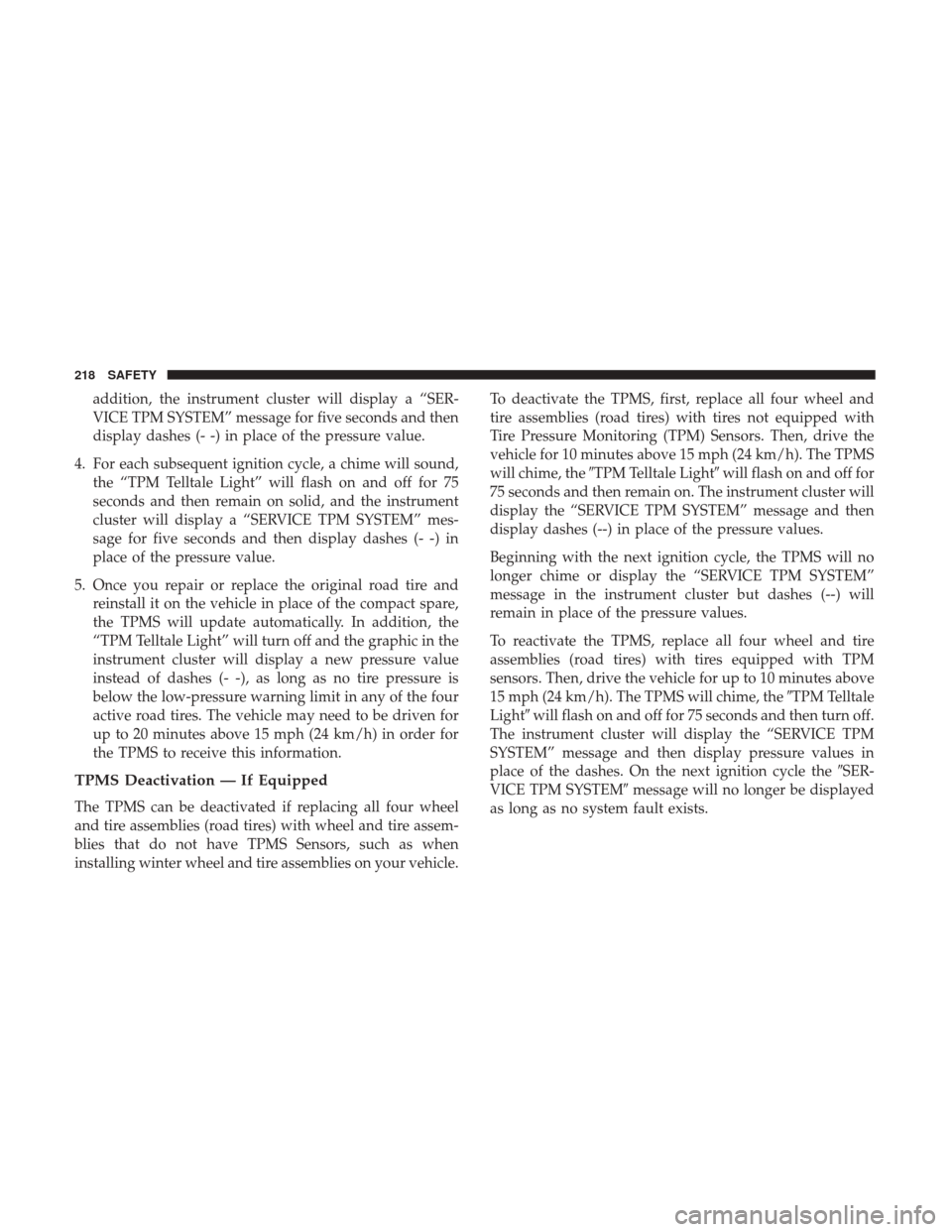

addition, the instrument cluster will display a “SER-
VICE TPM SYSTEM” message for five seconds and then
display dashes (- -) in place of the pressure value.
4. For each subsequent ignition cycle, a chime will sound, the “TPM Telltale Light” will flash on and off for 75
seconds and then remain on solid, and the instrument
cluster will display a “SERVICE TPM SYSTEM” mes-
sage for five seconds and then display dashes (- -) in
place of the pressure value.
5. Once you repair or replace the original road tire and reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
“TPM Telltale Light” will turn off and the graphic in the
instrument cluster will display a new pressure value
instead of dashes (- -), as long as no tire pressure is
below the low-pressure warning limit in any of the four
active road tires. The vehicle may need to be driven for
up to 20 minutes above 15 mph (24 km/h) in order for
the TPMS to receive this information.
TPMS Deactivation — If Equipped
The TPMS can be deactivated if replacing all four wheel
and tire assemblies (road tires) with wheel and tire assem-
blies that do not have TPMS Sensors, such as when
installing winter wheel and tire assemblies on your vehicle. To deactivate the TPMS, first, replace all four wheel and
tire assemblies (road tires) with tires not equipped with
Tire Pressure Monitoring (TPM) Sensors. Then, drive the
vehicle for 10 minutes above 15 mph (24 km/h). The TPMS
will chime, the
TPM Telltale Light will flash on and off for
75 seconds and then remain on. The instrument cluster will
display the “SERVICE TPM SYSTEM” message and then
display dashes (--) in place of the pressure values.
Beginning with the next ignition cycle, the TPMS will no
longer chime or display the “SERVICE TPM SYSTEM”
message in the instrument cluster but dashes (--) will
remain in place of the pressure values.
To reactivate the TPMS, replace all four wheel and tire
assemblies (road tires) with tires equipped with TPM
sensors. Then, drive the vehicle for up to 10 minutes above
15 mph (24 km/h). The TPMS will chime, the TPM Telltale
Light will flash on and off for 75 seconds and then turn off.
The instrument cluster will display the “SERVICE TPM
SYSTEM” message and then display pressure values in
place of the dashes. On the next ignition cycle the SER-
VICE TPM SYSTEM message will no longer be displayed
as long as no system fault exists.
218 SAFETY

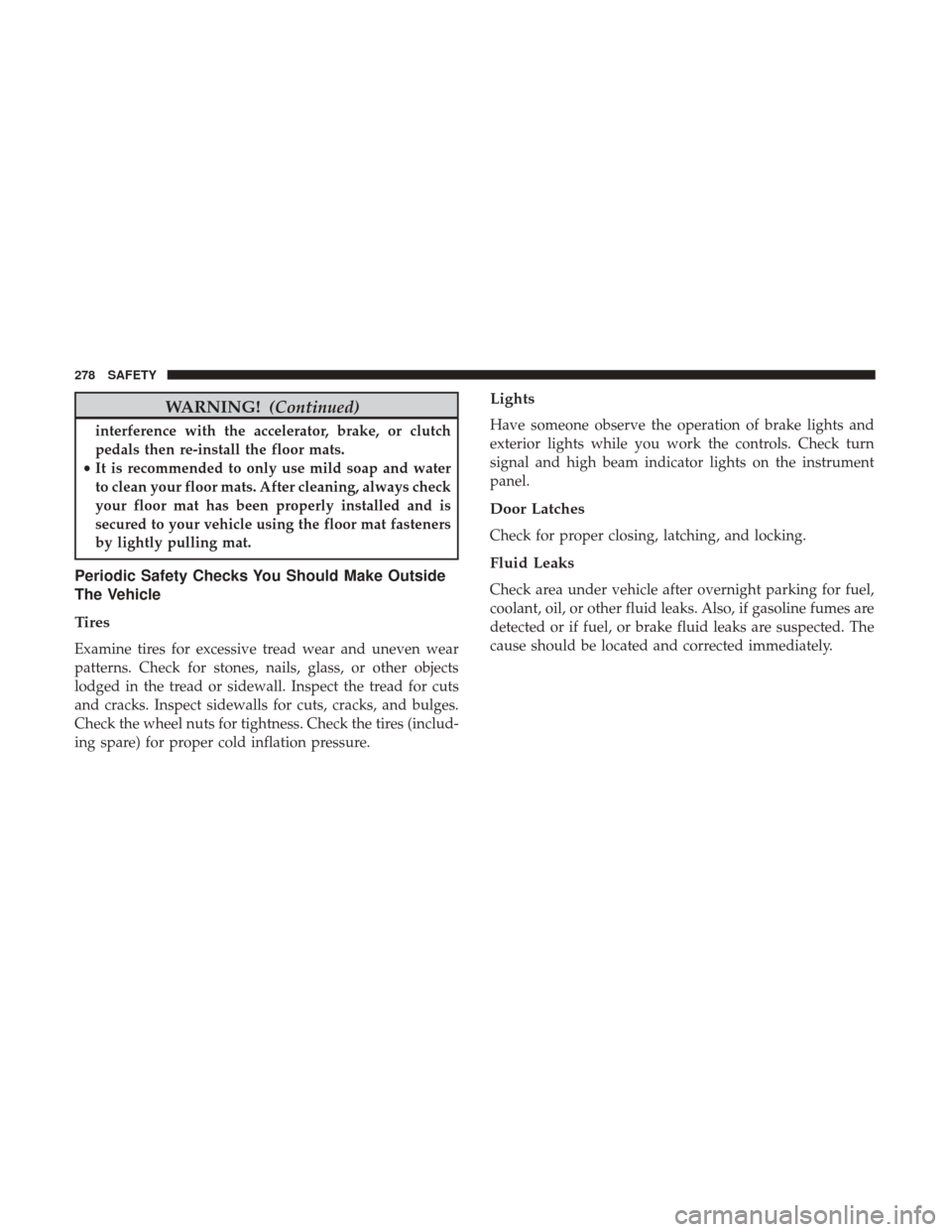

WARNING!(Continued)
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
coolant, oil, or other fluid leaks. Also, if gasoline fumes are
detected or if fuel, or brake fluid leaks are suspected. The
cause should be located and corrected immediately.
278 SAFETY

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................429
▫ Maintenance Plan ...................... .430
▫ Heavy Duty Use Of The Vehicle ............432
 ENGINE COMPARTMENT — HYBRID ........433
▫ Checking Oil Level .....................434
▫ Adding Washer Fluid ...................434
▫ Maintenance-Free Battery .................435
 DEALER SERVICE ...................... .436
▫ Engine Oil .......................... .436
▫ Engine Oil Filter ...................... .438
▫ Engine Air Cleaner Filter .................438
▫ Accessory Drive Belt Inspection ............439
▫ Air Conditioner Maintenance ..............440
▫ Body Lubrication ..................... .441▫
Windshield Wiper Blades .................441
▫ Exhaust System ....................... .446
▫ Cooling System ....................... .447
▫ Brake System ........................ .453
▫ Automatic Transmission ..................454
 RAISING THE VEHICLE ..................455
 TIRES ............................... .455
▫ Tire Safety Information ..................455
▫ Tires — General Information ..............463
▫ Tire Types ........................... .469
▫ Spare Tires — If Equipped ................470
▫ Wheel And Wheel Trim Care ..............472
▫ T

ire Chains (Traction Devices) .............474
▫ Tire Rotation Recommendations ............475
8

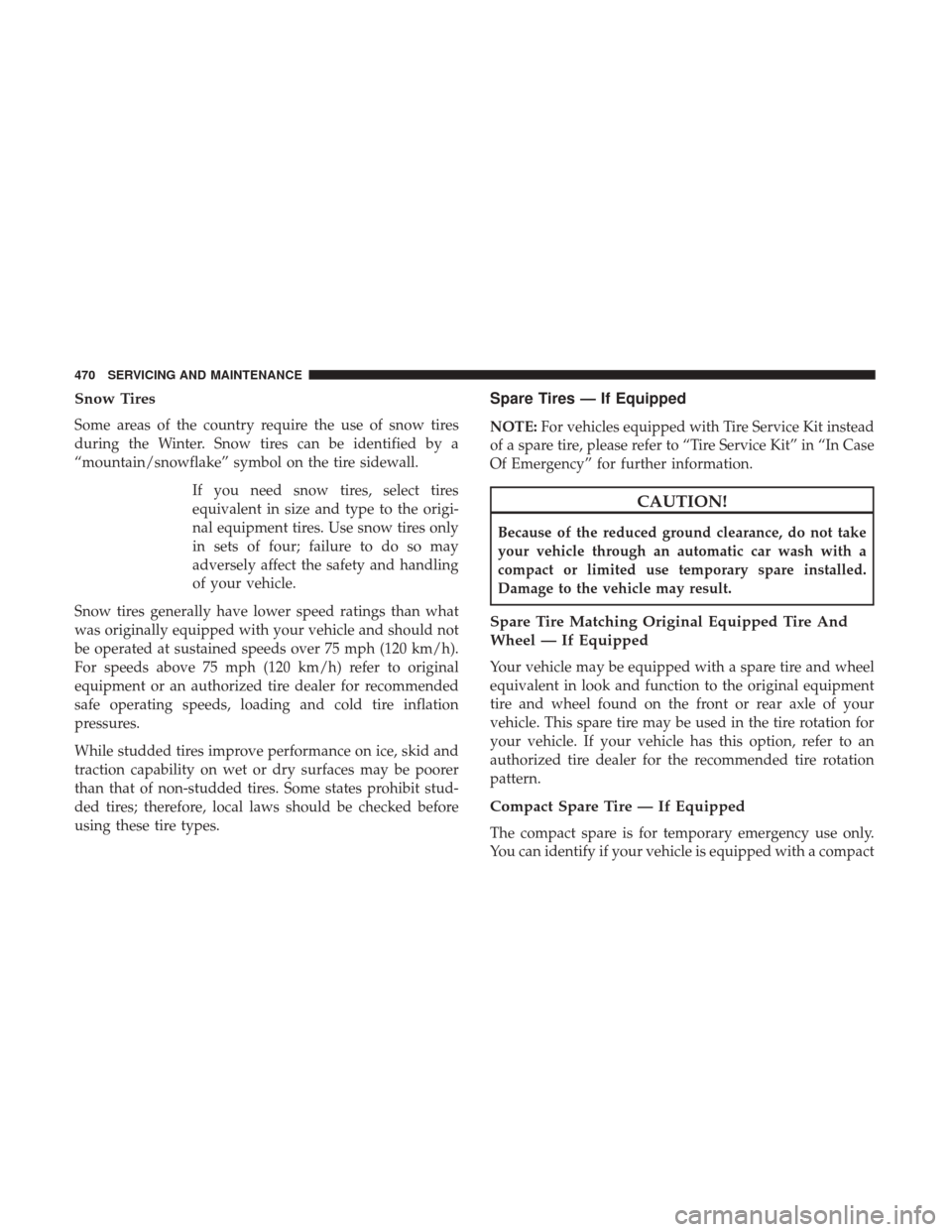

Snow Tires
Some areas of the country require the use of snow tires
during the Winter. Snow tires can be identified by a
“mountain/snowflake” symbol on the tire sidewall.If you need snow tires, select tires
equivalent in size and type to the origi-
nal equipment tires. Use snow tires only
in sets of four; failure to do so may
adversely affect the safety and handling
of your vehicle.
Snow tires generally have lower speed ratings than what
was originally equipped with your vehicle and should not
be operated at sustained speeds over 75 mph (120 km/h).
For speeds above 75 mph (120 km/h) refer to original
equipment or an authorized tire dealer for recommended
safe operating speeds, loading and cold tire inflation
pressures.
While studded tires improve performance on ice, skid and
traction capability on wet or dry surfaces may be poorer
than that of non-studded tires. Some states prohibit stud-
ded tires; therefore, local laws should be checked before
using these tire types.
Spare Tires — If Equipped
NOTE: For vehicles equipped with Tire Service Kit instead
of a spare tire, please refer to “Tire Service Kit” in “In Case
Of Emergency” for further information.
CAUTION!
Because of the reduced ground clearance, do not take
your vehicle through an automatic car wash with a
compact or limited use temporary spare installed.
Damage to the vehicle may result.
Spare Tire Matching Original Equipped Tire And
Wheel — If Equipped
Your vehicle may be equipped with a spare tire and wheel
equivalent in look and function to the original equipment
tire and wheel found on the front or rear axle of your
vehicle. This spare tire may be used in the tire rotation for
your vehicle. If your vehicle has this option, refer to an
authorized tire dealer for the recommended tire rotation
pattern.
Compact Spare Tire — If Equipped
The compact spare is for temporary emergency use only.
You can identify if your vehicle is equipped with a compact
470 SERVICING AND MAINTENANCE

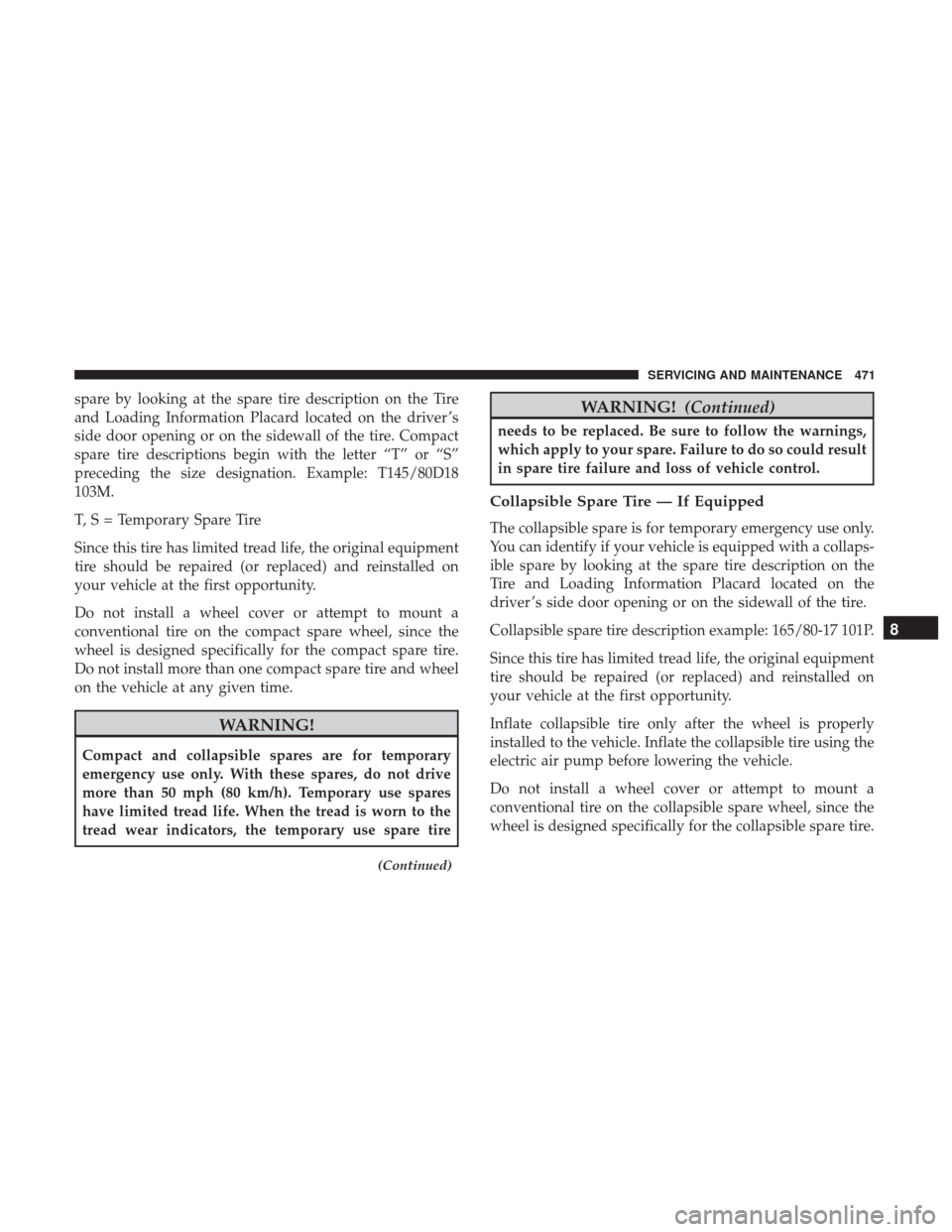

spare by looking at the spare tire description on the Tire
and Loading Information Placard located on the driver ’s
side door opening or on the sidewall of the tire. Compact
spare tire descriptions begin with the letter “T” or “S”
preceding the size designation. Example: T145/80D18
103M.
T, S = Temporary Spare Tire
Since this tire has limited tread life, the original equipment
tire should be repaired (or replaced) and reinstalled on
your vehicle at the first opportunity.
Do not install a wheel cover or attempt to mount a
conventional tire on the compact spare wheel, since the
wheel is designed specifically for the compact spare tire.
Do not install more than one compact spare tire and wheel
on the vehicle at any given time.
WARNING!
Compact and collapsible spares are for temporary
emergency use only. With these spares, do not drive
more than 50 mph (80 km/h). Temporary use spares
have limited tread life. When the tread is worn to the
tread wear indicators, the temporary use spare tire
(Continued)
WARNING!(Continued)
needs to be replaced. Be sure to follow the warnings,
which apply to your spare. Failure to do so could result
in spare tire failure and loss of vehicle control.
Collapsible Spare Tire — If Equipped
The collapsible spare is for temporary emergency use only.
You can identify if your vehicle is equipped with a collaps-
ible spare by looking at the spare tire description on the
Tire and Loading Information Placard located on the
driver ’s side door opening or on the sidewall of the tire.
Collapsible spare tire description example: 165/80-17 101P.
Since this tire has limited tread life, the original equipment
tire should be repaired (or replaced) and reinstalled on
your vehicle at the first opportunity.
Inflate collapsible tire only after the wheel is properly
installed to the vehicle. Inflate the collapsible tire using the
electric air pump before lowering the vehicle.
Do not install a wheel cover or attempt to mount a
conventional tire on the collapsible spare wheel, since the
wheel is designed specifically for the collapsible spare tire.
8
SERVICING AND MAINTENANCE 471

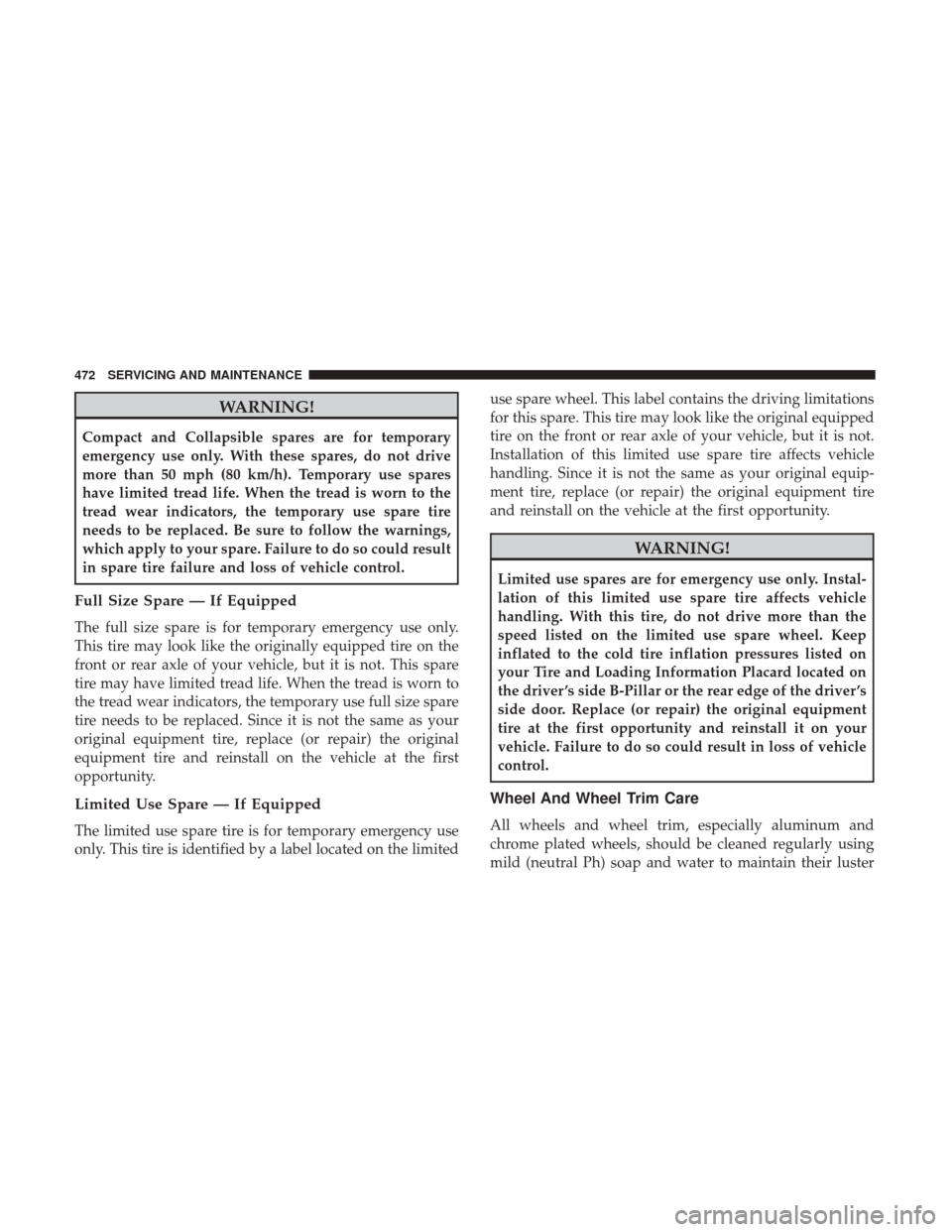

WARNING!
Compact and Collapsible spares are for temporary
emergency use only. With these spares, do not drive
more than 50 mph (80 km/h). Temporary use spares
have limited tread life. When the tread is worn to the
tread wear indicators, the temporary use spare tire
needs to be replaced. Be sure to follow the warnings,
which apply to your spare. Failure to do so could result
in spare tire failure and loss of vehicle control.
Full Size Spare — If Equipped
The full size spare is for temporary emergency use only.
This tire may look like the originally equipped tire on the
front or rear axle of your vehicle, but it is not. This spare
tire may have limited tread life. When the tread is worn to
the tread wear indicators, the temporary use full size spare
tire needs to be replaced. Since it is not the same as your
original equipment tire, replace (or repair) the original
equipment tire and reinstall on the vehicle at the first
opportunity.
Limited Use Spare — If Equipped
The limited use spare tire is for temporary emergency use
only. This tire is identified by a label located on the limiteduse spare wheel. This label contains the driving limitations
for this spare. This tire may look like the original equipped
tire on the front or rear axle of your vehicle, but it is not.
Installation of this limited use spare tire affects vehicle
handling. Since it is not the same as your original equip-
ment tire, replace (or repair) the original equipment tire
and reinstall on the vehicle at the first opportunity.
WARNING!
Limited use spares are for emergency use only. Instal-
lation of this limited use spare tire affects vehicle
handling. With this tire, do not drive more than the
speed listed on the limited use spare wheel. Keep
inflated to the cold tire inflation pressures listed on
your Tire and Loading Information Placard located on
the driver ’s side B-Pillar or the rear edge of the driver ’s
side door. Replace (or repair) the original equipment
tire at the first opportunity and reinstall it on your
vehicle. Failure to do so could result in loss of vehicle
control.
Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly using
mild (neutral Ph) soap and water to maintain their luster
472 SERVICING AND MAINTENANCE

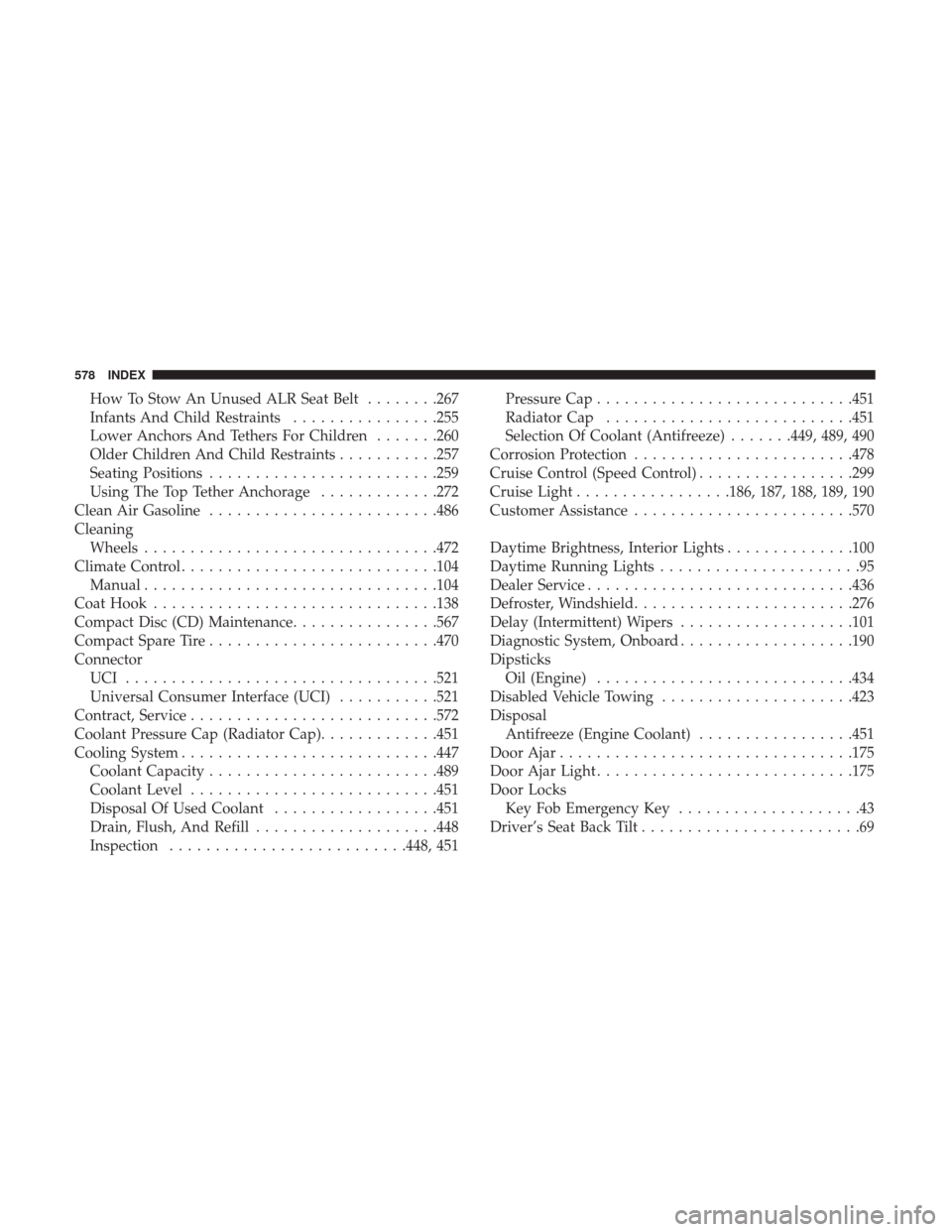

How To Stow An Unused ALR Seat Belt........267
Infants And Child Restraints ................255
Lower Anchors And Tethers For Children .......260
Older Children And Child Restraints ...........257
Seating Positions ........................ .259
Using The Top Tether Anchorage .............272
Clean Air Gasoline ........................ .486
Cleaning Wheels ............................... .472
Climate Control ........................... .104
Manual ............................... .104
Coat Hook .............................. .138
Compact Disc (CD) Maintenance ................567
Compact Spare Tire ........................ .470
Connector UCI ................................. .521
Universal Consumer Interface (UCI) ...........521
Contract, Service .......................... .572
Coolant Pressure Cap (Radiator Cap) .............451
Cooling System ........................... .447
Coolant Capacity ........................ .489
Coolant Level .......................... .451
Disposal Of Used Coolant ..................451
Drain, Flush, And Refill ....................448
Inspection ......................... .448, 451Pressure Cap
........................... .451
Radiator Cap .......................... .451
Selection Of Coolant (Antifreeze) .......449, 489, 490
Corrosion Protection ....................... .478
Cruise Control (Speed Control) .................299
Cruise Light .................186, 187, 188, 189, 190
Customer Assistance ....................... .570
Daytime Brightness, Interior Lights ..............100
Daytime Running Lights ......................95
Dealer Service ............................ .436
Defroster, Windshield ....................... .276
Delay

(Intermittent) Wipers ...................101
Diagnostic System, Onboard ...................190
Dipsticks Oil (Engine) ........................... .434
Disabled Vehicle Towing .....................423
Disposal Antifreeze (Engine Coolant) .................451
Door Ajar ............................... .175
Door Ajar Light ........................... .175
Door Locks Key Fob Emergency Key ....................43
Driver’s Seat Back Tilt ........................69
578 INDEX

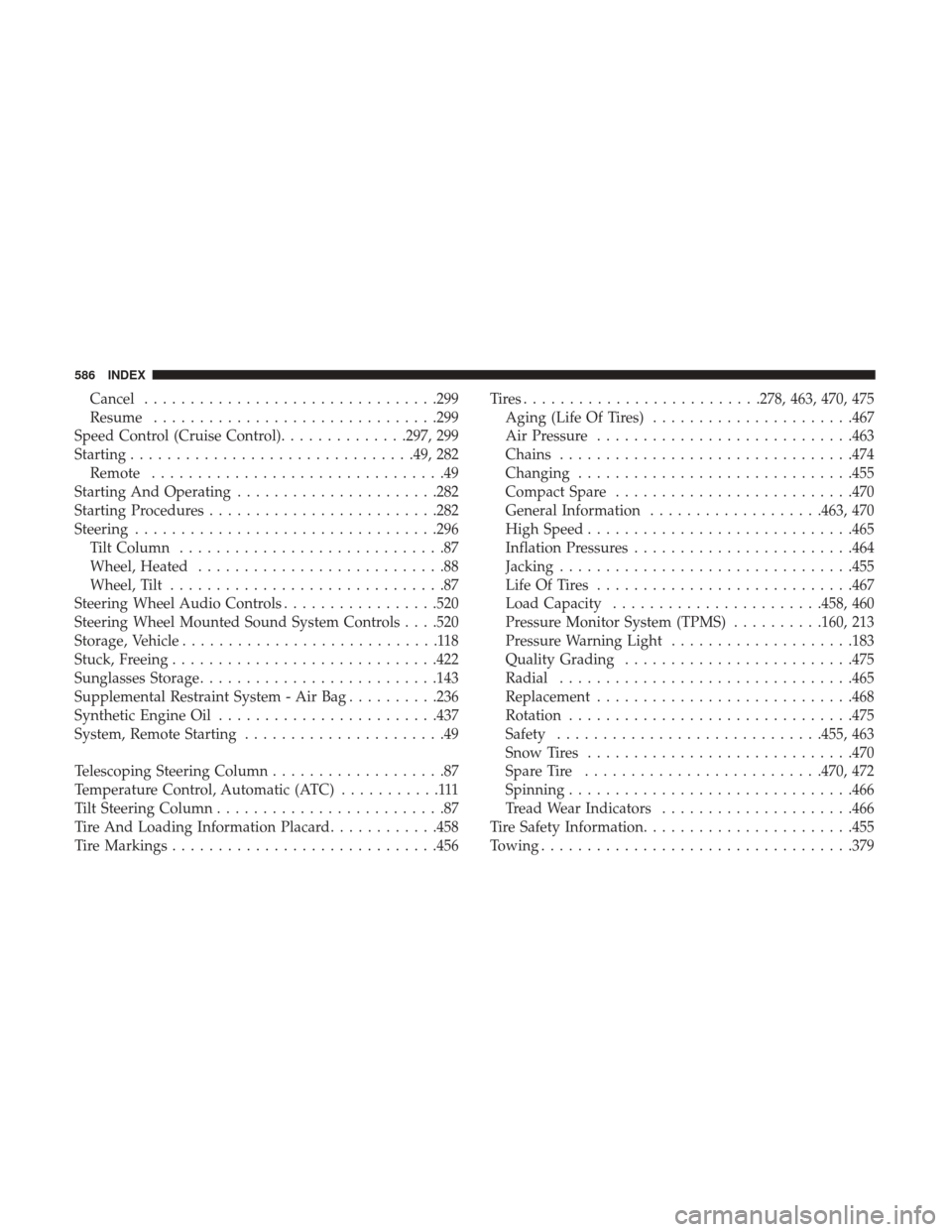

Cancel............................... .299
Resume .............................. .299
Speed Control (Cruise Control) ..............297, 299
Starting .............................. .49, 282
Remote ................................49
Starting And Operating ..................... .282
Starting Procedures ........................ .282
Steering ................................ .296
Tilt Column .............................87
Wheel, Heated ...........................88
Wheel, Tilt ..............................87
Steering Wheel Audio Controls .................520
Steering Wheel Mounted Sound System Controls . . . .520
Storage, Vehicle ............................118
Stuck, Freeing ............................ .422
Sunglasses Storage ......................... .143
Supplemental Restraint System - Air Bag ..........236
Synthetic Engine Oil ....................... .437
System, Remote Starting ......................49
Telescoping Steering Column ...................87
Temperature Control, Automatic (ATC) ...........111
Tilt Steering Column .........................87
Tire And Loading Information Placard ............458
Tire Markings ............................ .456Tires.........................
.278, 463, 470, 475
Aging (Life Of Tires) ..................... .467
Air Pressure ........................... .463
Chains ............................... .474
Changing ............................. .455
Compact Spare ......................... .470
General Information ...................463, 470
High Speed ............................ .465
Inflation Pressures ....................... .464
Jacking ............................... .455
Life Of Tires ........................... .467
Load Capacity ...................... .458, 460
Pressure Monitor System (TPMS) ..........160, 213
Pressure Warning Light ....................183
Quality

Grading ........................ .475
Radial ............................... .465
Replacement ........................... .468
Rotation .............................. .475
Safety ............................ .455, 463
Snow Tires ............................ .470
Spare Tire ......................... .470, 472
Spinning .............................. .466
Tread Wear Indicators .....................466
Tire Safety Information ...................... .455
Towing ................................. .379
586 INDEX
