CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt (15
Amp) power rating is exceeded the fuse protecting the
system will need to be replaced.
Smoker’s Package Kit — If Equipped
With the optional authorized dealer-installed Smoker’s
Package Kit, a removable ash receiver is inserted into one
of the two cupholders in the center floor console. To install
the ash receiver, align the receiver so the thumb grip on the
lid is facing rearward. Push the ash receiver into either of
the cup wells to secure. Pull upward on the ash receiver to
remove for cleaning and/or storage.
The left rear trim panel cupholder is designed to accom-
modate a second ash receiver, if desired.
Overhead Sunglass Storage
At the front of the overhead console, a compartment is
provided for the storage of one pair of sunglasses.
From the closed position, push the intention to open the
compartment.
Overhead Sunglass Door Latch
3
GETTING TO KNOW YOUR VEHICLE 149

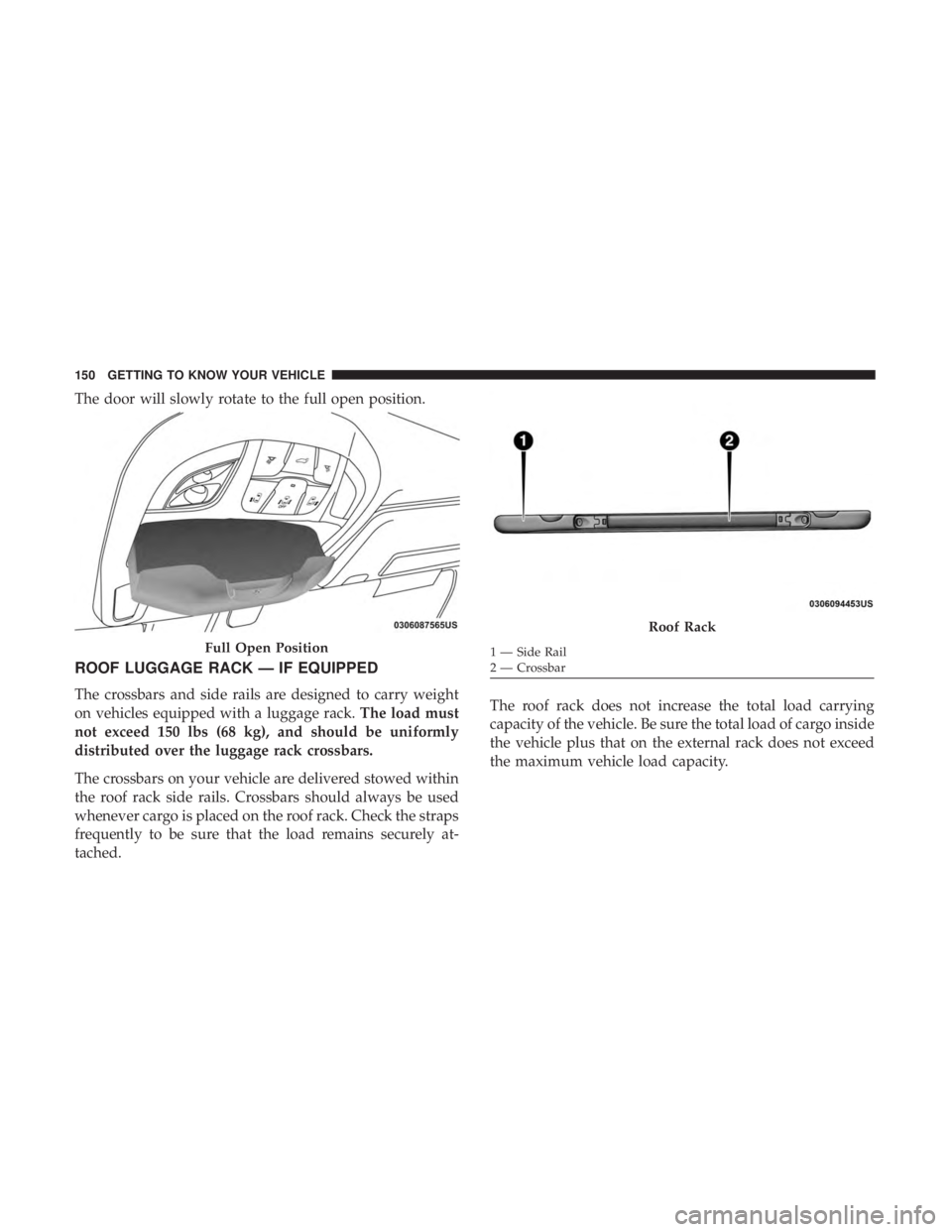

The door will slowly rotate to the full open position.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and side rails are designed to carry weight
on vehicles equipped with a luggage rack.The load must
not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.
The crossbars on your vehicle are delivered stowed within
the roof rack side rails. Crossbars should always be used
whenever cargo is placed on the roof rack. Check the straps
frequently to be sure that the load remains securely at-
tached. The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo inside
the vehicle plus that on the external rack does not exceed
the maximum vehicle load capacity.
Full Open Position
Roof Rack
1 — Side Rail
2 — Crossbar
150 GETTING TO KNOW YOUR VEHICLE

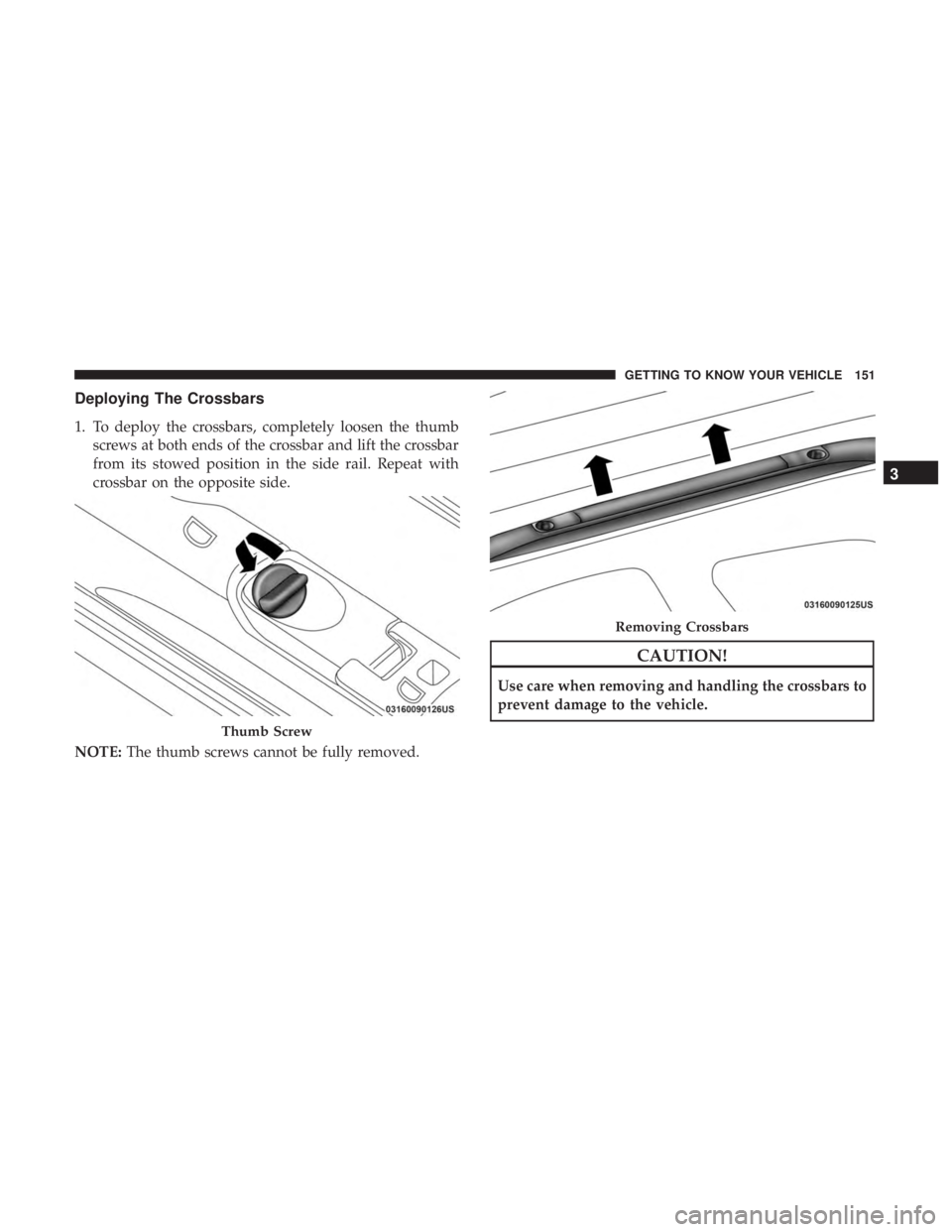

Deploying The Crossbars
1. To deploy the crossbars, completely loosen the thumbscrews at both ends of the crossbar and lift the crossbar
from its stowed position in the side rail. Repeat with
crossbar on the opposite side.
NOTE: The thumb screws cannot be fully removed.
CAUTION!
Use care when removing and handling the crossbars to
prevent damage to the vehicle.
Thumb Screw
Removing Crossbars
3
GETTING TO KNOW YOUR VEHICLE 151

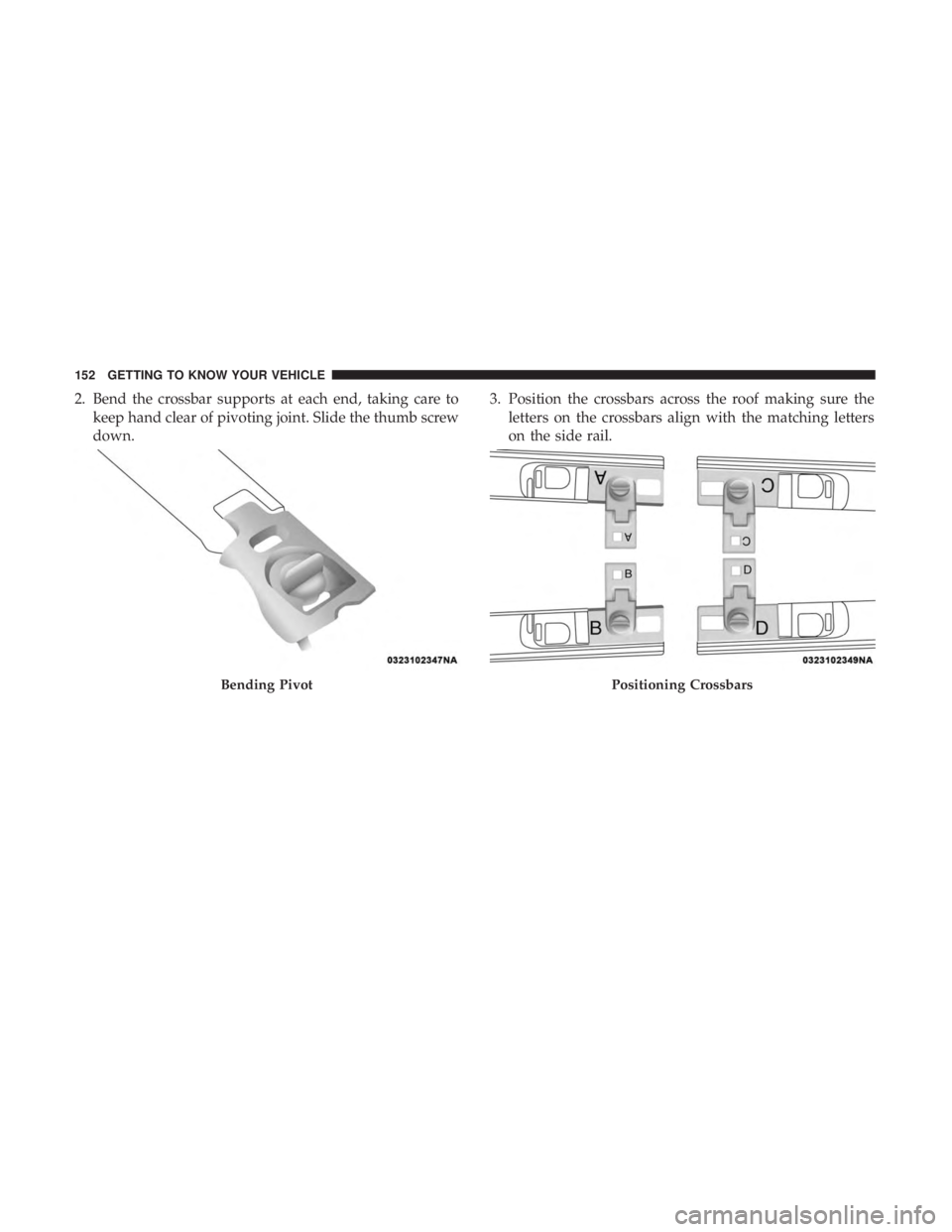

2. Bend the crossbar supports at each end, taking care tokeep hand clear of pivoting joint. Slide the thumb screw
down. 3. Position the crossbars across the roof making sure the
letters on the crossbars align with the matching letters
on the side rail.
Bending PivotPositioning Crossbars
152 GETTING TO KNOW YOUR VEHICLE

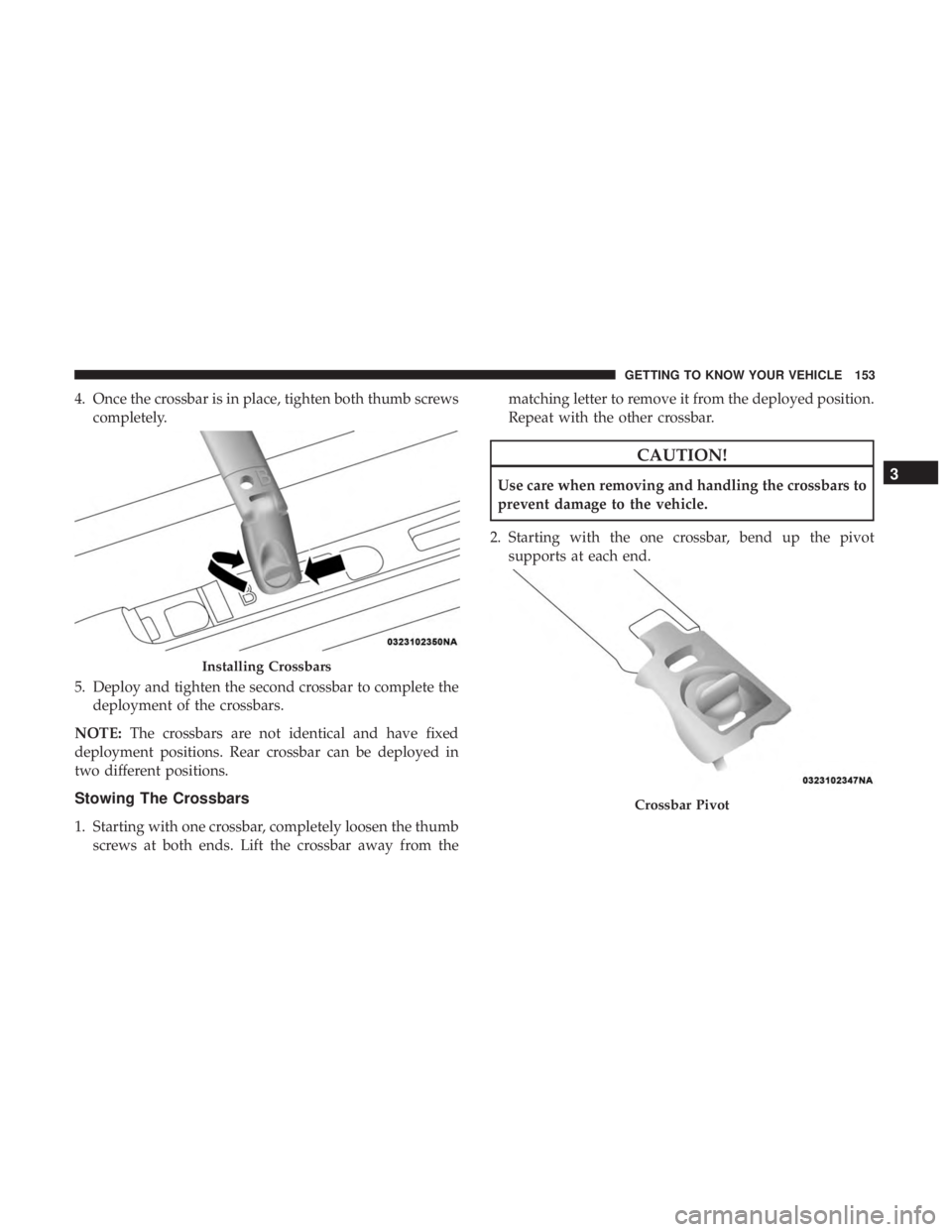

4. Once the crossbar is in place, tighten both thumb screwscompletely.
5. Deploy and tighten the second crossbar to complete the deployment of the crossbars.
NOTE: The crossbars are not identical and have fixed
deployment positions. Rear crossbar can be deployed in
two different positions.
Stowing The Crossbars
1. Starting with one crossbar, completely loosen the thumb screws at both ends. Lift the crossbar away from the matching letter to remove it from the deployed position.
Repeat with the other crossbar.
CAUTION!
Use care when removing and handling the crossbars to
prevent damage to the vehicle.
2. Starting with the one crossbar, bend up the pivot supports at each end.
Installing Crossbars
Crossbar Pivot
3
GETTING TO KNOW YOUR VEHICLE 153

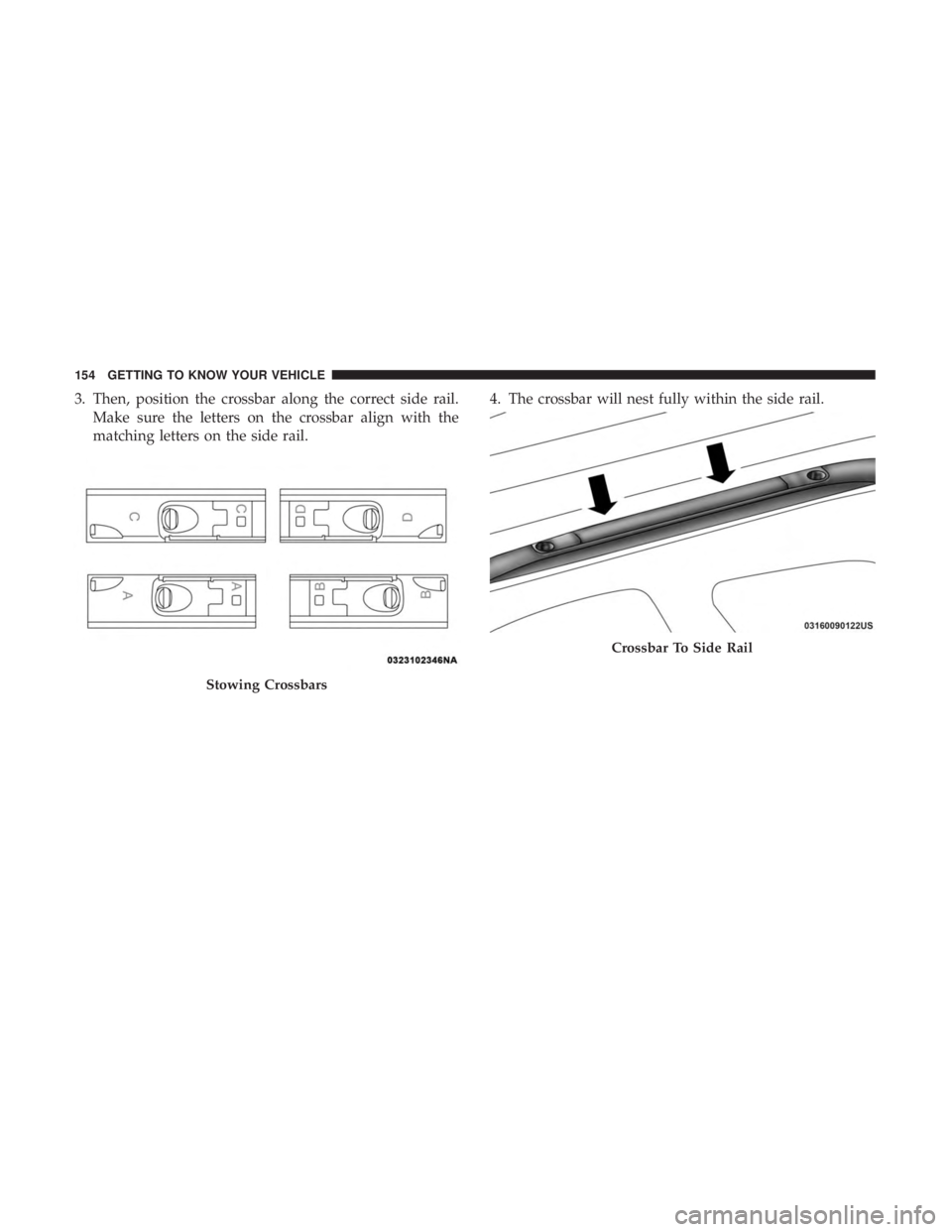

3. Then, position the crossbar along the correct side rail.Make sure the letters on the crossbar align with the
matching letters on the side rail. 4. The crossbar will nest fully within the side rail.
Stowing Crossbars
Crossbar To Side Rail
154 GETTING TO KNOW YOUR VEHICLE

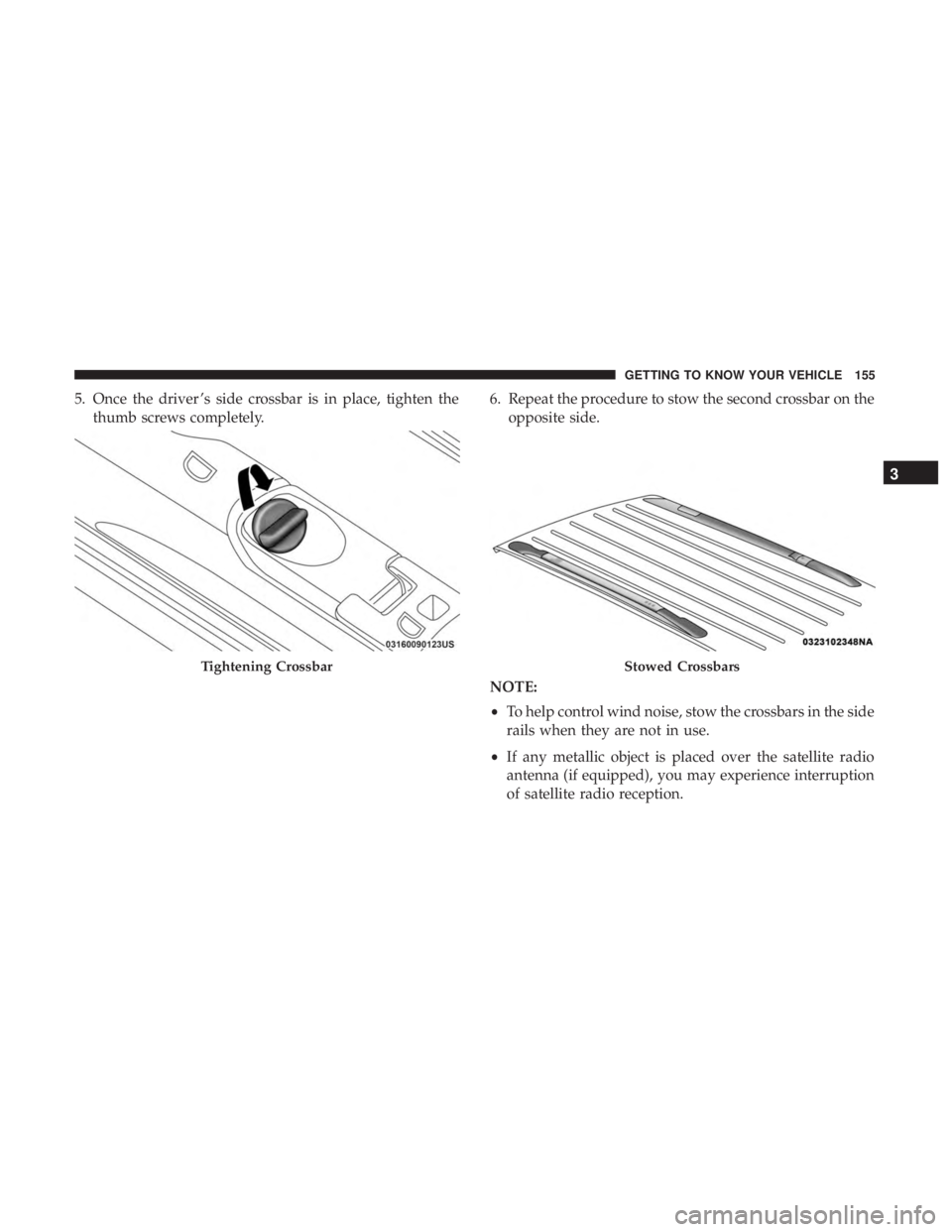

5. Once the driver ’s side crossbar is in place, tighten thethumb screws completely. 6. Repeat the procedure to stow the second crossbar on the
opposite side.
NOTE:
• To help control wind noise, stow the crossbars in the side
rails when they are not in use.
• If any metallic object is placed over the satellite radio
antenna (if equipped), you may experience interruption
of satellite radio reception.
Tightening CrossbarStowed Crossbars
3
GETTING TO KNOW YOUR VEHICLE 155

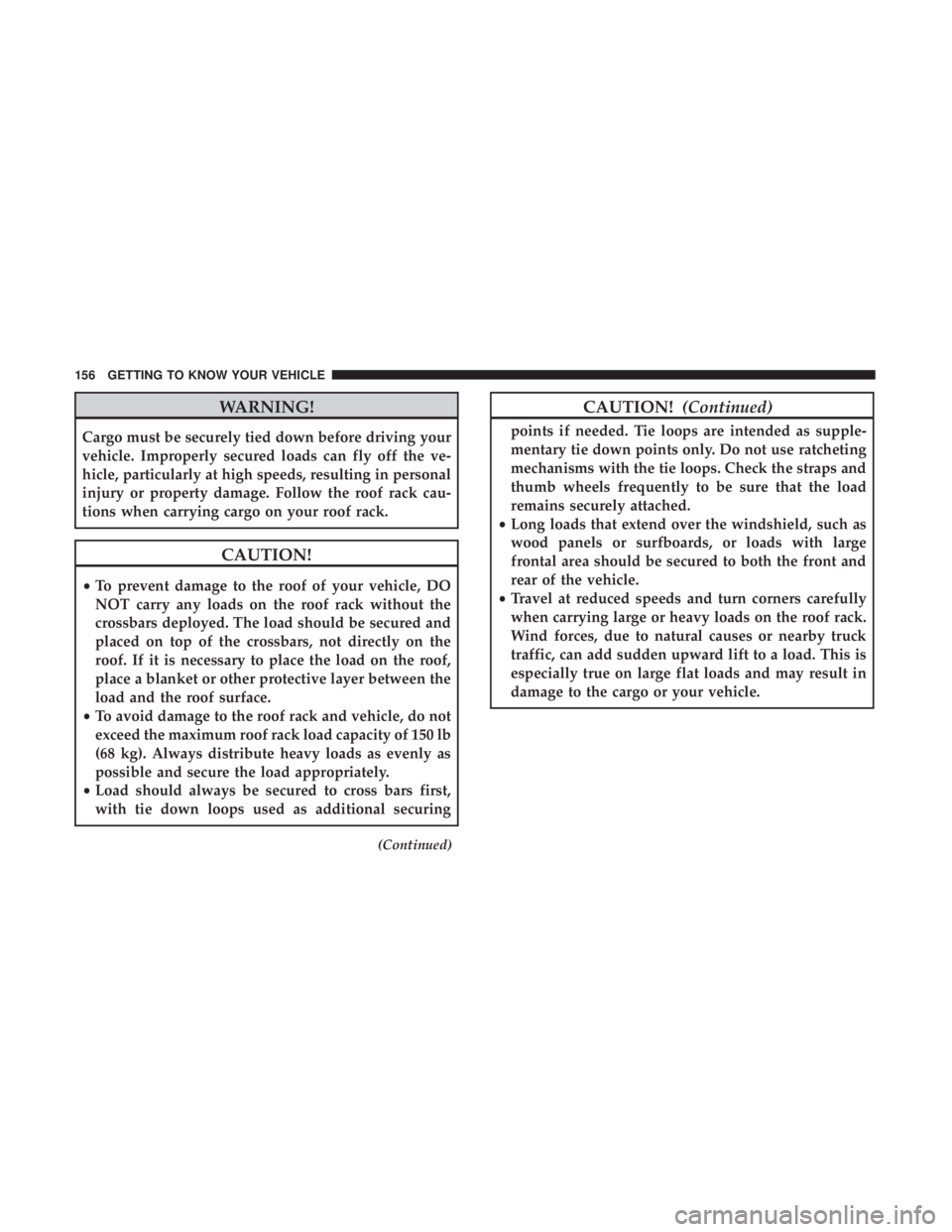

WARNING!
Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.
CAUTION!
•To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars deployed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or other protective layer between the
load and the roof surface.
• To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150 lb
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.
• Load should always be secured to cross bars first,
with tie down loops used as additional securing
(Continued)
CAUTION! (Continued)
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratcheting
mechanisms with the tie loops. Check the straps and
thumb wheels frequently to be sure that the load
remains securely attached.
• Long loads that extend over the windshield, such as
wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to a load. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
