spark plugs replace CHRYSLER PT CRUISER 2008 1.G User Guide

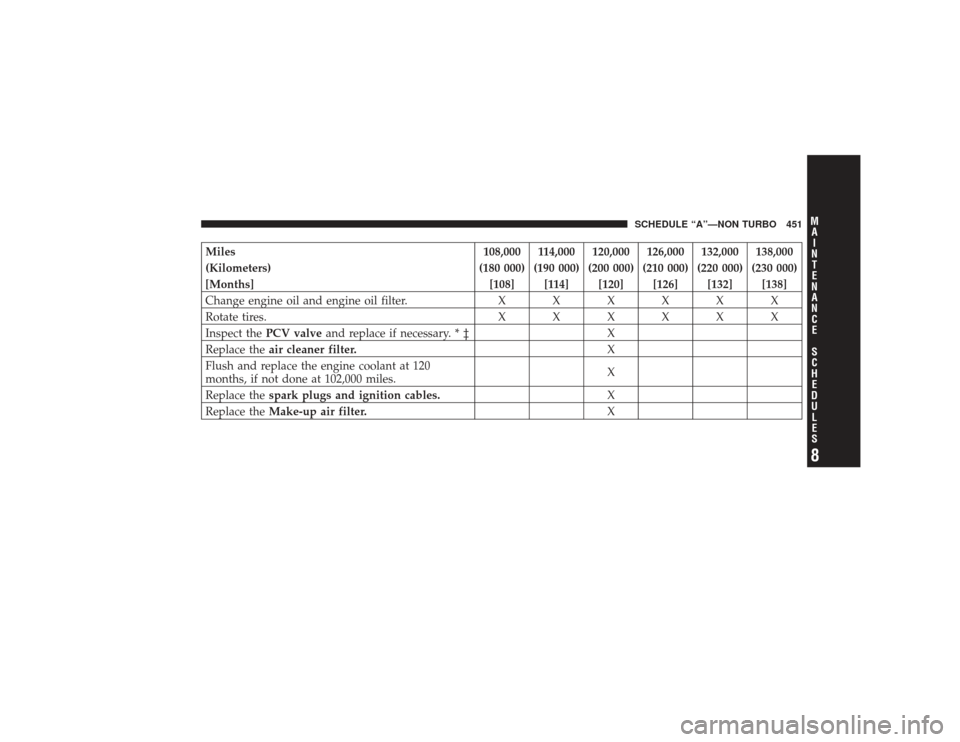

Miles108,000 114,000 120,000 126,000 132,000 138,000
(Kilometers) (180 000) (190 000) (200 000) (210 000) (220 000) (230 000)
[Months] [108] [114] [120] [126] [132] [138]
Change engine oil and engine oil filter. XXXXXX
Rotate tires. XXXXXX
Inspect the PCV valveand replace if necessary. * ‡ X
Replace the air cleaner filter. X
Flush and replace the engine coolant at 120
months, if not done at 102,000 miles. X
Replace the spark plugs and ignition cables. X
Replace the Make-up air filter. X
SCHEDULE “A”—NON TURBO 451
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

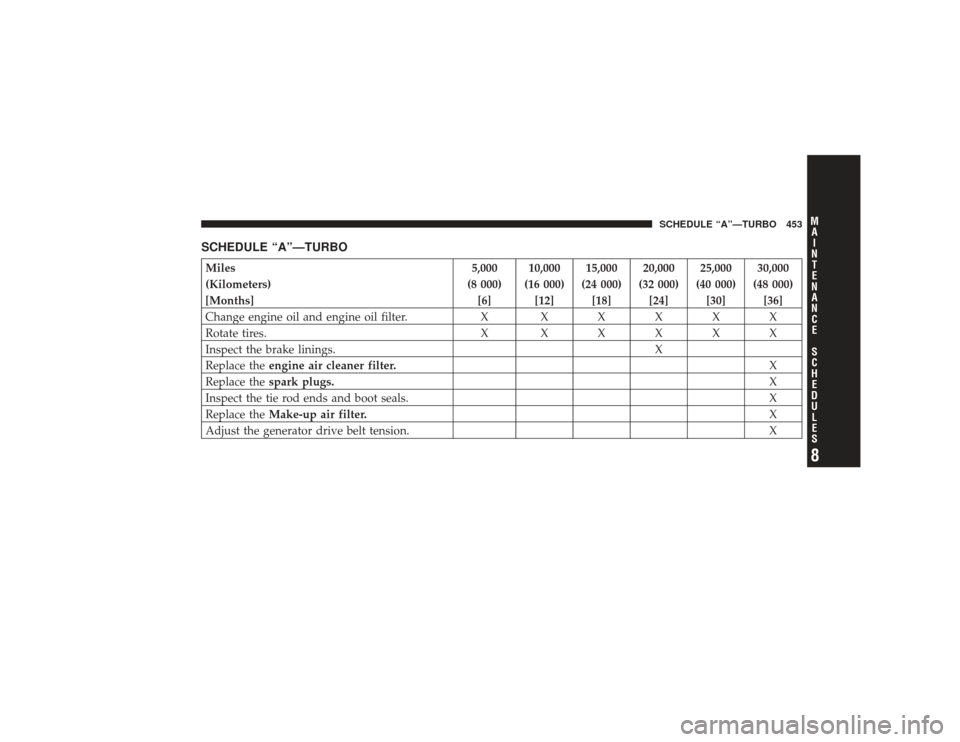

SCHEDULE “A”—TURBOMiles5,000 10,000 15,000 20,000 25,000 30,000
(Kilometers) (8 000) (16 000) (24 000) (32 000) (40 000) (48 000)
[Months] [6] [12] [18] [24] [30] [36]
Change engine oil and engine oil filter. XXXXXX
Rotate tires. XXXXXX
Inspect the brake linings. X
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
SCHEDULE “A”—TURBO 453
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles60,000 65,000 70,000 75,000 80,000 85,000
(Kilometers) (96 000) (104 000) (112 000) (120 000) (128 000) (136 000)
[Months] [72] [78] [84] [90] [96] [102]
Change engine oil and engine oil filter. X X X X X X
Rotate tires. X X X X X X
Inspect the brake linings. X X
Replace the engine air cleaner filter. X
Replace the spark plugs and ignition cables. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace if necessary.
Not required if previously changed. * ‡ X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
SCHEDULE “A”—TURBO 455
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

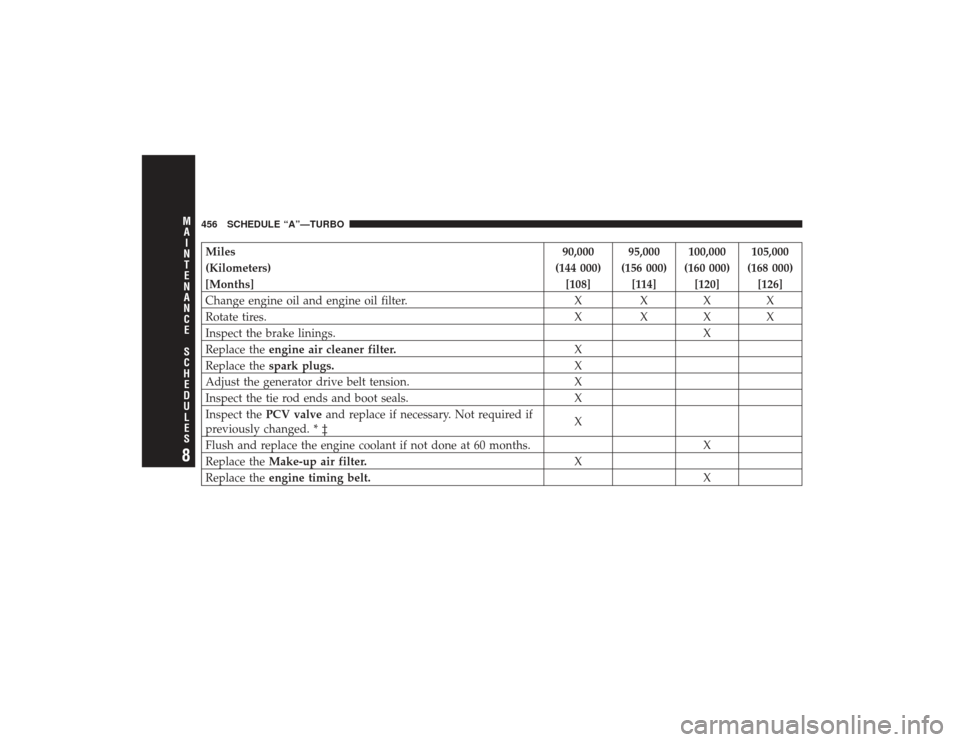

Miles90,000 95,000 100,000 105,000
(Kilometers) (144 000) (156 000) (160 000) (168 000)
[Months] [108] [114] [120] [126]
Change engine oil and engine oil filter. XX X X
Rotate tires. XX X X
Inspect the brake linings. X
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Adjust the generator drive belt tension. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace if necessary. Not required if
previously changed. * ‡ X
Flush and replace the engine coolant if not done at 60 months. X
Replace the Make-up air filter. X
Replace the engine timing belt. X456 SCHEDULE “A”—TURBO
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

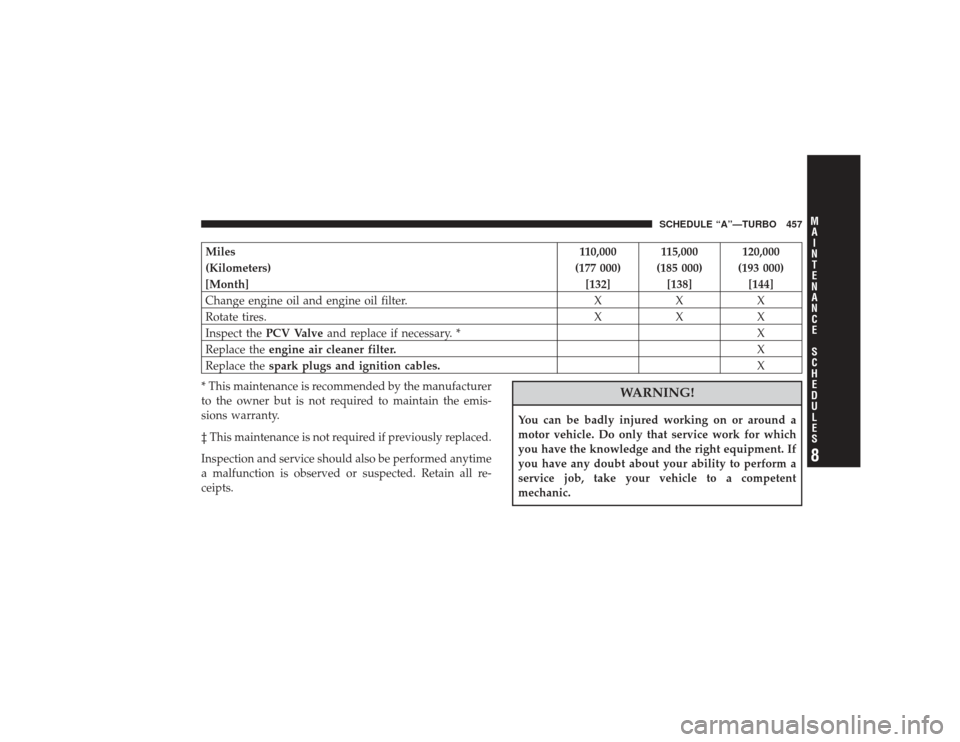

Miles110,000 115,000 120,000
(Kilometers) (177 000) (185 000) (193 000)
[Month] [132] [138] [144]
Change engine oil and engine oil filter. XXX
Rotate tires. XXX
Inspect the PCV Valve and replace if necessary. * X
Replace the engine air cleaner filter. X
Replace the spark plugs and ignition cables. X
* This maintenance is recommended by the manufacturer
to the owner but is not required to maintain the emis-
sions warranty.
‡ This maintenance is not required if previously replaced.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
WARNING!
You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent
mechanic.
SCHEDULE “A”—TURBO 457
8M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S
