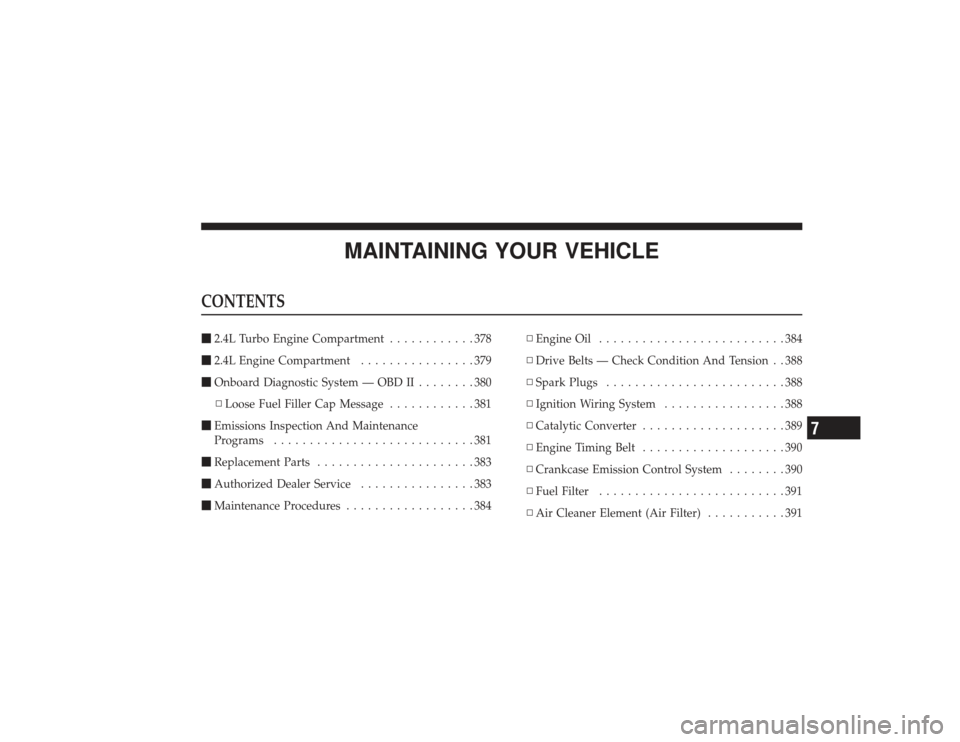

MAINTAINING YOUR VEHICLE
CONTENTS2.4L Turbo Engine Compartment ............378
 2.4L Engine Compartment ................379
 Onboard Diagnostic System — OBD II ........380
▫ Loose Fuel Filler Cap Message ............381
 Emissions Inspection And Maintenance
Programs ............................381
 Replacement Parts ......................383
 Authorized Dealer Service ................383
 Maintenance Procedures ..................384 ▫
Engine Oil ..........................384
▫ Drive Belts — Check Condition And Tension . . 388
▫ Spark Plugs .........................388
▫ Ignition Wiring System .................388
▫ Catalytic Converter ....................389
▫ Engine Timing Belt ....................390
▫ Crankcase Emission Control System ........390
▫ Fuel Filter ..........................391
▫ Air Cleaner Element (Air Filter) ...........391
7

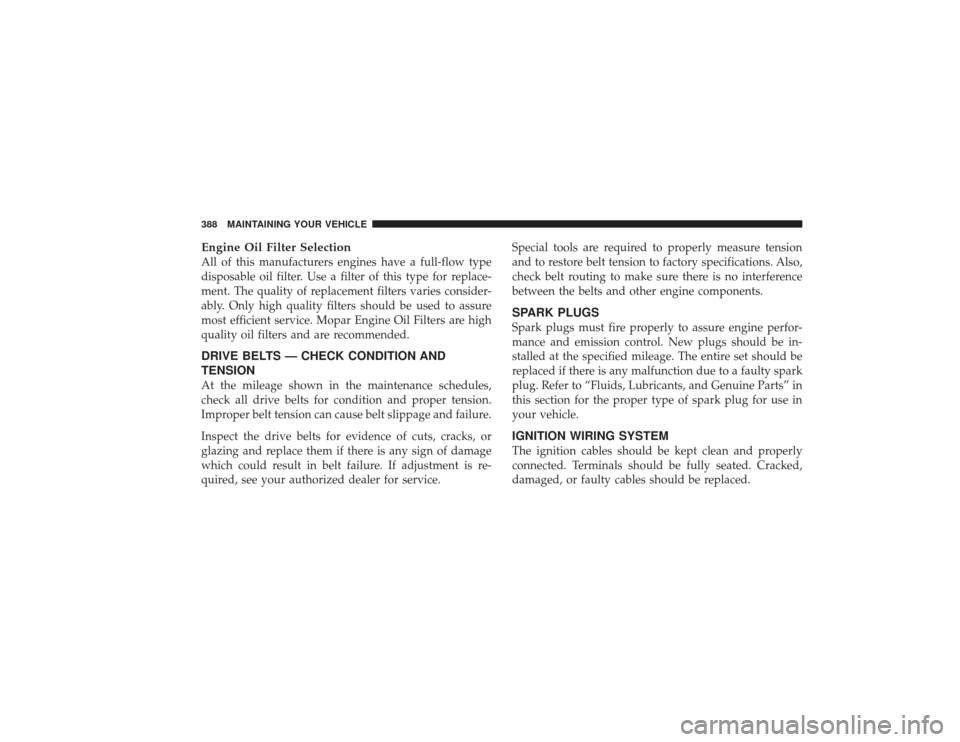

Engine Oil Filter SelectionAll of this manufacturers engines have a full-flow type
disposable oil filter. Use a filter of this type for replace-
ment. The quality of replacement filters varies consider-
ably. Only high quality filters should be used to assure
most efficient service. Mopar Engine Oil Filters are high
quality oil filters and are recommended.DRIVE BELTS — CHECK CONDITION AND
TENSIONAt the mileage shown in the maintenance schedules,
check all drive belts for condition and proper tension.
Improper belt tension can cause belt slippage and failure.
Inspect the drive belts for evidence of cuts, cracks, or
glazing and replace them if there is any sign of damage
which could result in belt failure. If adjustment is re-
quired, see your authorized dealer for service.Special tools are required to properly measure tension
and to restore belt tension to factory specifications. Also,
check belt routing to make sure there is no interference
between the belts and other engine components.
SPARK PLUGSSpark plugs must fire properly to assure engine perfor-
mance and emission control. New plugs should be in-
stalled at the specified mileage. The entire set should be
replaced if there is any malfunction due to a faulty spark
plug. Refer to “Fluids, Lubricants, and Genuine Parts” in
this section for the proper type of spark plug for use in
your vehicle.IGNITION WIRING SYSTEMThe ignition cables should be kept clean and properly
connected. Terminals should be fully seated. Cracked,
damaged, or faulty cables should be replaced.
388 MAINTAINING YOUR VEHICLE

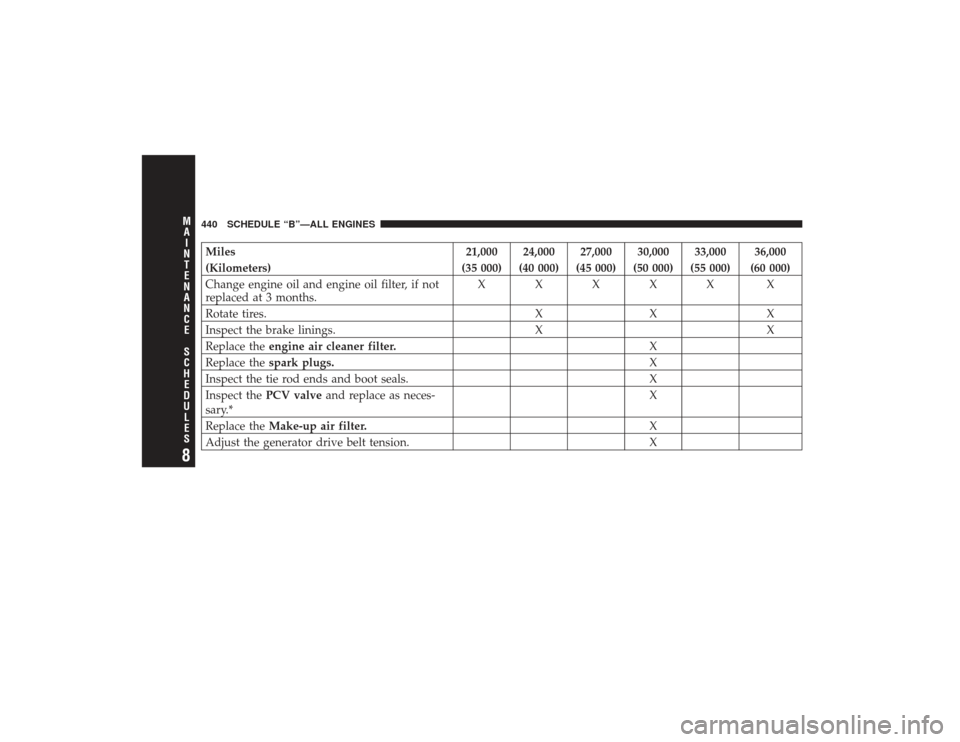

Miles21,000 24,000 27,000 30,000 33,000 36,000
(Kilometers) (35 000) (40 000) (45 000) (50 000) (55 000) (60 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace as neces-
sary.* X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X440 SCHEDULE “B”—ALL ENGINES
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles57,000 60,000 63,000 66,000 69,000 72,000
(Kilometers) (95 000) (100 000) (105 000) (110 000) (115 000) (120 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Replace the engine air cleaner filter. X
Replace the spark plugs and ignition cables. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace if neces-
sary. Not required if previously changed. * ‡ X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
Change the automatic transaxle fluid and fil-
ter.
X
Flush and replace engine coolant at 60
months, if not done at 102,000 miles. X442 SCHEDULE “B”—ALL ENGINES
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

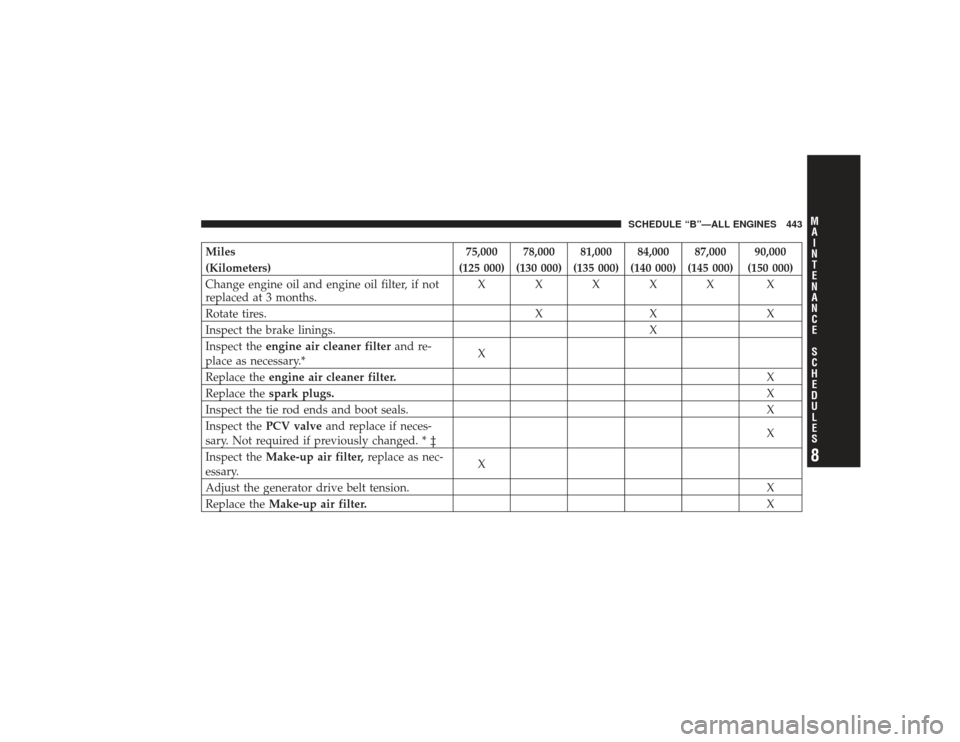

Miles75,000 78,000 81,000 84,000 87,000 90,000
(Kilometers) (125 000) (130 000) (135 000) (140 000) (145 000) (150 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Inspect the engine air cleaner filter and re-
place as necessary.* X
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace if neces-
sary. Not required if previously changed. * ‡ X
Inspect the Make-up air filter, replace as nec-
essary. X
Adjust the generator drive belt tension. X
Replace the Make-up air filter. X
SCHEDULE “B”—ALL ENGINES 443
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

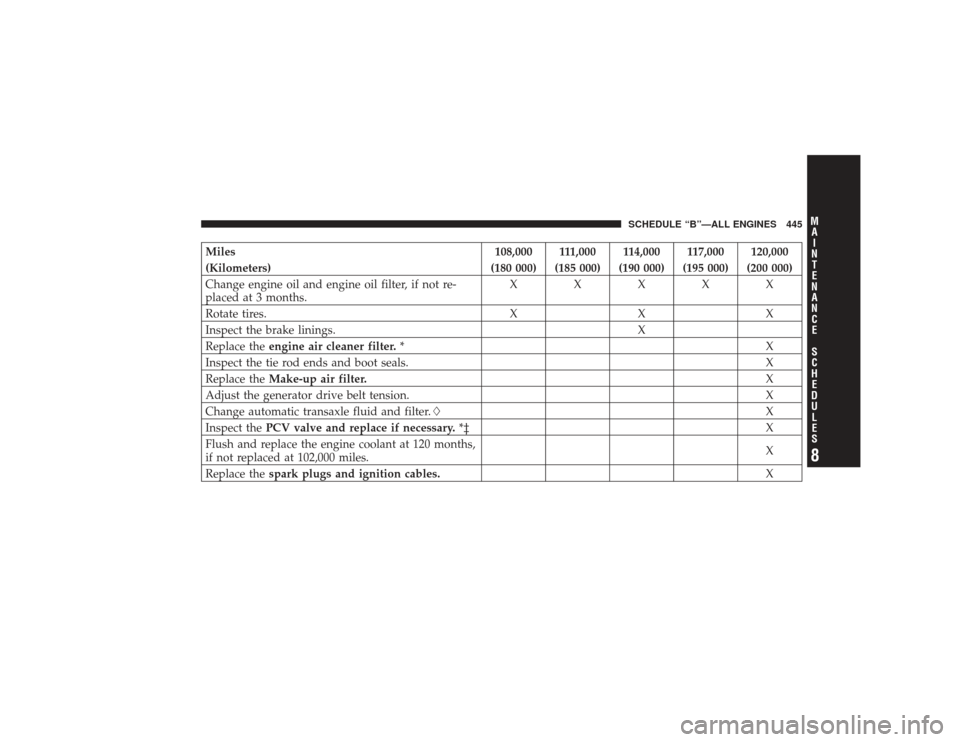

Miles108,000 111,000 114,000 117,000 120,000
(Kilometers) (180 000) (185 000) (190 000) (195 000) (200 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Replace the engine air cleaner filter. *X
Inspect the tie rod ends and boot seals. X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
Change automatic transaxle fluid and filter.
X
Inspect the PCV valve and replace if necessary. *‡ X
Flush and replace the engine coolant at 120 months,
if not replaced at 102,000 miles. X
Replace the spark plugs and ignition cables. X
SCHEDULE “B”—ALL ENGINES 445
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles138,000 141,000 144,000 147,000 150,000
(Kilometers) (230 000) (235 000) (240 000) (245 000) (250 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Replace the engine air cleaner filter. *X
Replace the spark plugs. X
Change the manual transaxle fluid.† X
Replace the Make-up air filter. X
Inspect the PCV valve and replace if necessary. *‡ X
* This maintenance is recommended by the manufacturer
to the owner, but is not required to maintain the emis-
sions warranty.
‡ This maintenance is not required if previously replaced.
† This maintenance is required only for police, taxi,
limousine type operation, or trailer towing.

This maintenance is required only for police, taxi,
limousine type operation, or trailer towing.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
SCHEDULE “B”—ALL ENGINES 447
8M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

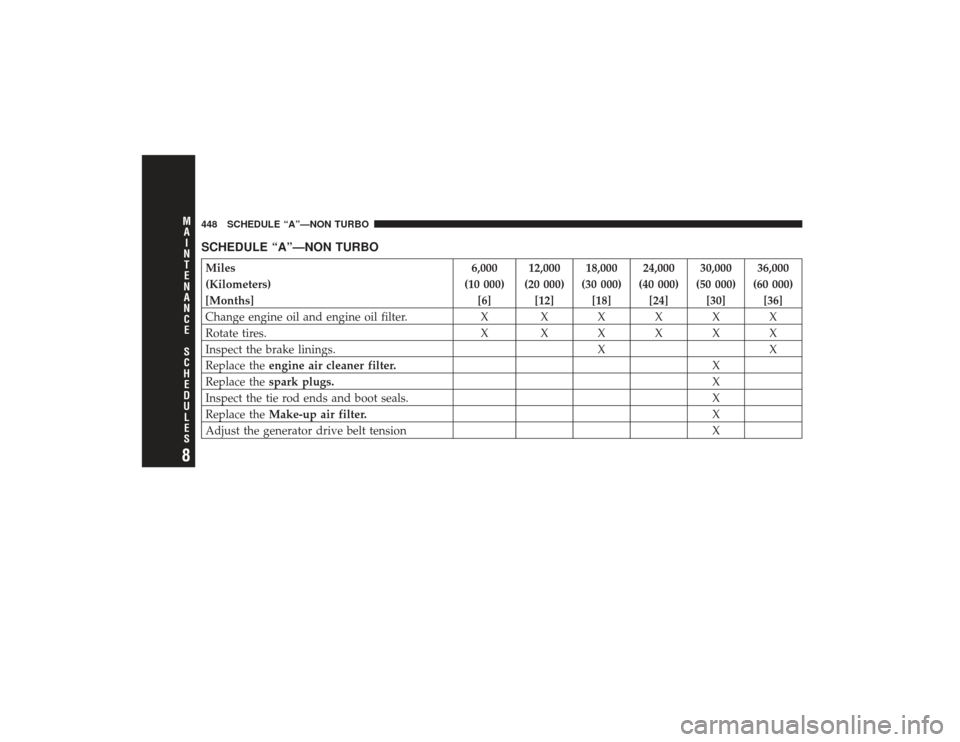

SCHEDULE “A”—NON TURBOMiles6,000 12,000 18,000 24,000 30,000 36,000
(Kilometers) (10 000) (20 000) (30 000) (40 000) (50 000) (60 000)
[Months] [6] [12] [18] [24] [30] [36]
Change engine oil and engine oil filter. XXXXXX
Rotate tires. XXXXXX
Inspect the brake linings. XX
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Replace the Make-up air filter. X
Adjust the generator drive belt tension X448 SCHEDULE “A”—NON TURBO
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

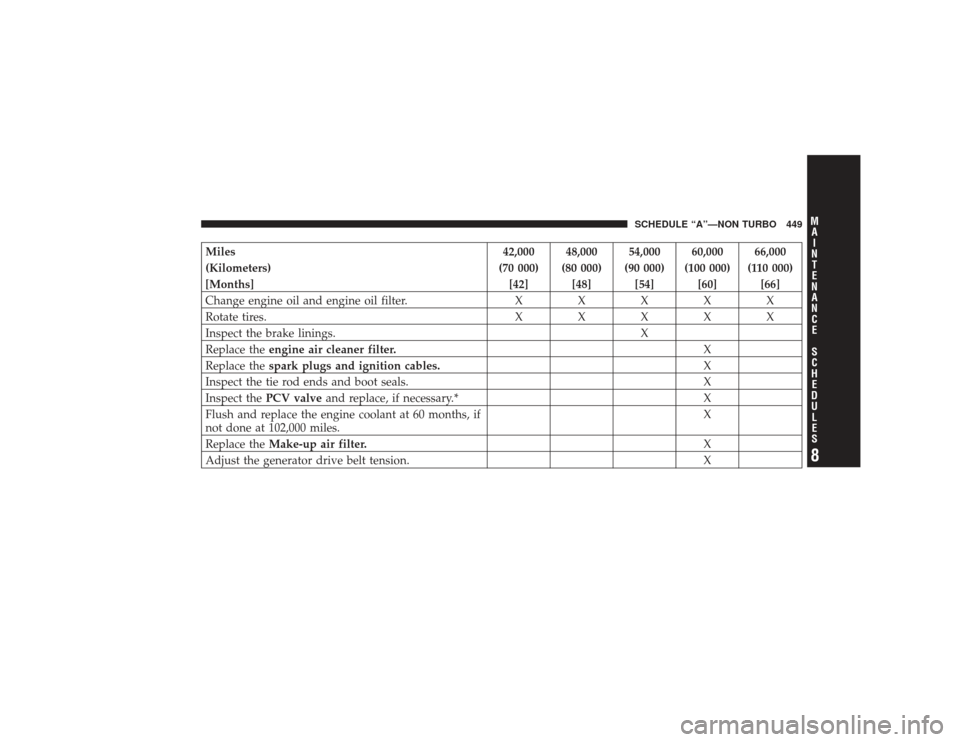

Miles42,000 48,000 54,000 60,000 66,000
(Kilometers) (70 000) (80 000) (90 000) (100 000) (110 000)
[Months] [42] [48] [54] [60] [66]
Change engine oil and engine oil filter. XXXXX
Rotate tires. XXXXX
Inspect the brake linings. X
Replace the engine air cleaner filter. X
Replace the spark plugs and ignition cables. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace, if necessary.* X
Flush and replace the engine coolant at 60 months, if
not done at 102,000 miles. X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
SCHEDULE “A”—NON TURBO 449
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

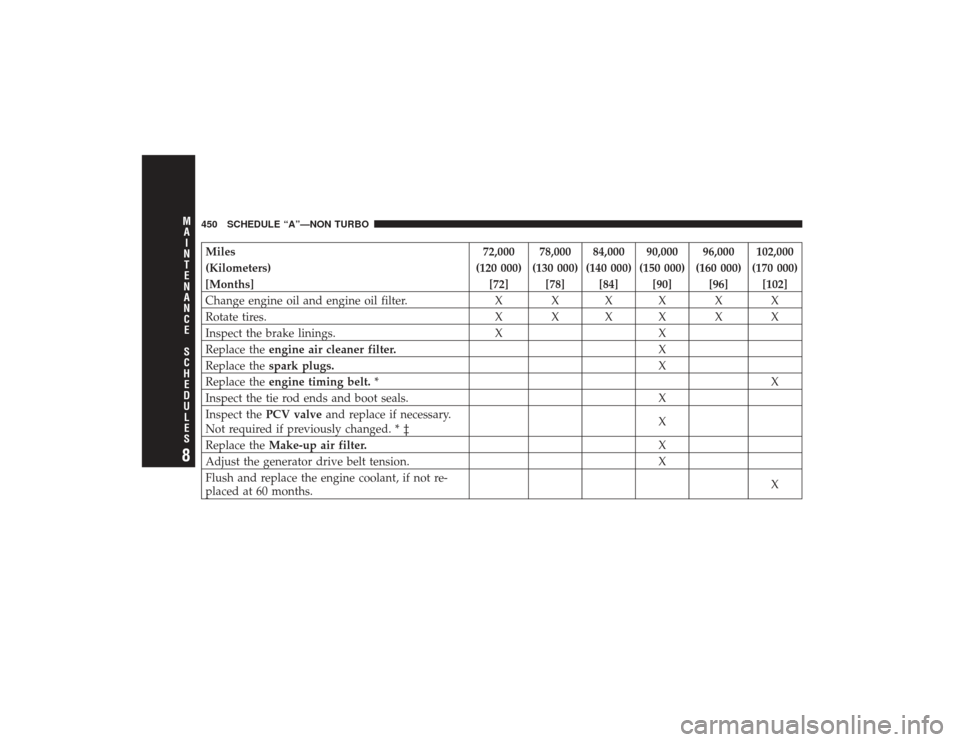

Miles72,000 78,000 84,000 90,000 96,000 102,000
(Kilometers) (120 000) (130 000) (140 000) (150 000) (160 000) (170 000)
[Months] [72] [78] [84] [90] [96] [102]
Change engine oil and engine oil filter. X X X X X X
Rotate tires. X X X X X X
Inspect the brake linings. X X
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Replace the engine timing belt. * X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace if necessary.
Not required if previously changed. * ‡ X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
Flush and replace the engine coolant, if not re-
placed at 60 months. X450 SCHEDULE “A”—NON TURBO
