CHRYSLER PT CRUISER 2008 1.G Owners Manual

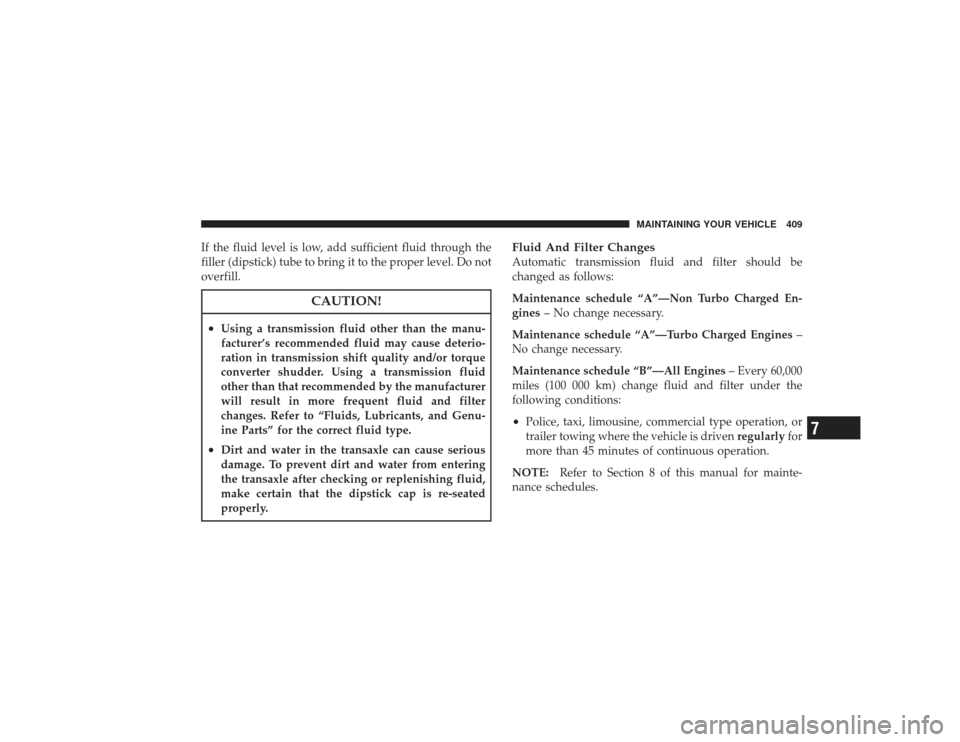

If the fluid level is low, add sufficient fluid through the
filler (dipstick) tube to bring it to the proper level. Do not
overfill.
CAUTION!
•
Using a transmission fluid other than the manu-
facturer’s recommended fluid may cause deterio-
ration in transmission shift quality and/or torque
converter shudder. Using a transmission fluid
other than that recommended by the manufacturer
will result in more frequent fluid and filter
changes. Refer to “Fluids, Lubricants, and Genu-
ine Parts” for the correct fluid type.
•
Dirt and water in the transaxle can cause serious
damage. To prevent dirt and water from entering
the transaxle after checking or replenishing fluid,
make certain that the dipstick cap is re-seated
properly.
Fluid And Filter ChangesAutomatic transmission fluid and filter should be
changed as follows:
Maintenance schedule “A”—Non Turbo Charged En-
gines– No change necessary.
Maintenance schedule “A”—Turbo Charged Engines –
No change necessary.
Maintenance schedule “B”—All Engines – Every 60,000
miles (100 000 km) change fluid and filter under the
following conditions:•
Police, taxi, limousine, commercial type operation, or
trailer towing where the vehicle is driven regularlyfor
more than 45 minutes of continuous operation.
NOTE: Refer to Section 8 of this manual for mainte-
nance schedules.
MAINTAINING YOUR VEHICLE 409
7

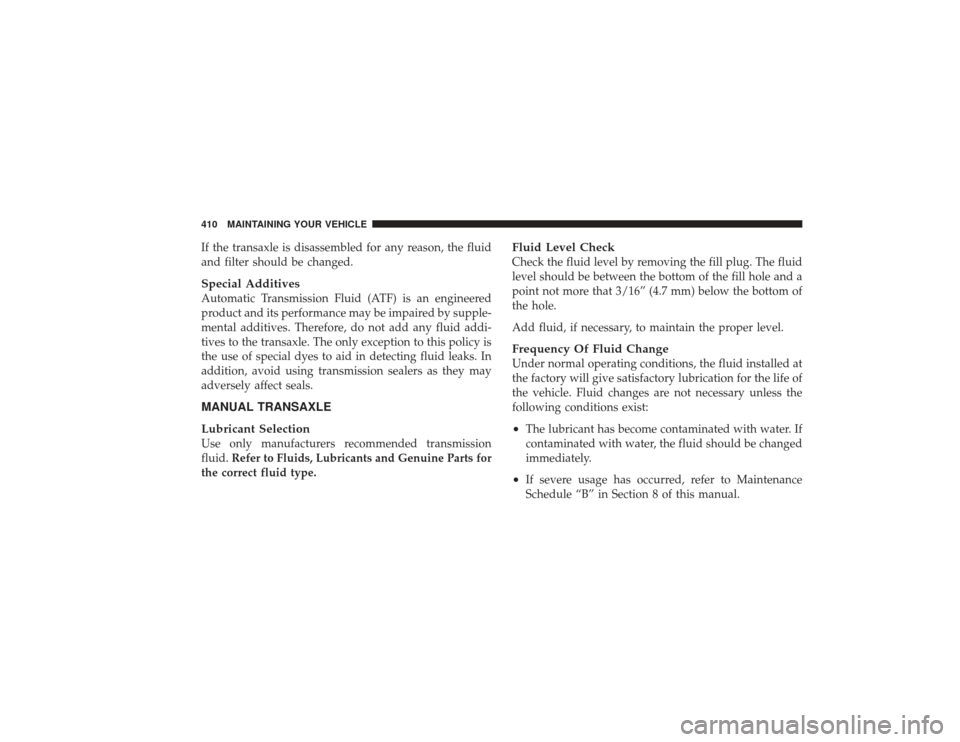

If the transaxle is disassembled for any reason, the fluid
and filter should be changed.Special AdditivesAutomatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transaxle. The only exception to this policy is
the use of special dyes to aid in detecting fluid leaks. In
addition, avoid using transmission sealers as they may
adversely affect seals.MANUAL TRANSAXLE
Lubricant SelectionUse only manufacturers recommended transmission
fluid.Refer to Fluids, Lubricants and Genuine Parts for
the correct fluid type.
Fluid Level CheckCheck the fluid level by removing the fill plug. The fluid
level should be between the bottom of the fill hole and a
point not more that 3/16” (4.7 mm) below the bottom of
the hole.
Add fluid, if necessary, to maintain the proper level.Frequency Of Fluid ChangeUnder normal operating conditions, the fluid installed at
the factory will give satisfactory lubrication for the life of
the vehicle. Fluid changes are not necessary unless the
following conditions exist:•
The lubricant has become contaminated with water. If
contaminated with water, the fluid should be changed
immediately.
•
If severe usage has occurred, refer to Maintenance
Schedule “B” in Section 8 of this manual.
410 MAINTAINING YOUR VEHICLE

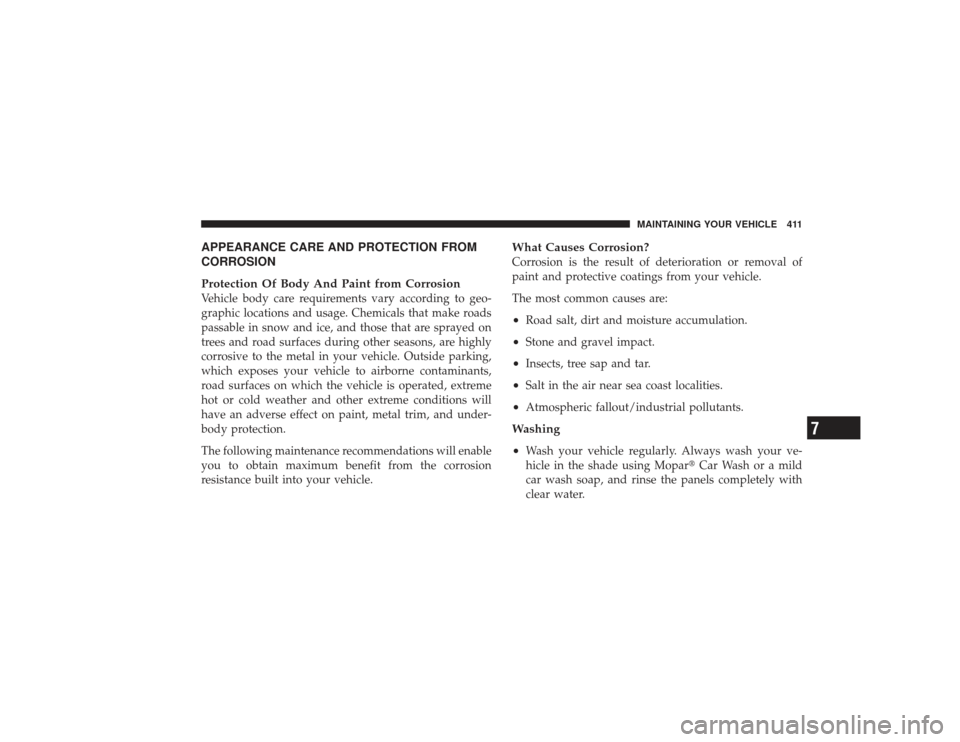

APPEARANCE CARE AND PROTECTION FROM
CORROSION
Protection Of Body And Paint from CorrosionVehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make roads
passable in snow and ice, and those that are sprayed on
trees and road surfaces during other seasons, are highly
corrosive to the metal in your vehicle. Outside parking,
which exposes your vehicle to airborne contaminants,
road surfaces on which the vehicle is operated, extreme
hot or cold weather and other extreme conditions will
have an adverse effect on paint, metal trim, and under-
body protection.
The following maintenance recommendations will enable
you to obtain maximum benefit from the corrosion
resistance built into your vehicle.
What Causes Corrosion?Corrosion is the result of deterioration or removal of
paint and protective coatings from your vehicle.
The most common causes are:•
Road salt, dirt and moisture accumulation.
•
Stone and gravel impact.
•
Insects, tree sap and tar.
•
Salt in the air near sea coast localities.
•
Atmospheric fallout/industrial pollutants.
Washing
•
Wash your vehicle regularly. Always wash your ve-
hicle in the shade using MoparCar Wash or a mild
car wash soap, and rinse the panels completely with
clear water.
MAINTAINING YOUR VEHICLE 411
7

•

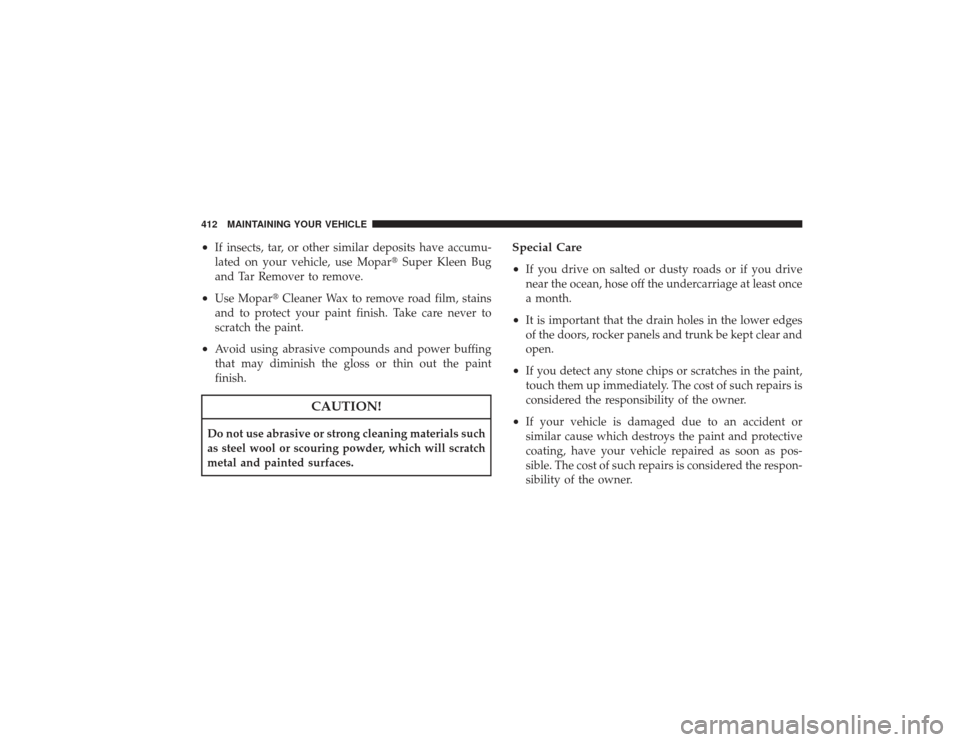

If insects, tar, or other similar deposits have accumu-
lated on your vehicle, use MoparSuper Kleen Bug
and Tar Remover to remove.
•
Use Mopar Cleaner Wax to remove road film, stains
and to protect your paint finish. Take care never to
scratch the paint.
•
Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint
finish.
CAUTION!
Do not use abrasive or strong cleaning materials such
as steel wool or scouring powder, which will scratch
metal and painted surfaces.
Special Care
•
If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
•
It is important that the drain holes in the lower edges
of the doors, rocker panels and trunk be kept clear and
open.
•
If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
•
If your vehicle is damaged due to an accident or
similar cause which destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is considered the respon-
sibility of the owner.
412 MAINTAINING YOUR VEHICLE

•

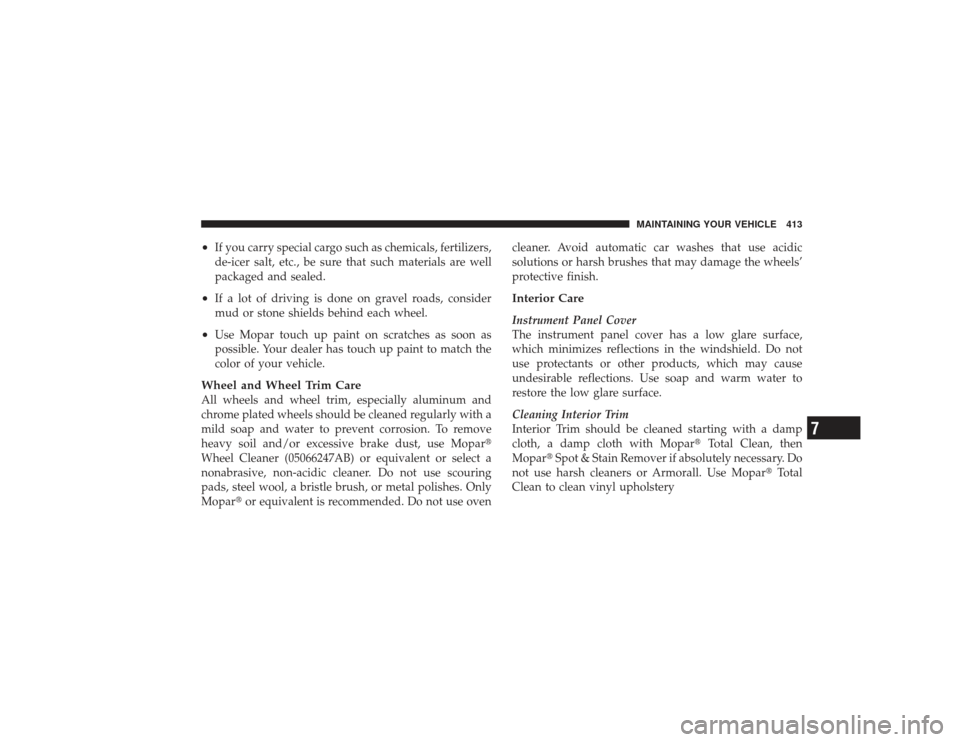

If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
•
If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
•
Use Mopar touch up paint on scratches as soon as
possible. Your dealer has touch up paint to match the
color of your vehicle.
Wheel and Wheel Trim CareAll wheels and wheel trim, especially aluminum and
chrome plated wheels should be cleaned regularly with a
mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use Mopar
Wheel Cleaner (05066247AB) or equivalent or select a
nonabrasive, non-acidic cleaner. Do not use scouring
pads, steel wool, a bristle brush, or metal polishes. Only
Mopar or equivalent is recommended. Do not use oven cleaner. Avoid automatic car washes that use acidic
solutions or harsh brushes that may damage the wheels’
protective finish.
Interior CareInstrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Cleaning Interior Trim
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with Mopar
Total Clean, then
Mopar Spot & Stain Remover if absolutely necessary. Do
not use harsh cleaners or Armorall. Use Mopar Total
Clean to clean vinyl upholstery
MAINTAINING YOUR VEHICLE 413
7

Cleaning Leather Upholstery
MoparTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and Mopar Total Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.YES Essentials Fabric Cleaning Procedure – If
EquippedYES Essentials seats may be cleaned in the following
manner:•
Remove as much of the stain as possible by blotting
with a clean, dry towel.
•
Blot any remaining stain with a clean, damp towel.
•
For tough stains, apply Mopar Total Clean or a mild
soap solution to a clean, damp cloth and remove stain.
Use a fresh, damp towel to remove soap residue.
414 MAINTAINING YOUR VEHICLE

•
For grease stains, apply MoparMulti-Purpose
Cleaner to a clean, damp cloth and remove stain. Use
a fresh, damp towel to remove soap residue.
•
Do not use any solvents or protectants on Yes Essen-
tials products.
Cleaning HeadlightsYour vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass SurfacesAll glass surfaces should be cleaned on a regular basis
with Mopar Glass Cleaner or any commercial household-
type glass cleaner. Never use an abrasive type cleaner.
Use caution when cleaning the inside rear window
equipped with electric defrosters or the right rear quarter
window equipped with the radio antenna. Do not use
scrapers or other sharp instruments which may scratch
the elements. When cleaning the rear view mirror, spray
cleaner on the towel or rag that you are using. Do not
spray cleaner directly on the mirror.Instrument Panel CoverThe instrument panel cover has a low glare surface which
minimizes reflections in the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
MAINTAINING YOUR VEHICLE 415
7

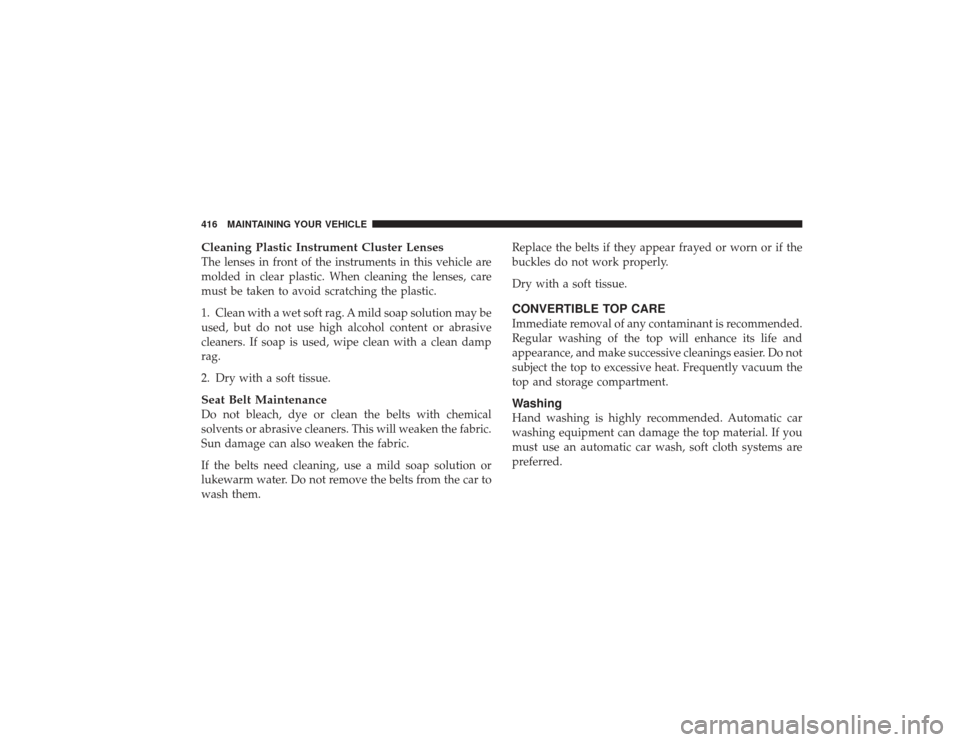

Cleaning Plastic Instrument Cluster LensesThe lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.Seat Belt MaintenanceDo not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
CONVERTIBLE TOP CAREImmediate removal of any contaminant is recommended.
Regular washing of the top will enhance its life and
appearance, and make successive cleanings easier. Do not
subject the top to excessive heat. Frequently vacuum the
top and storage compartment.WashingHand washing is highly recommended. Automatic car
washing equipment can damage the top material. If you
must use an automatic car wash, soft cloth systems are
preferred.
416 MAINTAINING YOUR VEHICLE

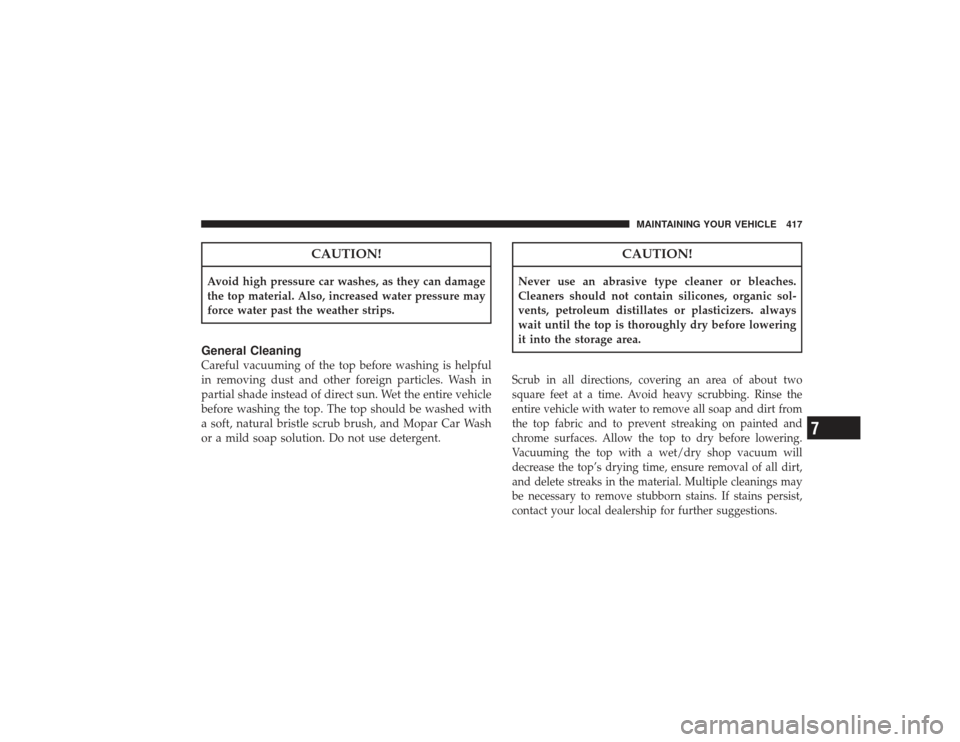

CAUTION!
Avoid high pressure car washes, as they can damage
the top material. Also, increased water pressure may
force water past the weather strips.General CleaningCareful vacuuming of the top before washing is helpful
in removing dust and other foreign particles. Wash in
partial shade instead of direct sun. Wet the entire vehicle
before washing the top. The top should be washed with
a soft, natural bristle scrub brush, and Mopar Car Wash
or a mild soap solution. Do not use detergent.
CAUTION!
Never use an abrasive type cleaner or bleaches.
Cleaners should not contain silicones, organic sol-
vents, petroleum distillates or plasticizers. always
wait until the top is thoroughly dry before lowering
it into the storage area.Scrub in all directions, covering an area of about two
square feet at a time. Avoid heavy scrubbing. Rinse the
entire vehicle with water to remove all soap and dirt from
the top fabric and to prevent streaking on painted and
chrome surfaces. Allow the top to dry before lowering.
Vacuuming the top with a wet/dry shop vacuum will
decrease the top’s drying time, ensure removal of all dirt,
and delete streaks in the material. Multiple cleanings may
be necessary to remove stubborn stains. If stains persist,
contact your local dealership for further suggestions.
MAINTAINING YOUR VEHICLE 417
7

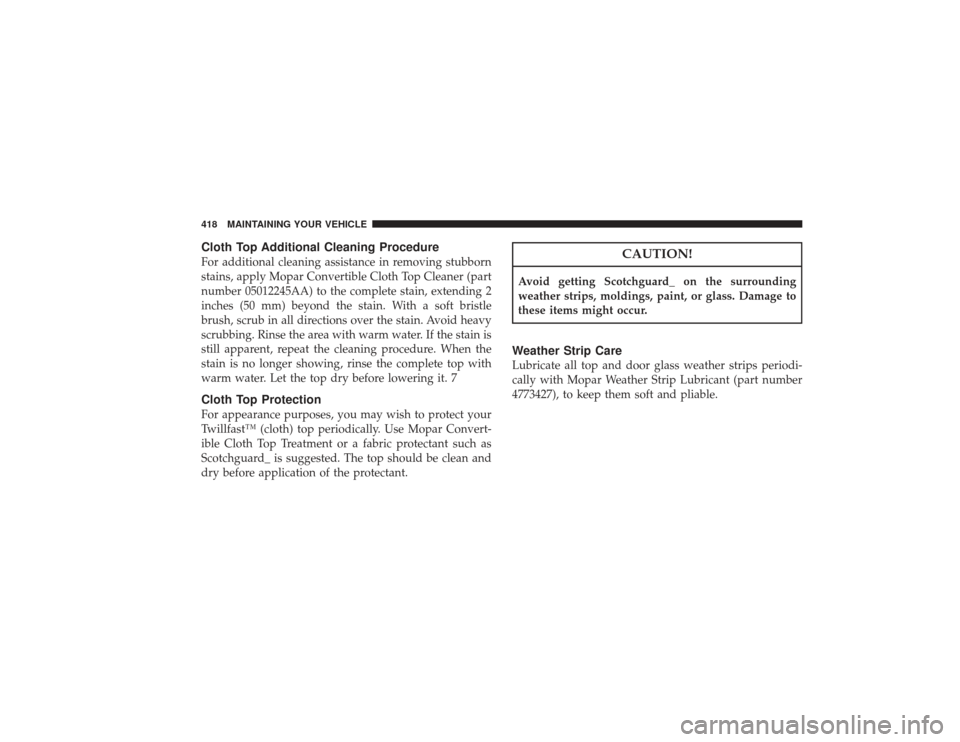

Cloth Top Additional Cleaning ProcedureFor additional cleaning assistance in removing stubborn
stains, apply Mopar Convertible Cloth Top Cleaner (part
number 05012245AA) to the complete stain, extending 2
inches (50 mm) beyond the stain. With a soft bristle
brush, scrub in all directions over the stain. Avoid heavy
scrubbing. Rinse the area with warm water. If the stain is
still apparent, repeat the cleaning procedure. When the
stain is no longer showing, rinse the complete top with
warm water. Let the top dry before lowering it. 7Cloth Top ProtectionFor appearance purposes, you may wish to protect your
Twillfast™ (cloth) top periodically. Use Mopar Convert-
ible Cloth Top Treatment or a fabric protectant such as
Scotchguard_ is suggested. The top should be clean and
dry before application of the protectant.
CAUTION!
Avoid getting Scotchguard_ on the surrounding
weather strips, moldings, paint, or glass. Damage to
these items might occur.Weather Strip CareLubricate all top and door glass weather strips periodi-
cally with Mopar Weather Strip Lubricant (part number
4773427), to keep them soft and pliable.
418 MAINTAINING YOUR VEHICLE
