CHRYSLER PT CRUISER 2008 1.G Owners Manual

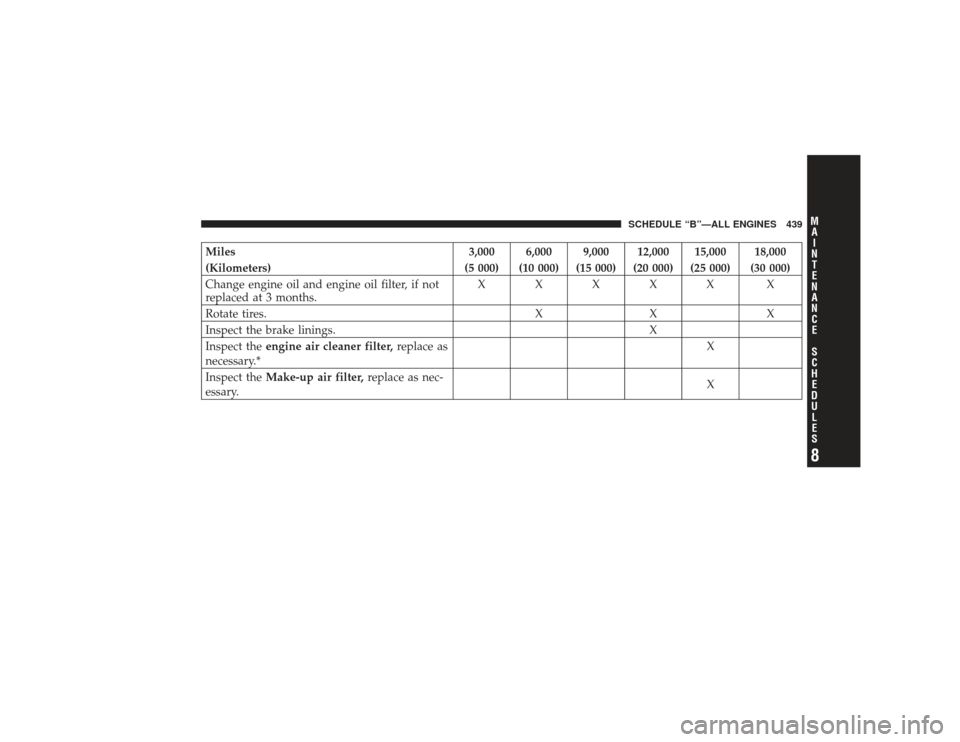

Miles3,000 6,000 9,000 12,000 15,000 18,000
(Kilometers) (5 000) (10 000) (15 000) (20 000) (25 000) (30 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Inspect the engine air cleaner filter, replace as
necessary.* X
Inspect the Make-up air filter, replace as nec-
essary. X
SCHEDULE “B”—ALL ENGINES 439
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles21,000 24,000 27,000 30,000 33,000 36,000
(Kilometers) (35 000) (40 000) (45 000) (50 000) (55 000) (60 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace as neces-
sary.* X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X440 SCHEDULE “B”—ALL ENGINES
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

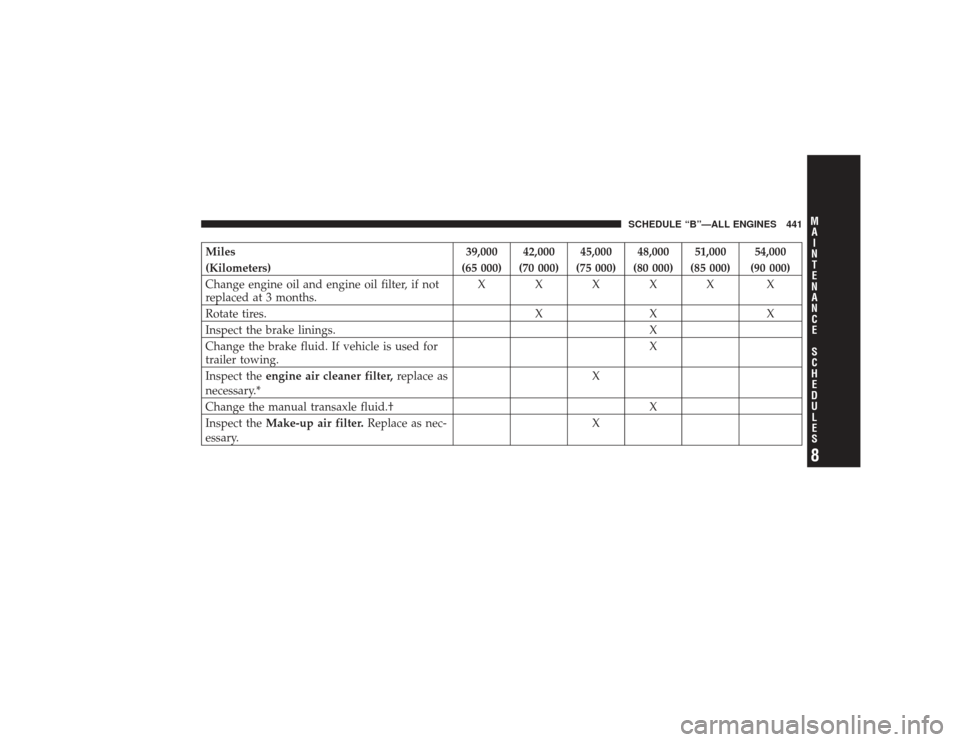

Miles39,000 42,000 45,000 48,000 51,000 54,000
(Kilometers) (65 000) (70 000) (75 000) (80 000) (85 000) (90 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Change the brake fluid. If vehicle is used for
trailer towing. X
Inspect the engine air cleaner filter, replace as
necessary.* X
Change the manual transaxle fluid.† X
Inspect the Make-up air filter. Replace as nec-
essary. X
SCHEDULE “B”—ALL ENGINES 441
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles57,000 60,000 63,000 66,000 69,000 72,000
(Kilometers) (95 000) (100 000) (105 000) (110 000) (115 000) (120 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Replace the engine air cleaner filter. X
Replace the spark plugs and ignition cables. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace if neces-
sary. Not required if previously changed. * ‡ X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
Change the automatic transaxle fluid and fil-
ter.
X
Flush and replace engine coolant at 60
months, if not done at 102,000 miles. X442 SCHEDULE “B”—ALL ENGINES
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles75,000 78,000 81,000 84,000 87,000 90,000
(Kilometers) (125 000) (130 000) (135 000) (140 000) (145 000) (150 000)
Change engine oil and engine oil filter, if not
replaced at 3 months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Inspect the engine air cleaner filter and re-
place as necessary.* X
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valveand replace if neces-
sary. Not required if previously changed. * ‡ X
Inspect the Make-up air filter, replace as nec-
essary. X
Adjust the generator drive belt tension. X
Replace the Make-up air filter. X
SCHEDULE “B”—ALL ENGINES 443
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

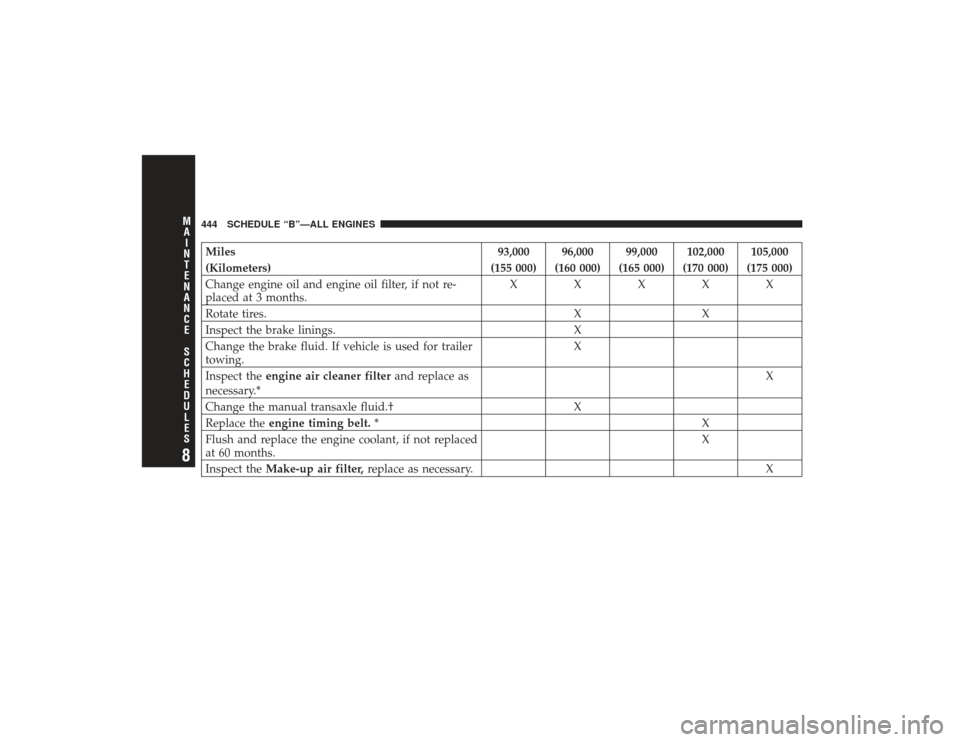

Miles93,000 96,000 99,000 102,000 105,000
(Kilometers) (155 000) (160 000) (165 000) (170 000) (175 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months. XXXXX
Rotate tires. XX
Inspect the brake linings. X
Change the brake fluid. If vehicle is used for trailer
towing. X
Inspect the engine air cleaner filter and replace as
necessary.* X
Change the manual transaxle fluid.† X
Replace the engine timing belt. *X
Flush and replace the engine coolant, if not replaced
at 60 months. X
Inspect the Make-up air filter, replace as necessary. X444 SCHEDULE “B”—ALL ENGINES
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles108,000 111,000 114,000 117,000 120,000
(Kilometers) (180 000) (185 000) (190 000) (195 000) (200 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Replace the engine air cleaner filter. *X
Inspect the tie rod ends and boot seals. X
Replace the Make-up air filter. X
Adjust the generator drive belt tension. X
Change automatic transaxle fluid and filter.
X
Inspect the PCV valve and replace if necessary. *‡ X
Flush and replace the engine coolant at 120 months,
if not replaced at 102,000 miles. X
Replace the spark plugs and ignition cables. X
SCHEDULE “B”—ALL ENGINES 445
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

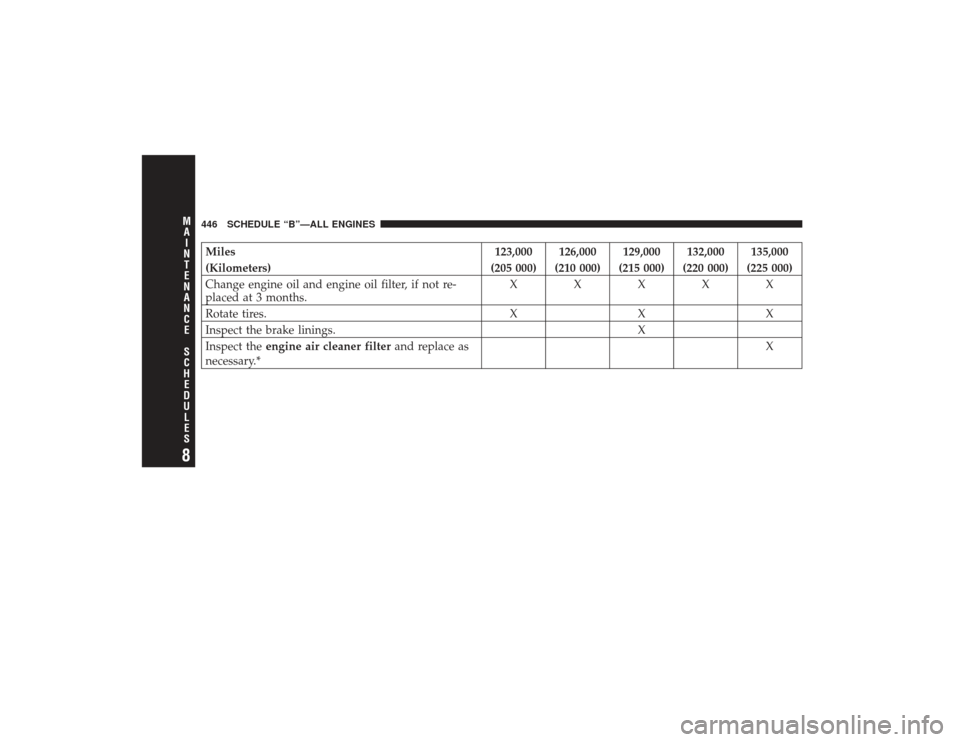

Miles123,000 126,000 129,000 132,000 135,000
(Kilometers) (205 000) (210 000) (215 000) (220 000) (225 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Inspect the engine air cleaner filter and replace as
necessary.* X446 SCHEDULE “B”—ALL ENGINES
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Miles138,000 141,000 144,000 147,000 150,000
(Kilometers) (230 000) (235 000) (240 000) (245 000) (250 000)
Change engine oil and engine oil filter, if not re-
placed at 3 months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Replace the engine air cleaner filter. *X
Replace the spark plugs. X
Change the manual transaxle fluid.† X
Replace the Make-up air filter. X
Inspect the PCV valve and replace if necessary. *‡ X
* This maintenance is recommended by the manufacturer
to the owner, but is not required to maintain the emis-
sions warranty.
‡ This maintenance is not required if previously replaced.
† This maintenance is required only for police, taxi,
limousine type operation, or trailer towing.

This maintenance is required only for police, taxi,
limousine type operation, or trailer towing.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
SCHEDULE “B”—ALL ENGINES 447
8M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

SCHEDULE “A”—NON TURBOMiles6,000 12,000 18,000 24,000 30,000 36,000
(Kilometers) (10 000) (20 000) (30 000) (40 000) (50 000) (60 000)
[Months] [6] [12] [18] [24] [30] [36]
Change engine oil and engine oil filter. XXXXXX
Rotate tires. XXXXXX
Inspect the brake linings. XX
Replace the engine air cleaner filter. X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Replace the Make-up air filter. X
Adjust the generator drive belt tension X448 SCHEDULE “A”—NON TURBO
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S
