fuel additives CHRYSLER PT CRUISER 2010 1.G Owners Manual

To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
•change the engine oil and oil filter
•disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese-containing metallic additive that is
blended into some gasoline to increase the octane num-
ber. Gasolines blended with MMT offer no performance
advantage beyond gasolines of the same octane number
without MMT. Gasolines blended with MMT have shown
to reduce spark plug life and reduce emissions system
performance in some vehicles. The manufacturer recom-
mends using gasolines without MMT. Since the MMT content of gasoline may not be indicated on the pump,
you should ask your gasoline retailer if that gasoline
contains MMT.
It is even more important to look for gasolines without
MMT in Canada, because MMT can be used at levels
higher than those allowed in the United States.
MMT is prohibited in Federal and California reformu-
lated gasolines.
Materials Added to Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and would result in additional cost. Therefore
you should not have to add anything to the fuel.
5
STARTING AND OPERATING 239

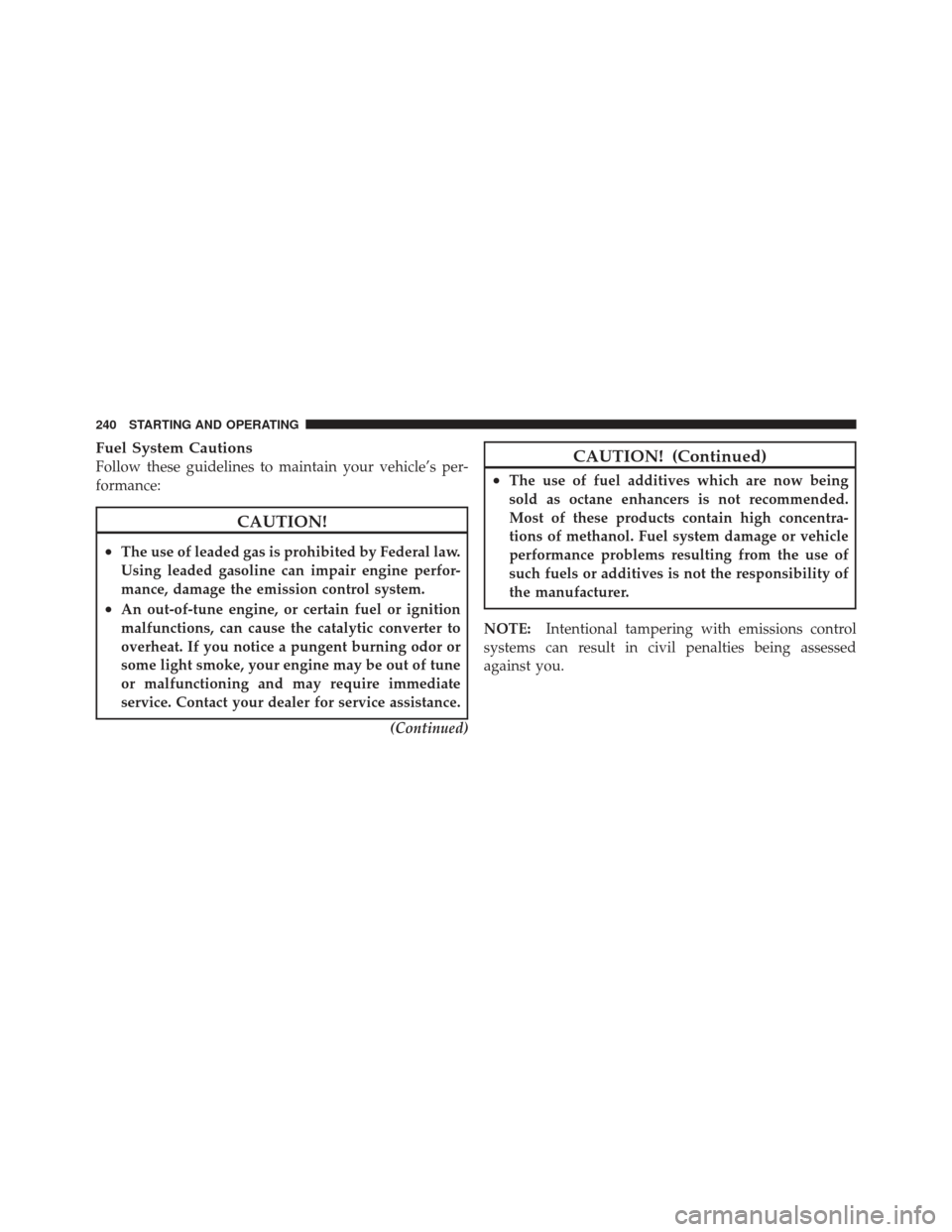

Fuel System Cautions
Follow these guidelines to maintain your vehicle’s per-
formance:
CAUTION!
•The use of leaded gas is prohibited by Federal law.
Using leaded gasoline can impair engine perfor-
mance, damage the emission control system.
•An out-of-tune engine, or certain fuel or ignition
malfunctions, can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune
or malfunctioning and may require immediate
service. Contact your dealer for service assistance.(Continued)
CAUTION! (Continued)
•The use of fuel additives which are now being
sold as octane enhancers is not recommended.
Most of these products contain high concentra-
tions of methanol. Fuel system damage or vehicle
performance problems resulting from the use of
such fuels or additives is not the responsibility of
the manufacturer.
NOTE: Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you.
240 STARTING AND OPERATING

Engine Oil Viscosity (SAE Grade) – 2.4L Engine
SAE 5W-30 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.
Lubricants which do not have both, the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber, should not be used.
Synthetic Engine Oils
You may use synthetic engine oils, provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added to Engine Oils
The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental
additives.
Disposing of Used Engine Oil and Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
station, or governmental agency for advice on how and
where they can be safely discarded in your area.
Engine Oil Filter
The engine oil filter should be replaced with a new filter
at every engine oil change.
284 MAINTAINING YOUR VEHICLE

ABS (Anti-Lock Brake System).............. 210
Adding Engine Coolant (Antifreeze) .......... 294
Adding Fuel ........................... 241
Additives, Fuel ......................... 239
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 285
Air Conditioner Maintenance ............... 287
Air Conditioning Controls ................. 180
Air Conditioning, Operating Tips ............ 185
Air Conditioning Refrigerant .............287,288
Air Conditioning System ................180,287
Air Pressure, Tires ....................... 224
Airbag ................................ 46
Airbag Deployment ....................... 58
Airbag Light ....................... 61,75,153
Airbag Maintenance ....................... 60
Airbag, Side ............................ 56
Alarm Light ........................... 152
Alarm, Panic ............................ 22 Alarm System (Security Alarm)
............... 18
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 178
Antifreeze (Engine Coolant) ...........293,316,317
Capacities ........................... 316
Disposal ............................ 296
Anti-Lock Brake System (ABS) .............. 210
Anti-Lock Warning Light .................. 153
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 302
Auto Down Power Windows ................ 32
Automatic Door Locks ................... 28,29
Automatic Transaxle ..............12,192,194,299
Adding Fluid ......................... 300
Filter ............................... 301
Fluid and Filter Changes ................. 301
Fluid Level Check ..................... 300
Interlock System ..................... 15,196
Reset Mode .......................... 197
350 INDEX

Special Additives...................... 301
Autostick ............................. 200
Back-Up Lights ......................... 315
Battery ............................... 286
Keyless Transmitter Replacement (RKE) ....... 25
Belts, Seat .............................. 75
Body Mechanism Lubrication ............... 288
B-Pillar Location ........................ 219
Brake, Parking .......................... 207
Brake System ........................ 209,298
Anti-Lock (ABS) ....................... 210
Fluid Check .......................... 298
Master Cylinder ....................... 298
Parking ............................. 207
Warning Light ........................ 150
Brakes ............................... 209
Brake/Transmission Interlock ............... 195
Break-In Recommendations, New Vehicle ........ 72Bulb Replacement
..................... 31 1,312
Bulbs, Light .......................... 77,311
Calibration, Compass ...............157,162,167
Capacities, Antifreeze (Engine Coolant) ........ 316
Capacities, Fluid ........................ 316
Caps, Filler Fuel ............................... 242
Oil (Engine) ....................... 277,284
Power Steering ........................ 206
Radiator (Coolant Pressure) ............... 295
Car Washes ............................ 303
Carbon Monoxide Warning ...............74,241
CD (Compact Disc) Player ................. 168
Cellular Phone .......................... 180
Center High Mounted Stop Light ............ 315
Chains, Tire ............................ 231
Changing A Flat Tire ..................... 262
Chart, Tire Sizing ........................ 215
10
INDEX 351

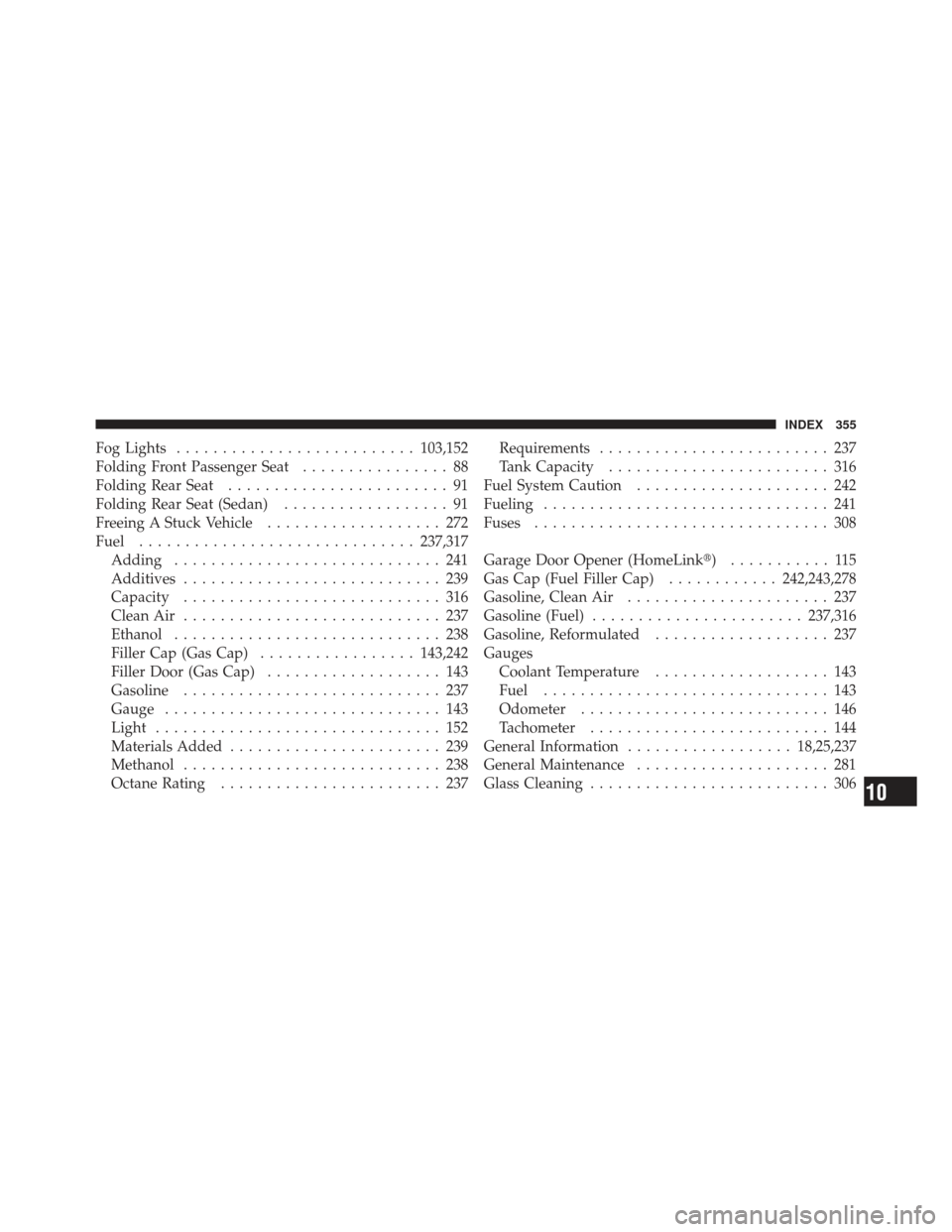

Fog Lights.......................... 103,152
Folding Front Passenger Seat ................ 88
Folding Rear Seat ........................ 91
Folding Rear Seat (Sedan) .................. 91
Freeing A Stuck Vehicle ................... 272
Fuel .............................. 237,317
Adding ............................. 241
Additives ............................ 239
Capacity ............................ 316
Clean Air ............................ 237
Ethanol ............................. 238
Filler Cap (Gas Cap) ................. 143,242
Filler Door (Gas Cap) ................... 143
Gasoline ............................ 237
Gauge .............................. 143
Light ............................... 152
Materials Added ....................... 239
Methanol ............................ 238
Octane Rating ........................ 237 Requirements
......................... 237
Tank Capacity ........................ 316
Fuel System Caution ..................... 242
Fueling ............................... 241
Fuses ................................ 308
Garage Door Opener (HomeLink) ........... 115
Gas Cap (Fuel Filler Cap) ............242,243,278
Gasoline, Clean Air ...................... 237
Gasoline (Fuel) ....................... 237,316
Gasoline, Reformulated ................... 237
Gauges Coolant Temperature ................... 143
Fuel ............................... 143
Odometer ........................... 146
Tachometer .......................... 144
General Information .................. 18,25,237
General Maintenance ..................... 281
Glass Cleaning .......................... 306
10
INDEX 355
