OFF. Opening a vehicle door will cancel this feature.
Press and hold the EVIC button when in this display until
OFF, 45 sec, 5 min, or 10 min appears, to make your
selection.
Turn Headlights on with Remote Key Unlock
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked using the RKE transmitter. Press and hold the
EVIC button when in this display until OFF, 30 sec,
60 sec, or 90 sec appears, to make your selection.
Confirmation of Voice Commands — If Equipped
When ON is selected, all voice commands from the
U-Connectsystem are confirmed. Press and hold the
EVIC button when in this display until ON or OFF
appears, to make your selection.
Display English or Metric
The EVIC, odometer, and navigation system units can be
changed between English and METRIC. Press and hold the EVIC button when in this display until
US or METRIC appears, to make your selection.
Automatic Compass Calibration
The compass on your vehicle is self-calibrating, eliminat-
ing the need to manually calibrate the compass. When
the vehicle is new, the compass may appear erratic and
the CAL indicator message will flash in the EVIC until
the calibration is complete.
A good calibration requires a level surface and an envi-
ronment free from large metallic objects such as build-
ings, bridges, underground cables, railroad tracks, etc.
Calibrate the compass by driving slowly, under 5 mph
(8 km/h) in one or more complete circles in an area free
from large metallic objects, until the CAL indicator in the
EVIC turns off. The compass will now function normally.
166 UNDERSTANDING YOUR INSTRUMENT PANEL

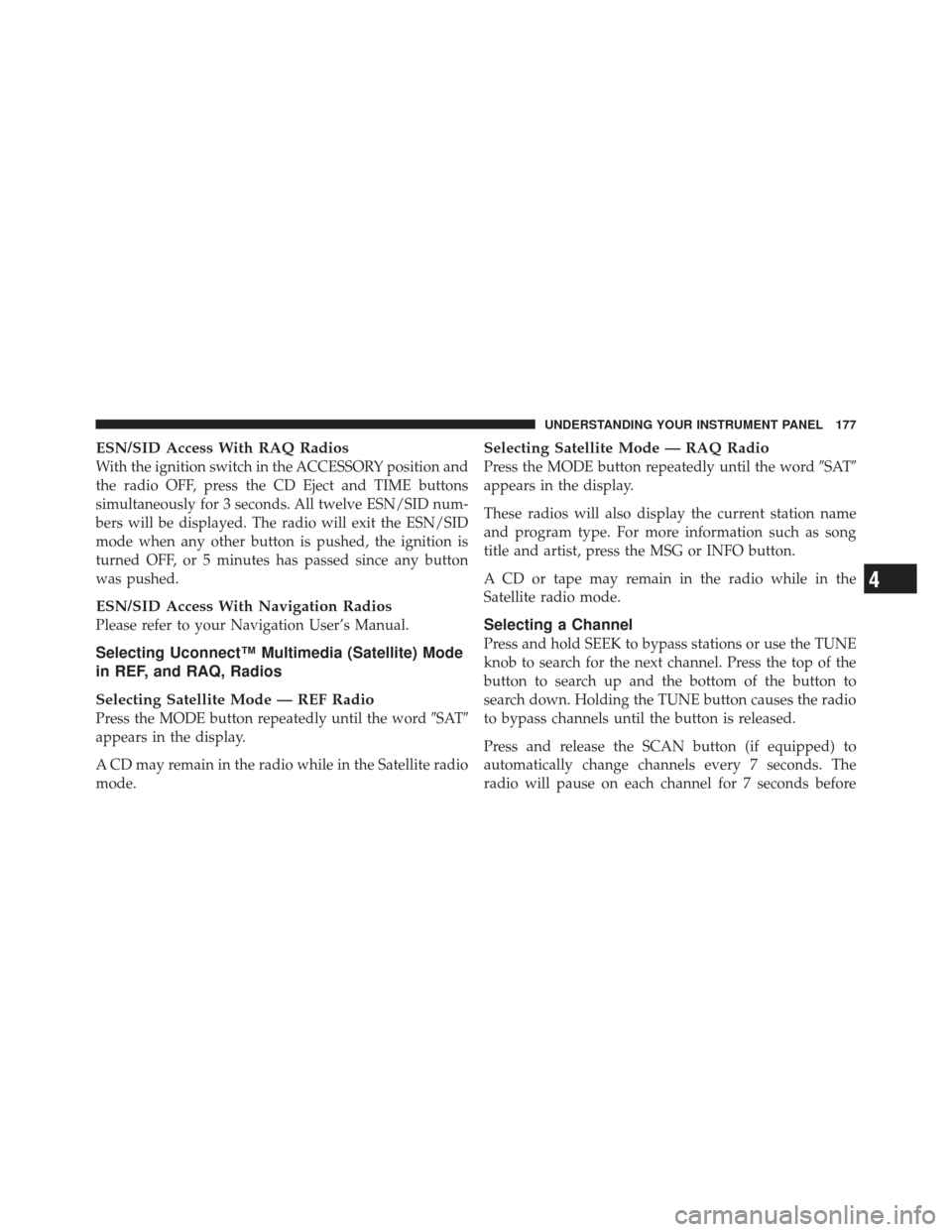

ESN/SID Access With RAQ Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the CD Eject and TIME buttons
simultaneously for 3 seconds. All twelve ESN/SID num-
bers will be displayed. The radio will exit the ESN/SID
mode when any other button is pushed, the ignition is
turned OFF, or 5 minutes has passed since any button
was pushed.
ESN/SID Access With Navigation Radios
Please refer to your Navigation User’s Manual.
Selecting Uconnect™ Multimedia (Satellite) Mode
in REF, and RAQ, Radios
Selecting Satellite Mode — REF Radio
Press the MODE button repeatedly until the wordSAT
appears in the display.
A CD may remain in the radio while in the Satellite radio
mode.
Selecting Satellite Mode — RAQ Radio
Press the MODE button repeatedly until the word SAT
appears in the display.
These radios will also display the current station name
and program type. For more information such as song
title and artist, press the MSG or INFO button.
A CD or tape may remain in the radio while in the
Satellite radio mode.
Selecting a Channel
Press and hold SEEK to bypass stations or use the TUNE
knob to search for the next channel. Press the top of the
button to search up and the bottom of the button to
search down. Holding the TUNE button causes the radio
to bypass channels until the button is released.
Press and release the SCAN button (if equipped) to
automatically change channels every 7 seconds. The
radio will pause on each channel for 7 seconds before
4
UNDERSTANDING YOUR INSTRUMENT PANEL 177
