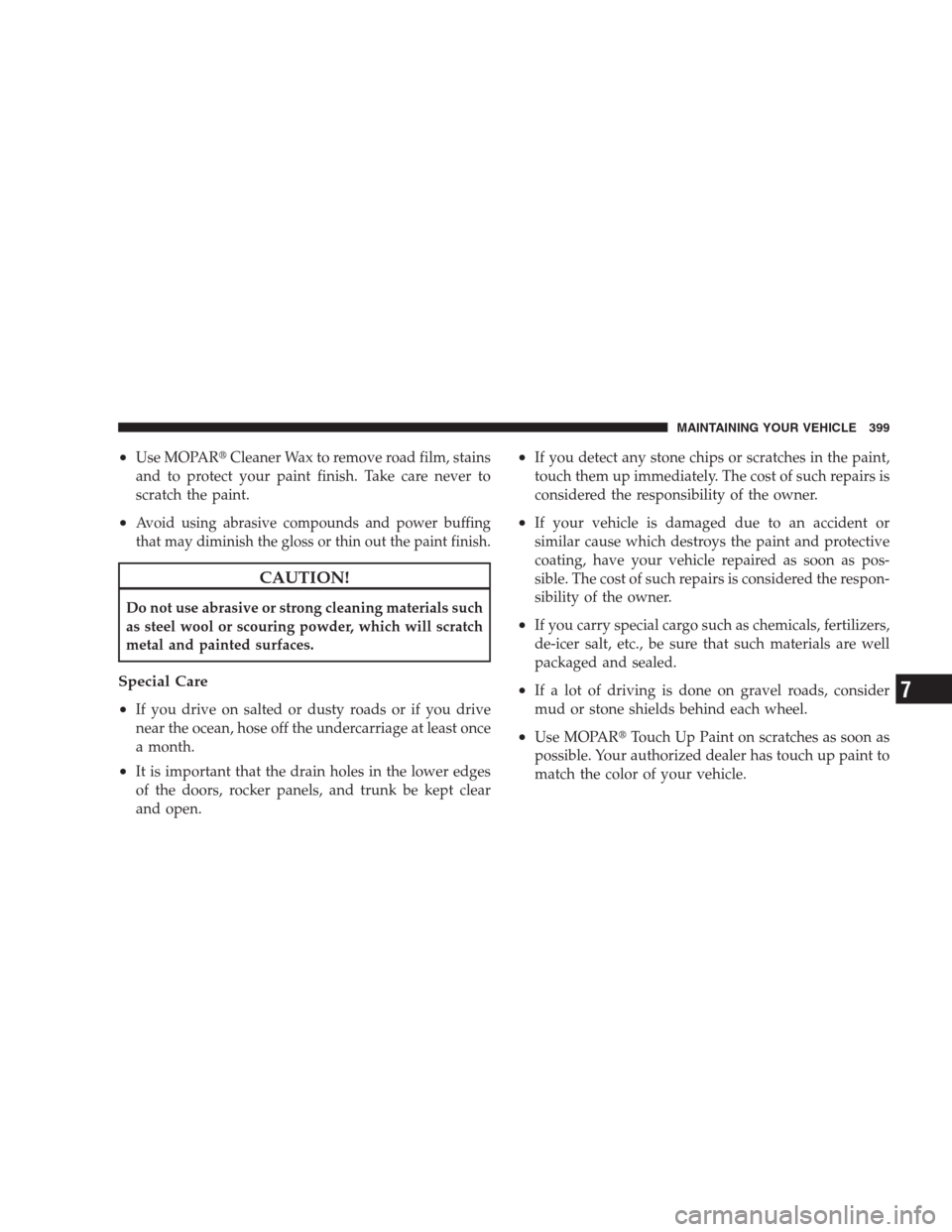

•Use MOPARCleaner Wax to remove road film, stains
and to protect your paint finish. Take care never to
scratch the paint.
•Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint finish.
CAUTION!
Do not use abrasive or strong cleaning materials such
as steel wool or scouring powder, which will scratch
metal and painted surfaces.
Special Care
•
If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
•It is important that the drain holes in the lower edges
of the doors, rocker panels, and trunk be kept clear
and open.
•If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
•If your vehicle is damaged due to an accident or
similar cause which destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is considered the respon-
sibility of the owner.
•If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
•If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
•Use MOPARTouch Up Paint on scratches as soon as
possible. Your authorized dealer has touch up paint to
match the color of your vehicle.
MAINTAINING YOUR VEHICLE 399
7

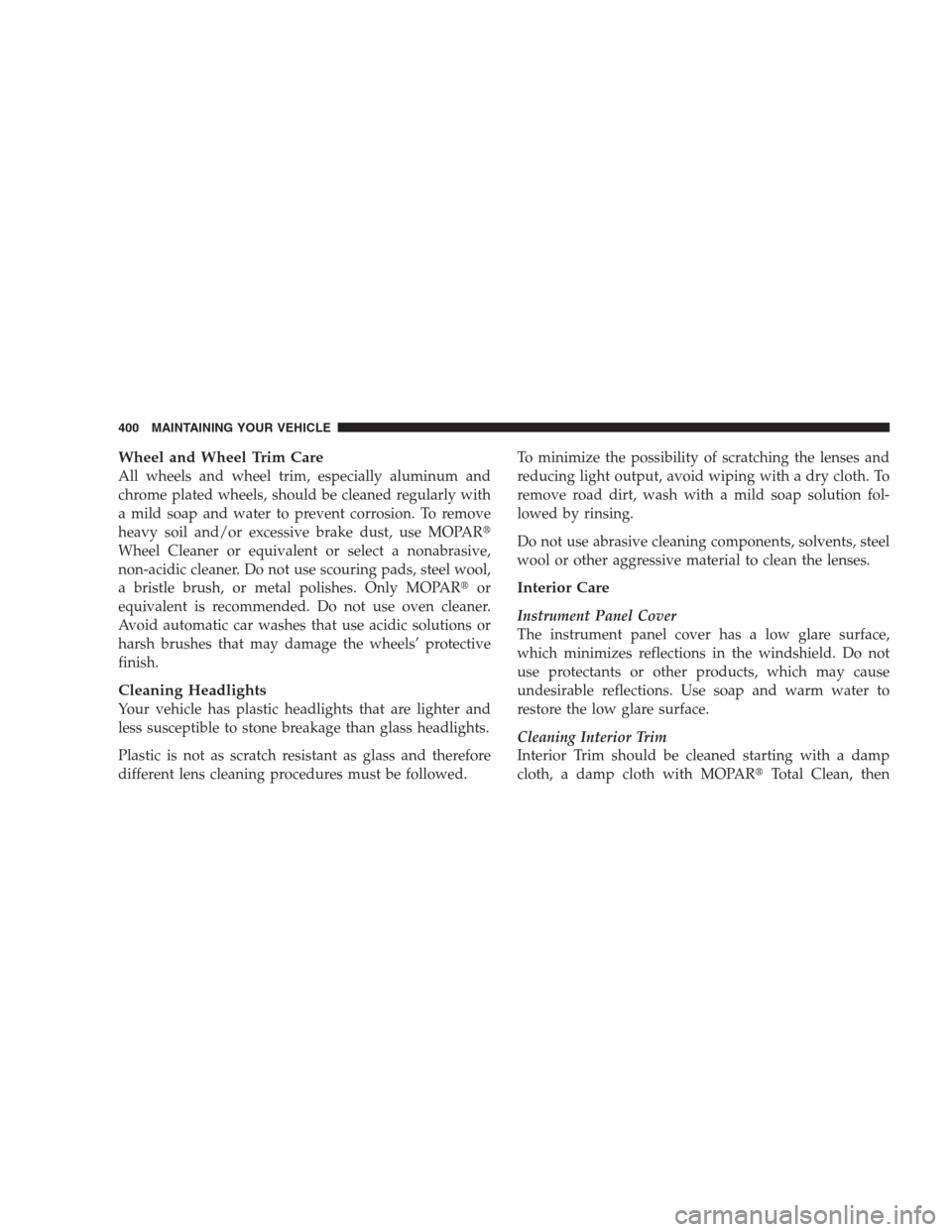

Wheel and Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly with
a mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use MOPAR
Wheel Cleaner or equivalent or select a nonabrasive,
non-acidic cleaner. Do not use scouring pads, steel wool,
a bristle brush, or metal polishes. Only MOPARor
equivalent is recommended. Do not use oven cleaner.
Avoid automatic car washes that use acidic solutions or
harsh brushes that may damage the wheels’ protective
finish.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Interior Care
Instrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Cleaning Interior Trim
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MOPARTotal Clean, then
400 MAINTAINING YOUR VEHICLE

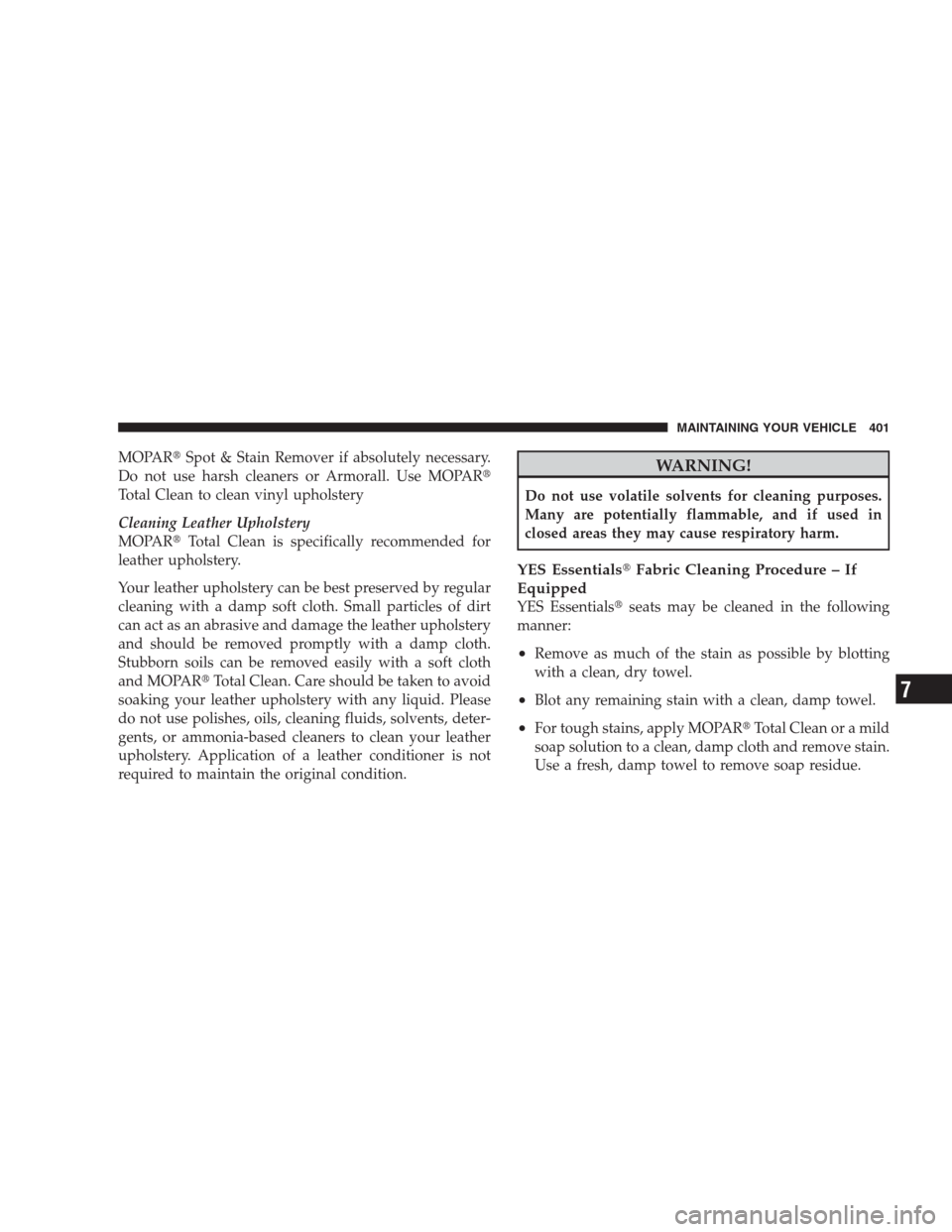

MOPARSpot & Stain Remover if absolutely necessary.
Do not use harsh cleaners or Armorall. Use MOPAR
Total Clean to clean vinyl upholstery
Cleaning Leather Upholstery
MOPARTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPARTotal Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
YES EssentialsFabric Cleaning Procedure – If
Equipped
YES Essentialsseats may be cleaned in the following
manner:
•Remove as much of the stain as possible by blotting
with a clean, dry towel.
•Blot any remaining stain with a clean, damp towel.
•For tough stains, apply MOPARTotal Clean or a mild
soap solution to a clean, damp cloth and remove stain.
Use a fresh, damp towel to remove soap residue.
MAINTAINING YOUR VEHICLE 401
7

•For grease stains, apply MOPARMulti-Purpose
Cleaner to a clean, damp cloth and remove stain. Use
a fresh, damp towel to remove soap residue.
•Do not use any solvents or protectants on Yes Essen-
tialsproducts.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet, soft rag. A mild soap solution may
be used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
402 MAINTAINING YOUR VEHICLE

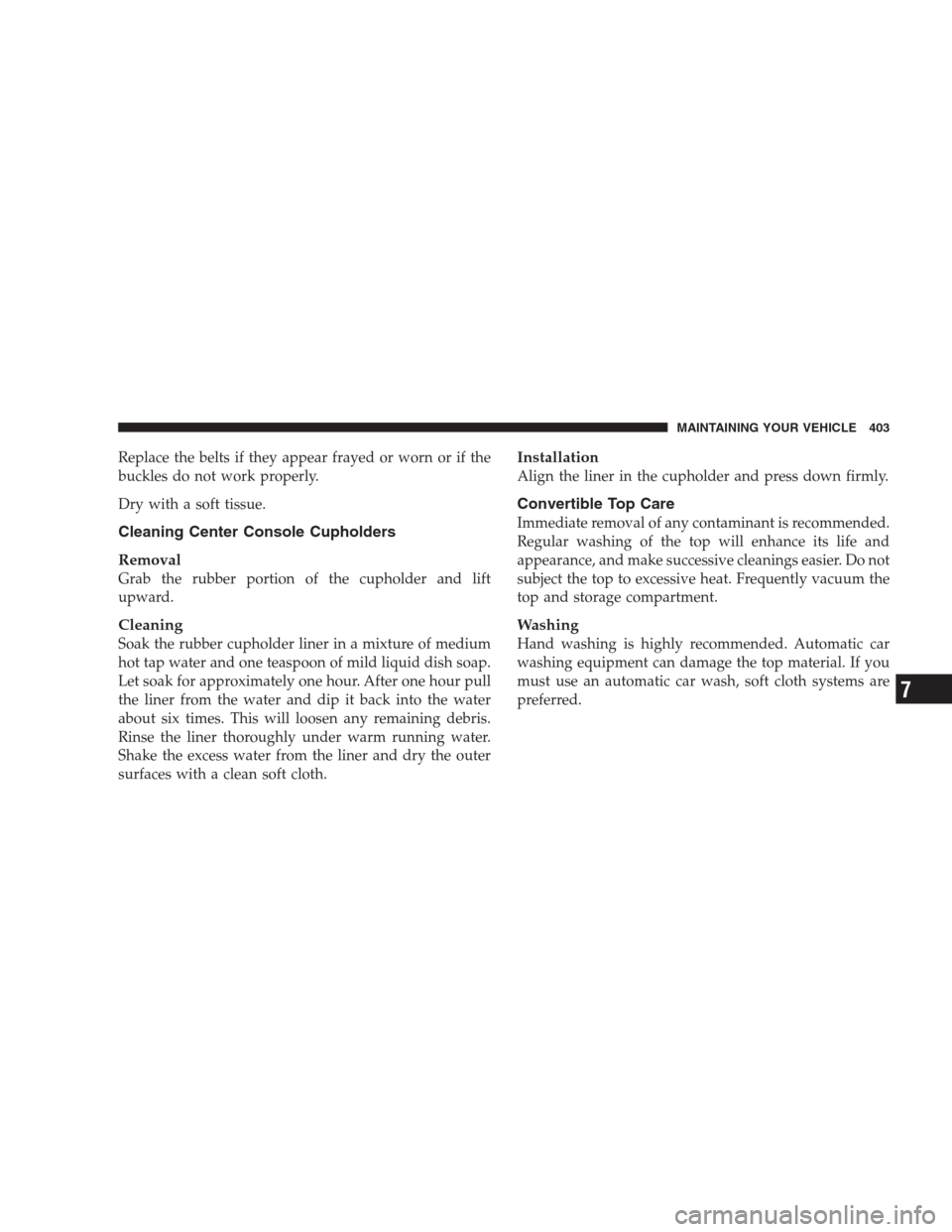

Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
Cleaning Center Console Cupholders
Removal
Grab the rubber portion of the cupholder and lift
upward.
Cleaning
Soak the rubber cupholder liner in a mixture of medium
hot tap water and one teaspoon of mild liquid dish soap.
Let soak for approximately one hour. After one hour pull
the liner from the water and dip it back into the water
about six times. This will loosen any remaining debris.
Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the outer
surfaces with a clean soft cloth.
Installation
Align the liner in the cupholder and press down firmly.
Convertible Top Care
Immediate removal of any contaminant is recommended.
Regular washing of the top will enhance its life and
appearance, and make successive cleanings easier. Do not
subject the top to excessive heat. Frequently vacuum the
top and storage compartment.
Washing
Hand washing is highly recommended. Automatic car
washing equipment can damage the top material. If you
must use an automatic car wash, soft cloth systems are
preferred.
MAINTAINING YOUR VEHICLE 403
7

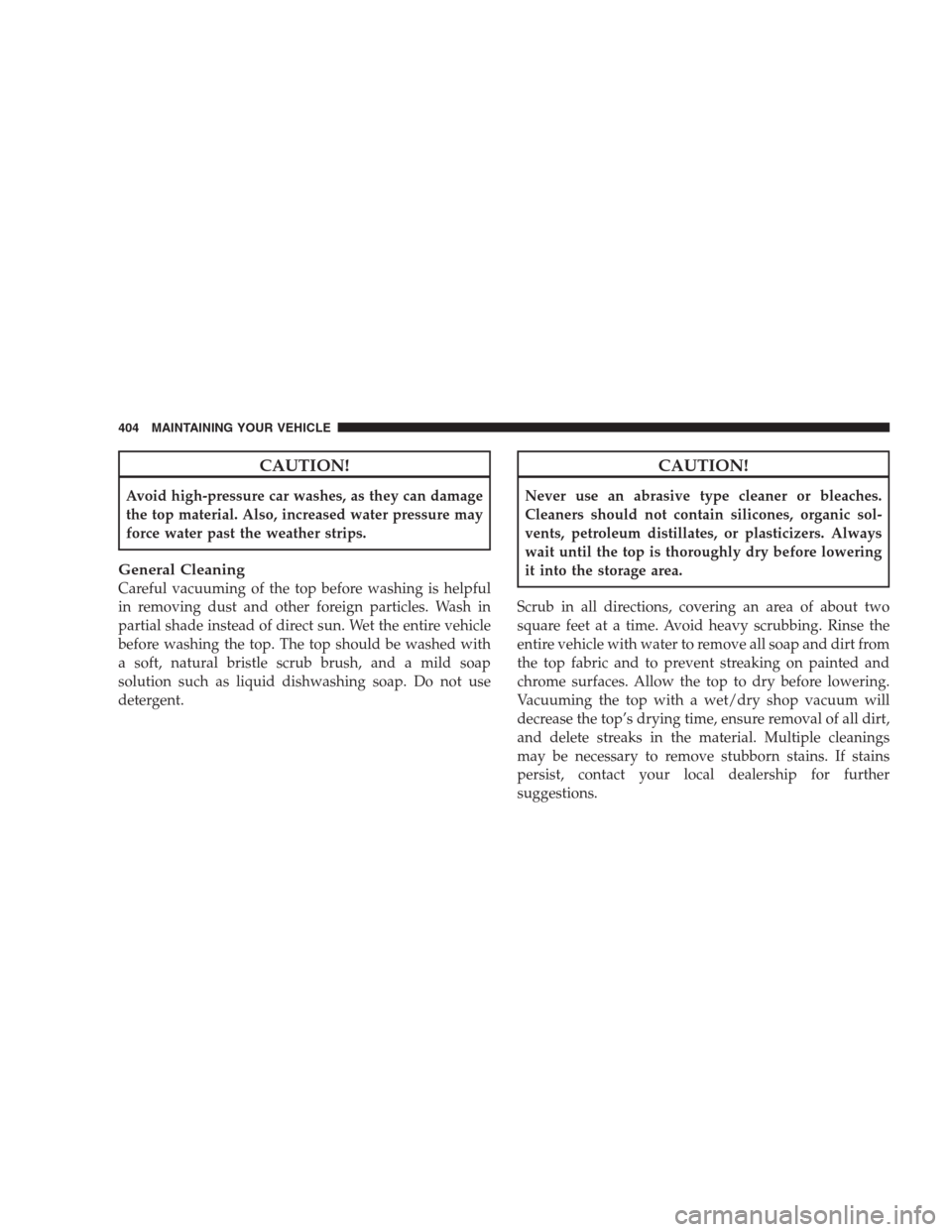

CAUTION!
Avoid high-pressure car washes, as they can damage
the top material. Also, increased water pressure may
force water past the weather strips.
General Cleaning
Careful vacuuming of the top before washing is helpful
in removing dust and other foreign particles. Wash in
partial shade instead of direct sun. Wet the entire vehicle
before washing the top. The top should be washed with
a soft, natural bristle scrub brush, and a mild soap
solution such as liquid dishwashing soap. Do not use
detergent.
CAUTION!
Never use an abrasive type cleaner or bleaches.
Cleaners should not contain silicones, organic sol-
vents, petroleum distillates, or plasticizers. Always
wait until the top is thoroughly dry before lowering
it into the storage area.
Scrub in all directions, covering an area of about two
square feet at a time. Avoid heavy scrubbing. Rinse the
entire vehicle with water to remove all soap and dirt from
the top fabric and to prevent streaking on painted and
chrome surfaces. Allow the top to dry before lowering.
Vacuuming the top with a wet/dry shop vacuum will
decrease the top’s drying time, ensure removal of all dirt,
and delete streaks in the material. Multiple cleanings
may be necessary to remove stubborn stains. If stains
persist, contact your local dealership for further
suggestions.
404 MAINTAINING YOUR VEHICLE

Additional Cleaning Procedure
For additional cleaning assistance in removing stubborn
stains, apply MOPARConvertible Cloth Top Cleaner to
the complete stain, extending 2 inches (50 mm) beyond
the stain. With a soft bristle brush, scrub in all directions
over the stain. Avoid heavy scrubbing. Rinse the area
with warm water. If the stain is still apparent, repeat the
cleaning procedure. When the stain is no longer showing,
rinse the complete top with warm water. Let the top dry
before lowering it.
Protection
For appearance purposes, you may wish to protect your
cloth top periodically. A fabric protectant such as Scotch-
guardis suggested. The top should be clean and dry
before application of the protectant.
CAUTION!
Avoid getting Scotchguardon the surrounding
weather strips, moldings, paint, or glass. Damage to
these items might occur.
Weather Strip Care — Soft & Hard Top
Lubricate all top and door glass weather strips periodi-
cally with MOPARWeather Strip Lubricant to keep
them soft and pliable.
FUSES
Totally Integrated Power Module (TIPM)
The TIPM is located in the engine compartment near the
air cleaner assembly. This center contains cartridge fuses
and mini fuses. A label that identifies each component
may be printed on the inside of the cover. Refer to the
graphic below for FUSES/TIPM location.
MAINTAINING YOUR VEHICLE 405
7

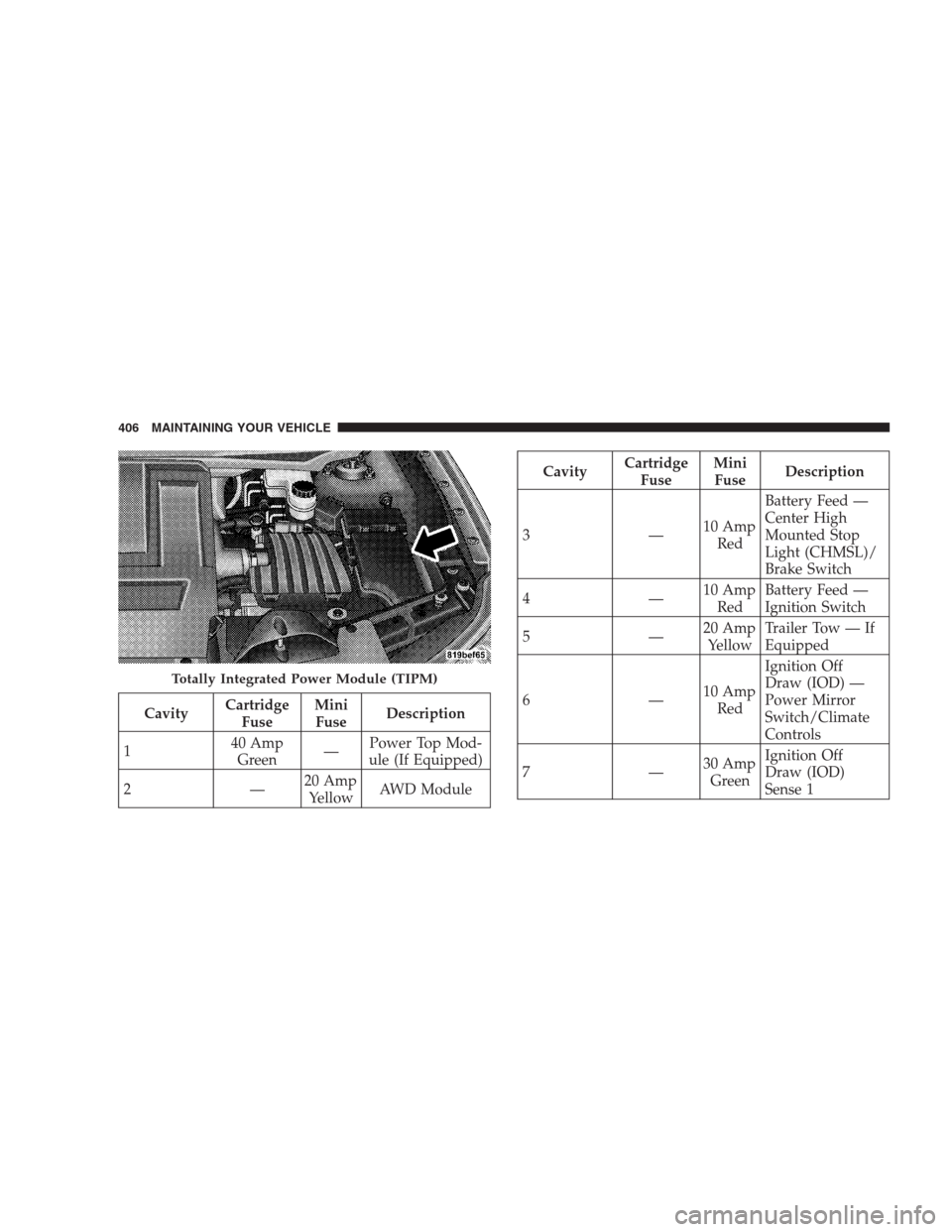

CavityCartridge
FuseMini
FuseDescription
140 Amp
Green—Power Top Mod-
ule (If Equipped)
2—20 Amp
YellowAWD Module
CavityCartridge
FuseMini
FuseDescription
3—10 Amp
RedBattery Feed —
Center High
Mounted Stop
Light (CHMSL)/
Brake Switch
4—10 Amp
RedBattery Feed —
Ignition Switch
5—20 Amp
YellowTrailer Tow — If
Equipped
6—10 Amp
RedIgnition Off
Draw (IOD) —
Power Mirror
Switch/Climate
Controls
7—30 Amp
GreenIgnition Off
Draw (IOD)
Sense 1
Totally Integrated Power Module (TIPM)
406 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini
FuseDescription
8—30 Amp
GreenIgnition Off
Draw (IOD)
Sense 2
940 Amp
GreenBattery Feed —
Power Seats - if
equipped/PZEV
Air Pump - if
equipped
10 —20 Amp
YellowBattery Feed —
Cabin Compart-
ment Node
(CCN)
11 —15 Amp
Lt BlueSelectable Power
Outlet
12 —20 Amp
Yellow—CavityCartridge
FuseMini
FuseDescription
13 —20 Amp
Yellow—
14 —10 Amp
RedIgnition Off
Draw (IOD) —
Cabin Compart-
ment Node
(CCN)/ Interior
Lighting
1540 Amp
Green—Battery Feed —
Radiator Fan Re-
lay
16 —15 Amp
Lt.
BlueIGN Run/ACC
— Cigar Lighter/
PWR Sunroof
Mod
MAINTAINING YOUR VEHICLE 407
7

CavityCartridge
FuseMini
FuseDescription
17 —10 Amp
RedIgnition Off
Draw (IOD) —
Wireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
1840 Amp
Green—Battery Feed —
Auto Shutdown
(ASD) Relay
19 —20 Amp
YellowIgnition Off
Draw (IOD) —
Power Amp Feed
2 - if equipped
20 —15 Amp
Lt.
BlueIgnition Off
Draw (IOD) —
RadioCavityCartridge
FuseMini
FuseDescription
21 —10 Amp
Red—
22 —10 Amp
RedIgnition Run —
Climate
Controls/Hot
Cupholder - if
equipped
23 —15 Amp
Lt.
BlueAuto Shutdown
(ASD) Relay Feed
3
24 —25 Amp
ClearBattery Feed —
PWR Sunroof
Feed
25 —10 Amp
RedIgnition Run —
Heated Mirrors -
If Equipped
408 MAINTAINING YOUR VEHICLE
