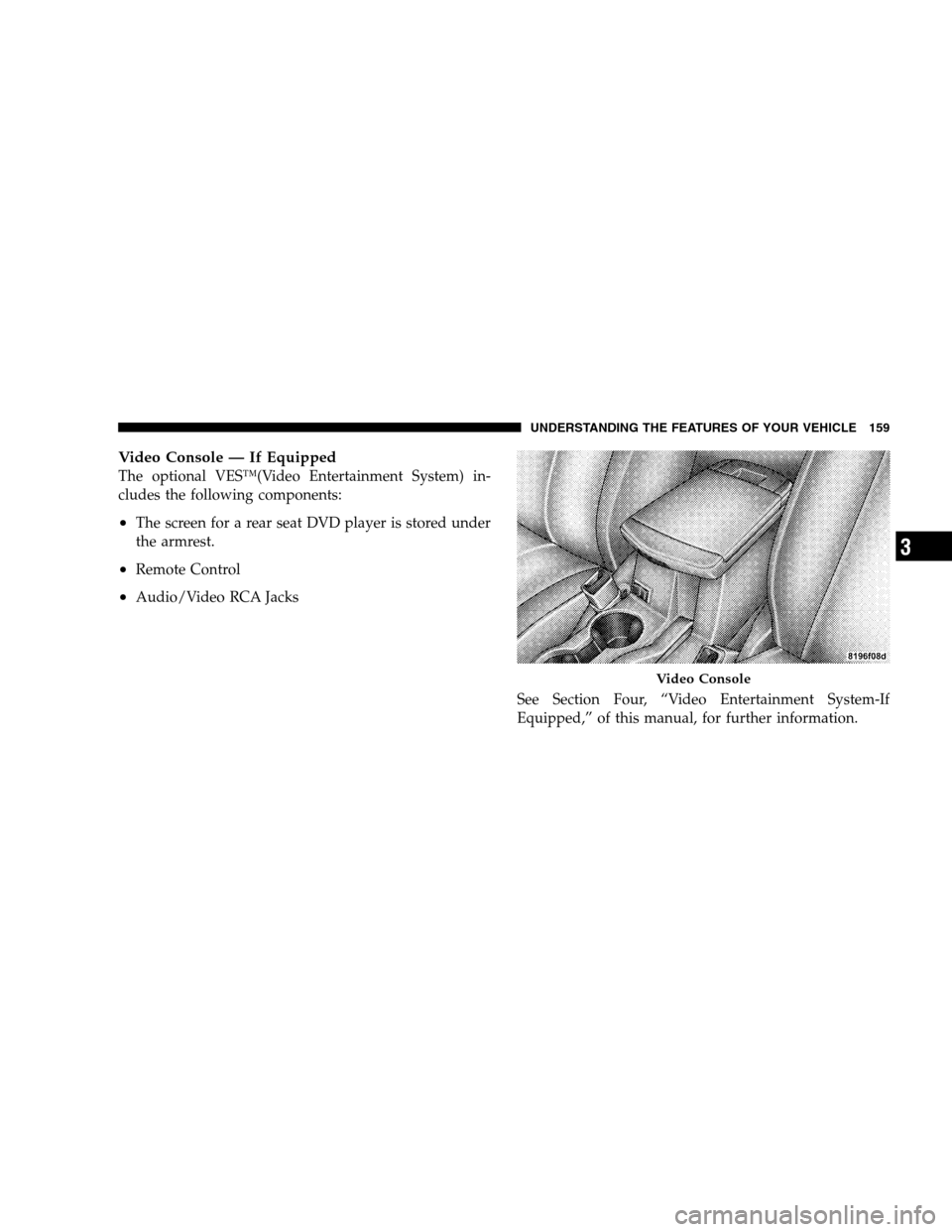

Video Console — If Equipped
The optional VES™(Video Entertainment System) in-
cludes the following components:
•The screen for a rear seat DVD player is stored under
the armrest.
•Remote Control
•Audio/Video RCA Jacks
See Section Four, “Video Entertainment System-If
Equipped,” of this manual, for further information.
Video Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
3

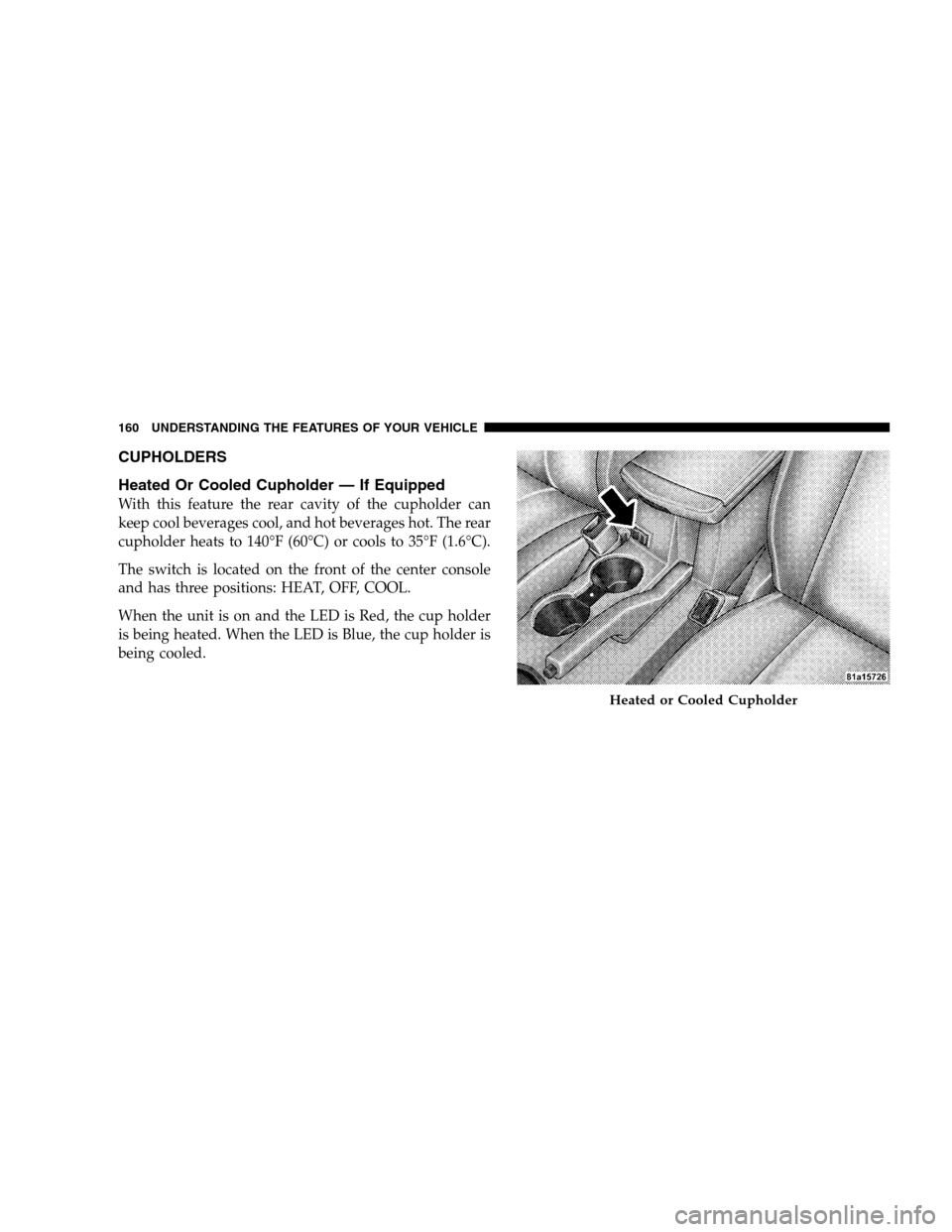

CUPHOLDERS
Heated Or Cooled Cupholder — If Equipped
With this feature the rear cavity of the cupholder can
keep cool beverages cool, and hot beverages hot. The rear
cupholder heats to 140°F (60°C) or cools to 35°F (1.6°C).
The switch is located on the front of the center console
and has three positions: HEAT, OFF, COOL.
When the unit is on and the LED is Red, the cup holder
is being heated. When the LED is Blue, the cup holder is
being cooled.
Heated or Cooled Cupholder
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

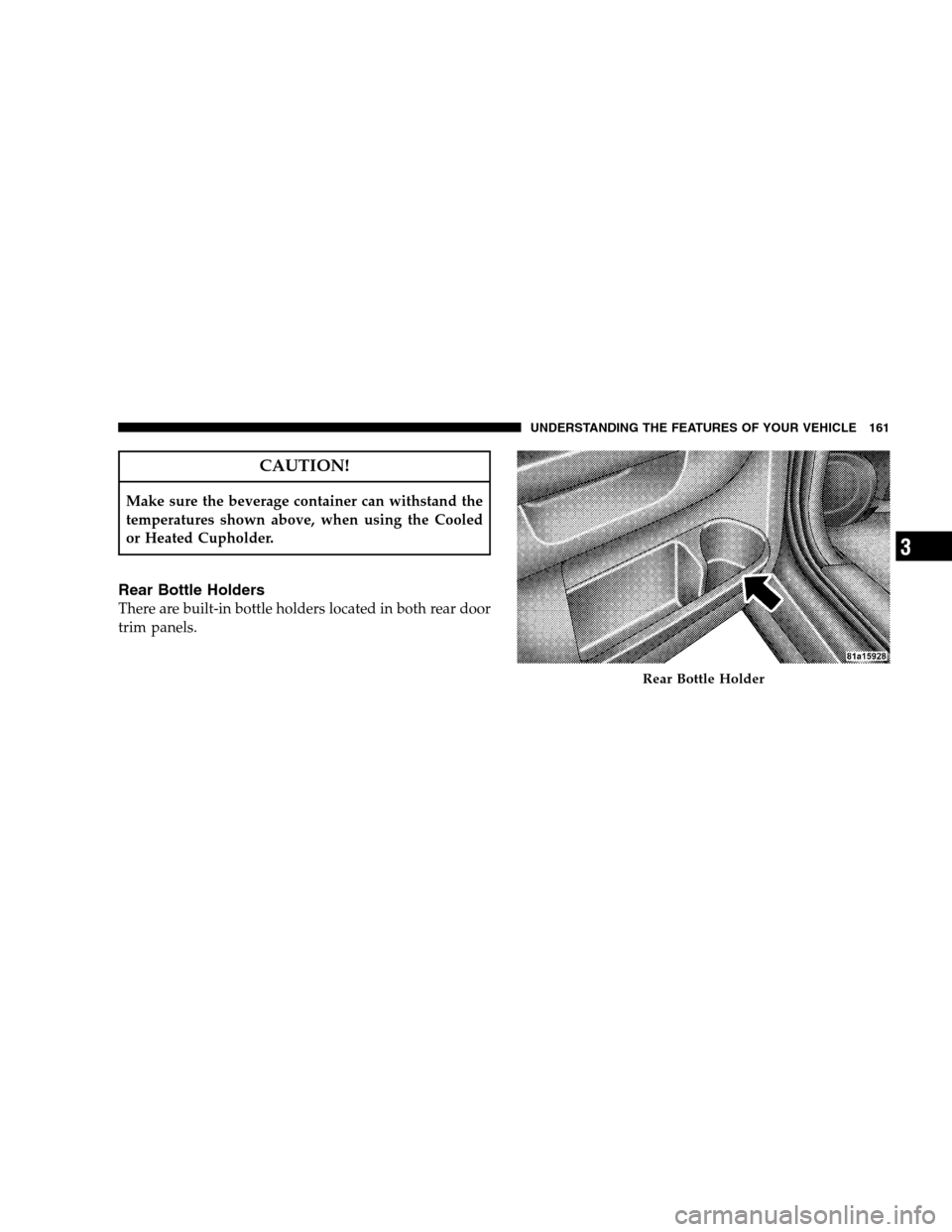

CAUTION!
Make sure the beverage container can withstand the
temperatures shown above, when using the Cooled
or Heated Cupholder.
Rear Bottle Holders
There are built-in bottle holders located in both rear door
trim panels.
Rear Bottle Holder
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161
3

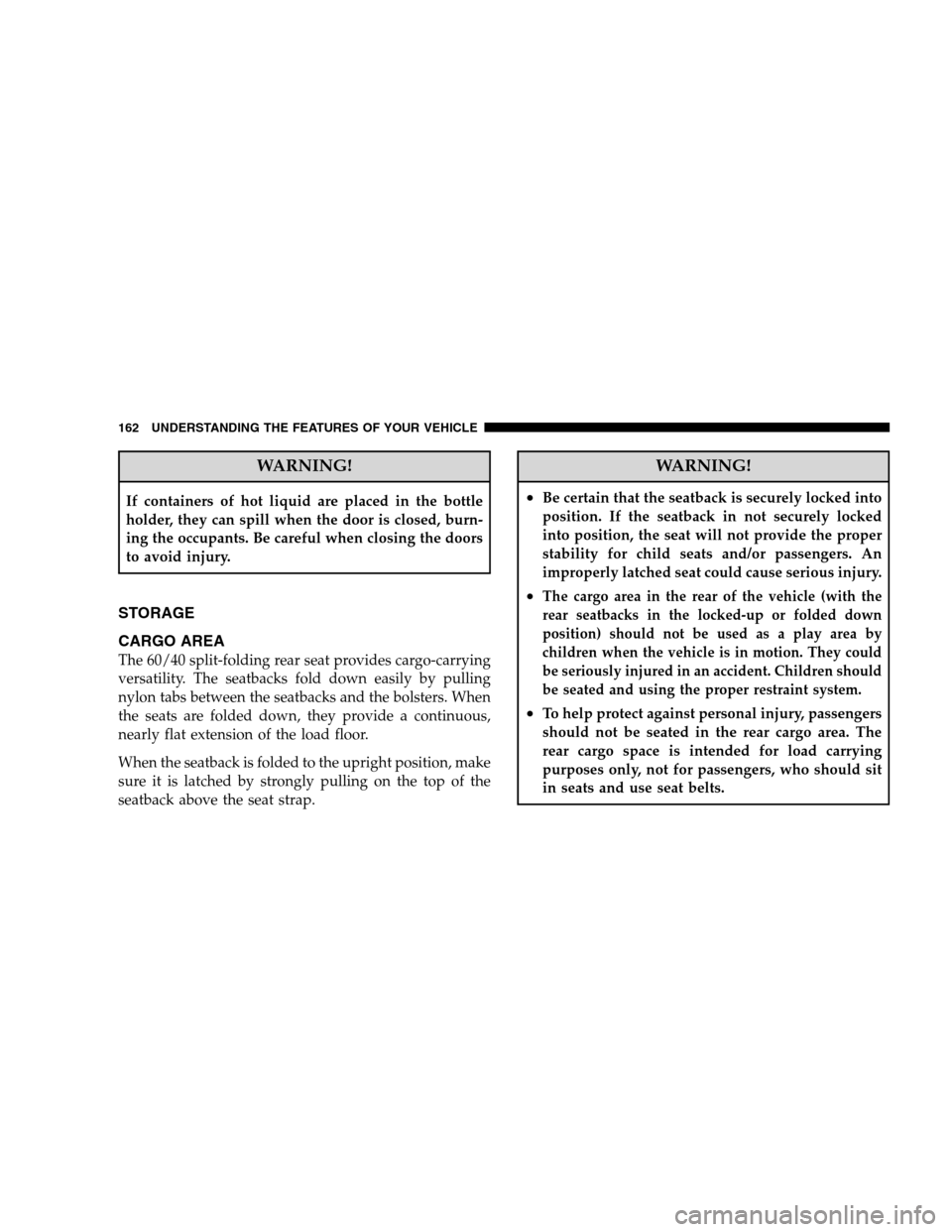

WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.
STORAGE
CARGO AREA
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.
When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children should
be seated and using the proper restraint system.
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

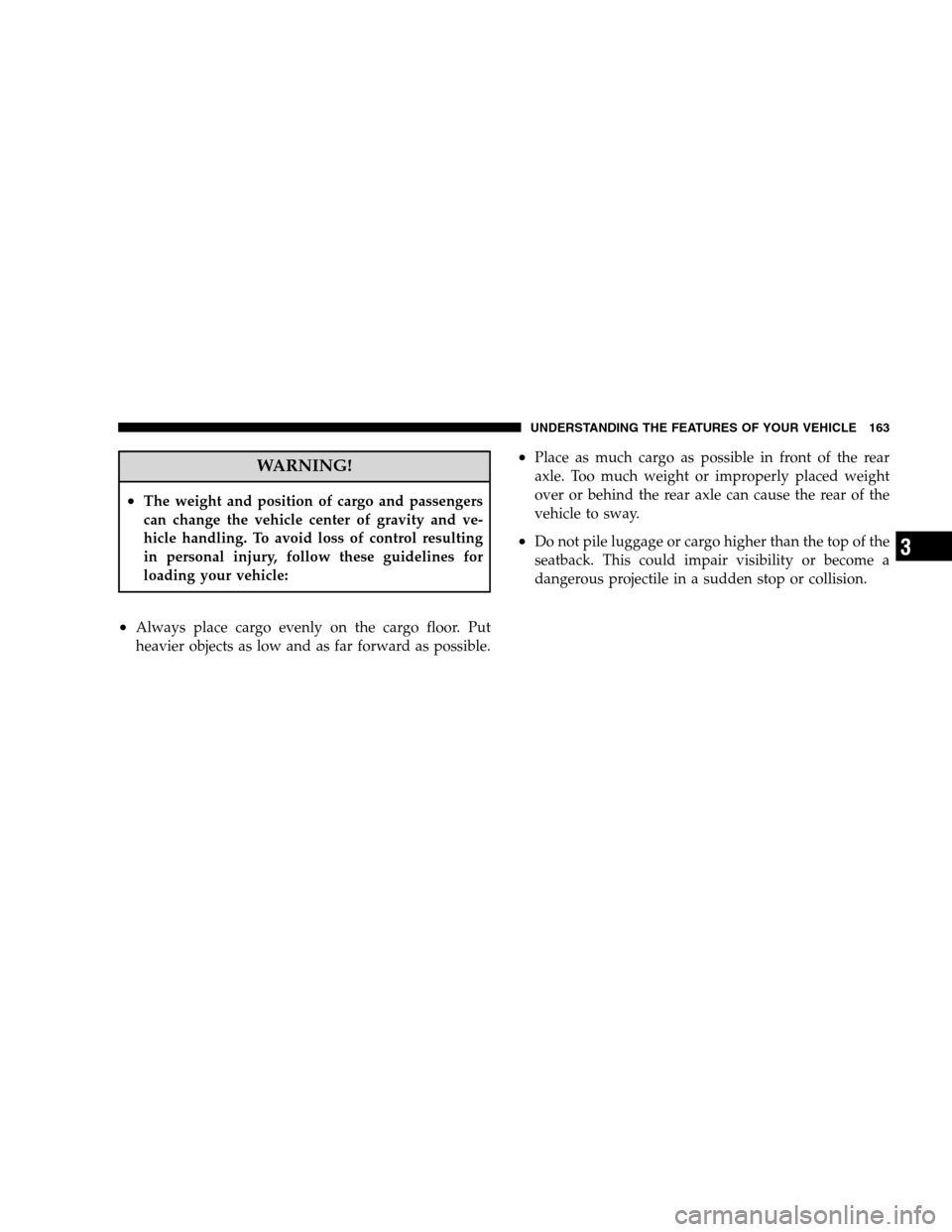

WARNING!
•The weight and position of cargo and passengers
can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as possible.
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of the
vehicle to sway.
•Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
3

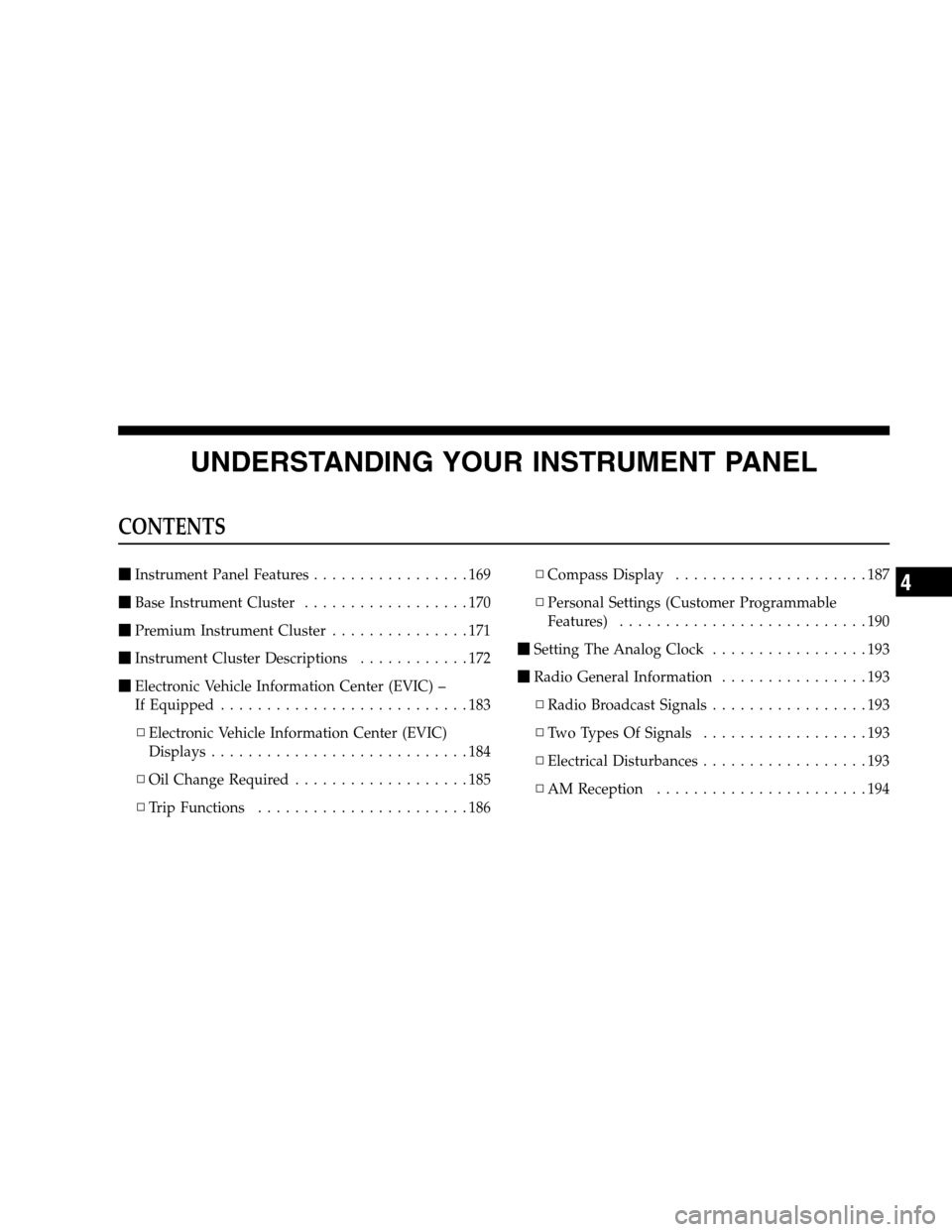

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS

Instrument Panel Features.................169

Base Instrument Cluster..................170

Premium Instrument Cluster...............171

Instrument Cluster Descriptions............172

Electronic Vehicle Information Center (EVIC) –
If Equipped...........................183
▫Electronic Vehicle Information Center (EVIC)
Displays............................184
▫Oil Change Required...................185
▫Trip Functions.......................186▫Compass Display.....................187
▫Personal Settings (Customer Programmable
Features)...........................190

Setting The Analog Clock.................193

Radio General Information................193
▫Radio Broadcast Signals.................193
▫Two Types Of Signals..................193
▫Electrical Disturbances..................193
▫AM Reception.......................1944

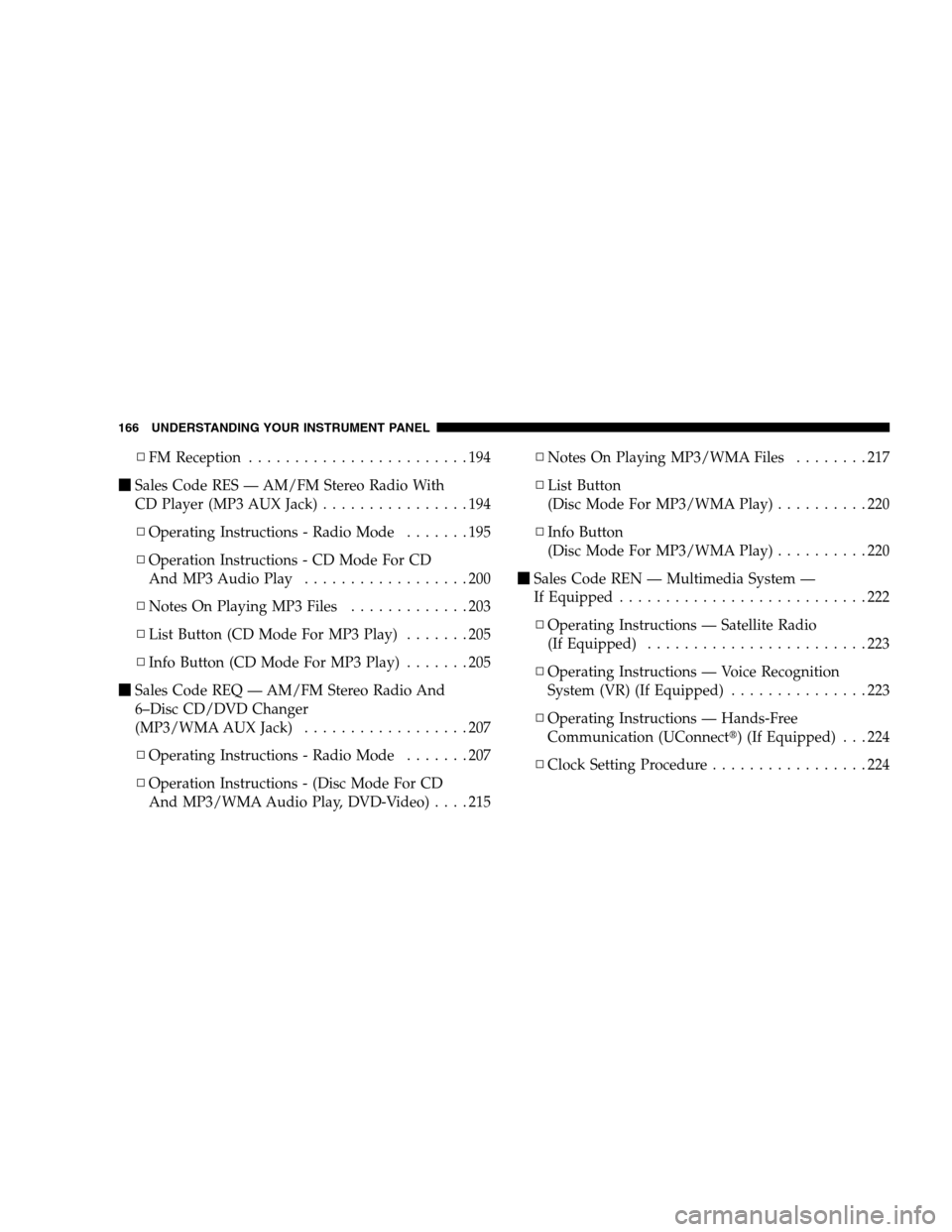

▫FM Reception........................194

Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)................194
▫Operating Instructions - Radio Mode.......195
▫Operation Instructions - CD Mode For CD
And MP3 Audio Play..................200
▫Notes On Playing MP3 Files.............203
▫List Button (CD Mode For MP3 Play).......205
▫Info Button (CD Mode For MP3 Play).......205

Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer
(MP3/WMA AUX Jack)..................207
▫Operating Instructions - Radio Mode.......207
▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video)....215▫NotesOnPlayingMP3/WMAFiles ........217
▫List Button
(Disc Mode For MP3/WMA Play)..........220
▫Info Button
(Disc Mode For MP3/WMA Play)..........220

Sales Code REN — Multimedia System —
If Equipped...........................222
▫Operating Instructions — Satellite Radio
(If Equipped)........................223
▫Operating Instructions — Voice Recognition
System (VR) (If Equipped)...............223
▫Operating Instructions — Hands-Free
Communication (UConnect) (If Equipped) . . . 224
▫Clock Setting Procedure.................224
166 UNDERSTANDING YOUR INSTRUMENT PANEL

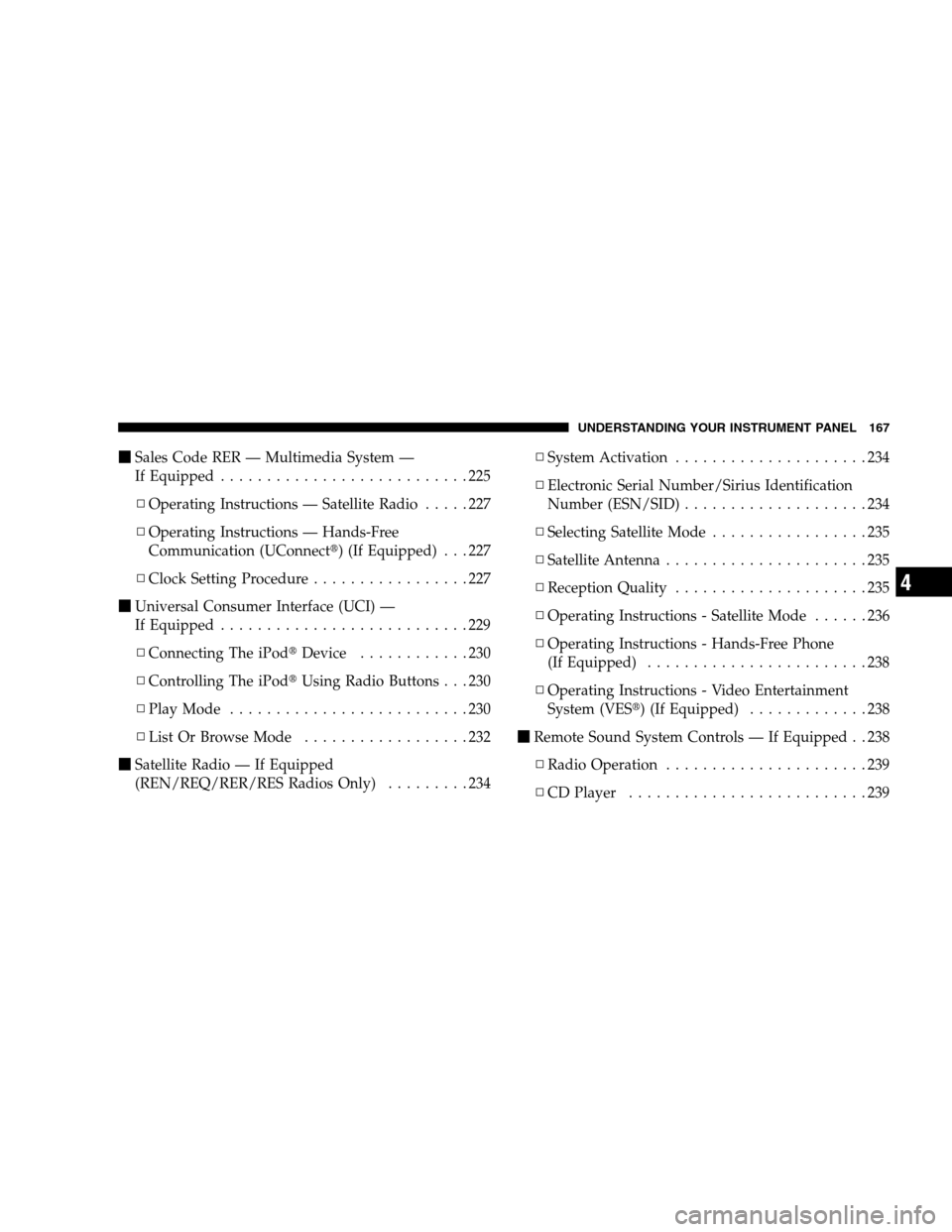

Sales Code RER — Multimedia System —
If Equipped...........................225
▫Operating Instructions — Satellite Radio.....227
▫Operating Instructions — Hands-Free
Communication (UConnect) (If Equipped) . . . 227
▫Clock Setting Procedure.................227

Universal Consumer Interface (UCI) —
If Equipped...........................229
▫Connecting The iPodDevice............230
▫Controlling The iPodUsing Radio Buttons . . . 230
▫Play Mode..........................230
▫List Or Browse Mode..................232

Satellite Radio — If Equipped
(REN/REQ/RER/RES Radios Only).........234▫System Activation.....................234
▫Electronic Serial Number/Sirius Identification
Number (ESN/SID)....................234
▫Selecting Satellite Mode.................235
▫Satellite Antenna......................235
▫Reception Quality.....................235
▫Operating Instructions - Satellite Mode......236
▫Operating Instructions - Hands-Free Phone
(If Equipped)........................238
▫Operating Instructions - Video Entertainment
System (VES) (If Equipped).............238

Remote Sound System Controls — If Equipped . . 238
▫Radio Operation......................239
▫CD Player..........................239
UNDERSTANDING YOUR INSTRUMENT PANEL 167
4

Video Entertainment System (VES)—
If Equipped...........................240

Radio Operation And Cellular Phones........242

CD/DVD Disc Maintenance...............242

Climate Controls.......................243
▫Manual Air Conditioning And Heating
System.............................243▫Automatic Temperature Control (ATC) —
If Equipped.........................248
▫Operating Tips.......................254

Rear Window Features...................258
▫Electric Rear Window Defroster —
If Equipped.........................258
