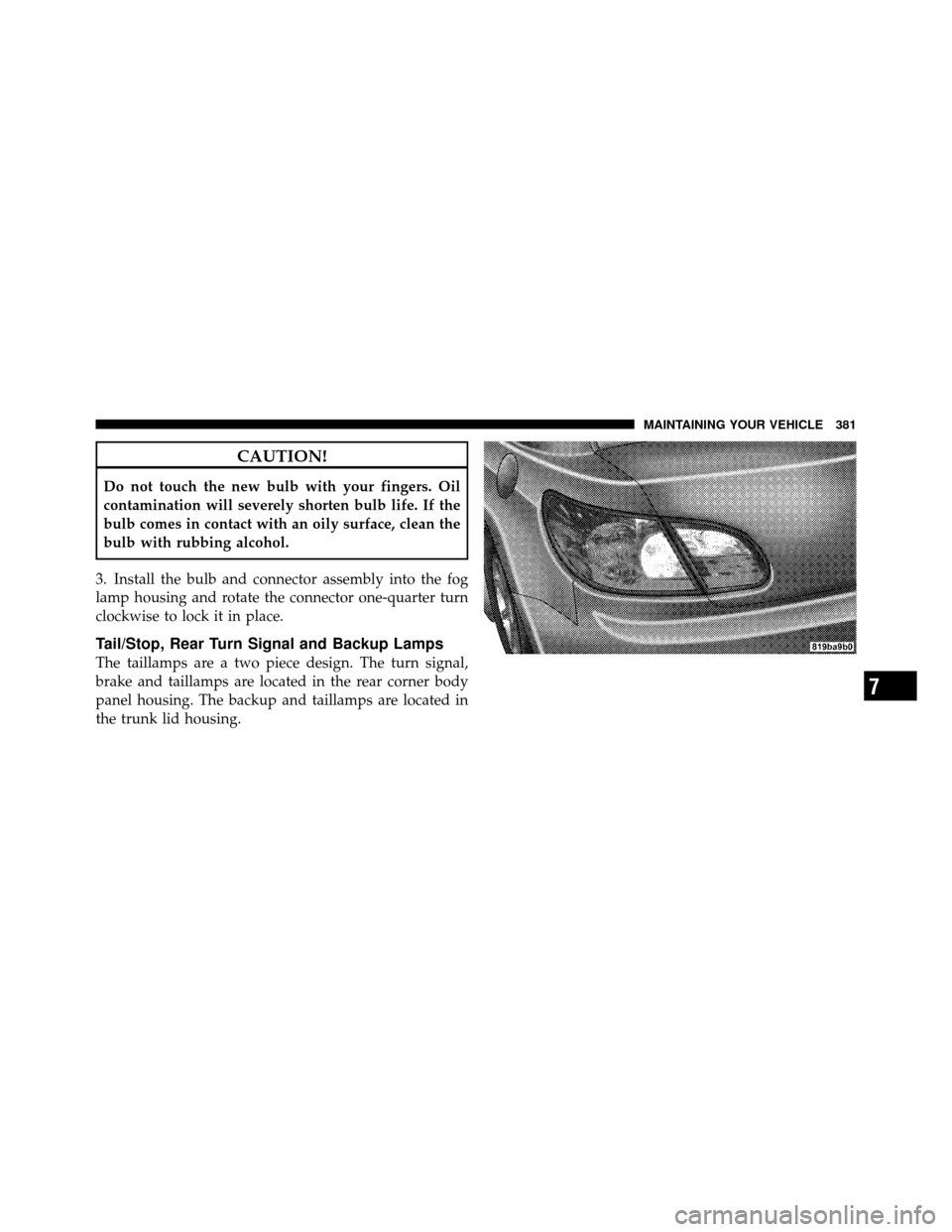

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter turn
clockwise to lock it in place.
Tail/Stop, Rear Turn Signal and Backup Lamps
The taillamps are a two piece design. The turn signal,
brake and taillamps are located in the rear corner body
panel housing. The backup and taillamps are located in
the trunk lid housing.
7
MAINTAINING YOUR VEHICLE 381

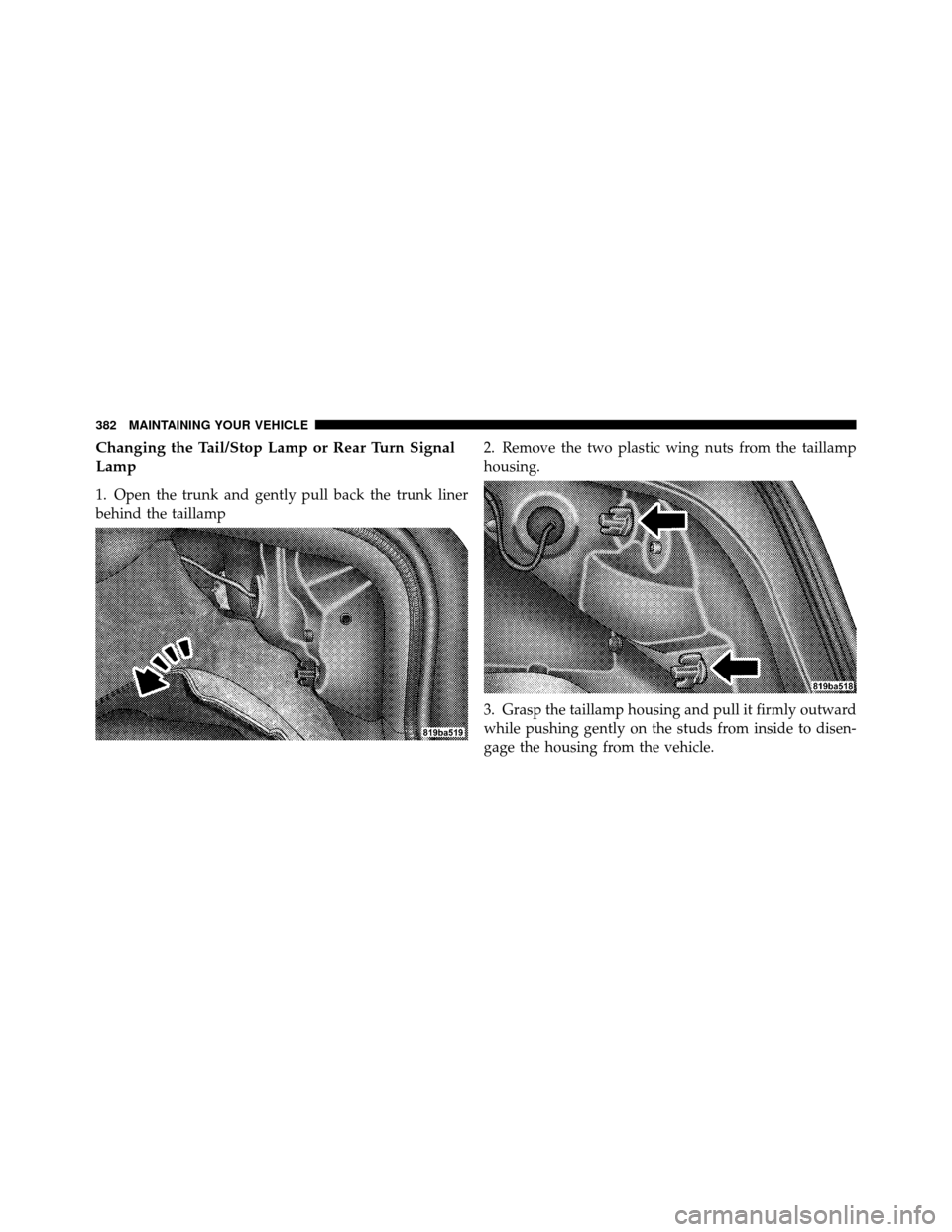

Changing the Tail/Stop Lamp or Rear Turn Signal
Lamp
1. Open the trunk and gently pull back the trunk liner
behind the taillamp2. Remove the two plastic wing nuts from the taillamp
housing.
3. Grasp the taillamp housing and pull it firmly outward
while pushing gently on the studs from inside to disen-
gage the housing from the vehicle.
382 MAINTAINING YOUR VEHICLE

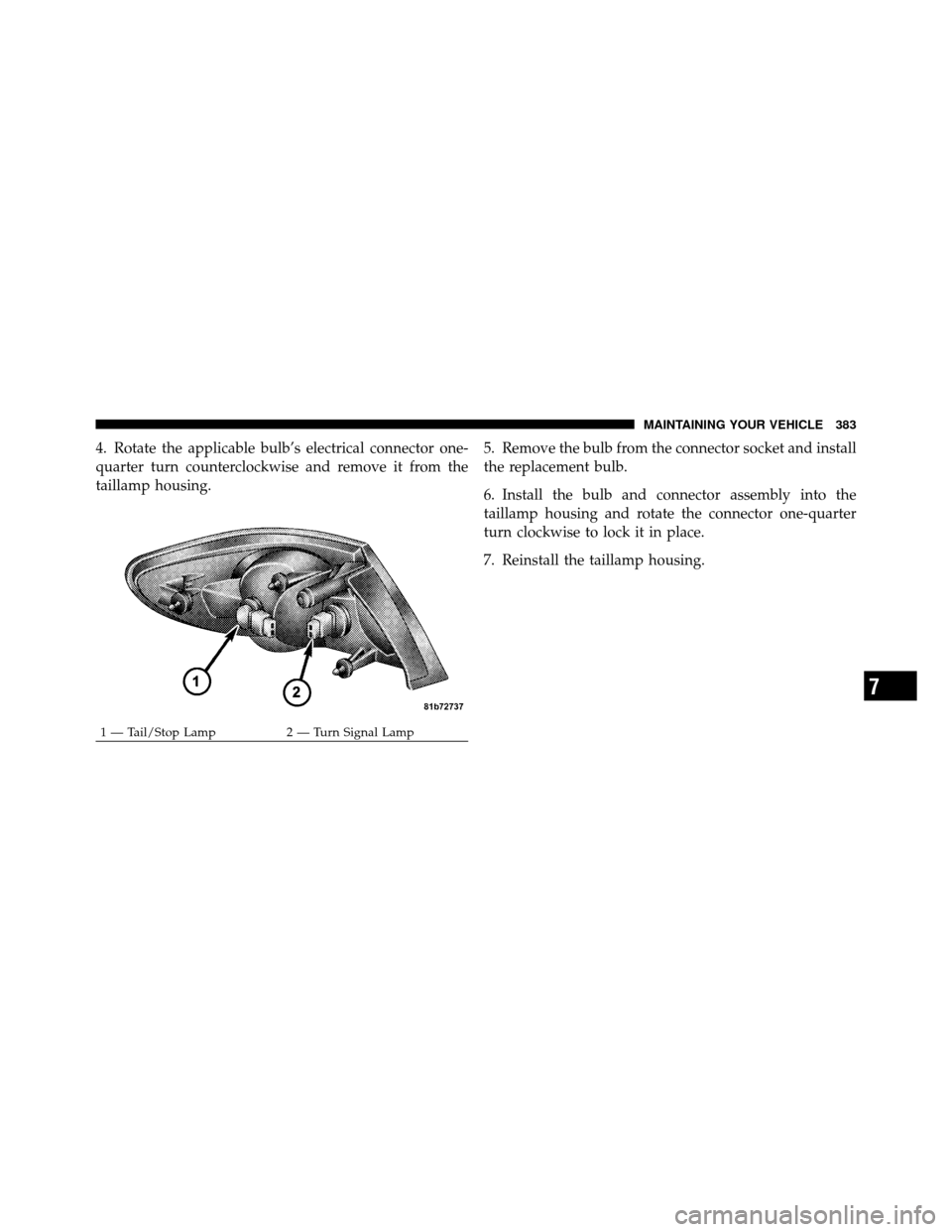

4. Rotate the applicable bulb’s electrical connector one-
quarter turn counterclockwise and remove it from the
taillamp housing.5. Remove the bulb from the connector socket and install
the replacement bulb.
6. Install the bulb and connector assembly into the
taillamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
7. Reinstall the taillamp housing.
1 — Tail/Stop Lamp
2 — Turn Signal Lamp
7
MAINTAINING YOUR VEHICLE 383

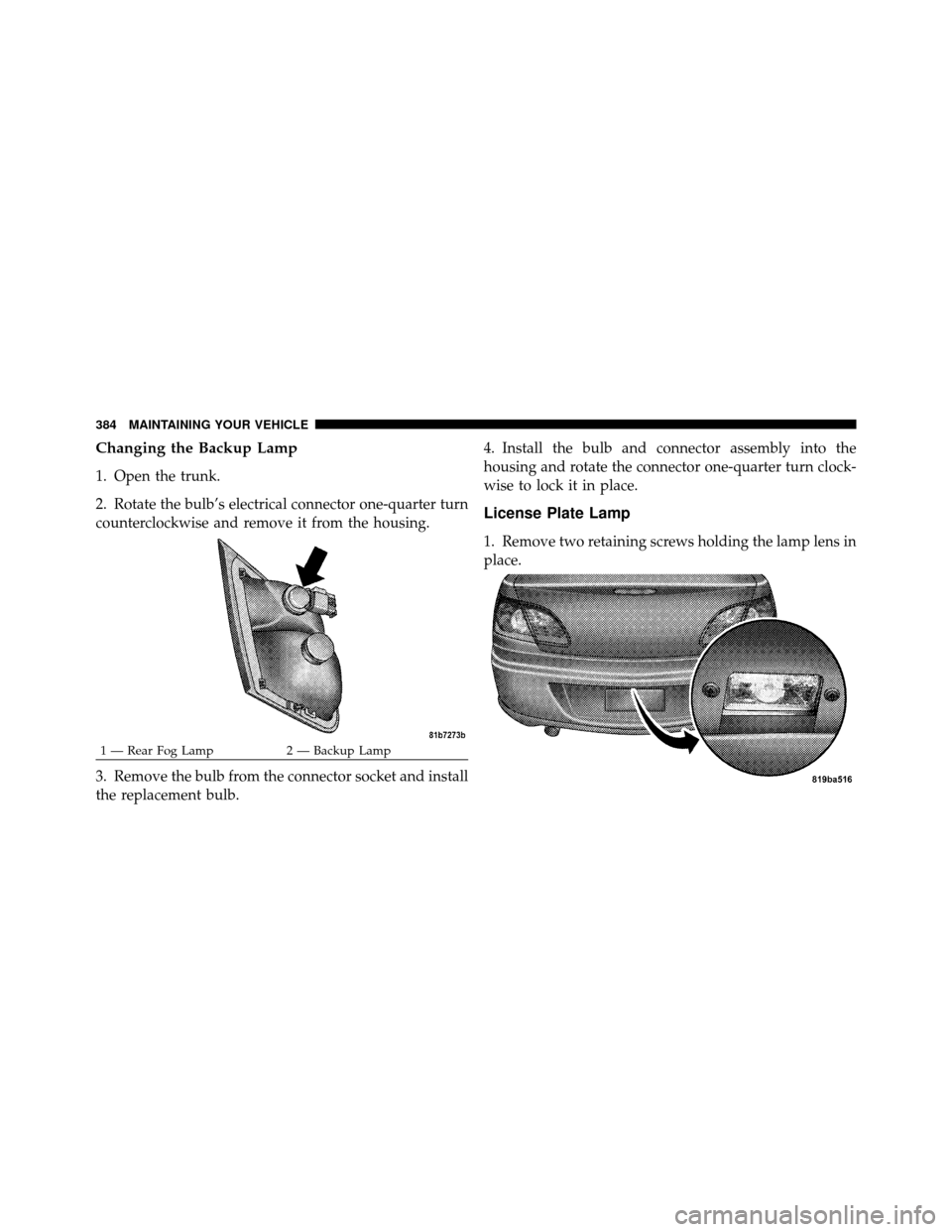

Changing the Backup Lamp
1. Open the trunk.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the housing.
3. Remove the bulb from the connector socket and install
the replacement bulb.4. Install the bulb and connector assembly into the
housing and rotate the connector one-quarter turn clock-
wise to lock it in place.
License Plate Lamp
1. Remove two retaining screws holding the lamp lens in
place.
1 — Rear Fog Lamp
2 — Backup Lamp
384 MAINTAINING YOUR VEHICLE

2. Gently pry the lens loose.
3. Pull bulb from socket, replace and reattach the lamp
lens with the two retaining screws.

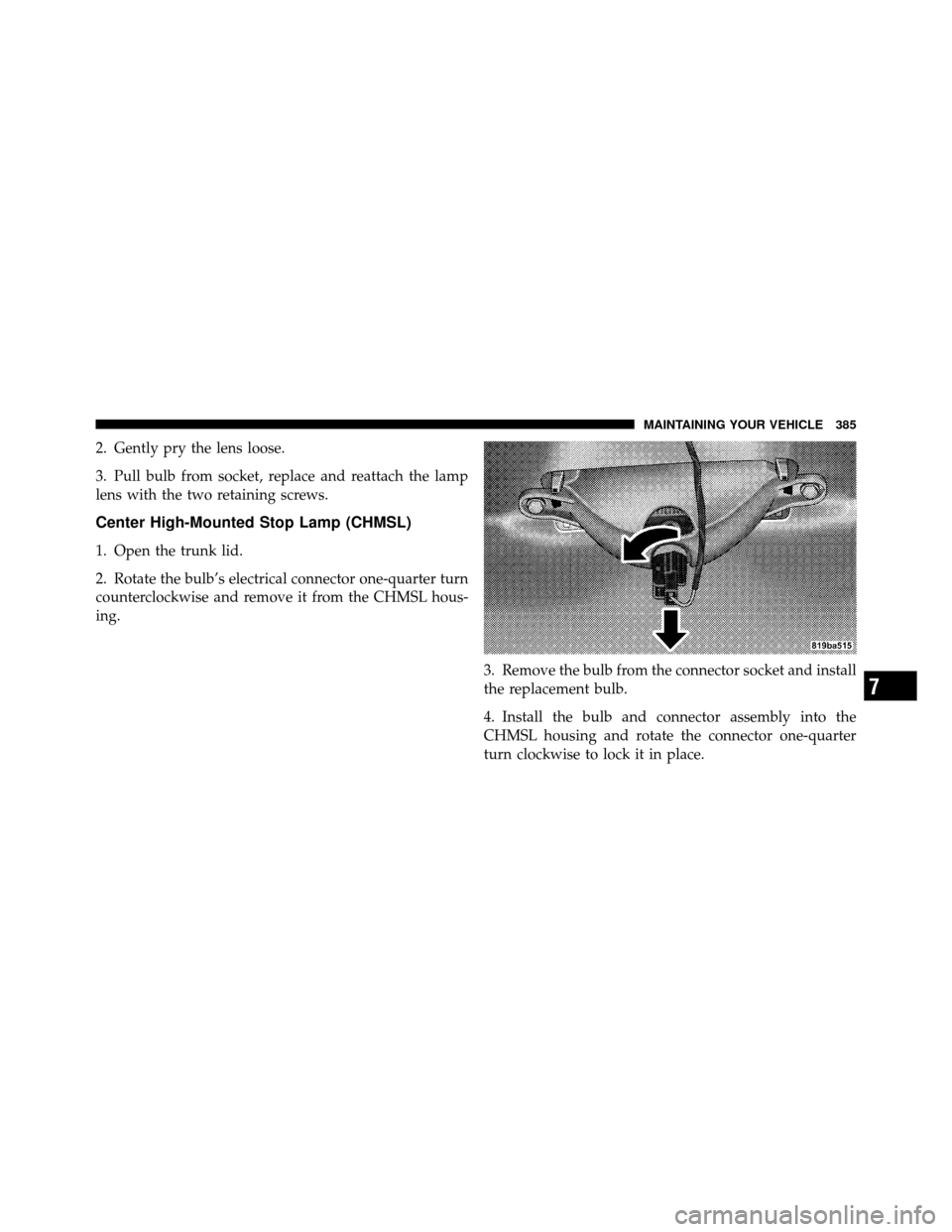

Center High-Mounted Stop Lamp (CHMSL)
1. Open the trunk lid.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the CHMSL hous-
ing.3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
CHMSL housing and rotate the connector one-quarter
turn clockwise to lock it in place.
7
MAINTAINING YOUR VEHICLE 385

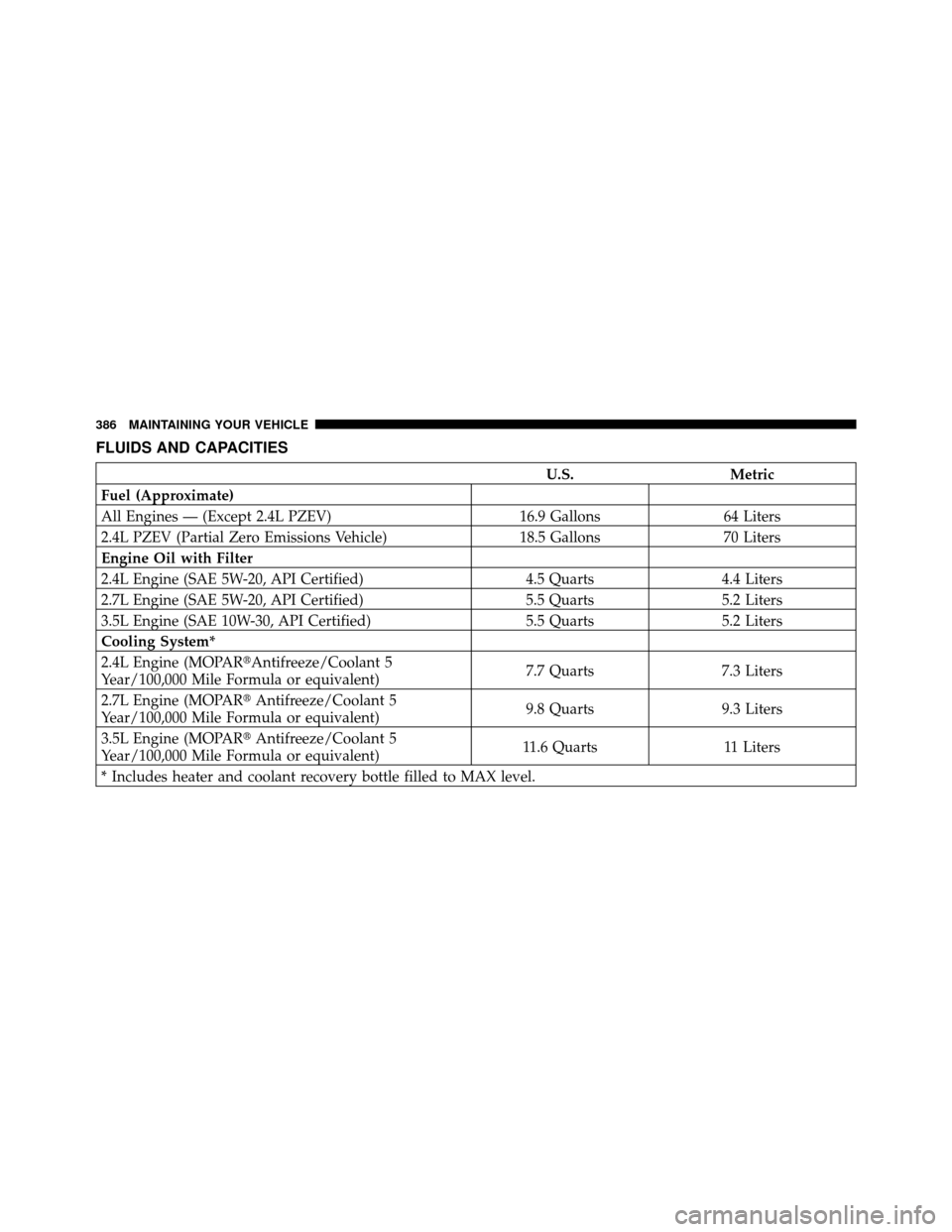

FLUIDS AND CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons70 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.4 Liters
2.7L Engine (SAE 5W-20, API Certified) 5.5 Quarts5.2 Liters
3.5L Engine (SAE 10W-30, API Certified) 5.5 Quarts5.2 Liters
Cooling System*
2.4L Engine (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 7.7 Quarts
7.3 Liters
2.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 9.8 Quarts
9.3 Liters
3.5L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 11.6 Quarts
11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
386 MAINTAINING YOUR VEHICLE

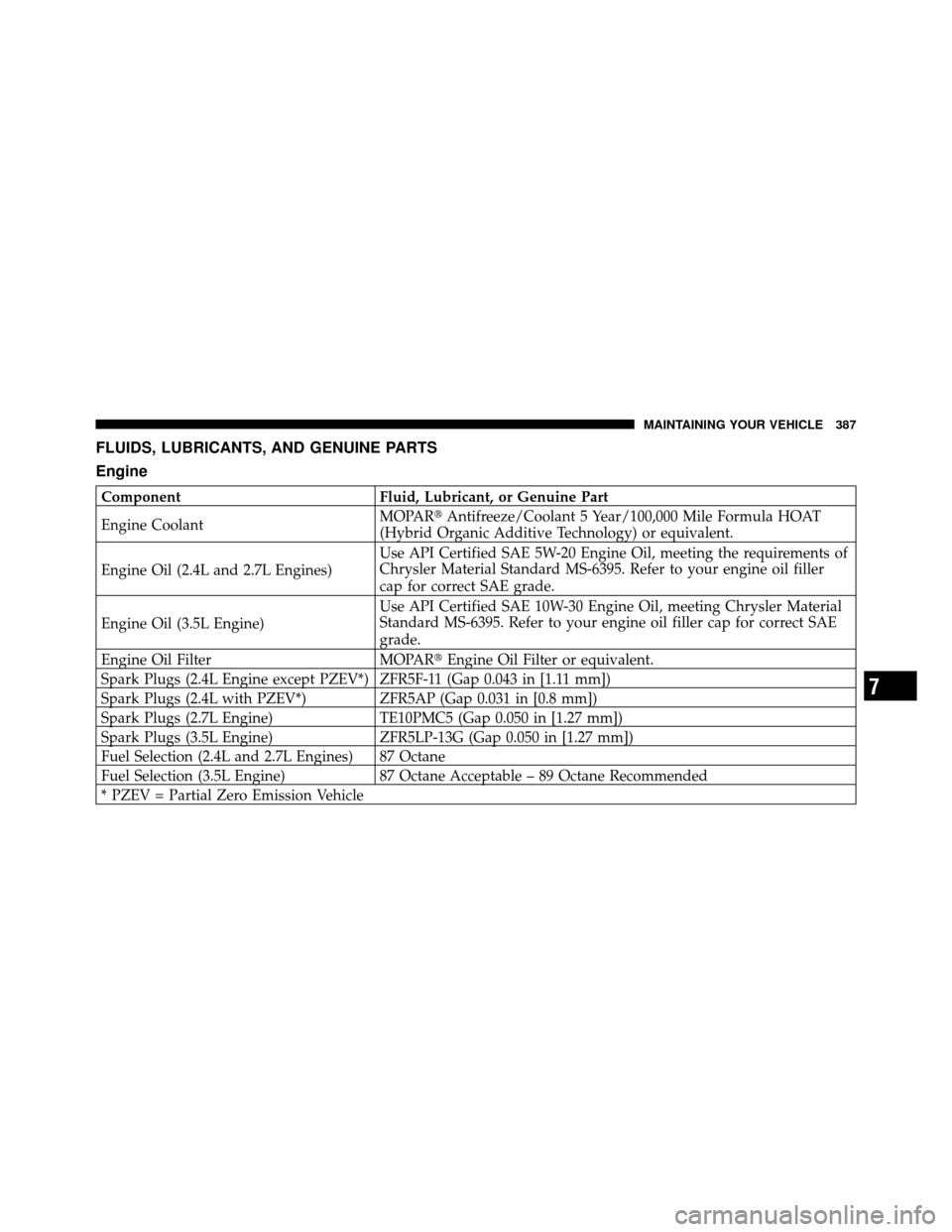

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT
(Hybrid Organic Additive Technology) or equivalent.
Engine Oil (2.4L and 2.7L Engines) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler
cap for correct SAE grade.
Engine Oil (3.5L Engine) Use API Certified SAE 10W-30 Engine Oil, meeting Chrysler Material
Standard MS-6395. Refer to your engine oil filler cap for correct SAE
grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs (2.4L Engine except PZEV*) ZFR5F-11 (Gap 0.043 in [1.11 mm])
Spark Plugs (2.4L with PZEV*) ZFR5AP (Gap 0.031 in [0.8 mm])
Spark Plugs (2.7L Engine) TE10PMC5 (Gap 0.050 in [1.27 mm])
Spark Plugs (3.5L Engine) ZFR5LP-13G (Gap 0.050 in [1.27 mm])
Fuel Selection (2.4L and 2.7L Engines) 87 Octane
Fuel Selection (3.5L Engine) 87 Octane Acceptable – 89 Octane Recommended
* PZEV = Partial Zero Emission Vehicle
7
MAINTAINING YOUR VEHICLE 387

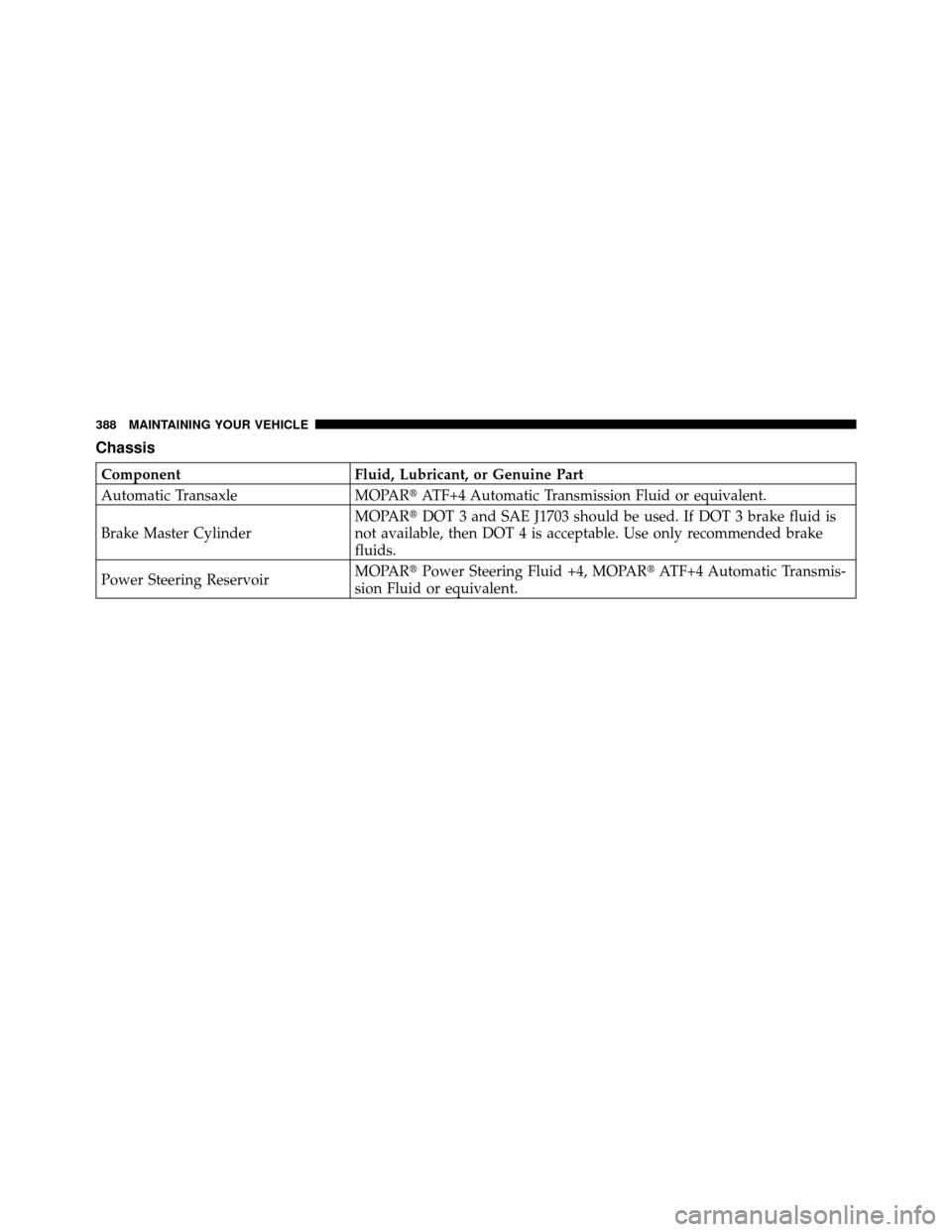

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transaxle MOPARATF+4 Automatic Transmission Fluid or equivalent.
Brake Master Cylinder MOPAR
DOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is
not available, then DOT 4 is acceptable. Use only recommended brake
fluids.
Power Steering Reservoir MOPAR
Power Steering Fluid +4, MOPAR ATF+4 Automatic Transmis-
sion Fluid or equivalent.
388 MAINTAINING YOUR VEHICLE

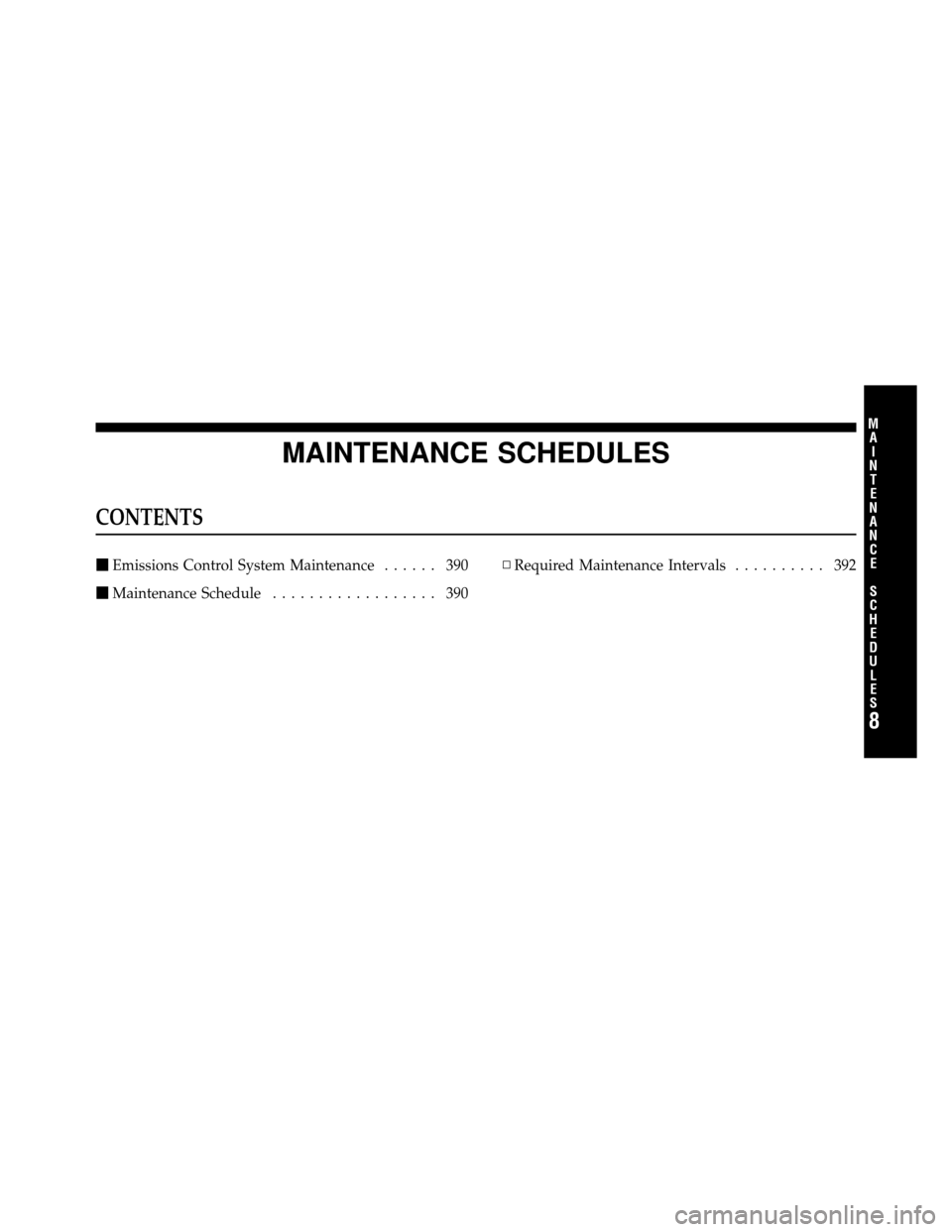

MAINTENANCE SCHEDULES
CONTENTS
Emissions Control System Maintenance ...... 390
 Maintenance Schedule .................. 390 ▫
Required Maintenance Intervals .......... 392
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

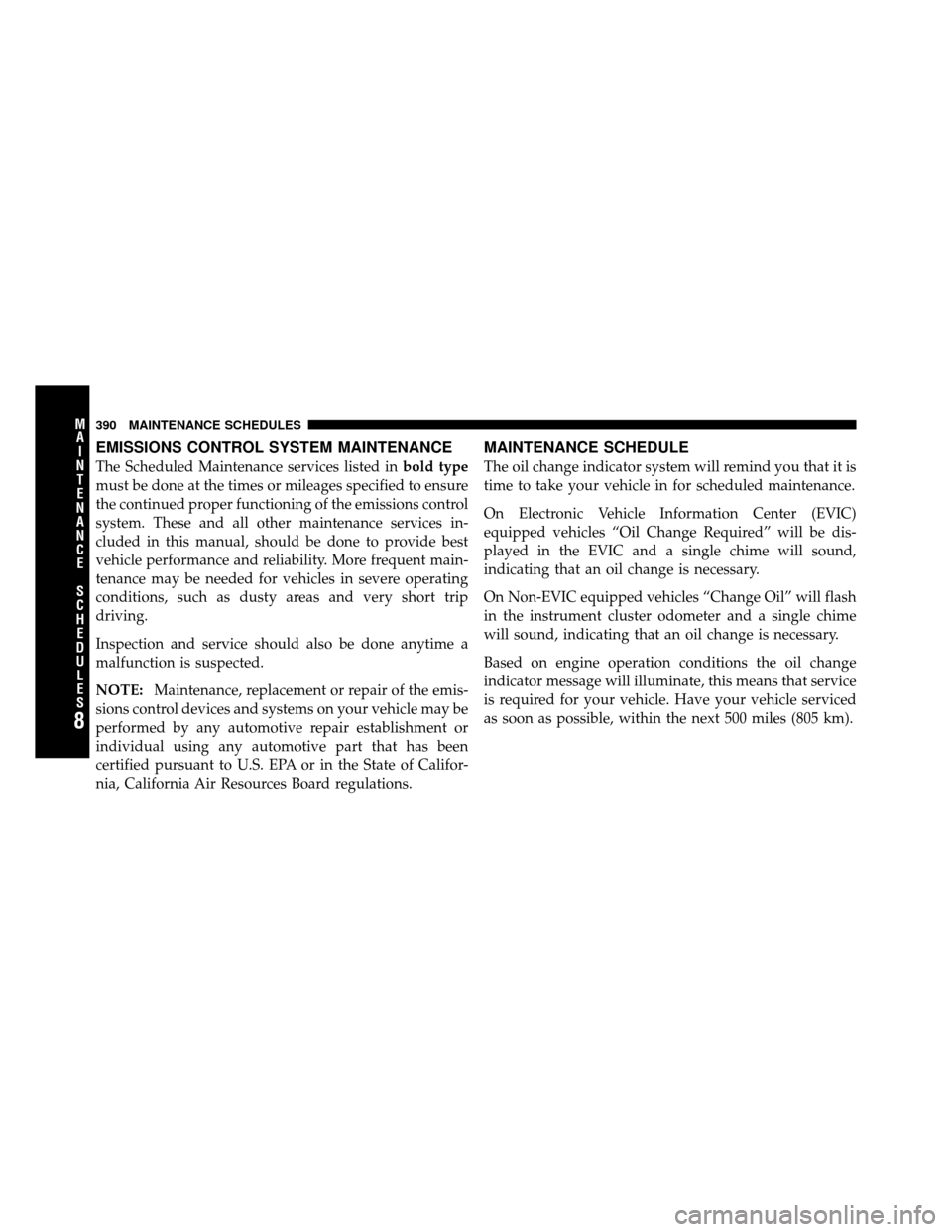

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S390 MAINTENANCE SCHEDULES
