Fig. 23 RIGHT SIDE INSTRUMENT PANEL UPPER RHD
Fig. 24 LEFT SIDE INSTRUMENT PANEL LOWER RHD
8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

Fig. 25 RIGHT SIDE INSTRUMENT PANEL LOWER RHD
Fig. 26 STEERING COLUMN CONNECTORS RHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-35
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

Fig. 27 LEFT SIDE BODY LHD
8W - 91 - 36 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

Fig. 28 RIGHT SIDE BODY RHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-37
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

Fig. 29 BODY HARNESS SPLICES
8W - 91 - 38 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

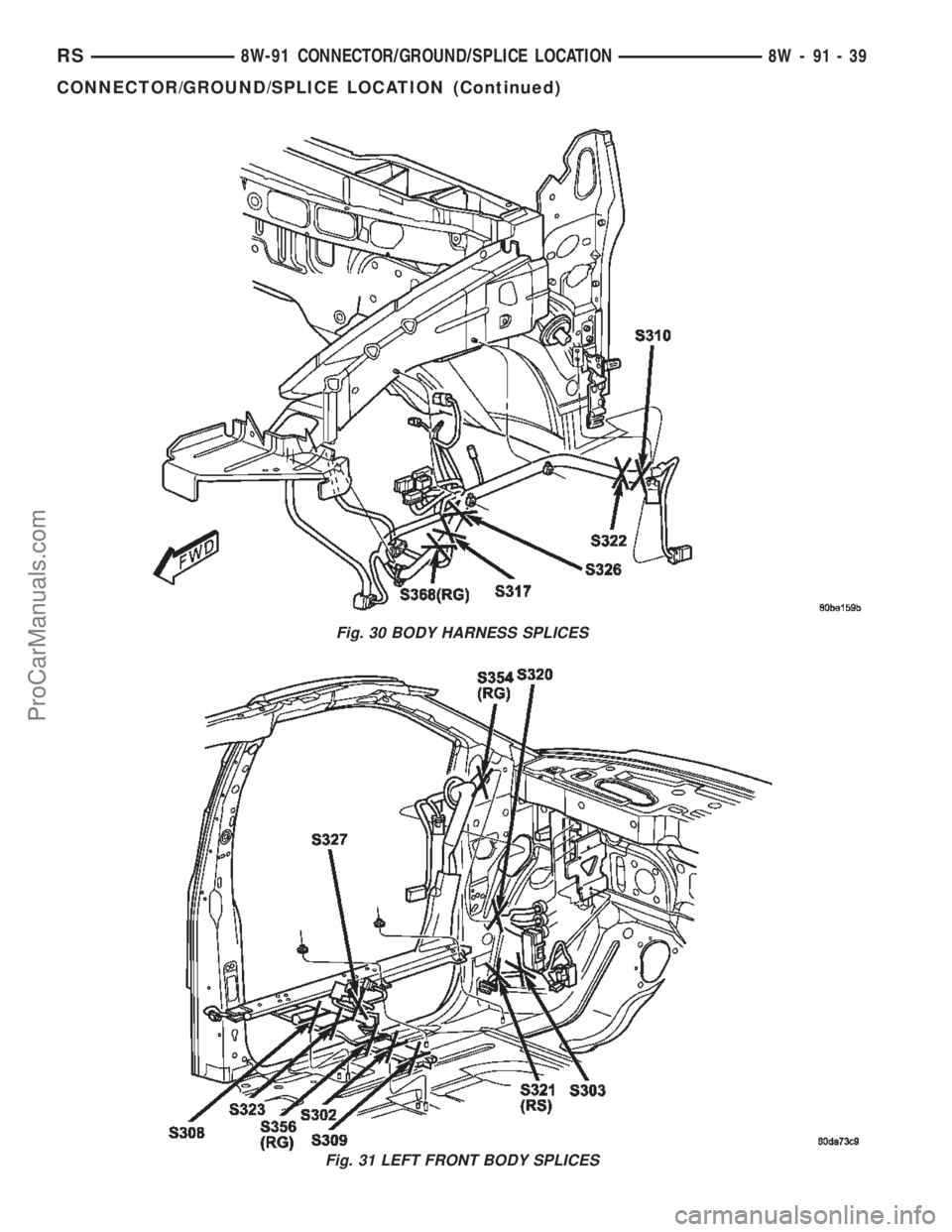

Fig. 30 BODY HARNESS SPLICES
Fig. 31 LEFT FRONT BODY SPLICES
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-39
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

Fig. 32 REAR BODY SPLICES
8W - 91 - 40 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

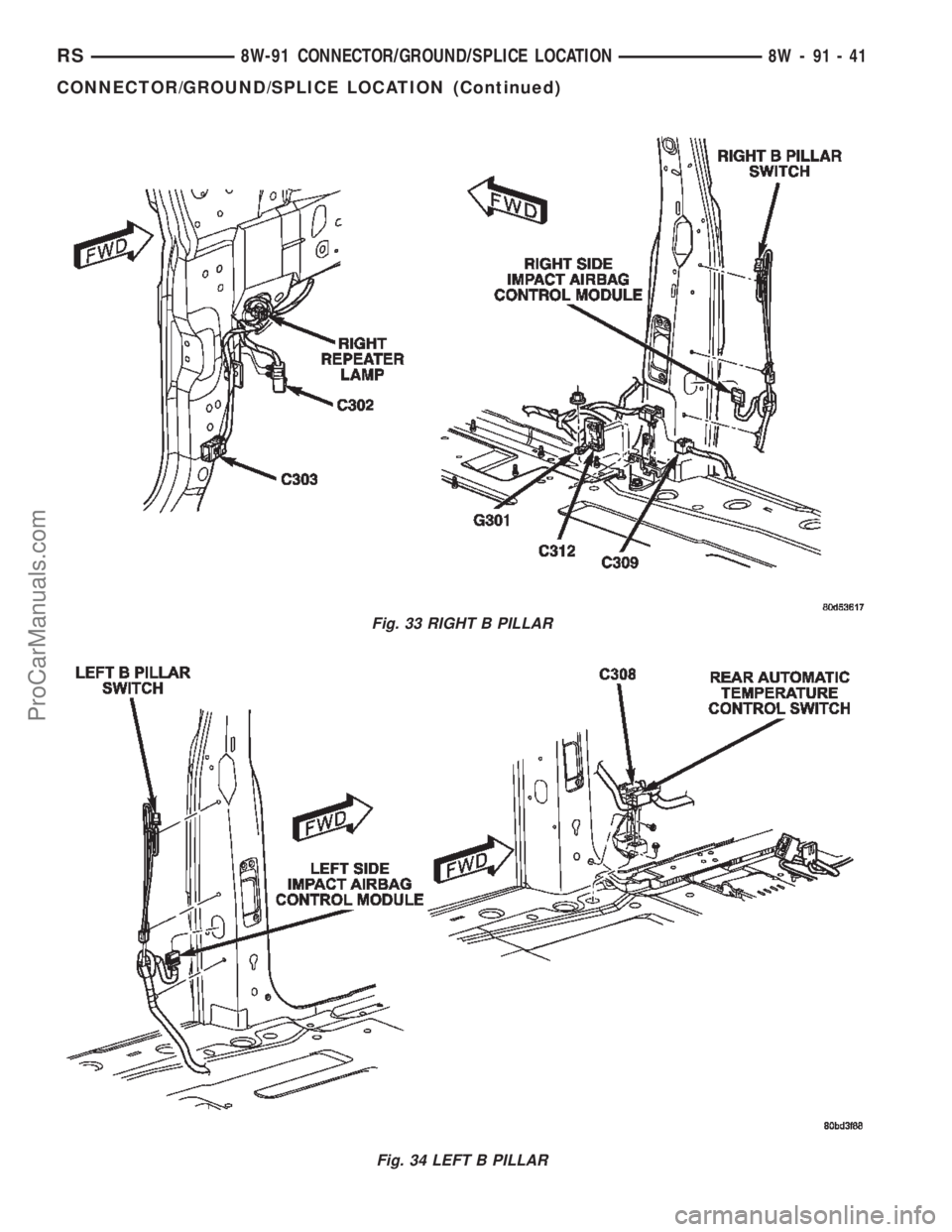

Fig. 33 RIGHT B PILLAR
Fig. 34 LEFT B PILLAR
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-41
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

Fig. 35 LEFT SIDE KICK PANEL LHD
8W - 91 - 42 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
ProCarManuals.com

Fig. 36 RIGHT SIDE KICK PANEL RHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-43
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
