8W-15 GROUND DISTRIBUTION
Component PageA/C Compressor Clutch...................8W-15-7, 8
A/C- Heater Control....................8W-15-9, 11
Adjustable Pedals Module..................8W-15-17
Airbag Control Module....................8W-15-12
Auto Temp Control.......................8W-15-9
Automatic Day/Night Mirror.................8W-15-21
Autostick Switch........................8W-15-10
Back-Up Lamp Switch....................8W-15-3, 7
Battery.............................8W-15-2, 3
Body Control Module.....................8W-15-22
Brake Fluid Level Switch...................8W-15-17
Brake Lamp Switch......................8W-15-17
Cabin Heater Assist.......................8W-15-8
Center Dome Lamp......................8W-15-21
Center High Mounted Stop Lamp..............8W-15-26
Clutch Pedal Upstop Switch.................8W-15-18
Controller Antilock Brake..................8W-15-2, 3
Crank Case Ventilation Heater................8W-15-8
Crankshaft Position Sensor..................8W-15-3
Data Link Connector..................8W-15-2, 3, 17
Dosing Pump...........................8W-15-8
Driver Door Courtesy Lamp...............8W-15-15, 20
Driver Door Lock Switch.................8W-15-15, 20
Driver Heated Seat Cushion.................8W-15-11
Driver Heated Seat Module.................8W-15-11
Driver Power Seat Switch..................8W-15-11
Driver Power Window Switch..............8W-15-15, 20
Engine Control Module.....................8W-15-3
Floor Console Lamp......................8W-15-25
Floor Console Power Outlet.................8W-15-25
Front Blower Module.....................8W-15-11
Front Cigar Lighter.......................8W-15-9
Front Control Module..................8W-15-7, 8, 18
Front Reading Lamps/Switch................8W-15-21
Fuel Heater...........................8W-15-25
Fuel Heater Relay........................8W-15-3
Fuel Pump Module.......................8W-15-25

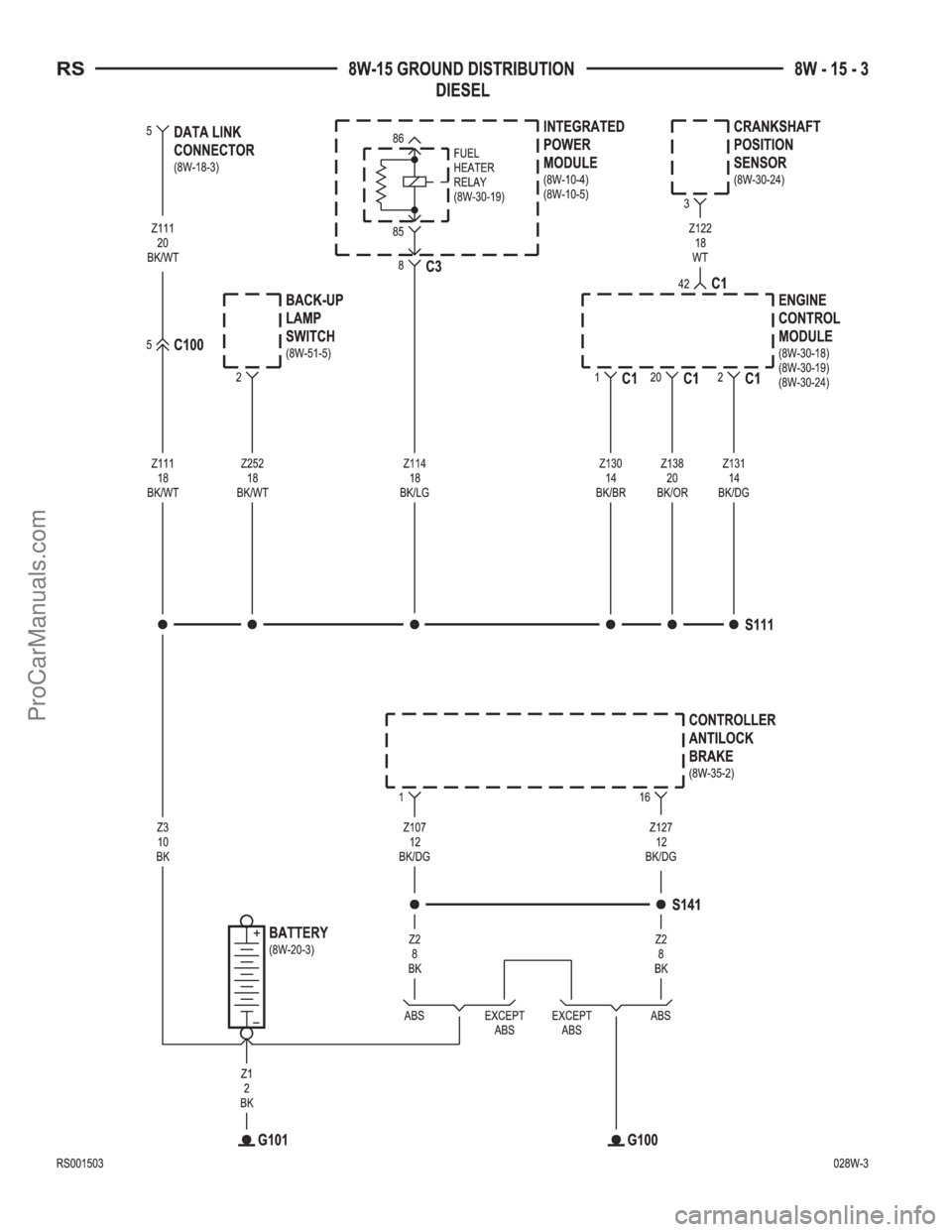

G100..............................8W-15-2, 3
G101..............................8W-15-2, 3

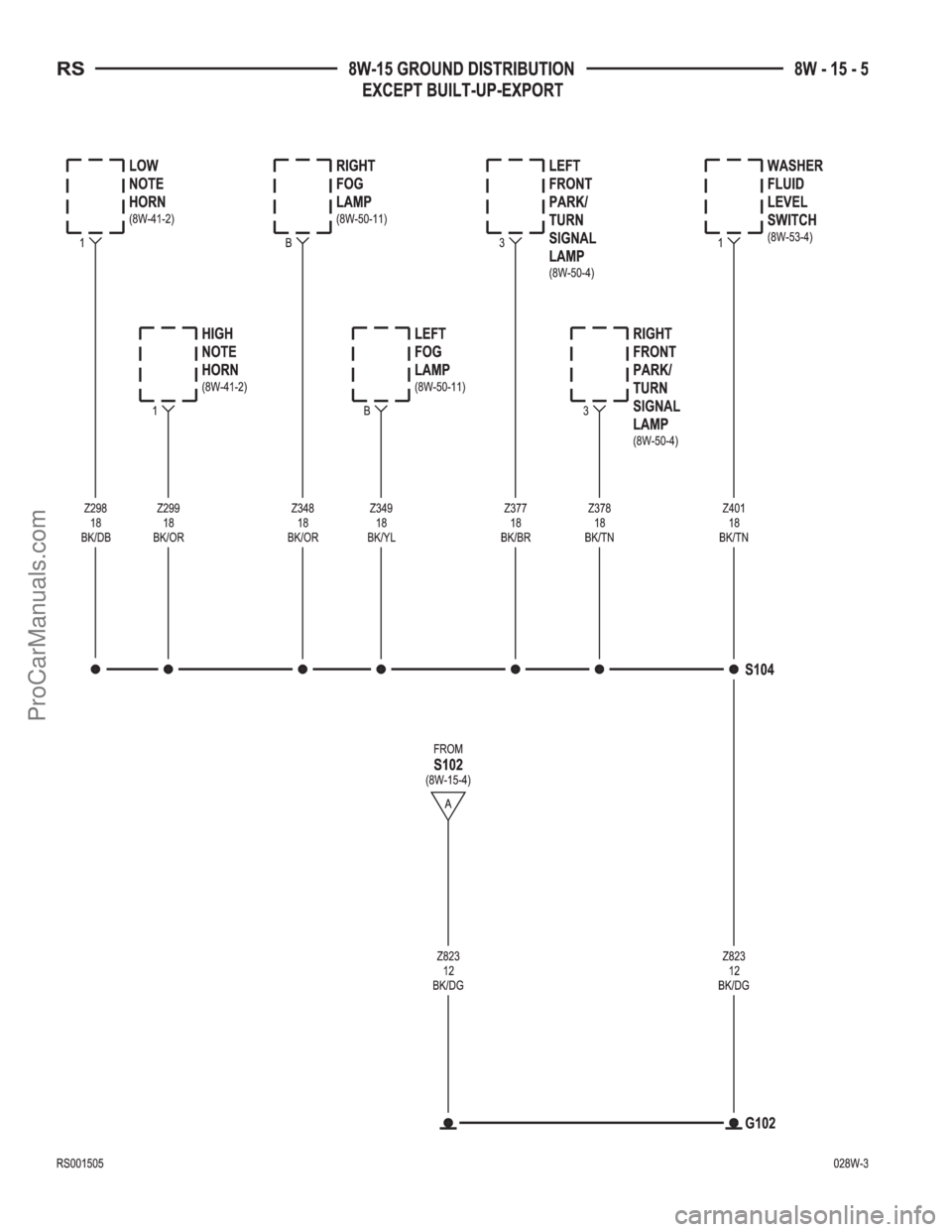

G102.............................8W-15-4, 5, 6
G103..............................8W-15-7, 8
G200...........................8W-15-9, 10, 11
G201...............................8W-15-12
G202...............................8W-15-13
G300........................8W-15-14, 16, 17, 18
G301........................8W-15-19, 20, 21, 22
G302...........................8W-15-23, 24, 25
G400.............................8W-15-25, 26
Glove Box Lamp........................8W-15-10
Halo Lamp............................8W-15-10
Headlamp Switch........................8W-15-9
Headlamp Washer Pump Motor................8W-15-6
High Note Horn........................8W-15-5, 6
Hood Ajar Switch........................8W-15-18
Instrument Cluster.......................8W-15-9
Instrument Panel Switch Bank...............8W-15-10
Integrated Power Module............8W-15-2, 3, 7, 8, 18
Left B-Pillar Switch......................8W-15-17
Left Cinch/Release Motor...................8W-15-14
Left Combination Relay....................8W-15-24
Left Cylinder Lock Switch................8W-15-15, 16
Left Door Speaker.......................8W-15-13
Left Fog Lamp........................8W-15-5, 6
Left Front Door Ajar Switch.................8W-15-16
Left Front Door Lock Motor/Ajar Switch.......8W-15-15, 16
Left Front Park/Turn Signal Lamp..............8W-15-5
Left Full Open Switch.....................8W-15-14
Left Headlamp.........................8W-15-18
Left Headlamp Leveling Motor................8W-15-6
Left High Beam Lamp....................8W-15-18
Left Liftgate Flood Lamp...................8W-15-26
Left Low Beam Lamp.....................8W-15-18
Left Mid Reading Lamp....................8W-15-21
Left Park Lamp.........................8W-15-18
Left Power Mirror.......................8W-15-10
Left Rear Lamp Assembly..................8W-15-24
Left Rear Reading Lamp...................8W-15-21
Left Side Impact Airbag Control Module.........8W-15-12
Left Sliding Door Control Module..............8W-15-14
Left Sliding Door Latch Sensing Switch..........8W-15-14
Left Sliding Door Lock Motor................8W-15-14Component PageLeft Sliding Door Lock Motor/Ajar Switch.........8W-15-14
Left Sliding Door Motor....................8W-15-14
Left Stop/Turn Signal Relay.................8W-15-24
Left Turn Signal Lamp....................8W-15-18
Left Visor/Vanity Lamp....................8W-15-21
License Lamp........................8W-15-23, 26
Lift Pump Motor........................8W-15-25
Liftgate Ajar Switch......................8W-15-26
Liftgate Cinch/Release Motor................8W-15-23
Liftgate Cylinder Lock Switch................8W-15-26
Liftgate Right Pinch Sensor.................8W-15-23
Low Note Horn........................8W-15-5, 6
Memory Seat/Mirror Module.................8W-15-11
Overhead Console.......................8W-15-21
Oxygen Sensor 1/2 Downstream...............8W-15-7
Park/Neutral Position Switch.................8W-15-7
Passenger Door Courtesy Lamp............8W-15-16, 20
Passenger Door Lock Switch..............8W-15-16, 20
Passenger Heated Seat Module...............8W-15-22
Passenger Power Seat Switch................8W-15-22
Passenger Power Window Switch............8W-15-16, 20
Power Folding Mirror Switch................8W-15-11
Power Liftgate Module....................8W-15-23
Power Liftgate Motor.....................8W-15-23
Power Mirror Switch......................8W-15-11
Power Outlet...........................8W-15-9
Power Window Switch.....................8W-15-15
Powertrain Control Module..................8W-15-2

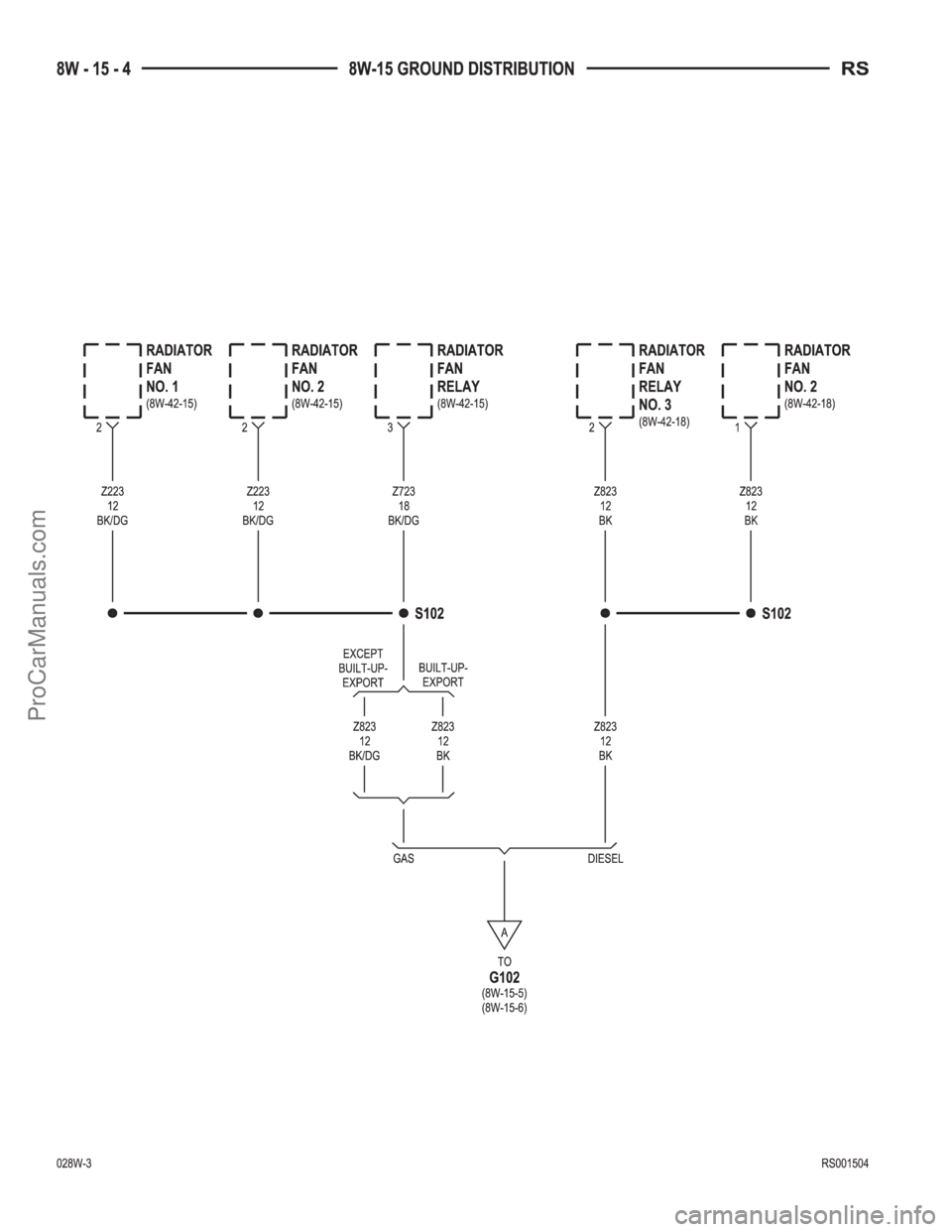

Radiator Fan No. 1.......................8W-15-4
Radiator Fan No. 2.......................8W-15-4
Radiator Fan Relay.......................8W-15-4
Radiator Fan Relay No. 3...................8W-15-4
Radio...............................8W-15-13
Rear Auto Temp Control Switch...............8W-15-17
Rear Blower Front Control Switch.............8W-15-11
Rear Blower Motor Power Module...........8W-15-11, 25
Rear Blower Rear Control Switch..............8W-15-17
Rear Dome Lamp........................8W-15-21
Rear Power Outlet.......................8W-15-25
Rear Window Defogger Grid.................8W-15-26
Rear Wiper Motor.......................8W-15-26
Remote Keyless Entry Module................8W-15-10
Right B-Pillar Switch.....................8W-15-22
Right Cinch/Release Motor..................8W-15-19
Right Combination Relay...................8W-15-24
Right Cylinder Lock Switch.................8W-15-20
Right Door Speaker......................8W-15-13
Right Fog Lamp........................8W-15-5, 6
Right Front Door Ajar Switch................8W-15-20
Right Front Door Lock Motor/Ajar Switch.........8W-15-20
Right Front Park/Turn Signal Lamp.............8W-15-5
Right Full Open Switch....................8W-15-19
Right Headlamp........................8W-15-18
Right Headlamp Leveling Motor...............8W-15-6
Right High Beam Lamp....................8W-15-18
Right Liftgate Flood Lamp..................8W-15-26
Right Low Beam Lamp....................8W-15-18
Right Mid Reading Lamp...................8W-15-21
Right Park Lamp........................8W-15-18
Right Power Mirror......................8W-15-10
Right Rear Lamp Assembly.................8W-15-25
Right Rear Reading Lamp..................8W-15-21
Right Side Impact Airbag Control Module.........8W-15-12
Right Sliding Door Control Module.............8W-15-19
Right Sliding Door Latch Sensing Switch.........8W-15-19
Right Sliding Door Lock Motor...............8W-15-19
Right Sliding Door Lock Motor/Ajar Switch........8W-15-19
Right Sliding Door Motor...................8W-15-19
Right Stop/Turn Signal Relay................8W-15-24
Right Turn Signal Lamp...................8W-15-18
Right Visor/Vanity Lamp...................8W-15-21
Sentry Key Immobilizer Module...............8W-15-10
Speed Control Servo.......................8W-15-7
Traction Control Switch....................8W-15-10
Trailer Tow Connector.....................8W-15-24
Transmission Control Module.................8W-15-2
Transmission Control Relay..................8W-15-2
Transmission Range Sensor..................8W-15-7
Washer Fluid Level Switch.................8W-15-5, 6
Wiper Module..........................8W-15-17
RS8W-15 GROUND DISTRIBUTION8W-15-1
