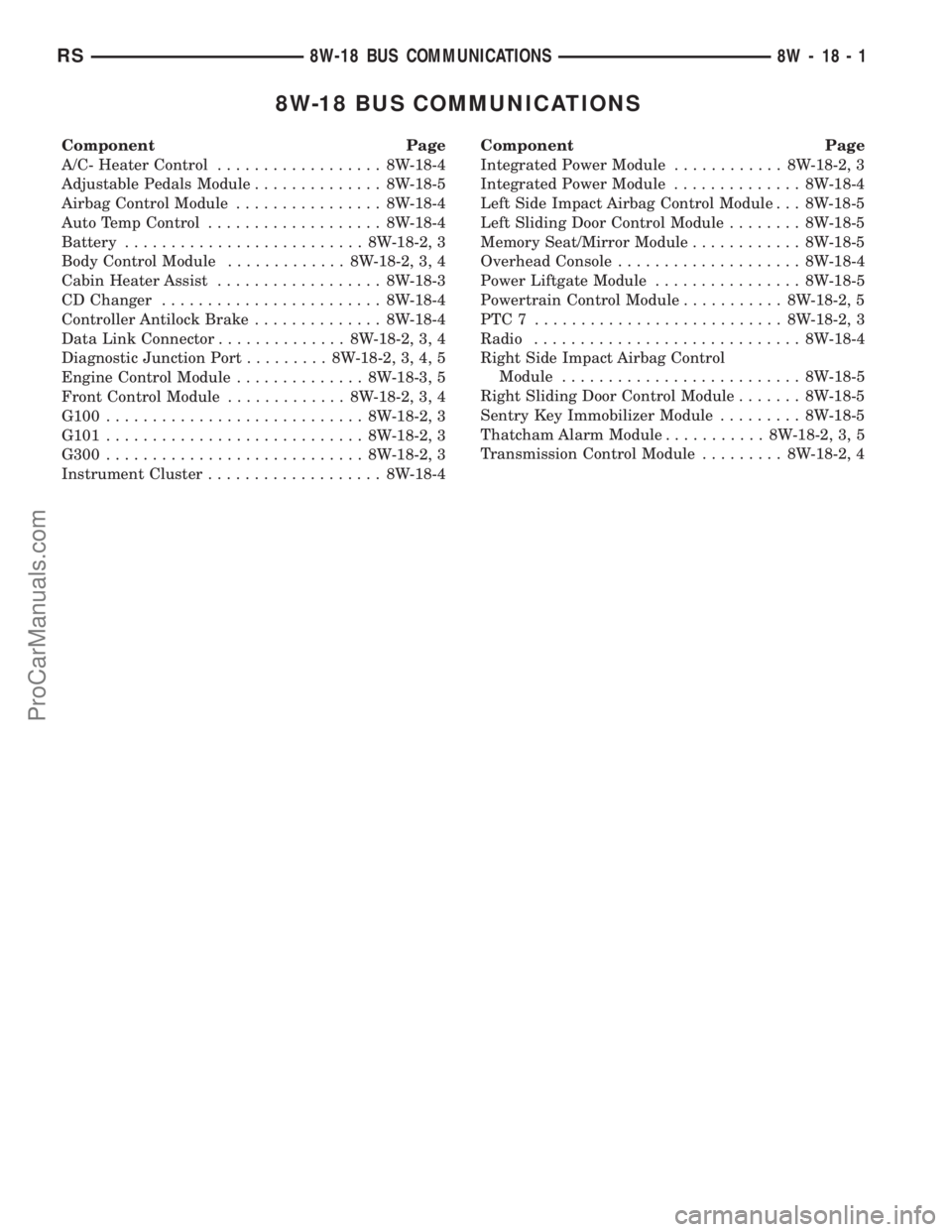

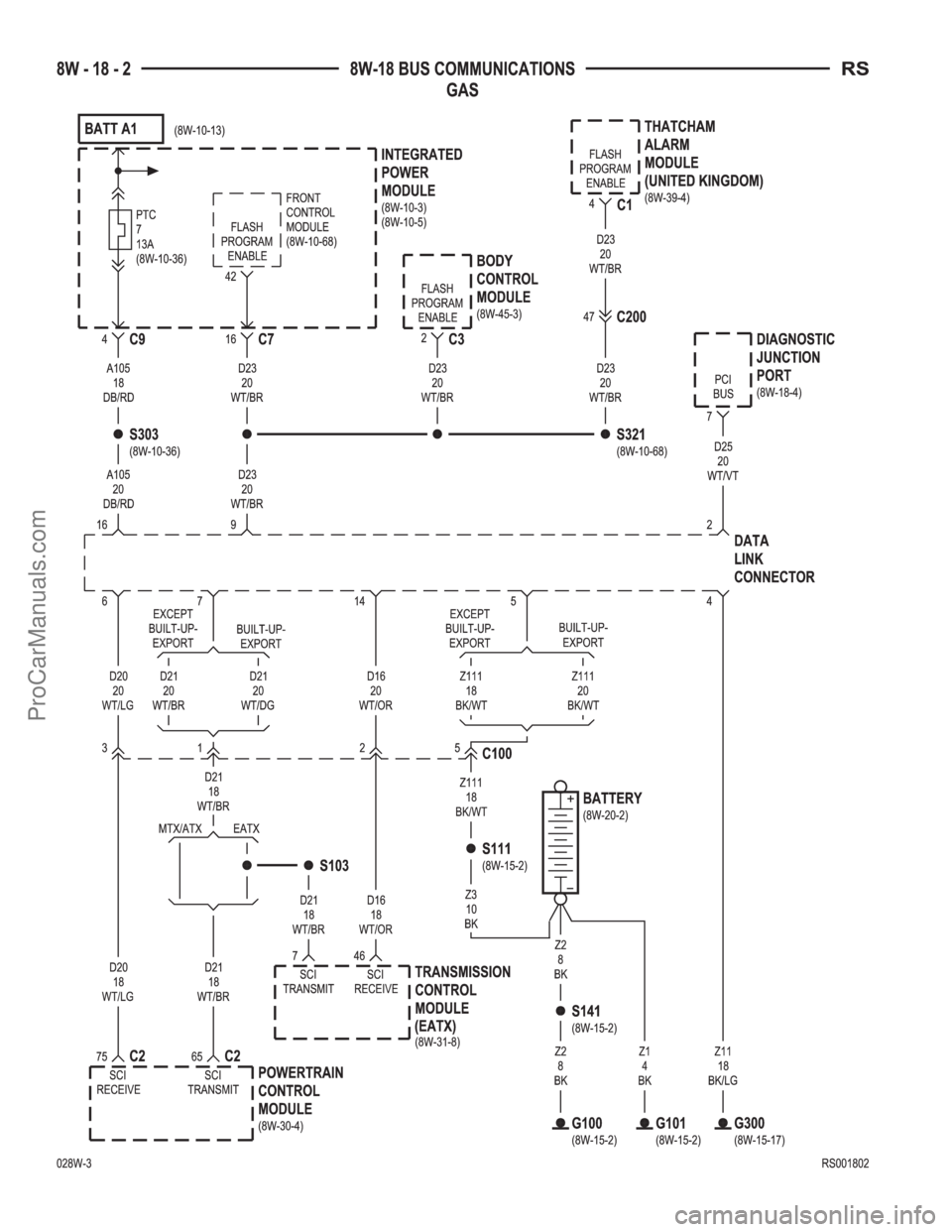

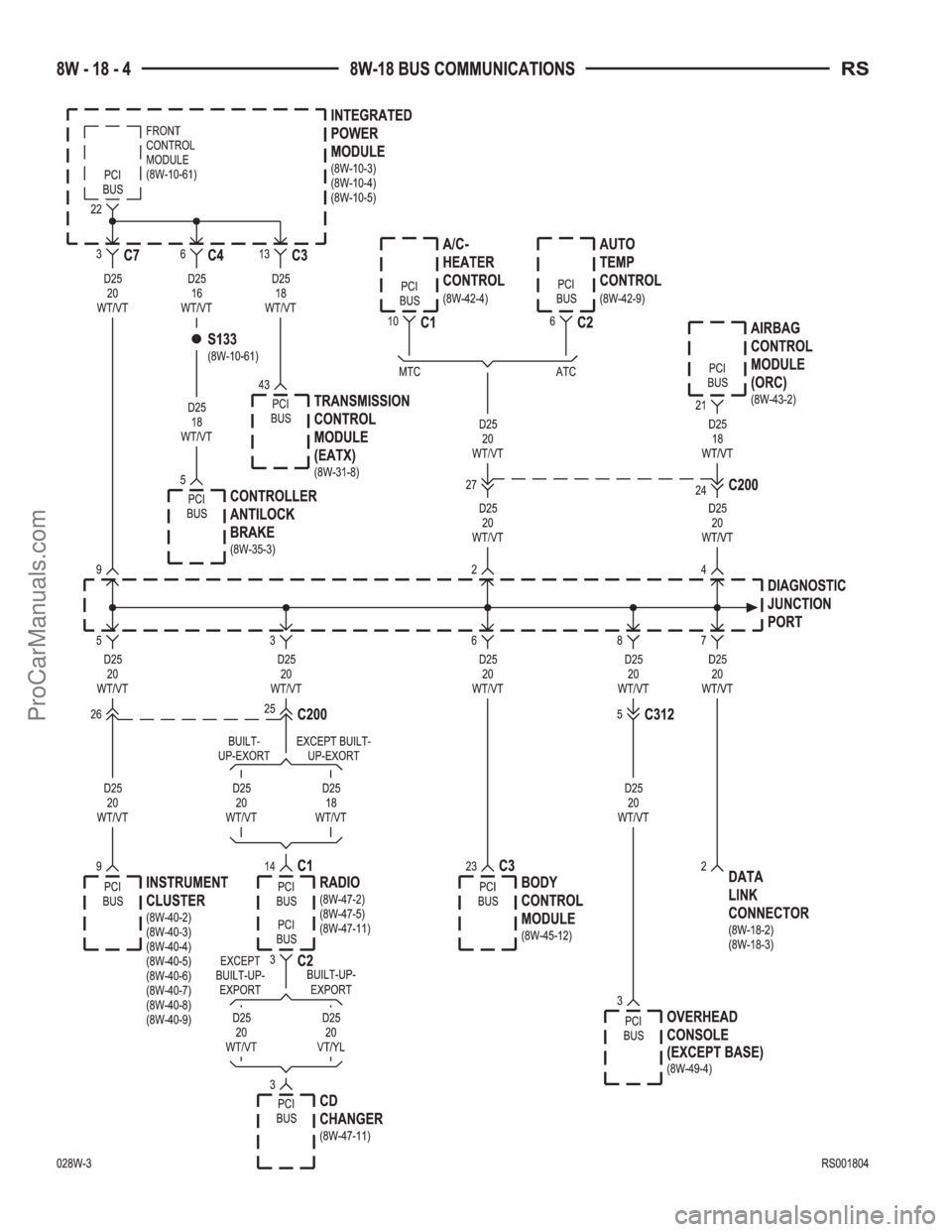

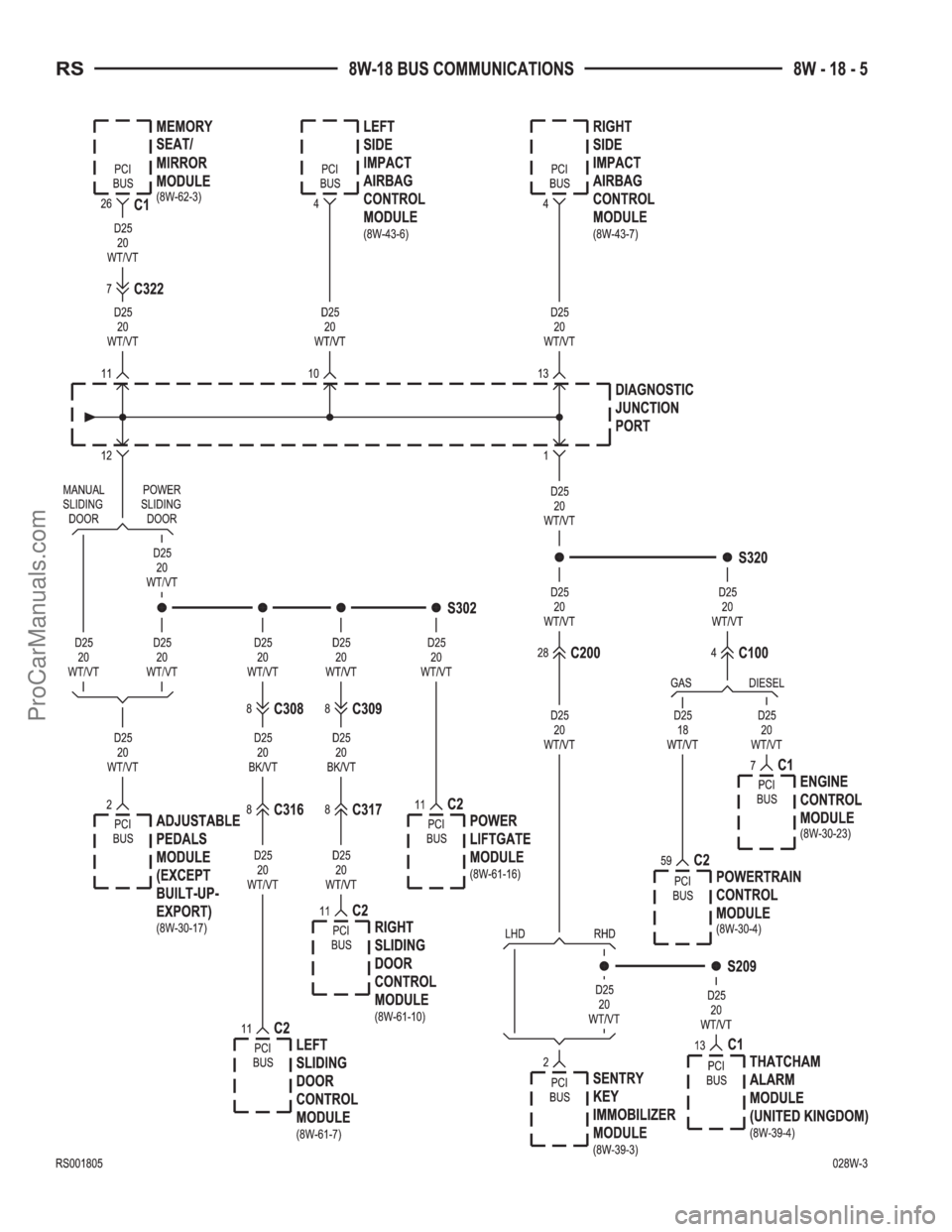

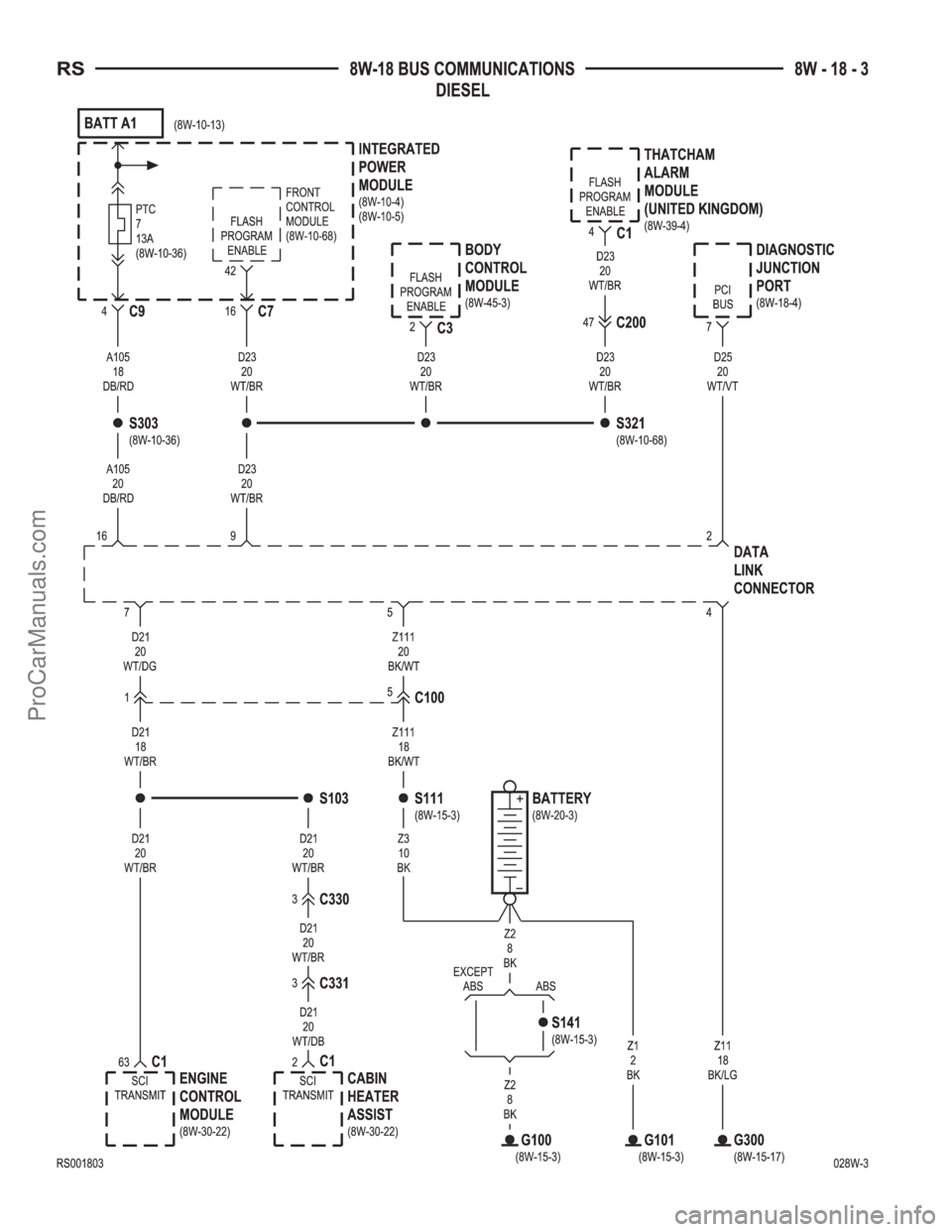

8W-18 BUS COMMUNICATIONS
Component Page
A/C- Heater Control.................. 8W-18-4
Adjustable Pedals Module.............. 8W-18-5
Airbag Control Module................ 8W-18-4
Auto Temp Control................... 8W-18-4
Battery.......................... 8W-18-2, 3
Body Control Module............. 8W-18-2, 3, 4
Cabin Heater Assist.................. 8W-18-3
CD Changer........................ 8W-18-4
Controller Antilock Brake.............. 8W-18-4
Data Link Connector.............. 8W-18-2, 3, 4
Diagnostic Junction Port......... 8W-18-2, 3, 4, 5
Engine Control Module.............. 8W-18-3, 5
Front Control Module............. 8W-18-2, 3, 4
G100............................ 8W-18-2, 3
G101............................ 8W-18-2, 3
G300............................ 8W-18-2, 3
Instrument Cluster................... 8W-18-4Component Page
Integrated Power Module............ 8W-18-2, 3
Integrated Power Module.............. 8W-18-4
Left Side Impact Airbag Control Module . . . 8W-18-5
Left Sliding Door Control Module........ 8W-18-5
Memory Seat/Mirror Module............ 8W-18-5
Overhead Console.................... 8W-18-4
Power Liftgate Module................ 8W-18-5
Powertrain Control Module........... 8W-18-2, 5
PTC7 ........................... 8W-18-2, 3
Radio............................. 8W-18-4
Right Side Impact Airbag Control
Module.......................... 8W-18-5
Right Sliding Door Control Module....... 8W-18-5
Sentry Key Immobilizer Module......... 8W-18-5
Thatcham Alarm Module........... 8W-18-2, 3, 5
Transmission Control Module......... 8W-18-2, 4
RS8W-18 BUS COMMUNICATIONS8W-18-1
ProCarManuals.com

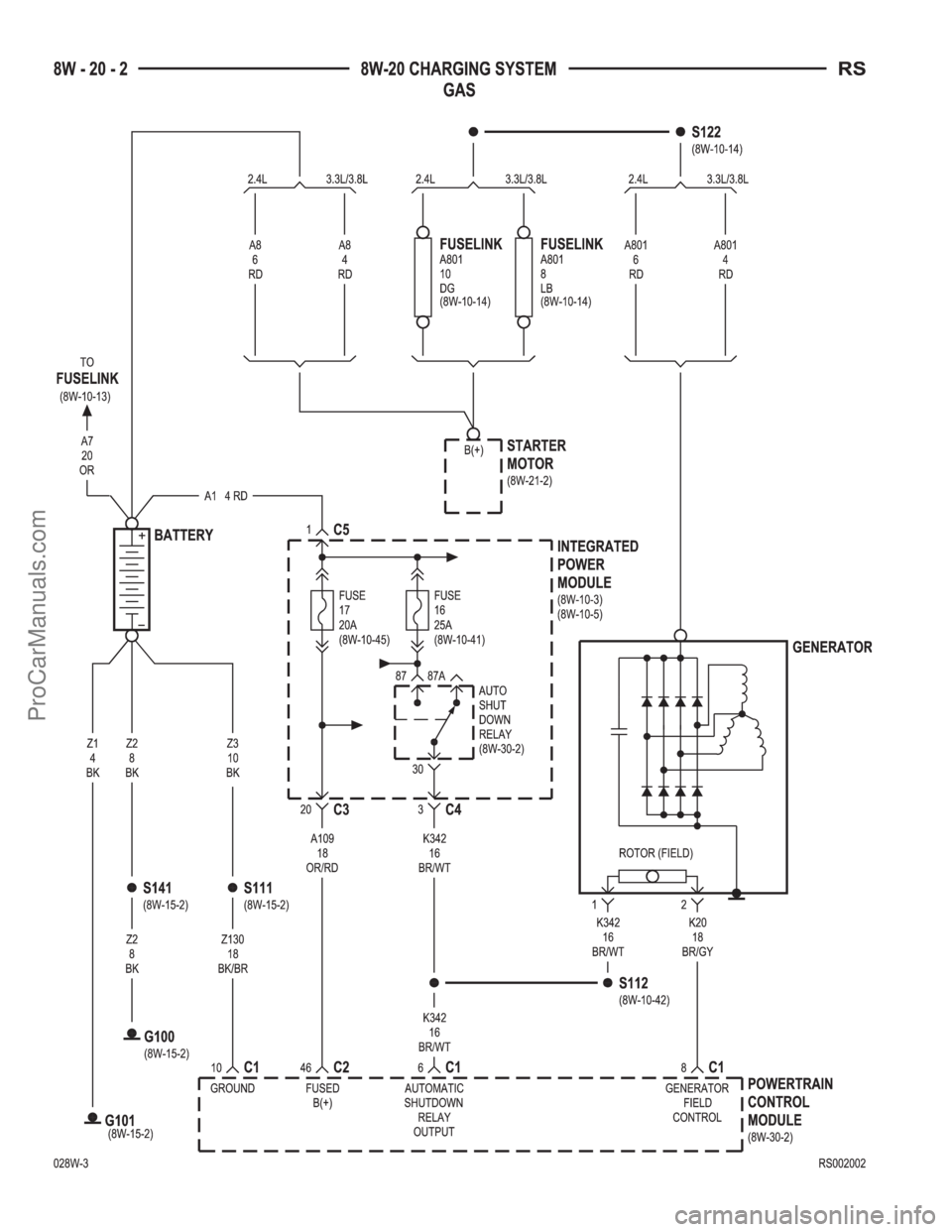

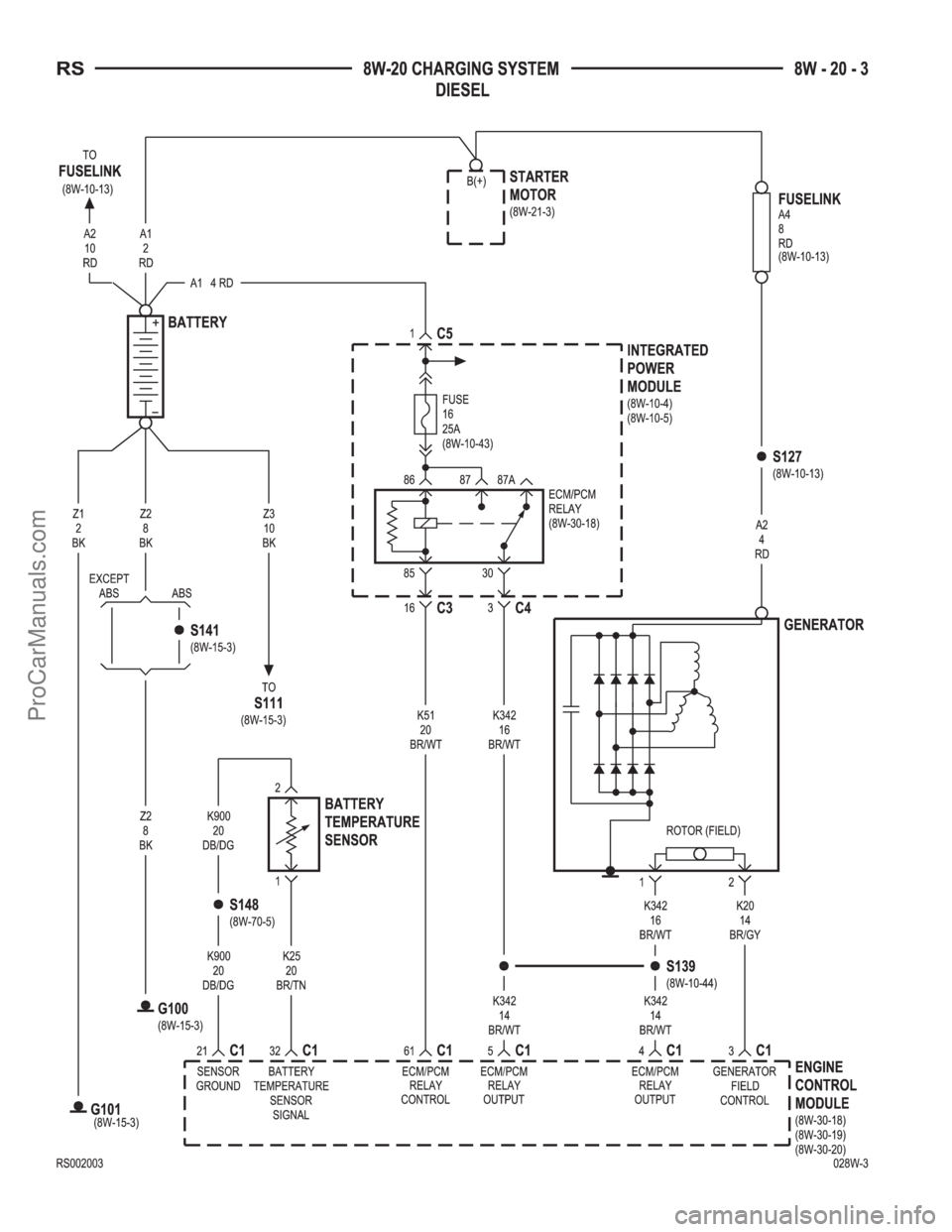

8W-20 CHARGING SYSTEM
Component Page
Auto Shut Down Relay................ 8W-20-2
Battery.......................... 8W-20-2, 3
Battery Temperature Sensor............ 8W-20-3
ECM/PCM Relay..................... 8W-20-3
Engine Control Module................ 8W-20-3
Fuse 16.......................... 8W-20-2, 3
Fuse 17............................ 8W-20-2Component Page
Fuselink......................... 8W-20-2, 3
G100............................ 8W-20-2, 3
G101............................ 8W-20-2, 3
Generator........................ 8W-20-2, 3
Integrated Power Module............ 8W-20-2, 3
Powertrain Control Module............. 8W-20-2
Starter Motor..................... 8W-20-2, 3
RS8W-20 CHARGING SYSTEM8W-20-1
