Maintenance Service
Schedule “B”
Odometer Reading
DateRetailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
2006 Passenger Car • Minivan • Pacifica
55,000 km Maintenance Service Schedule “B”
55,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.

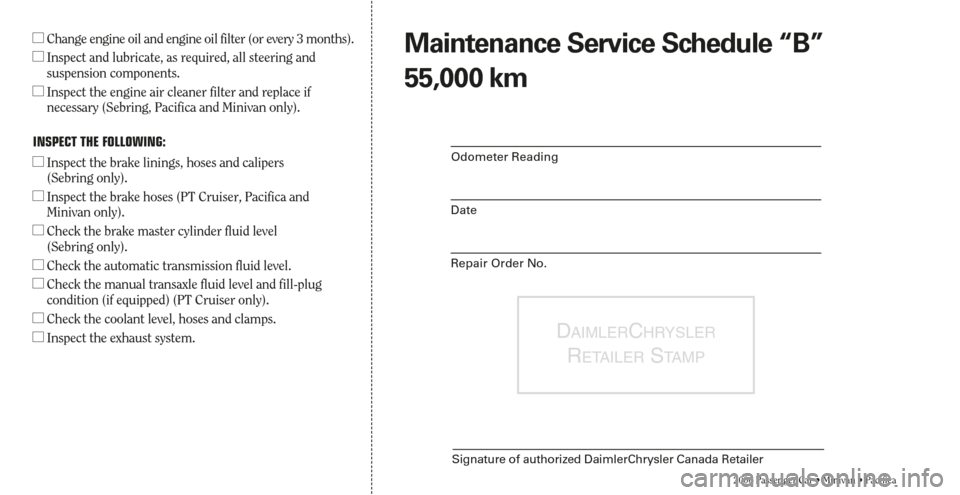

Page 52 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and
Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
55,000 km
Page 53 of 130
Maintenance Service
Schedule “B”
Odometer Reading
DateRetailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
2006 Passenger Car • Minivan • Pacifica
60,000 km Maintenance Service Schedule “B”
60,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
Replace the air conditioning filter (Pacifica and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (PT Cruiser, Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the front and rear brakes and components (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.

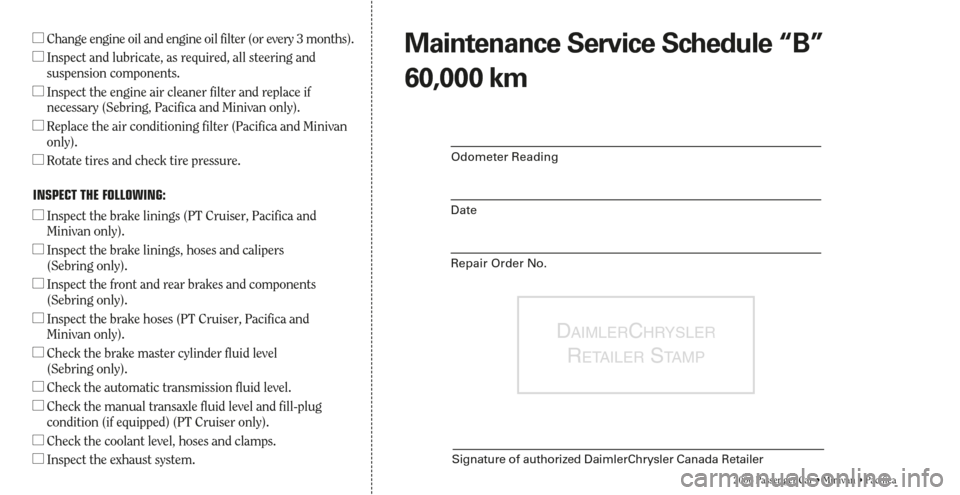

Page 54 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
Replace the air conditioning filter (Pacifica and Minivan
only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (PT Cruiser, Pacifica and
Minivan only).
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the front and rear brakes and components
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and
Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
60,000 km
Page 55 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date

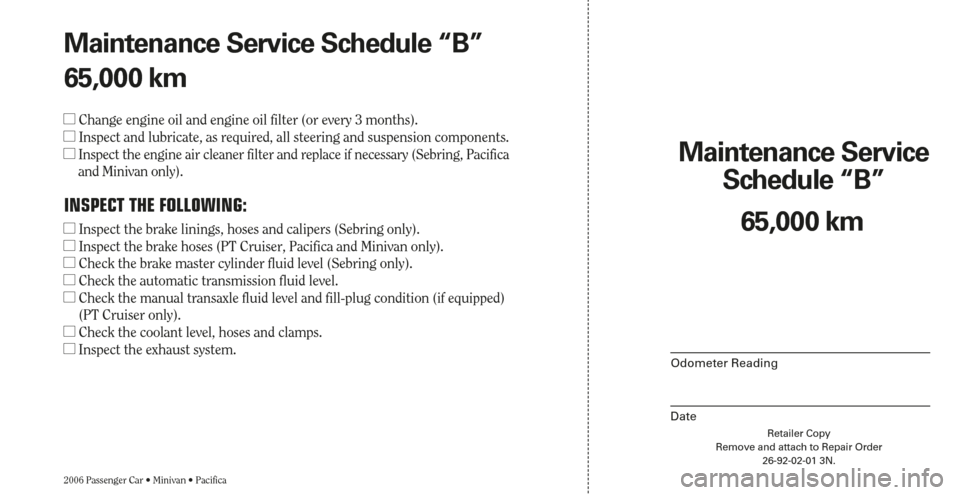

65,000 km Maintenance Service Schedule “B”
65,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
Page 56 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and
Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
65,000 km
Page 57 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
70,000 km Maintenance Service Schedule “B”
70,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
Change the all-wheel-drive overrunning clutch and rear carrier fluid (Pacifica only).*
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning clutch/rear carrier fluid
must be changed at more frequent intervals than shown in schedule B if the vehicle
is used for trailer tow, taxi, police or other type of commercial service.
Page 58 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
Change the all-wheel-drive overrunning clutch and
rear carrier fluid.*
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica
and Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning
clutch/rear carrier fluid must be changed at more frequent intervals
than shown in schedule B if the vehicle is used for trailer tow, taxi,
police or other type of commercial service.
Maintenance Service Schedule “B”
70,000 km
Page 59 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
75,000 km Maintenance Service Schedule “B”
75,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary
(Sebring and PT Cruiser only).
Replace the engine air cleaner filter if required (Pacifica and Minivan only).
Inspect the make-up air filter, replace as necessary (PT Cruiser only).
Change the all-wheel-drive power transfer unit fluid (Pacifica only).*
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning clutch/rear
carrier fluid must be changed at more frequent intervals than shown in
schedule B if the vehicle is used for trailer tow, taxi, police or other type of commercial service.

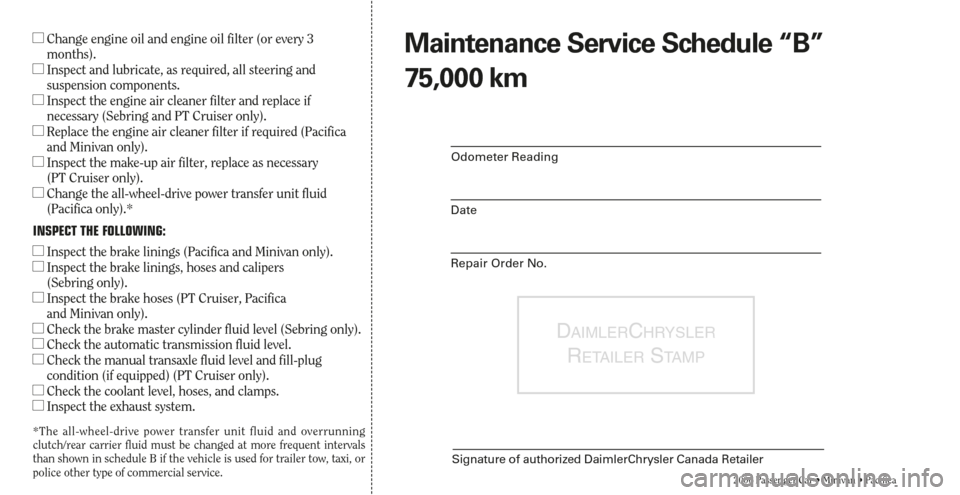

Page 60 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3
months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring and PT Cruiser only).
Replace the engine air cleaner filter if required (Pacifica
and Minivan only).
Inspect the make-up air filter, replace as necessary
(PT Cruiser only).
Change the all-wheel-drive power transfer unit fluid
(Pacifica only).*
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica
and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning
clutch/rear carrier fluid must be changed at more frequent intervals
than shown in schedule B if the vehicle is used for trailer tow, taxi, or
police other type of commercial service.
Maintenance Service Schedule “B”
75,000 km
