CHRYSLER TOWN AND COUNTRY 2006 4.G Warranty Booklet
Manufacturer: CHRYSLER, Model Year: 2006, Model line: TOWN AND COUNTRY, Model: CHRYSLER TOWN AND COUNTRY 2006 4.GPages: 130, PDF Size: 0.4 MB
Page 61 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
80,000 km Maintenance Service Schedule “B”
80,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
Change the brake fluid if the vehicle is used for trailer towing (PT Cruiser only).
Change the manual transaxle fluid (PT Cruiser only).
Replace the air conditioning filter (Pacifica and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (PT Cruiser only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the front and rear brakes and components (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
Page 62 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if necessary
(Sebring, Pacifica and Minivan only).
Change the brake fluid if the vehicle is used for trailer
towing (PT Cruiser only).
Change the manual transaxle fluid (PT Cruiser only).
Replace the air conditioning filter (Pacifica and Minivan
only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings. (PT Cruiser only).
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the front and rear brakes and components
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica
and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
80,000 km
Page 63 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
85,000 km Maintenance Service Schedule “B”
85,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
Page 64 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica
and Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
85,000 km
Page 65 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
90,000 km Maintenance Service Schedule “B”
90,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
Page 66 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica
and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
90,000 km
Page 67 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
95,000 km Maintenance Service Schedule “B”
95,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.

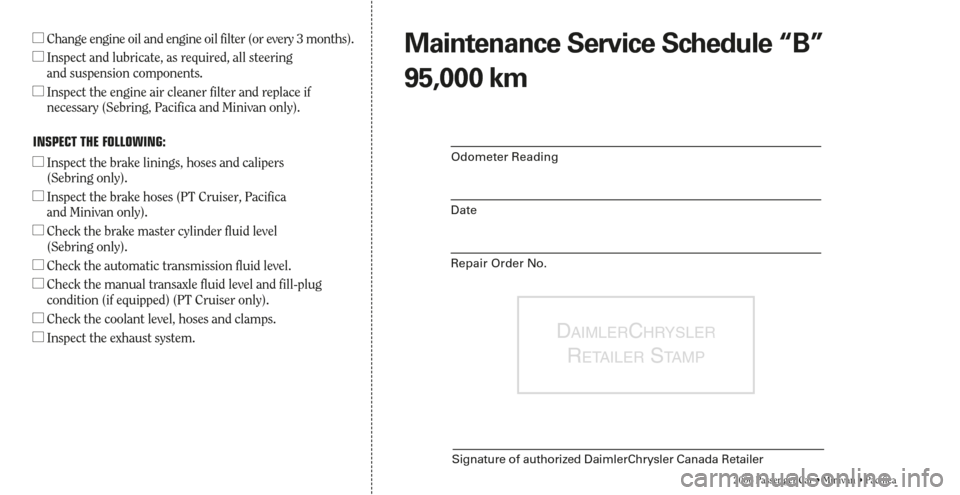

Page 68 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering
and suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica
and Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
95,000 km
Page 69 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
100,000 km
Maintenance Service Schedule “B”
100,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Replace the engine air cleaner filter if required (all models).
Replace the ignition cables (PT Cruiser and Sebring only).Replace the spark plugs (PT Cruiser and 2.4L engine Sebring only).
Check and replace, if necessary, the PCV valve (not required if previously replaced).
Replace the make-up air filter (PT Cruiser only).
Flush and replace engine coolant at 60 months or 170,000 km, whichever comes first.
Inspect the serpentine drive belt, replace if necessary (not required if previously replaced)
(Pacifica and Minivan only).
Replace the accessory drive belts (2.7L Sebring only).
Change the automatic transmission fluid and filter.
Adjust the generator drive belt tension. (PT Cruiser only).
Inspect and check tension for power steering belt. Adjust or replace if required (2.4L Sebring only).
Change the all-wheel-drive power transfer unit fluid (Pacifica only).*
Replace the air conditioning filter (Pacifica and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:Inspect the brake linings (PT Cruiser only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the front and rear brakes and components (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped) (PT Cruiser only).
Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica and Minivan only).
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning clutch/rear carrier fluid must be changed at more frequent
intervals than shown in schedule B if the vehicle is used for trailer tow, taxi, police or other type of commercial service.

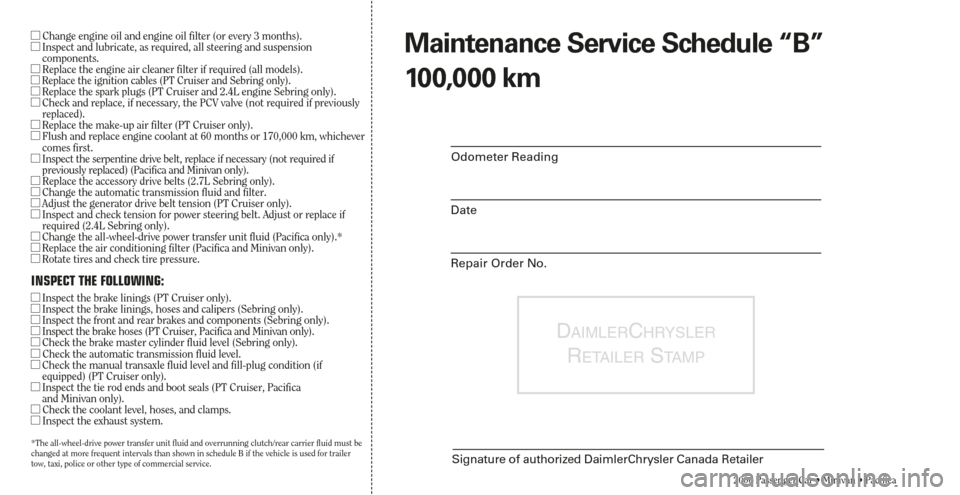

Page 70 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Maintenance Service Schedule “B”
100,000 kmChange engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension
components.
Replace the engine air cleaner filter if required (all models).
Replace the ignition cables (PT Cruiser and Sebring only).Replace the spark plugs (PT Cruiser and 2.4L engine Sebring only).
Check and replace, if necessary, the PCV valve (not required if previously
replaced).
Replace the make-up air filter (PT Cruiser only).
Flush and replace engine coolant at 60 months or 170,000 km, whichever
comes first.
Inspect the serpentine drive belt, replace if necessary (not required if
previously replaced) (Pacifica and Minivan only).
Replace the accessory drive belts (2.7L Sebring only).
Change the automatic transmission fluid and filter.
Adjust the generator drive belt tension (PT Cruiser only).
Inspect and check tension for power steering belt. Adjust or replace if
required (2.4L Sebring only).
Change the all-wheel-drive power transfer unit fluid (Pacifica only).*
Replace the air conditioning filter (Pacifica and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:Inspect the brake linings (PT Cruiser only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the front and rear brakes and components (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if
equipped) (PT Cruiser only).
Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica
and Minivan only).
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning clutch/rear carrier fluid must be
changed at more frequent intervals than shown in schedule B if the vehicle is used for trailer
tow, taxi, police or other type of commercial service.
