CHRYSLER TOWN AND COUNTRY 2009 5.G Owner's Guide

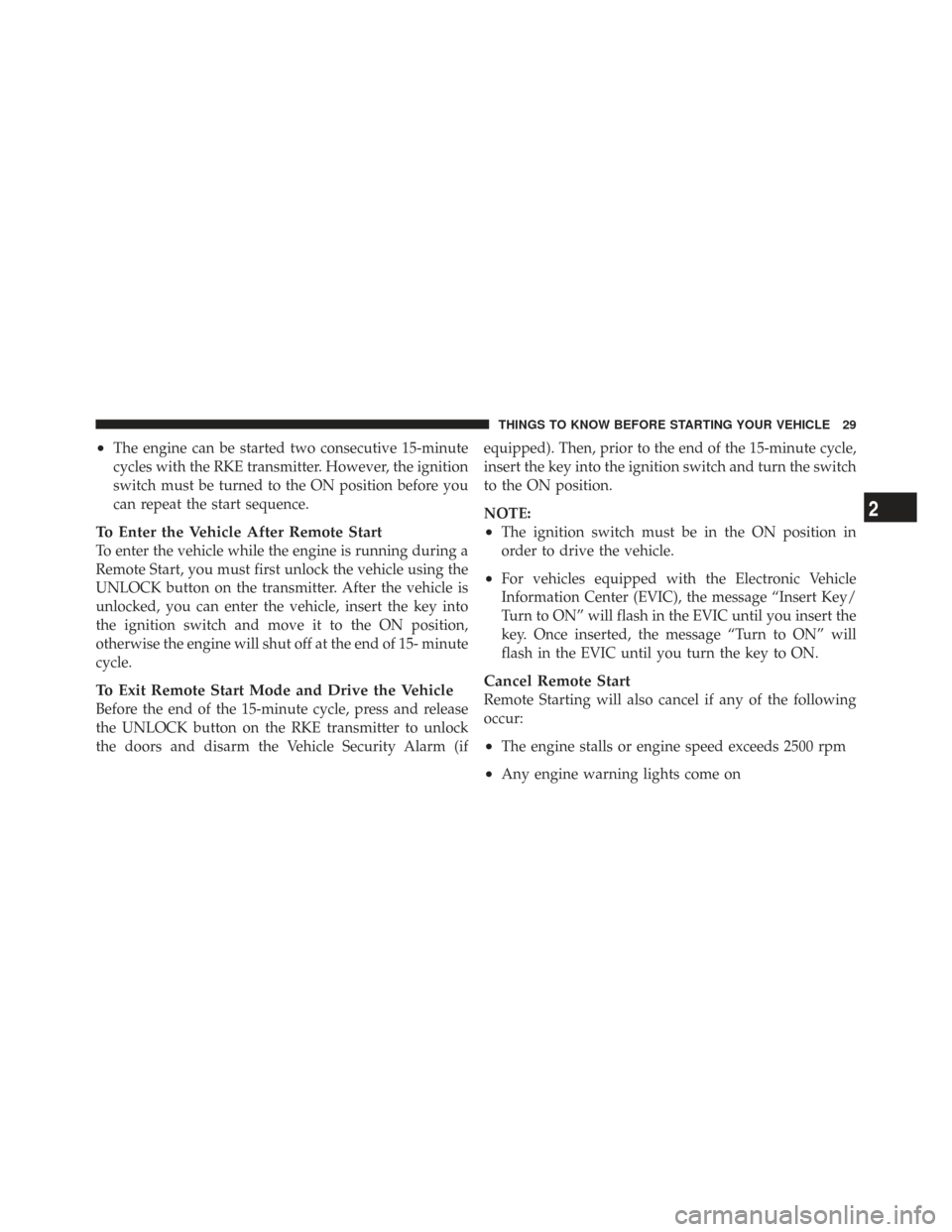

•The engine can be started two consecutive 15-minute
cycles with the RKE transmitter. However, the ignition
switch must be turned to the ON position before you
can repeat the start sequence.
To Enter the Vehicle After Remote Start
To enter the vehicle while the engine is running during a
Remote Start, you must first unlock the vehicle using the
UNLOCK button on the transmitter. After the vehicle is
unlocked, you can enter the vehicle, insert the key into
the ignition switch and move it to the ON position,
otherwise the engine will shut off at the end of 15- minute
cycle.
To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (ifequipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE:
•The ignition switch must be in the ON position in
order to drive the vehicle.
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the message “Insert Key/
Turn to ON” will flash in the EVIC until you insert the
key. Once inserted, the message “Turn to ON” will
flash in the EVIC until you turn the key to ON.
Cancel Remote Start
Remote Starting will also cancel if any of the following
occur:
•The engine stalls or engine speed exceeds 2500 rpm
•Any engine warning lights come on
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

•The hood is opened
•The hazard switch is pressed
•The shift lever is moved out of PARK
•The engine is allowed to run for the entire 15-minute
cycle
To Turn Off the Engine While in Remote Start
Mode
Press and release the REMOTE START button one time or
allow the engine to run for the entire 15 minute cycle.
NOTE:To avoid unintentional shutdowns while in the
Remote Start Mode, the system will not allow the Remote
Start button to shutdown the engine for two seconds after
receiving a valid Remote Start request.
When to Reset Remote Start
The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the Remote Starting sequence was
initiated but the engine stopped cranking without start-
ing. After either of these conditions, or if the Vehicle
Security Alarm system is alarming, or if the PANIC
button was pressed, the vehicle must be reset by inserting
a valid key into the ignition switch and rotating the key
to the ON position, and then rotating the key back to the
LOCK/OFF position.
DOOR LOCKS
Manual Door Locks
Lock the doors by pushing down on the lock plungers on
each door trim panel.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

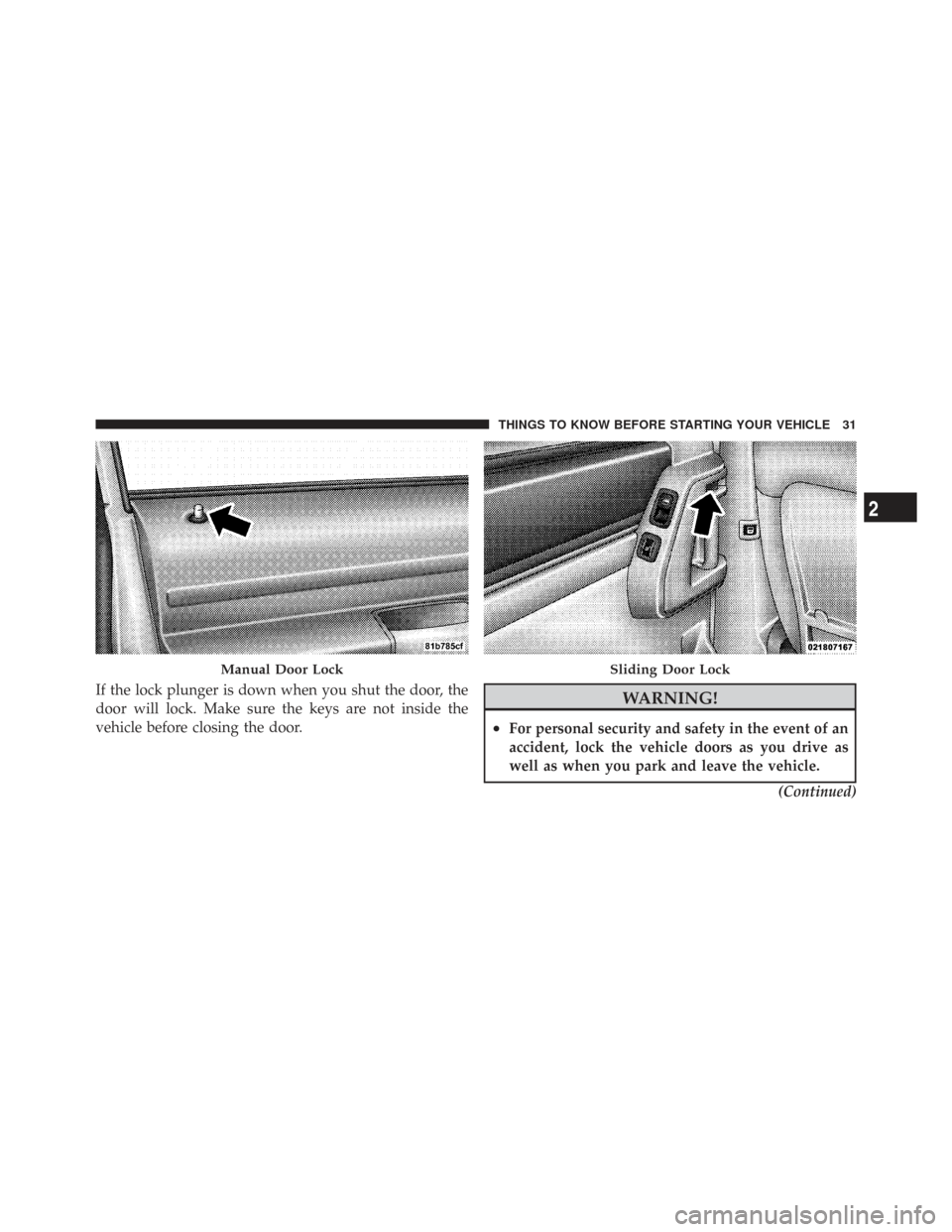

If the lock plunger is down when you shut the door, the
door will lock. Make sure the keys are not inside the
vehicle before closing the door.WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.(Continued)
Manual Door LockSliding Door Lock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

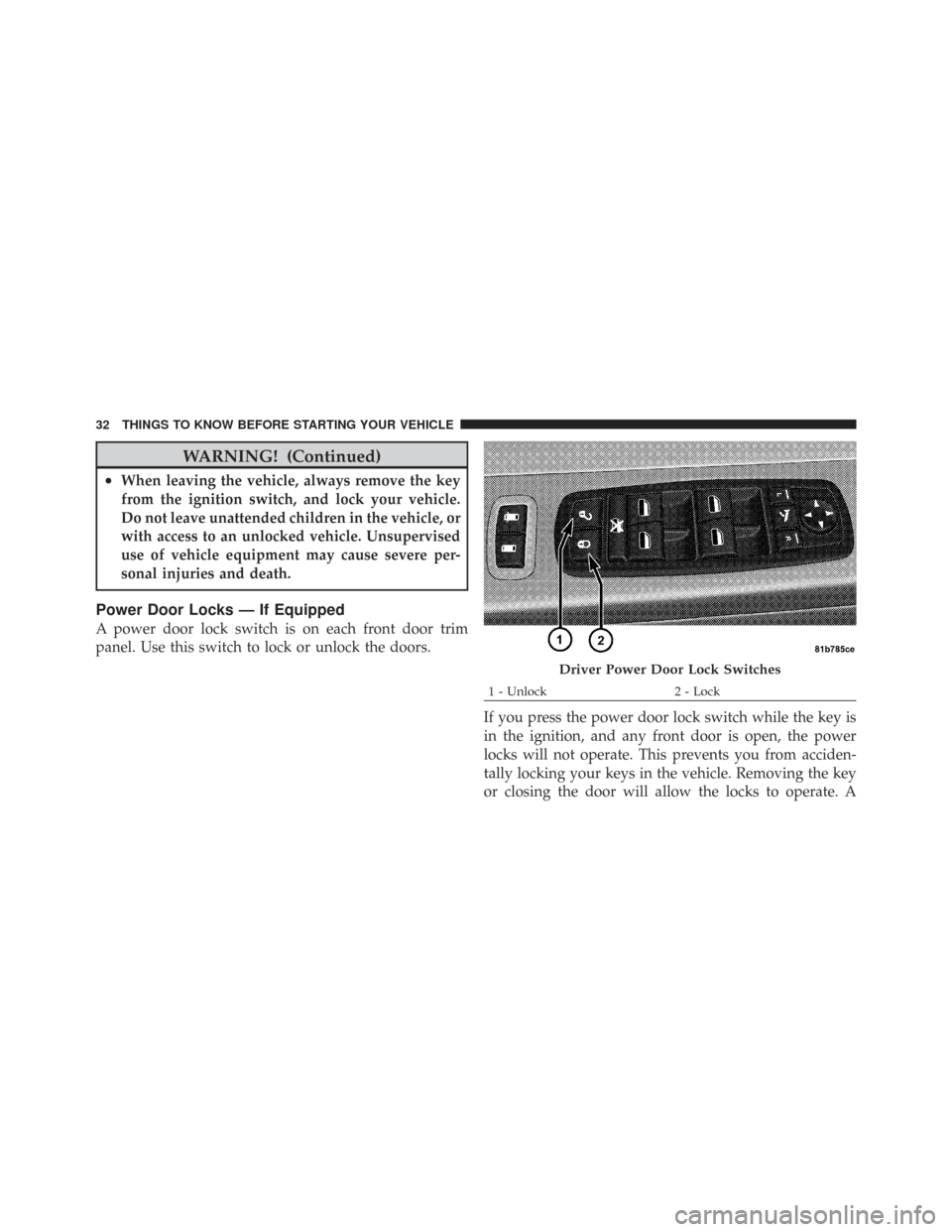

WARNING! (Continued)
•When leaving the vehicle, always remove the key
from the ignition switch, and lock your vehicle.
Do not leave unattended children in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per-
sonal injuries and death.
Power Door Locks — If Equipped
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.If you press the power door lock switch while the key is
in the ignition, and any front door is open, the power
locks will not operate. This prevents you from acciden-
tally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A
Driver Power Door Lock Switches
1 - Unlock2 - Lock
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

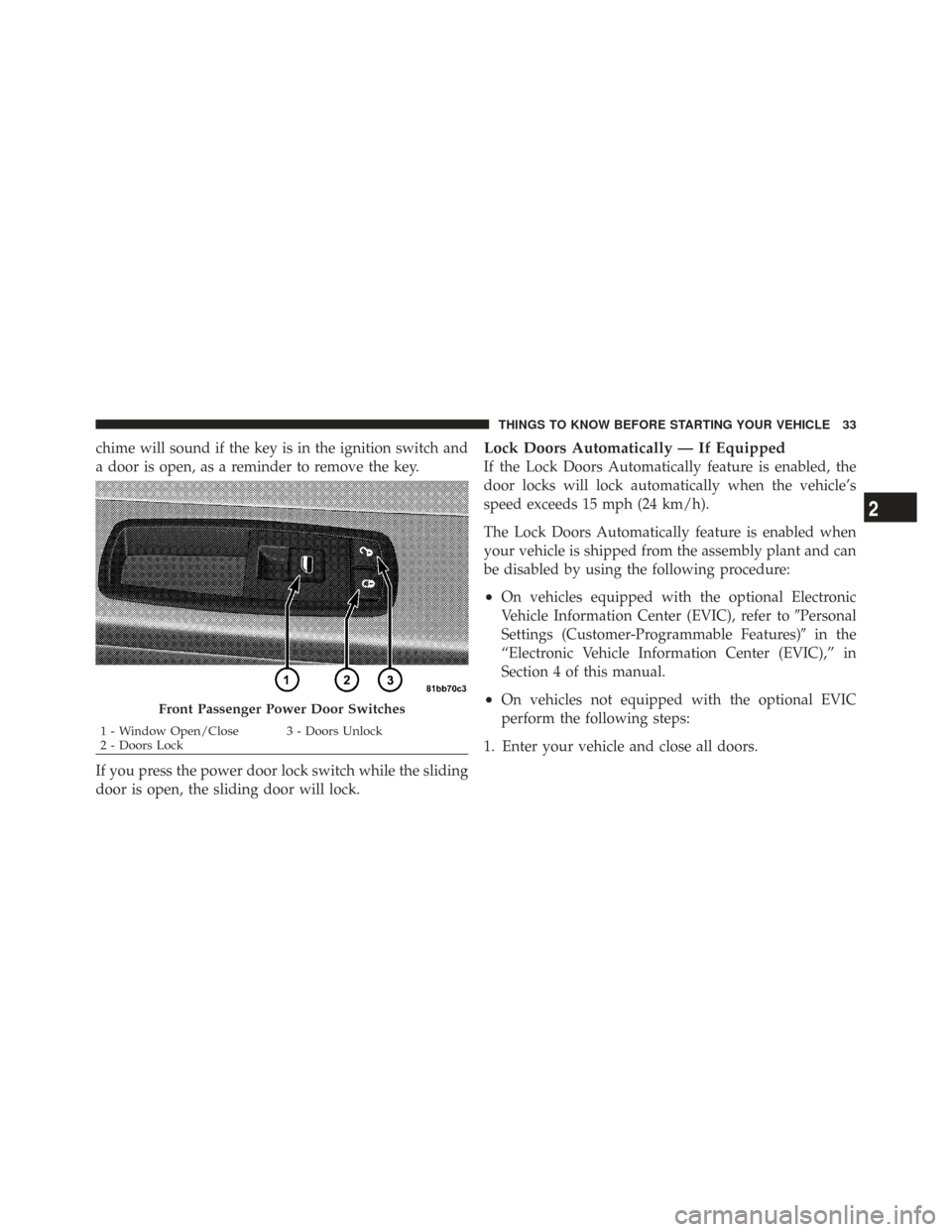

chime will sound if the key is in the ignition switch and
a door is open, as a reminder to remove the key.
If you press the power door lock switch while the sliding
door is open, the sliding door will lock.Lock Doors Automatically — If Equipped
If the Lock Doors Automatically feature is enabled, the
door locks will lock automatically when the vehicle’s
speed exceeds 15 mph (24 km/h).
The Lock Doors Automatically feature is enabled when
your vehicle is shipped from the assembly plant and can
be disabled by using the following procedure:
•On vehicles equipped with the optional Electronic
Vehicle Information Center (EVIC), refer toPersonal
Settings (Customer-Programmable Features) in the
“Electronic Vehicle Information Center (EVIC),” in
Section 4 of this manual.
•On vehicles not equipped with the optional EVIC
perform the following steps:
1. Enter your vehicle and close all doors.Front Passenger Power Door Switches
1 - Window Open/Close 3 - Doors Unlock
2 - Doors Lock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33

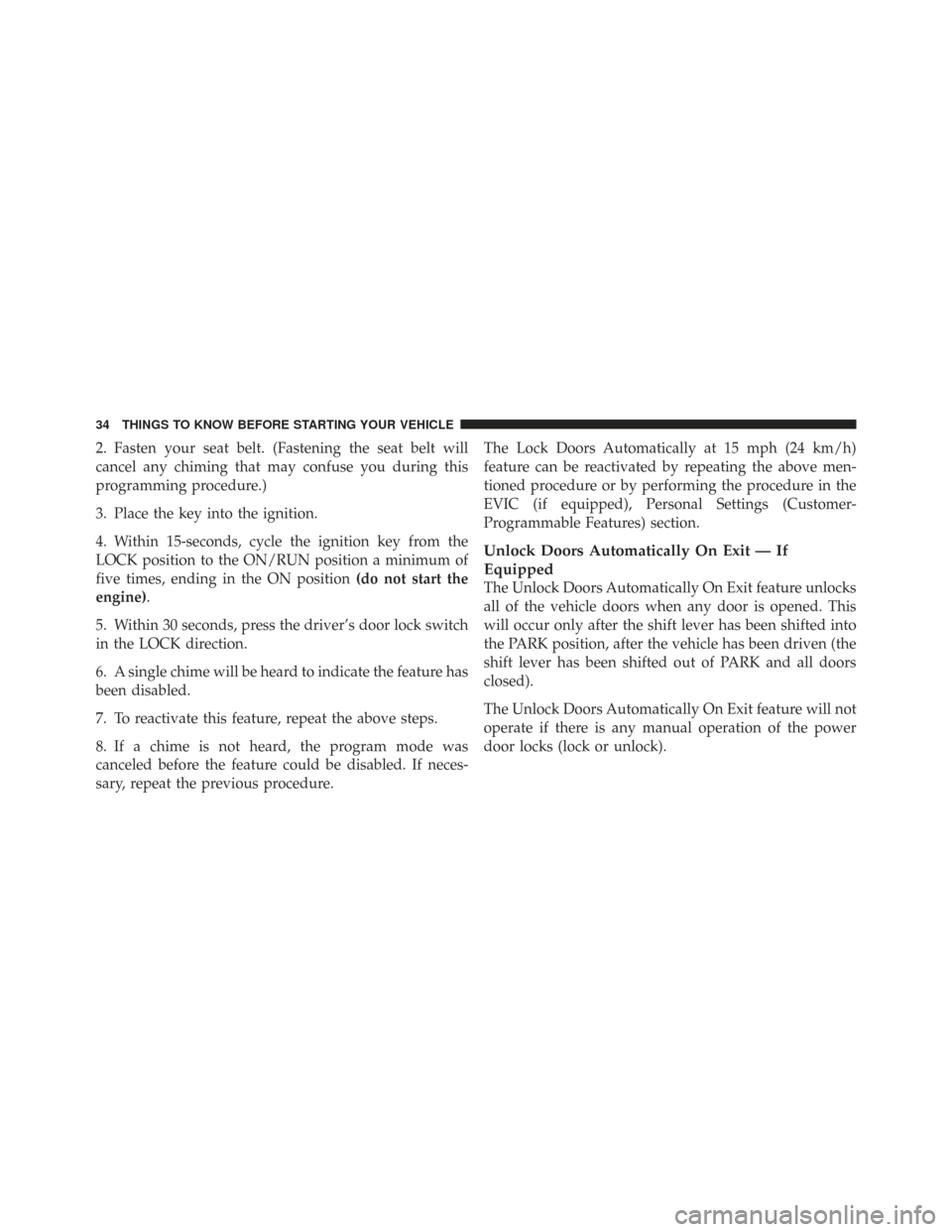

2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)
3. Place the key into the ignition.
4. Within 15-seconds, cycle the ignition key from the
LOCK position to the ON/RUN position a minimum of
five times, ending in the ON position(do not start the
engine).
5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, the program mode was
canceled before the feature could be disabled. If neces-
sary, repeat the previous procedure. The Lock Doors Automatically at 15 mph (24 km/h)
feature can be reactivated by repeating the above men-
tioned procedure or by performing the procedure in the
EVIC (if equipped), Personal Settings (Customer-
Programmable Features) section.
Unlock Doors Automatically On Exit — If
Equipped
The Unlock Doors Automatically On Exit feature unlocks
all of the vehicle doors when any door is opened. This
will occur only after the shift lever has been shifted into
the PARK position, after the vehicle has been driven (the
shift lever has been shifted out of PARK and all doors
closed).
The Unlock Doors Automatically On Exit feature will not
operate if there is any manual operation of the power
door locks (lock or unlock).
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

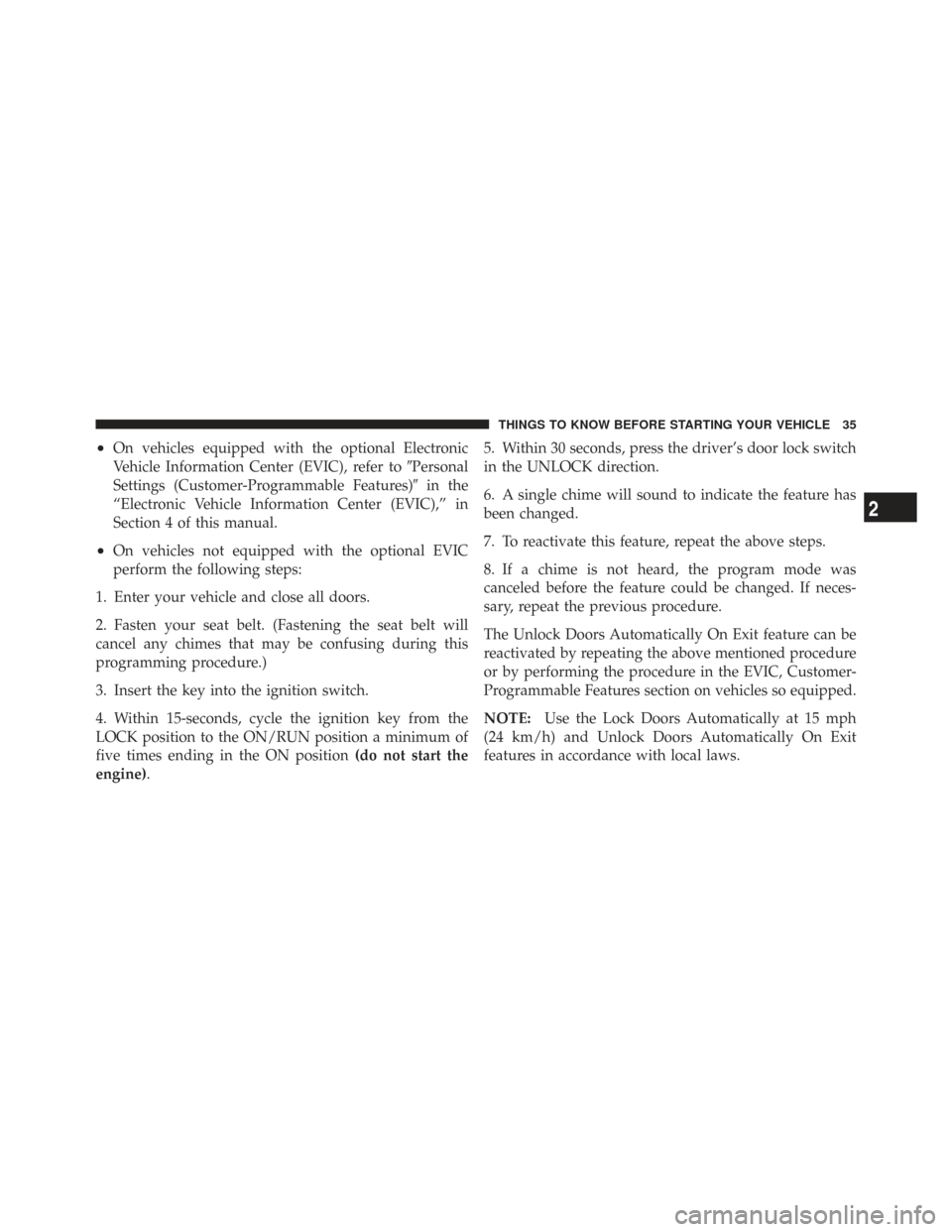

•On vehicles equipped with the optional Electronic
Vehicle Information Center (EVIC), refer toPersonal
Settings (Customer-Programmable Features) in the
“Electronic Vehicle Information Center (EVIC),” in
Section 4 of this manual.
•On vehicles not equipped with the optional EVIC
perform the following steps:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chimes that may be confusing during this
programming procedure.)
3. Insert the key into the ignition switch.
4. Within 15-seconds, cycle the ignition key from the
LOCK position to the ON/RUN position a minimum of
five times ending in the ON position (do not start the
engine). 5. Within 30 seconds, press the driver’s door lock switch
in the UNLOCK direction.
6. A single chime will sound to indicate the feature has
been changed.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, the program mode was
canceled before the feature could be changed. If neces-
sary, repeat the previous procedure.
The Unlock Doors Automatically On Exit feature can be
reactivated by repeating the above mentioned procedure
or by performing the procedure in the EVIC, Customer-
Programmable Features section on vehicles so equipped.
NOTE:
Use the Lock Doors Automatically at 15 mph
(24 km/h) and Unlock Doors Automatically On Exit
features in accordance with local laws.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

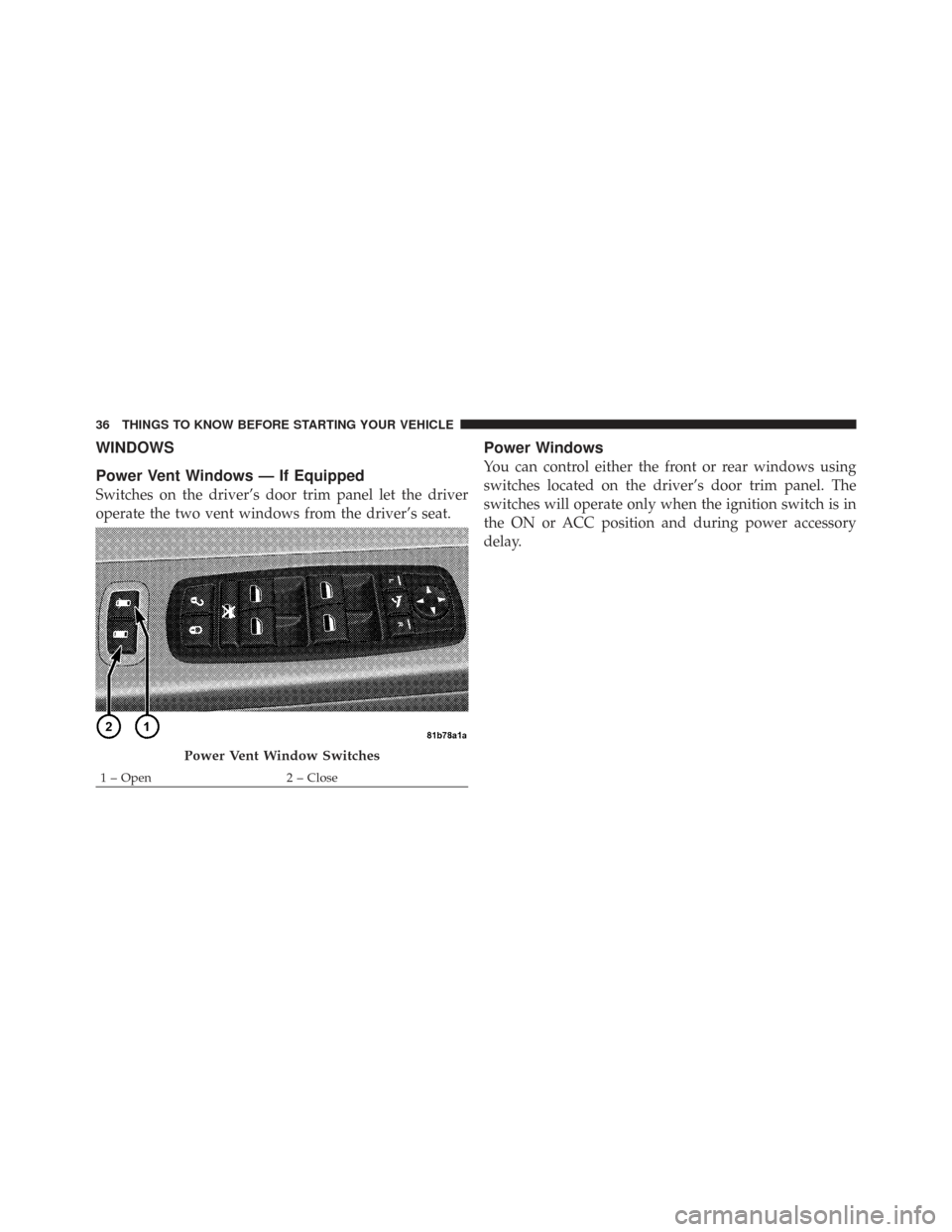

WINDOWS
Power Vent Windows — If Equipped
Switches on the driver’s door trim panel let the driver
operate the two vent windows from the driver’s seat.
Power Windows
You can control either the front or rear windows using
switches located on the driver’s door trim panel. The
switches will operate only when the ignition switch is in
the ON or ACC position and during power accessory
delay.
Power Vent Window Switches
1–Open2–Close
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

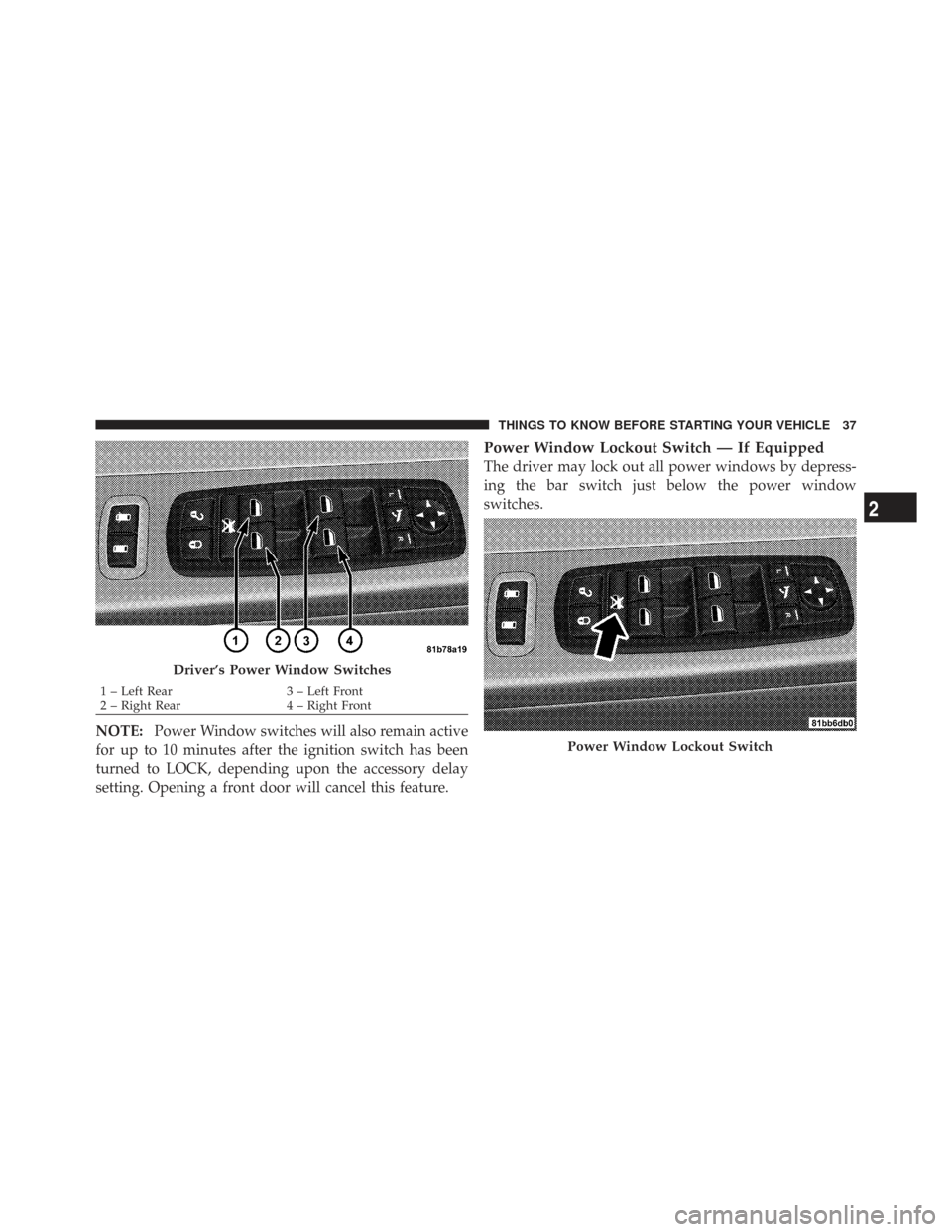

NOTE:Power Window switches will also remain active
for up to 10 minutes after the ignition switch has been
turned to LOCK, depending upon the accessory delay
setting. Opening a front door will cancel this feature.
Power Window Lockout Switch — If Equipped
The driver may lock out all power windows by depress-
ing the bar switch just below the power window
switches.
Driver’s Power Window Switches
1 – Left Rear 3 – Left Front
2 – Right Rear 4 – Right Front
Power Window Lockout Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

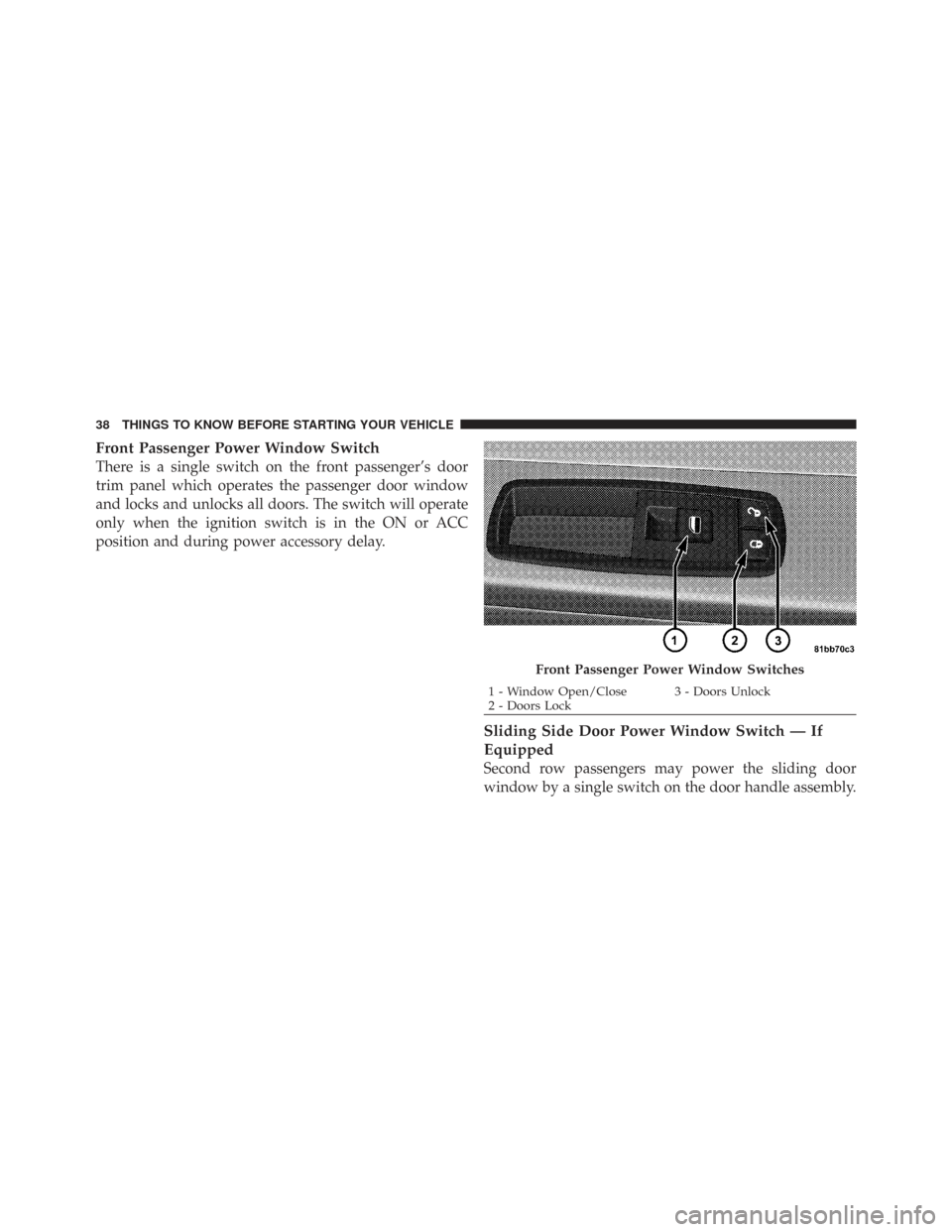

Front Passenger Power Window Switch
There is a single switch on the front passenger’s door
trim panel which operates the passenger door window
and locks and unlocks all doors. The switch will operate
only when the ignition switch is in the ON or ACC
position and during power accessory delay.
Sliding Side Door Power Window Switch — If
Equipped
Second row passengers may power the sliding door
window by a single switch on the door handle assembly.
Front Passenger Power Window Switches
1 - Window Open/Close 3 - Doors Unlock
2 - Doors Lock
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
