Page 231 of 538

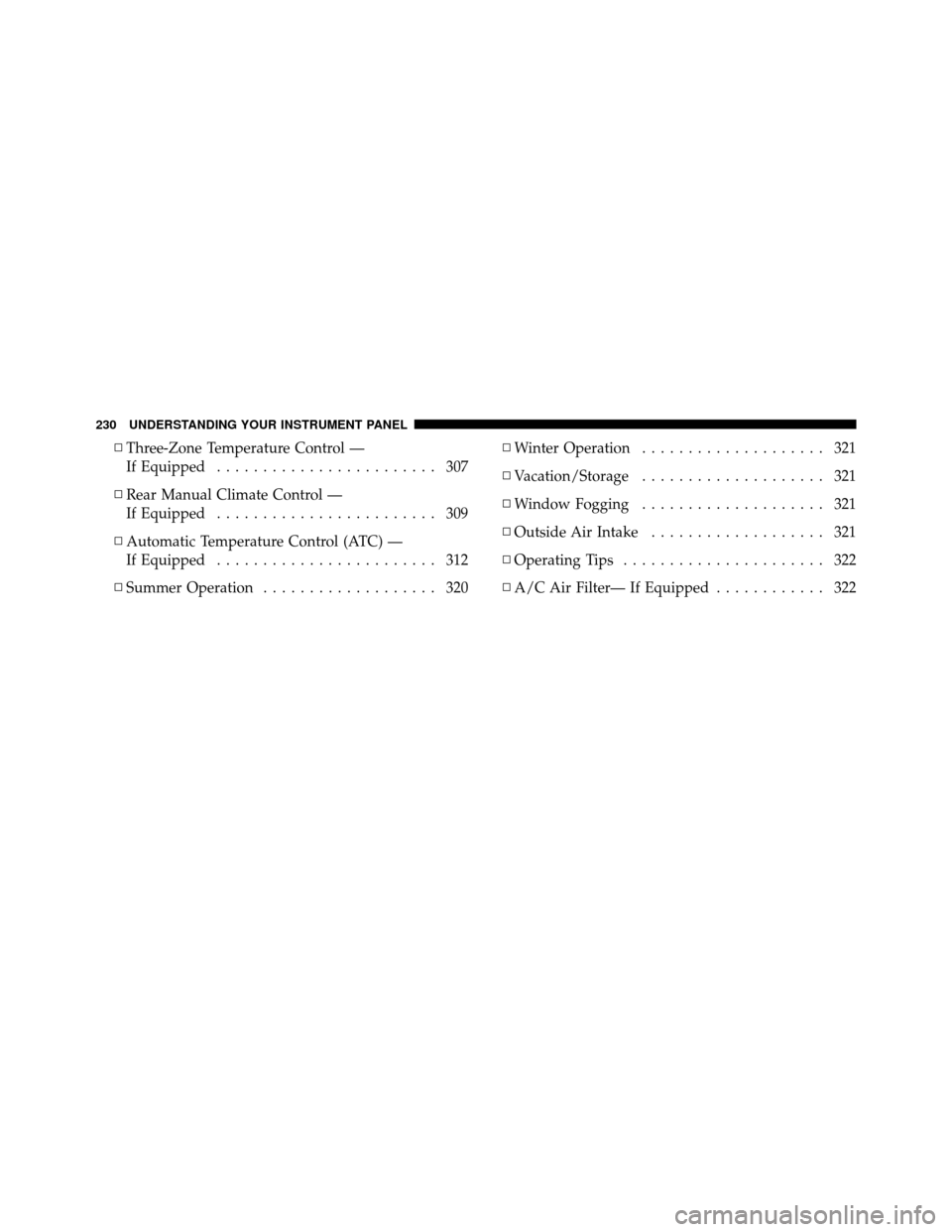

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual ▫Three-Zone Temperature Control —
If Equipped ........................ 307
▫ Rear Manual Climate Control —
If Equipped ........................ 309
▫ Automatic Temperature Control (ATC) —

Page 232 of 538

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual INSTRUMENT PANEL FEATURES
1 — Air Vents5 — Analog Clock 9 — DVD – If Equipped 13 — Switch Bank
2 — Instrument Cluster 6 — Upper Glove Compartment 10 — Cup Holders 14 — Ignition Switc

Page 233 of 538

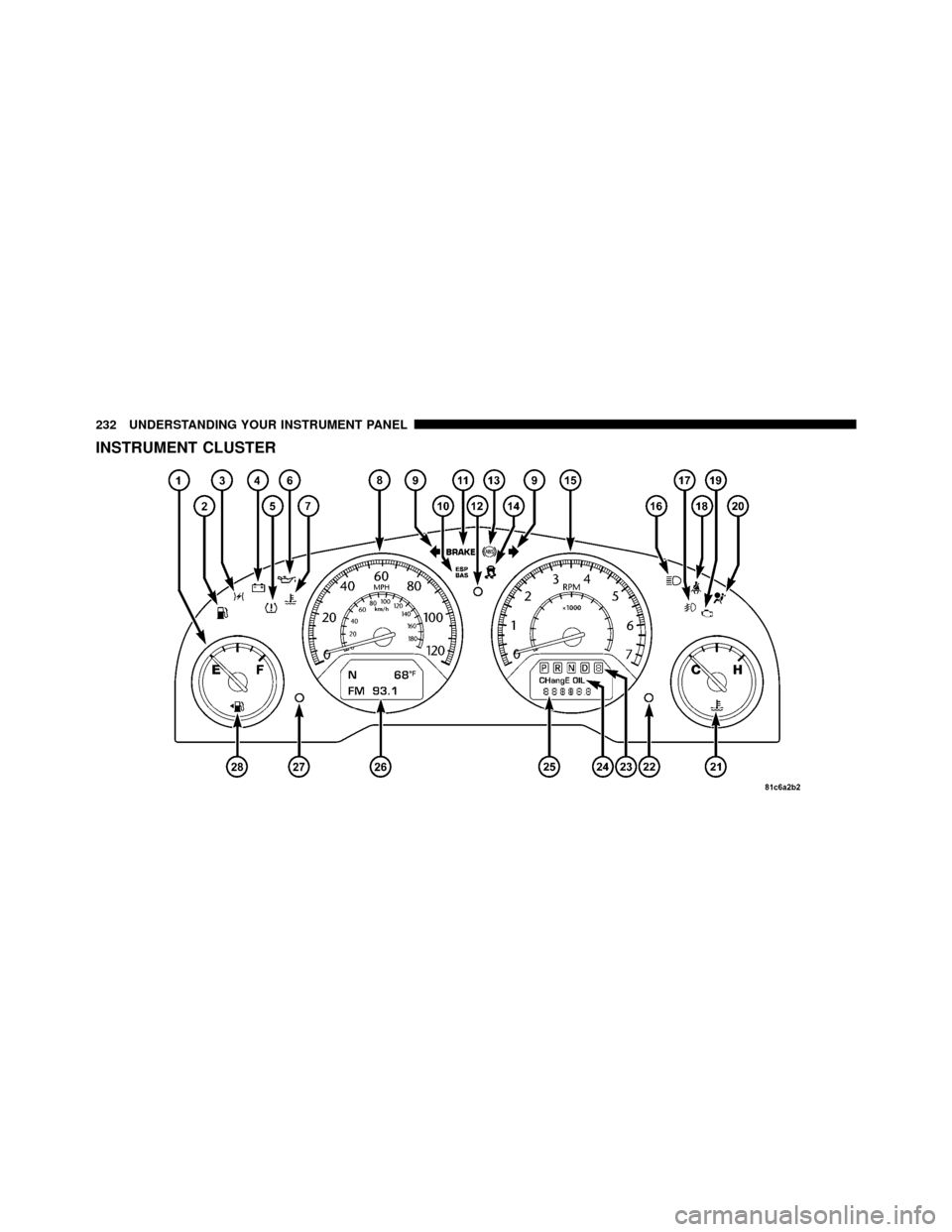

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual INSTRUMENT CLUSTER
232 UNDERSTANDING YOUR INSTRUMENT PANEL

Page 234 of 538

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON position.
2. Low Fuel LightWhen the fuel level reaches approxim

Page 235 of 538

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To

Page 236 of 538

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon subse-
quent vehicle start-ups as long as

Page 237 of 538

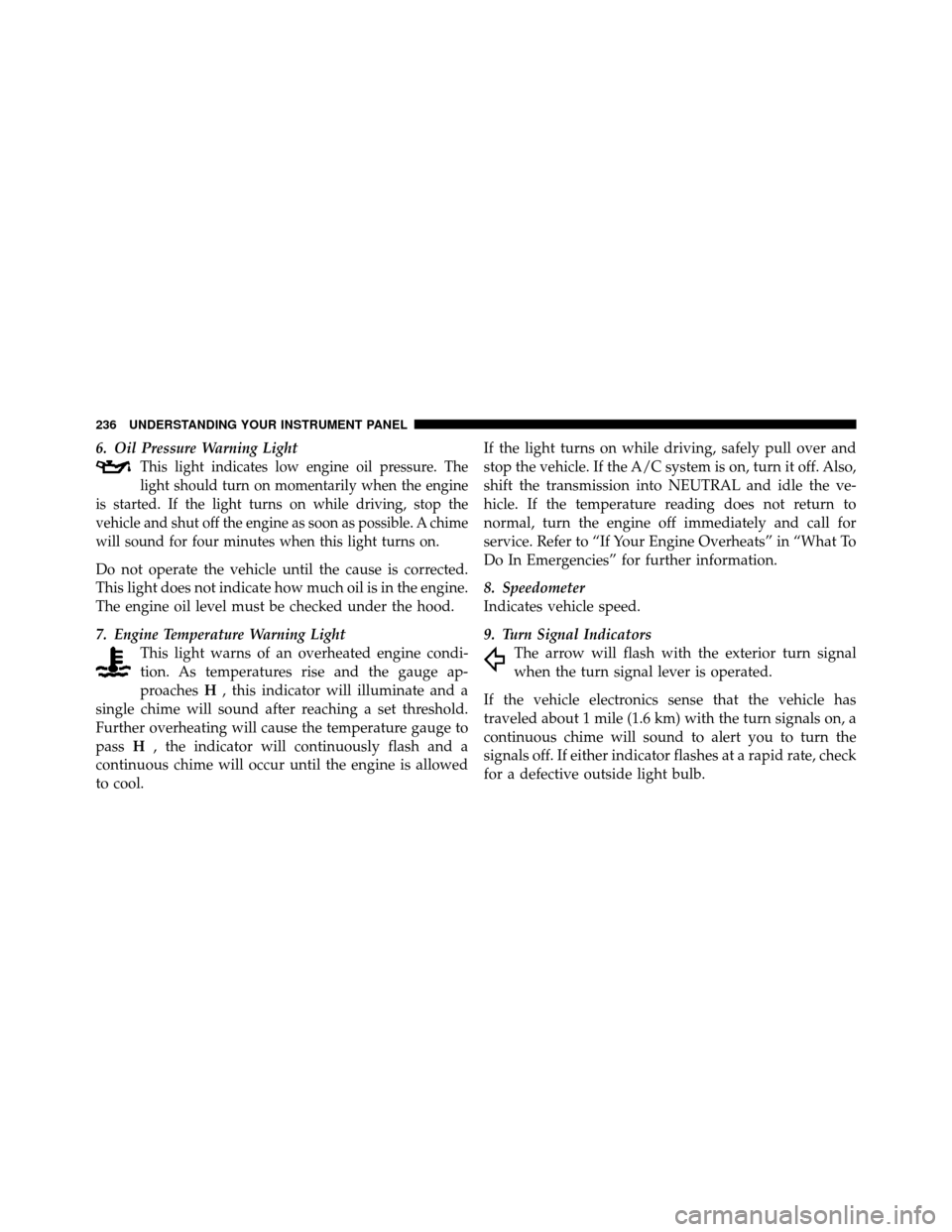

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual 6. Oil Pressure Warning Light
This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and s

Page 238 of 538

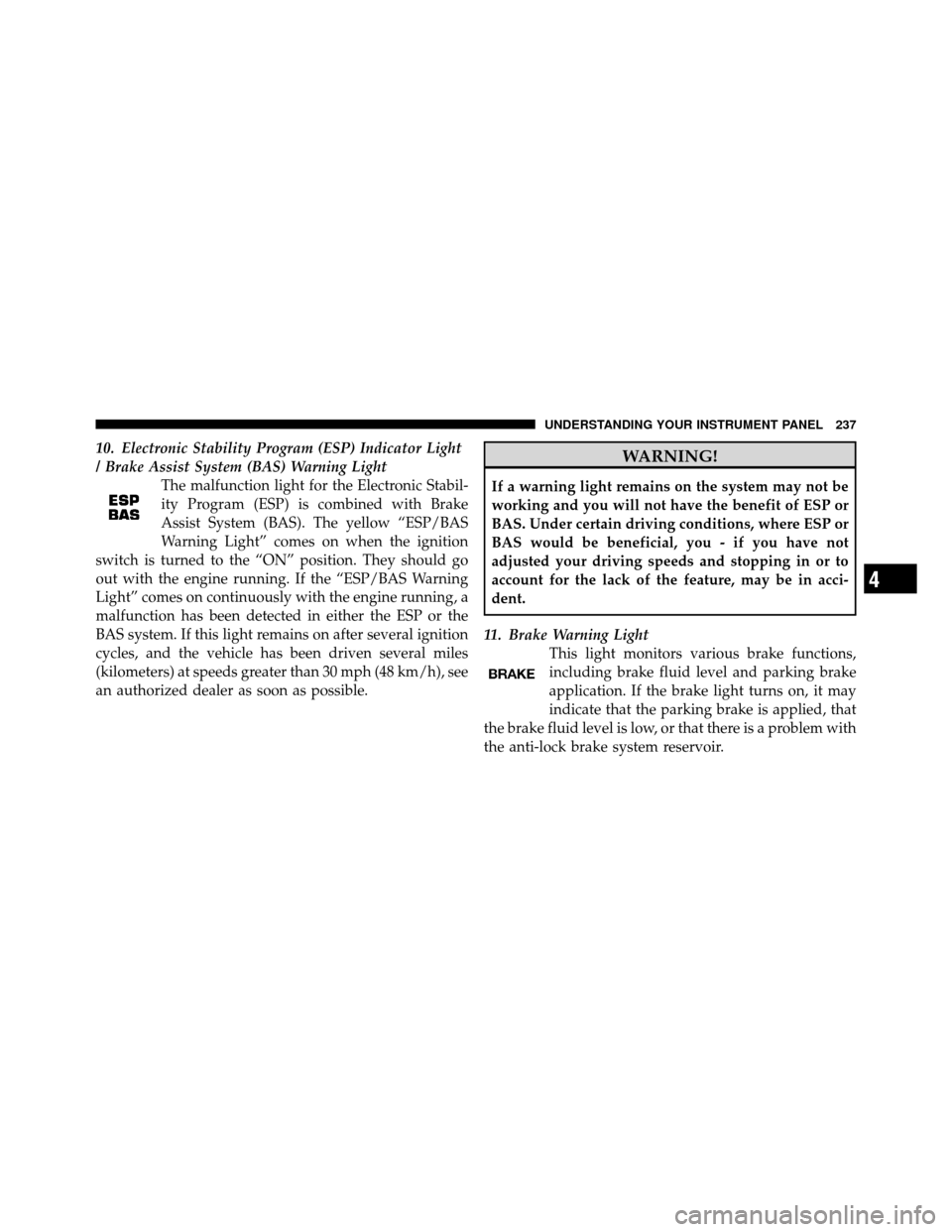

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual 10. Electronic Stability Program (ESP) Indicator Light
/ Brake Assist System (BAS) Warning LightThe malfunction light for the Electronic Stabil-
ity Program (ESP) is combined with Brake
Assist System

Page 239 of 538

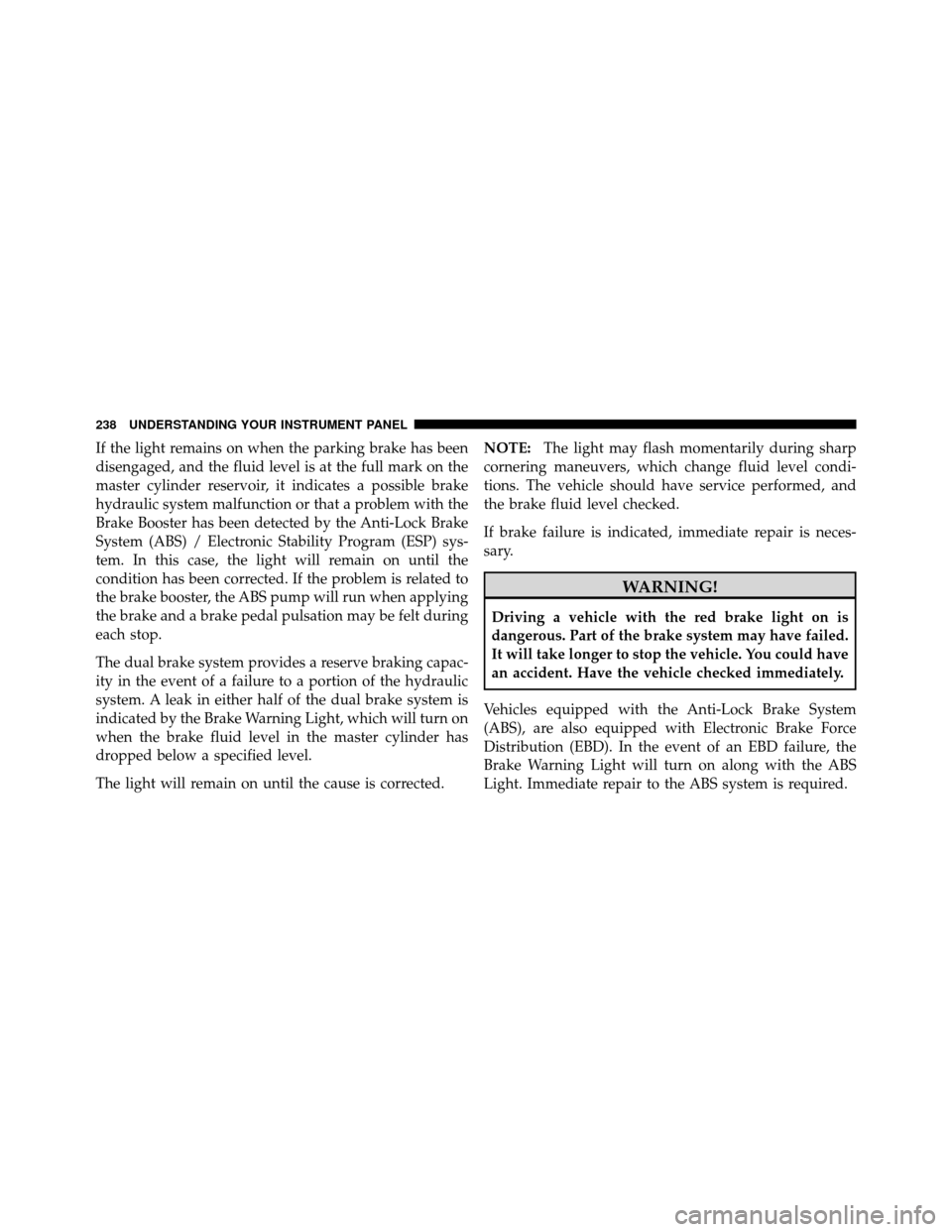

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction

Page 240 of 538

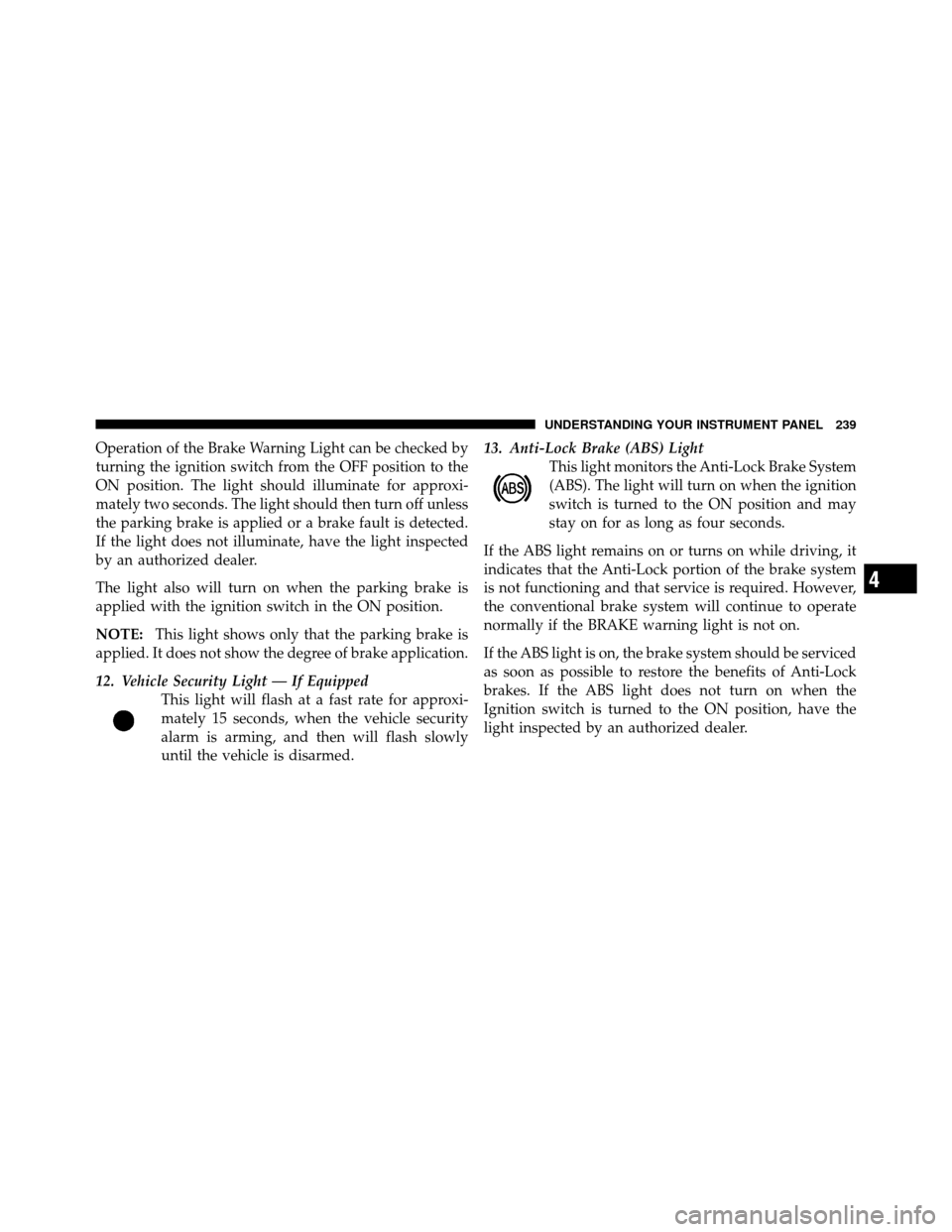

CHRYSLER TOWN AND COUNTRY 2010 5.G Owners Manual Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF position to the
ON position. The light should illuminate for approxi-
mately two seconds. The light shou
