CHRYSLER TOWN AND COUNTRY 2010 5.G User Guide

Town & Country
User Guide
2010

IMPORTANT: T\fis Us\br Guid\b is int\bnd\bd to familiariz\b you wit\f t\f\b important
f\batur\bs of your v\b\ficl\b. T\f\b DVD \bnclos\bd contains your Own\br’s Manual,
Navigation/M\bdia C\bnt\br Manuals, Warranty Bookl\bts, Tir\b Warranty and 24-Hour
Towing Assistanc\b (n\bw v\b\ficl\bs purc\fas\bd in t\f\b U.S.) or Roadsid\b Assistanc\b
(n\bw v\b\ficl\bs purc\fas\bd in Canada) in \bl\bctronic format. W\b \fop\b you find it
us\bful. If you ar\b t\f\b first r\bgist\br\bd own\br of your v\b\ficl\b, you may obtain a
print\bd copy of t\f\b Own\br’s Manual, Navigation/M\bdia C\bnt\br Manuals or
Warranty Bookl\bt by calling 1-800-247-9753 (U.S.) or 1-800-387-1143 (Canada) or
by contacting your d\bal\br. R\bplac\bm\bnt DVD kits may b\b purc\fas\bd by visiting
www.t\bc\faut\fority.com. Copyrig\ft © 2010 C\frysl\br Group LLC.

INTRODUCTION/WELCOME
WELCOME FROM CHRYSLER
GROUPLLC ................ 2
CONTROLS AT A GLANCE
DRIVER COCKPIT.............4
INSTRUMENT CLUSTER .........6
GETTING STARTED
KEYFOB ..................8
THEFT ALARM..............9
SEATBELT ................10
CHILD RESTRAINTS ...........10
FRONTSEATS...............14
HEATEDSEATS..............16
TILT STEERING COLUMN ........17
ADJUSTABLE PEDALS ..........18
PROGRAMMABLE FEATURES ......18
OPERATING YOUR VEHICLE
TURN SIGNAL/WIPER/WASHER/HIGH
BEAMLEVER ...............21
HEADLIGHT SWITCH AND HALO
LIGHT SWITCH..............22
SPEED CONTROL LEVER ........23
ELECTRONIC RANGE SELECTION
(ERS)....................24
MANUAL CLIMATE CONTROLS .... 25
FRONT THREE ZONE MANUAL
CLIMATE CONTROLS .......... 25
FRONT THREE ZONE AUTOMATIC
TEMPERATURE CONTROLS (ATC) . . .27
PARKSENSE
®REAR PARK ASSIST . . 29
PARKVIEW®REAR BACK-UP
CAMERA ................. 29
REAR CROSS PATH WITH BLIND SPOT
MONITORING .............. 30
POWER SLIDING SIDE DOORS .... 30
STOW ’N GO
®SEATING .........31
SWIVEL N’ GO™ SEATING WITH
TABLE ...................32
THIRD ROW POWER RECLINER .....33
POWER LIFTGATE ........... 34
POWERSUNROOF ........... 34
WIND BUFFETING ............ 35
ELECTRONICS
NON-TOUCH-SCREEN RADIOS .... 36
TOUCH-SCREEN RADIOS ........ 38
STEERING WHEEL AUDIO
CONTROLS ............... 42
VIDEO ENTERTAINMENT SYSTEM
(VES)™.................. 42
UNIVERSAL CONSUMER
INTERFACE ............... 44 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC)
............. 44
UNIVERSAL GARAGE DOOR OPENER
(HOMELINK
®).............. 45
POWERINVERTER ........... 46
POWER OUTLETS ............ 47
UCONNECT™ PHONE .......... 47
VOICE COMMAND ............ 49
UTILITY
IN-FLOOR STORAGE – STOW N’ GO®.. 50
TRAILER TOWING WEIGHTS (MAXIMUM
TRAILER WEIGHT RATINGS) .......51
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) .......... 52
BRAKE/TRANSAXLE INTERLOCK
MANUAL OVERRIDE .......... 52
WHAT TO DO IN EMERGENCIES
24-HOUR TOWING ASSISTANCE
- U.S. ONLY............... 53
INSTRUMENT CLUSTER WARNING
LIGHTS .................. 53
IF YOUR ENGINE OVERHEATS .... 56
JACKING AND TIRE CHANGING .... 58
JUMP-STARTING ............ 62
TOWING A DISABLED VEHICLE .... 65
FREEING A STUCK VEHICLE ...... 66
EVENT DATA RECORDER (EDR) ....67
MAINTAINING YOUR VEHICLE
OPENING THE HOOD.......... 68
ADDING FUEL .............. 68
ENGINE COMPARTMENT ....... 70
FLUIDS AND CAPACITIES ........72
MAINTENANCE CHART .........73
FUSES ...................75
TIREPRESSURES.............79
WHEEL AND WHEEL TRIM CARE ....79
EXTERIOR BULBS ............ 80
CONSUMER ASSISTANCE
CHRYSLER GROUP LLC CUSTOMER
CENTER ..................81
CHRYSLER CANADA INC. CUSTOMER
CENTER ..................81
ASSISTANCE FOR THE HEARING
IMPAIRED .................81
PUBLICATIONS ORDERING .......81
REPORTING SAFETY DEFECTS IN
THE 50 UNITED STATES AND
WASHINGTON, D.C. ........... 82
TIREWARRANTY ............ 82
MOPAR ACCESSORIES
MOPAR®ACCESSORIES ........ 85
TABLE OF CONTENTS

WELCOME FROM CHRYSLER GROUP LLC
Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it
represents precision workmanship, distinctive styling, and high quality -all essentials
that are traditional to our vehicles.
This guide illustrates and describes the operation of features and equipment that are
either standard or optional on this vehicle. This guide may also include a description
of features and equipment that are no longer available or were not ordered on this
vehicle. Please disregard any features and equipment described in this guide that are
not available on this vehicle. Chrysler Group LLC reserves the right to make changes
in design and specifications and/or make additions to or improvements to its
products without imposing any obligation upon itself to install them on products
previously manufactured.
For complete owner information, refer to the DVD in the owner’s kit provided at the
time of new vehicle purchase. For your convenience, the information contained on
the DVD may also be printed and saved for future reference.
Chrysler Group LLC is committed to protecting our environment and natural
resources. By converting from paper to electronic delivery for the majority of the
user information for your vehicle, together we greatly reduce the demand for
tree-based products and lessen the stress on our environment.
Vehicles Sold In Canada
With respect to any Vehicles sold in Canada, the name Chrysler Group LLC shall be
deemed to be deleted and the name Chrysler Canada Inc. used in substitution
therefore.
Driving And Alcohol
Drunken driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired with blood alcohol levels far below the
legal minimum. If you are drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your perceptions are less sharp,
your reflexes are slower, and your judgment is impaired when you have been
drinking. Never drink and then drive.
INTRODUCTION/WELCOME
2

CAUTION!
Never park your vehicle over dry grass or other combustible materials. The heat
from your vehicle exhaust system could cause a fire.
CHRYSLER, DODGE, JEEP, ATF+4, MOPAR and Uconnect are registered trademarks
of Chrysler Group LLC.
COPYRIGHT ©2010 CHRYSLER GROUP LLC
3
INTRODUCTION/WELCOME

DRIVER COCKPIT
4
CONTROLS AT A GLANCE

5
CONTROLS AT A GLANCE

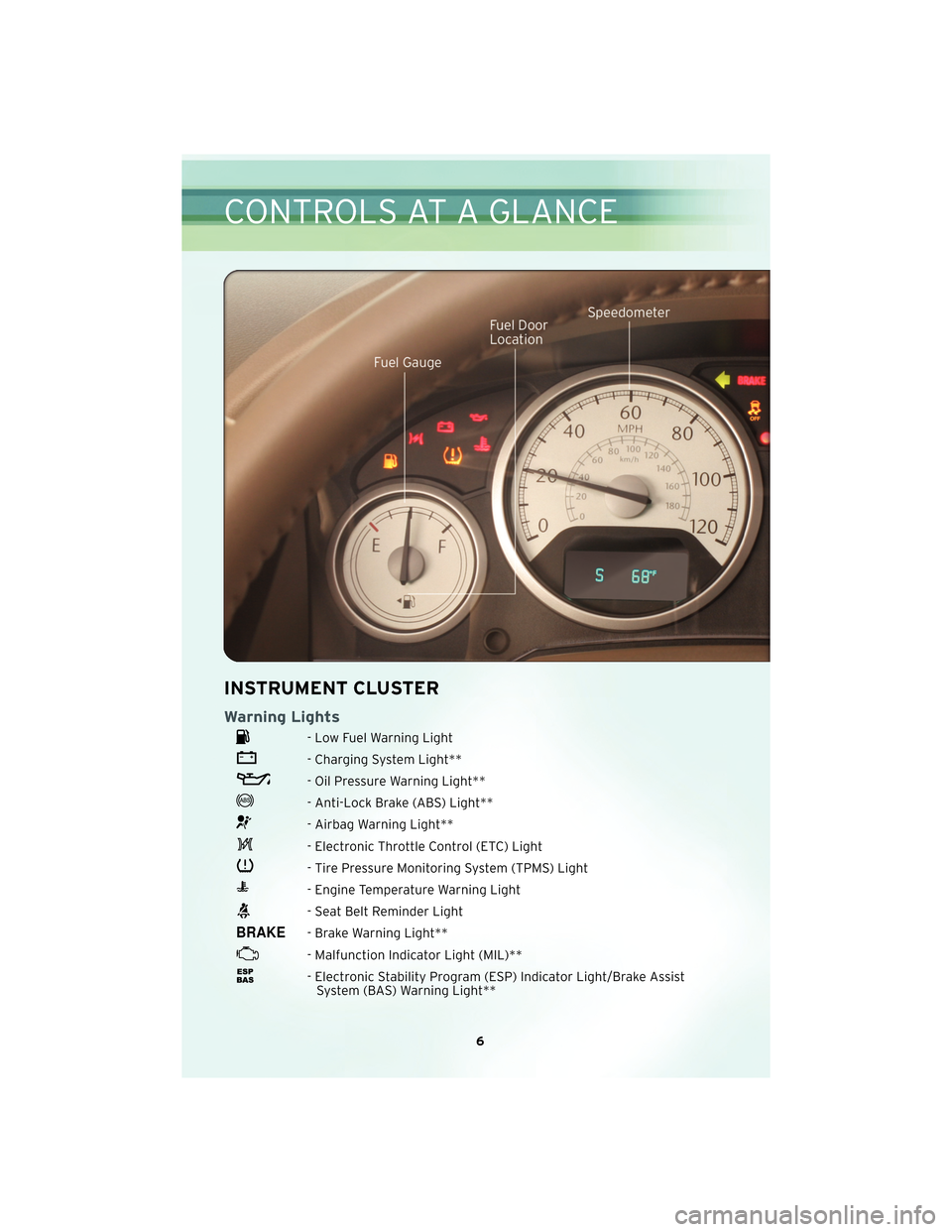

INSTRUMENT CLUSTER
Warning Lights
- Low Fuel Warning Light
- Charging System Light**
- Oil Pressure Warning Light**
- Anti-Lock Brake (ABS) Light**
- Airbag Warning Light**
- Electronic Throttle Control (ETC) Light
- Tire Pressure Monitoring System (TPMS) Light
- Engine Temperature Warning Light
- Seat Belt Reminder Light
- Brake Warning Light**
- Malfunction Indicator Light (MIL)**
- Electronic Stability Program (ESP) Indicator Light/Brake AssistSystem (BAS) Warning Light**
6
CONTROLS AT A GLANCE

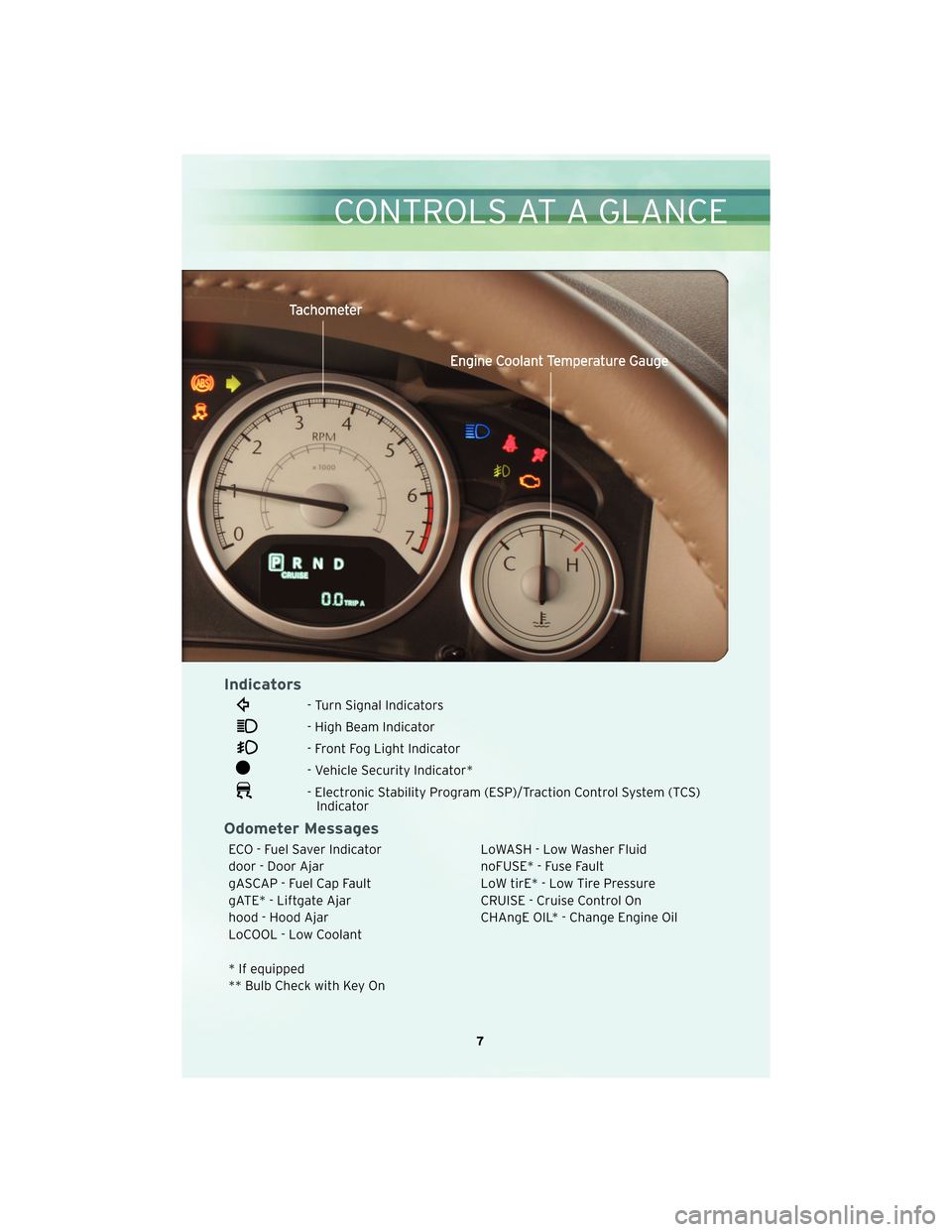

Indicators
- Turn Signal Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Vehicle Security Indicator*
- Electronic Stability Program (ESP)/Traction Control System (TCS)Indicator
Odometer Messages
ECO - Fuel Saver Indicator LoWASH - Low Washer Fluid
door - Door Ajar noFUSE* - Fuse Fault
gASCAP - Fuel Cap Fault LoW tirE* - Low Tire Pressure
gATE* - Liftgate Ajar CRUISE - Cruise Control On
hood - Hood Ajar CHAngE OIL* - Change Engine Oil
LoCOOL - Low Coolant
* If equipped
** Bulb Check with Key On
7
CONTROLS AT A GLANCE

KEY FOB
Locking And Unlocking The
Doors/Liftgate
• Press the LOCK button once to lock all thedoors and the liftgate. Press the UNLOCK
button once to unlock the driver’s door
only and twice within five seconds to
unlock all the doors and liftgate.
• All doors can be programmed to unlock on the first press of the UNLOCK button.
Refer to Programmable Features in this
guide.
WARNING!
Leaving unattended children in a vehicle is dangerous for a number of reasons. A
child or others could be severely injured or killed. Children should be warned not
to touch the parking brake, brake pedal, or the shift lever. Do not leave the Key Fob
in the ignition. A child could operate power windows, other controls, or move the
vehicle.
Remote Start
• Press the REMOTE START buttonx2twice within five seconds. Pressing the
REMOTE START button a third time shuts the engine off.
• To drive the vehicle, press the UNLOCK button, insert the Key Fob in the ignition and turn to the ON/RUN position.
• With remote start, the engine will only run for 15 minutes (timeout) unless the ignition Key Fob is placed in the ON/RUN position.
• The vehicle must be started with the Key Fob after two consecutive timeouts.
WARNING!
• Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Monoxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury or death when inhaled.
• Keep Key Fob transmitters away from children. Operation of the Remote Start System, windows, door locks or other controls could cause serious injury or
death.
GETTING STARTED
8
