tow bar CHRYSLER TOWN AND COUNTRY 2010 5.G User Guide

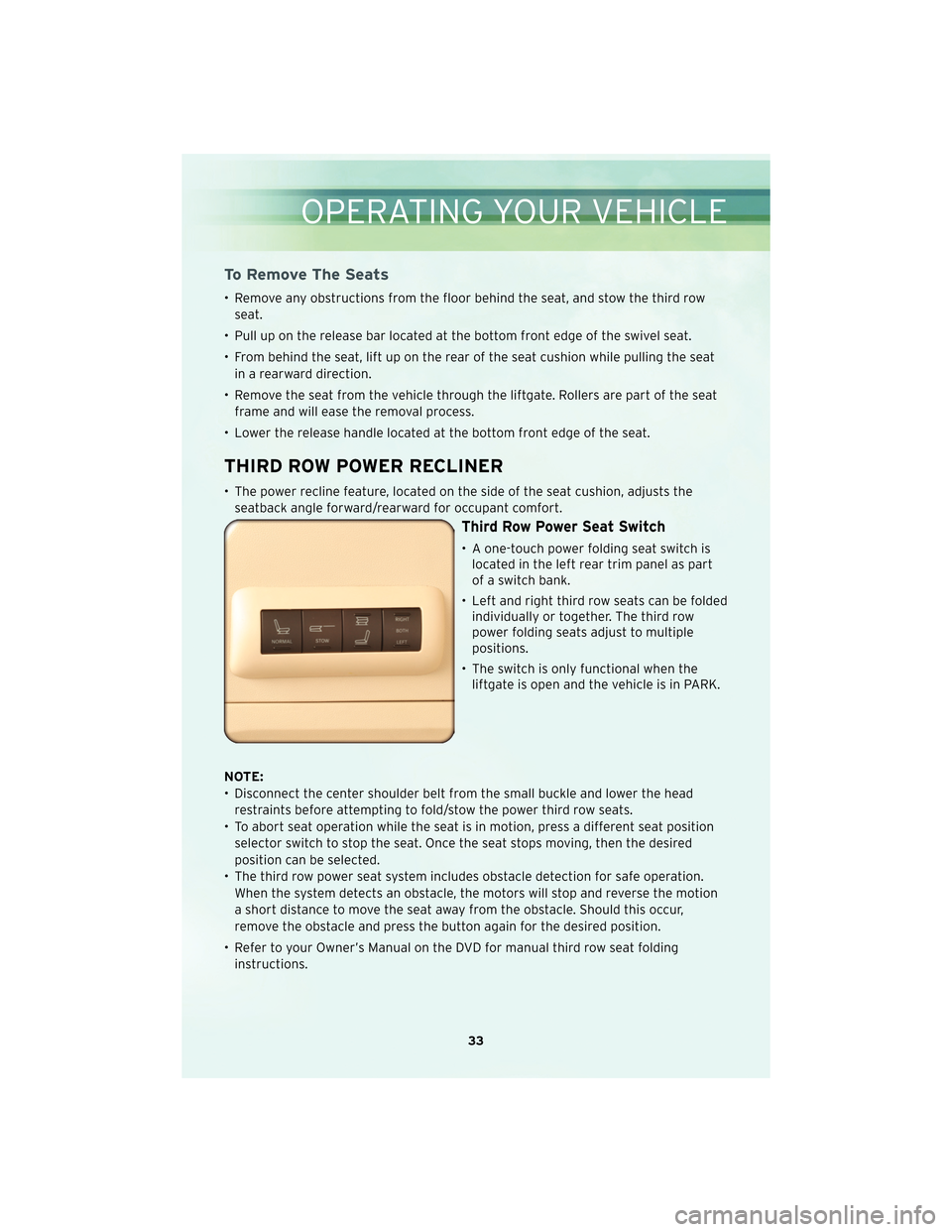

To Remove The Seats
• Remove any obstructions from the floor behind the seat, and stow the third rowseat.
• Pull up on the release bar located at the bottom front edge of the swivel seat.
• From behind the seat, lift up on the rear of the seat cushion while pulling the seat in a rearward direction.
• Remove the seat from the vehicle through the liftgate. Rollers are part of the seat frame and will ease the removal process.
• Lower the release handle located at the bottom front edge of the seat.
THIRD ROW POWER RECLINER
• The power recline feature, located on the side of the seat cushion, adjusts the seatback angle forward/rearward for occupant comfort.
Third Row Power Seat Switch
• A one-touch power folding seat switch islocated in the left rear trim panel as part
of a switch bank.
• Left and right third row seats can be folded individually or together. The third row
power folding seats adjust to multiple
positions.
• The switch is only functional when the liftgate is open and the vehicle is in PARK.
NOTE:
• Disconnect the center shoulder belt from the small buckle and lower the head restraints before attempting to fold/stow the power third row seats.
• To abort seat operation while the seat is in motion, press a different seat position selector switch to stop the seat. Once the seat stops moving, then the desired
position can be selected.
• The third row power seat system includes obstacle detection for safe operation. When the system detects an obstacle, the motors will stop and reverse the motion
a short distance to move the seat away from the obstacle. Should this occur,
remove the obstacle and press the button again for the desired position.
• Refer to your Owner’s Manual on the DVD for manual third row seat folding instructions.
33
OPERATING YOUR VEHICLE
