Page 441 of 573

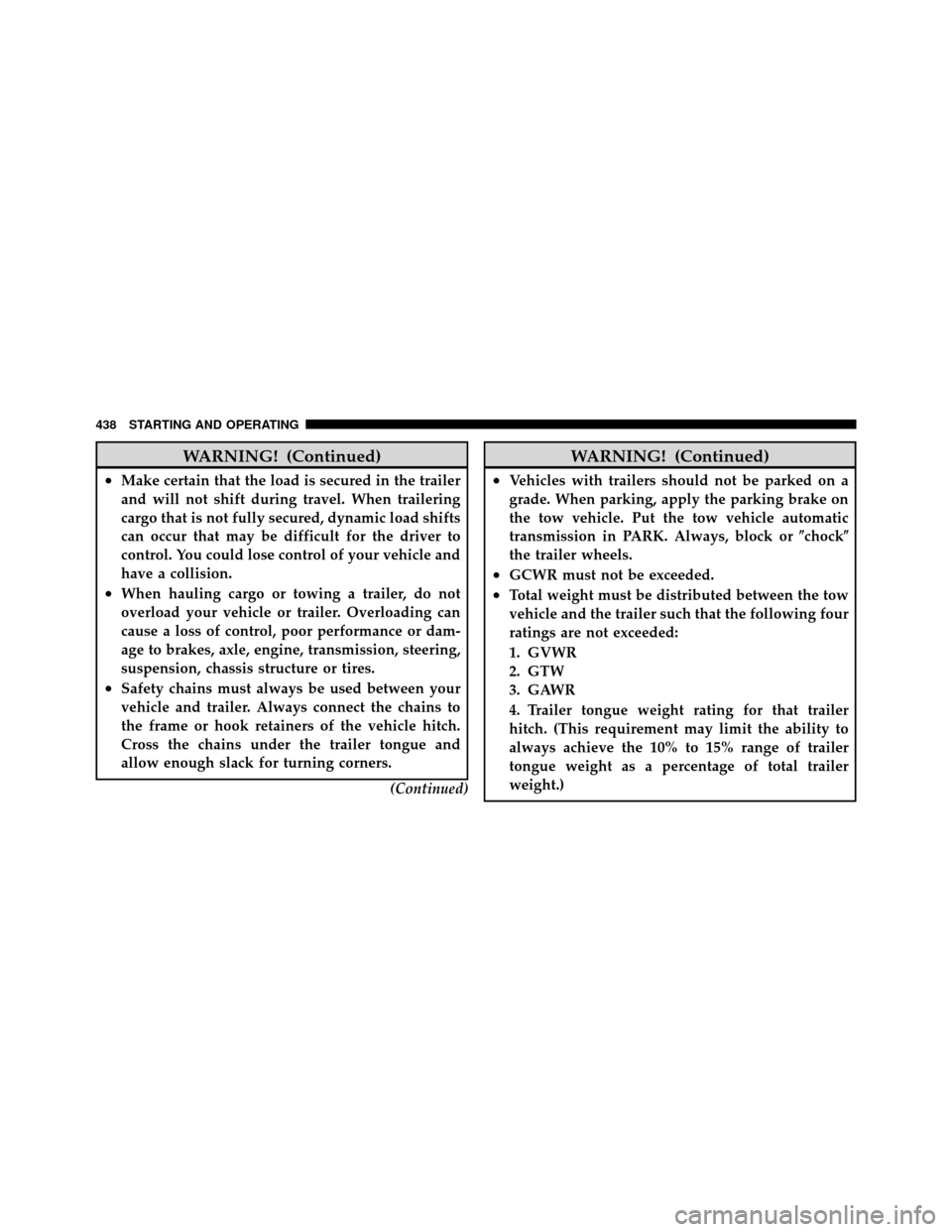

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual WARNING! (Continued)
•Make certain that the load is secured in the trailer
and will not shift during travel. When trailering
cargo that is not fully secured, dynamic load shifts
can occur that may b

Page 442 of 573

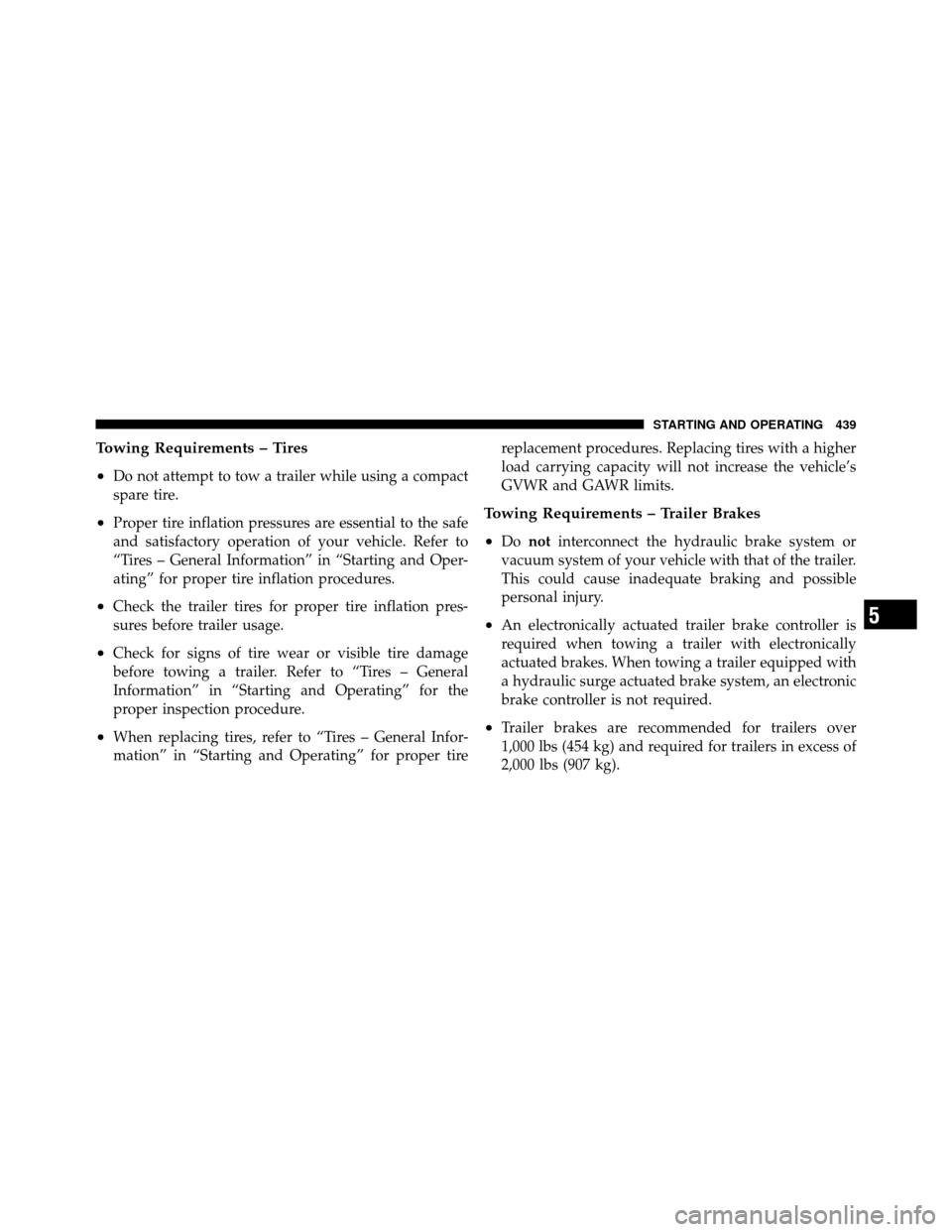

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Towing Requirements – Tires
•
Do not attempt to tow a trailer while using a compact
spare tire.
•Proper tire inflation pressures are essential to the safe
and satisfactory operation of your vehi

Page 443 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual CAUTION!
If the trailer weighs more than 1,000 lbs (454 kg)
loaded, it should have its own brakes and they
should be of adequate capacity. Failure to do this
could lead to accelerated brake lining wea

Page 444 of 573

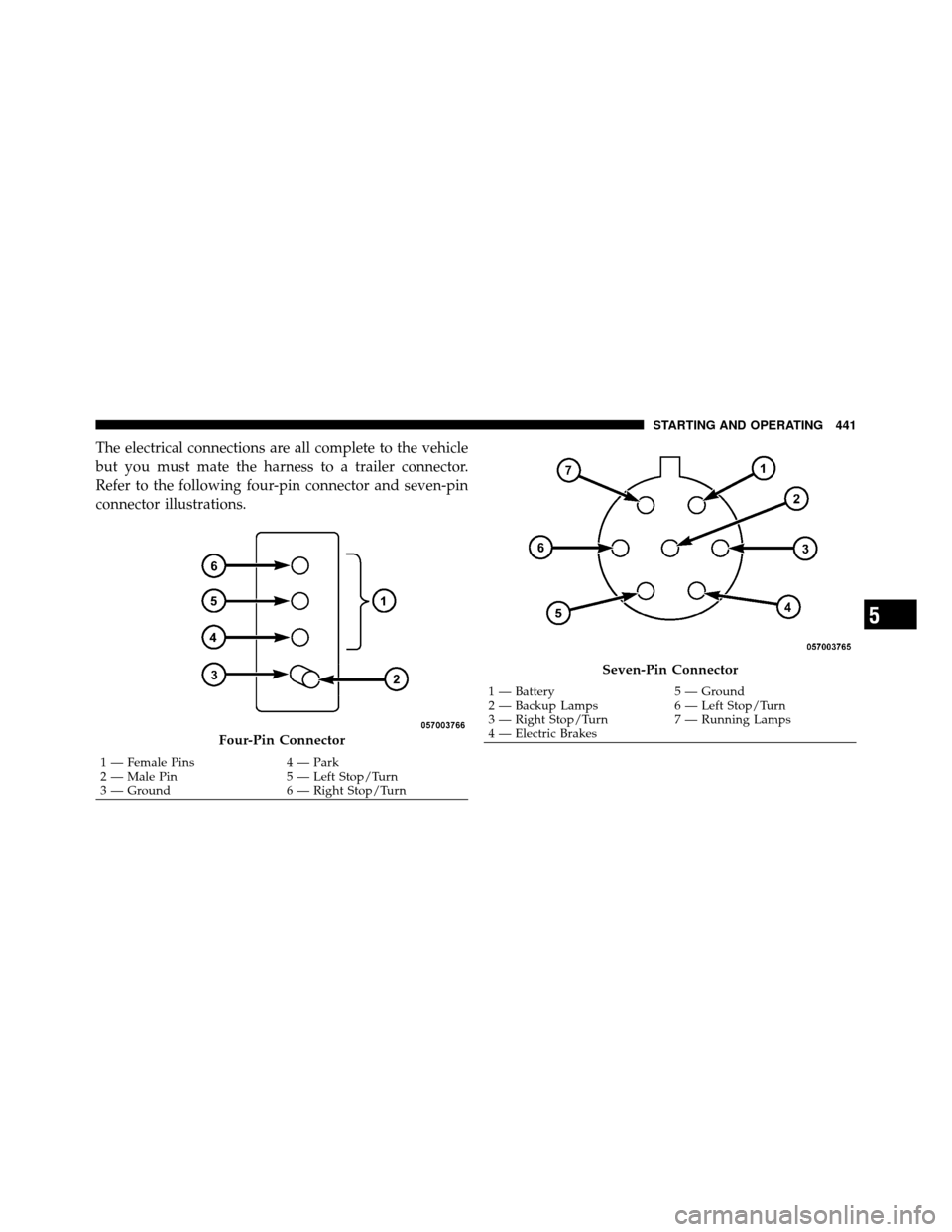

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual The electrical connections are all complete to the vehicle
but you must mate the harness to a trailer connector.
Refer to the following four-pin connector and seven-pin
connector illustrations.
Four-P

Page 445 of 573

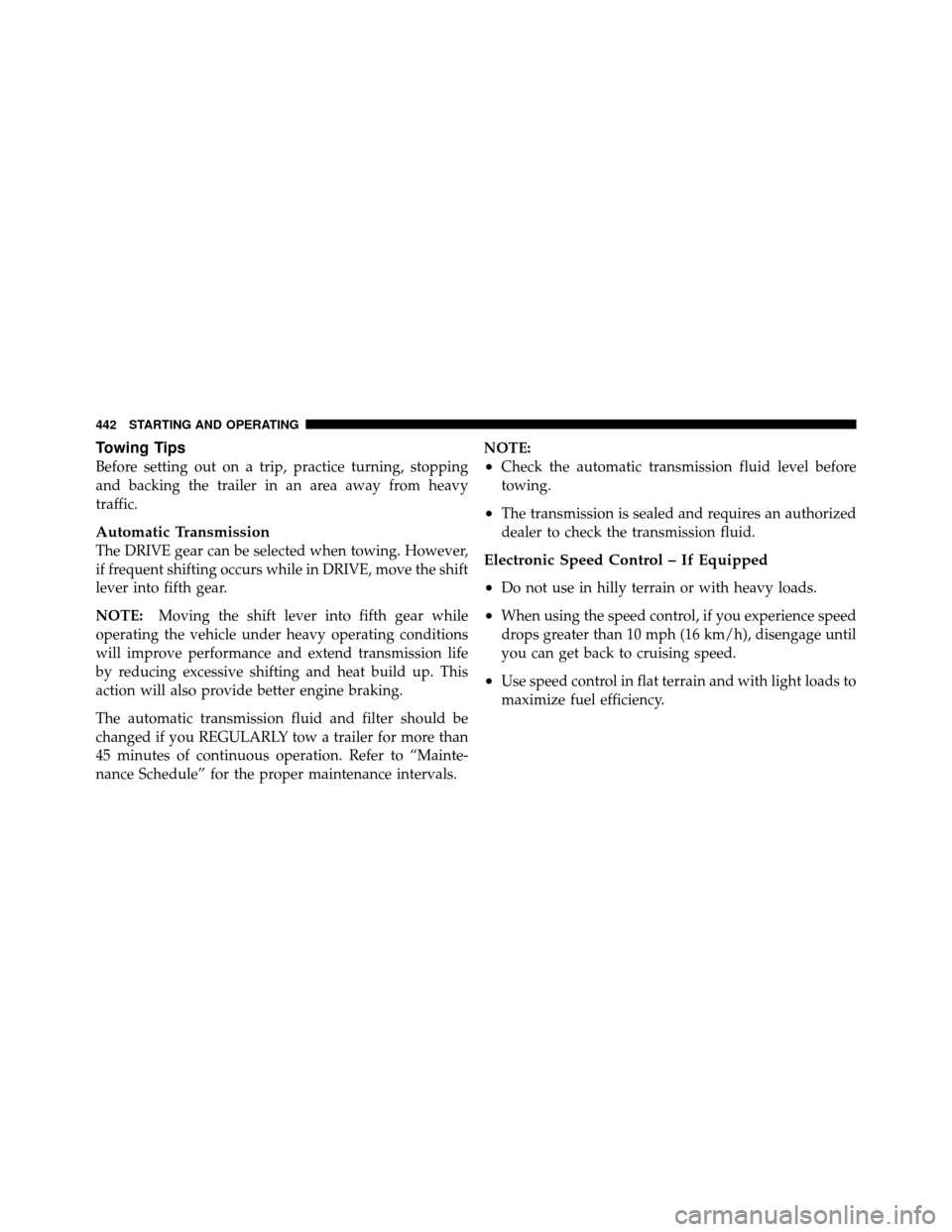

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Towing Tips
Before setting out on a trip, practice turning, stopping
and backing the trailer in an area away from heavy
traffic.
Automatic Transmission
The DRIVE gear can be selected when towing. Howe

Page 446 of 573

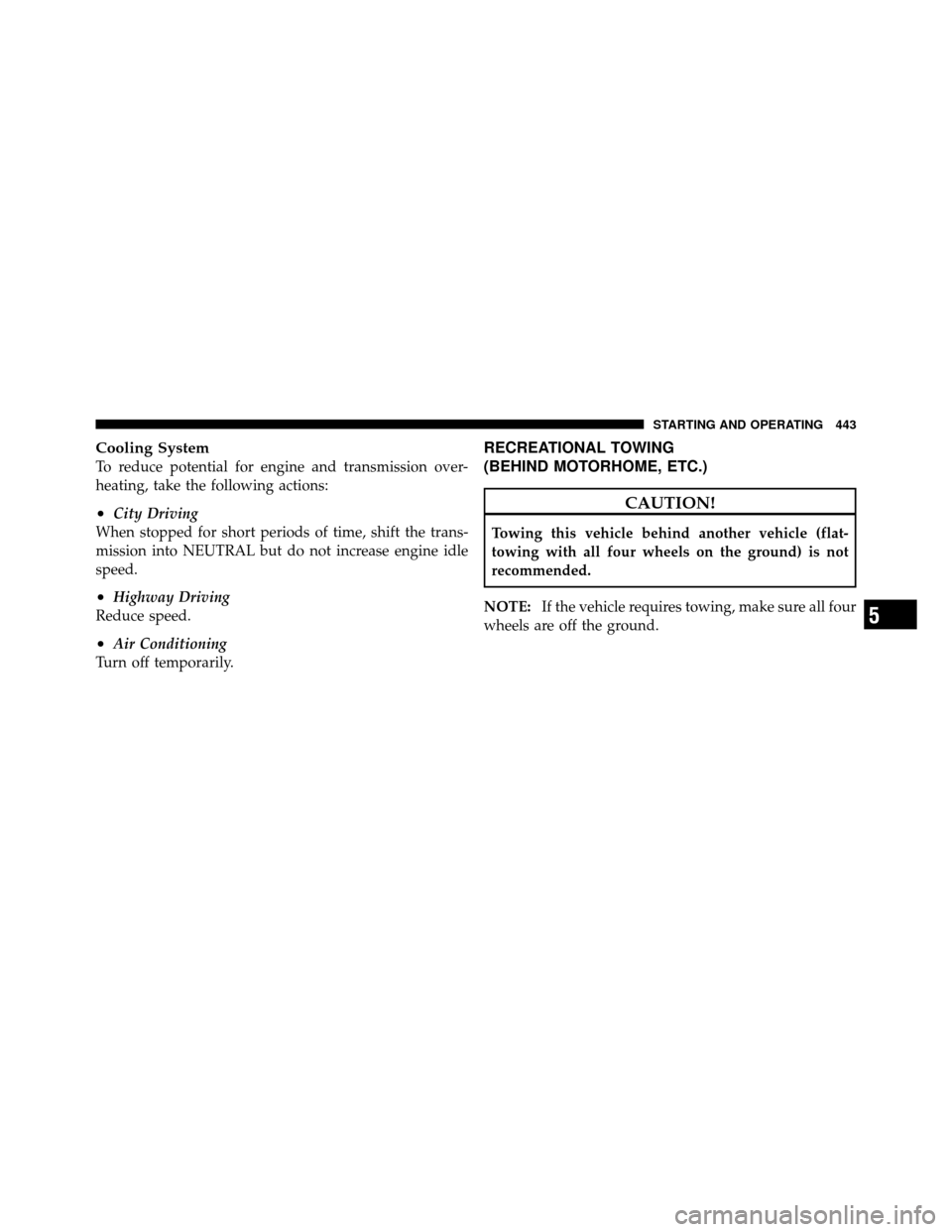

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Cooling System
To reduce potential for engine and transmission over-
heating, take the following actions:
•City Driving
When stopped for short periods of time, shift the trans-
mission into NEUTRAL

Page 447 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual

Page 448 of 573

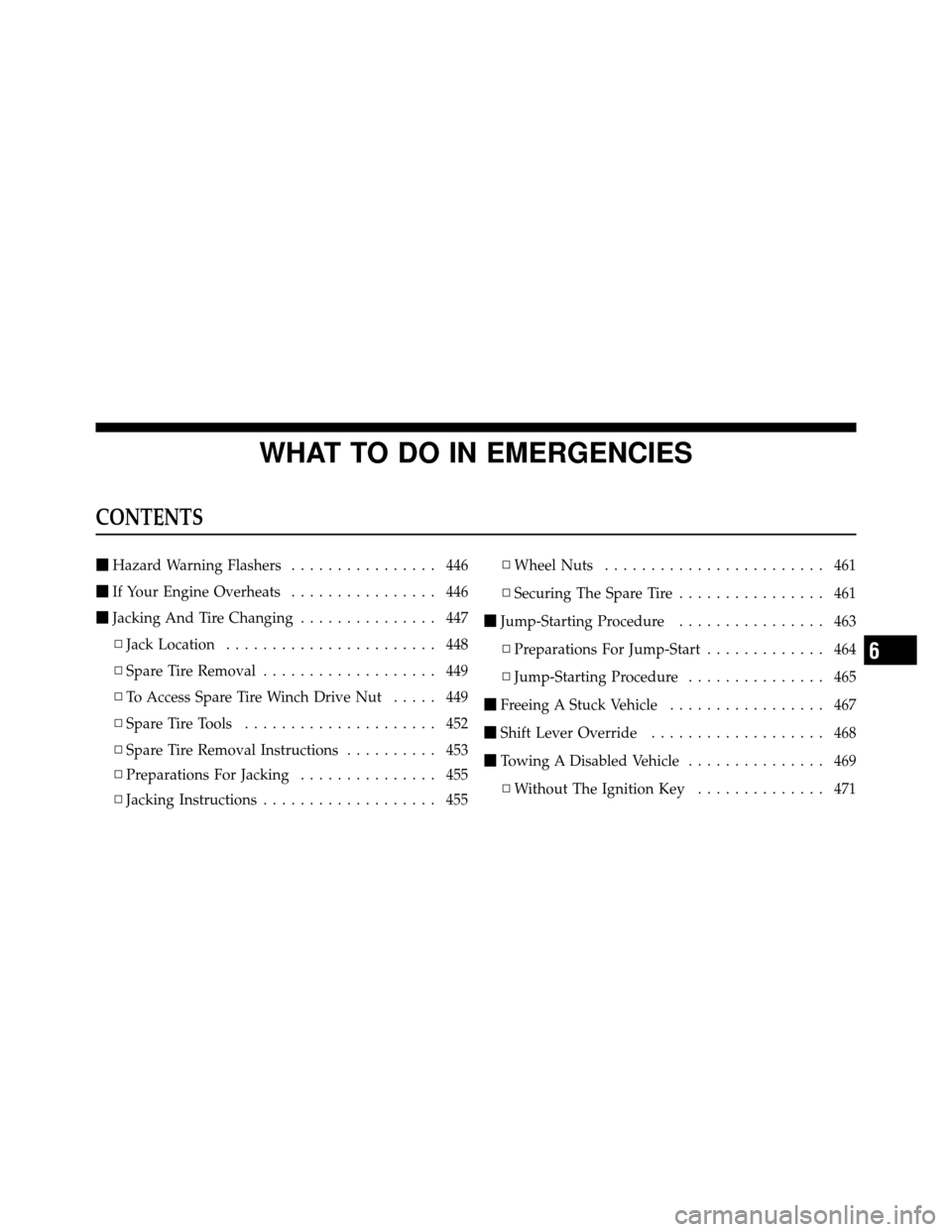

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flashers ................ 446
 If Your Engine Overheats ................ 446
 Jacking And Tire Changing ............... 447
▫ Jack Location .....

Page 449 of 573

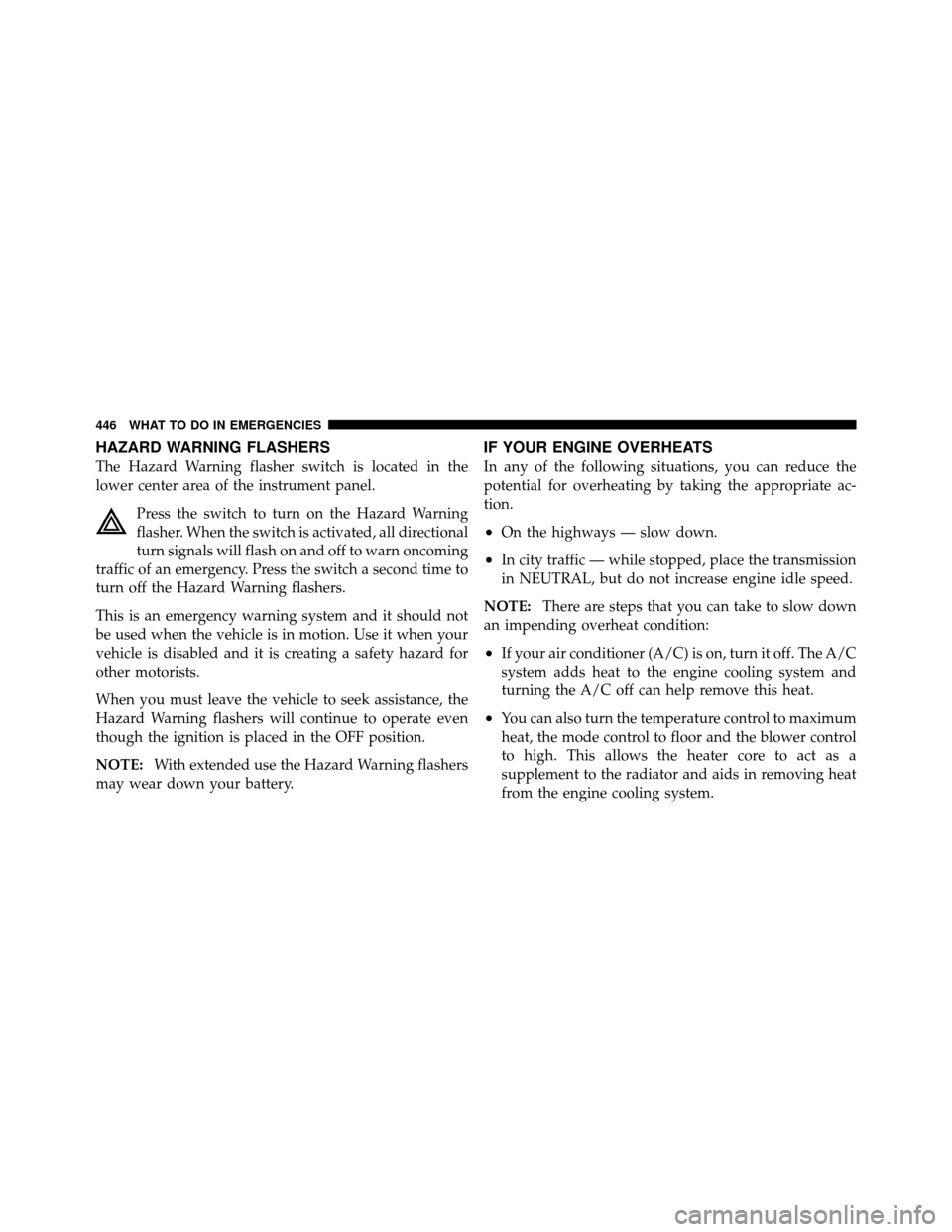

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located in the
lower center area of the instrument panel.Press the switch to turn on the Hazard Warning
flasher. When the switch is activat

Page 450 of 573

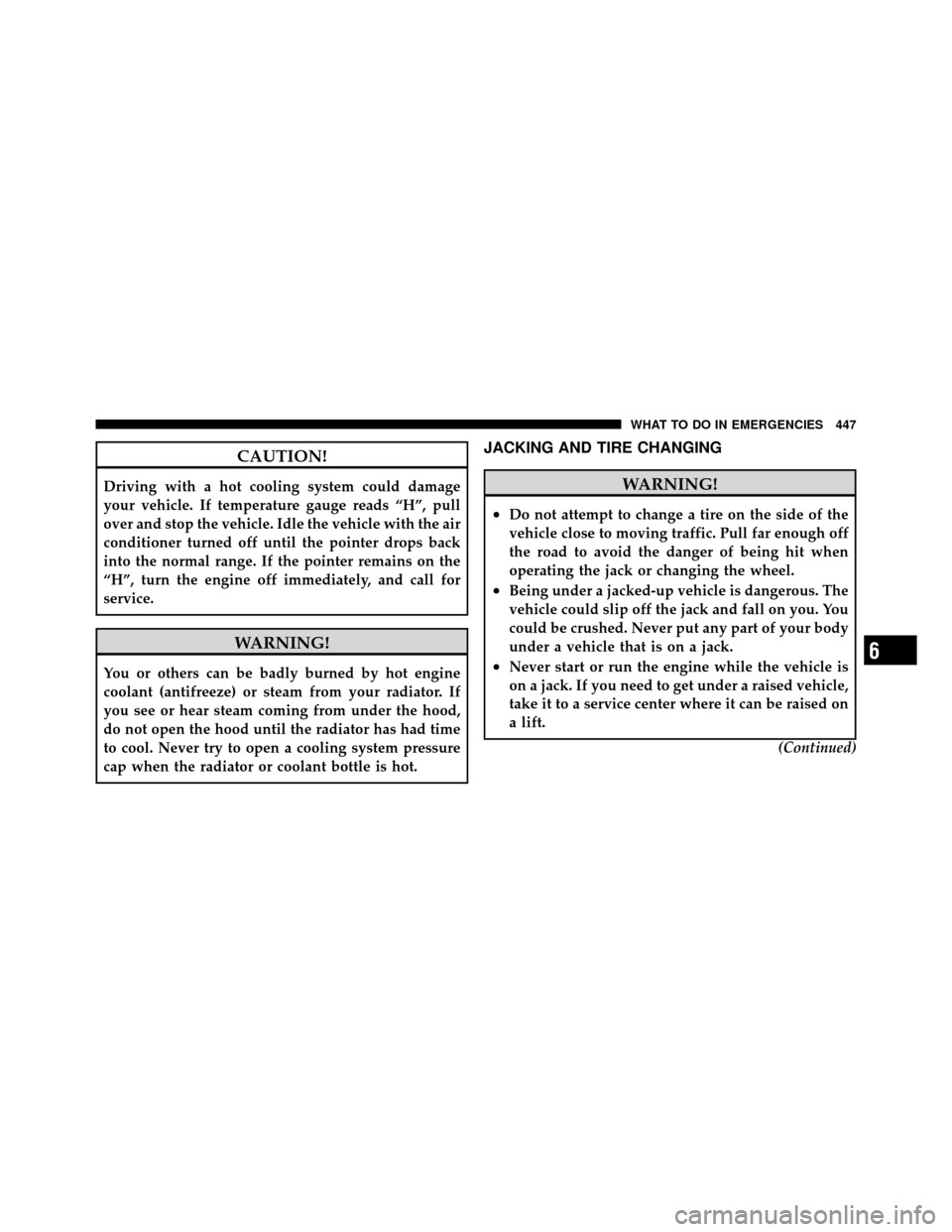

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual CAUTION!
Driving with a hot cooling system could damage
your vehicle. If temperature gauge reads “H”, pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the
