Page 451 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual WARNING! (Continued)
•The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm

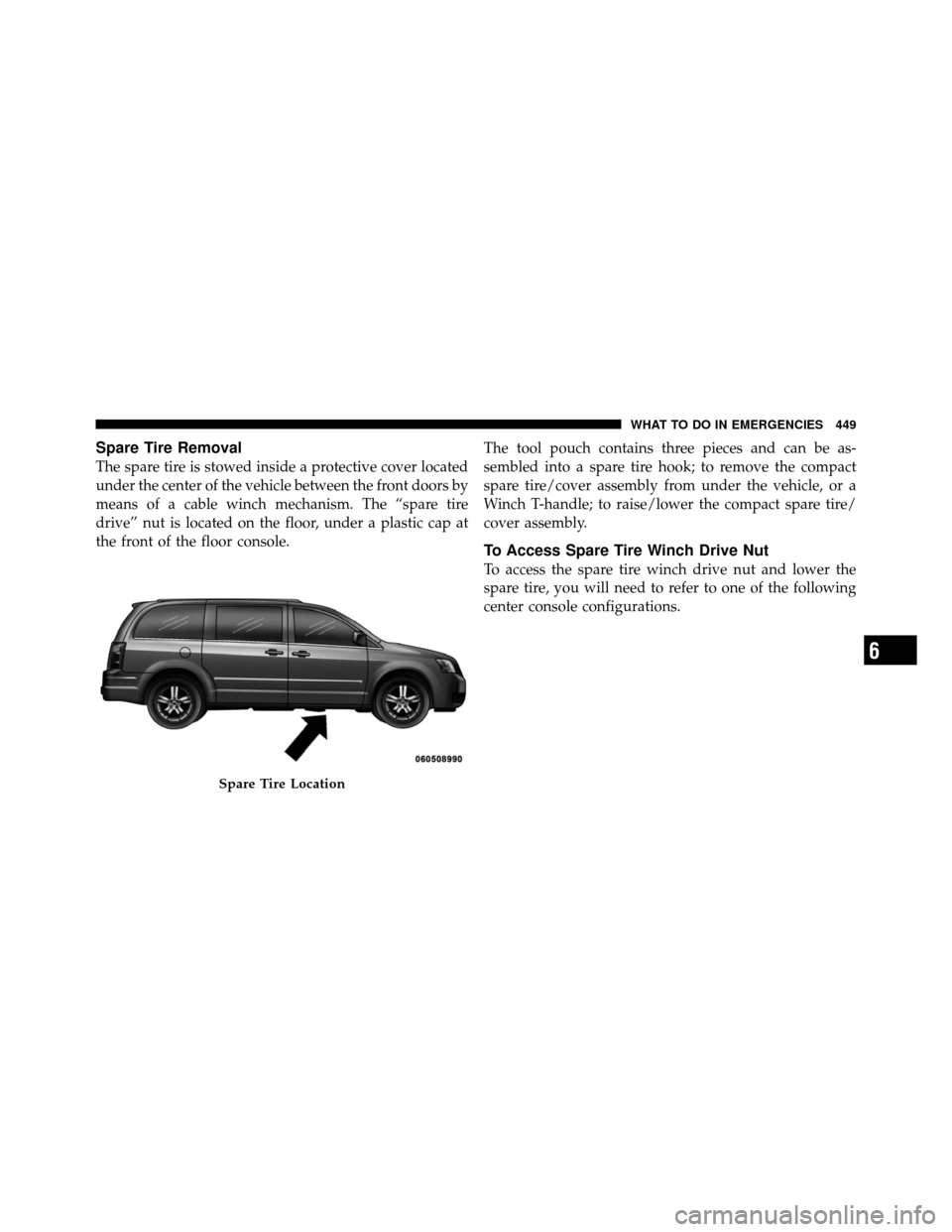

Page 452 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Spare Tire Removal
The spare tire is stowed inside a protective cover located
under the center of the vehicle between the front doors by
means of a cable winch mechanism. The “spare tire
drive” nu

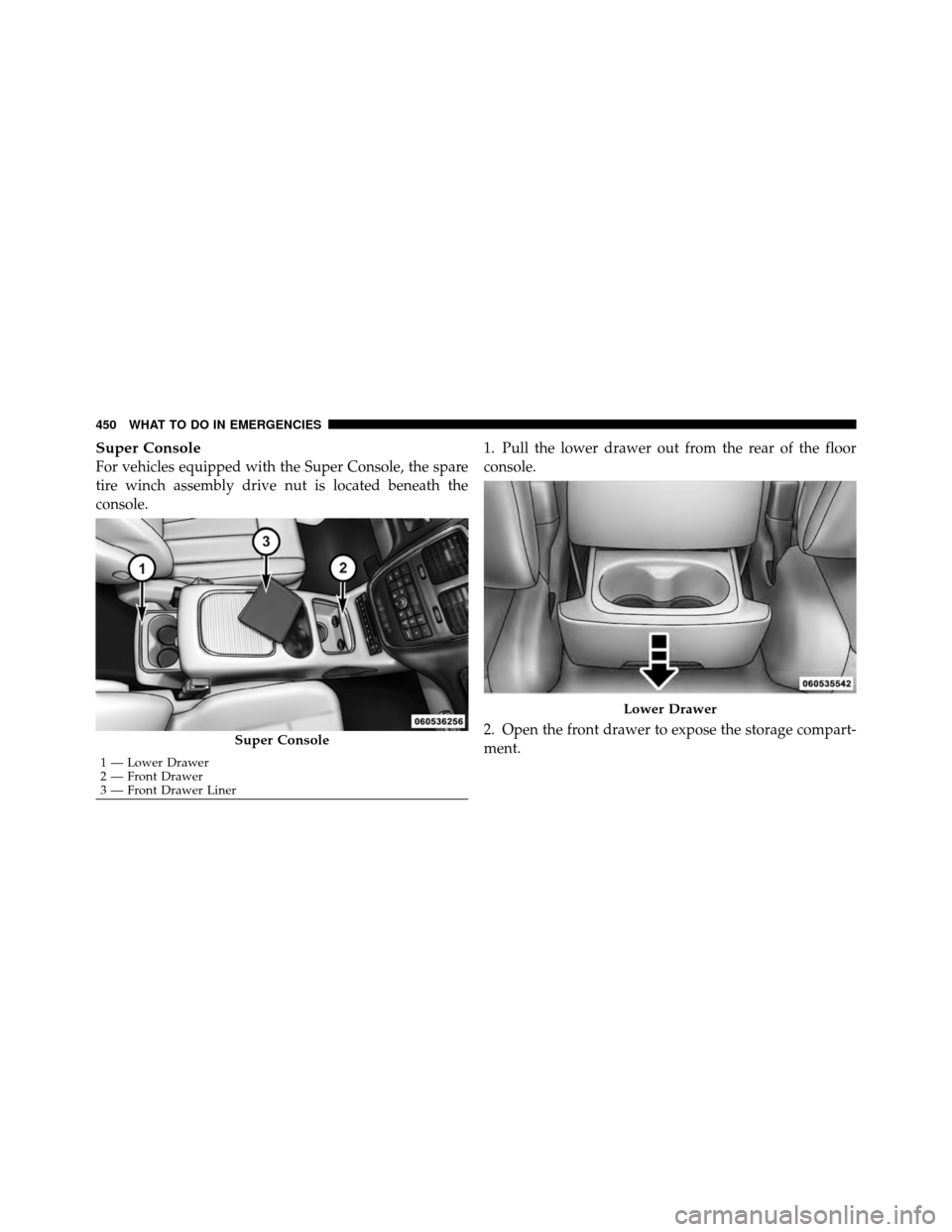

Page 453 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Super Console
For vehicles equipped with the Super Console, the spare
tire winch assembly drive nut is located beneath the
console.1. Pull the lower drawer out from the rear of the floor
console.
2. O

Page 454 of 573

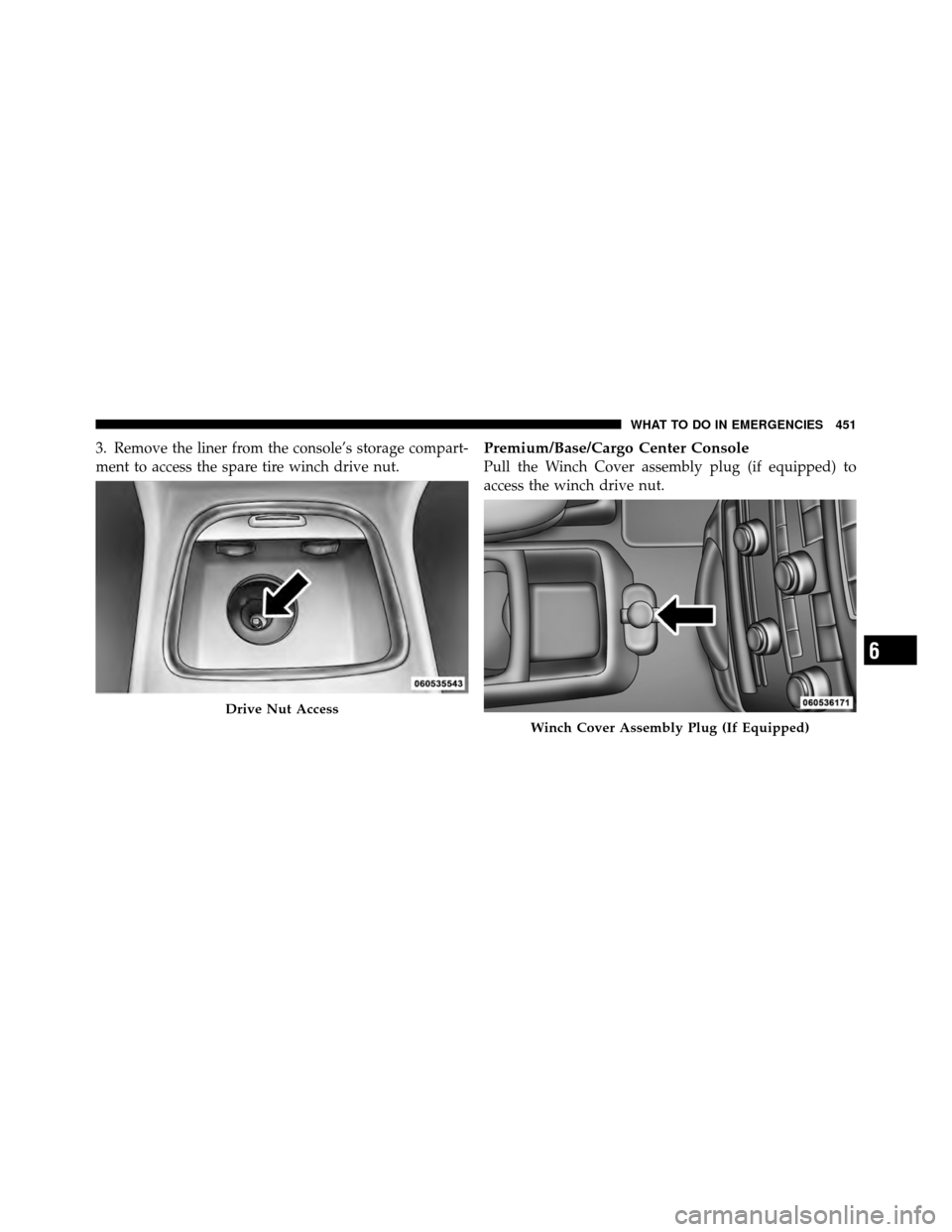

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual 3. Remove the liner from the console’s storage compart-
ment to access the spare tire winch drive nut.Premium/Base/Cargo Center Console
Pull the Winch Cover assembly plug (if equipped) to
access the

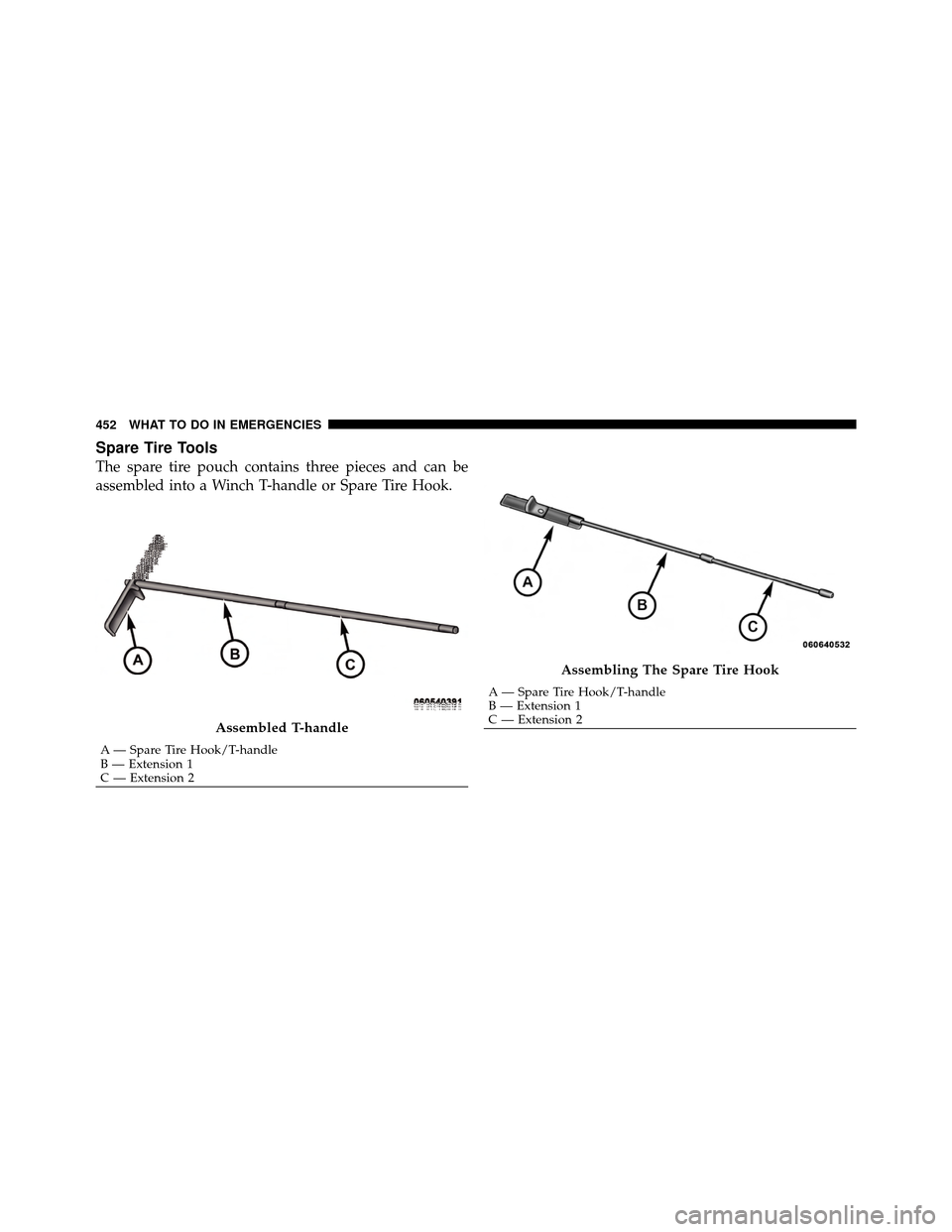

Page 455 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Spare Tire Tools
The spare tire pouch contains three pieces and can be
assembled into a Winch T-handle or Spare Tire Hook.
Assembled T-handle
A — Spare Tire Hook/T-handle
B — Extension 1
C — Ext

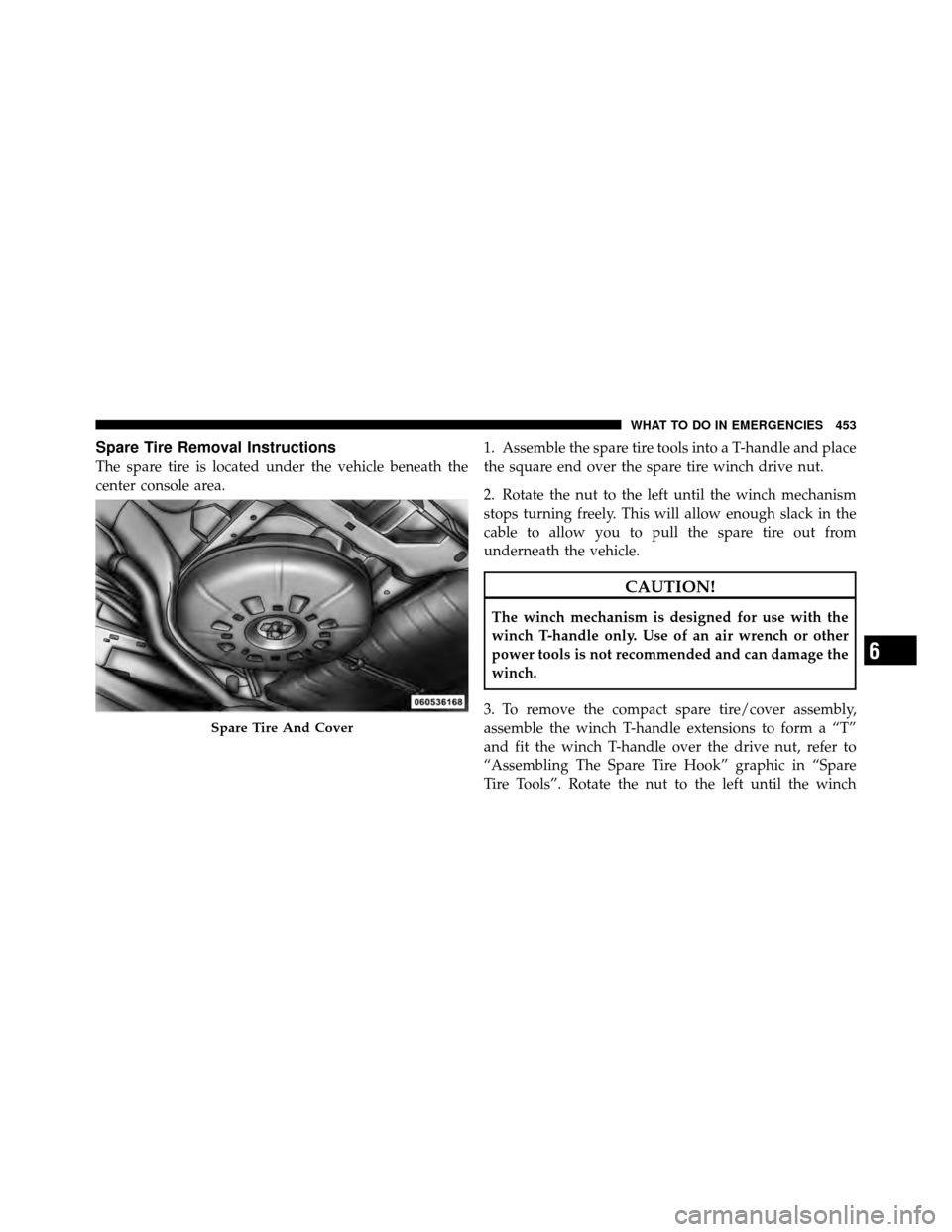

Page 456 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Spare Tire Removal Instructions
The spare tire is located under the vehicle beneath the
center console area.1. Assemble the spare tire tools into a T-handle and place
the square end over the spare tir

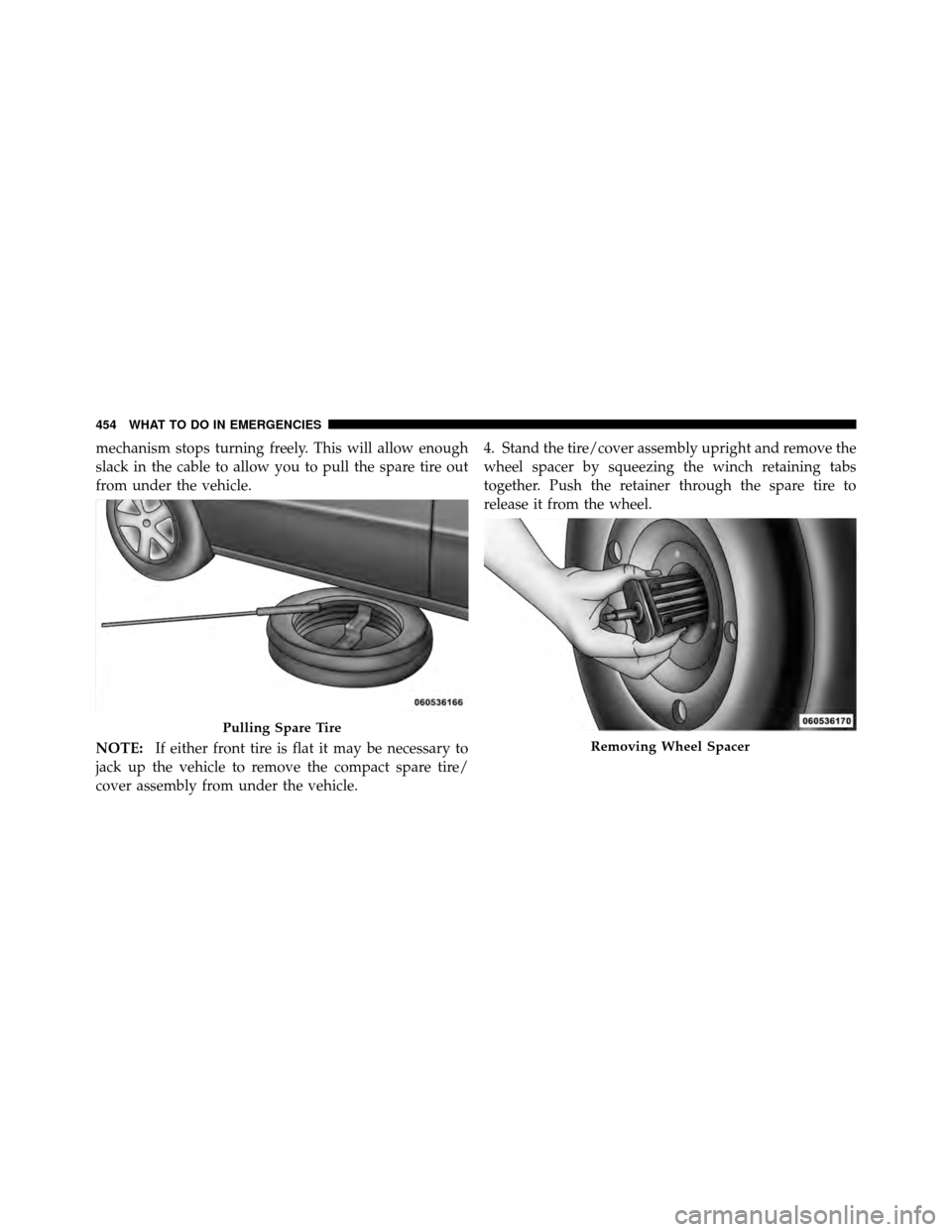

Page 457 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual mechanism stops turning freely. This will allow enough
slack in the cable to allow you to pull the spare tire out
from under the vehicle.
NOTE:If either front tire is flat it may be necessary to
jack

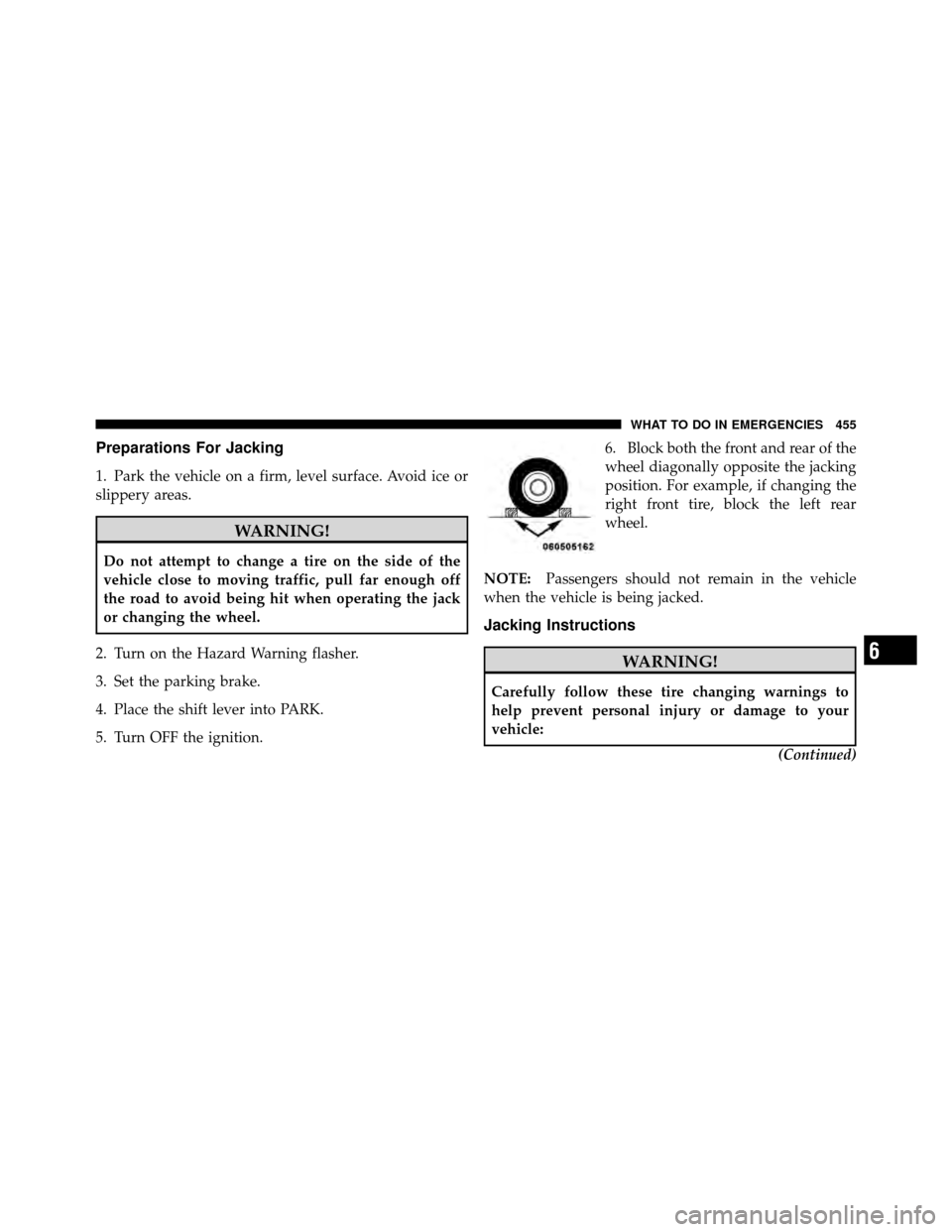

Page 458 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid ice or
slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull fa

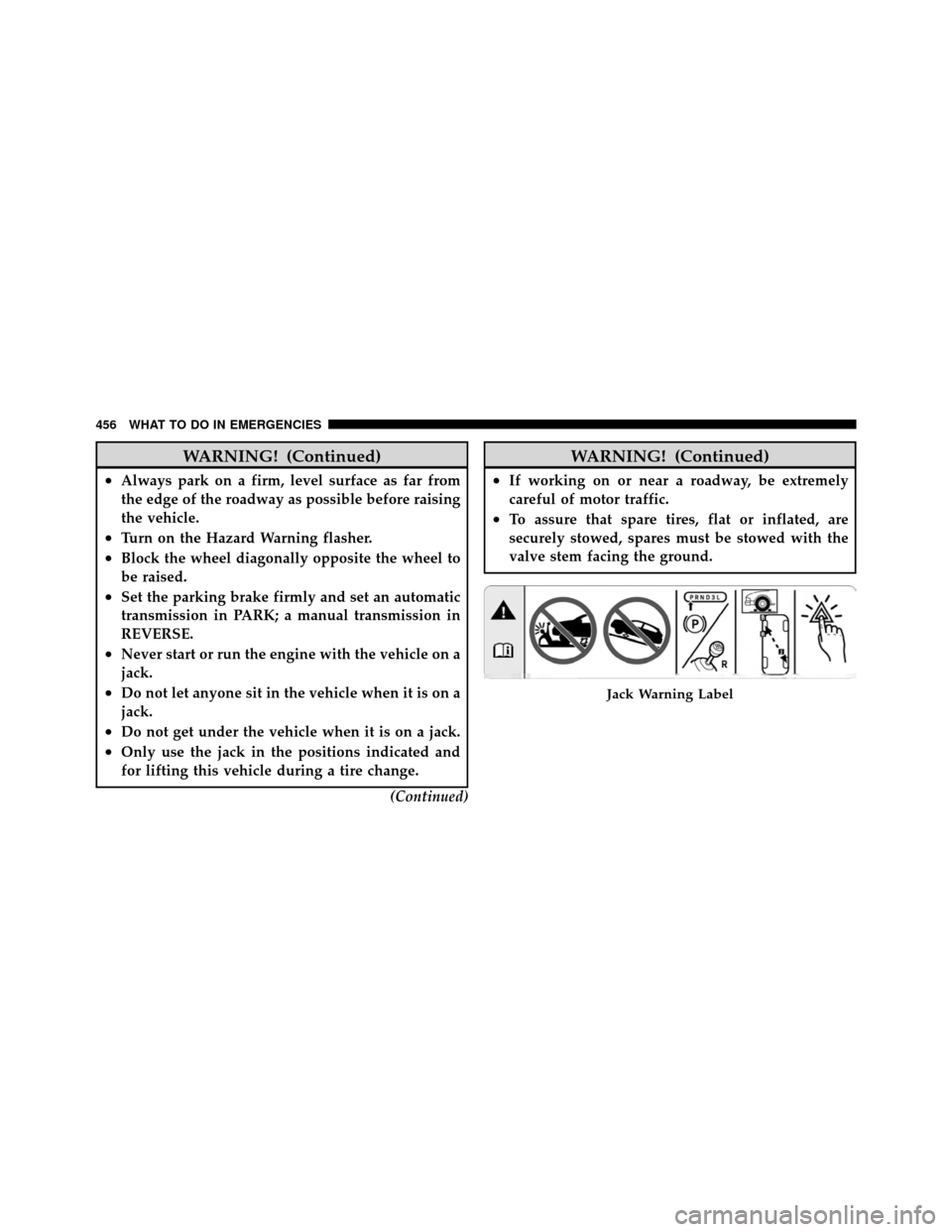

Page 459 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual WARNING! (Continued)
•Always park on a firm, level surface as far from
the edge of the roadway as possible before raising
the vehicle.
•Turn on the Hazard Warning flasher.
•Block the wheel diago

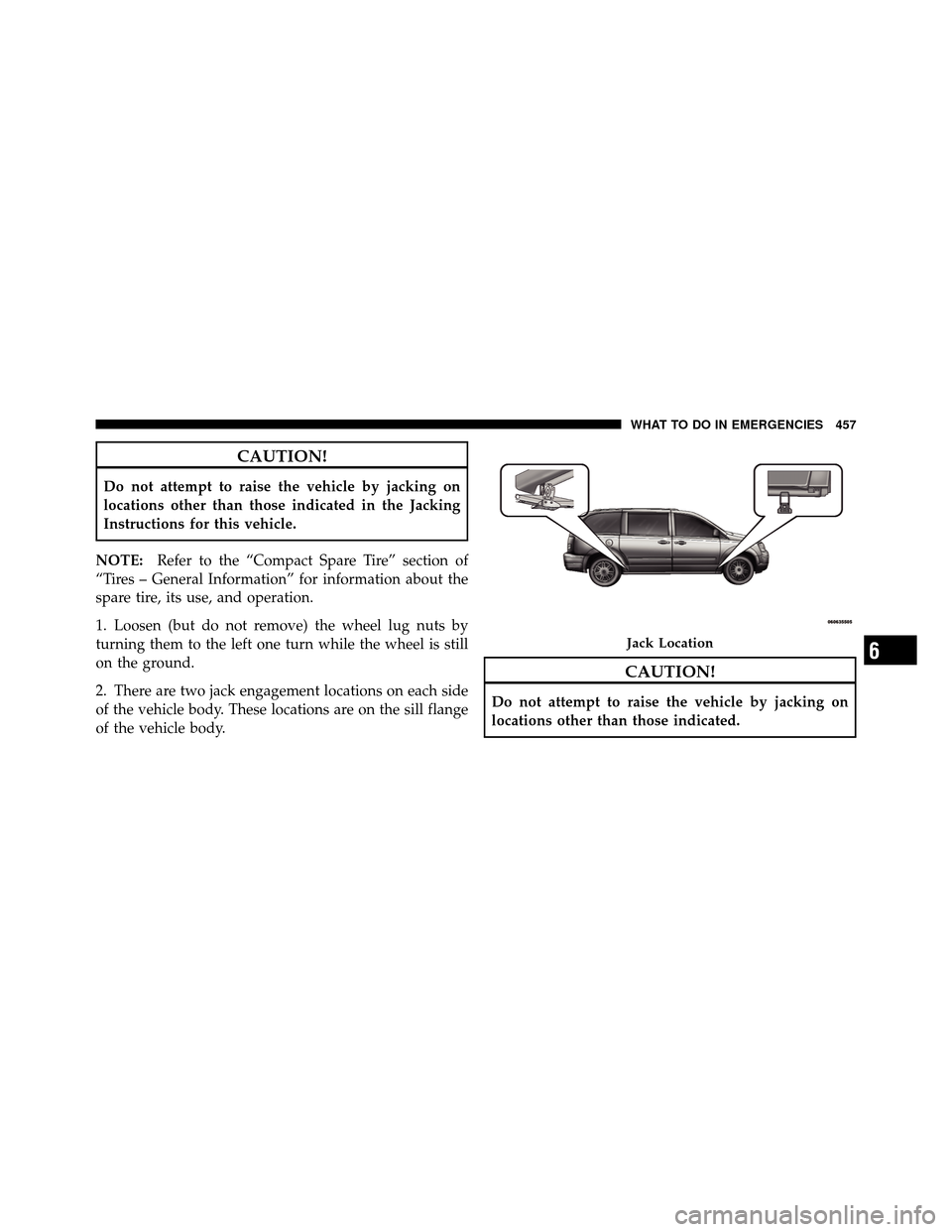

Page 460 of 573

CHRYSLER TOWN AND COUNTRY 2011 5.G Owners Manual CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
NOTE: Refer to the “Compact Spare Tire” section of
“
