CHRYSLER VOYAGER 2000 Diagnostic Manual

TEST ACTION APPLICABILITY

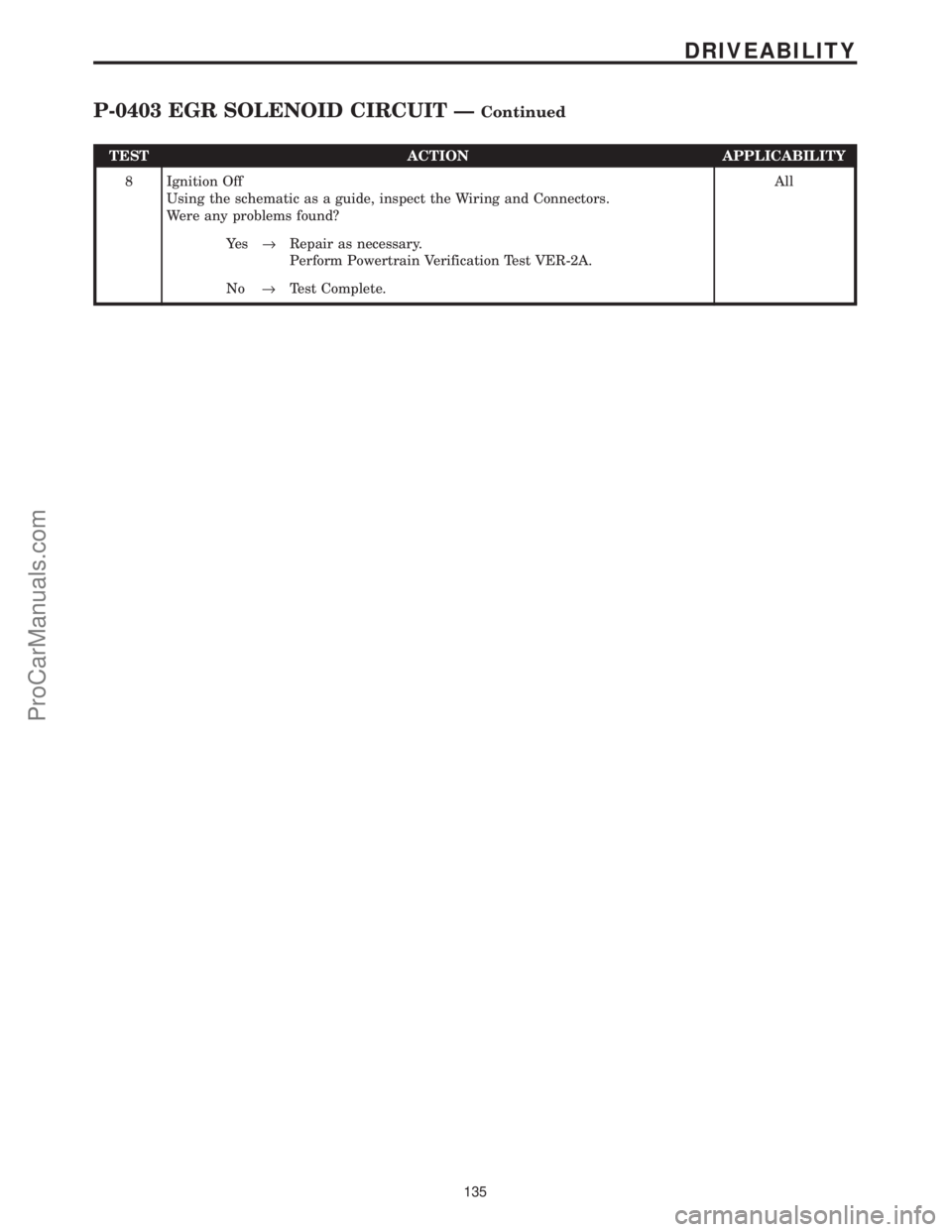

8 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-2A.
No®Test Complete.
135
DRIVEABILITY
P-0403 EGR SOLENOID CIRCUIT ÐContinued
ProCarManuals.com

Symptom:
P-0420 1/1 CATALYTIC CONVERTER EFFICIENCY
When Monitored and Set Condition:
P-0420 1/1 CATALYTIC CONVERTER EFFICIENCY
When Monitored: After engine warm up to 63 degrees C (147 degrees F), 180 seconds of
open throttle operation, at a speed greater than 30 Km/h (20 mph), with the engine at
1200-1700 rpm and MAP vacuum between 15.0 and 21.0 inches of mercury (Hg).
Set Condition: As catalyst efficiency deteriorates, the switch rate of the downstream O2
sensor approaches that of the upstream O2 sensor. If at any point during the test the
switch ratio reaches a predetermined value a counter is incremented by one.
POSSIBLE CAUSES
EXHAUST LEAK
ENGINE MECHANICAL PROBLEM
CATALYTIC CONVERTER DEFECTIVE
UPSTREAM O2 SENSOR OLDER THAN DOWNSTREAM O2 SENSOR
CATALYST EFFICIENCY FAILURE DOES NOT REOCCUR
TEST ACTION APPLICABILITY
1 With the DRB, read the DTCs.
Is the GLOBAL GOOD TRIPS counter displayed and equal to zero?All
Ye s®Go To 3
No®Go To 2
2 At this time the Catalyst Efficiency Failure does not exist or is an intermittent
problem.
With the DRB, read the FREEZE FRAME DATA.
With this screen, attempt to duplicate the condition that has set this fault.
While using FREEZE FRAME DATA pay particular attention to the fault setting
conditions, such as speed, temp, load, and map vacuum.
Does the Catalyst Efficiency Failure Reoccur?All
Ye s®Go To 3
No®The Catalytic Conveter Efficiency Failure no longer exists.
Perform VERIFICATION TEST VER-5A3.
3 Start Engine and let idle.
Check for exhaust leaks between the Engine and the appropriate Downstream O2
Sensor.
Are there any exhaust leaks?All
Ye s®Repair or replace leaking exhaust parts as necessary.
Perform VERIFICATION TEST VER-5A3.
No®Go To 4
136
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
4NOTE: Check the exhaust for excessive smoke from internal oil or coolant
leaks.
Is there an oil or coolant consumption condition present?All
Ye s®Repair engine mechanical as necessary and replace Catalytic
Converter.
Perform VERIFICATION TEST VER-5A3.
No®Go To 5
5NOTE: A new Downstream O2 Sensor along with an aging Upstream O2
Sensor may cause this trouble code to set.
Review vehicle repair history.
Has the Downstream O2 Sensor been replaced without replacing the Upstream O2
Sensor?All
Ye s®Replace the appropriate Upstream Oxygen Sensor.
Perform VERIFICATION TEST VER-5A3.
No®Replace the Catalytic Converter.
Perform VERIFICATION TEST VER-5A3.
137
DRIVEABILITY
P-0420 1/1 CATALYTIC CONVERTER EFFICIENCY ÐContinued
ProCarManuals.com

Symptom:
P-0441 EVAP PURGE FLOW MONITOR FAILURE
When Monitored and Set Condition:
P-0441 EVAP PURGE FLOW MONITOR FAILURE
When Monitored: With engine temperature greater than 170ÉF, engine in closed loop,
engine idling for 2 minutes, no low fuel, MAP less than 15.7 inches mercury, and
barometric altitude less than 8,000 feet.
Set Condition: Note: with LDP: must pass stricter evap system test first. No air flow
through the evaporative system is detected by the evap monitor.
POSSIBLE CAUSES
PURGE CANISTER LINE DAMAGED
PURGE SOLENOID AND CANISTER DEFECTIVE
PURGE SOLENOID DEFECTIVE
VACUUM HOSES DAMAGED OR PLUGGED
EVAP PURGE MONITOR FAILURE DOES NOT REOCCUR
TEST ACTION APPLICABILITY
1 With the DRB, read the DTCs.
Is the GLOBAL GOOD TRIP counter displayed and equal to zero?All
Ye s®Go To 3
No®Go To 2
2 At this time the Evap Purge Flow Monitor Failure does not exist or is an intermittent
problem.
With the DRB, read the FREEZE FRAME DATA.
With these screens, attempt to duplicate the condition that has set this fault.
While using FREEZE FRAME pay particular attention to the fault setting condi-
tions, such as speed, temp, load, and map vacuum.
Does the Evap Purge Flow Monitor Failure reoccur?All
Ye s®Go To 3
No®The Evap Purge Flow Monitor failure no longer exists.
Perform VERIFICATION TEST VER-5A3.
3NOTE: Carefully inspect all vacuum hoses for proper routing and for
pinched or plugged hoses from the engine to the solenoid to the gas tank.
Are all vacuum hoses OK?All
Ye s®Go To 4
No®Repair the vacuum hoses as necessary.
Perform VERIFICATION TEST VER-5A3.
138
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY

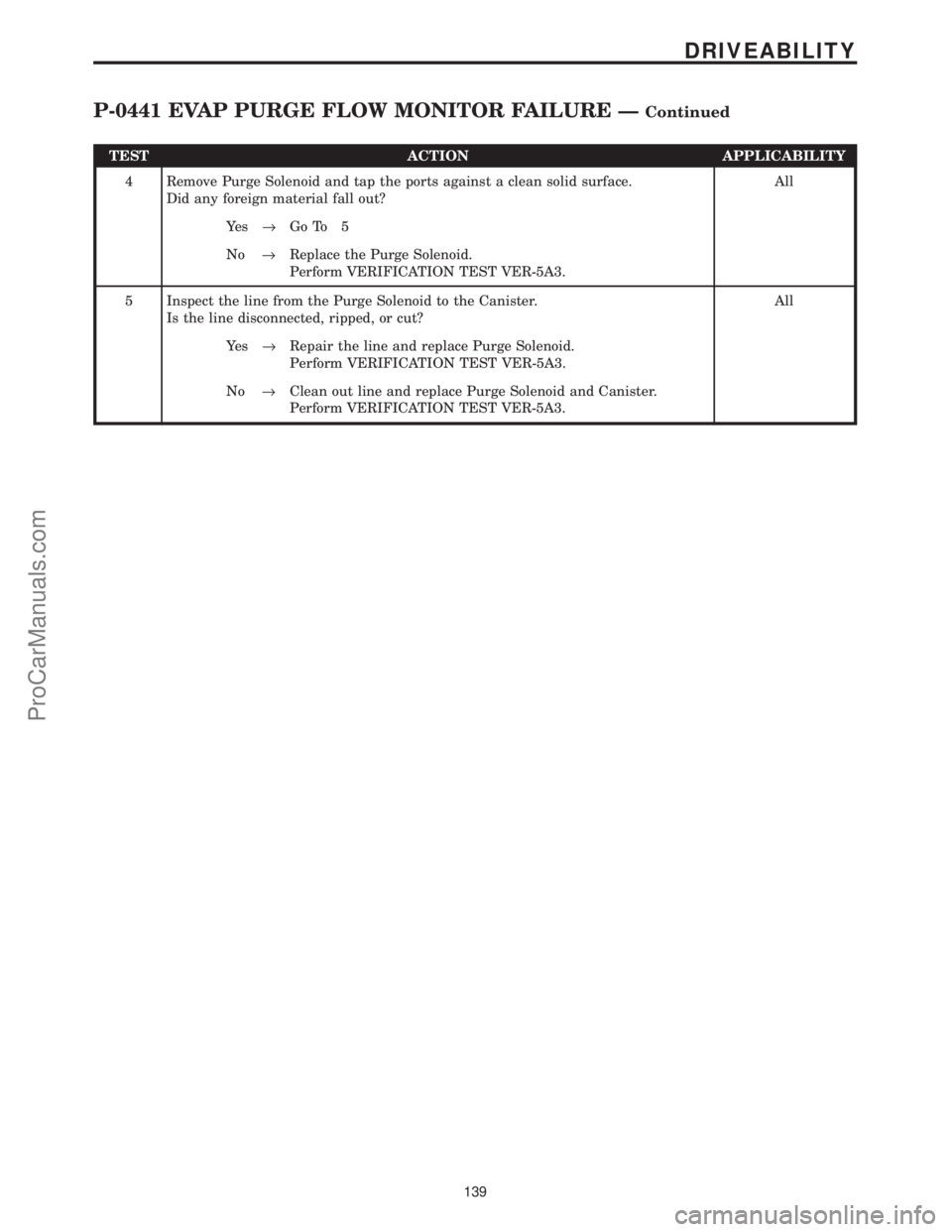

4 Remove Purge Solenoid and tap the ports against a clean solid surface.
Did any foreign material fall out?All
Ye s®Go To 5
No®Replace the Purge Solenoid.
Perform VERIFICATION TEST VER-5A3.
5 Inspect the line from the Purge Solenoid to the Canister.
Is the line disconnected, ripped, or cut?All
Ye s®Repair the line and replace Purge Solenoid.
Perform VERIFICATION TEST VER-5A3.
No®Clean out line and replace Purge Solenoid and Canister.
Perform VERIFICATION TEST VER-5A3.
139
DRIVEABILITY
P-0441 EVAP PURGE FLOW MONITOR FAILURE ÐContinued
ProCarManuals.com

Symptom List:
P-0442 EVAP LEAK MONITOR SMALL LEAK DETECTED
P-0455 EVAP LEAK MONITOR LARGE LEAK DETECTED
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P-0442 EVAP LEAK MONITOR
SMALL LEAK DETECTED.
When Monitored and Set Condition:
P-0442 EVAP LEAK MONITOR SMALL LEAK DETECTED
When Monitored: See DRB III.
Set Condition: See DRB III.
P-0455 EVAP LEAK MONITOR LARGE LEAK DETECTED
When Monitored: See DRB III.
Set Condition: See DRB III.
POSSIBLE CAUSES
EVAP SYSTEM HOSES OR WIRING DAMAGED
EVAP SYSTEM COMPONENT LEAKING
LEAK DETECTION PUMP LEAKING
EVAP LEAK MONITOR SMALL OR LARGE DOES NOT REOCCUR
TEST ACTION APPLICABILITY
1NOTE: Replacing the Powertrain Control Module will not correct this
problem.
With the DRB, read the DTCs.
Is the GLOBAL GOOD TRIP counter displayed and equal to zero?All
Ye s®Go To 3
No®Go To 2
2 At this time, the conditions required to set this DTC are not present.
With the DRB, perform the LDP Monitor Test.
Follow the instructions on the DRB and allow the PCM to run the monitor.
After the monitor has finished running, does the DRB show ªTEST FAILED THIS
TRIP : YES'' on the monitor screen?All
Ye s®Go To 3
No®The Evap Leak Monitor DTC is not present at this time.
Perform VERIFICATION TEST VER-6A.
140
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
3Note: Leaving the Gas Cap loose could cause this trouble code to set.
To continue testing you will need Miller Tool Kit #6872A and #8382.
NOTE: The Fuel Tank must have 1/2 tank of fuel to perform this test.
Perform Evaporative System Pressure Pump Self Test that is specified on the tester
cover.
Warning: Verify the vehicle fuel tank contains at least 3 gallons of fuel.
Attach the DRB III to the vehicle.
Turn the Key On.
At: ENGINE SYSTEM TESTS select: LEAK DETECTION PUMP TEST.
Read instructions and then press ENTER.
At: LEAK DETECTION PUMP TEST select #3 HOLD PSI.
At the vacuum hose going to the LDP, attach and apply a continuous vacuum (i.e. 209
Hg).
Remove Gas Cap.
Install 8382 on the Gas Cap and on the vehicle.
Attach the supply hose from 6872A to 8382.
Attach the power source from the 6872A, clip to Battery(+) and ground clip to
Battery(-).
On the 6872A set the Pressure/Hold Valve to Open and set the Vent Valve to Closed.
Turn the timer on and watch the gauge.
When the gauge pressure reaches 14 in. H2O, turn the Pressure/Hold Valve to
Closed.
Turn the timer off. Note the time and pressure.
Did pressure drop more than 6 in. H2O (to 8 inches H2O on the gauge) in two
minutes?All
Ye s®Go To 4
No®Go To 5
141
DRIVEABILITY
P-0442 EVAP LEAK MONITOR SMALL LEAK DETECTED ÐContinued
ProCarManuals.com

TEST ACTION APPLICABILITY
4 To continue testing you will need Miller Tool Kit #6872A, #8382 and #6904 Ultrasonic
Leak Detector.
NOTE: The Fuel Tank must have 1/2 tank of fuel to perform this test.
Perform Evaporative System Pressure Pump Self Test that is specified on the tester
cover.
Warning: Verify the vehicle fuel tank contains at least 3 gallons of fuel.
Attach the DRB III to the vehicle.
Turn the Key On.
At: ENGINE SYSTEM TESTS select: LEAK DETECTION PUMP TEST.
Read instructions and then press ENTER.
At: LEAK DETECTION PUMP TEST select #3 HOLD PSI.
At the vacuum hose going to the LDP, attach and apply a continuous vacuum (i.e. 209
Hg).
Remove Gas Cap.
Install 8382 on the Gas Cap and on the vehicle.
Attach the supply hose from 6872A to 8382.
Attach the power source from the 6872A, clip to Battery(+) and ground clip to
Battery(-).
Set Pressure Hold to Open and set Vent to Open.
Turn Pump Timer On.
To prevent noise from interfering with test, move tool #6872 away from vehicle.
Using the Ultrasonic Leak Detector, start listening for leaks at Gas Cap then proceed
to Rollover Valve, Canister, Leak Detection Pump, and Evap Purge Solenoid.
Were any leaks heard with the Ultrasonic Leak Detector?All
Ye s®Repair or replace leaking component.
Perform VERIFICATION TEST VER-6A.
No®Replace Leak Detection Pump.
Perform VERIFICATION TEST VER-6A.
5 At this time, the condition required to set the code is not present.
Using the schematic as a guide, inspect the wiring, connectors and hoses.
Were any problems found?All
Ye s®Repair as necessary.
Perform VERIFICATION TEST VER-6A.
No®Test Complete.
142
DRIVEABILITY
P-0442 EVAP LEAK MONITOR SMALL LEAK DETECTED ÐContinued
ProCarManuals.com

Symptom:
P-0443 EVAP PURGE SOLENOID CIRCUIT
When Monitored and Set Condition:
P-0443 EVAP PURGE SOLENOID CIRCUIT
When Monitored: With the ignition key on and the engine running.
Set Condition: After arming conditions are satisfied: not powering down, not already in
limp-in, time since last solenoid activation > 72 micro seconds. The PCM will set a trouble
code if the actual sate of the solenoid does not match the intended state.
POSSIBLE CAUSES
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
PROPORTIONAL EVAP PURGE SOLENOID DEFECTIVE
EVAP PURGE SOL CKT WIRING HARNESS INTERMITTENT DEF
EVAP PURGE SOLENOID CKT WIRING HARNESS OBS DEFECT
EVAP PURGE SOLENOID CONTROL CIRCUIT OPEN
EVAP PURGE SOLENOID CONTROL CIRCUIT SHORT TO GND
PROPORTIONAL PURGE SOL CONTROL CKT SHORT TO GROUND
PROPORTIONAL PURGE SOLENOID CONTROL CIRCUIT OPEN
PWM PURGE SENSE CIRCUIT OPEN
PWM PURGE SENSE CIRCUIT SHORT TO GROUND
POWERTRAIN CONTROL MODULE DEFECTIVE
TEST ACTION APPLICABILITY
1 Is the vehicle equipped with a Proportional Purge solenoid? ALL
Ye s®Go To 10
No®Go To 2
2 Ignition On, Engine Not Running.
With the DRB, actuate the Evap Purge Solenoid.
With the DRB, read codes.
Is the Global Good Trip displayed and equal to 0?ALL
Ye s®Go To 3
No®Go To 8
143
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Ignition Off.
Disconnect the Evap Purge Solenoid Connector.
Note: Check connectors - Clean/repair as necessary.
Key On.
Using a Voltmeter, measure the voltage of the Ignition Switch Output Circuit at
Solenoid Connector.
Is the voltage above 10.0 volts?ALL
Ye s®Go To 4
No®Repair the open Fused Ignition Switch Output Circuit.
Perform Powertrain Verification Test VER-5A.
4 Ignition Off.
Disconnect the Evap Purge Solenoid Connector.
Note: Check connectors - Clean/repair as necessary.
Key On.
Connect a test light from the Evap Purge Solenoid Control EKT to the Ignition
Switch out CKT.
Using a DRB, actuate the Evap Purge Solenoid.
Does the test light flash on and off?ALL
Ye s®Replace the Evap Purge Solenoid.
Perform Powertrain Verification Test VER-5A.
No®Go To 5
5 Ignition Off.
Disconnect Evap Purge Solenoid Connector.
Note: Check connectors - Clean/repair as necessary.
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
With an Ohmmeter, measure the Evap Purge Solenoid Control Circuit.
Is the resistance below 5.0 ohms?ALL
Ye s®Go To 6
No®Repair the open Evap Purge Solenoid Control Circuit.
Perform Powertrain Verification Test VER-5A.
6 Ignition Off.
Disconnect Evap Purge Solenoid Connector.
Note: Check connectors - Clean/repair as necessary.
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the Evap Purge Solenoid Control Circuit at Connector
to Ground.
Is the resistance below 5.0 ohms?ALL
Ye s®Repair the Evap Purge Solenoid Control Circuit short to Ground.
Perform Powertrain Verification Test VER-5A.
No®Go To 7
7 If there are no potential causes remaining, the Powertrain Control Module is
assumed to be defective.
View repair options.ALL
Repair
Replace the Powertrain Control Module.
Perform Powertrain Verification Test VER-5A.
144
DRIVEABILITY
P-0443 EVAP PURGE SOLENOID CIRCUIT ÐContinued
ProCarManuals.com
