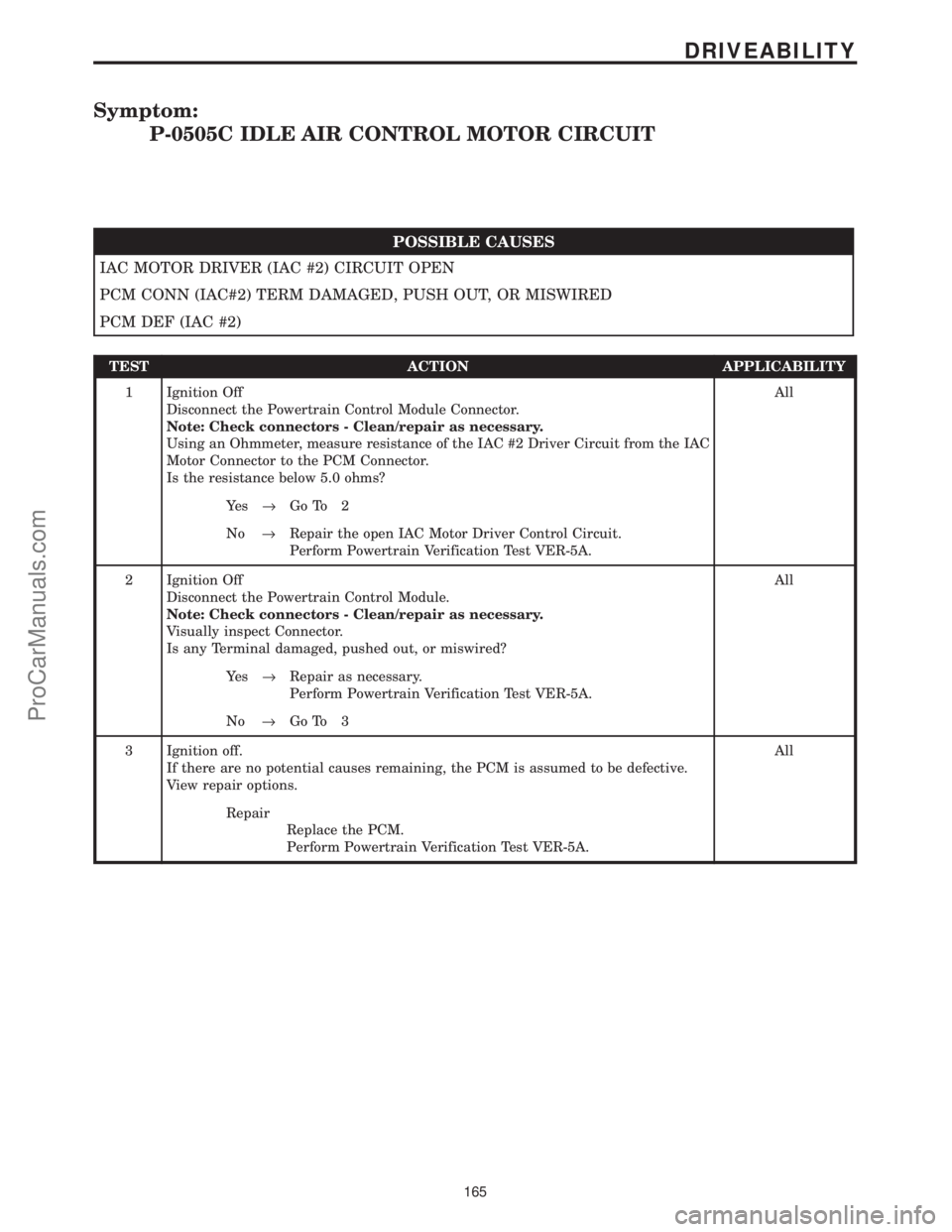

Symptom:
P-0505C IDLE AIR CONTROL MOTOR CIRCUIT
POSSIBLE CAUSES
IAC MOTOR DRIVER (IAC #2) CIRCUIT OPEN
PCM CONN (IAC#2) TERM DAMAGED, PUSH OUT, OR MISWIRED
PCM DEF (IAC #2)
TEST ACTION APPLICABILITY
1 Ignition Off
Disconnect the Powertrain Control Module Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure resistance of the IAC #2 Driver Circuit from the IAC
Motor Connector to the PCM Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 2
No®Repair the open IAC Motor Driver Control Circuit.
Perform Powertrain Verification Test VER-5A.
2 Ignition Off
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Visually inspect Connector.
Is any Terminal damaged, pushed out, or miswired?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Go To 3
3 Ignition off.
If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-5A.
165
DRIVEABILITY
ProCarManuals.com
Page 172 of 364

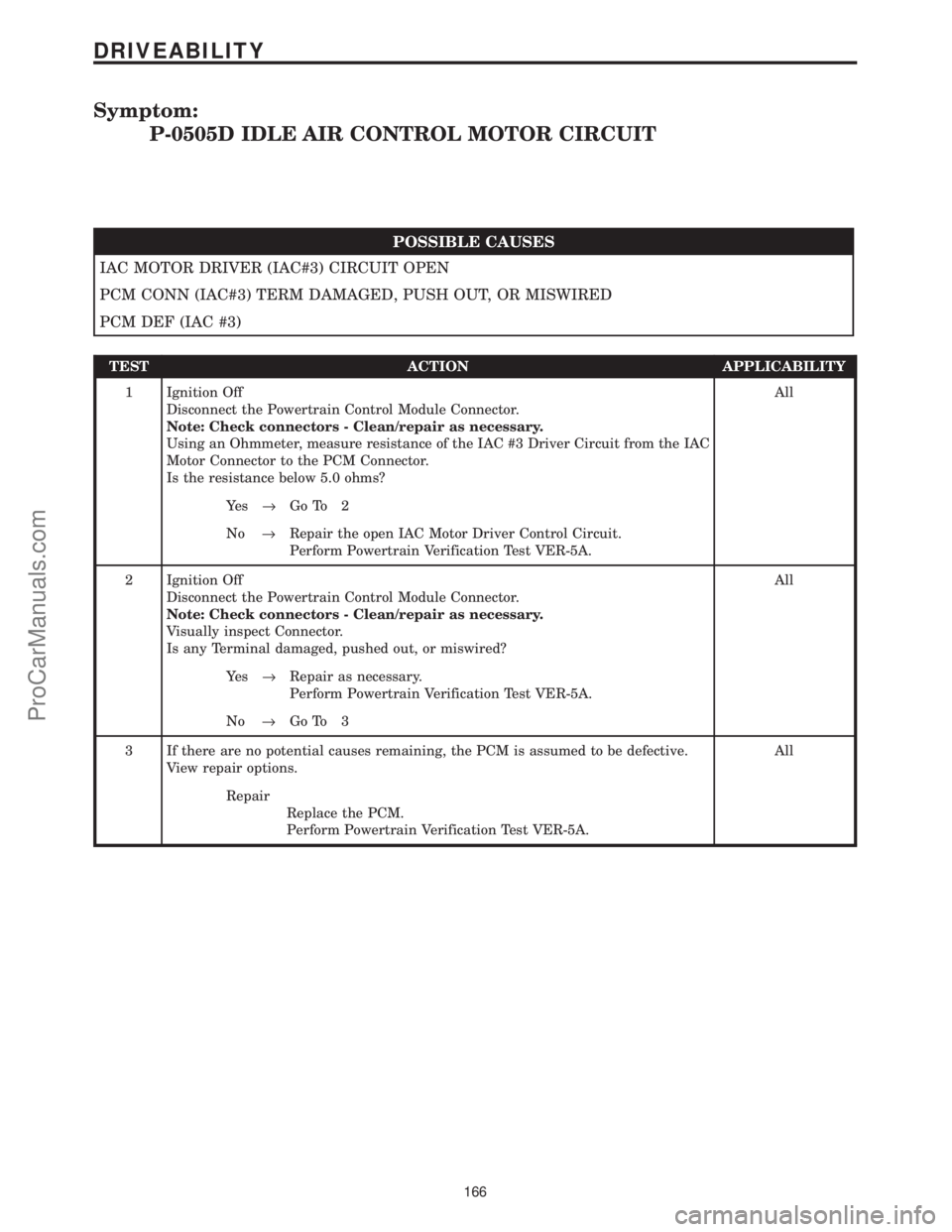

Symptom:
P-0505D IDLE AIR CONTROL MOTOR CIRCUIT
POSSIBLE CAUSES
IAC MOTOR DRIVER (IAC#3) CIRCUIT OPEN
PCM CONN (IAC#3) TERM DAMAGED, PUSH OUT, OR MISWIRED
PCM DEF (IAC #3)
TEST ACTION APPLICABILITY
1 Ignition Off
Disconnect the Powertrain Control Module Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure resistance of the IAC #3 Driver Circuit from the IAC
Motor Connector to the PCM Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 2
No®Repair the open IAC Motor Driver Control Circuit.
Perform Powertrain Verification Test VER-5A.
2 Ignition Off
Disconnect the Powertrain Control Module Connector.
Note: Check connectors - Clean/repair as necessary.
Visually inspect Connector.
Is any Terminal damaged, pushed out, or miswired?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Go To 3
3 If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-5A.
166
DRIVEABILITY
ProCarManuals.com
Page 173 of 364

Symptom:
P-0505E IDLE AIR CONTROL MOTOR CIRCUIT
POSSIBLE CAUSES
IAC MOTOR DRIVER (IAC#4) CIRCUIT OPEN
PCM CONN (IAC #4) TERM DAMAGED, PUSH OUT, OR MISWIRED
PCM DEF (IAC#4)
TEST ACTION APPLICABILITY
1 Ignition Off
Disconnect the Powertrain Control Module Connector.
Note: Check connectors - Clean/repair as necessary.
Visually inspect Connector.
Is any Terminal damaged, pushed out, or miswired?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Go To 2
2 Ignition Off
Disconnect the Powertrain Control Module Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure resistance of the IAC #4 Driver Circuit from the IAC
Motor Connector to the PCM Connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 3
No®Repair the open IAC Motor Driver Control Circuit.
Perform Powertrain Verification Test VER-5A.
3 Ignition off.
If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-5A.
167
DRIVEABILITY
ProCarManuals.com
Page 174 of 364

Symptom:
P-0600 PCM FAILURE SPI COMMUNICATIONS
When Monitored and Set Condition:
P-0600 PCM FAILURE SPI COMMUNICATIONS
When Monitored: With the ignition key on.
Set Condition: Internal Bus Communication failure between processors.
POSSIBLE CAUSES
PCM FAILURE SPI COMMUNICATIONS
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running.
With the DRB, read Trouble Codes.
Is Trouble Code PCM FAILURE SPI COMMUNICATION present?All
Ye s®Replace the Powertrain Control Module.
Perform Powertrain Verification Test VER-2A
No®Test Complete.
168
DRIVEABILITY
ProCarManuals.com
Page 175 of 364

Symptom:
P-0601 INTERNAL CONTROLLER FAILURE
When Monitored and Set Condition:
P-0601 INTERNAL CONTROLLER FAILURE
When Monitored: With the ignition key on.
Set Condition: Internal checksum for software failed, does not match calculated value.
POSSIBLE CAUSES
INTERNAL CONTROLLER FAILURE
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running.
With the DRB, read Trouble Codes.
Is Trouble Code INTERNAL CONTROLLER FAILURE present?All
Ye s®Replace the Powertrain Control Module.
Perform Powertrain Verification Test VER-2A
No®Test Complete.
169
DRIVEABILITY
ProCarManuals.com
Page 176 of 364

Symptom:
P-0645 A/C CLUTCH RELAY CIRCUIT
When Monitored and Set Condition:
P-0645 A/C CLUTCH RELAY CIRCUIT
When Monitored: With the ignition key on and battery voltage greater than 10 volts.
Set Condition: An open or shorted condition is detected in the A/C clutch relay control
circuit.
POSSIBLE CAUSES
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
AIR CONDITIONING CLUTCH RELAY DEFECTIVE
A/C CLUTCH RELAY CIRCUIT WITHOUT INTER DEFECT
A/C CLUTCH RELAY CIRCUIT WITHOUT OBSER DEFECT
A/C CLUTCH RELAY CONTROL CIRCUIT SHORT TO GROUND
AIR CONDITIONING CLUTCH RELAY CONTROL CIRCUIT OPEN
PCM DEF (A/C CLUTCH RELAY)
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
Actuate the Air Conditioning Clutch Relay.
Is the Air Conditioning Clutch Relay clicking?All
Ye s®Go To 2
No®Go To 4
2 Ignition On, Engine Not Running
Actuate the Air Conditioning Clutch Relay.
Wiggle the Wiring Harness from the Relay to the PCM.
Did the wiggling interrupt the clicking?All
Ye s®Repair as necessary where wiggling caused the clicking to be
interrupted.
Perform Powertrain Verification Test VER-2A.
No®Go To 3
3 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?All
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-2A.
No®Test Complete.
170
DRIVEABILITY
ProCarManuals.com
Page 177 of 364

TEST ACTION APPLICABILITY
4 Ignition Off
Remove the Air Conditioning Clutch Relay.
Note: Check connectors - Clean/repair as necessary.
Using a Voltmeter, measure the Fused Ignition Switch Output Circuit.
Is the voltage above 10.0 volts?All
Ye s®Go To 5
No®Repair the open Fused Ignition Switch Output Circuit.
Perform Powertrain Verification Test VER-2A.
5 Ignition Off
Remove the Air Conditioning Clutch Relay.
Note: Check connectors - Clean/repair as necessary.
Using an ohmmeter, measure the resistance between terminals C (85) and A (86) of
the Air Conditioning Clutch Relay.
Is the resistance below between 50 to 90 ohms?All
Ye s®Go To 6
No®Replace the Air Conditioning Clutch Relay.
Perform Powertrain Verification Test VER-2A.
6 Ignition Off
Disconnect the PCM grey connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the A/C Clutch Control Circuit from the PCM
connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Air Conditioning Clutch Relay Control Circuit for a
short to ground.
Perform Powertrain Verification Test VER-2A.
No®Go To 7
7 Ignition Off
Disconnect the PCM grey connector.
Remove the Air Conditioning Clutch Relay.
Note: Check connectors - Clean/repair as necessary.
Using an ohmmeter, measure the resistance of the Air Conditioning Clutch Relay
Control Circuit from the relay to the PCM.
Is the resistance below 5.0 ohms?All
Ye s®Go To 8
No®Repair open Air Conditioning Clutch Relay Control Circuit.
Perform Powertrain Verification Test VER-2A.
8 Ignition Off
If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-2A.
171
DRIVEABILITY
P-0645 A/C CLUTCH RELAY CIRCUIT ÐContinued
