CHRYSLER VOYAGER 2000 Diagnostic Manual

C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
345
CONNECTOR PINOUTS
ProCarManuals.com

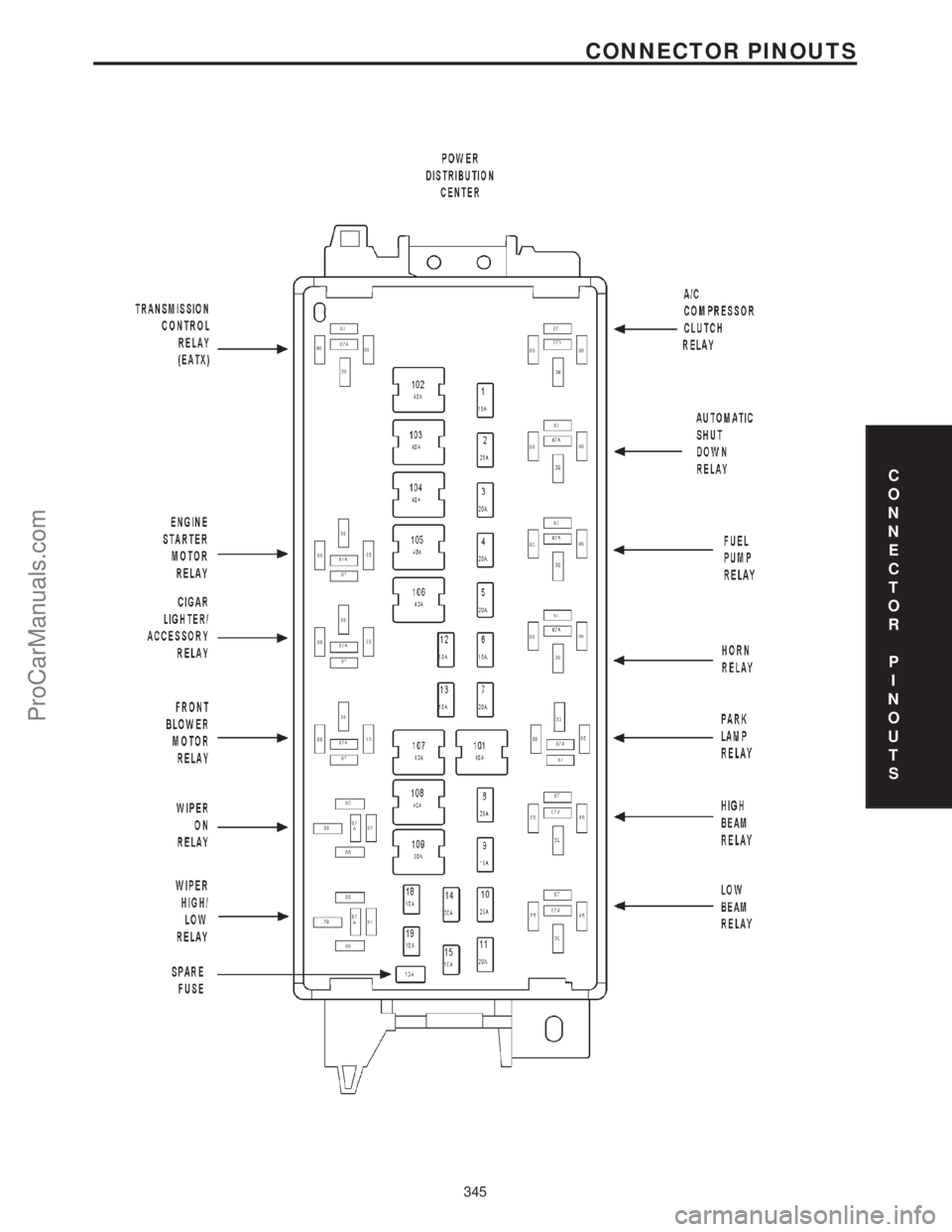

FUSESFUSE
NO.AMPS FUSED CIRCUIT FEED CIRCUIT
1 15A INTERNAL A0 6RD
2 20A (GAS/EATX) INTERNAL A0 6RD
3 20A INTERNAL A0 6RD
4 10A INTERNAL A0 6RD
5 10A INTERNAL A0 6RD
6 15A F41 20PK/VT A0 6RD
7 20A INTERNAL A0 6RD
8 20A L43 18VT INTERNAL
9 15A L44 20VT/RD INTERNAL
10 25A A20 12RD/DB A0 6RD
11 20A F32 18PK/DB A0 6RD
12 10A A22 12BK/OR F23 18DB/YL
13 10A F14 18LG/YL INTERNAL
14 20A L9 18BK/VT A0 6RD
15 10A M1 20PK A0 6RD
16 - SPARE A0 6RD
17 - SPARE A0 6RD
18 10A L33 20RD INTERNAL
19 10A L34 20RD/OR A0 6RD
19 10A L34 20RD/OR A0 6RD
101 40A INTERNAL A0 6RD
102 40A A10 12RD/DG A0 6RD
103 40A A2 12PK/BK A0 6RD
104 40A A1 12RD A0 6RD
105 40A (DIESEL) A17 12RD/BK A0 6RD
106 40A A16 12GY A0 6RD
107 40A INTERNAL A0 6RD
108 40A A4 12BK/RD A0 6RD
109 30A INTERNAL A0 6RD
A/C COMPRESSOR CLUTCH RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL (GAS)
85 C13 20DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL (DIESEL)
86 F87 18WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN) (GAS)
86 A142 18DG/OR DIESEL POWER RELAY OUTPUT (DIESEL)
87 C3 18DB/BK A/C COMPRESSOR CLUTCH RELAY OUTPUT
87A --
AUTOMATIC SHUT DOWN RELAY (GAS)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
86 A0 6RD B(+)
87 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
87A --
CIGAR LIGHTER/ACCESSORY RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z1 18BK GROUND
86 F1 20DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
87 F30 16RD CIGAR LIGHTER/ACCESSORY RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
346
CONNECTOR PINOUTS
ProCarManuals.com

DIESEL POWER RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K51 20DB/YL DIESEL POWER RELAY CONTROL
86 A0 6RD FUSED B(+)
87 A142 18DG/OR DIESEL POWER RELAY OUTPUT
87A --
ENGINE STARTER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K90 18TN SMART START RELAY CONTROL
86 F45 20YL/RD (EATX) FUSED IGNITION SWITCH OUTPUT (START)
86 T141 20YL/RD (MTX) FUSED IGNITION SWITCH OUTPUT (START)
87 T40 12BR STARTER RELAY OUTPUT
87A --
FRONT BLOWER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z1 18BK GROUND
86 F20 20WT FUSED IGNITION SWITCH OUTPUT (RUN)
87 C71 12DB BLOWER MOTOR DRIVER
87A --
FUEL HEATER RELAY (DIESEL)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z1 20BK GROUND
86 INTERNAL FUSED IGNITION SWITCH OUTPUT (ST-RUN)
87 A141 16DG/WT FUEL HEATER RELAY OUTPUT
87A --
FUEL PUMP RELAY (GAS)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 K31 18BR FUEL PUMP RELAY CONTROL
86 F87 18WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN)
87 A141 16DG/WT FUEL PUMP RELAY OUTPUT
87A --
HIGH BEAM RELAYCAV CIRCUIT FUNCTION
30 A0 6RD B(+)
85 L324 20WT/LG HIGH BEAM RELAY CONTROL
86 A0 6RD B(+)
87 INTERNAL HIGH BEAM RELAY OUTPUT
87A --
HORN RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 X4 18GY/OR (RHD DIE-
SEL)HORN RELAY CONTROL
85 X4 20GY/OR (EXCEPT RHD
DIESEL)HORN RELAY CONTROL
86 A0 6RD B(+)
87 X2 18DG/RD HORN RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
347
CONNECTOR PINOUTS
ProCarManuals.com

LOW BEAM RELAYCAV CIRCUIT FUNCTION
30 A0 6RD B(+)
85 L193 20OR/WT
(CHRYSLER)LOW BEAM RELAY CONTROL
85 L94 20OR/WT (EXCEPT
CHRYSLER)LOW BEAM RELAY CONTROL
86 A0 6RD B(+)
87 INTERNAL LOW BEAM RELAY OUTPUT
87A --
PARK LAMP RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 L97 18VT PARK LAMP RELAY CONTROL
86 INTERNAL FUSED B(+)
87 L7 12BK/YL PARK LAMP RELAY OUTPUT
87A --
TRANSMISSION CONTROL RELAY (EATX)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 Z16 18BK GROUND
86 T15 18LG TRANSMISSION CONTROL RELAY CONTROL
87 T16 18RD TRANSMISSION CONTROL RELAY OUTPUT
87A --
WIPER HIGH/LOW RELAYCAV CIRCUIT FUNCTION
30 INTERNAL WIPER RELAY OUTPUT
85 V16 20WT WIPER HIGH/LOW RELAY CONTROL
86 INTERNAL WIPER RELAY OUTPUT
87 V4 12RD/YL WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
87A V3 12BR/WT HIGH/LOW WIPER RELAY LOW SPEED OUTPUT
WIPER ON RELAYCAV CIRCUIT FUNCTION
30 INTERNAL WIPER ON RELAY OUTPUT
85 V14 18RD/VT WIPER ON/OFF RELAY CONTROL
86 INTERNAL FUSED B(+)
87 INTERNAL FUSED B(+)
87A Z1 18BK GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
348
CONNECTOR PINOUTS
ProCarManuals.com

POWERTRAIN CONTROL MODULE C1 - BLACK 40 WAYCAV CIRCUIT FUNCTION
1- -
2 K18 18RD/YL IGNITION COIL NO. 3 DRIVER
3 K17 18DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18YL/RD SPEED CONTROL ON/OFF SWITCH SENSE
6 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
7 K13 18YL/WT FUEL INJECTOR NO. 3 DRIVER
8 K20 18DG GENERATOR FIELD DRIVER (+)
9- -
10 Z12 18BK/TN GROUND
11 K19 18GY/RD IGNITION COIL NO. 1 DRIVER
12 - -
13 K11 18WT/DB FUEL INJECTOR NO. 1 DRIVER
14 K58 18BR/DB FUEL INJECTOR NO. 6 DRIVER
15 K38 18GY FUEL INJECTOR NO. 5 DRIVER
16 K14 18LB/BR FUEL INJECTOR NO. 4 DRIVER
17 K12 18TN/WT FUEL INJECTOR NO. 2 DRIVER
18 - -
19 - -
20 F87 18WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN)
21 - -
22 G3 18BK/PK SERVICE ENGINE SOON INDICATOR DRIVER
23 - -
24 - -
25 K42 18DB/LG KNOCK SENSOR SIGNAL
26 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K127 18BK/OR OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18BK/DG OXYGEN SENSOR 1/1 SIGNAL
31 K90 18TN (EXCEPT 3.0L) SMART START RELAY CONTROL
32 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
36 K1 18DG/RD MANIFOLD ABSOLUTE PRESSURE SENSOR SIGNAL
37 K21 18BK/RD (2.4L) INTAKE AIR TEMPERATURE SIGNAL
38 C103 18DG/LB (EXCEPT
3.0L)A/C SWITCH SIGNAL
39 - -
40 K35 18GY/YL EGR SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
349
CONNECTOR PINOUTS
ProCarManuals.com

POWERTRAIN CONTROL MODULE C2 - GRAY 40 WAYCAV CIRCUIT FUNCTION
41 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
42 C18 18DB A/C PRESSURE SIGNAL
43 K4 18BK/LB SENSOR GROUND
44 K7 18OR 8V SUPPLY
45 - -
46 A14 18RD/WT FUSED B(+)
47 - -
48 K40 18BR/WT IDLE AIR CONTROL NO. 3 DRIVER
49 K60 18L/BK IDLE AIR CONTROL NO. 2 DRIVER
50 Z12 18BK/TN GROUND
51 K141 18TN/WT OXYGEN SENSOR 1/2 SIGNAL
52 - -
53 - -
54 - -
55 - -
56 V36 18TN.RD (EXCEPT
3.0L)SPEED CONTROL VACUUM SOLENOID CONTROL
57 K39 18GY/RD IDLE AIR CONTROL NO. 1 DRIVER
58 K59 18VT/BK IDLE AIR CONTROL NO. 4 DRIVER
59 D1 18VT/BR CCD BUS (+)
60 D2 18WT/BK CCD BUS (-)
61 K6 18VT/WT 5V SUPPLY
62 K29 18WT/PK BRAKE SWITCH SENSE
63 T10 18YL/DG (EATX) TORQUE MANAGEMENT REQUEST SENSE
64 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
65 D21 18PK SCI TRANSMIT
66 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
67 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
68 K52 18PK/BK DUTY CYCLE EVAP/PURGE SOLENOID CONTROL
69 - -
70 K70 18VT/RD (EXCEPT
3.0L)PULSE WIDTH MODULATED PURGE SENSE
71 - -
72 K107 18DB/WT (3.3L/3.8L) LEAK DETECTION PUMP SWITCH SENSE
72 K107 18YL/BK (2.4L ATX) LEAK DETECTION PUMP SWITCH SENSE
73 K173 14LG/DB RADIATOR FAN RELAY CONTROL
74 K31 18BR FUEL PUMP RELAY CONTROL
75 D20 18LG SCI RECEIVE
76 T41 18BK/WT (2.4L ATX) TRS T41 SENSE
76 T41 18BR/YL (EATX) TRS T41 SENSE
77 K106 18WT/DG (EXCEPT
3.0L)LEAK DETECTION PUMP SOLENOID CONTROL
78 K54 18OR/BK (2.4L ATX) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
78 V36 18TN/RD (3.0L) SPEED CONTROL VACUUM SOLENOID CONTROL
79 - -
80 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
RADIATOR FAN NO. 1 - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 C23 12DG LOW SPEED RADIATOR FAN RELAY OUTPUT
2 Z1 12BK GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
350
CONNECTOR PINOUTS
ProCarManuals.com

RADIATOR FAN NO 2 - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 C23 12DG LOW SPEED RADIATOR FAN RELAY OUTPUT
2 Z1 12BK GROUND
RADIATOR FAN RELAY - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 Z1 14BK GROUND
2 K173 14LG/DB RADIATOR FAN RELAY CONTROL
3 C23 12DG LOW SPEED RADIATOR FAN RELAY OUTPUT
4 A16 12GY FUSED B(+)
SENTRY KEY IMMOBILIZER MODULE - BLACK 6 WAYCAV CIRCUIT FUNCTION
1 F41 20PK/WT FUSED B(+)
2 Z2 20BK GROUND
3 F87 20WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN)
4- -
5 D2 20WT/BK CCD BUS (-)
6 D1 20VT/BR CCD BUS (+)
THROTTLE POSITION SENSOR (2.0L) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
3 K6 18VT/WT 5V SUPPLY
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
351
CONNECTOR PINOUTS
ProCarManuals.com

THROTTLE POSITION SENSOR (EXCEPT 2.0L) - NATURAL 3 WAYCAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
3 K6 18VT/WT 5V SUPPLY
TORQUE CONVERTER CLUTCH SOLENOID (ATX)-3WAYCAV CIRCUIT FUNCTION
1- -
2 F87 18WT/BK FUSED IGNITION SWITCH OUTPUT (ST-RUN)
3 K54 18OR/BK TORQUE CONVERTER CLUTCH SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
352
CONNECTOR PINOUTS
ProCarManuals.com

TRANSMISSION CONTROL MODULE - BLACK 60 WAYCAV CIRCUIT FUNCTION
1 T1 18LG/BK TRS T1 SENSE
2- -
3 T3 18VT TRS T3 SENSE
4 D2 18WT/BK CCD BUS(-)
5- -
6 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
7 D21 18PK SCI TRANSMIT
8 F45 18YL/RD FUSED IGNITION SWITCH OUTPUT (START)
9 T9 18OR/BK OVERDRIVE PRESSURE SWITCH SENSE
10 T10 18YL/DG TORQUE MANAGEMENT REQUEST SENSE
11 F11 18RD/WT FUSED IGNITION SWITCH OUTPUT (ST-RUN-OFF)
12 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
13 T13 18DB/BK SPEED SENSOR GROUND
14 T14 18LG/WT OUTPUT SPEED SENSOR SIGNAL
15 T15 18LG TRANSMISSION CONTROL RELAY CONTROL
16 T16 18RD TRANSMISSION CONTROL RELAY OUTPUT
17 T16 18RD TRANSMISSION CONTROL RELAY OUTPUT
18 - -
19 T19 18WT 2-4 SOLENOID CONTROL
20 T20 18LB LOW/REVERSE SOLENOID CONTROL
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 - -
30 - -
31 - -
32 - -
33 - -
34 - -
35 - -
36 - -
37 - -
38 - -
39 - -
40 - -
41 T41 18BK/WT TRS T41 SENSE
42 T42 18VT/WT TRS T42 SENSE
43 D1 18VT/BR CCD BUS (+)
44 - -
45 - -
46 D6 18BK/LB SCI RECEIVE
47 T47 18YL/BK 2-4 PRESSURE SWITCH SENSE
48 - -
49 - -
50 T50 18DG LOW/REVERSE PRESSURE SWITCH SENSE
51 K4 18BK/LB SENSOR GROUND
52 T52 18RD/BK INPUT SPEED SENSOR SIGNAL
53 Z14 16BK/YL GROUND
54 T54 18VT/LG TRANSMISSION TEMPERATURE SENSOR SIGNAL
55 T55 18OR/RD (3.3L/3.8L) AUTOSTICK/OVERDRIVE OFF MUX INPUT
56 A5 18RD/DB FUSED B(+)
57 Z13 16BK/RD GROUND
58 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
59 T59 18PK UNDERDRIVE SOLENOID CONTROL
60 T60 18BR OVERDRIVE SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
353
CONNECTOR PINOUTS
ProCarManuals.com

TRANSMISSION RANGE SENSOR - GRAY 10 WAYCAV CIRCUIT FUNCTION
1 F20 18WT FUSED IGNITION SWITCH OUTPUT (RUN)
2- -
3 T13 18DB/BK SPEED SENSOR GROUND
4 T54 18VT/LG TRANSMISSION TEMPERATURE SENSOR SIGNAL
5 T41 18BK/WT TRANSMISSION RANGE SENSOR T41 SENSE
6 L1 18VT/BK BACK-UP LAMP FEED
7 T1 18LG/BK TRS T1 SENSE
8 T3 18VT TRS T3 SENSE
9 T42 18VT/WT TRS T42 SENSE
10 T41 18BR/YL TRS T41 SENSE
TRANSMISSION SOLENOID/PRESSURE SWITCH - BLACK 8 WAYCAV CIRCUIT FUNCTION
1 T47 18YLBK 2-4 PRESSURE SWITCH SENSE
2 T50 18DG LOW/REVERSE PRESSURE SWITCH SENSE
3 T9 18OR/BK OVERDRIVE PRESSURE SWITCH SENSE
4 T16 18RD TRANSMISSION CONTROL RELAY OUTPUT
5 T59 18PK UNDERDRIVE SOLENOID CONTROL
6 T60 18BR OVERDRIVE SOLENOID CONTROL
7 T20 18LB LOW/REVERSE SOLENOID CONTROL
8 T19 18WT 2-4 SOLENOID CONTROL
VEHICLE SPEED CONTROL SERVO - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 V36 18TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
2 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
3 V30 18DB/RD SPEED CONTROL BRAKE SWITCH OUTPUT
4 Z1 18BK GROUND
VEHICLE SPEED SENSOR (EXCEPT 3.3L/3.8L) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 K7 18OR 8V SUPPLY (GAS)
1 F87 18WT/BK 8V SUPPLY (DIESEL)
2 K4 18BK/LB SENSOR GROUND (GAS)
2 K4 20BK/LB SENSOR GROUND (DIESEL)
3 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
354
CONNECTOR PINOUTS
ProCarManuals.com
