automatic CHRYSLER VOYAGER 2000 Diagnostic Manual

TABLE OF CONTENTS - Continued
9.0 CONNECTOR PINOUTS................................................333
A/C COMPRESSOR CLUTCH - BLACK 2 WAY..............................333
AMBIENT TEMPERATURE SENSOR - GRAY 2 WAY.........................333
AMBIENT TEMPERATURE SENSOR (SENSOR SIDE) 2 WAY..................333
BRAKE LAMP SWITCH - GRAY 6 WAY....................................333
BRAKE SHIFT INTERLOCK SOLENOID (EXCEPT BUILT-UP EXPORT)-2WAY ..334
CAMSHAFT POSITION SENSOR - BLACK 3-WAY...........................334
CLOCKSPRING C1 - YELLOW 2 WAY.....................................334
CLOCKSPRING C2 - NATURAL 5 WAY....................................334
CLOCKSPRING C3 - BLACK 2 WAY.......................................335
CLUTCH INTERLOCK SWITCH (MTX) - BLACK 2 WAY.......................335
CLUTCH INTERLOCK SWITCH JUMPER (EATX) - BLACK 2 WAY..............335
CRANKSHAFT POSITION SENSOR - BLACK 3 WAY.........................335
DATA LINK CONNECTOR - BLACK 16 WAY................................336
EGR SOLENOID - GRAY 2 WAY..........................................336
ENGINE COOLANT TEMPERATURE SENSOR - BLACK 2 WAY................336
ENGINE OIL PRESSURE SWITCH - GREEN 2 WAY.........................336
EVAP/PURGE SOLENOID - BLACK 2 WAY.................................337
DUTY CYCLE EVAP/PURGE SOLENOID...................................337
FUEL INJECTOR NO. 1 (2.0L/2.4L) - BLACK 2 WAY..........................337
FUEL INJECTOR NO. 1 (3.3L/3.8L) - BLACK 2 WAY..........................338
FUEL INJECTOR NO. 2 (2.OL/2.4L) - BLACK 2 WAY.........................338
FUEL INJECTOR NO. 2 (3.3L/3.8L) - BLACK 2 WAY..........................338
FUEL INJECTOR NO. 3 (3.3L/3.8L)- BLACK 2 WAY..........................338
FUEL INJECTOR NO. 3 (2.0L/2.4L) - BLACK 2 WAY..........................339
FUEL INJECTOR NO. 4 (3.3L/3.8L) - BLACK 2 WAY..........................339
FUEL INJECTOR NO. 4 (2.0L/2.4L) - BLACK 2 WAY..........................339
FUEL INJECTOR NO. 5 (3.3L/3.8L) - BLACK 2 WAY..........................339
FUEL INJECTOR NO. 6 (3.3L/3.8L) - BLACK 2 WAY..........................340
FUEL TANK MODULE - LIGHT GRAY 4 WAY...............................340
GENERATOR (GENERATOR SIDE).......................................340
GENERATOR - BLACK 3 WAY...........................................340
IDLE AIR CONTROL MOTOR - BLACK 4 WAY..............................341
IGNITION COIL PACK (2.0L/2.4L) - BLACK 3 WAY...........................341
IGNITION COIL PACK (3.3L/3.8L) - BLACK 4 WAY...........................341
INSTRUMENT CLUSTER - BLACK 13 WAY.................................341
INTAKE AIR TEMPERATURE/MANIFOLD ABSOLUTE PRESSURE SENSOR (2.0L) -
GRAY4 WAY..........................................................342
INTAKE AIR TEMPERATURE SENSOR (2.4L) - GRAY 2 WAY..................342
KNOCK SENSOR - GRAY 2 WAY.........................................342
LEAK DETECTION PUMP - LT. GRAY 4 WAY...............................342
MANIFOLD ABSOLUTE PRESSURE SENSOR (2.4L/3.3L/3.8L) - BLACK 3 WAY. . .343
OUTPUT SPEED SENSOR - GRAY 2 WAY.................................343
OXYGEN SENSOR (SENSOR SIDE)......................................343
OXYGEN SENSOR 1/1 UPSTREAM - GRAY 4 WAY..........................343
OXYGEN SENSOR 1/2 DOWNSTREAM - BLACK 4 WAY.....................344
PARK/NEUTRAL POSITION SWITCH (ATX) - BLACK 3 WAY...................344
FUSES...............................................................346
A/C COMPRESSOR CLUTCH RELAY......................................346
AUTOMATIC SHUT DOWN RELAY (GAS)..................................346
CIGAR LIGHTER/ACCESSORY RELAY....................................346
DIESEL POWER RELAY................................................347
v
ProCarManuals.com

Symptom:
P-1294 TARGET IDLE NOT REACHED
When Monitored and Set Condition:
P-1294 TARGET IDLE NOT REACHED
When Monitored: Engine idling more than 2.8 seconds and coolant temp greater than 70
degrees C (160 degrees F). For an automatic transmission, in drive mode. There must not
be a MAP Sensor or TP Sensor or speed sensor trouble code.
Set Condition: Engine idle is > 200 RPM above target idle speed or less than 100 RPM
below target idle speed for 20 seconds. Two consecutive failures in a row will store this
trouble code.
POSSIBLE CAUSES
ENG VACUUM HOSES AND COMPONENTS LEAKS
THROTTLE BODY DEFECTIVE
THROTTLE PLATE/LINKAGE NOT IN CORRECT POS
IAC WIRING HARNESS INTERMITTENT DEFECT
IAC WIRING HARNESS OBSERVABLE DEFECTIVE
TEST ACTION APPLICABILITY
1 Ignition Off
Does the engine exhibit a start and stall condition?All
Ye s®Go To 2
No®Go To 4
2 Ignition Off
Perform minimum air flow test that is described in the service information.
Is the idle RPM within the range shown in the chart?All
Ye s®Test Complete.
No®Go To 3
180
DRIVEABILITY
ProCarManuals.com

Symptom:
P-1698 NO CCD MESSAGES FROM TCM
When Monitored and Set Condition:
P-1698 NO CCD MESSAGES FROM TCM
When Monitored: With the engine running.
Set Condition: No CCD messages are received from the TCM for 10 seconds.
POSSIBLE CAUSES
DRB DOES NOT SHOW BUS OPERATIONAL
CCD WIRING HARNESS OBSERVABLE DEFECT
CCD BUS (+) CIRCUIT OPEN BETWEEN PCM AND TCM
CCD BUS (-) CIRCUIT OPEN BETWEEN PCM AND TCM
PCM DEFECTIVE (NO CCD MESSAGE)
TCM DEFECTIVE (NO CCD MESSAGE)
TEST ACTION APPLICABILITY
1 Ignition On
With the DRB, select9Transmission9.
Note: The CCD Bus test is automatic.
Does the DRB show9Bus Operational9?All
Ye s®Go To 2
No®Go to the appropriate symptom group for body diagnostics.
2 Ignition Off
With the DRB, select9Engine9module.
With the DRB erase trouble codes.
Raise all four wheels off the ground and properly support the vehicle.
Caution: Keep clear of rotating wheels in the next step.
Start the engine. Place the Shift Lever in Drive and allow the wheels to rotate for 1
minute.
Step on the brakes, put the Shift Lever back in Park.
With the DRB read Trouble Codes.
Does display show9No CCD Message from TCM9and the start run counter equal to
zero?All
Ye s®Go To 3
No®Go To 7
224
DRIVEABILITY
ProCarManuals.com

Symptom List:
P-1595 SPEED CONTROL SOLENOID CIRCUITS
P-1683 SPEED CONTROL POWER RELAY OR S/C 12V DRIVER
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P-1595 SPEED CONTROL SOLE-
NOID CIRCUITS.
When Monitored and Set Condition:
P-1595 SPEED CONTROL SOLENOID CIRCUITS
When Monitored: Speed control on, vehicle speed > 25 mph, RPM < 5440, brake not
applied. For an automatic transmission, in drive mode. For a manual transmission, the
clutch not depressed.
Set Condition: The powertrain control module (PCM) actuates the vacuum and vent
solenoid but they do not respond.
P-1683 SPEED CONTROL POWER RELAY OR S/C 12V DRIVER
When Monitored: Speed control on, vehicle speed > 25 mph, RPM < 5440, brake not
applied. For an automatic transmission, in drive mode. For a manual transmission, the
clutch not depressed.
Set Condition: The powertrain control module (PCM) actuates the vacuum and vent
solenoids but they do not respond.
POSSIBLE CAUSES
S/C BRAKE SWITCH OUTPUT CIRCUIT OPEN
S/C BRAKE SWITCH OUTPUT CIRCUIT SHORTED TO GROUND
S/C VACUUM SOLENOID CONTROL CIRCUIT OPEN
S/C VENT SOLENOID CONTROL CIRCUIT OPEN
SPEED CONTROL POWER SUPPLY CIRCUIT OPEN
SPEED CONTROL SERVO GROUND CIRCUIT OPEN
BRAKE SWITCH DEFECTIVE
SPEED CONTROL SERVO DEFECTIVE
PCM DEFECTIVE (SC SOLENOID CIRCUIT)
PCM DEFECTIVE (SPEED CONTROL P/S CIRCUIT)
BRAKE SWITCH NEEDS TO BE ADJUSTED
256
SPEED CONTROL
ProCarManuals.com

Symptom:
P-0740 TORQUE CONV CLUTCH, NO RPM DROP AT LOCKUP
When Monitored and Set Condition:
P-0740 TORQUE CONV CLUTCH, NO RPM DROP AT LOCKUP
When Monitored: Continuously when no matured or maturing Trouble Code and throttle
position >10% and constant for 4.4 seconds before TCC engagement requested: No TCC
solenoid circuit, any cam/crank-related code, VSS, any TPS-related code and Battery
voltage >11.0
Set Condition: Torque Converter malfunctions that are detected are the FTC not locking
up properly when desired, and the torque converter not unlocking properly when desired.
3 consecutive test failures over one trip will store the code. 2 bad trips will set the code.
POSSIBLE CAUSES
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
DIFF, SHAFT, OR GEARS DEFECTIVE
TCC SOL DEFECTIVE
TORQUE CONVERTER ASSEMBLY DEF OR TCC SOL STUCK
TRANSMISSION FLUID DIRTY OR LEVEL LOW
VEHICLE CONFIGURATION NON-STANDARD
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
With the DRB, read codes.
Is the Global Good Trip displayed and equal to 0?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 2
No®Test Complete.
2 Ignition Off
At the9Cooler In9port puta0to300PSIgauge using a9T9. Ensure line is long
enough to reach in driver's side of vehicle so gauge can be monitored while driving.
Road test vehicle. Gear select in drive. While monitoring DRB, achieve 50 MPH.
While doing this, notice the gauge will read around 15 PSI until lockup is achieved
in 3rd gear. If the TCC Solenoid is operating properly, the gauge pressure will
fluctuate when lockup is achieved.
Did gauge fluctuate?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 3
No®Refer to service instructions for proper service procedure on
Torque Converter Assembly or stuck TCC Solenoid and repair as
necessary.
Perform Powertrain Verification Test VER-5A.
302
TRANSMISSION
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Ignition Off
Check Transmission Fluid level and ensure it is clear of any debris.
Is the Transmission Fluid okay?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 4
No®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
4 Ignition Off
Disconnect the TCC Solenoid connector.
Note: Check connectors - Clean/repair as necessary.
Turn key on.
Use a Voltmeter in the following step.
Using a Voltmeter, measure the Fused Ignition Switch Output Circuit at Solenoid
Connector.
Is the voltage above 10.0 volts?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 5
No®Repair the open Fused Ignition Switch Output Circuit.
Perform Powertrain Verification Test VER-5A.
5 Ignition Off
Disconnect the TCC Solenoid connector.
Note: Check connectors - Clean/repair as necessary.
With an Ohmmeter, measure across the Solenoid for resistance.
Was resistance between 30.0 and 50.0 ohms?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 6
No®Replace TCC Solenoid.
Perform Powertrain Verification Test VER-5A.
6 Drive Vehicle
Maintain 50 MPH per DRB. Wait 10 seconds in lockup. Record Engine RPM.
Was engine RPM 2200 +/- 50 RPM?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 7
No®Inspect Differential, Output Shaft, or Gear Box. Refer to service
instructions for proper diagnosis.
Perform Powertrain Verification Test VER-5A.
7 Ignition Off
Remove VSS.
Note: Check connectors - Clean/repair as necessary.
Inspect sensor and gear for damage, also improper wheel size.
Were any problems found?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
303
TRANSMISSION
P-0740 TORQUE CONV CLUTCH, NO RPM DROP AT LOCKUP ÐContinued
ProCarManuals.com

Symptom:

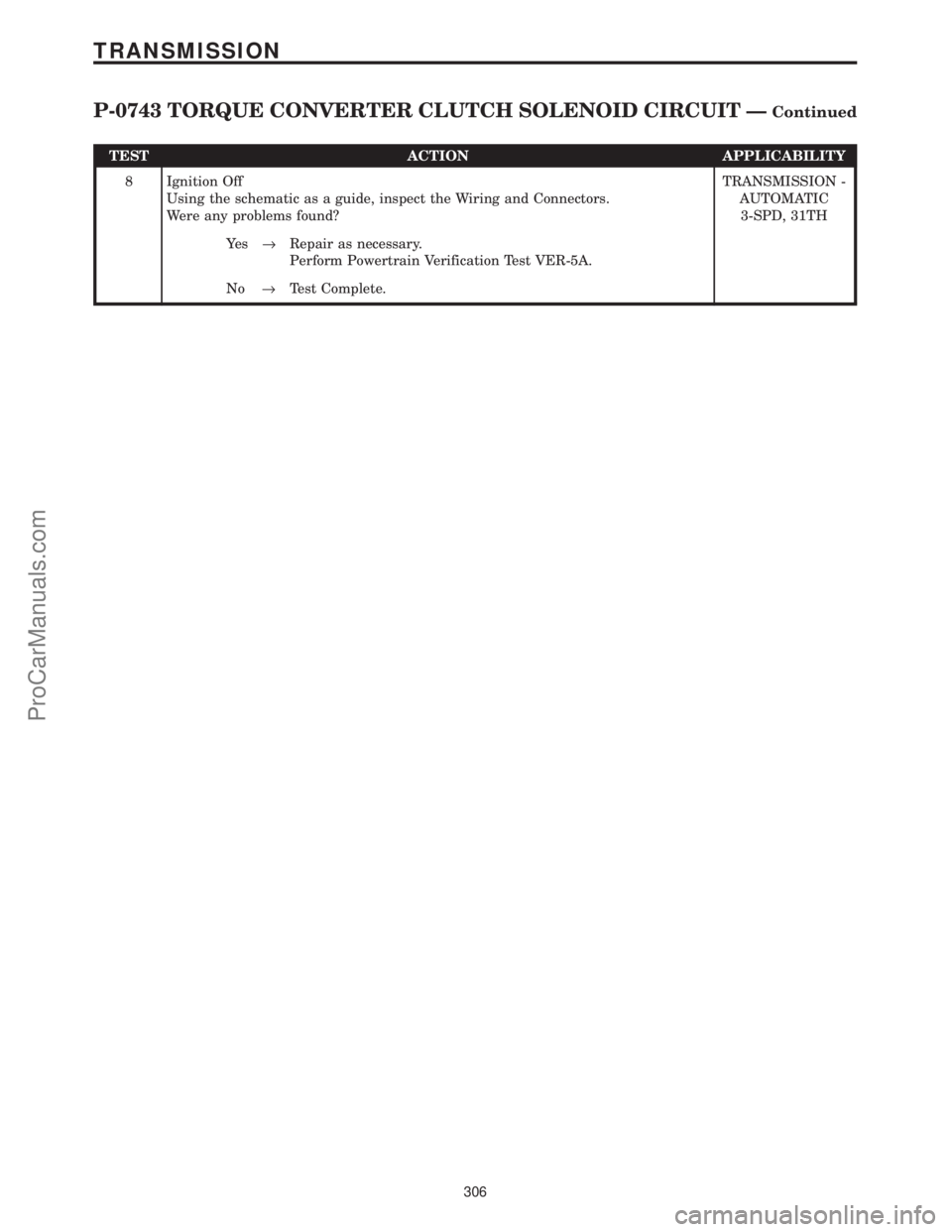

P-0743 TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT
When Monitored and Set Condition:
P-0743 TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT
When Monitored: With the ignition key on.
Set Condition: An open or shorted condition is detected in the Torque Converter Clutch
Solenoid Control Circuit.
POSSIBLE CAUSES
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
TORQUE CONVERTER CLUTCH SOLENOID DEFECTIVE
TCC SOLENOID CIRCUIT W/H INTERMITTENT DEFECT
TCC SOLENOID CIRCUIT W/H OBSERVABLE DEFECT
TCC SOLENOID CONTROL CIRCUIT OPEN
TCC SOLENOID CONTROL CIRCUIT SHORT TO GROUND
PCM DEFECTIVE (TCC SOLENOID CONTROL CIRCUIT)
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
With the DRB, read codes.
Is the Global Good Trip displayed and equal to 0?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 2
No®Go To 7
2 Ignition Off
Disconnect the TCC Solenoid Connector.
Note: Check connectors - Clean/repair as necessary.
Key on.
With the Voltmeter, probe the voltage of the Fused Ignition Switch Output Circuit at
Solenoid Connector.
Is the voltage above 10.0 volts?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 3
No®Repair the open Fused Ignition Switch Output Circuit..
Perform Powertrain Verification Test VER-5A.
304
TRANSMISSION
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Ignition Off
Disconnect the Powertrain Control Module.
Note: Check connectors - Clean/repair as necessary.
Key on.
With the voltmeter, probe the TCC Solenoid Control Circuit at the PCM connector.
Is the voltage above 10.0 volts?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 4
No®Replace the TCC Solenoid.
Perform Powertrain Verification Test VER-5A.
4 Ignition Off
Disconnect the Powertrain Control Module Connector.
Disconnect the TCC Solenoid Connector.
Note: Check connectors - Clean/repair as necessary.
Using an Ohmmeter, measure the TCC Solenoid Control Circuit from the TCC
Solenoid Connector to the PCM Connector.
Is the resistance below 5.0 ohms?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 5
No®Repair the open TCC Solenoid Control Circuit.
Perform Powertrain Verification Test VER-5A.
5 Ignition Off
Disconnect the Powertrain Control Module Connector.
Disconnect the TCC Solenoid Connector.
Note: Check connectors - Clean/repair as necessary.
With the DRB in ohmmeter mode, measure between the TCC Solenoid Control
Circuit and ground.
Is the resistance below 5.0 ohms?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Repair the TCC Solenoid Control Circuit short to ground.
Perform Powertrain Verification Test VER-5A.
No®Go To 6
6 If there are no potential causes remaining, the PCM is assumed to be defective.
View repair options.TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Repair
Replace the Powertrain Control Module.
Perform Powertrain Verification Test VER-5A.
7 Ignition On, Engine Not Running
With the DRB, erase codes.
Turn ignition off for 10 seconds, then turn ignition on.
With the DRB actuate the TCC Solenoid.
With the DRB, read codes.
Wiggle Wiring Harness from the Solenoid to PCM.
Does the TCC Solenoid Control Circuit code return?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Repair as necessary where wiggling caused problem to appear.
Perform Powertrain Verification Test VER-5A.
No®Go To 8
305
TRANSMISSION
P-0743 TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT ÐContinued
ProCarManuals.com

TEST ACTION APPLICABILITY
8 Ignition Off
Using the schematic as a guide, inspect the Wiring and Connectors.
Were any problems found?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
306
TRANSMISSION
P-0743 TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT ÐContinued
ProCarManuals.com

Symptom:
P-1899 PARK/NEUTRAL SWITCH STUCK IN PARK OR IN GEAR
When Monitored and Set Condition:
P-1899 PARK/NEUTRAL SWITCH STUCK IN PARK OR IN GEAR
When Monitored: With the transmission in Park, Neutral, or Drive and not in limp-in
mode.
Set Condition: This code is set if the PCM detects an incorrect Park/Neutral switch state
for a given mode of vehicle operation in two consecutive failures.
POSSIBLE CAUSES
P/N SWITCH SENSE CIRCUIT OPEN
PARK/NEUTRAL SWITCH SENSE CIRCUIT OPEN
PARK/NEUTRAL SWITCH SENSE CIRCUIT SHORT TO GROUND
PARK/NEUTRAL SWITCH SENSE CIRCUIT SHORT TO GROUND
PARK/NEUTRAL SWITCH WIRING HARNESS OBSERVABLE DEFECT
PARK/NEUTRAL SWITCH WIRING HARNESS OBSERVABLE DEFECT
PARK/NEUTRAL SWITCH DEFECTIVE
TRS DEFECTIVE
PCM DEF (P/N SWITCH)
PCM DEF (P/N SWITCH)
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running.
With the DRB, read Park/Neutral Switch input state.
While moving gear selector in and out of Park and Reverse, watch DRB Display.
Did the display show9P/N and D/R9?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Go To 2
No®Go To 3
2 Ignition Off.
Inspect the Wiring and Connector relating to Park/Neutral Position Switch.
Were any problems found?TRANSMISSION -
AUTOMATIC
3-SPD, 31TH
Ye s®Repair as necessary.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
307
TRANSMISSION
ProCarManuals.com
