relay CHRYSLER VOYAGER 2001 Service Manual

LEFT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z75 20BK/VT GROUND
3 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
4 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
LEFT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER
2 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 Z377 18BK/BR GROUND
LEFT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Q53 20OR LEFT FULL OPEN SWITCH SENSE
2 Z77 20BK/GY GROUND
LEFT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 L43 18WT/DB LEFT LOW BEAM DRIVER
2 Z343 18BK/LG GROUND
3 L33 18WT/LG LEFT HIGH BEAM DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1050
CONNECTOR PINOUTS

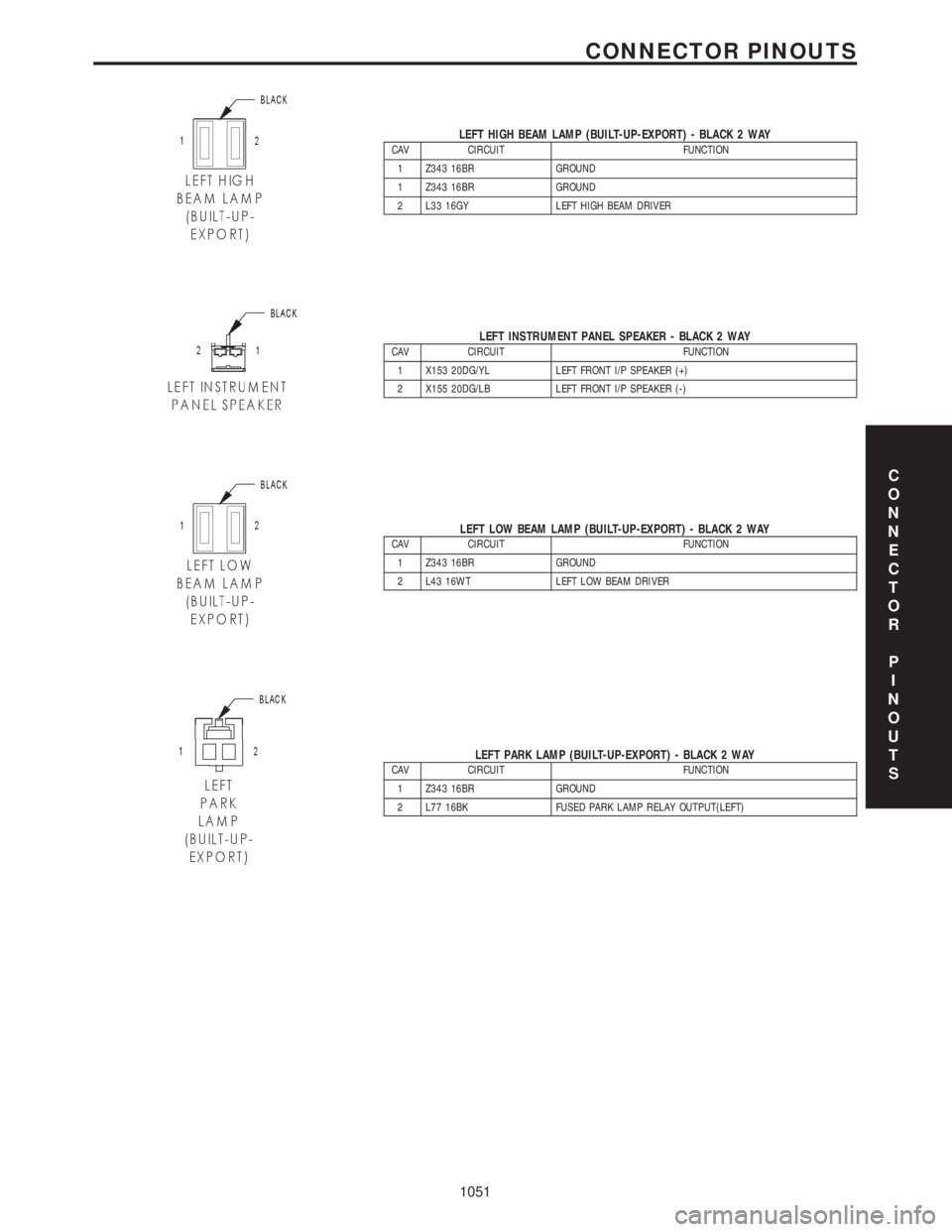

LEFT HIGH BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
1 Z343 16BR GROUND
2 L33 16GY LEFT HIGH BEAM DRIVER
LEFT INSTRUMENT PANEL SPEAKER - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 X153 20DG/YL LEFT FRONT I/P SPEAKER (+)
2 X155 20DG/LB LEFT FRONT I/P SPEAKER (-)
LEFT LOW BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L43 16WT LEFT LOW BEAM DRIVER
LEFT PARK LAMP (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT(LEFT)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1051
CONNECTOR PINOUTS

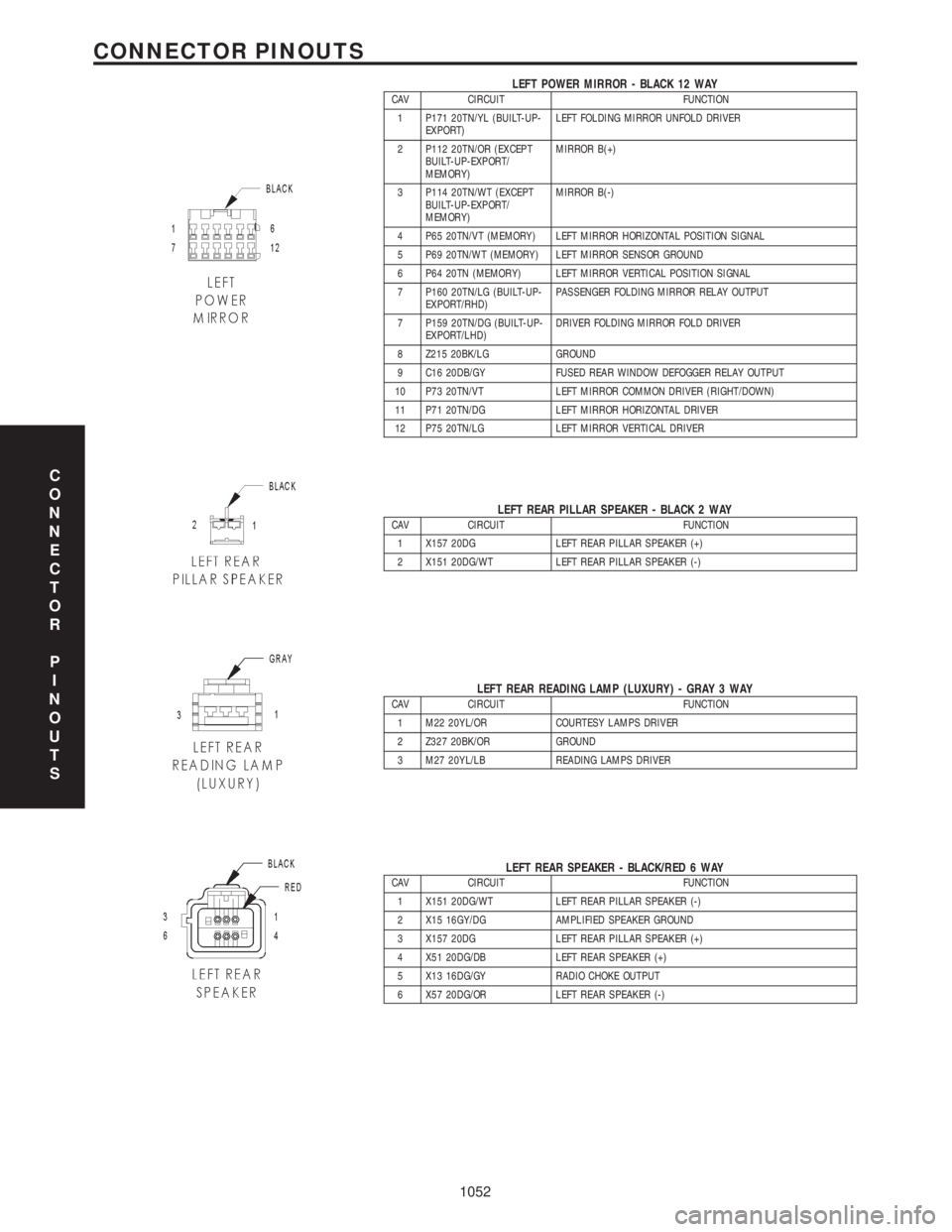

LEFT POWER MIRROR - BLACK 12 WAYCAV CIRCUIT FUNCTION
1 P171 20TN/YL (BUILT-UP-
EXPORT)LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 20TN/OR (EXCEPT
BUILT-UP-EXPORT/
MEMORY)MIRROR B(+)
3 P114 20TN/WT (EXCEPT
BUILT-UP-EXPORT/
MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (BUILT-UP-
EXPORT/RHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (BUILT-UP-
EXPORT/LHD)DRIVER FOLDING MIRROR FOLD DRIVER
8 Z215 20BK/LG GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR HORIZONTAL DRIVER
12 P75 20TN/LG LEFT MIRROR VERTICAL DRIVER
LEFT REAR PILLAR SPEAKER - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 X157 20DG LEFT REAR PILLAR SPEAKER (+)
2 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
LEFT REAR READING LAMP (LUXURY) - GRAY 3 WAYCAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT REAR SPEAKER - BLACK/RED 6 WAYCAV CIRCUIT FUNCTION
1 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
2 X15 16GY/DG AMPLIFIED SPEAKER GROUND
3 X157 20DG LEFT REAR PILLAR SPEAKER (+)
4 X51 20DG/DB LEFT REAR SPEAKER (+)
5 X13 16DG/GY RADIO CHOKE OUTPUT
6 X57 20DG/OR LEFT REAR SPEAKER (-)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1052
CONNECTOR PINOUTS

LEFT SLIDING DOOR LOCK MOTOR/AJAR SWITCH (MANUAL SLIDING DOOR) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 P5 20BK/DB LEFT SLIDING DOOR UNLOCK DRIVER
2 P32 20BK/TN LEFT SLIDING DOOR LOCK DRIVER
3 G77 20BK/DG LEFT SLIDING DOOR AJAR SWITCH SENSE
4 Z77 20BK GROUND
LEFT SLIDING DOOR MOTOR (POWER SLIDING DOOR) - BLACK 8 WAYCAV CIRCUIT FUNCTION
1- -
2 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4 Z163 18BK/TN GROUND
5 Q63 18OR/TN LEFT DOOR MOTOR CLUTCH DRIVER
6 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
7 Z33 20BK/TN GROUND
8 Q73 20TN/YL LEFT DOOR MOTOR HALL EFFECT SIGNAL
LEFT STOP/TURN SIGNAL RELAY (TRAILER TOW) - BLACK 5 WAYCAV CIRCUIT FUNCTION
1 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
1 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
2 Z1 18BK/DG GROUND
2 Z1 18BK/DG GROUND
3 L73 18YL LEFT STOP SIGNAL
4 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
4 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
5 L615 18OR LEFT COMBINATION SIGNAL
LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY) - BLACK 2 WAYCAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1055
CONNECTOR PINOUTS

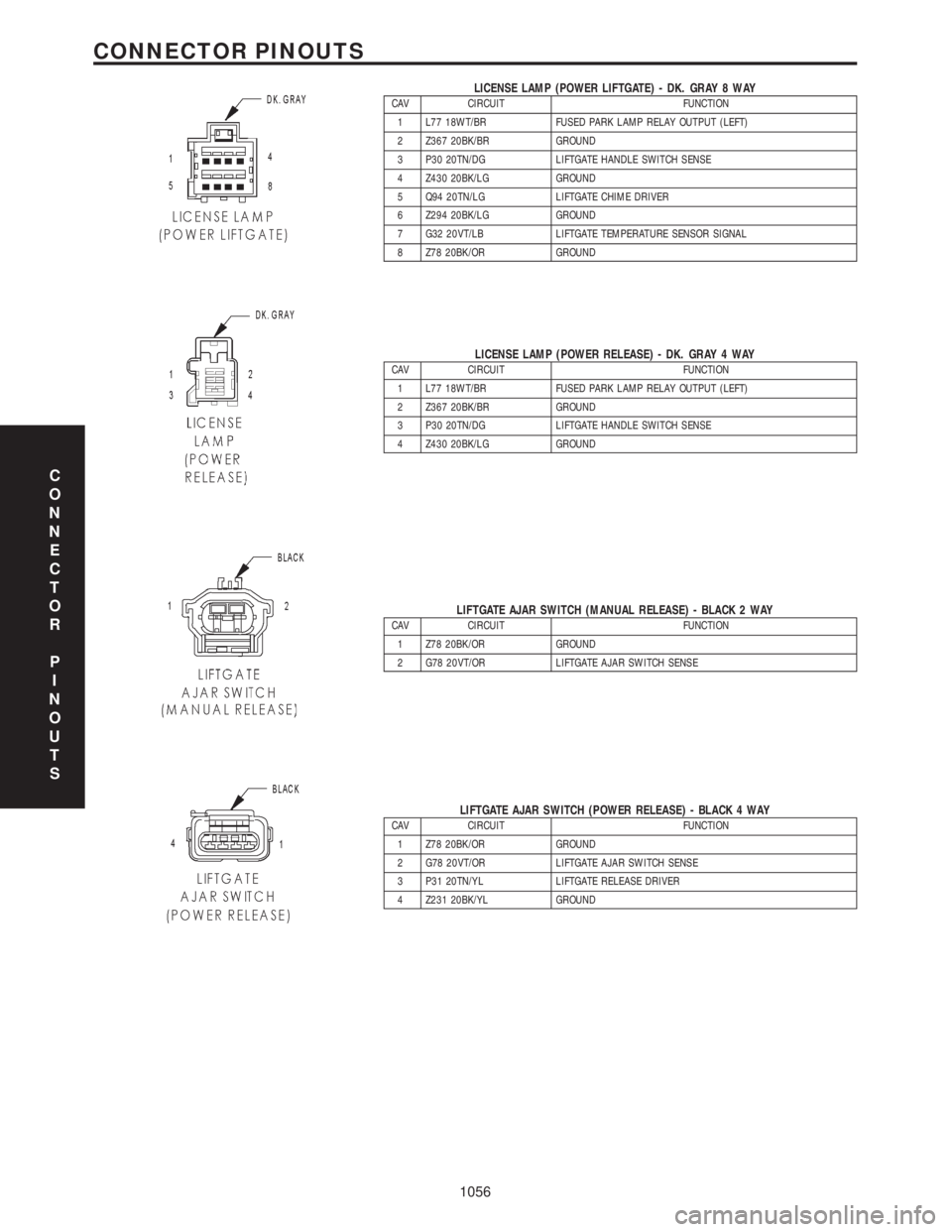

LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAYCAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAYCAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
LIFTGATE AJAR SWITCH (POWER RELEASE) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 20TN/YL LIFTGATE RELEASE DRIVER
4 Z231 20BK/YL GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1056
CONNECTOR PINOUTS

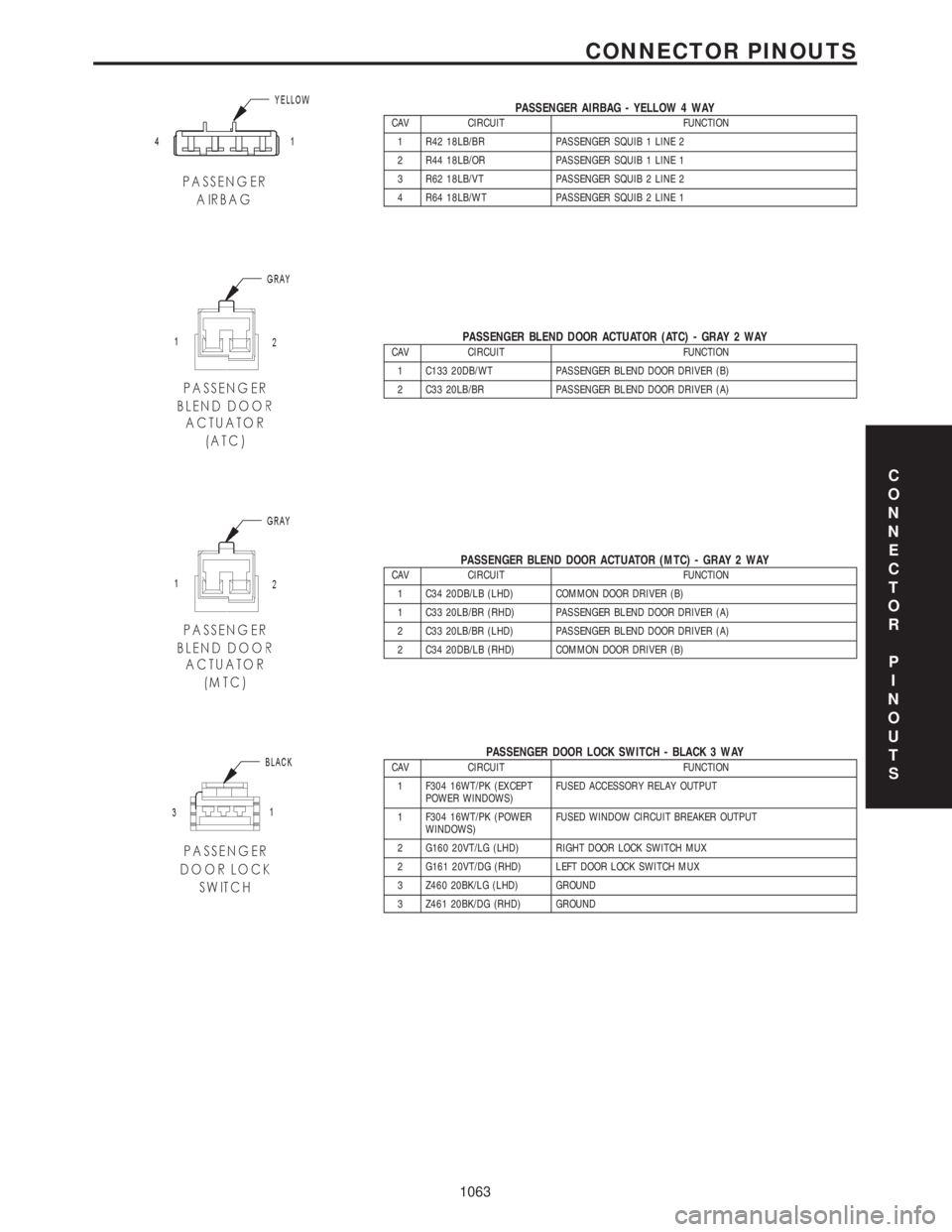

PASSENGER AIRBAG - YELLOW 4 WAYCAV CIRCUIT FUNCTION
1 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
2 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
PASSENGER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
2 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
PASSENGER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C33 20LB/BR (RHD) PASSENGER BLEND DOOR DRIVER (A)
2 C33 20LB/BR (LHD) PASSENGER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT
POWER WINDOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER
WINDOWS)FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1063
CONNECTOR PINOUTS

PASSENGER FOLDING MIRROR RELAY (BUILT-UP-EXPORT) - BLUE 9 WAYCAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
PASSENGER SEAT BELT SWITCH-2WAYCAV CIRCUIT FUNCTION
1 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
2 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
PASSENGER SEAT BELT TENSIONER-2WAYCAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1064
CONNECTOR PINOUTS

FUSES (IPM)FUSE
NO.AMPS FUSED CIRCUIT FUNCTION
1 20A INTERNAL FUSED B(+)
2 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT
3 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT
4 30A INTERNAL FUSED B(+)
5 20A F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
6 20A F307 16LB/PK (BATTERY POSITION) FUSED B(+)
6 20A F307 16LB/PK (ACCESSORY RELAY POSITION) FUSED ACCESSORY RELAY OUTPUT
8 20A INTERNAL FUSED B(+)
9 30A INTERNAL FUSED B(+)
10 40A C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
11 20A F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
12 25A C51 12LB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
13 40A C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
14 15A INTERNAL FUSED B(+) (I.O.D.)
15 20A INTERNAL (EATX) FUSED B(+)
16 25A INTERNAL FUSED B(+)
17 20A INTERNAL FUSED B(+)
18 20A INTERNAL FUSED B(+)
19 40A A101 12VT/RD FUSED B(+)
20 40A A102 12WT/RD FUSED B(+)
21 25A A111 12DG/RD FUSED B(+)
22 40A A110 12OR/RD FUSED B(+)
23 10A A106 20LB/RD FUSED B(+)
24 20A A701 16BR/RD FUSED B(+) (HAZARD)
26 20A A103 18GY/RD FUSED B(+)
27 40A A112 12OR/RD FUSED B(+)
28 40A F30 12PK/YL FUSED ACCESSORY RELAY OUTPUT
30 40A INTERNAL (RG) FUSED B(+)
31 40A A113 12WT/RD FUSED B(+)
32 40A A115 12YL/RD FUSED B(+)
33 15A INTERNAL FUSED ACCESSORY RELAY OUTPUT
ACCESSORY RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 35 ACCESSORY RELAY CONTROL (RUN-ACC)
86 INTERNAL B(+)
87 INTERNAL FUSED ACCESSORY RELAY OUTPUT
87A --
DEFOGGER RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 31 REAR WINDOW DEFOGGER RELAY CONTROL
86 INTERNAL B(+)
87 INTERNAL FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
87A --
FRONT BLOWER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 30 FRONT BLOWER MOTOR RELAY CONTROL
86 INTERNAL B(+)
87 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1066
CONNECTOR PINOUTS

FRONT CONTROL MODULE - BLACK 49 WAYCAV CIRCUIT FUNCTION
1 A1 B(+)
2 A1 B(+)
3 L43 LEFT LOW BEAM DRIVER
4 L34 RIGHT HIGH BEAM DRIVER
5 L33 LEFT HIGH BEAM DRIVER
6 L44 RIGHT LOW BEAM DRIVER
7 - NOT USED
8 Z117, Z118, Z343, Z344 GROUND
9 A1 B(+)
10 FCM 10 HORN RELAY CONTROL
11 FCM 11 NAME BRAND SPEAKER RELAY CONTROL
12 - SPARE
13 FCM 13 PARK LAMP RELAY CONTROL
14 FCM 14 FRONT WIPER ON/OFF RELAY CONTROL
15 C41 (DIESEL) CABIN HEATER ASSIST CONTROL
16 W7 FRONT WIPER PARK SWITCH SENSE
17 X3 HORN SWITCH SENSE
18 W1 WASHER FLUID LEVEL SWITCH SENSE
19 FCM 19 (GAS) IGNITION SWITCH OUTPUT (START)
20 A114 FUSED B(+) (I.O.D.)
21 L78 FUSED PARK LAMP RELAY OUTPUT (RIGHT)
22 D25 PCI BUS
23 G931 AMBIENT TEMPERATURE SENSOR RETURN
24 - SPARE
25 G31 AMBIENT TEMPERATURE SENSOR SIGNAL
26 L13 (RG) HEADLAMP ADJUST SIGNAL
27 F1, F2 FCM OUTPUT (UNLOCK-RUN-START)
28 F214 FCM OUTPUT (RUN-START) (SIACM)
29 F100 FCM OUTPUT (RUN) (ORC)
30 FCM 30 FRONT/REAR BLOWER MOTOR RELAY CONTROL
31 FCM 31 REAR WINDOW DEFOGGER RELAY CONTROL
32 FCM 32 (BUILT-UP-
EXPORT))HEADLAMP WASHER RELAY CONTROL
33 FCM 33 FRONT FOG LAMP RELAY CONTROL
34 FCM 34 FRONT WIPER HIGH/LOW RELAY CONTROL
35 FCM 35 ACCESSORY RELAY CONTROL (RUN-ACC)
36 B20 BRAKE FLUID LEVEL SWITCH SENSE
37 F20 IGNITION SWITCH OUTPUT (RUN-START)
38 A1 B(+)
39 T2 TRS REVERSE SENSE
40 T753 (DIESEL) IGNITION SWITCH OUTPUT (START)
41 L77 FUSED PARK LAMP RELAY OUTPUT (LEFT)
42 D23 FLASH PROGRAM ENABLE
43 Z116 GROUND
44 L50 PRIMARY BRAKE SWITCH SIGNAL
45 W10 FRONT WASHER PUMP MOTOR CONTROL
46 W20 REAR WASHER PUMP MOTOR CONTROL
47 K32 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID CONTROL
48 F201 FCM OUTPUT (RUN-START) (ORC)
49 - NOT USED
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1067
CONNECTOR PINOUTS

FRONT FOG LAMP RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
85 FCM 33 FRONT FOG LAMP RELAY CONTROL
86 INTERNAL FUSED B(+)
87 INTERNAL FRONT FOG LAMP RELAY OUTPUT
87A --
HEADLAMP WASHER RELAY (BUILT-UP-EXPORT)CAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+)
57 T55 20YL/VT (AUTOSTICK)
85 FCM 32 HEADLAMP WASHER RELAY CONTROL
86 INTERNAL FUSED B(+)
87 V53 12BR/OR HEADLAMP WASHER RELAY OUTPUT
87A - No Function Defined
NAME BRAND SPEAKER RELAYCAV CIRCUIT FUNCTION
30 INTERNAL FUSED B(+) (I.O.D.)
85 FCM 11 NAME BRAND SPEAKER (NBS) RELAY CONTROL
86 INTERNAL FUSED B(+) (I.O.D.)
87 X1 16DG/BR NAME BRAND SPEAKER (NBS) RELAY OUTPUT
87A --
PARK LAMP RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 13 PARK LAMP RELAY CONTROL
86 INTERNAL B(+)
87 INTERNAL PARK LAMP RELAY OUTPUT
87A --
POSITIVE TEMPERATURE COEFFICIENTSFUSE
NO.AMPS FUSED CIRCUIT FUNCTION
4 8A C16 18DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
7 13A A105 18DB/RD FUSED B(+)
REAR BLOWER MOTOR RELAYCAV CIRCUIT FUNCTION
30 INTERNAL B(+)
85 FCM 30 REAR BLOWER MOTOR RELAY CONTROL
86 INTERNAL B(+)
87 C51 12LB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
87A --
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1068
CONNECTOR PINOUTS
