relay CHRYSLER VOYAGER 2001 Service Manual

POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAYCAV CIRCUIT FUNCTION
1- -
2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER
3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
6 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
7 K13 16BR/LB FUEL INJECTOR NO. 3 DRIVER
8 K20 18BR/GY GENERATOR FIELD CONTROL
9- -
10 Z130 18BK/BR GROUND
11 K19 16DB/DG IGNITION COIL NO. 1 DRIVER
12 G6 16VT/GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
14 K58 16BR/VT (3.3L/3.8L) FUEL INJECTOR NO. 6 DRIVER
15 K38 16BR/OR (3.3L/3.8L) FUEL INJECTOR NO. 5 DRIVER
16 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER
17 K12 16BR/DB FUEL INJECTOR NO. 2 DRIVER
18 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
23 - -
24 - -
25 K42 18DB/YL KNOCK SENSOR SIGNAL
26 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K902 18BR/DG OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
31 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
32 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
36 K1 18VT/BR MANIFOLD ABOLUTE PRESSURE SENSOR SIGNAL
37 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
38 - -
39 - -
40 K35 18DB/VT EGR SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1071
CONNECTOR PINOUTS

POWERTRAIN CONTROL MODULE C2 (2.4L/3.3L/3.8L) - GRAY/GRAY 40 WAYCAV CIRCUIT FUNCTION
41 V37 18VT SPEED CONTROL SWITCH SIGNAL
42 C18 18LB/BR A/C PRESSURE SENSOR SIGNAL
43 K900 18DB/DG SENSOR GROUND
44 F888 18BR/PK 8 VOLT SUPPLY
45 - -
46 A109 18OR/RD FUSED B(+)
47 - -
48 K40 18BR/LG (2.4L) IDLE AIR CONTROL NO. 3 DRIVER
49 K60 18VT/LG (2.4L) IDLE AIR CONTROL NO. 2 DRIVER
49 K39 18VT/DG (3.3L/3.8L) IDLE AIR CONTROL NO. 1 DRIVER
50 Z131 18BK/DG GROUND
51 K141 18DB/YL OXYGEN SENSOR 1/2 SIGNAL
52 - -
53 - -
54 - -
55 - -
56 V36 18VT/YL SPEED CONTROL VACUUM SOLENOID CONTROL
57 K39 18VT/DG (2.4L) IDLE AIR CONTROL NO. 1 DRIVER
57 K60 18VT/LG (3.3L/3.8L) IDLE AIR CONTROL NO. 2 DRIVER
58 K59 18BR/DG (2.4L) IDLE AIR CONTROL NO. 4 DRIVER
59 D25 18WT/VT PCI BUS
60 - -
61 F855 18PK/YL 5 VOLT SUPPLY
62 B29 18DG/WT SECONDARY BRAKE SWITCH SIGNAL
63 T10 18DG/LG (EATX) TORQUE MANAGEMENT REQUEST SENSE
64 C13 18LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
65 D21 18WT/BR SCI TRANSMIT
66 N7 18DB/OR VEHICLE SPEED SENSOR SIGNAL
67 K51 18BR/WT AUTOMATIC SHUTDOWN RELAY CONTROL
68 K52 18DB/WT EVAPORATIVE EMISSION SOLENOID CONTROL
69 - -
70 K70 18DB/BR EVAPORATIVE EMISSION SOLENOID SENSE
71 - -
72 K107 18VT/WT (EXCEPT
BUILT-UP-EXPORT)LEAK DETECTION PUMP SWITCH SENSE
73 K173 18BR/VT RADIATOR FAN RELAY CONTROL
74 K31 18BR FUEL PUMP RELAY CONTROL
75 D20 18WT/LG SCI RECEIVE
76 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
77 K106 18VT/LB (EXCEPT
BUILT-UP-EXPORT)LEAK DETECTION PUMP SOLENOID CONTROL
78 K54 18DB/WT (ATX) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
79 - -
80 V35 18VT/OR SPEED CONTROL VENT SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1072
CONNECTOR PINOUTS

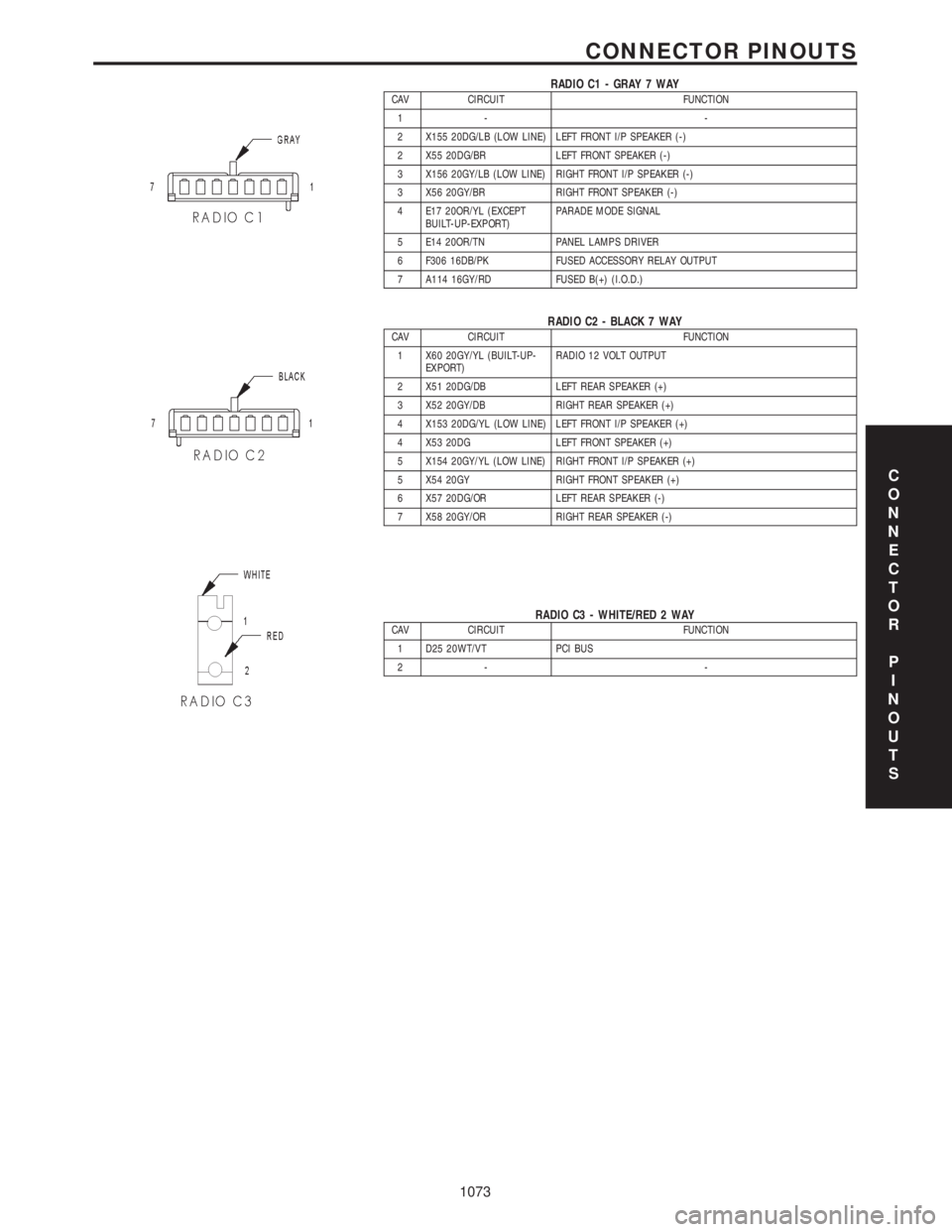

RADIO C1 - GRAY 7 WAYCAV CIRCUIT FUNCTION
1- -
2 X155 20DG/LB (LOW LINE) LEFT FRONT I/P SPEAKER (-)
2 X55 20DG/BR LEFT FRONT SPEAKER (-)
3 X156 20GY/LB (LOW LINE) RIGHT FRONT I/P SPEAKER (-)
3 X56 20GY/BR RIGHT FRONT SPEAKER (-)
4 E17 20OR/YL (EXCEPT
BUILT-UP-EXPORT)PARADE MODE SIGNAL
5 E14 20OR/TN PANEL LAMPS DRIVER
6 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
7 A114 16GY/RD FUSED B(+) (I.O.D.)
RADIO C2 - BLACK 7 WAYCAV CIRCUIT FUNCTION
1 X60 20GY/YL (BUILT-UP-
EXPORT)RADIO 12 VOLT OUTPUT
2 X51 20DG/DB LEFT REAR SPEAKER (+)
3 X52 20GY/DB RIGHT REAR SPEAKER (+)
4 X153 20DG/YL (LOW LINE) LEFT FRONT I/P SPEAKER (+)
4 X53 20DG LEFT FRONT SPEAKER (+)
5 X154 20GY/YL (LOW LINE) RIGHT FRONT I/P SPEAKER (+)
5 X54 20GY RIGHT FRONT SPEAKER (+)
6 X57 20DG/OR LEFT REAR SPEAKER (-)
7 X58 20GY/OR RIGHT REAR SPEAKER (-)
RADIO C3 - WHITE/RED 2 WAYCAV CIRCUIT FUNCTION
1 D25 20WT/VT PCI BUS
2- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1073
CONNECTOR PINOUTS

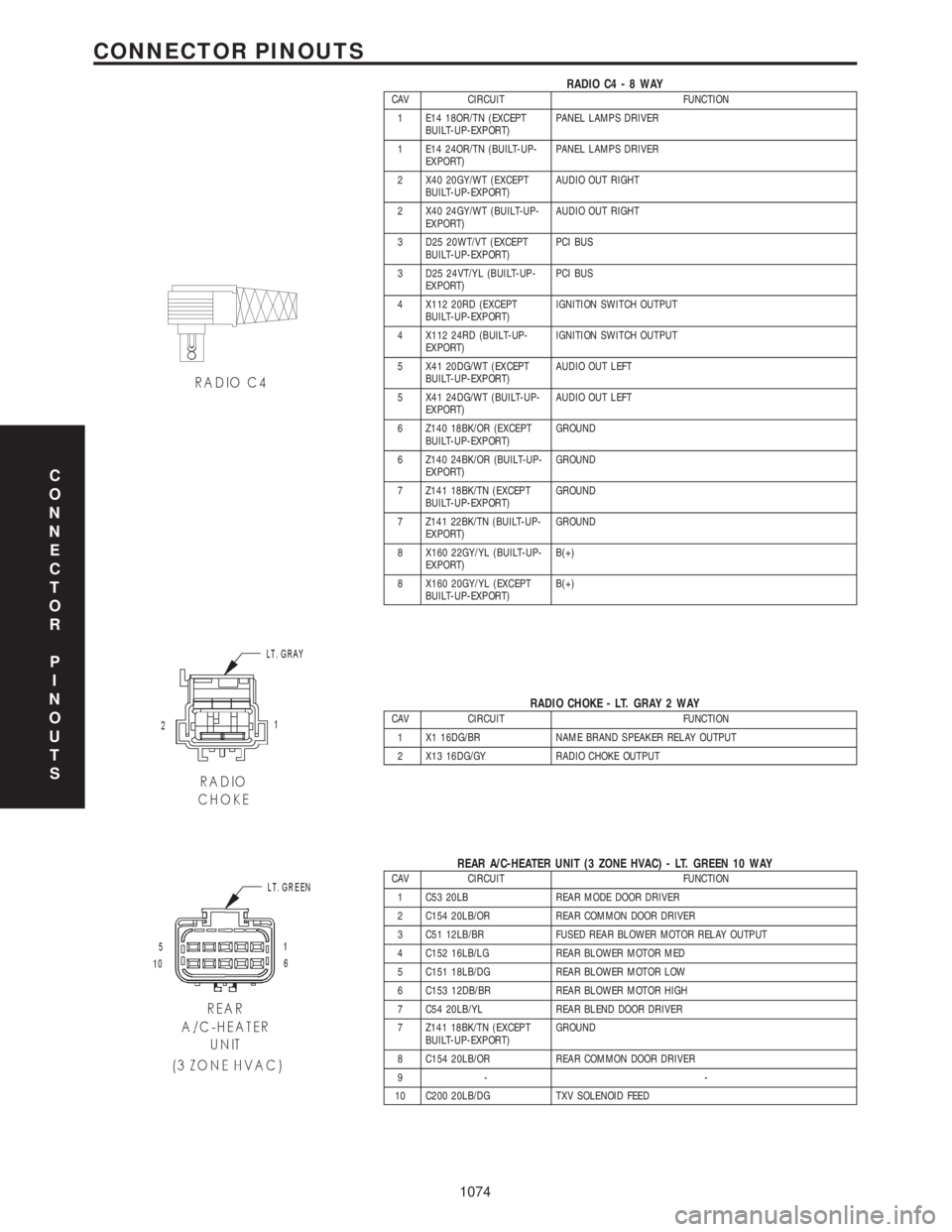

RADIO C4-8WAYCAV CIRCUIT FUNCTION
1 E14 18OR/TN (EXCEPT
BUILT-UP-EXPORT)PANEL LAMPS DRIVER
1 E14 24OR/TN (BUILT-UP-
EXPORT)PANEL LAMPS DRIVER
2 X40 20GY/WT (EXCEPT
BUILT-UP-EXPORT)AUDIO OUT RIGHT
2 X40 24GY/WT (BUILT-UP-
EXPORT)AUDIO OUT RIGHT
3 D25 20WT/VT (EXCEPT
BUILT-UP-EXPORT)PCI BUS
3 D25 24VT/YL (BUILT-UP-
EXPORT)PCI BUS
4 X112 20RD (EXCEPT
BUILT-UP-EXPORT)IGNITION SWITCH OUTPUT
4 X112 24RD (BUILT-UP-
EXPORT)IGNITION SWITCH OUTPUT
5 X41 20DG/WT (EXCEPT
BUILT-UP-EXPORT)AUDIO OUT LEFT
5 X41 24DG/WT (BUILT-UP-
EXPORT)AUDIO OUT LEFT
6 Z140 18BK/OR (EXCEPT
BUILT-UP-EXPORT)GROUND
6 Z140 24BK/OR (BUILT-UP-
EXPORT)GROUND
7 Z141 18BK/TN (EXCEPT
BUILT-UP-EXPORT)GROUND
7 Z141 22BK/TN (BUILT-UP-
EXPORT)GROUND
8 X160 22GY/YL (BUILT-UP-
EXPORT)B(+)
8 X160 20GY/YL (EXCEPT
BUILT-UP-EXPORT)B(+)
RADIO CHOKE - LT. GRAY 2 WAYCAV CIRCUIT FUNCTION
1 X1 16DG/BR NAME BRAND SPEAKER RELAY OUTPUT
2 X13 16DG/GY RADIO CHOKE OUTPUT
REAR A/C-HEATER UNIT (3 ZONE HVAC) - LT. GREEN 10 WAYCAV CIRCUIT FUNCTION
1 C53 20LB REAR MODE DOOR DRIVER
2 C154 20LB/OR REAR COMMON DOOR DRIVER
3 C51 12LB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
4 C152 16LB/LG REAR BLOWER MOTOR MED
5 C151 18LB/DG REAR BLOWER MOTOR LOW
6 C153 12DB/BR REAR BLOWER MOTOR HIGH
7 C54 20LB/YL REAR BLEND DOOR DRIVER
7 Z141 18BK/TN (EXCEPT
BUILT-UP-EXPORT)GROUND
8 C154 20LB/OR REAR COMMON DOOR DRIVER
9- -
10 C200 20LB/DG TXV SOLENOID FEED
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1074
CONNECTOR PINOUTS

REAR AUTO TEMP CONTROL SWITCH (ATC) - BLACK 13 WAYCAV CIRCUIT FUNCTION
1 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
2 Z27 18BK/DG GROUND
3 D22 20WT/TN KDB CLOCK
4 D17 20WT/DG KDB DATA
5 E10 20OR/DG PANEL LAMPS DRIVER
6- -
7- -
8- -
9- -
10 - -
11 - -
12 - -
13 - -
REAR BLOWER MOTOR POWER MODULE C1 (ATC) - RED/BLACK 4 WAYCAV CIRCUIT FUNCTION
1 C51 12DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
1 C51 18DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
2 C59 18 DB/LB BLOWER MOTOR CONTROL
3 Z135 12BK/LB GROUND
4- -
REAR BLOWER MOTOR POWER MODULE C2 (ATC) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 12BK GROUND
2 12DG POWER FEED
REAR DOME LAMP (EXCEPT LUXURY) - GRAY 3 WAYCAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1075
CONNECTOR PINOUTS

REMOTE KEYLESS ENTRY ANTENNA (JAPAN) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 D10 18WT REMOTE KEYLESS ENTRY ANTENNA (+)
2 D10 18WT/LB REMOTE KEYLESS ENTRY ANTENNA (-)
REMOTE KEYLESS ENTRY MODULE - BLACK/RED 6 WAYCAV CIRCUIT FUNCTION
1 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
2 D9 20WT/GY RKE MODULE PROGRAM ENABLE
3 Z109 20BK/GY GROUND
4 D10 18WT (RHD) REMOTE KEYLESS ENTRY ANTENNA (+)
5 D10 18WT/LB (RHD) REMOTE KEYLESS ENTRY ANTENNA (-)
6 A114 20GY/RD FUSED B(+) (I.O.D.)
RIGHT B-PILLAR SWITCH - GRAY 3 WAYCAV CIRCUIT FUNCTION
1 Z62 20BK/YL GROUND
2 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
3 G42 20VT/YL RIGHT SLIDING DOOR PILLAR SWITCH MUX
RIGHT CINCH/RELEASE MOTOR (POWER SLIDING DOOR) - GRAY 4 WAYCAV CIRCUIT FUNCTION
1 Q46 18TN/GY RIGHT CINCH/RELEASE MOTOR LATCH DRIVER
2 Z248 18BK/WT GROUND
3 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER
4 Q48 18TN/WT RIGHT CINCH/RELEASE MOTOR UNLATCH DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1077
CONNECTOR PINOUTS

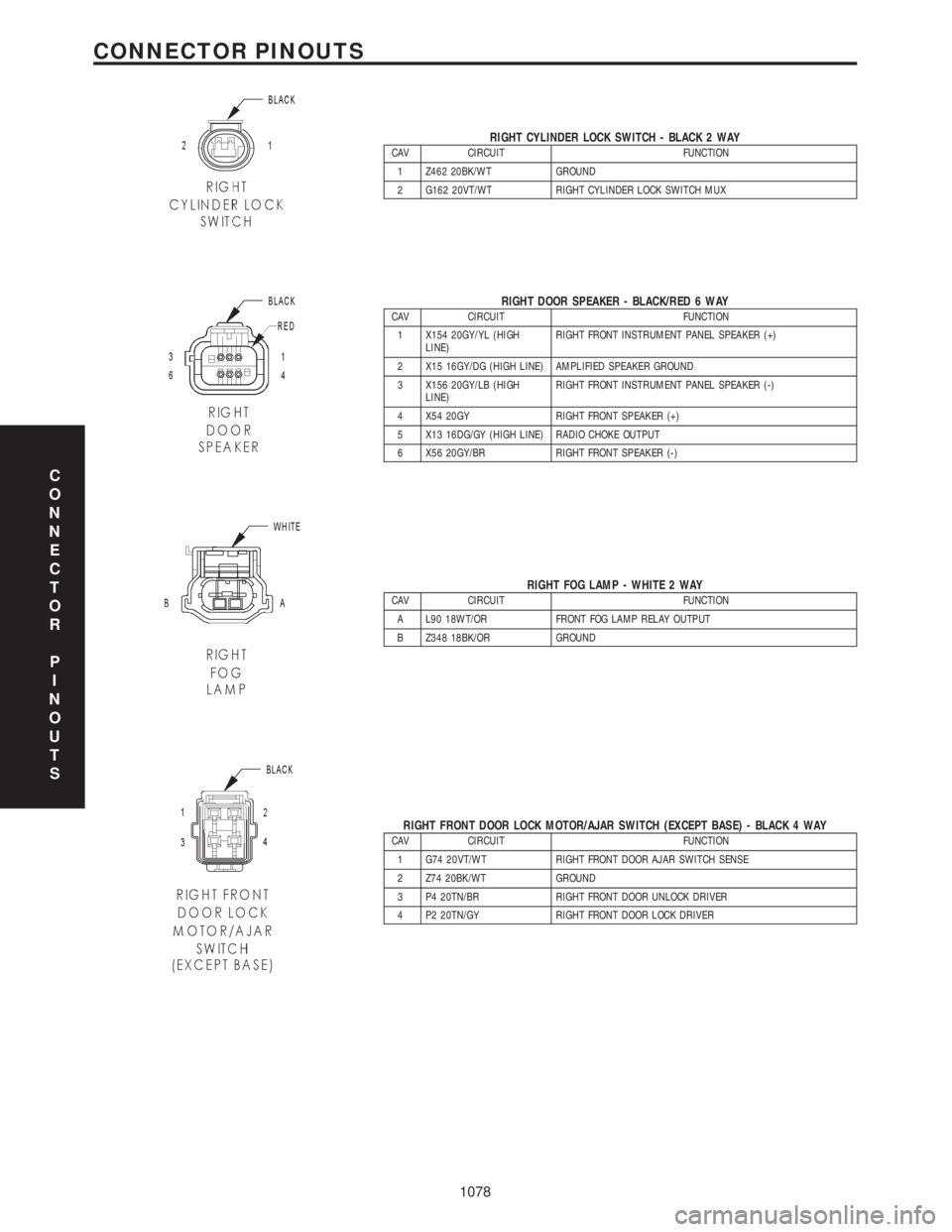

RIGHT CYLINDER LOCK SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z462 20BK/WT GROUND
2 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX
RIGHT DOOR SPEAKER - BLACK/RED 6 WAYCAV CIRCUIT FUNCTION
1 X154 20GY/YL (HIGH
LINE)RIGHT FRONT INSTRUMENT PANEL SPEAKER (+)
2 X15 16GY/DG (HIGH LINE) AMPLIFIED SPEAKER GROUND
3 X156 20GY/LB (HIGH
LINE)RIGHT FRONT INSTRUMENT PANEL SPEAKER (-)
4 X54 20GY RIGHT FRONT SPEAKER (+)
5 X13 16DG/GY (HIGH LINE) RADIO CHOKE OUTPUT
6 X56 20GY/BR RIGHT FRONT SPEAKER (-)
RIGHT FOG LAMP - WHITE 2 WAYCAV CIRCUIT FUNCTION
A L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT
B Z348 18BK/OR GROUND
RIGHT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z74 20BK/WT GROUND
3 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
4 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1078
CONNECTOR PINOUTS

RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 Z378 18BK/TN GROUND
RIGHT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
2 Z76 20BK/YL GROUND
RIGHT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RIGHT HIGH BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
1 Z344 16BR GROUND
2 L34 16GY RIGHT HIGH BEAM DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1079
CONNECTOR PINOUTS

RIGHT INSTRUMENT PANEL SPEAKER - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 X154 20GY/YL RIGHT FRONT I/P SPEAKER (+)
2 X156 20GY/LB RIGHT FRONT I/P SPEAKER (-)
RIGHT LOW BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L44 16WT RIGHT LOW BEAM DRIVER
RIGHT PARK LAMP (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT POWER MIRROR - BLACK 12 WAYCAV CIRCUIT FUNCTION
1 P174 20TN/LB (BUILT-UP-
EXPORT)RIGHT FOLDING MIRROR UNFOLD DRIVER
2- -
3- -
4 P68 20TN/YL (MEMORY) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
5 P66 20TN/LG (MEMORY) RIGHT MIRROR SENSOR GROUND
6 P67 20TN/OR (MEMORY) RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (BUILT-UP-
EXPORT/LHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (BUILT-UP-
EXPORT/RHD)DRIVER FOLDING MIRROR FOLD DRIVER
8 Z216 20BK/DB GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
12 P74 20TN/DB RIGHT MIRROR HORIZONTAL DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1080
CONNECTOR PINOUTS

TRANSMISSION CONTROL MODULE (EATX) - BLACK 60 WAYCAV CIRCUIT FUNCTION
1 T1 18DG/LB TRS T1 SENSE
2- -
3 T3 18DG/DB TRS T3 SENSE
4- -
5- -
6 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
7 D21 18WT/BR SCI TRANSMIT
8 T751 18YL IGNITION SWITCH OUTPUT (START)
9 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
10 T10 18DG/LG TORQUE MANAGEMENT REQUEST SENSE
11 F1 18PK/WT FCM OUTPUT (UNLOCK-RUN-START)
12 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
13 T13 18DG/VT SPEED SENSOR GROUND
14 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
15 T15 18YL/BR TRANSMISSION CONTROL RELAY CONTROL
16 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
17 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
18 - -
19 T19 18YL/DB 2-4 SOLENOID CONTROL
20 T20 18DG/WT LOW/REVERSE SOLENOID CONTROL
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 - -
30 - -
31 - -
32 - -
33 - -
34 - -
35 - -
36 - -
37 - -
38 - -
39 - -
40 - -
41 T41 18DG/GY (3.3L/3.8L) TRS T41 SENSE
41 T41 18YL/DB (2.4L) TRS T41 SENSE
42 T42 18DG/YL TRS T42 SENSE
43 D25 18WT/VT PCI BUS
44 - -
45 - -
46 D16 18WT/OR SCI RECEIVE
47 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
48 - -
49 - -
50 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
51 K900 18DB/DG SENSOR GROUND
52 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
53 Z132 16BK/YL GROUND
54 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
55 T55 18YL/VT (AUTOSTICK) AUTOSTICK/OVERDRIVE OFF MUX INPUT
56 A104 18YL/RD FUSED B(+)
57 Z133 16BK/LG GROUND
58 N7 18DB/OR VEHICLE SPEED SENSOR SIGNAL
59 T59 18YL/LB UNDERDRIVE SOLENOID CONTROL
60 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1085
CONNECTOR PINOUTS
