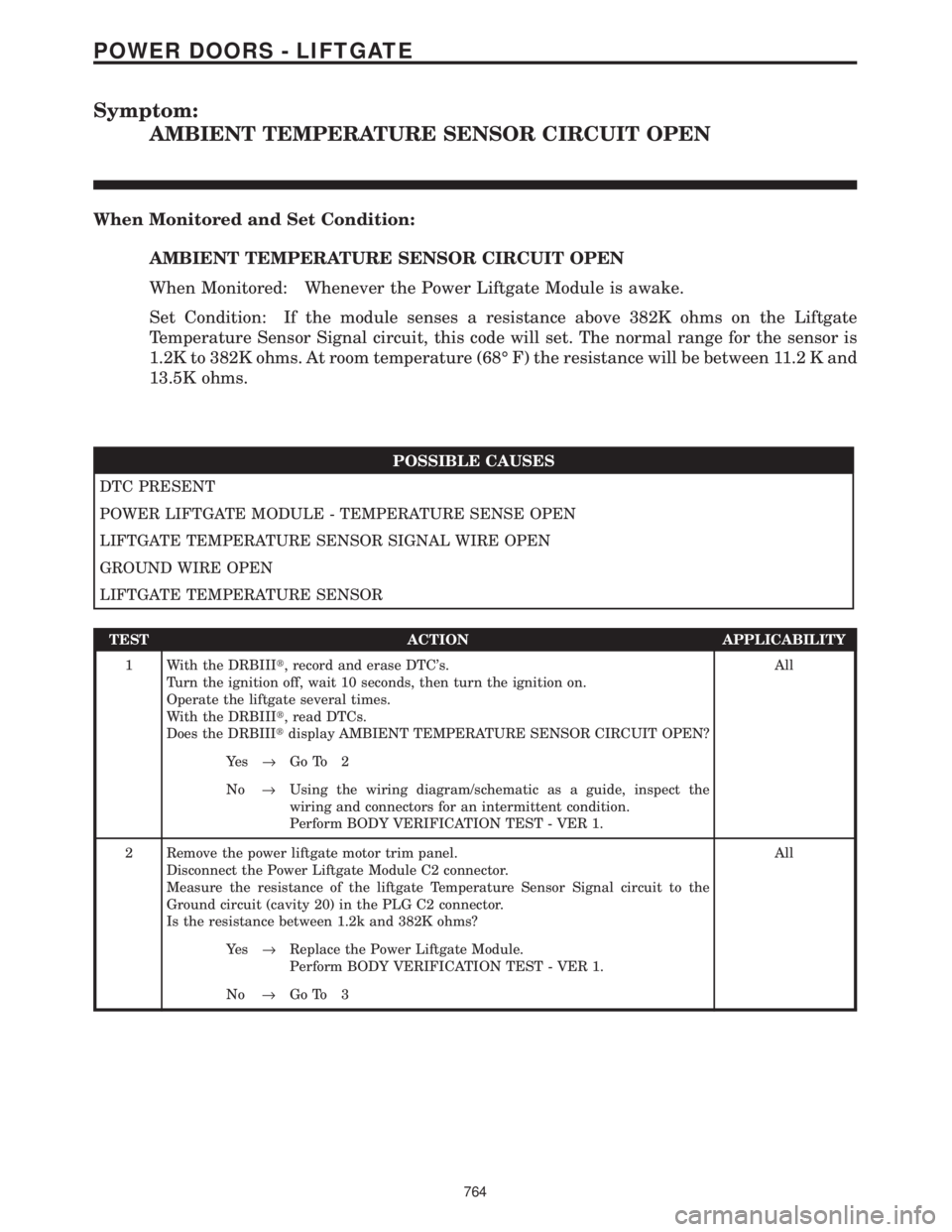

Symptom:
AMBIENT TEMPERATURE SENSOR CIRCUIT OPEN
When Monitored and Set Condition:
AMBIENT TEMPERATURE SENSOR CIRCUIT OPEN
When Monitored: Whenever the Power Liftgate Module is awake.
Set Condition: If the module senses a resistance above 382K ohms on the Liftgate
Temperature Sensor Signal circuit, this code will set. The normal range for the sensor is
1.2K to 382K ohms. At room temperature (68É F) the resistance will be between 11.2 K and
13.5K ohms.
POSSIBLE CAUSES
DTC PRESENT
POWER LIFTGATE MODULE - TEMPERATURE SENSE OPEN
LIFTGATE TEMPERATURE SENSOR SIGNAL WIRE OPEN
GROUND WIRE OPEN
LIFTGATE TEMPERATURE SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay AMBIENT TEMPERATURE SENSOR CIRCUIT OPEN?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Remove the power liftgate motor trim panel.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance of the liftgate Temperature Sensor Signal circuit to the
Ground circuit (cavity 20) in the PLG C2 connector.
Is the resistance between 1.2k and 382K ohms?All
Ye s®Replace the Power Liftgate Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
764
POWER DOORS - LIFTGATE

Symptom:
AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT TO GROUND
When Monitored and Set Condition:
AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT TO GROUND
When Monitored: Whenever the Power Liftgate Module is awake.
Set Condition: If the module senses a resistance below 1000 ohms on the Liftgate
Temperature Sensor Signal circuit, this code will set. The normal range for the sensor is
1.2K to 382K ohms. At room temperature (68É F) the resistance will be between 11.2 K and
13.5K ohms.
POSSIBLE CAUSES
DTC PRESENT
LIFTGATE TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND.
POWER LIFTGATE MODULE - TEMP SENSE SHORT TO GROUND
LIFTGATE TEMPERATURE SENSOR SIGNAL WIRE SHORT TO GROUND WIRE
LIFTGATE TEMPERATURE SENSOR
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay AMBIENT TEMPERATURE SENSOR CIRCUIT SHORT
TO GROUND?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Remove the power liftgate motor trim panel.
Disconnect the Power Liftgate Module C2 connector.
Measure the resistance between ground and the liftgate Temperature Sensor Signal
circuit.
Is the resistance below 5000.0 ohms?All
Ye s®Repair the Liftgate Temperature Sensor Signal circuit for a short
to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
766
POWER DOORS - LIFTGATE

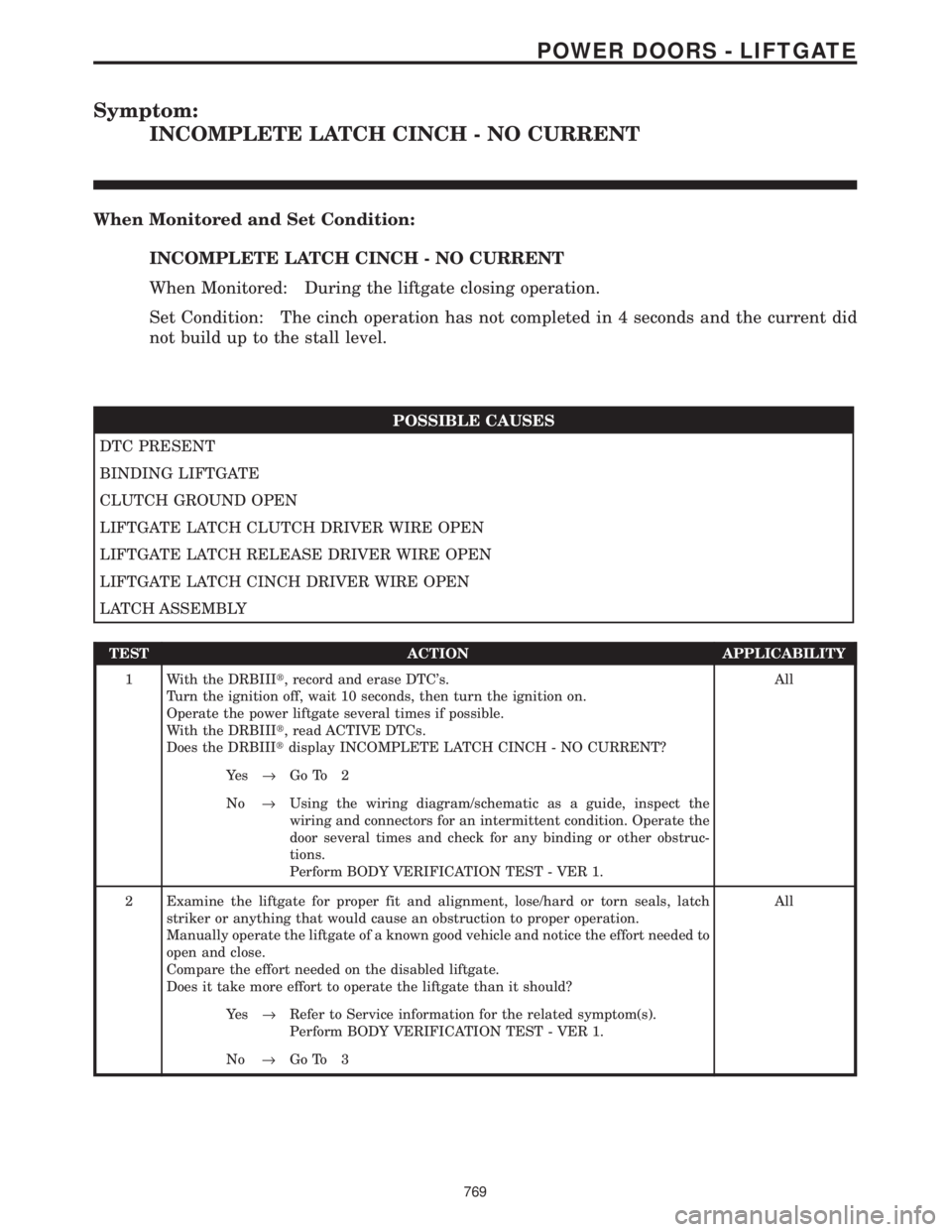

Symptom:
INCOMPLETE LATCH CINCH - NO CURRENT
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - NO CURRENT
When Monitored: During the liftgate closing operation.
Set Condition: The cinch operation has not completed in 4 seconds and the current did
not build up to the stall level.
POSSIBLE CAUSES
DTC PRESENT
BINDING LIFTGATE
CLUTCH GROUND OPEN
LIFTGATE LATCH CLUTCH DRIVER WIRE OPEN
LIFTGATE LATCH RELEASE DRIVER WIRE OPEN
LIFTGATE LATCH CINCH DRIVER WIRE OPEN
LATCH ASSEMBLY
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH CINCH - NO CURRENT?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
door several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper fit and alignment, lose/hard or torn seals, latch
striker or anything that would cause an obstruction to proper operation.
Manually operate the liftgate of a known good vehicle and notice the effort needed to
open and close.
Compare the effort needed on the disabled liftgate.
Does it take more effort to operate the liftgate than it should?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
769
POWER DOORS - LIFTGATE

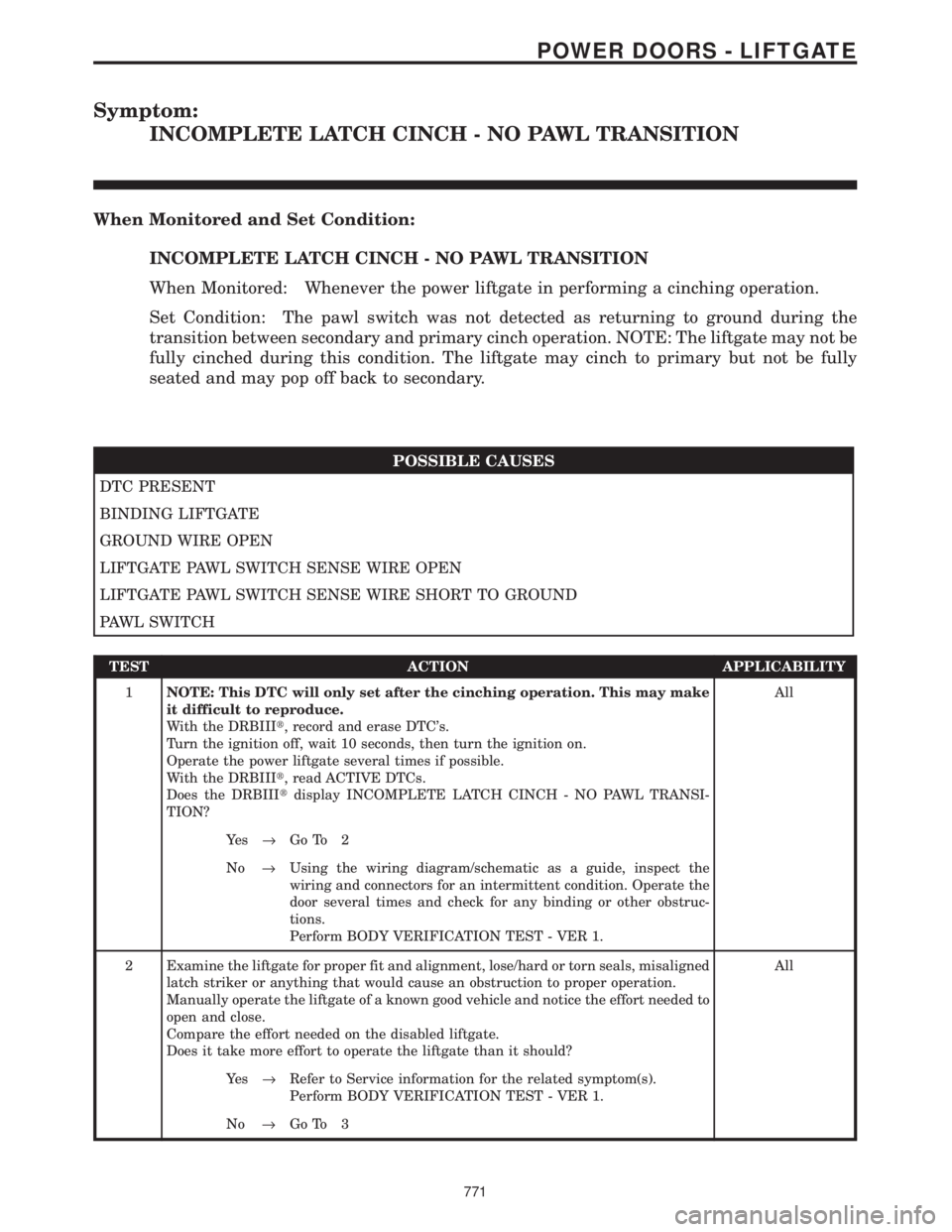

Symptom:
INCOMPLETE LATCH CINCH - NO PAWL TRANSITION
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - NO PAWL TRANSITION
When Monitored: Whenever the power liftgate in performing a cinching operation.
Set Condition: The pawl switch was not detected as returning to ground during the
transition between secondary and primary cinch operation. NOTE: The liftgate may not be
fully cinched during this condition. The liftgate may cinch to primary but not be fully
seated and may pop off back to secondary.
POSSIBLE CAUSES
DTC PRESENT
BINDING LIFTGATE
GROUND WIRE OPEN
LIFTGATE PAWL SWITCH SENSE WIRE OPEN
LIFTGATE PAWL SWITCH SENSE WIRE SHORT TO GROUND
PAWL SWITCH
TEST ACTION APPLICABILITY
1NOTE: This DTC will only set after the cinching operation. This may make
it difficult to reproduce.
With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH CINCH - NO PAWL TRANSI-
TION?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
door several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper fit and alignment, lose/hard or torn seals, misaligned
latch striker or anything that would cause an obstruction to proper operation.
Manually operate the liftgate of a known good vehicle and notice the effort needed to
open and close.
Compare the effort needed on the disabled liftgate.
Does it take more effort to operate the liftgate than it should?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
771
POWER DOORS - LIFTGATE

Symptom:
INCOMPLETE LATCH CINCH - OVERCURRENT
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - OVERCURRENT
When Monitored: Whenever the power liftgate is performing a cinching operation.
Set Condition: The latch motor stall current of 6.2 amps has been detected, or a time-out
has occurred with no pawl or ratchet failure. This code is set during the power cinching
operation.
POSSIBLE CAUSES
DTC PRESENT
BINDING DOOR
LIFTGATE LATCH CINCH DRIVER WIRE OPEN
LIFTGATE LATCH RELEASE DRIVER OPEN
LIFTGATE LATCH CINCH DRIVER WIRE SHORT TO GROUND
LIFTGATE LATCH CINCH DRIVER WIRE SHORT TO HARNESS GROUND
LIFTGATE LATCH RELEASE DRIVER WIRE SHORT TO GROUND
LIFTGATE LATCH RELEASE DRIVER WIRE SHORT TO HARNESS GROUND
LATCH ASSEMBLY
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH CINCH - OVERCURRENT?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
liftgate several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop
assembly, loose/ hard weatherstrip, and gear teeth on the power liftgate motor
assembly for wear or anything that would cause an obstruction to proper operation.
If necessary manually operate the power liftgate on a known good vehicle and notice
the effort needed to open and close for comparison.
Especially notice the effort needed to unlatch and close the liftgate.
Were there any mechanical problems found?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
773
POWER DOORS - LIFTGATE

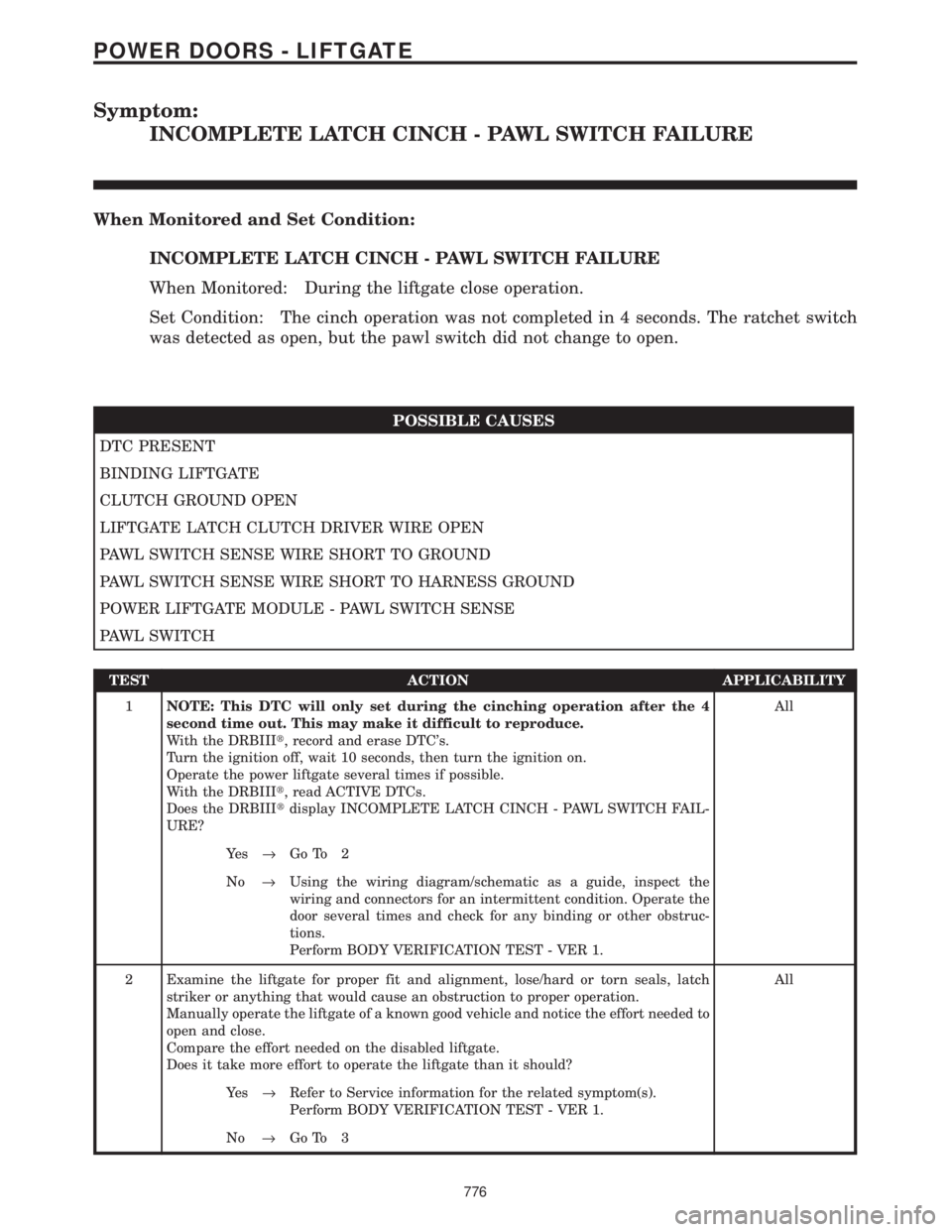

Symptom:
INCOMPLETE LATCH CINCH - PAWL SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - PAWL SWITCH FAILURE
When Monitored: During the liftgate close operation.
Set Condition: The cinch operation was not completed in 4 seconds. The ratchet switch
was detected as open, but the pawl switch did not change to open.
POSSIBLE CAUSES
DTC PRESENT
BINDING LIFTGATE
CLUTCH GROUND OPEN
LIFTGATE LATCH CLUTCH DRIVER WIRE OPEN
PAWL SWITCH SENSE WIRE SHORT TO GROUND
PAWL SWITCH SENSE WIRE SHORT TO HARNESS GROUND
POWER LIFTGATE MODULE - PAWL SWITCH SENSE
PAWL SWITCH
TEST ACTION APPLICABILITY
1NOTE: This DTC will only set during the cinching operation after the 4
second time out. This may make it difficult to reproduce.
With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH CINCH - PAWL SWITCH FAIL-
URE?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
door several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper fit and alignment, lose/hard or torn seals, latch
striker or anything that would cause an obstruction to proper operation.
Manually operate the liftgate of a known good vehicle and notice the effort needed to
open and close.
Compare the effort needed on the disabled liftgate.
Does it take more effort to operate the liftgate than it should?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
776
POWER DOORS - LIFTGATE

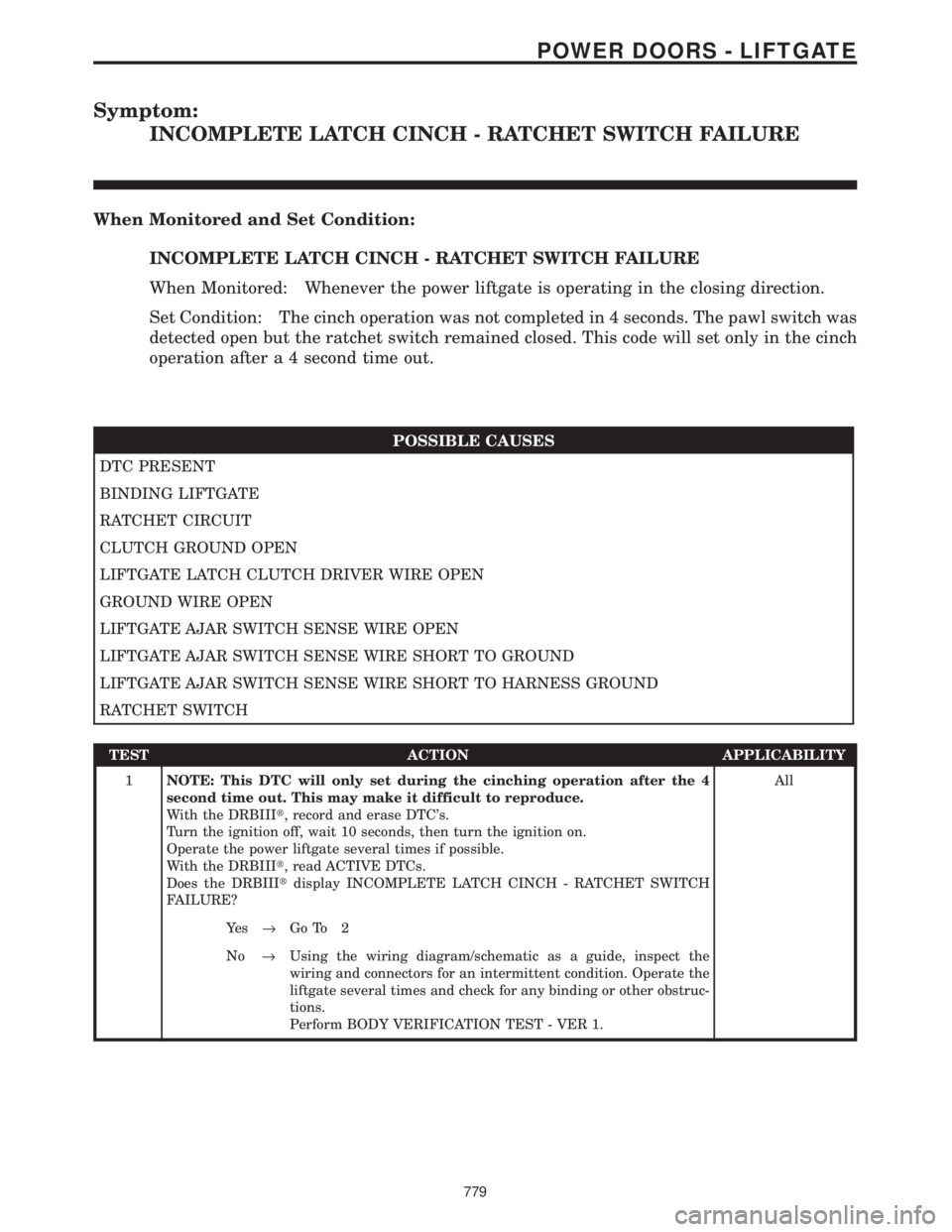

Symptom:
INCOMPLETE LATCH CINCH - RATCHET SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE LATCH CINCH - RATCHET SWITCH FAILURE
When Monitored: Whenever the power liftgate is operating in the closing direction.
Set Condition: The cinch operation was not completed in 4 seconds. The pawl switch was
detected open but the ratchet switch remained closed. This code will set only in the cinch
operation after a 4 second time out.
POSSIBLE CAUSES
DTC PRESENT
BINDING LIFTGATE
RATCHET CIRCUIT
CLUTCH GROUND OPEN
LIFTGATE LATCH CLUTCH DRIVER WIRE OPEN
GROUND WIRE OPEN
LIFTGATE AJAR SWITCH SENSE WIRE OPEN
LIFTGATE AJAR SWITCH SENSE WIRE SHORT TO GROUND
LIFTGATE AJAR SWITCH SENSE WIRE SHORT TO HARNESS GROUND
RATCHET SWITCH
TEST ACTION APPLICABILITY
1NOTE: This DTC will only set during the cinching operation after the 4
second time out. This may make it difficult to reproduce.
With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH CINCH - RATCHET SWITCH
FAILURE?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
liftgate several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
779

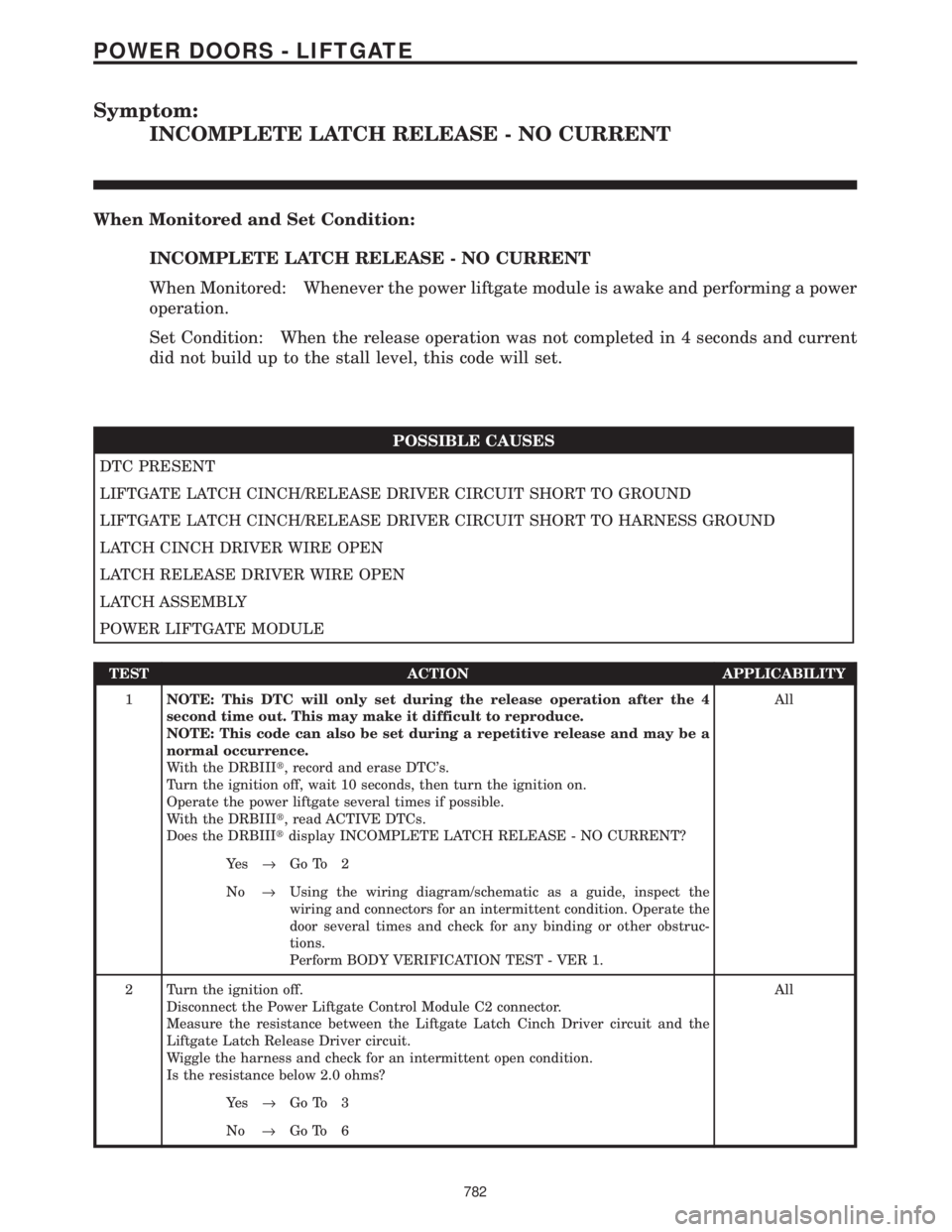

POWER DOORS - LIFTGATE

Symptom:
INCOMPLETE LATCH RELEASE - NO CURRENT
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE - NO CURRENT
When Monitored: Whenever the power liftgate module is awake and performing a power
operation.
Set Condition: When the release operation was not completed in 4 seconds and current
did not build up to the stall level, this code will set.
POSSIBLE CAUSES
DTC PRESENT
LIFTGATE LATCH CINCH/RELEASE DRIVER CIRCUIT SHORT TO GROUND
LIFTGATE LATCH CINCH/RELEASE DRIVER CIRCUIT SHORT TO HARNESS GROUND
LATCH CINCH DRIVER WIRE OPEN
LATCH RELEASE DRIVER WIRE OPEN
LATCH ASSEMBLY
POWER LIFTGATE MODULE
TEST ACTION APPLICABILITY
1NOTE: This DTC will only set during the release operation after the 4
second time out. This may make it difficult to reproduce.
NOTE: This code can also be set during a repetitive release and may be a
normal occurrence.
With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH RELEASE - NO CURRENT?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
door several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Power Liftgate Control Module C2 connector.
Measure the resistance between the Liftgate Latch Cinch Driver circuit and the
Liftgate Latch Release Driver circuit.
Wiggle the harness and check for an intermittent open condition.
Is the resistance below 2.0 ohms?All
Ye s®Go To 3
No®Go To 6
782
POWER DOORS - LIFTGATE

Symptom:
INCOMPLETE LATCH RELEASE - RATCHET SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE - RATCHET SWITCH FAILURE
When Monitored: Whenever the power liftgate is performing a release operation.
Set Condition: The release operation was not completed in 4 seconds or a stall condition
was detected in the release operation. The pawl switch was grounded but the ratchet
switch remained open. This code will set only in the release operation.
POSSIBLE CAUSES
DTC PRESENT
BINDING DOOR
POWER LIFTGATE MODULE - RATCHET CIRCUIT
GROUND WIRE OPEN
LIFTGATE AJAR SWITCH SENSE WIRE OPEN
RATCHET SWITCH
TEST ACTION APPLICABILITY
1NOTE: This DTC will only set during the releasing operation after the 4
second time out. This may make it difficult to reproduce.
With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH RELEASE - RATCHET SWITCH
FAILURE?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
door several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper fit and alignment, loose/ hard or torn seals, worn
teeth on the gears or anything that would cause an obstruction to proper operation.
Manually operate the liftgate of a known good vehicle and notice the effort needed to
open and close.
Compare the effort needed on the disabled liftgate.
Especially notice the effort needed to unlatch and close the liftgate.
Does it take more effort to operate the liftgate than it should?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
785
POWER DOORS - LIFTGATE

Symptom:
INCOMPLETE LATCH RELEASE- OVERCURRENT
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE- OVERCURRENT
When Monitored: Whenever the power liftgate is operating.
Set Condition: The latch motor stall current of 6.2 amps was detected during a release.
The main causes of this code setting is some type of blockage during the release. This code
is set during the power releasing operation.
POSSIBLE CAUSES
DTC PRESENT
BINDING LIFTGATE
LATCH ASSEMBLY
TEST ACTION APPLICABILITY
1NOTE: This DTC can be set if a redundant release command is sent during
a cinching operation. In that case it would not signify a failure of any
components.
With the DRBIIIt, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the DRBIIIt, read ACTIVE DTCs.
Does the DRBIIItdisplay INCOMPLETE LATCH RELEASE - OVER CURRENT?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors for an intermittent condition. Operate the
door several times and check for any binding or other obstruc-
tions.
Perform BODY VERIFICATION TEST - VER 1.
2 Examine the liftgate for proper fit and alignment, loose/hard or torn seals, struts or
anything that would cause an obstruction to proper operation.
Manually operate the liftgate of a known good vehicle and notice the effort needed to
open and close.
Compare the effort needed on the disabled liftgate.
Especially notice the effort needed to unlatch and close the liftgate.
Does it take more effort to operate the liftgate than it should?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Latch Assembly.
Perform BODY VERIFICATION TEST - VER 1.
787
POWER DOORS - LIFTGATE
